FC-36 STEEL PANEL

The Strongest and Most Widely Used 3/4" Panel for Every Exterior


The Proven Exterior Panel For Agriculture and Commercial Builds

40 Year Colour Warranty, Class 4 Impact Rating & Proven Long-Term Performance

With a full 3/4" tall rib designed for maximum rigidity, The FC-36 Panel is engineered to strike the ultimate balance between economy and strength. The overlap anti-siphon channel keeps the weather outside, while the 40 year paint guarantee and ultra high-tensile substrate keeps the exterior looking great for years to come. A Class 4 Impact Resistance Rating provides excellent protection from hail damage - a necessity now throughout our Western Canadian region.

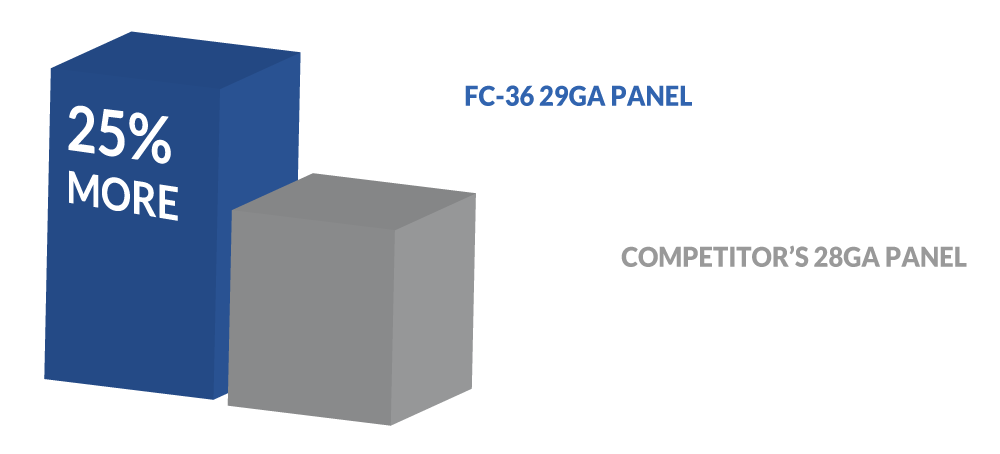

Better Hail Protection For Your Barn

Our FC-36 Panel comes with 25% more protection than the competitors 28ga Panel. With a Class 4 Impact Resistance, the highest rating possible,  our FC-36 Panel is Highly Resistant to Hail Damage and can save you from high costs associated with seasonal hailstorms.

Say Goodbye to the Hydraulic Effect

Our Anti-Siphon Channel combats the effect of any water being suctioned uphill between metal panels. This simple yet smart design on our panels will keep your buildings dry and weather tight for years to come.


5 Layers of Protection in Every Sheet

Our 40 year paint finish warranty provides superior resistance to chalking, fading and environmental weathering. 5 Layers of Protection are built into every sheet of steel we manufacture. This includes an ASTM A792 Or A653 Structural 80,000 Psi Minimum Yield High Tensile Steel Substrate.

The Perfect Balance For Your Budget

Maximum rigidity is achieved with the bell top design on the FC-36 Panel, promising the perfect balance of strength and economy for any structure in need of a durable exterior for exceptional value.


HOW WE COMPARE TO THE COMPETITION

RELATIVE STRENGTH COMPARISON: BOTH PANELS SUBJECTED TO IDENTICAL LOAD AND SPAN CONDITIONS

THEIRS: 28ga 5/8" Panel


OURS: 29ga 3/4" Panel


Complete Your Building with Our FC-36 Panel

Ideal Solution for Roofing and Siding for every type of agricultural and commercial building:

● Acreage Buildings

● Farm Barns

● Farm Shops

● Riding Arenas

● Machine Sheds

● Hay Barns

● Grain Storage

● Livestock Shelters

● Chicken Barns

● Farm Offices

● Airplane Hangers

● Commercial Shops

● Commercial Offices

● Storage Facilities

● Garages

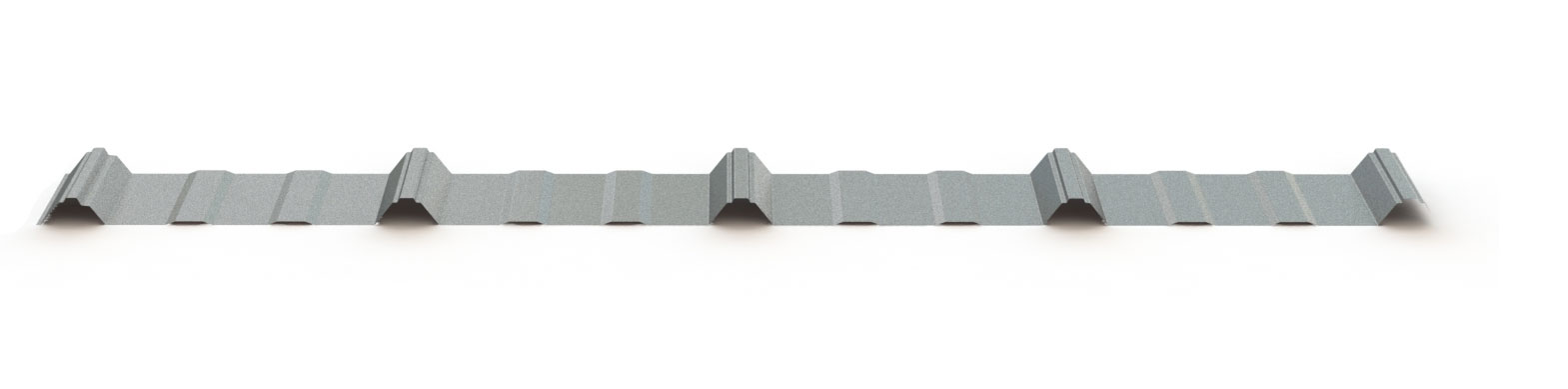

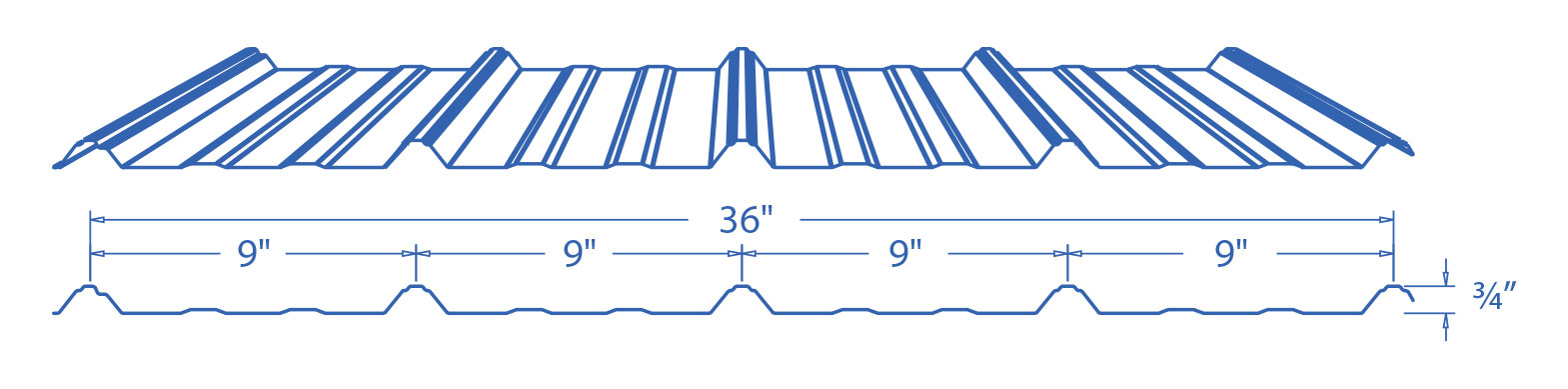

FC-36 Panel Profile

All
29 Gauge
26 Gauge

Galvanized

Galvalume

Bright White

White White

Iceberg

Bone White

Iceberg

Wicker

Antique Linen

Stone Grey

Hickory

Seawolf

Buckskin

Sable

Tan

Gold

Copper Penny

Bright Red

Tile Red

Dark Red

Coffee Brown

Dark Brown

Black

Carbon

Gunmetal

Charcoal

Regent Grey

Ascot Grey

Oxford Blue

Slate Blue

Royal Blue

Heron Blue

Sapphire Blue

Turquoise

Dark Sage

Melchers Green



Specifications


Application: Roof & Wall

 Coverage: 36"

Class 4 Impact Resistance

Slope: 3/12 without Sealant

Slope: 2.5/12 with Overlap Sealant

Overlap Anti-Siphon Channel

Bell Top Results in Strongest 3/4" Panel

Available in 29, 26 Gauge

Available in over 30 Colours & Finishes

More Colours & Finishes Available by Special Order


Product Brochures


FC 36 PANEL BROCHURE

STANDARD COLOUR CHART

STANDARD TRIMS

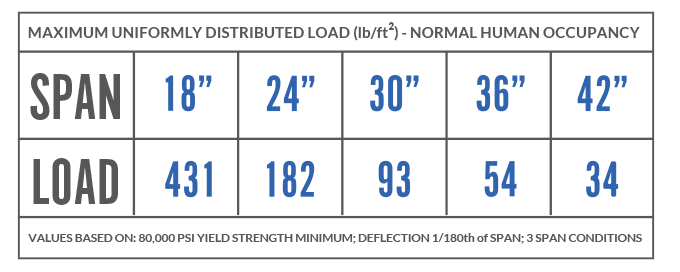

FC36 LOAD TABLE

FC 36 INSTALLATION GUIDE

HOW WE COMPARE

Both Panels Were Subjected to Identical Load and Span Conditions

COMPETITOR'S 28ga 5/8" PANEL



FORMA STEEL FC-36 29ga 3/4" PANEL



Project Inspiration


FC-36 Panel
FC-36 Panel
FC-36 Panel
FC-36 Panel
FC-36 Panel
FC-36 Panel
FC-36 Panel

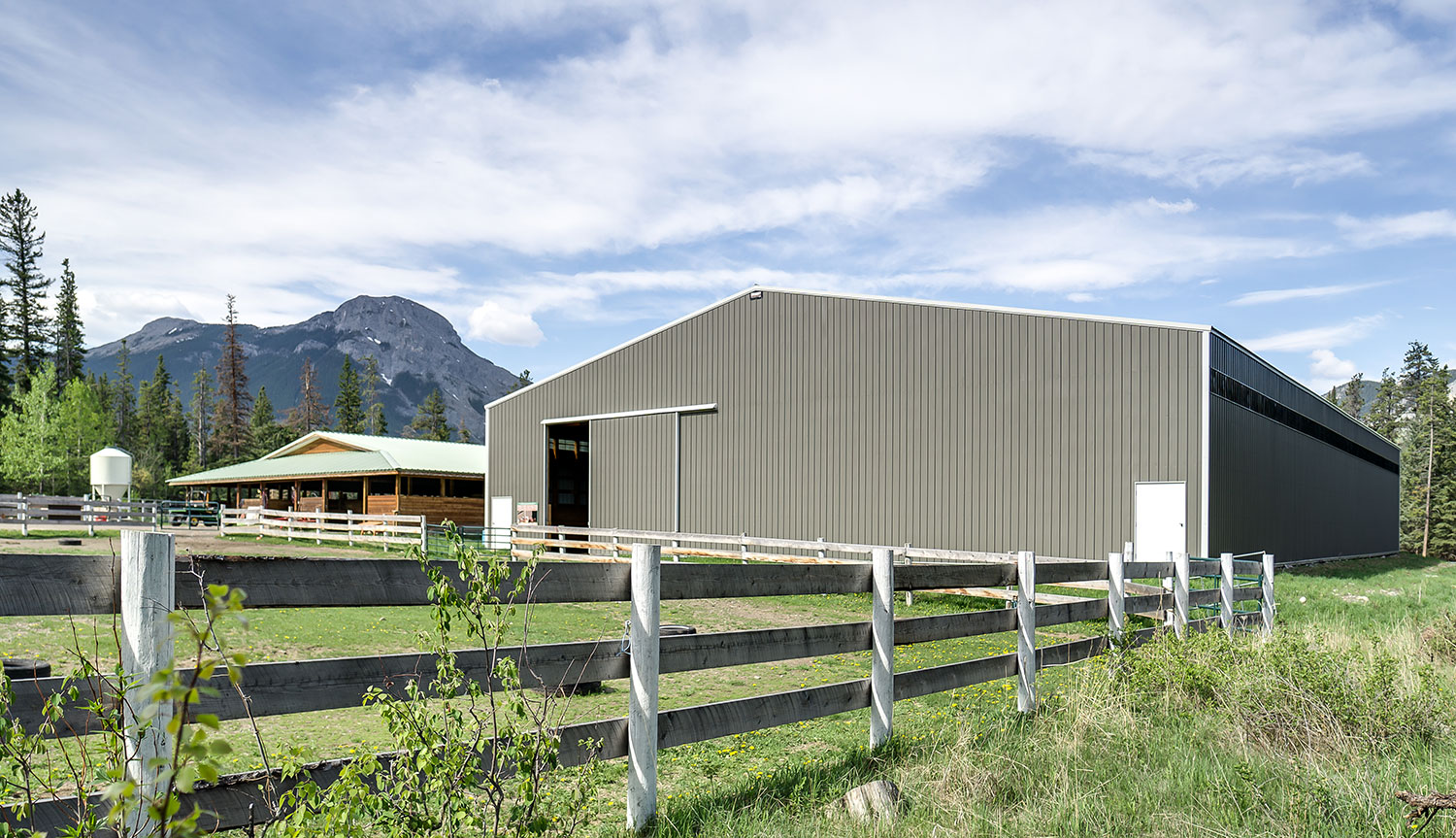

Agricultural Building with Bright Red FC-36
Agricultural Building with Bright Red FC-36
Agricultural Building with Bright Red FC-36
FC-36 Panel
FC-36 Panel

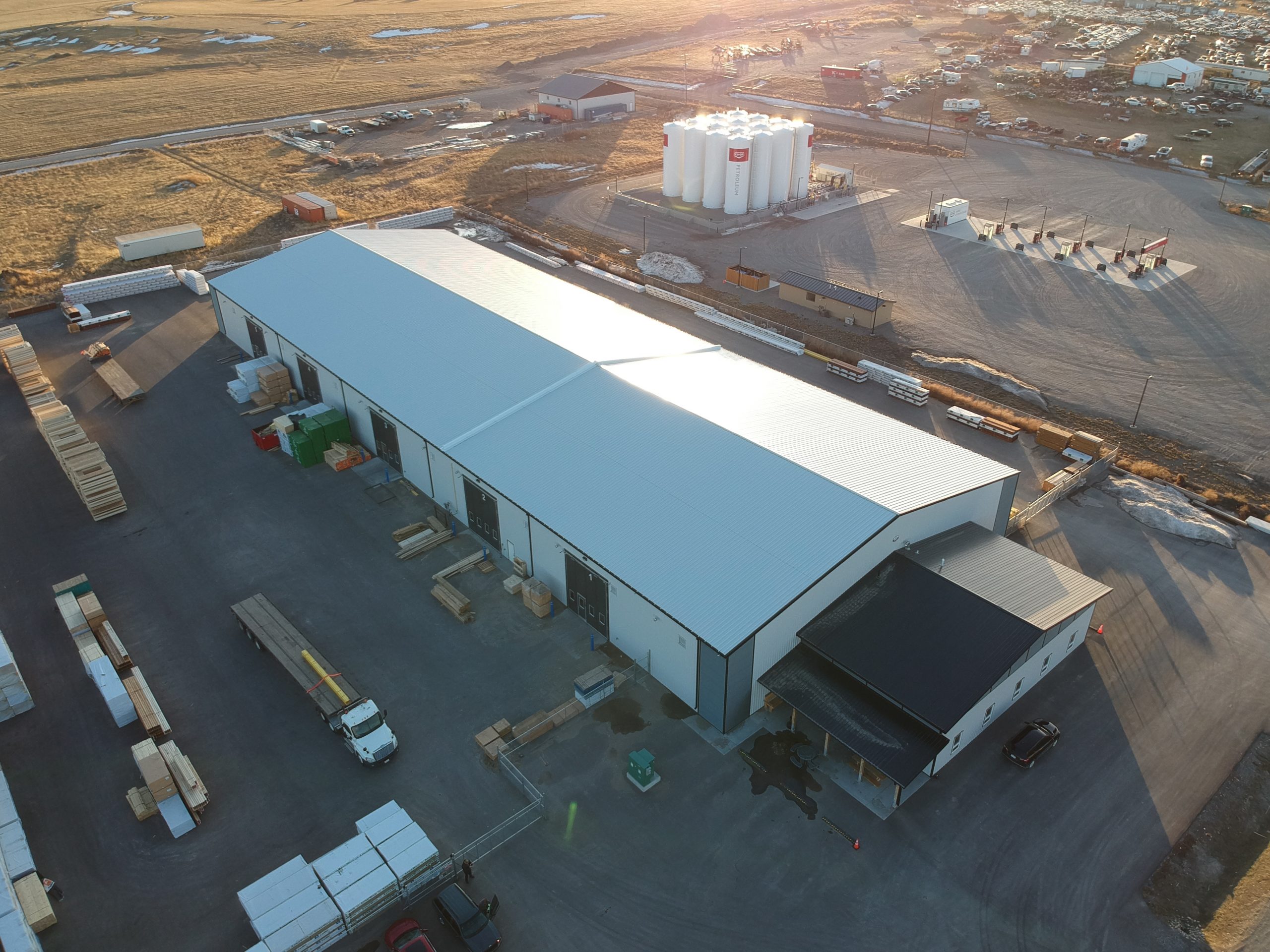

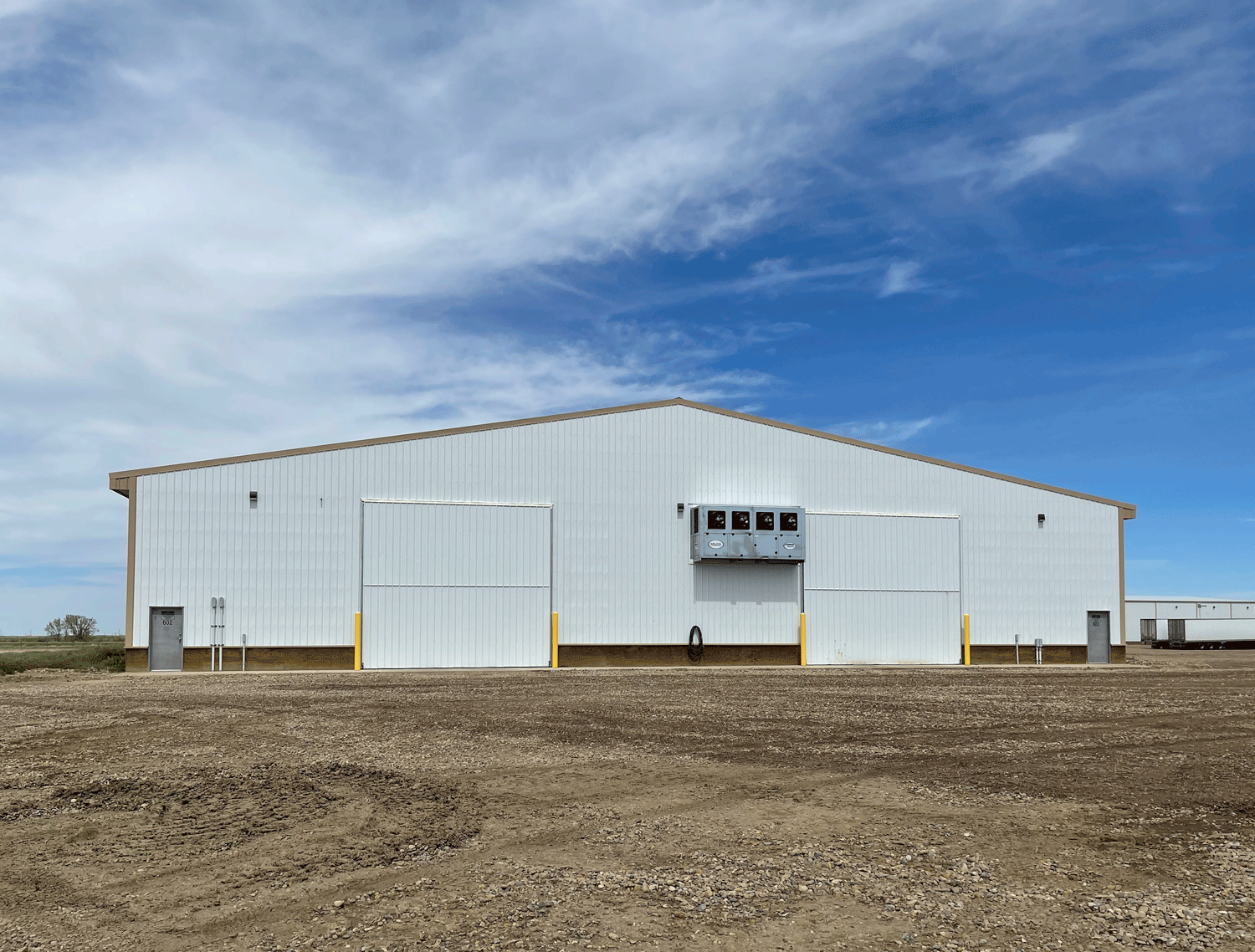

Commercial Building
FC-36 Panel
FC-36 Panel
FC-36
FC-36
FC-36 Panel
FC-36 Panel
FC-36 Panel
FC-36 Panel

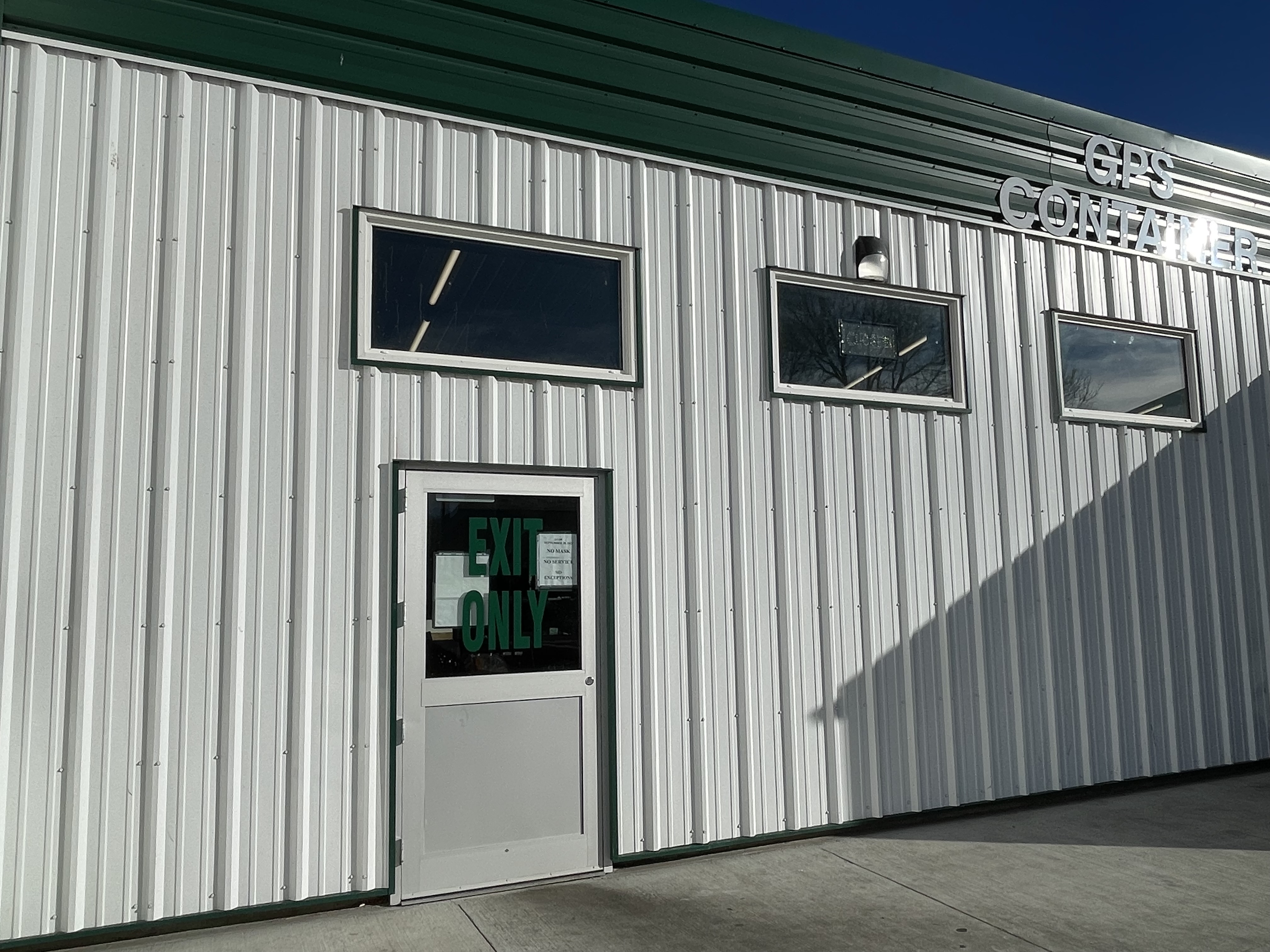

Commercial Shop
Commercial Shop
FC-36 Panel
FC-36 Panel
Commercial Shop
FC-36 Panel
FC-36 Panel
FC-36 Panel
FC-36 Panel
FC-36 Panel
Commercial Building
FC-36 Panel
FC-36 Panel

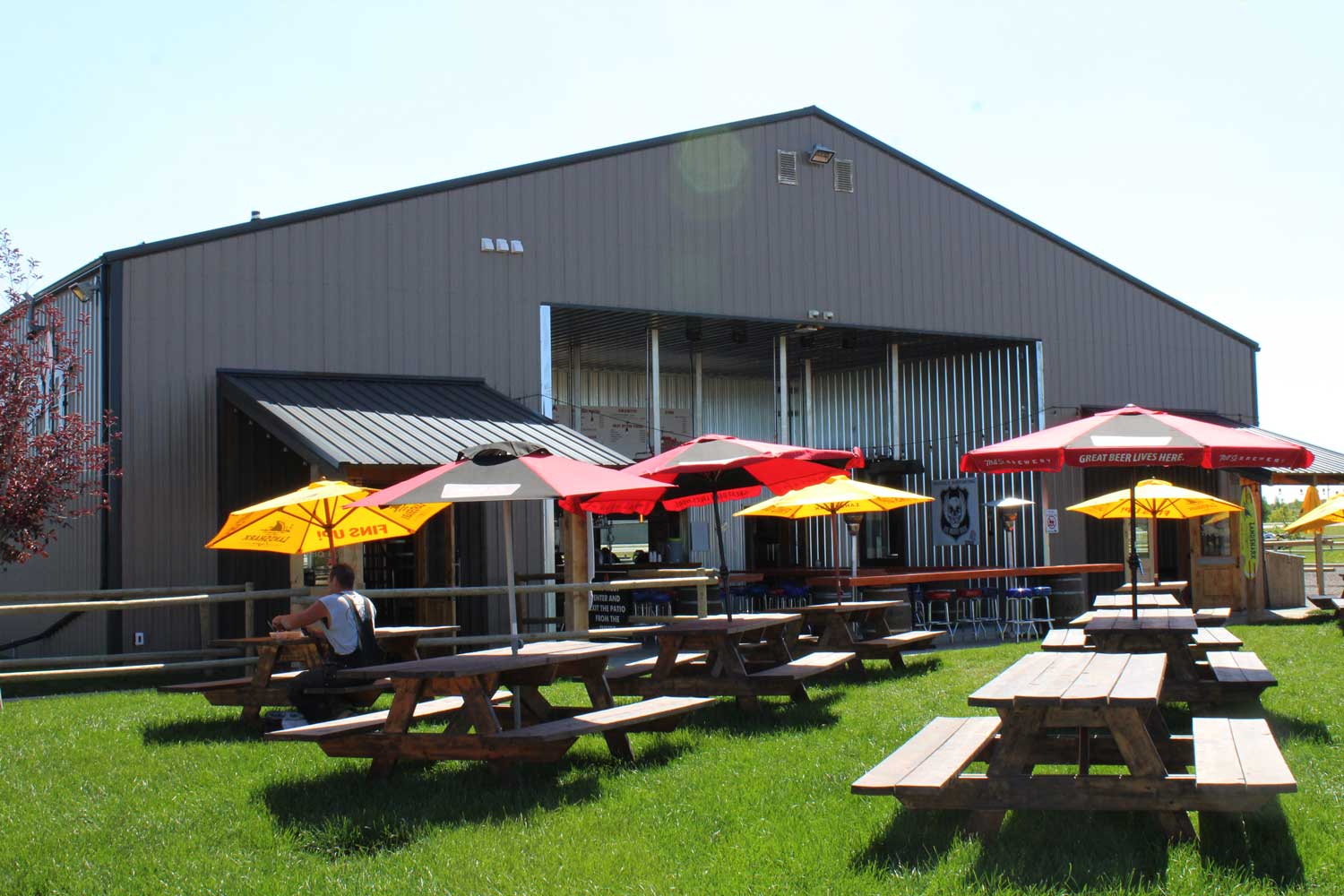

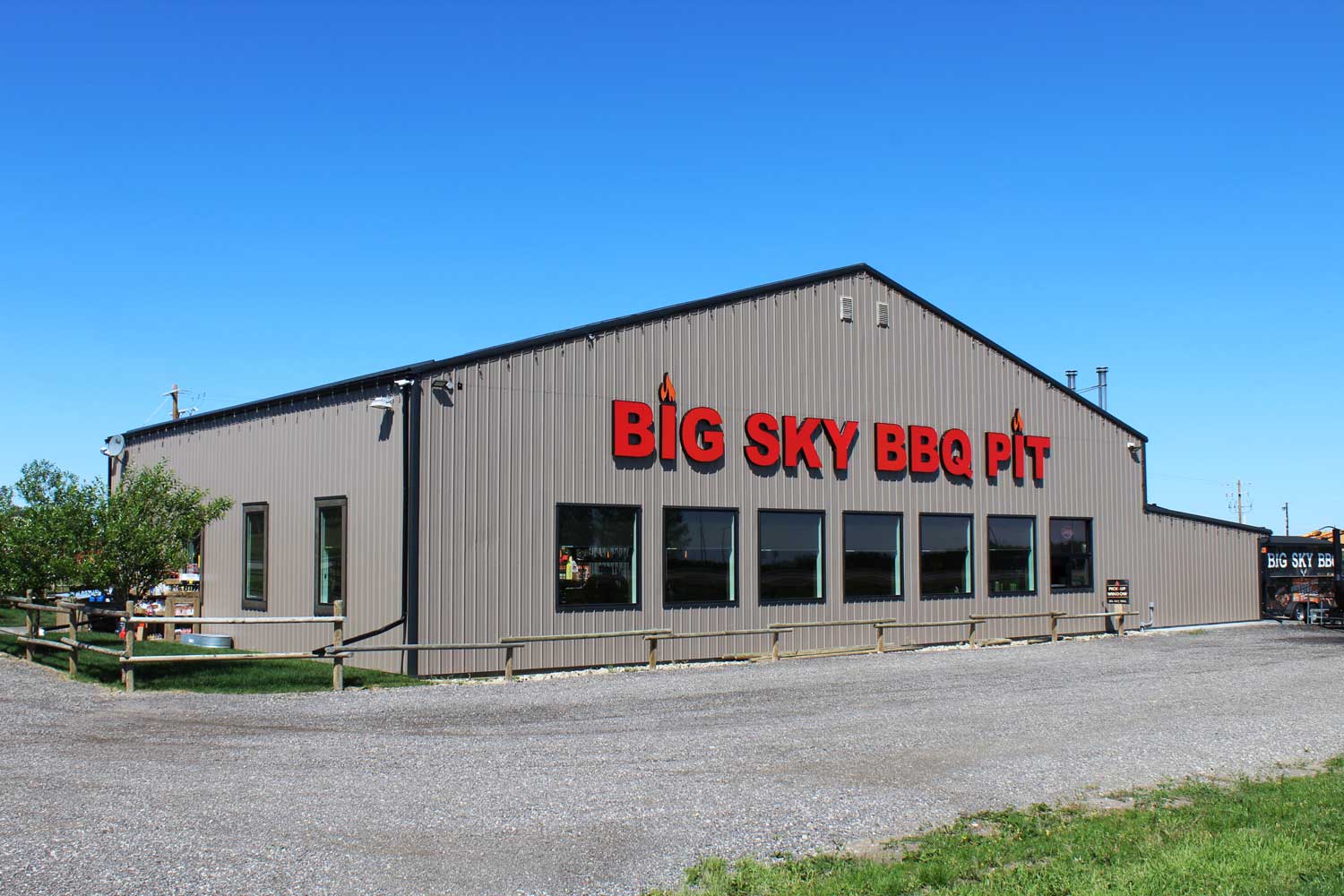

Restaurant with buckskin and galvanized in FC-36
Restaurant with buckskin and galvanized in FC-36
FC-36 Panel
Commercial Building with FC-36 Dark Red
Commercial Building with FC-36 Panel in Dark Red
Commercial Building with FC-36 Dark Red
FC-36 Panel
Commercial Shop in FC-36 29ga Copper Penny and Black

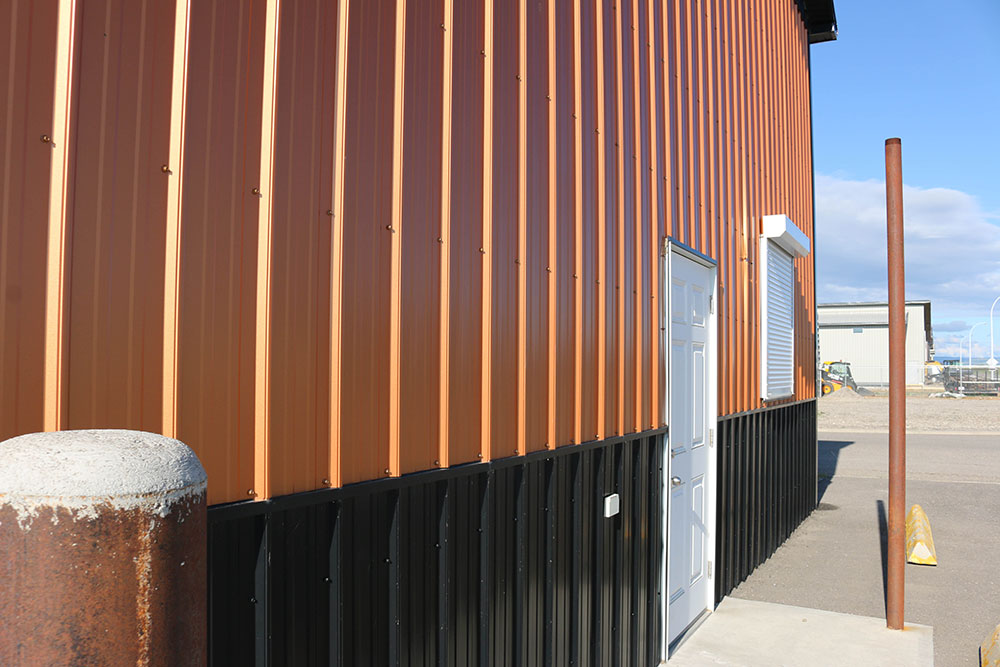

Commercial Shop featuring FC-36 Panel Siding in Copper Penny and Black
Agricultural Building in Bright Red and Black FC-36 Panel

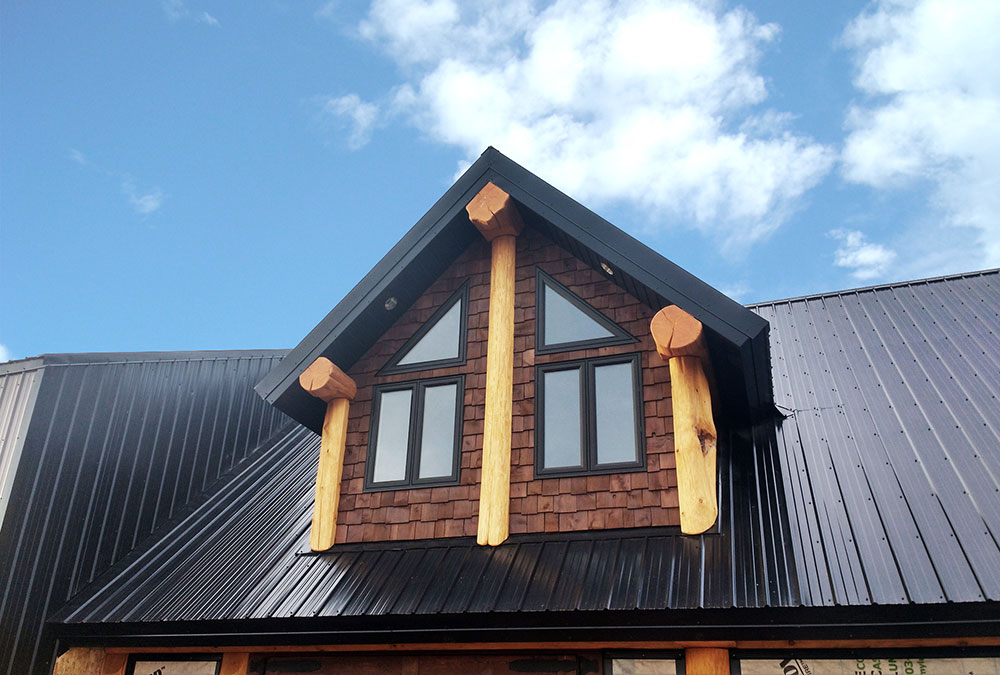

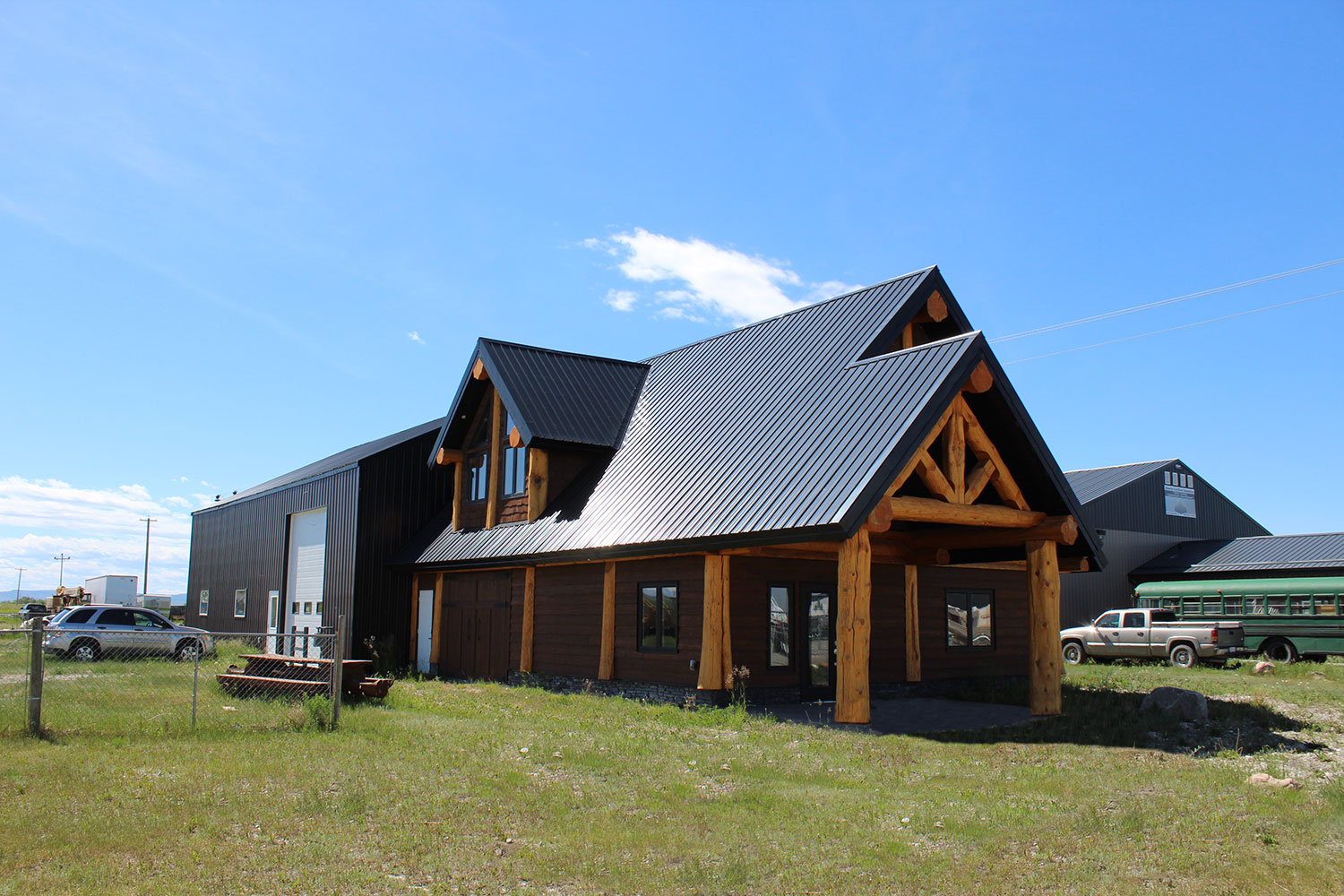

Residential Roof on Log Cabin featuring the FC-36 Panel in Black
Cabin with FC-36 Roof in Black

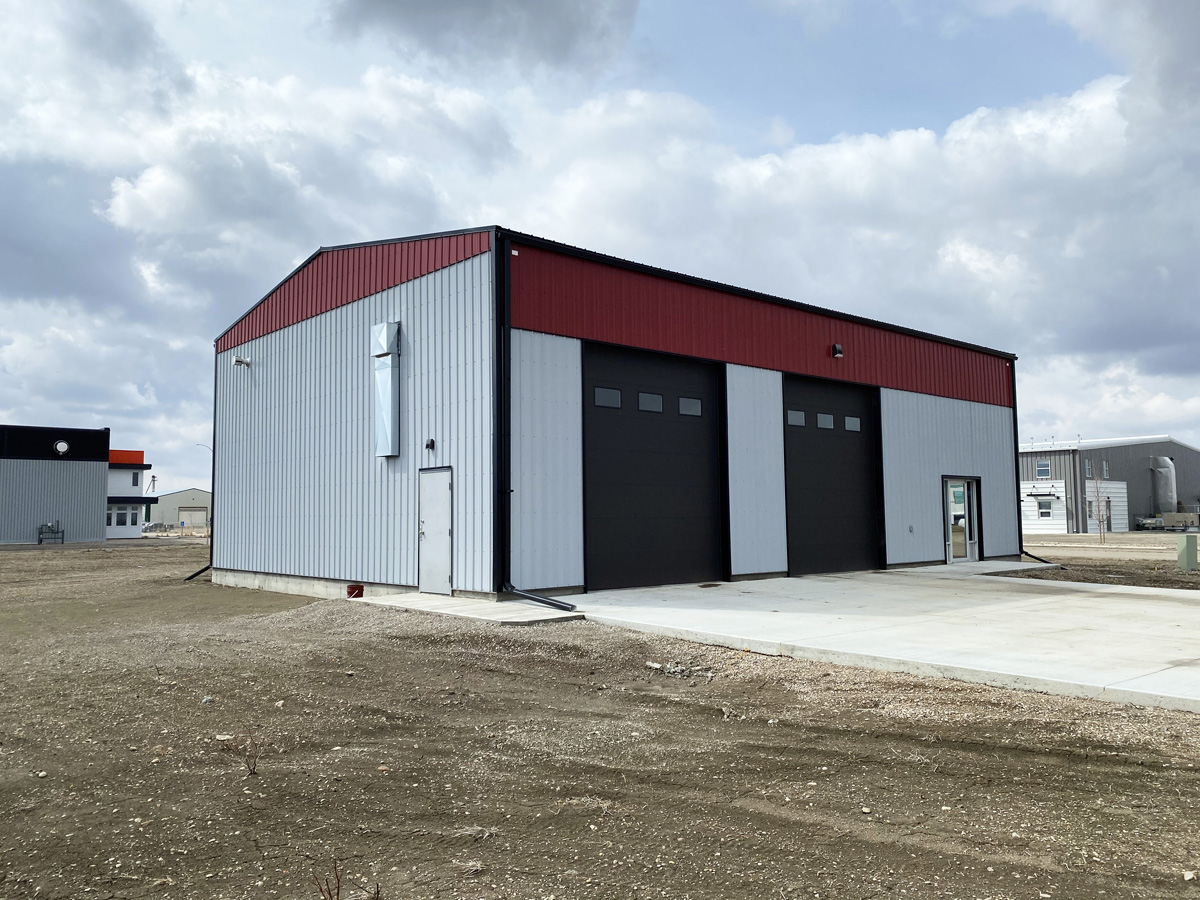

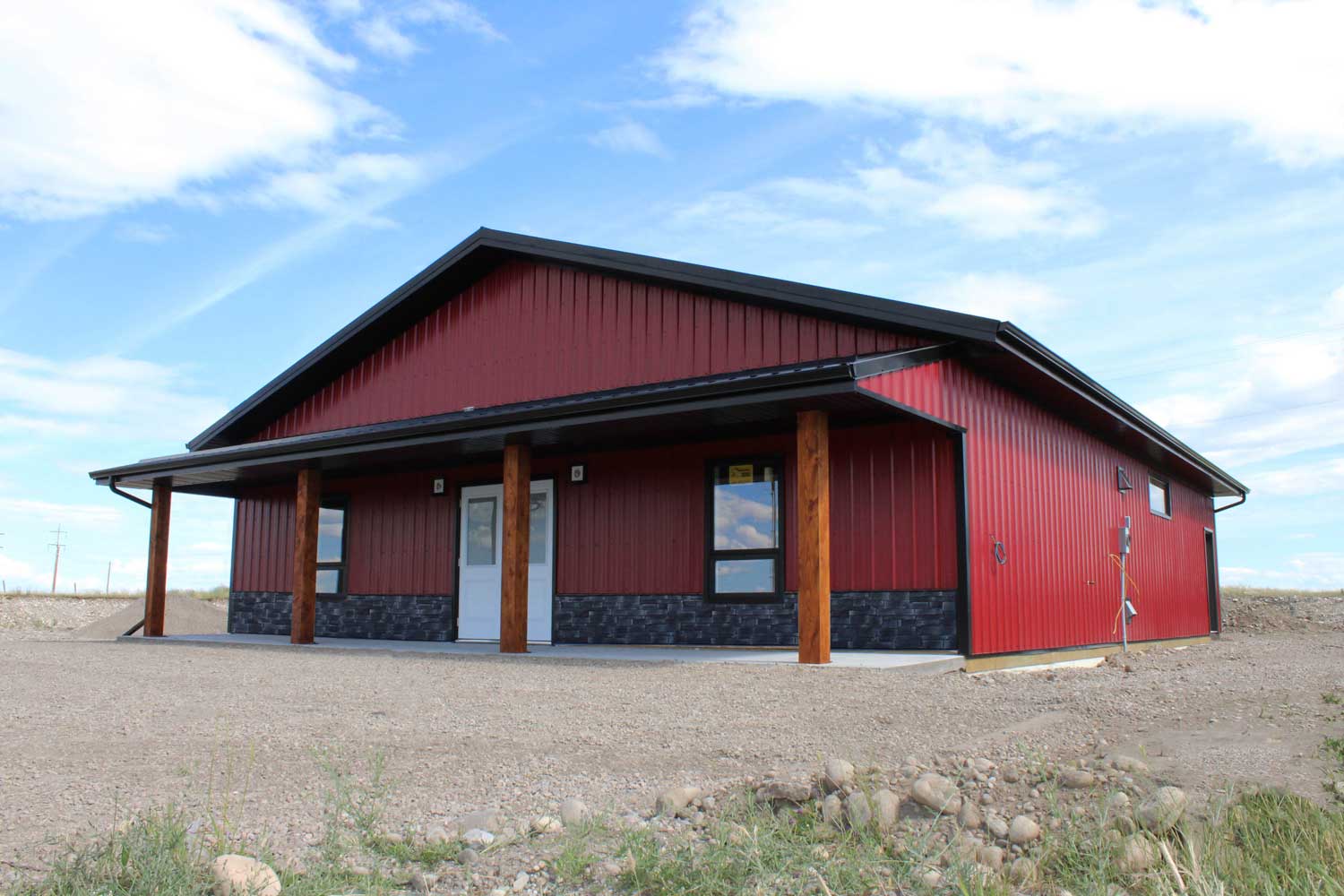

Commercial Building with FC-36 Panel Siding in Bright Red and FC-36 Panel Roof in Black

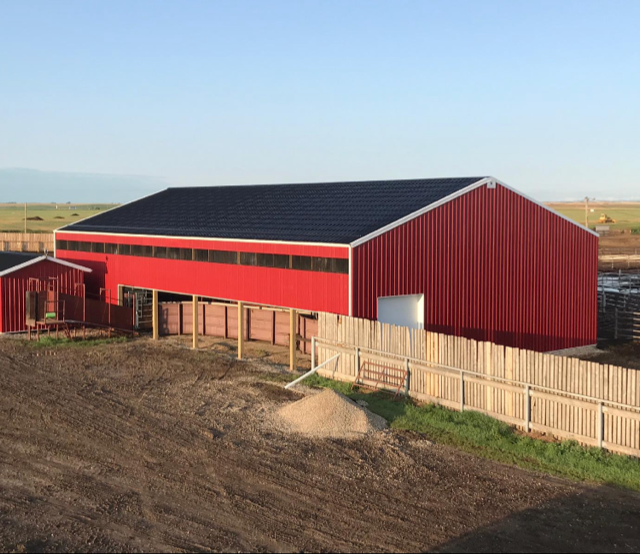

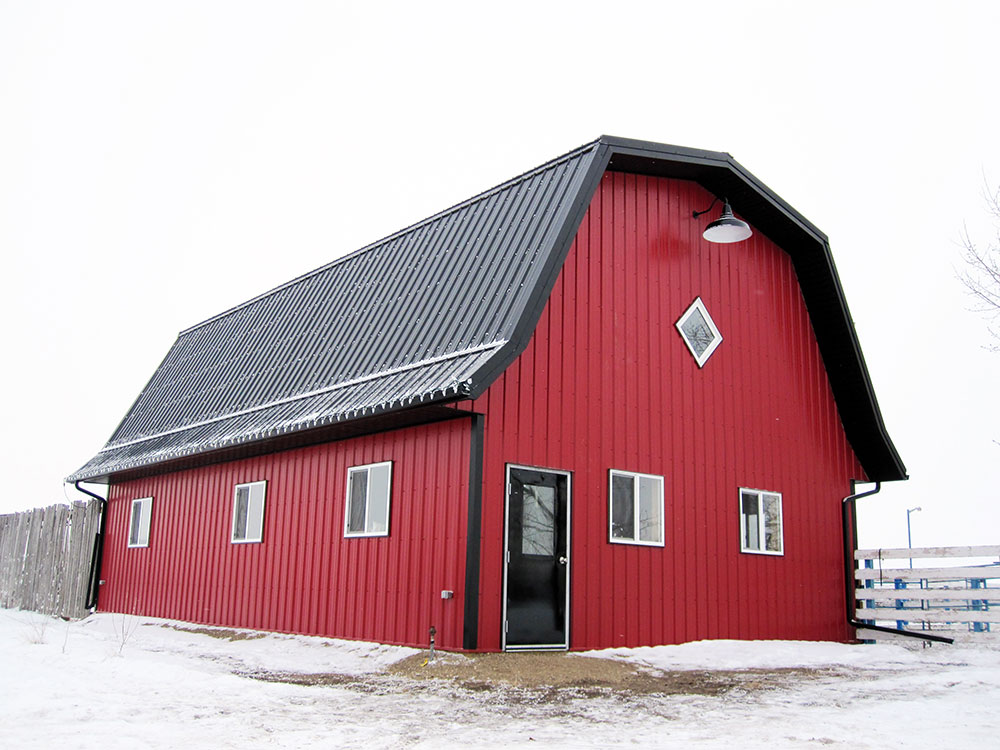

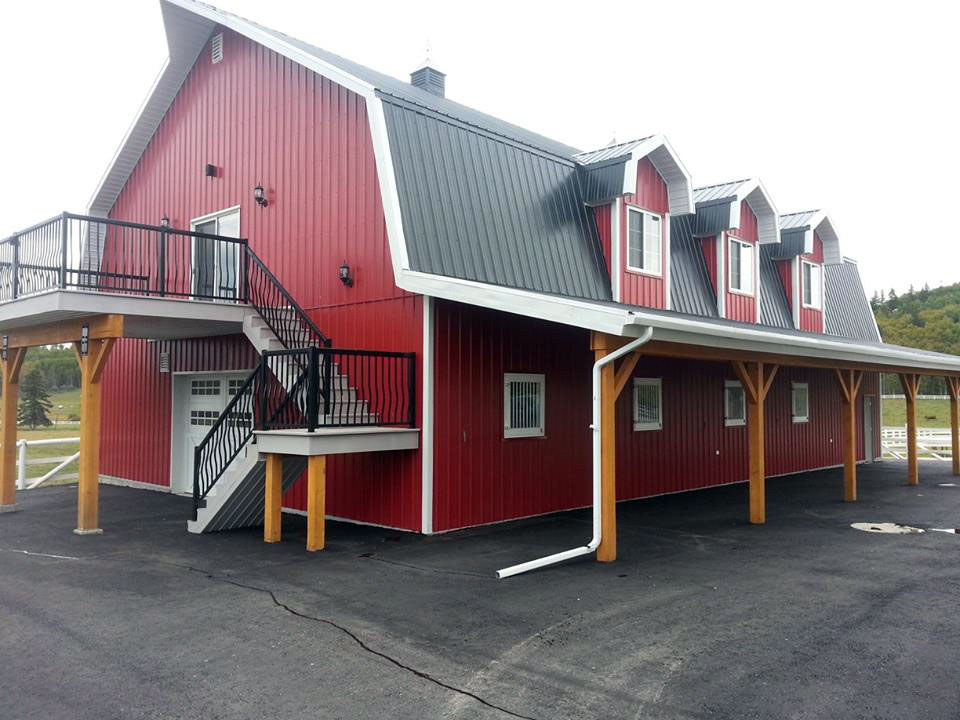

Agricultural Barn with FC-36 Panel Siding in Bright Red and FC-36 Panel Roof in Black

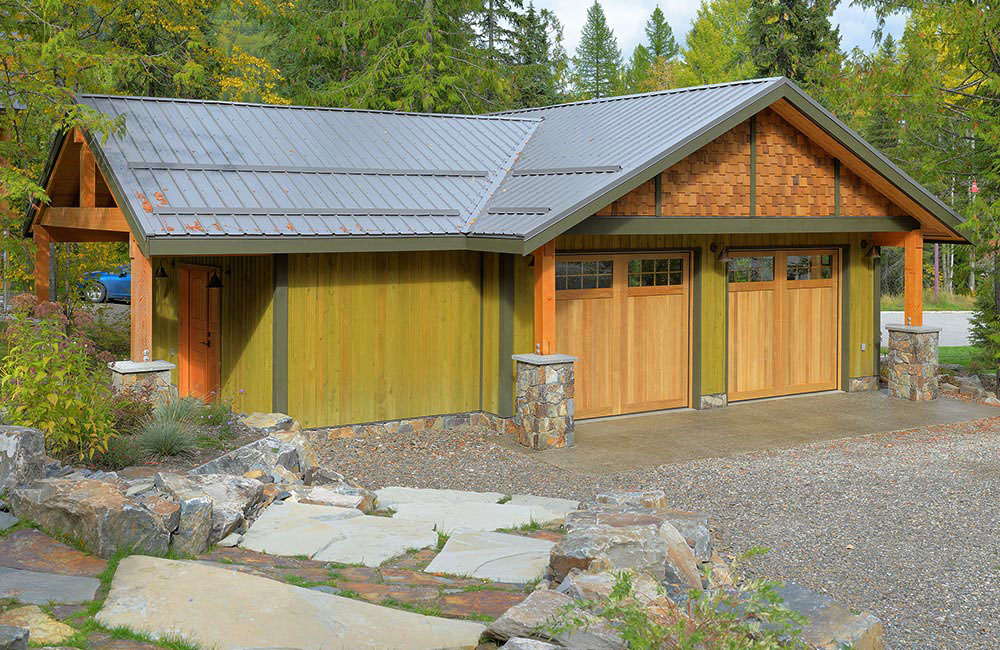

Residential Roof for Garage featuring FC-36 Panel in Charcoal with Snow Stops

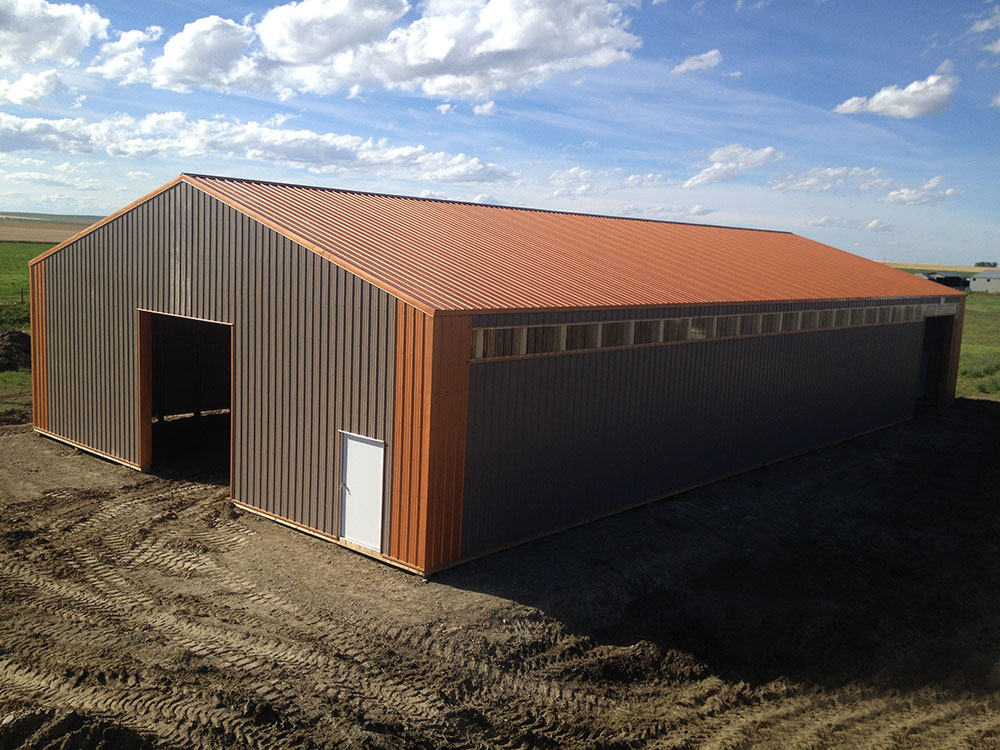

Agricultural Building featuring FC-36 Siding in Coffee Brown and FC-36 Trim & Roof in Copper Penny

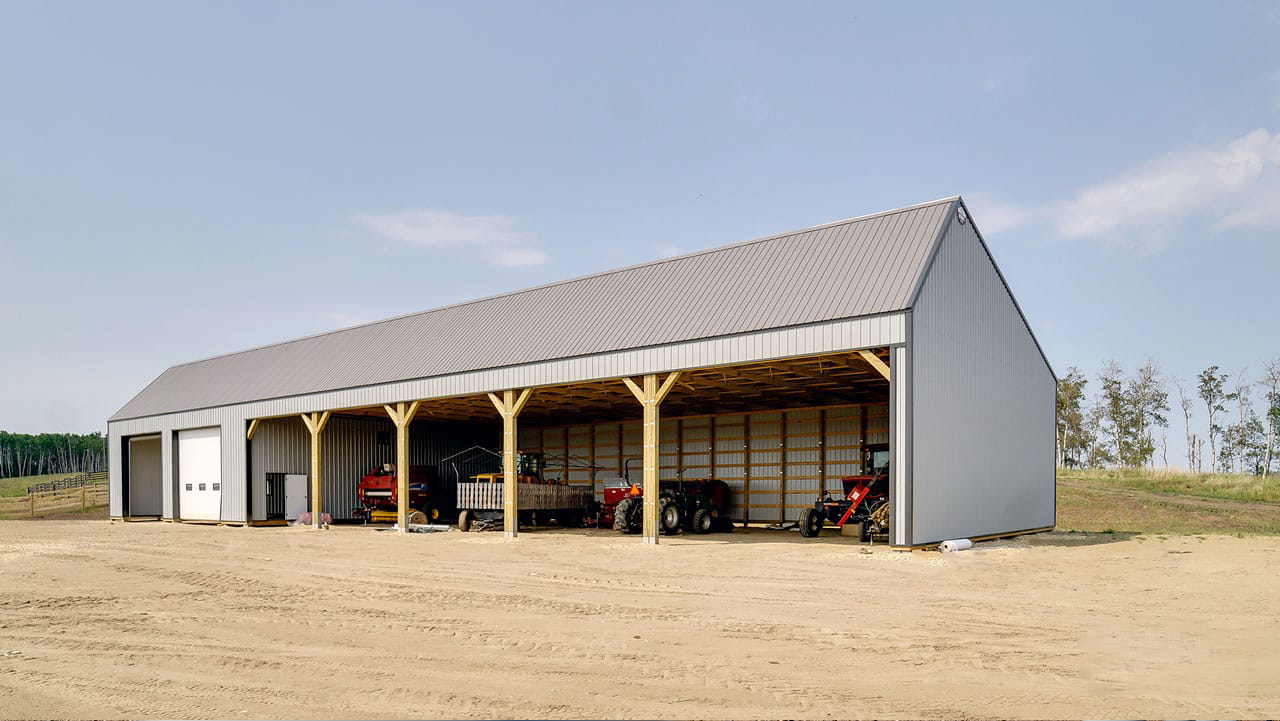

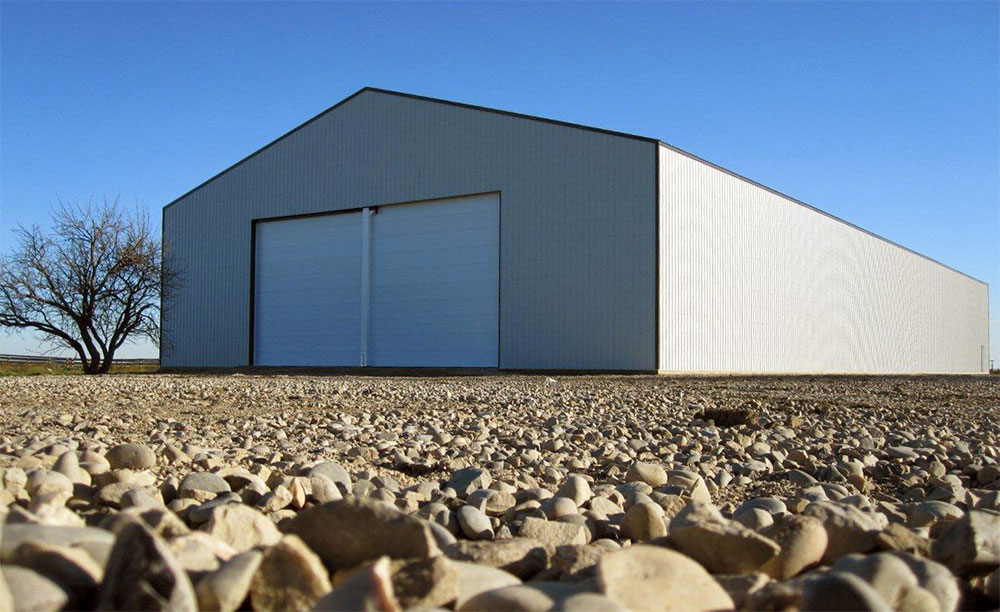

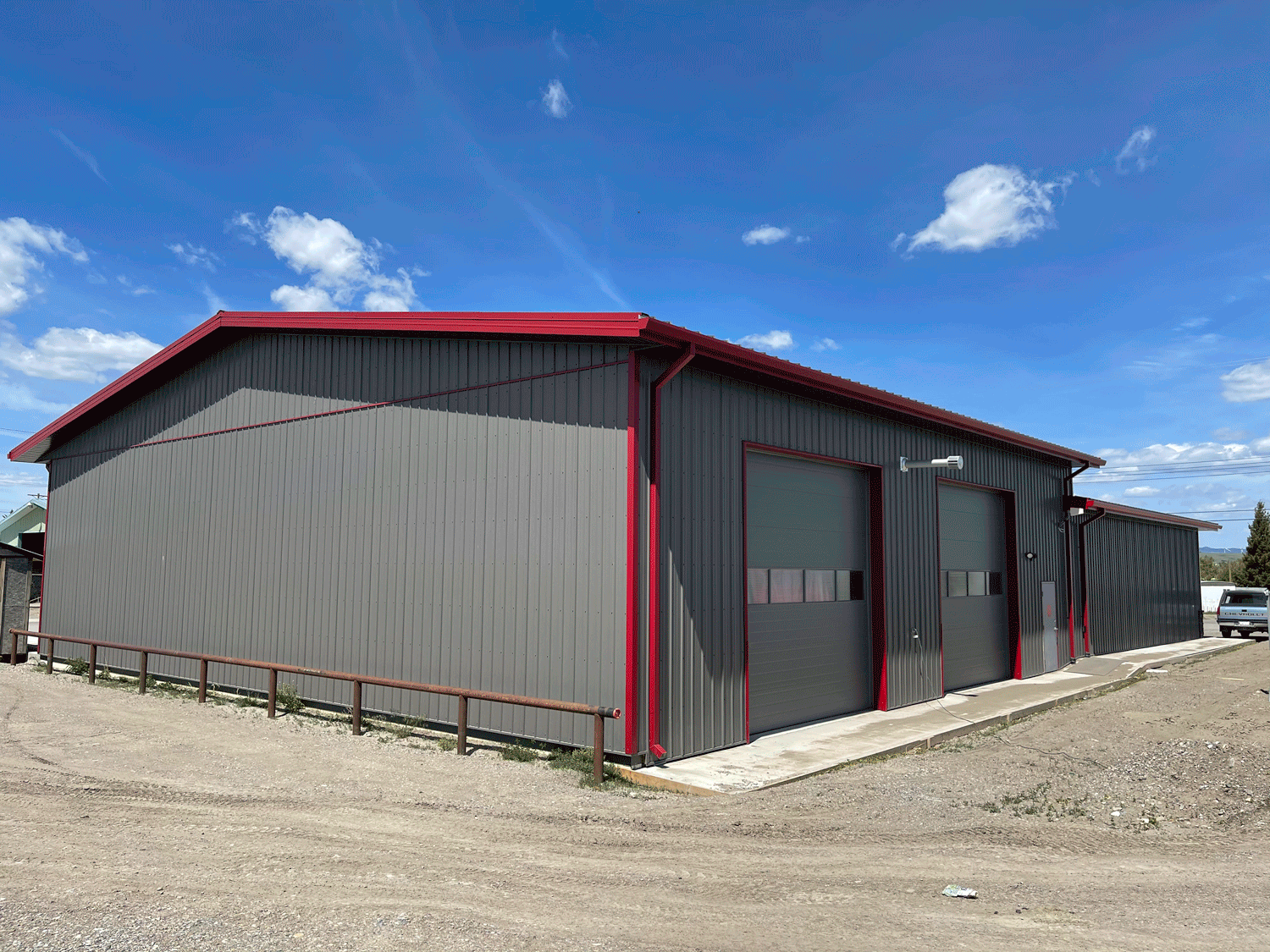

Agricultural Machine Shed in FC-36 Panel in Regent Grey

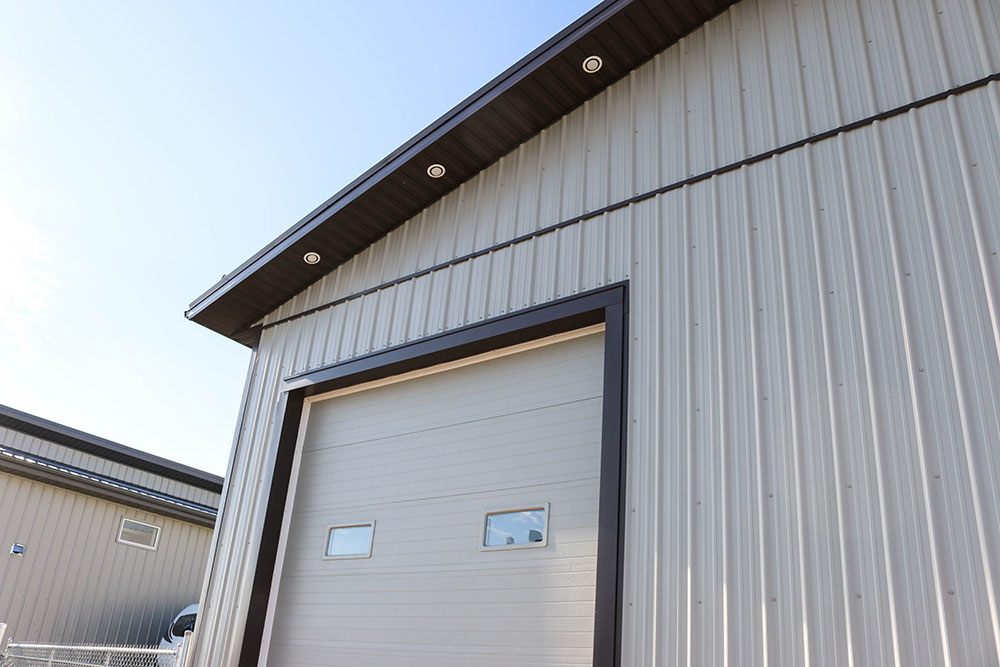

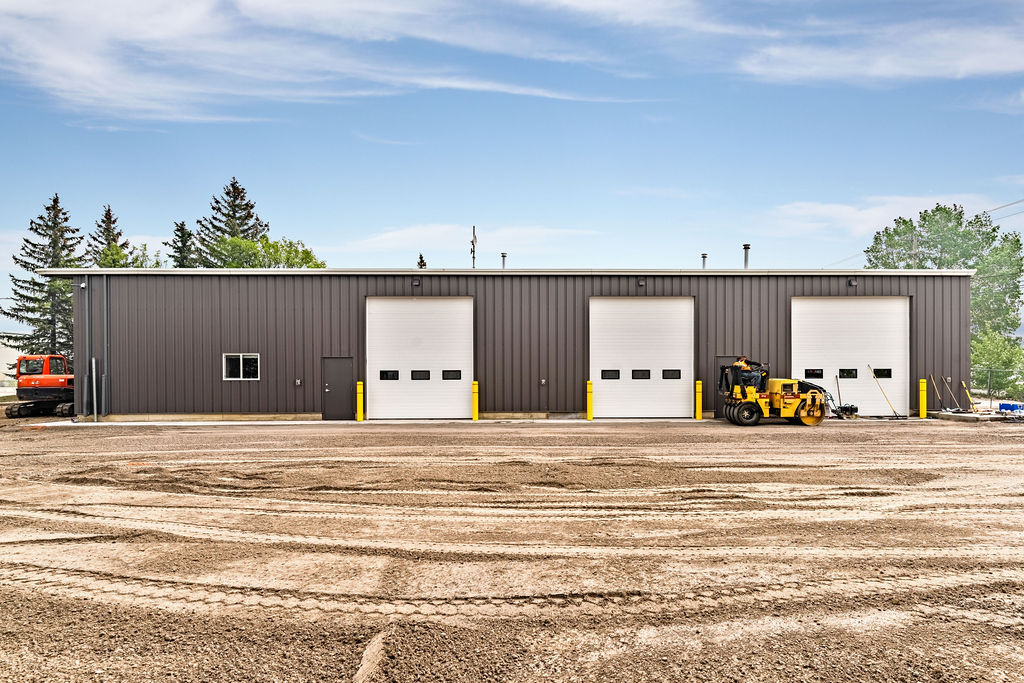

Commercial Shop featuring FC-36 Siding in Stone Grey and Dark Brown Trim & Soffit
Agricultural Building in Bright Red FC-36
Agricultural Building in Regent Grey FC-36
Commercial Building FC-36 Panel
Commercial Building FC-36 Panel
FC-36 Panel
Commercial Building FC-36 Panel

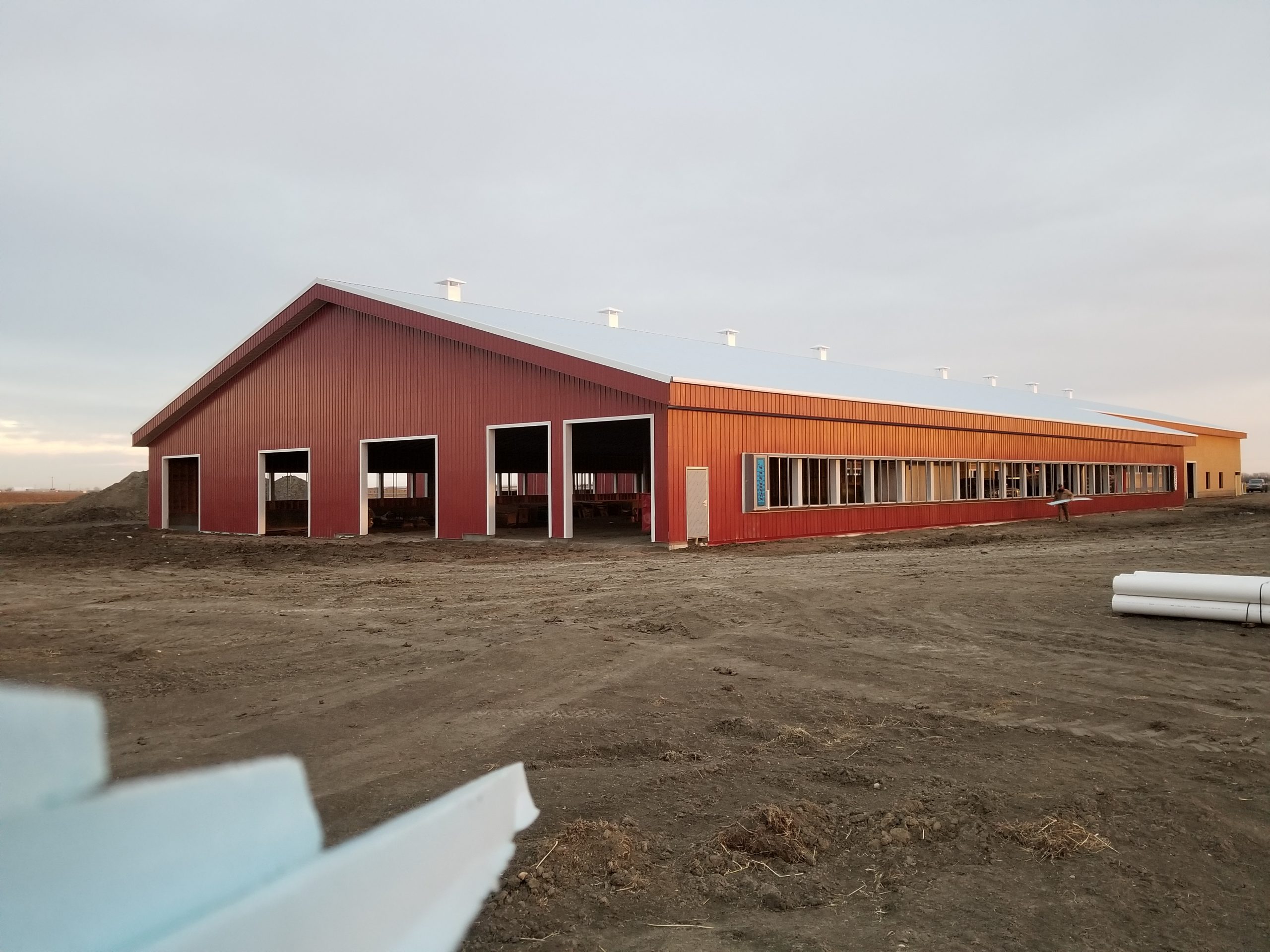

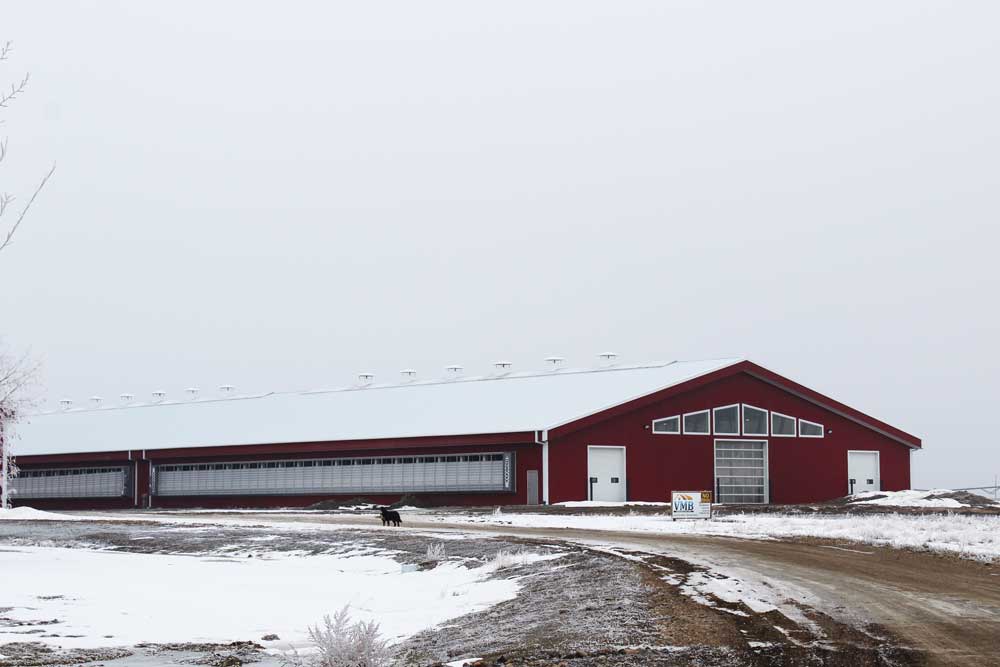

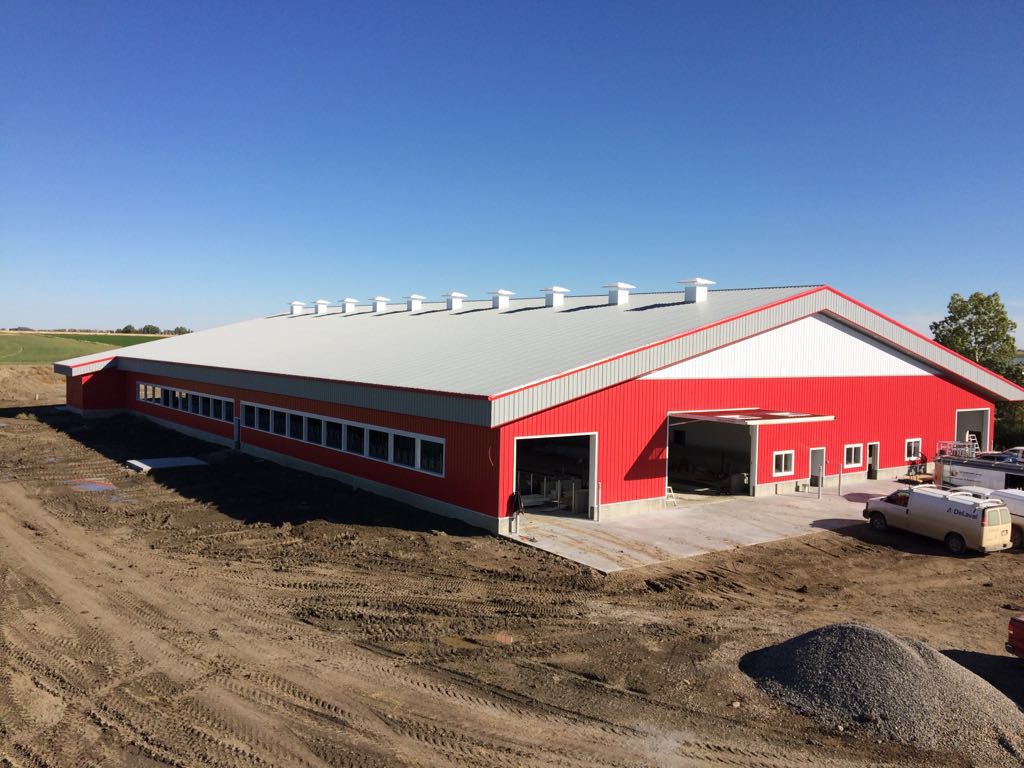

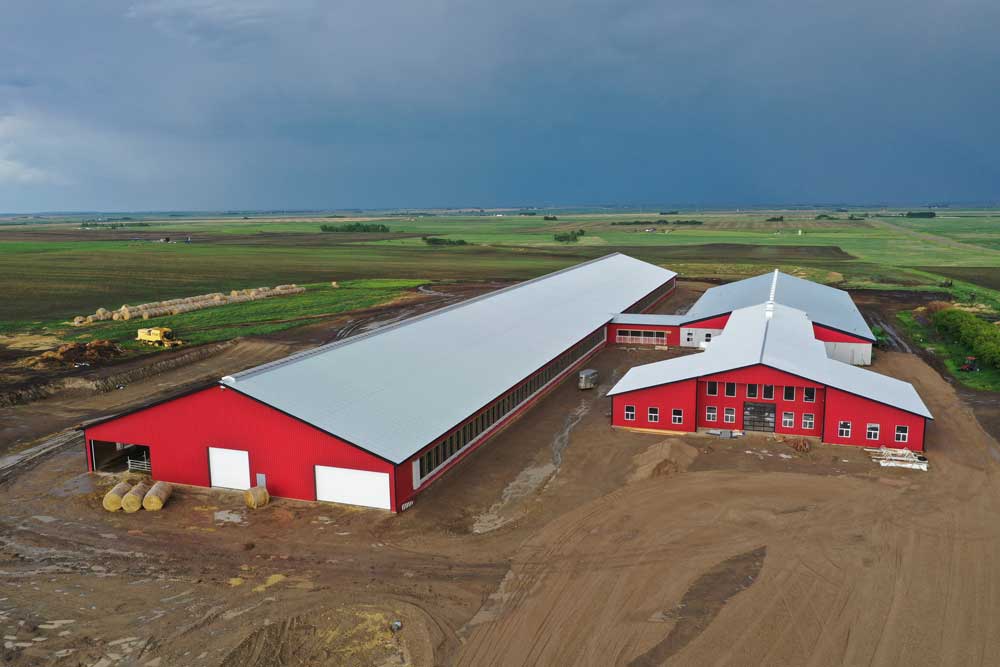

Large Dairy Barn with Bright Red in FC-36
Large Dairy Barn with Bright Red in FC-36

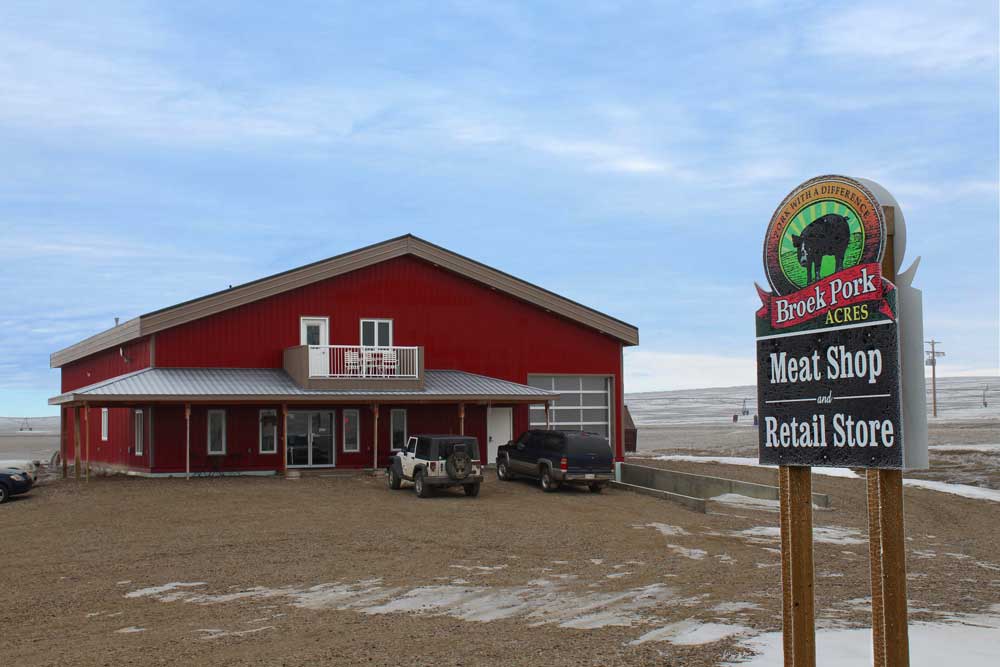

Commercial Store with Bright Red and Seawolf in FC-36
Commercial Store with Bright Red and Seawolf in FC-36

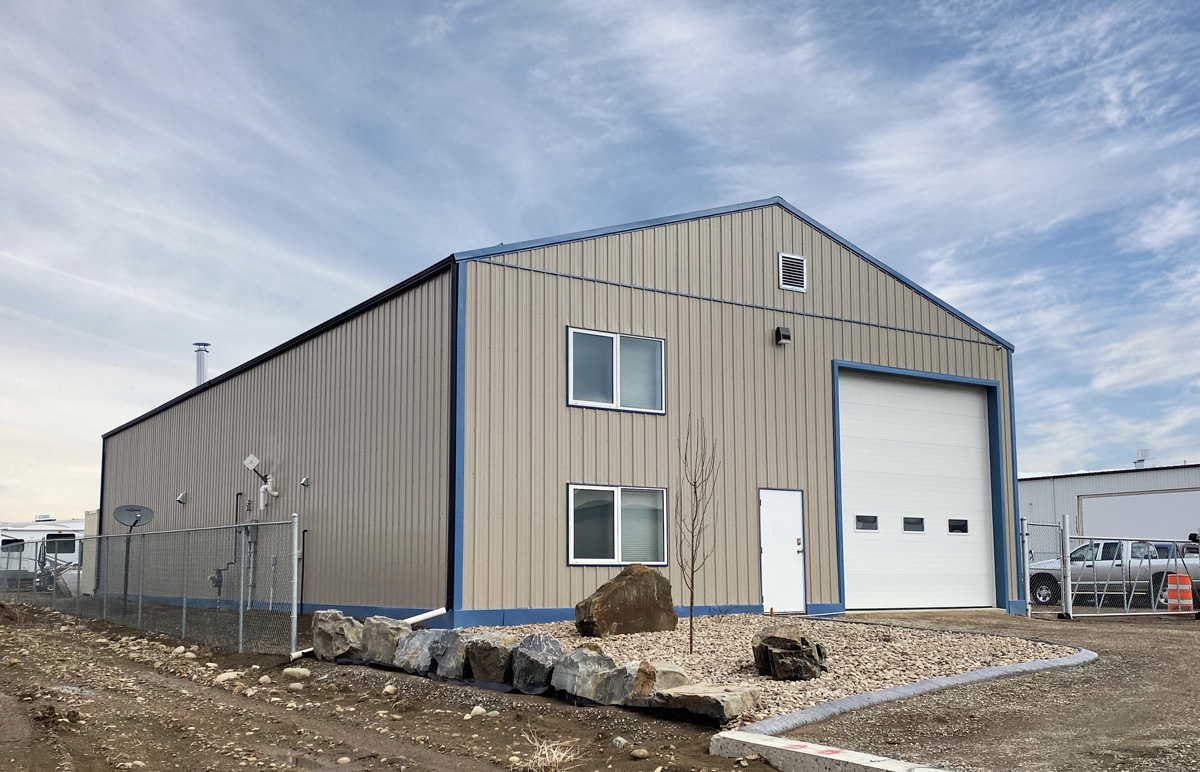

Commercial Building with Buckskin FC-36
Commercial Building with Buckskin FC-36
FC-36 Panel
