EXPAND MODULAR

Large Scale Cladding Panel

Expand Modular Panels are designed for exterior applications that require a modern aesthetic. Manufactured with a coverage of 20-1/2”x60” and with a variety of uses from accents, fascia, or full walls, this system is truly adaptable. One inch horizontal reveals are integrated into the hidden fastener design while vertical reveals are achieved with a transition trim. Once the panels have been folded, rigid foam is securely bonded to the back giving the panel the strength and support allowing for large flat and smooth panel faces. Between the hidden fastener system and utilization of our existing trim catalogue, Expand Modular allows for an uncomplicated installation compared to much more elaborate systems on the market.

Panels can be cut and modified on site to create the perfect fit without the need for additional sub structures, perfect for both new construction or as part of a renovation/retrofit. Expand Modular is offered in 24 gauge material which allows for the maximum variety in our standard colours & specialty finishes.

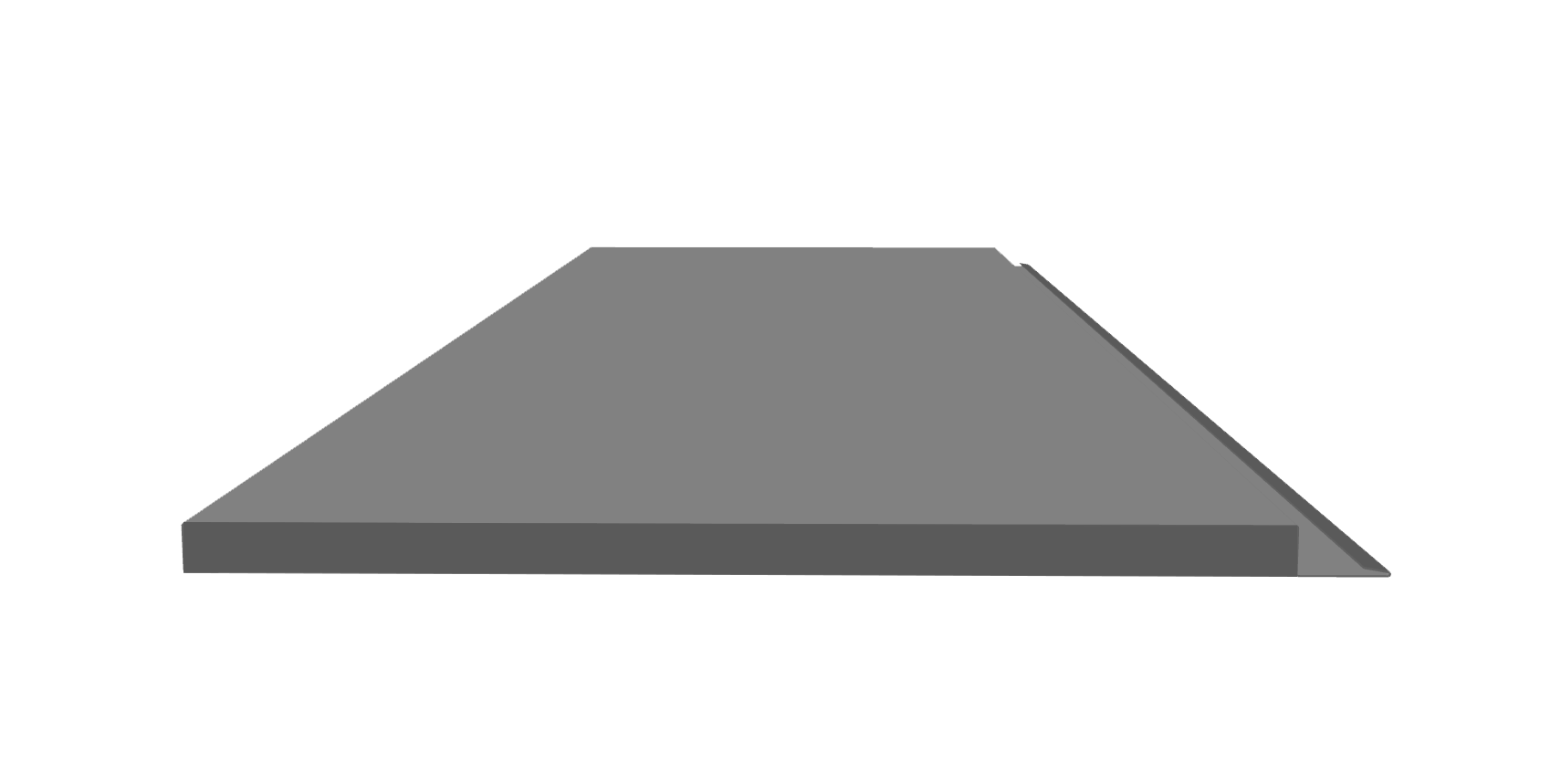

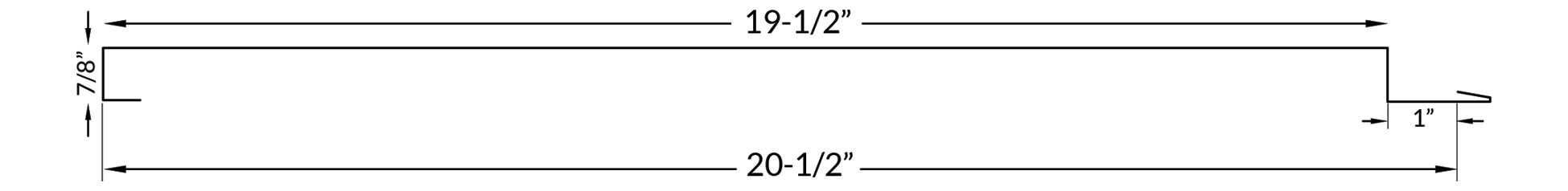

Expand Modular Profile


Forma Loc Panel by Forma Steel in 12" or 16" Coverage
Forma Loc Panel by Forma Steel in 12" or 16" Coverage

Available in Standard 24 Gauge Colours


Galvalume

Bright White

White White

Iceberg

Bone White

Wicker

Stone Grey

Hickory

Tan

Buckskin

Coffee Brown

Dark Brown

Black

Carbon

Charcoal

Zinc Grey

Regent Grey

Bright Red

Tile Red

Dark Red

Slate Blue

Oxford Blue

Royal Blue

Heron Blue

Sapphire Blue

Melchers Green



Available in 24 Gauge Image Series


Autumn Woodgrain

Frontier Woodgrain

Saddle Woodgrain

Light Pine Woodgrain

Gunstock Woodgrain

Dark Walnut Woodgrain

Concrete

Rustic

Barnboard Woodgrain

Obsidian Oak Woodgrain

Espresso Woodgrain


Available in 24 Gauge Textured Colours


Onyx Black Textured

Burnished Slate Textured

Graphite Textured

Fossil Texture

Red Oxide Textured

Arctic White Textured



Specifications

Wall Coverage: 20-1/2"

Panel Size: 20-1/2" x 60"

Installed with reveal on all four sides

Hidden Fastener Panel

Foam Reinforced Panel

Installed on a floating clip system for ideal thermal expansion and contraction

Available Gauges: 24 (in standard colours, specialty woodgrains & textured series)

Compatible with 7/8" Trim Series

Recommended to install on minimum solid substrate of 1/2” plywood, building wrap/membrane, & drainage mat


Product Brochures


EXPAND MODULAR BROCHURE

875 SERIES TRIMS (7/8")

STANDARD COLOUR CHART

IMAGE SERIES CHART

TEXTURED SERIES CHART

Inspiration Gallery

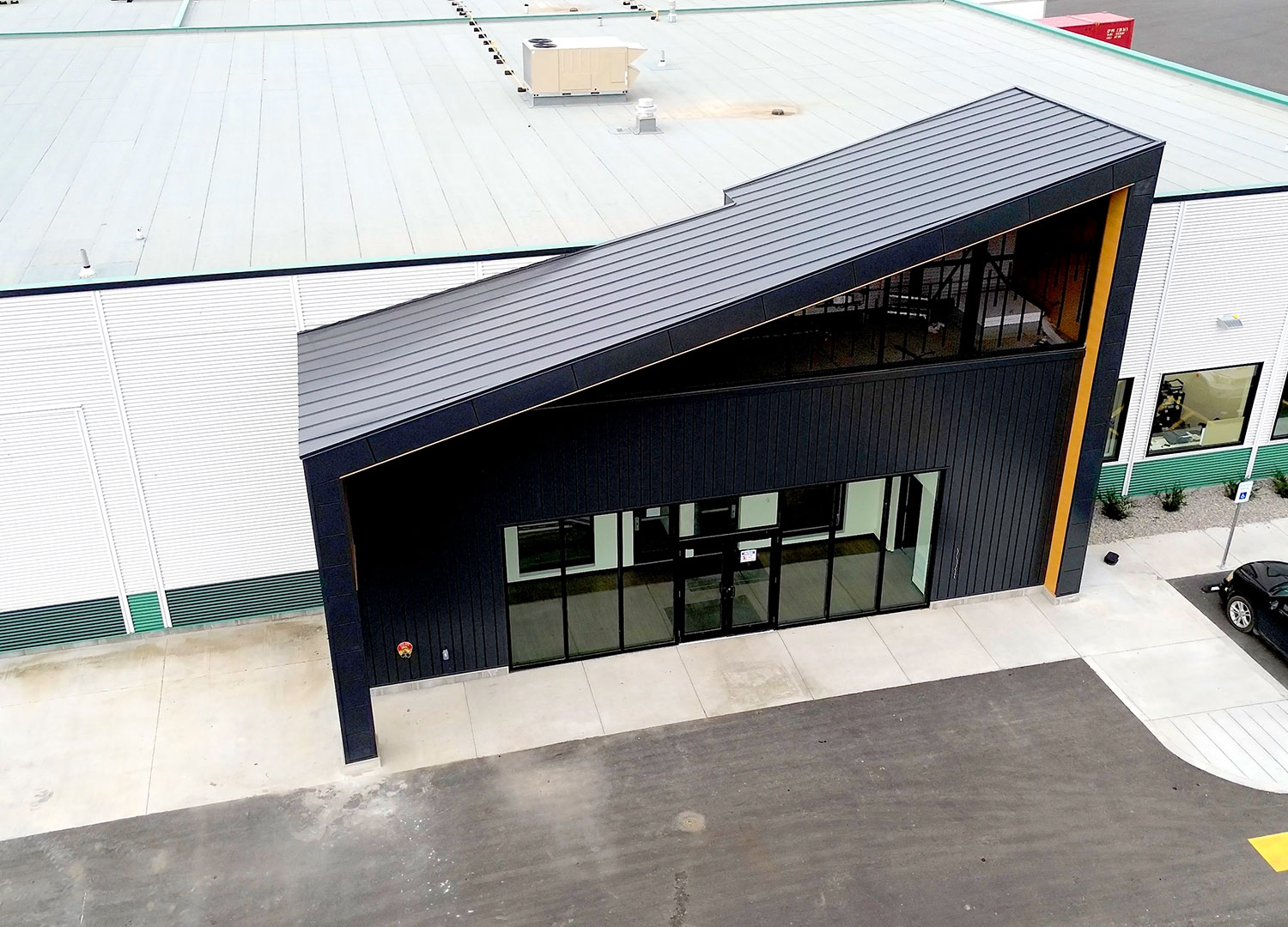

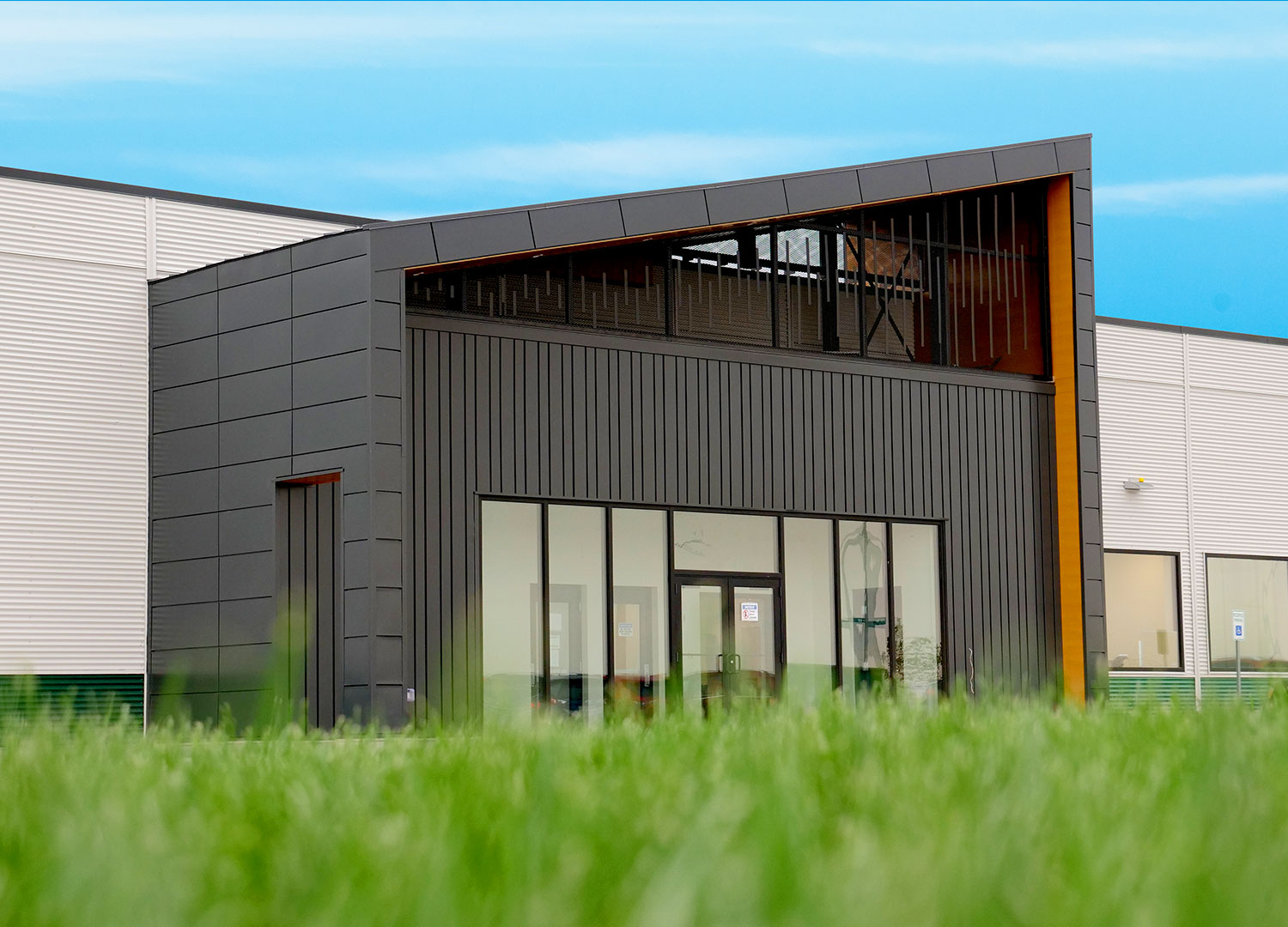

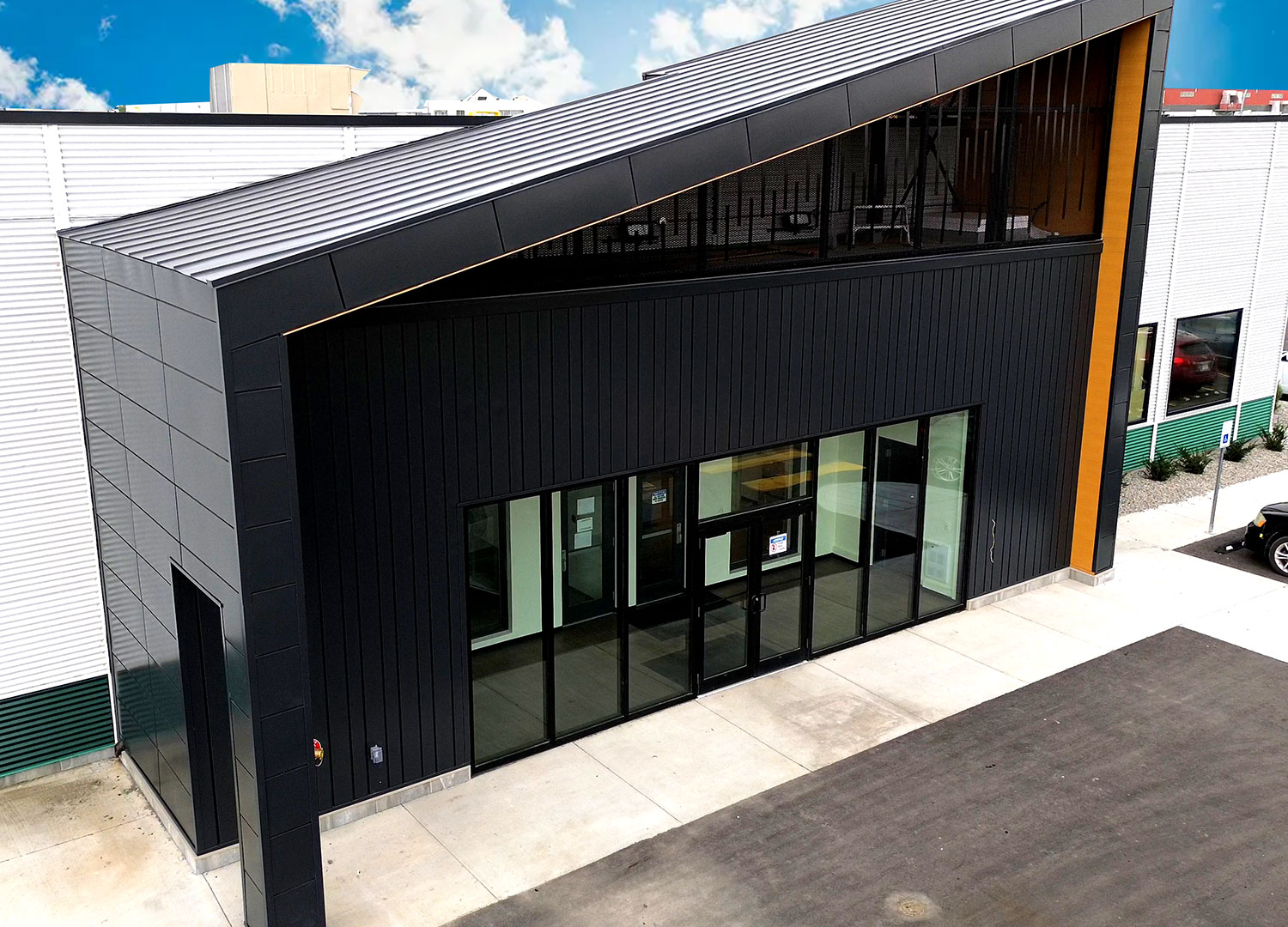

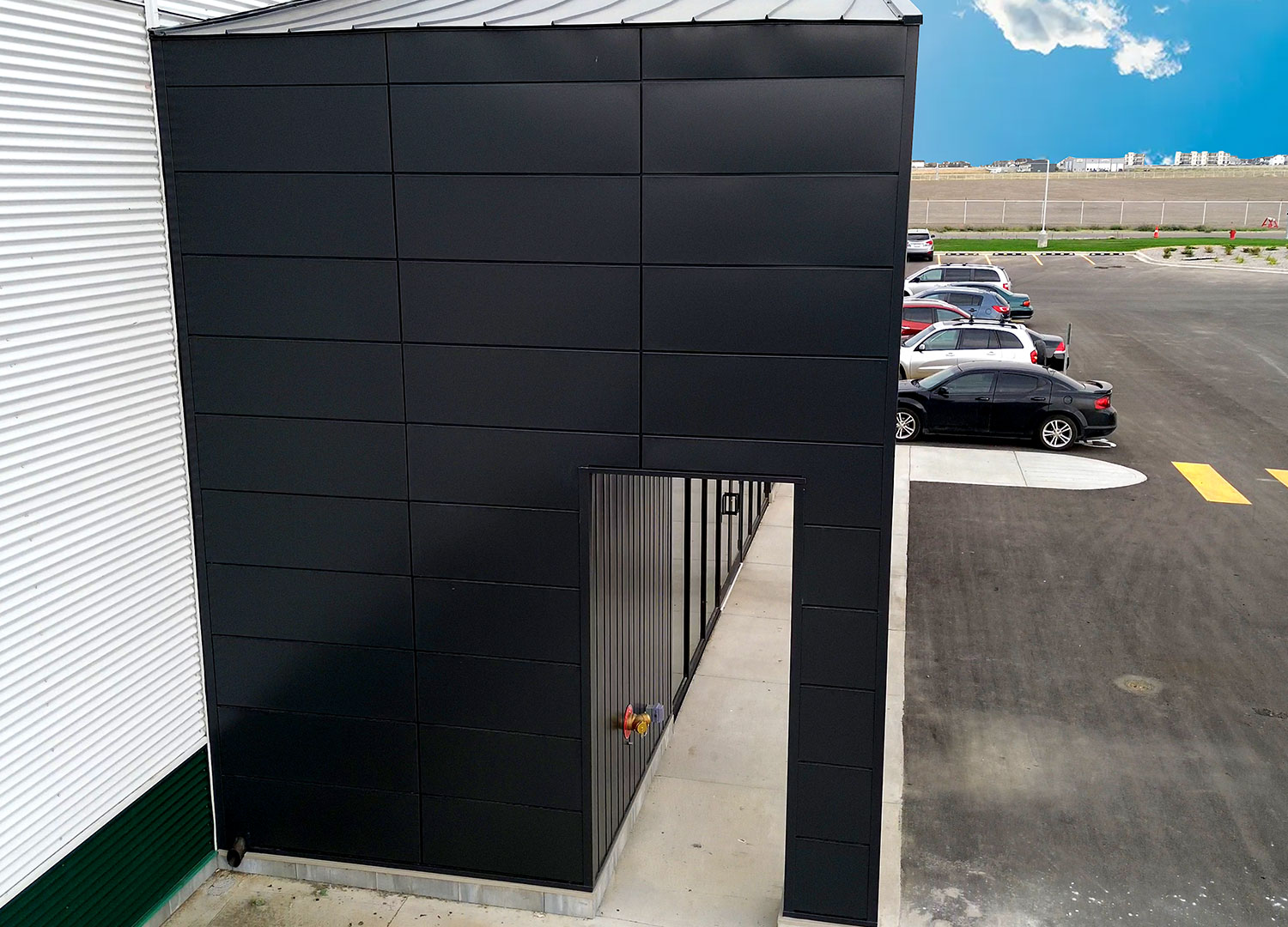

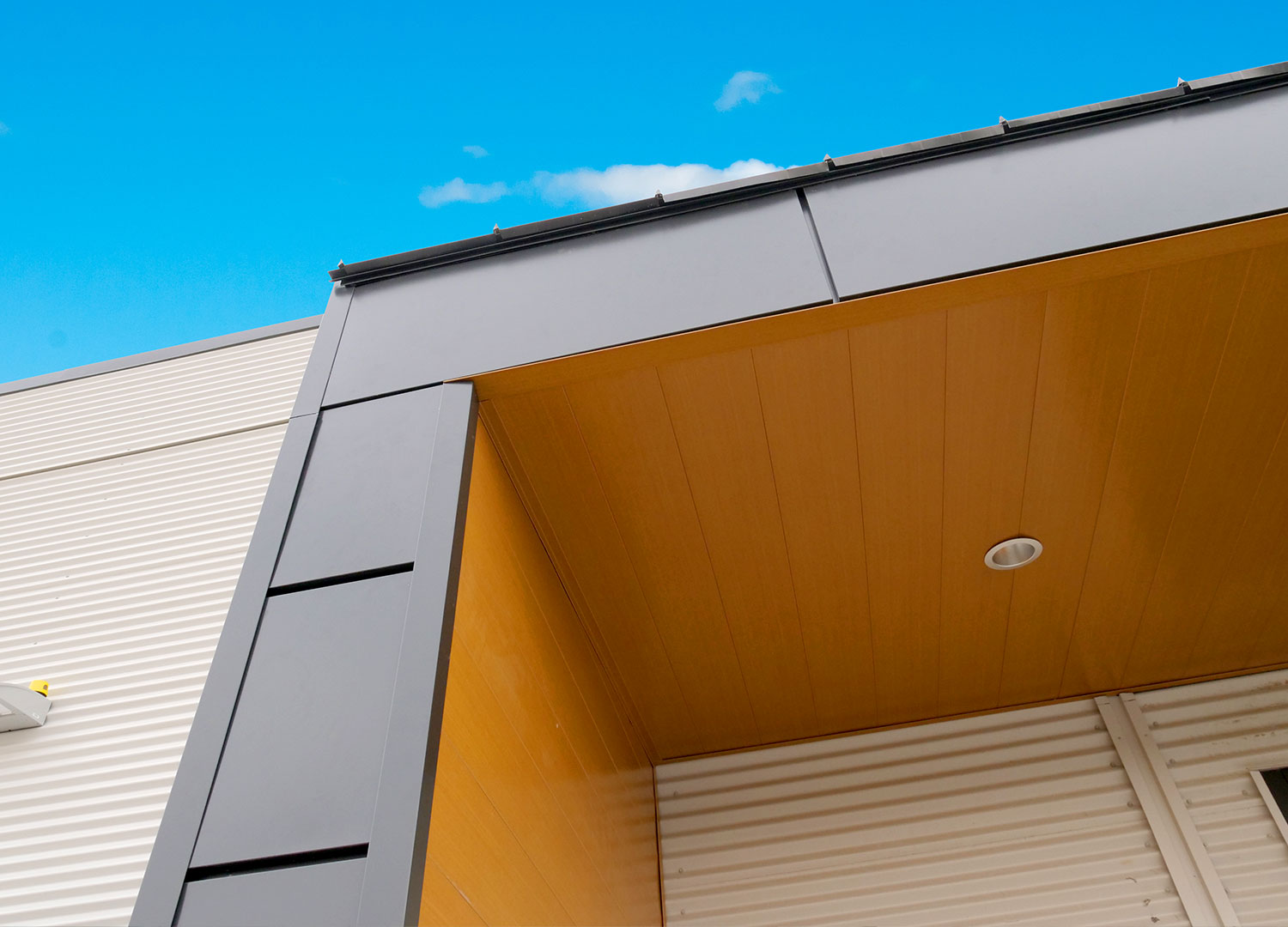

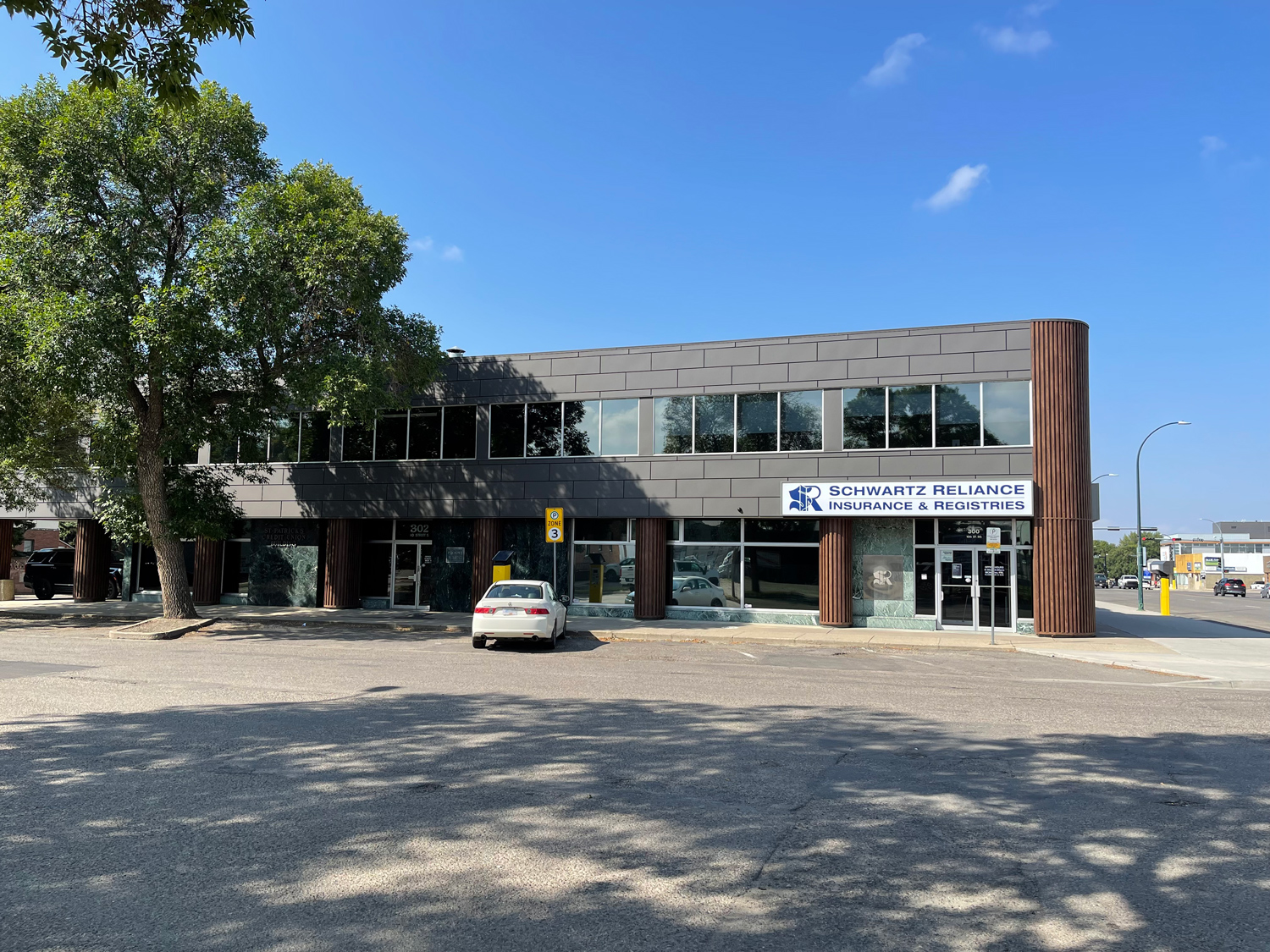

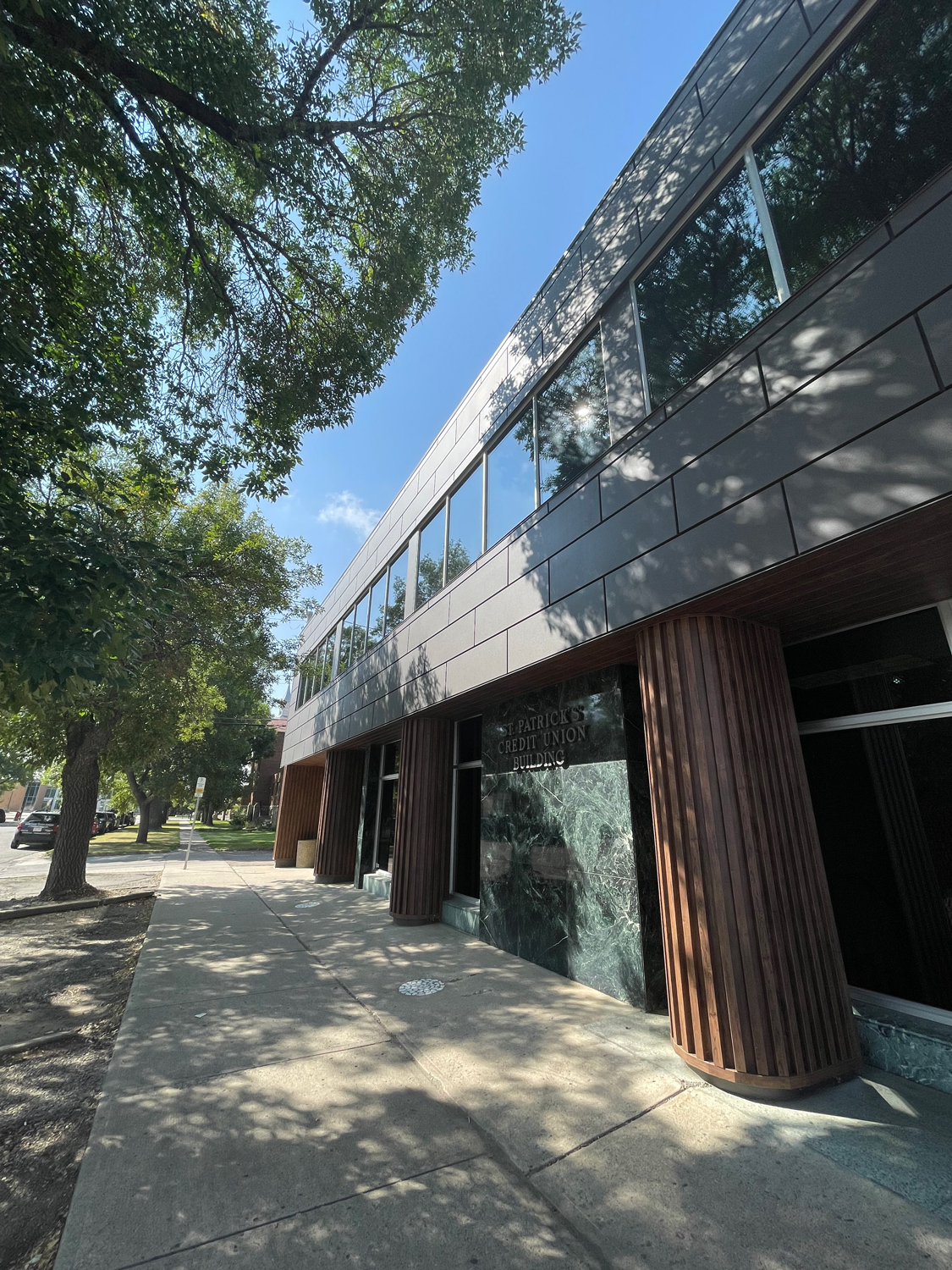

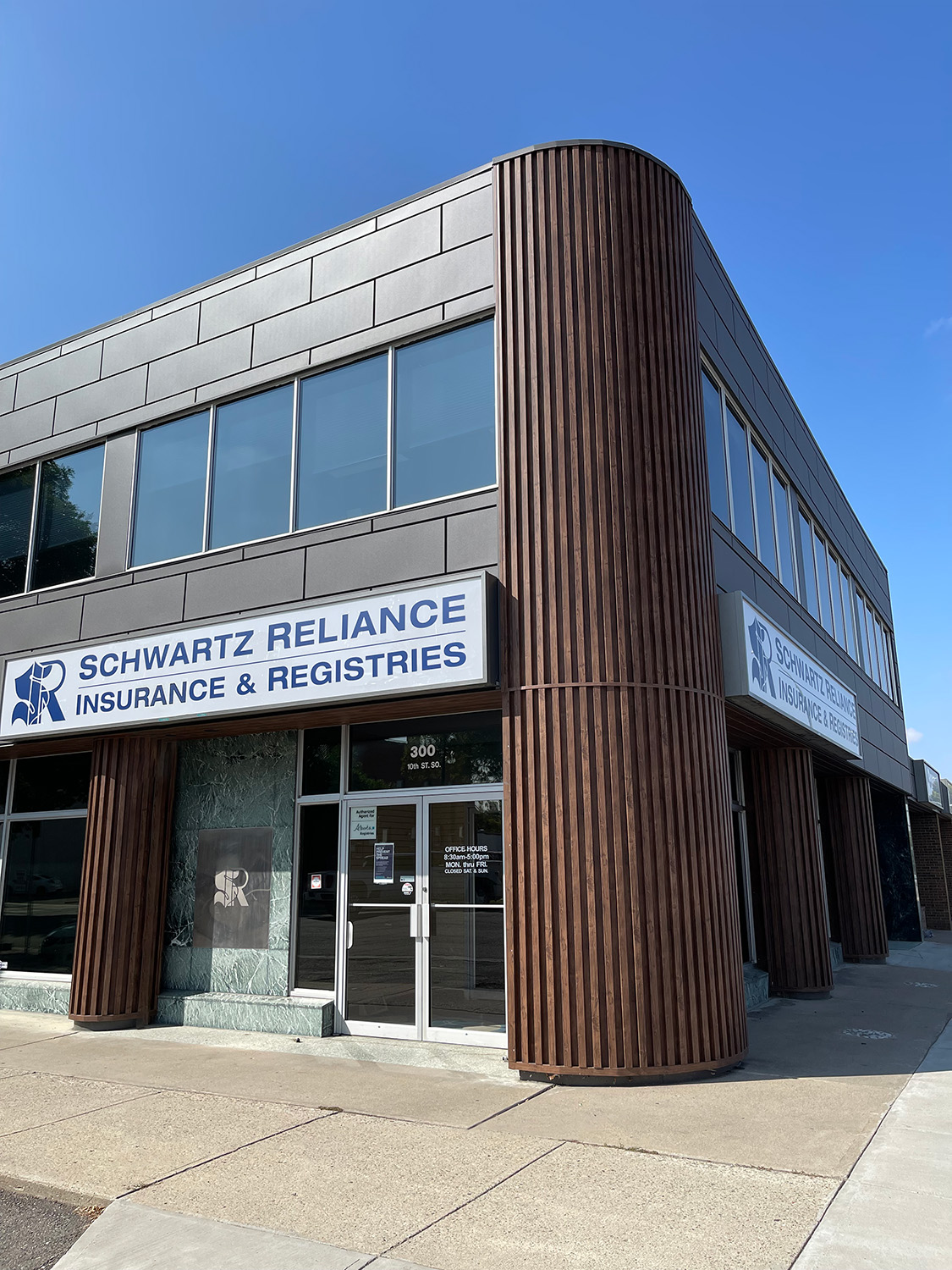

Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite

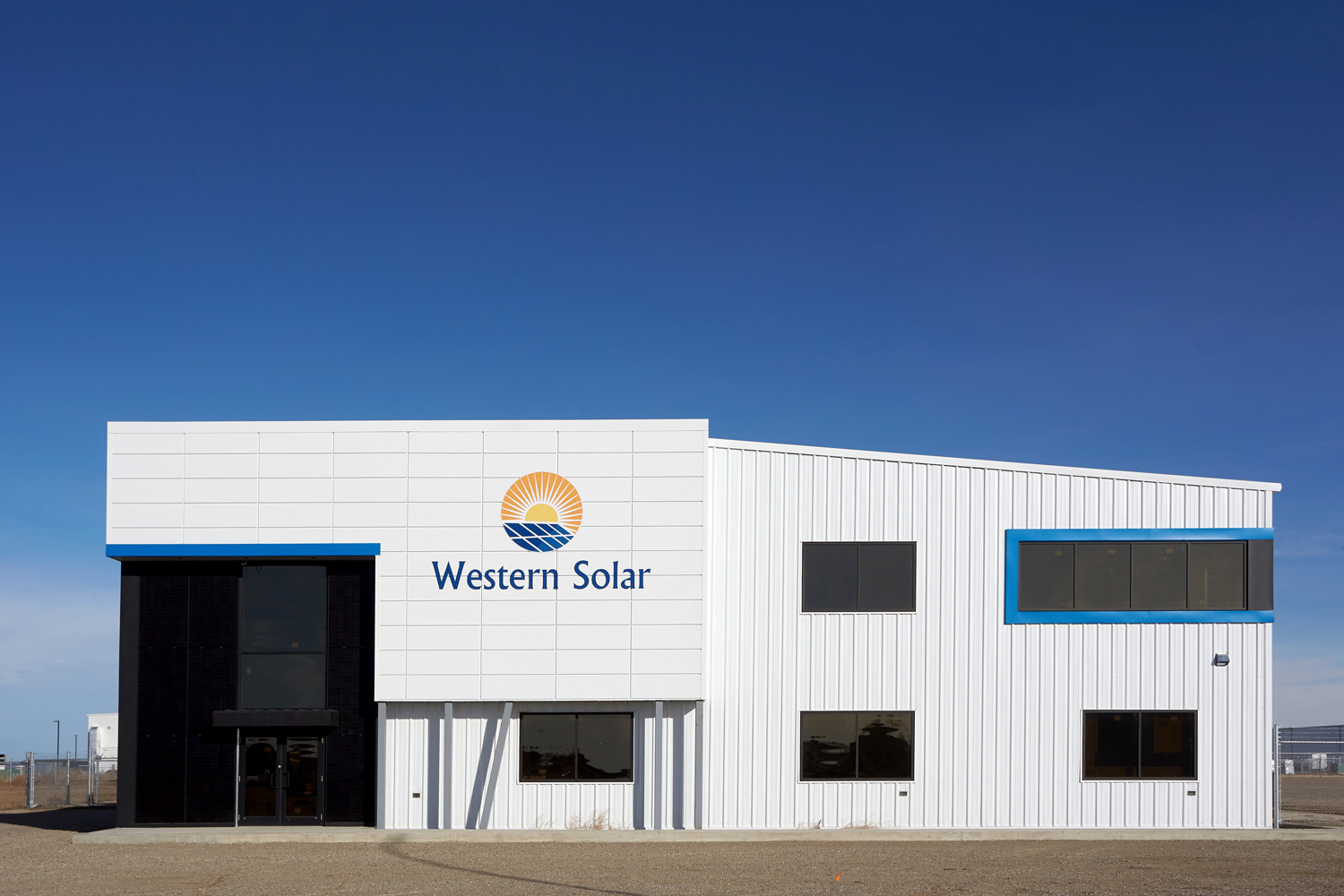

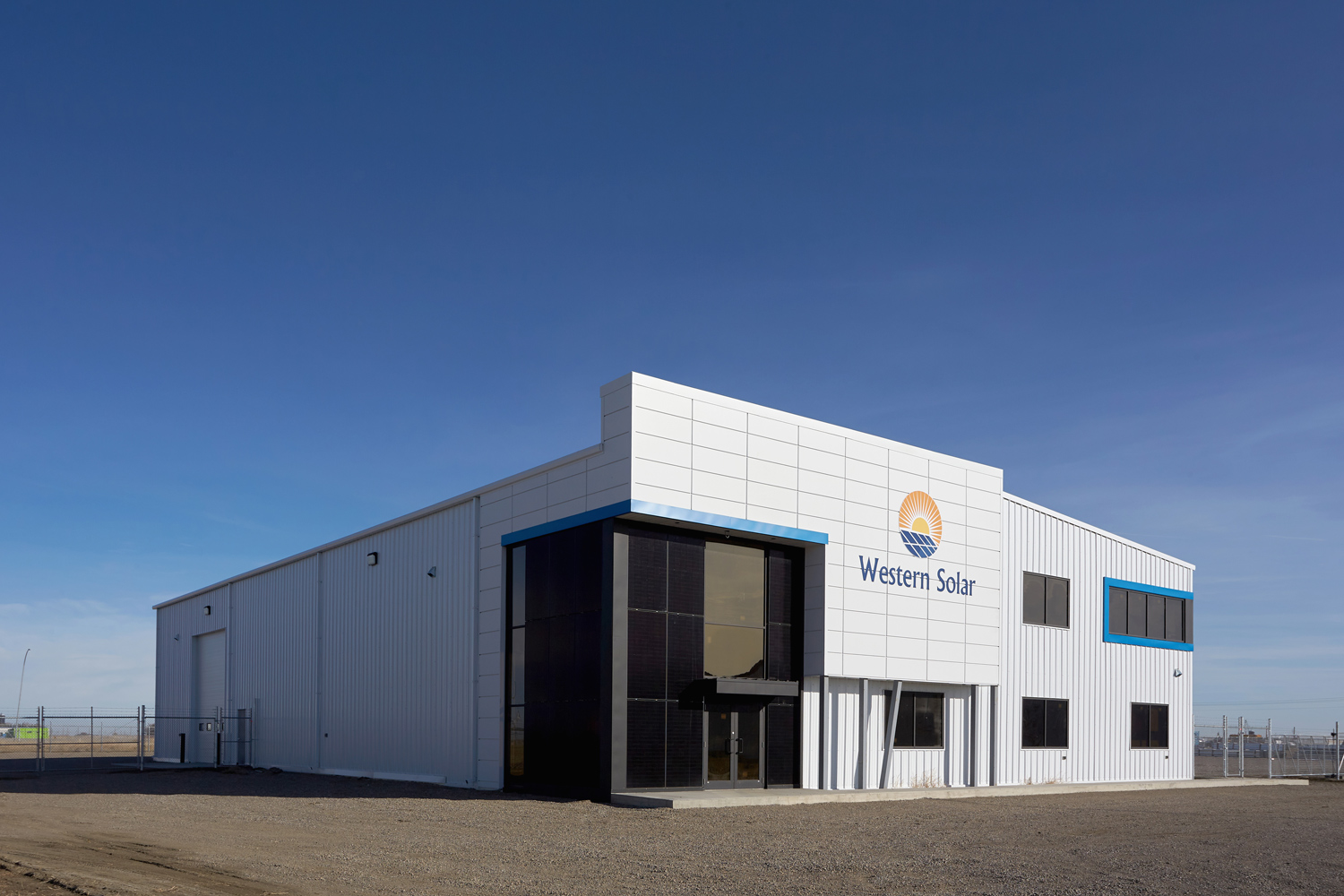

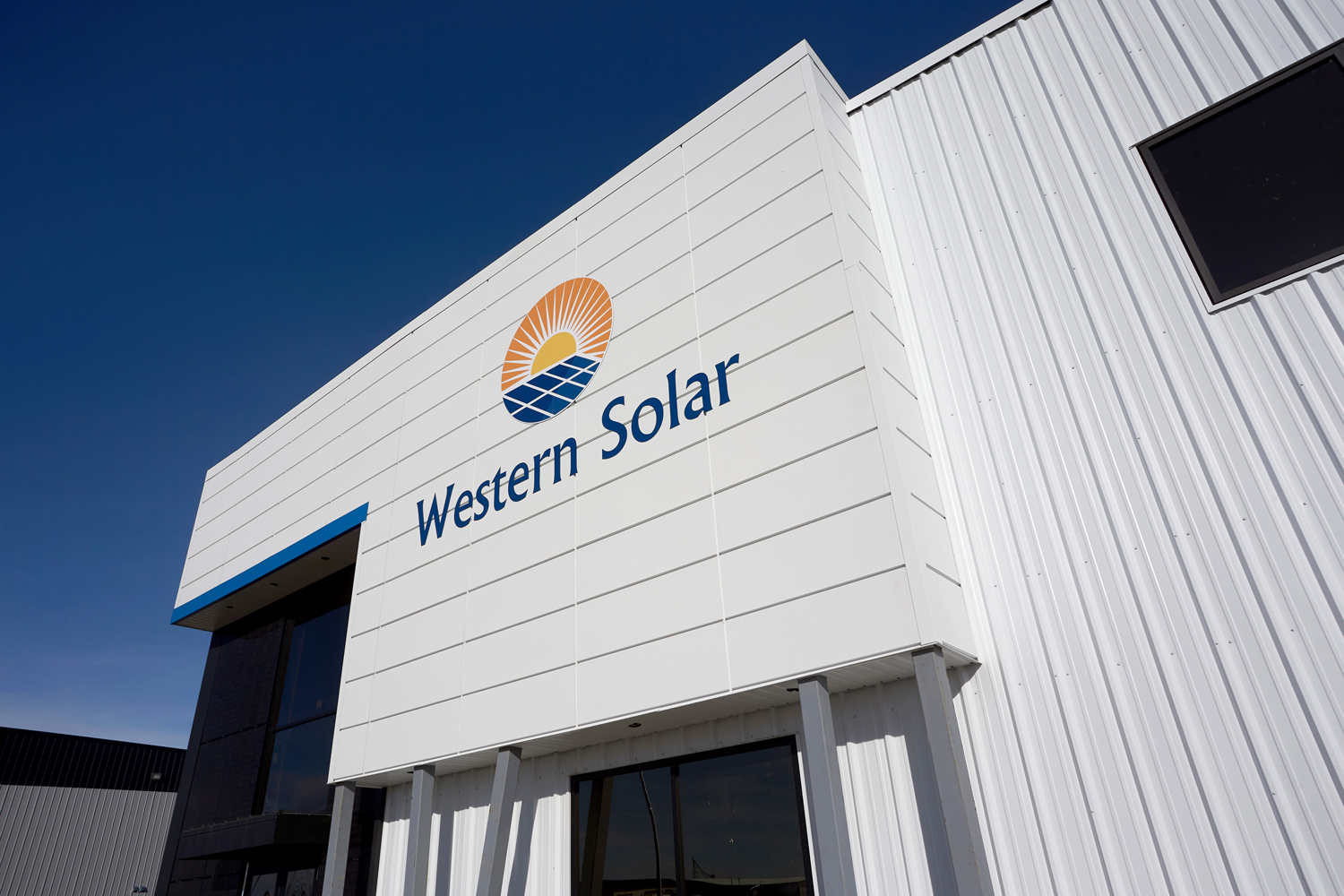

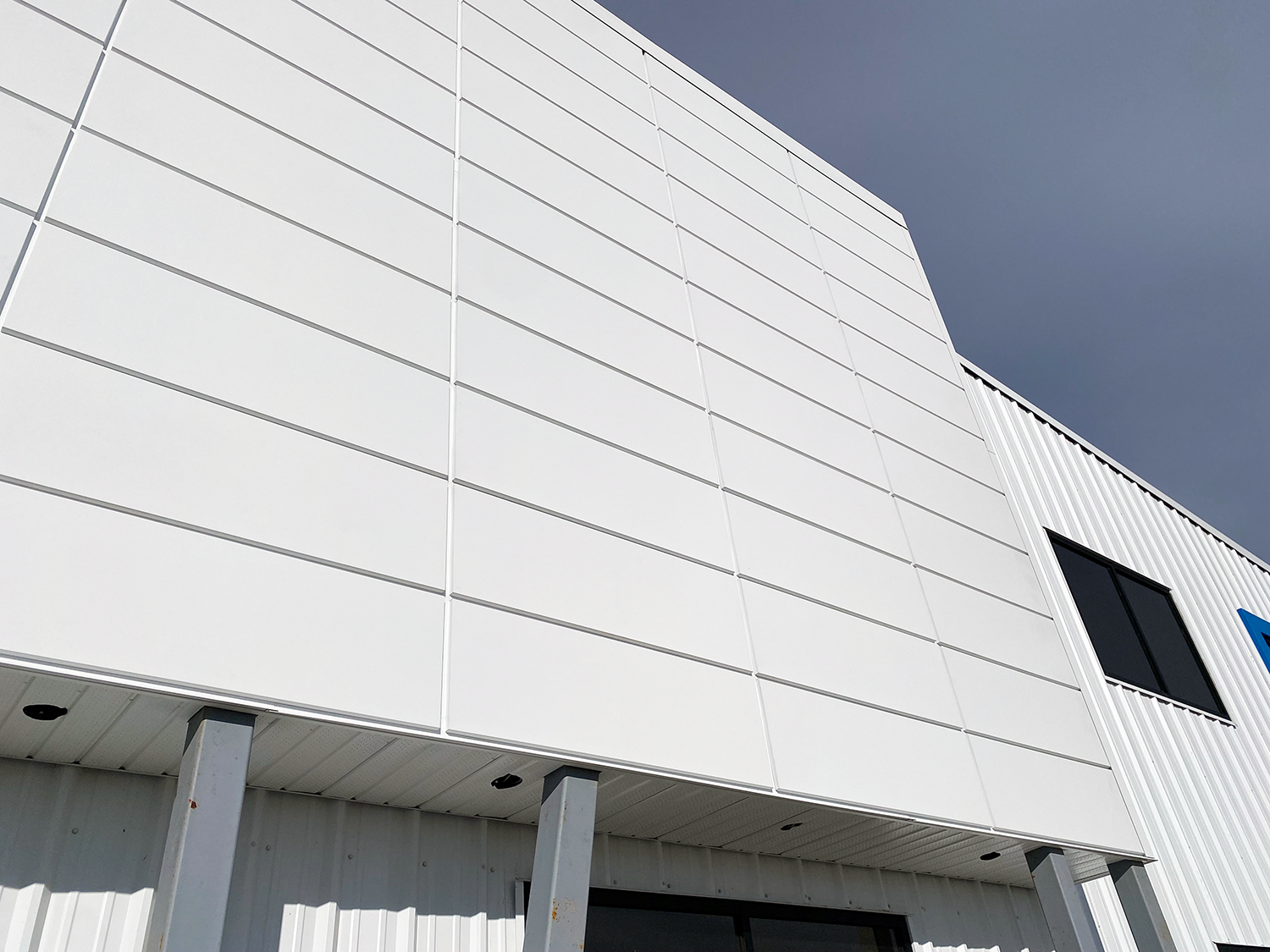

Commercial Building with Expand Panels in Textured Arctic White - Photography by Dan Banko
Commercial Building with Expand Panels in Textured Arctic White - Photography by Dan Banko
Commercial Building with Expand Panels in Textured Arctic White - Photography by Dan Banko

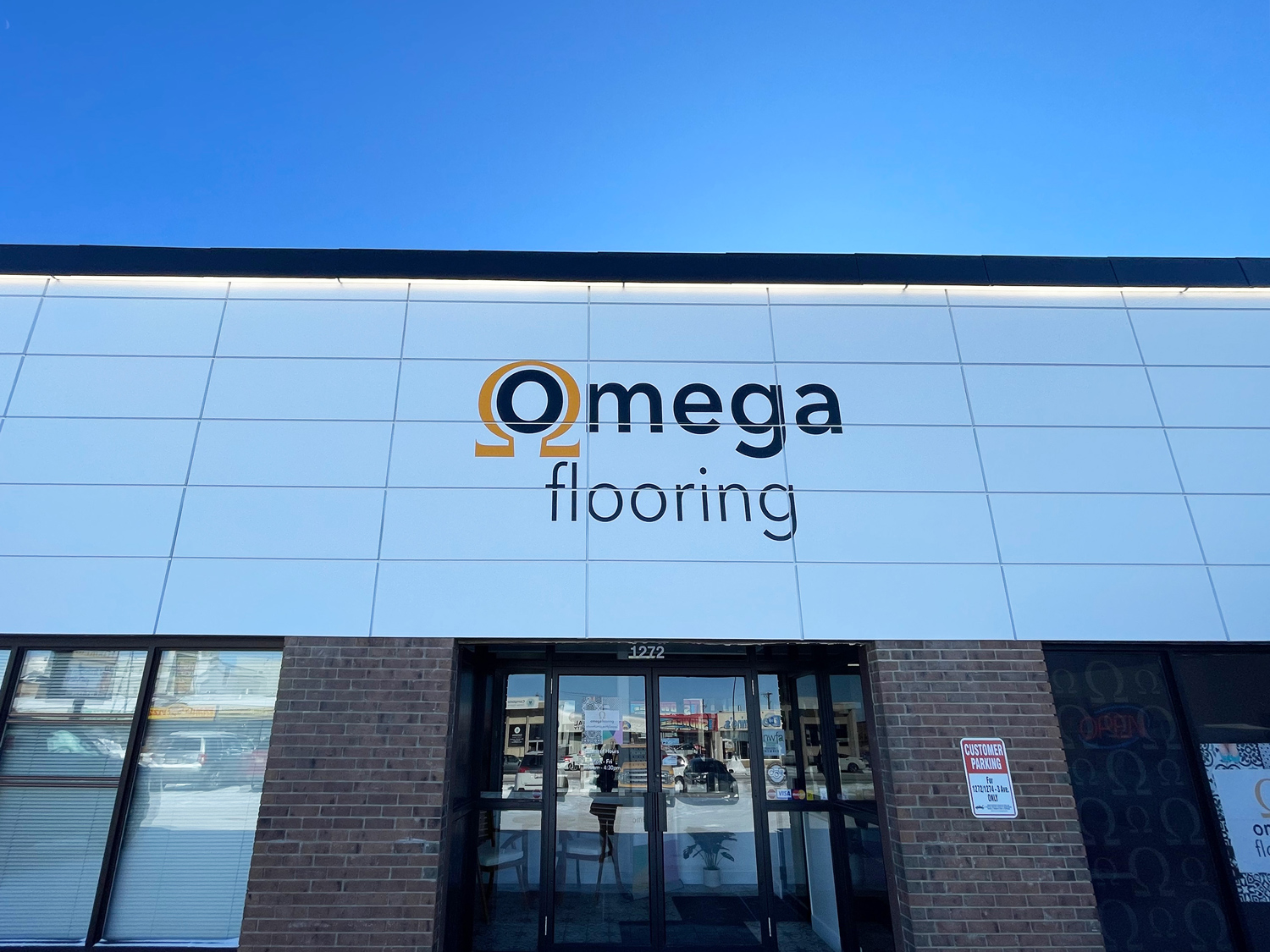

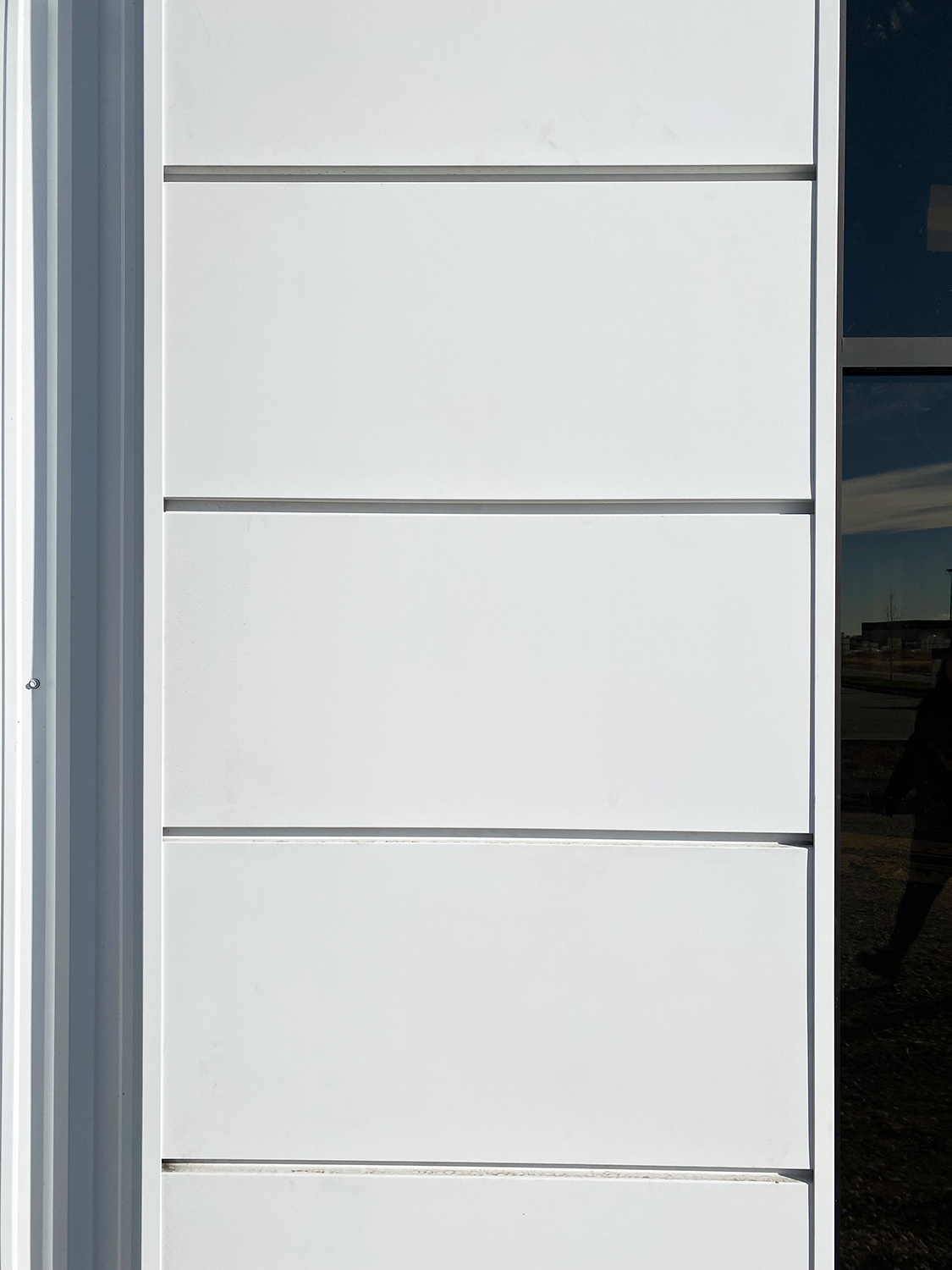

Commercial Building with Expand Panels in Textured Arctic White
Commercial Building with Expand Panels in Textured Arctic White

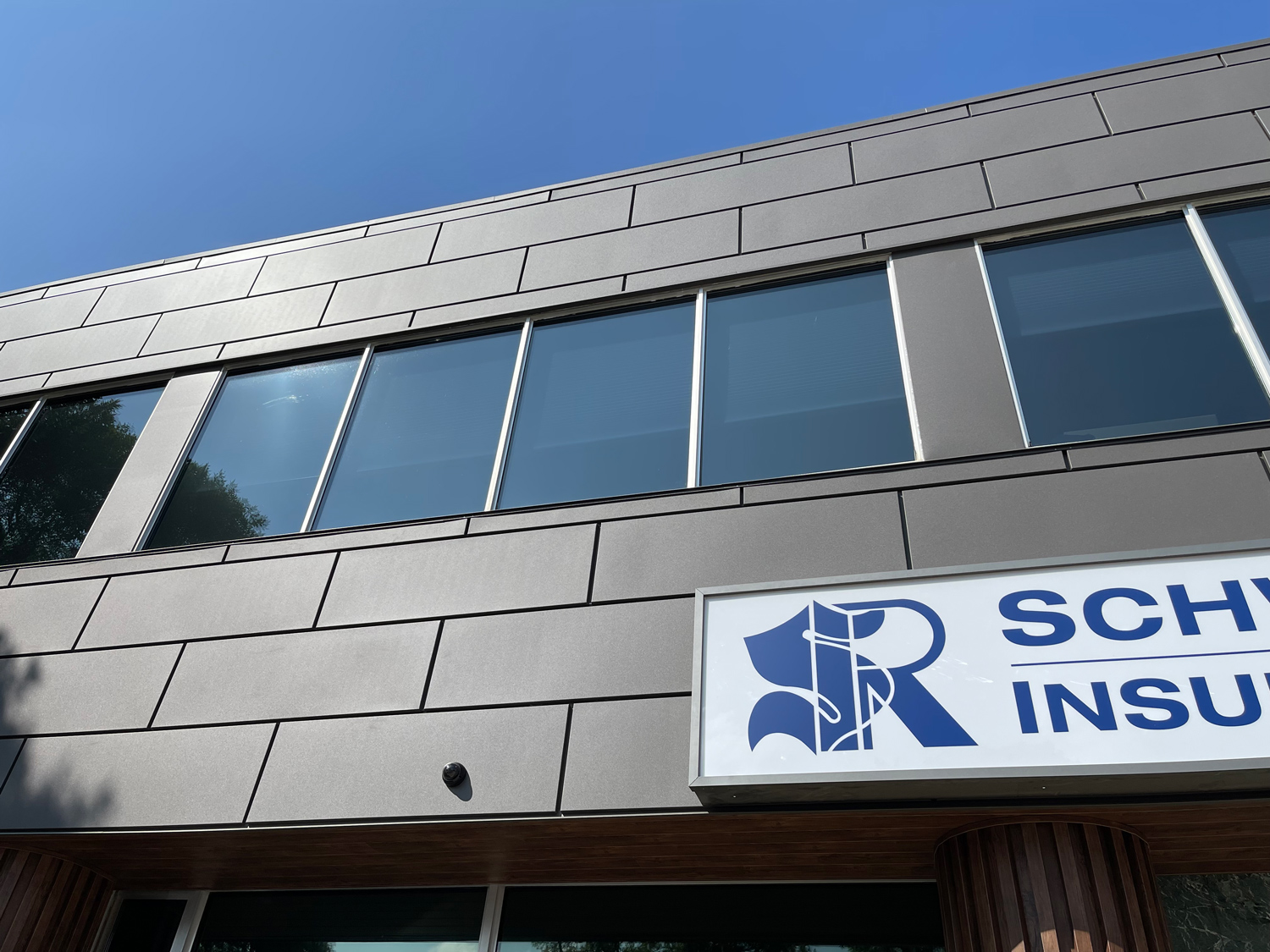

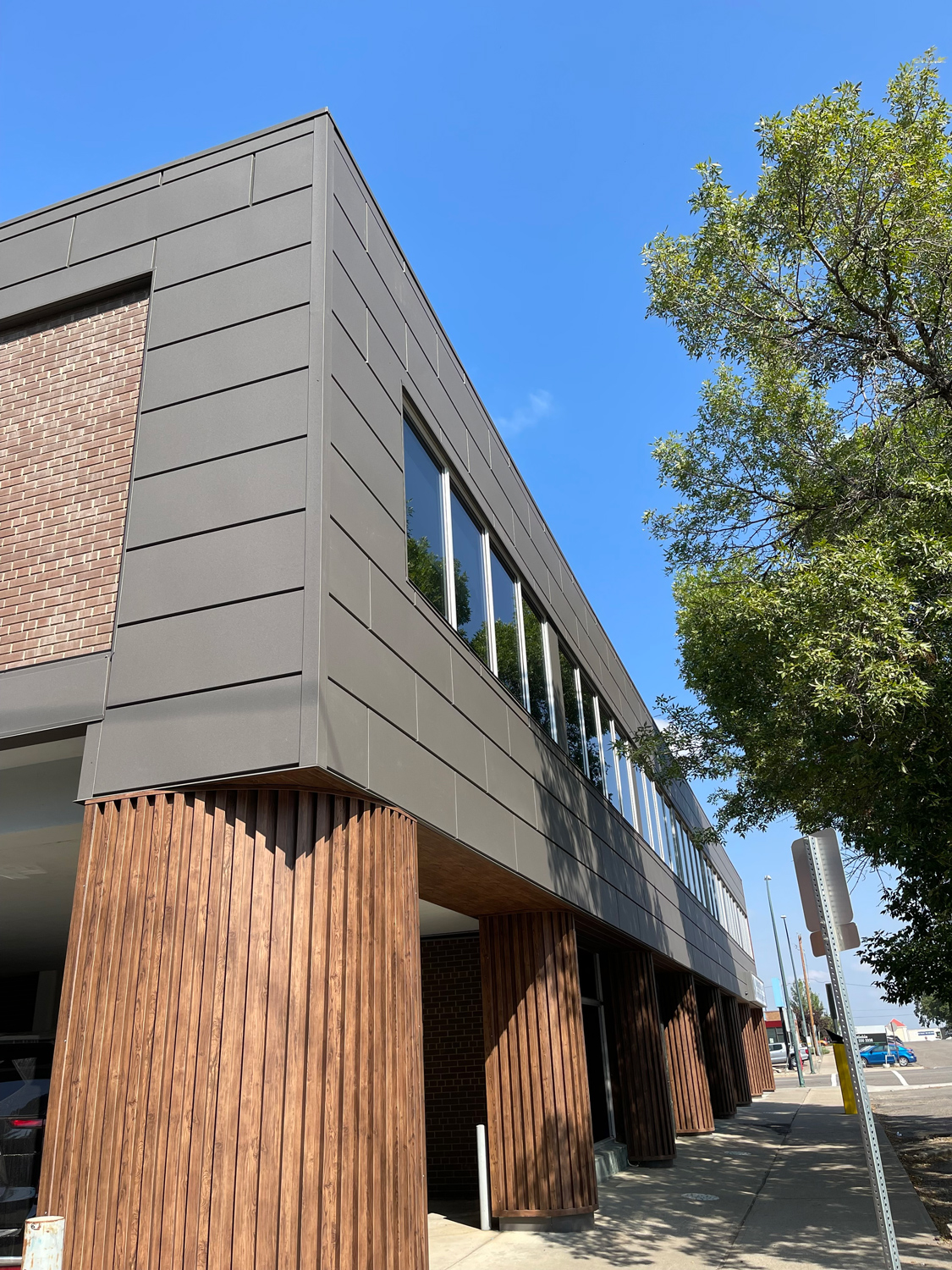

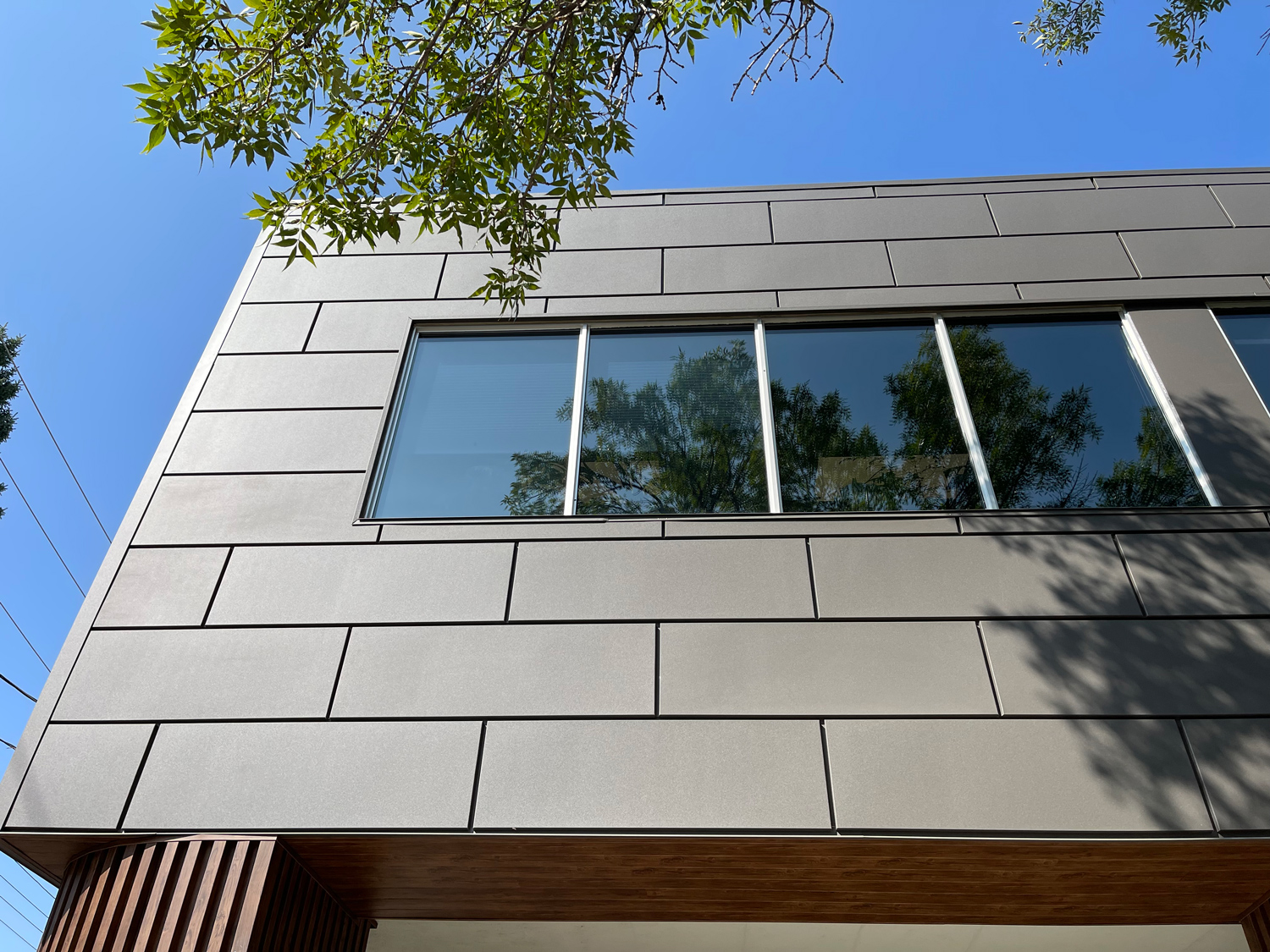

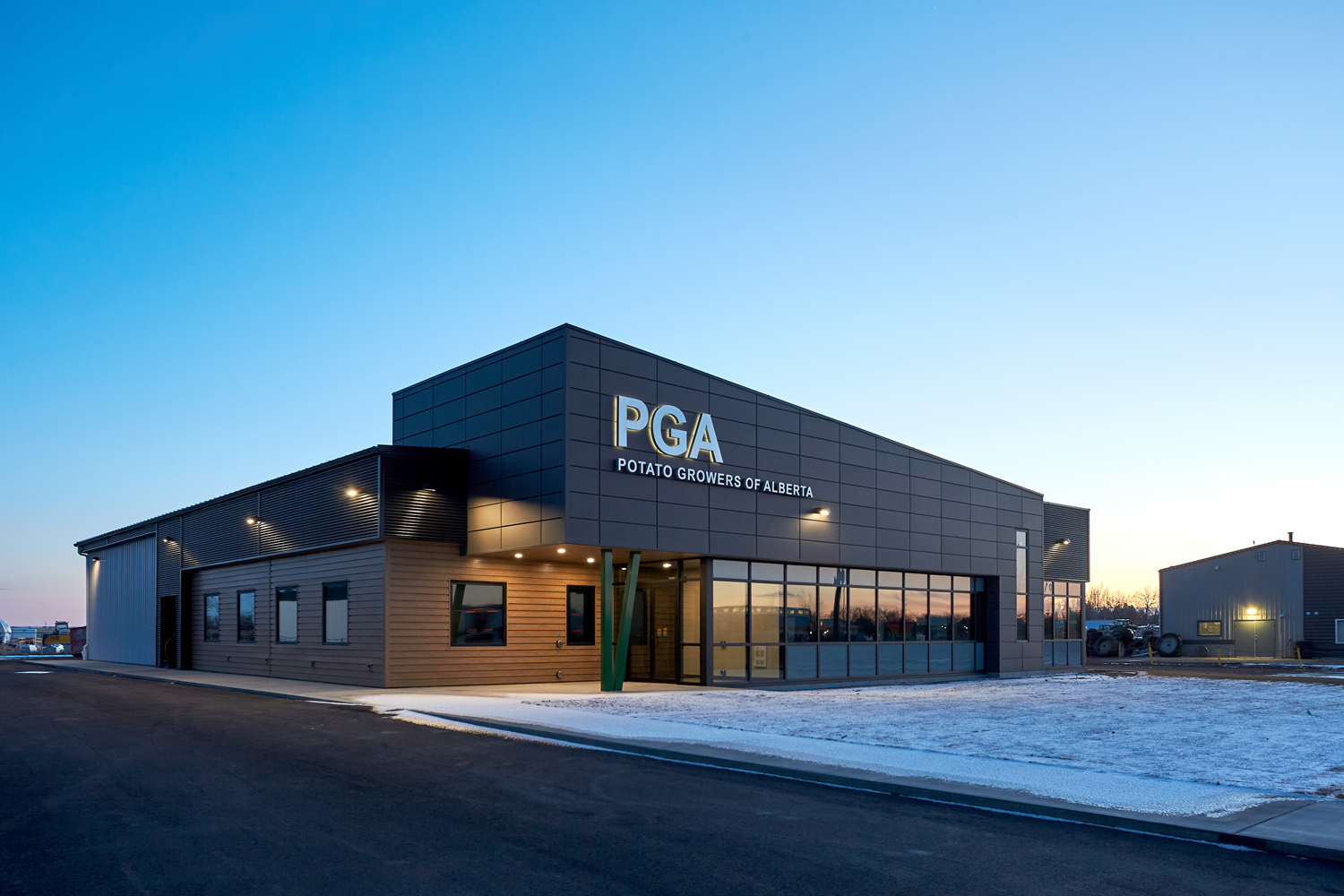

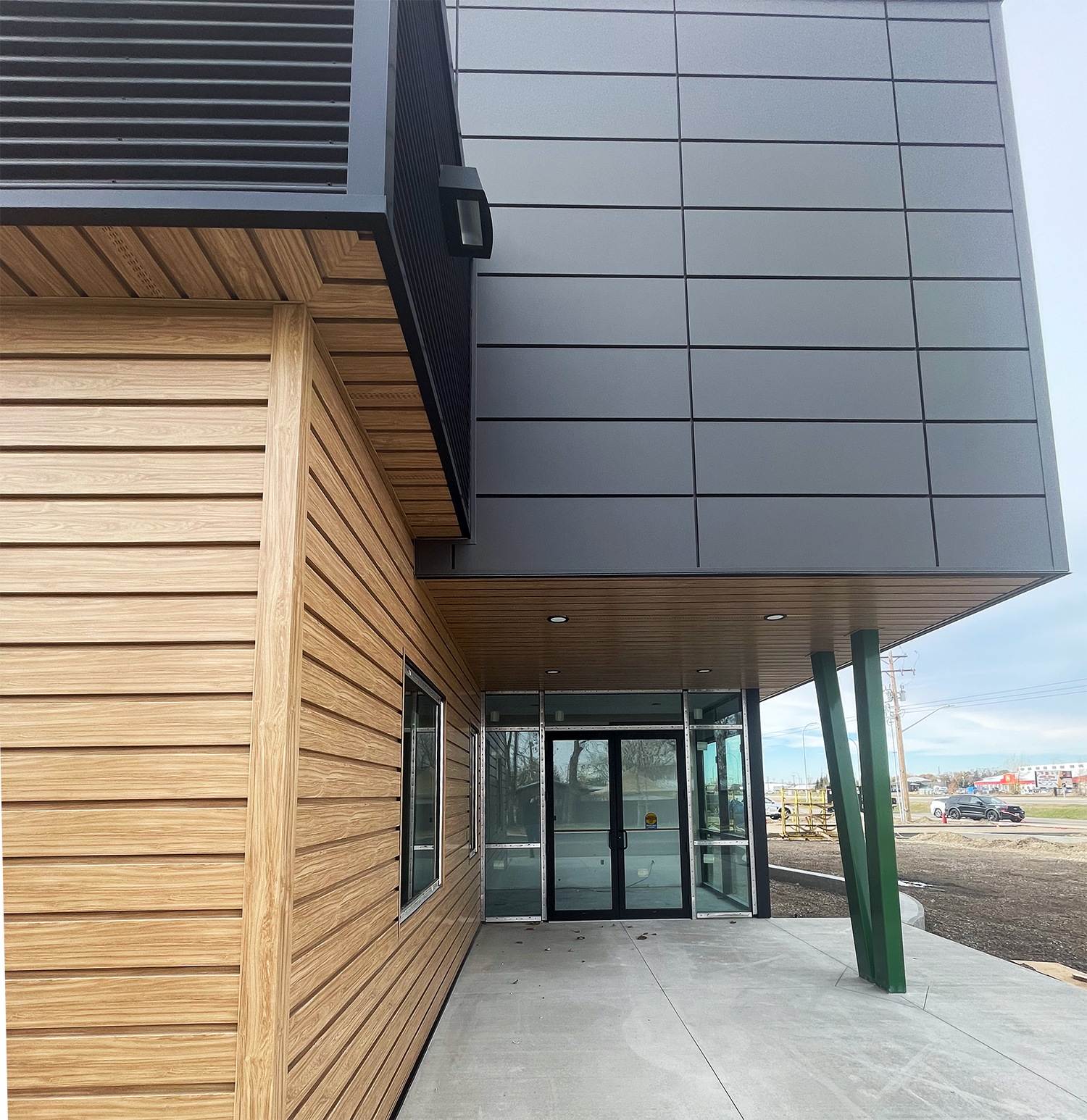

Commercial Building with Expand Panels in Textured Graphite - Photography by Dan Banko
Commercial Building with Expand Panels in Textured Graphite - Photography by Dan Banko
Commercial Building with Expand panels in Textured Graphite

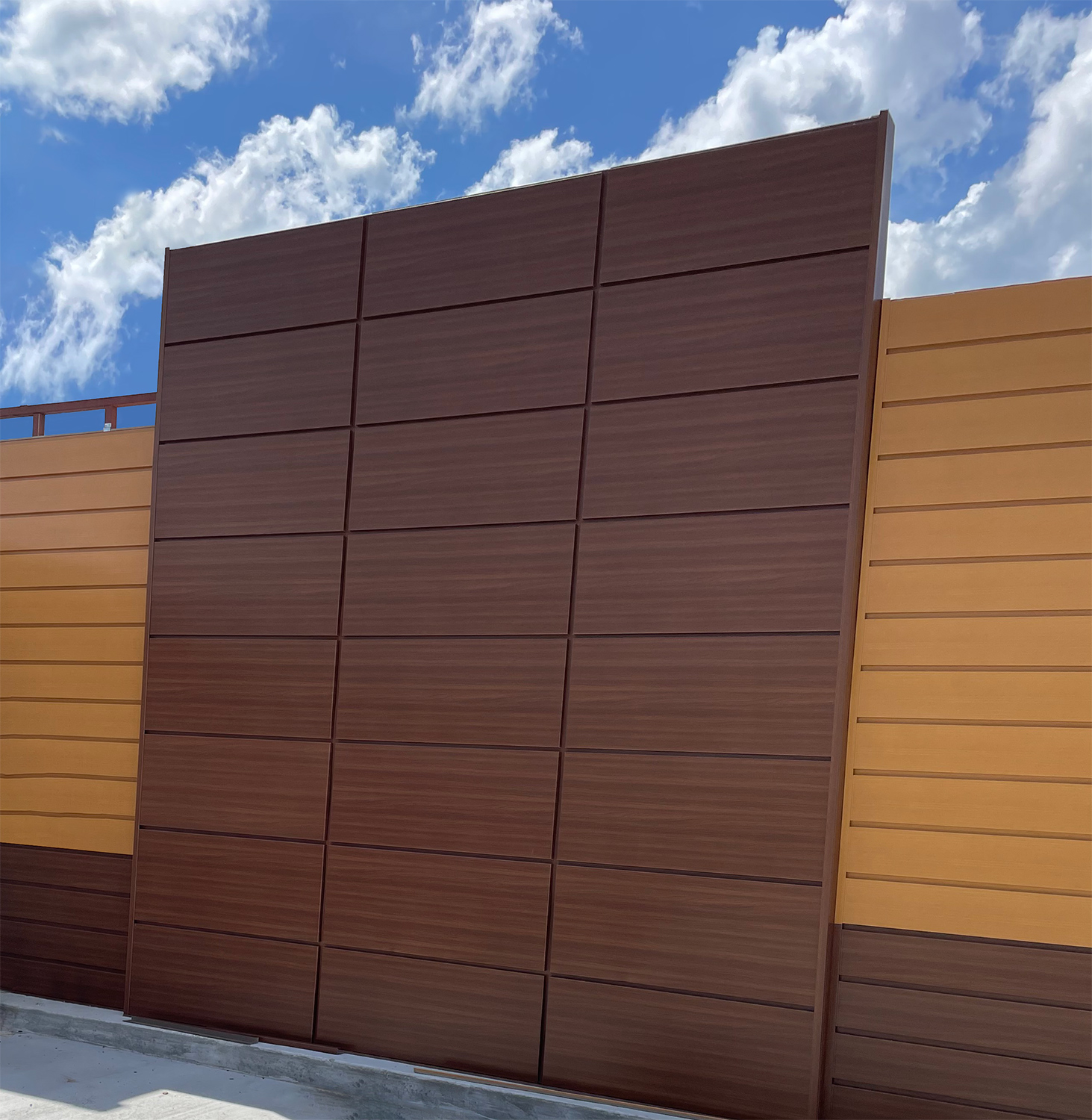

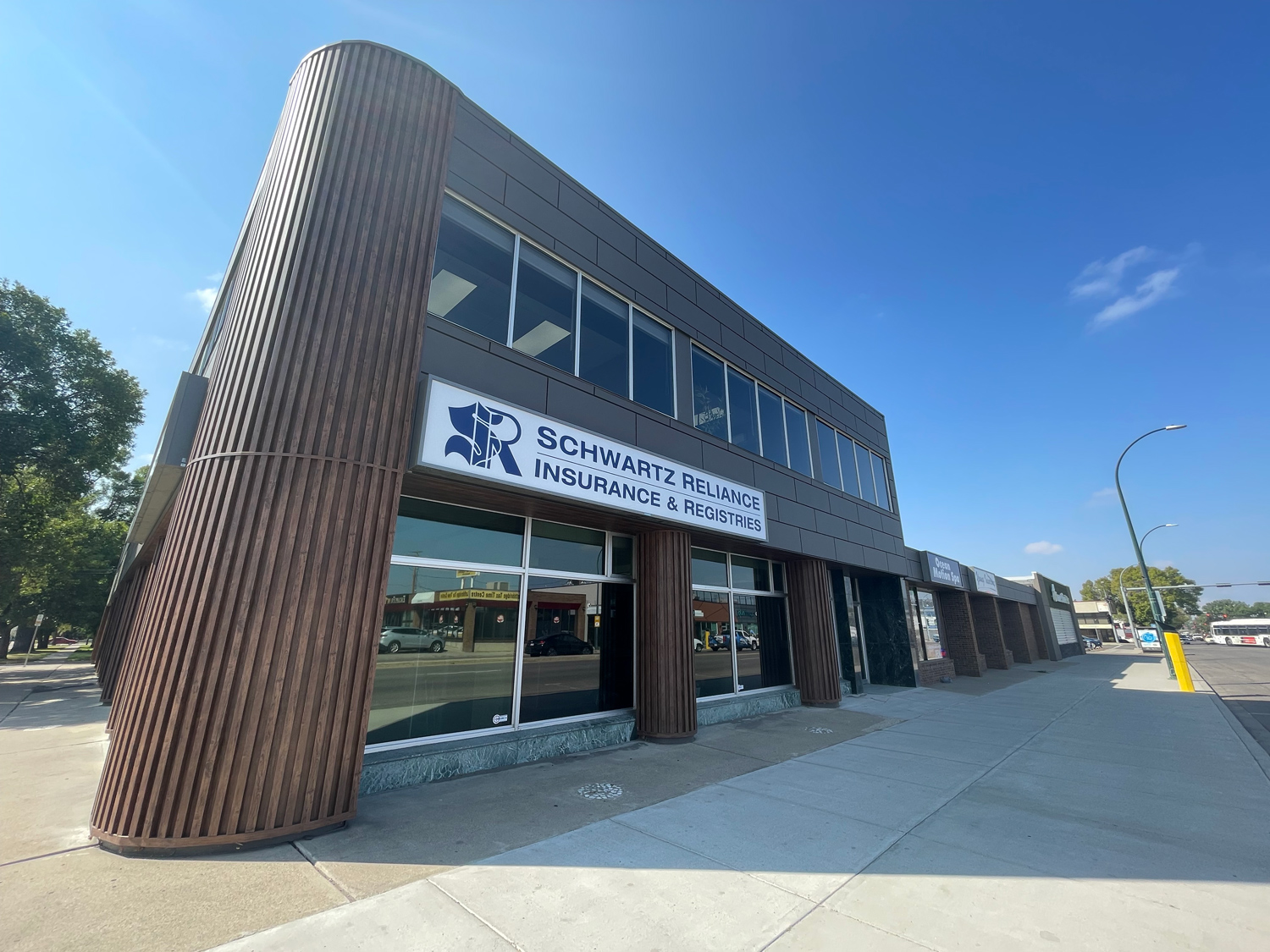

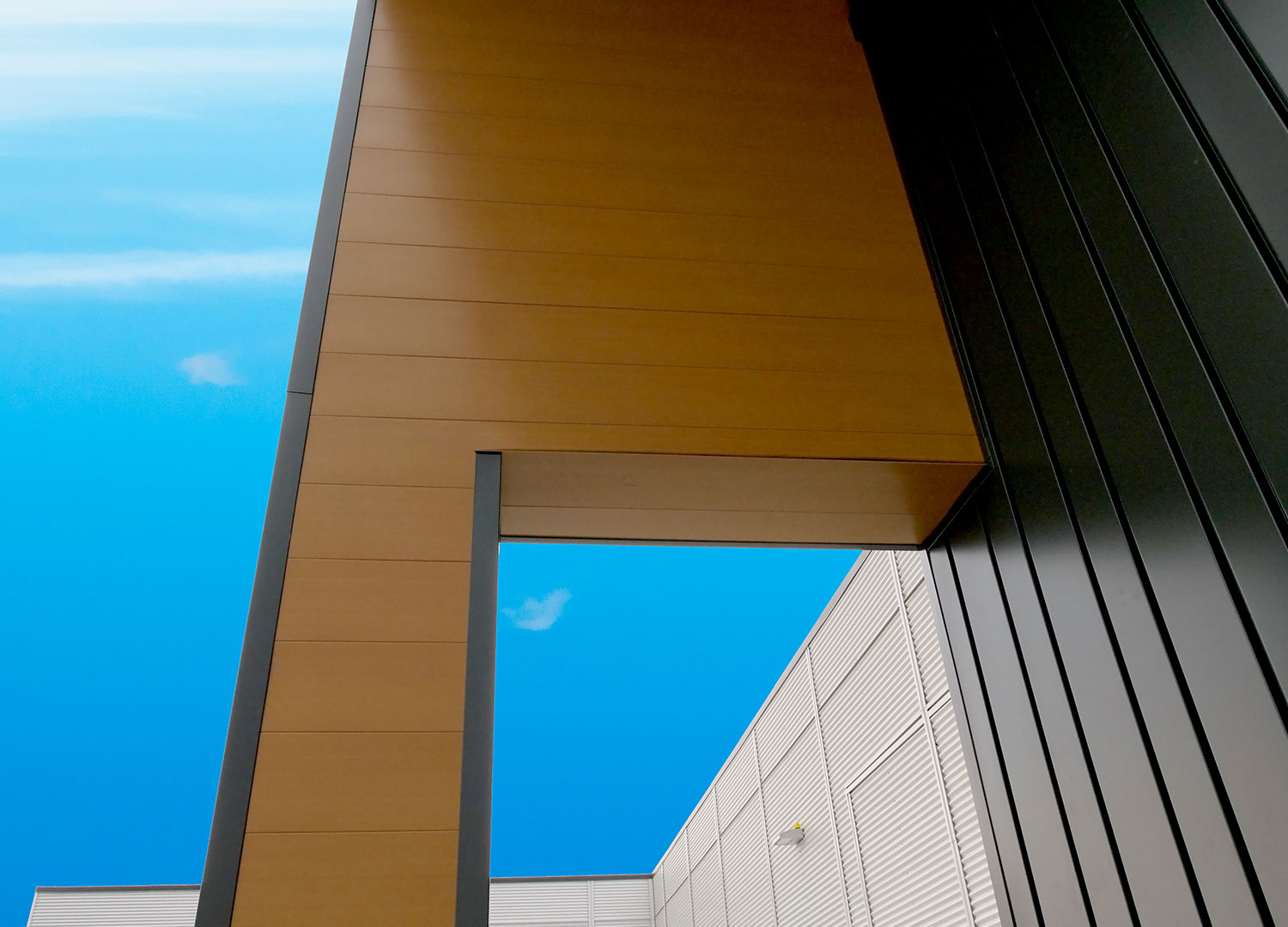

Commercial Building with Expand Panels in Espresso Woodgrain

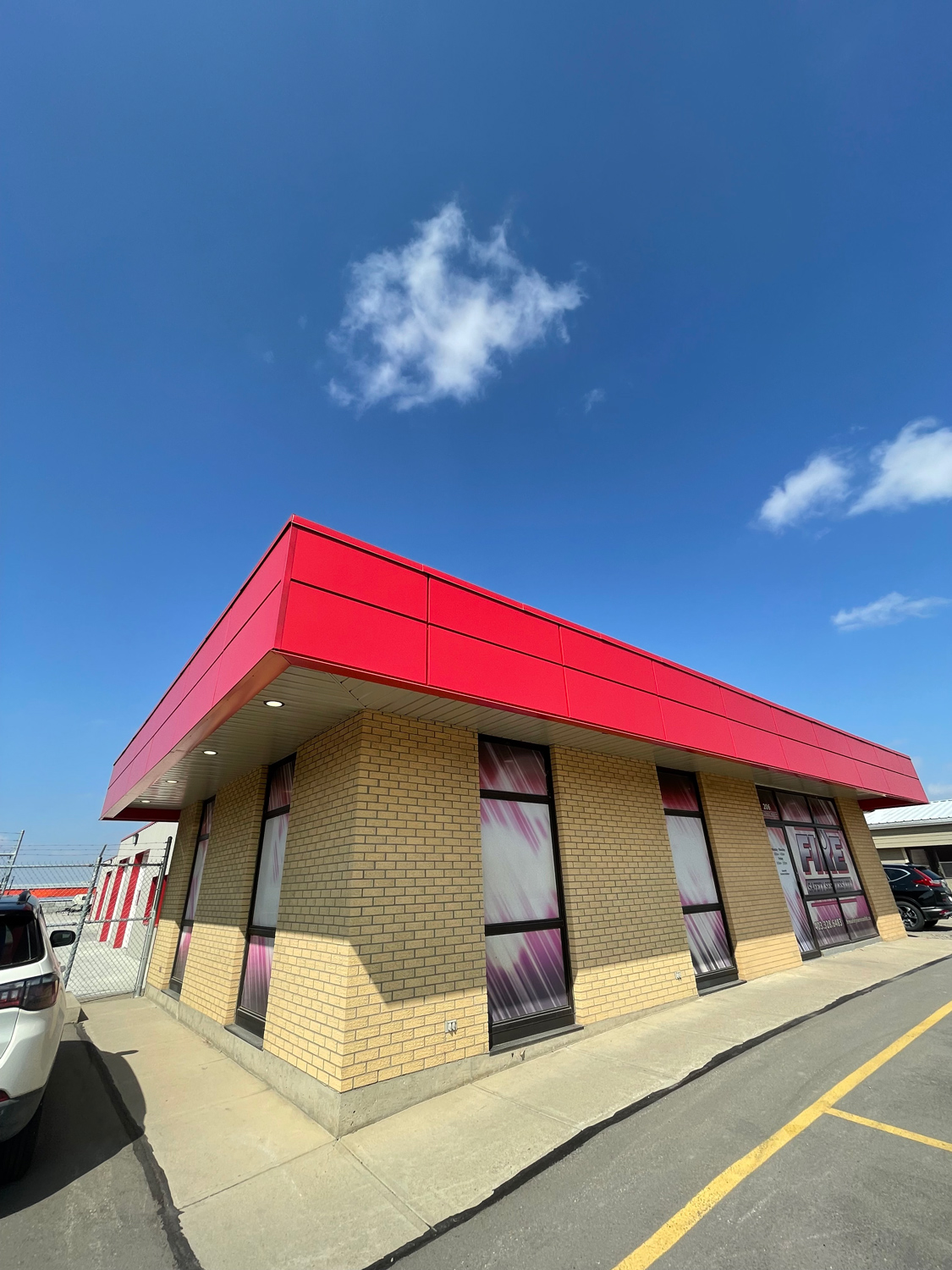

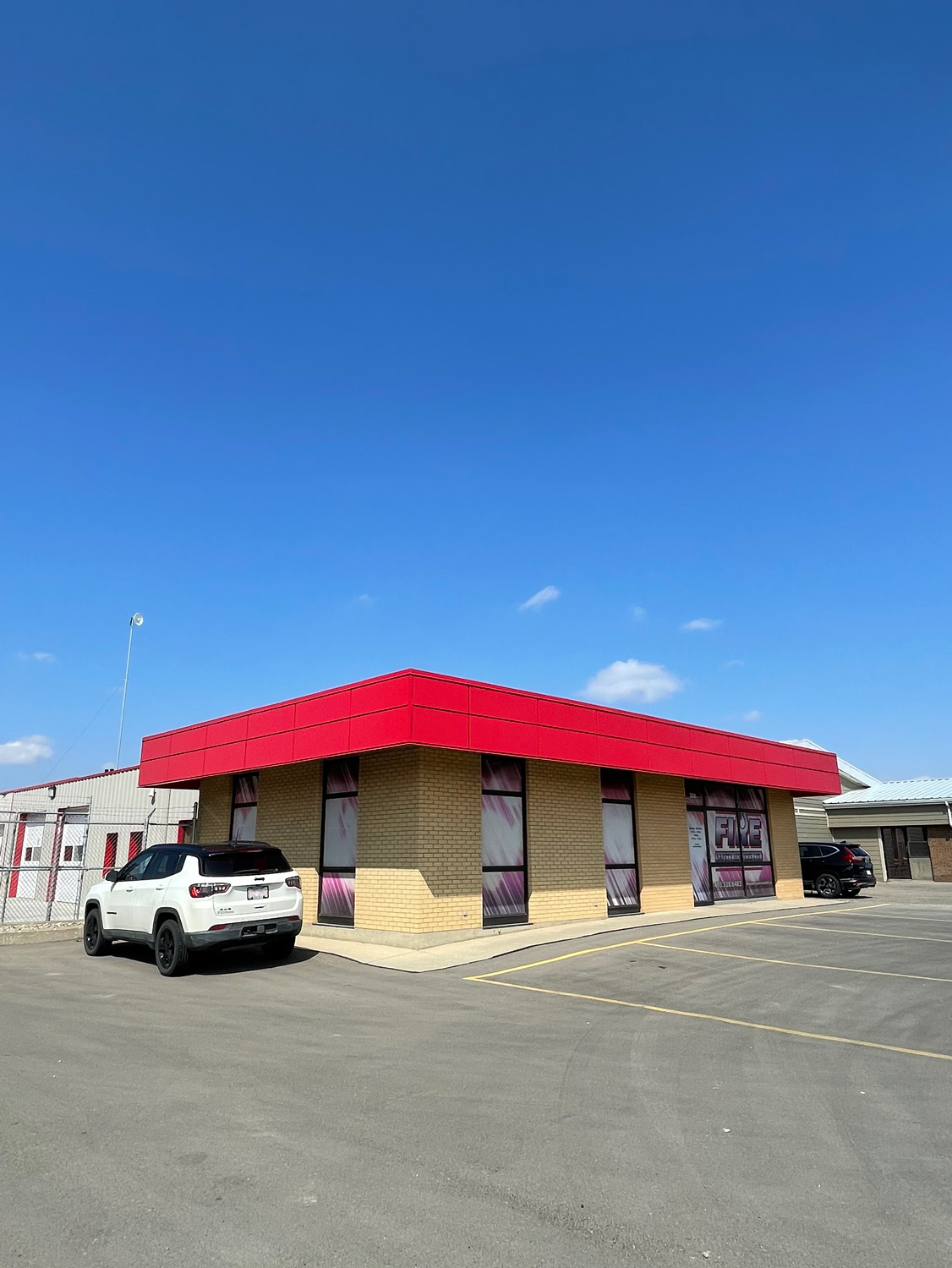

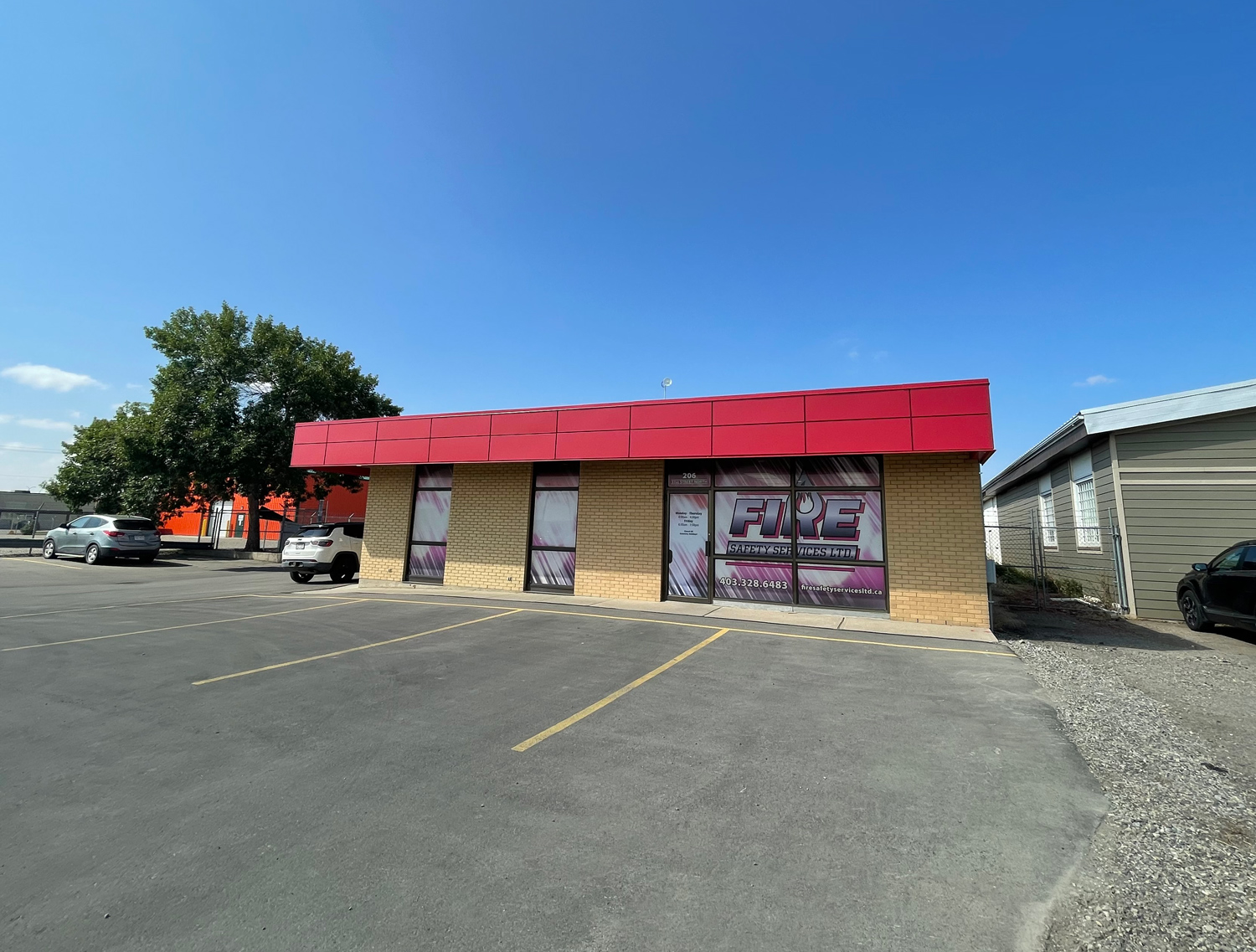

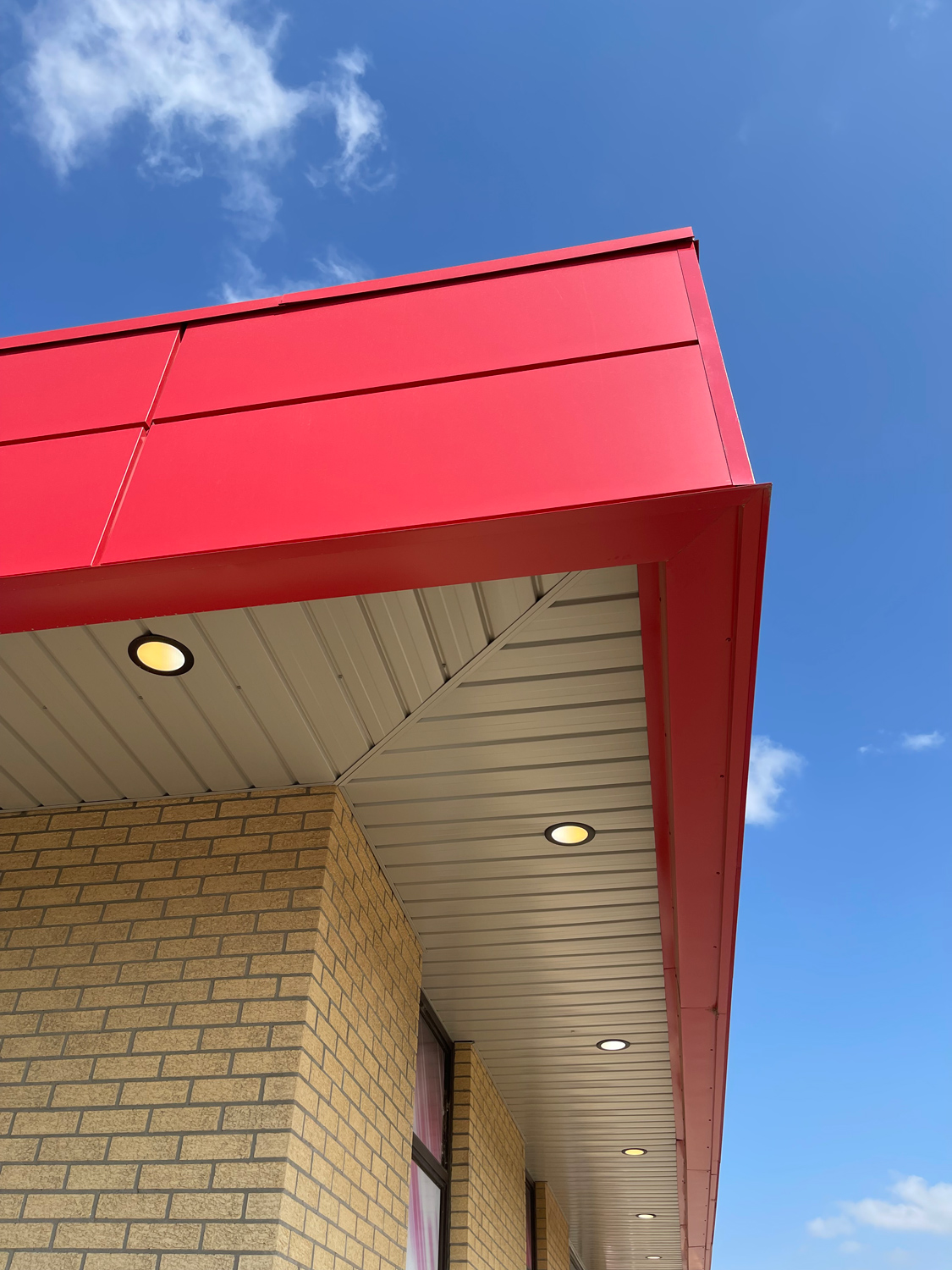

Commercial Building with Expand Modular Panels in Bright Red
Commercial Building with Expand Modular Panels in Bright Red
Commercial Building with Expand Modular Panels in Bright Red
Commercial Building with Expand Modular Panels in Bright Red
Commercial Building with Expand Modular panels in Bright White

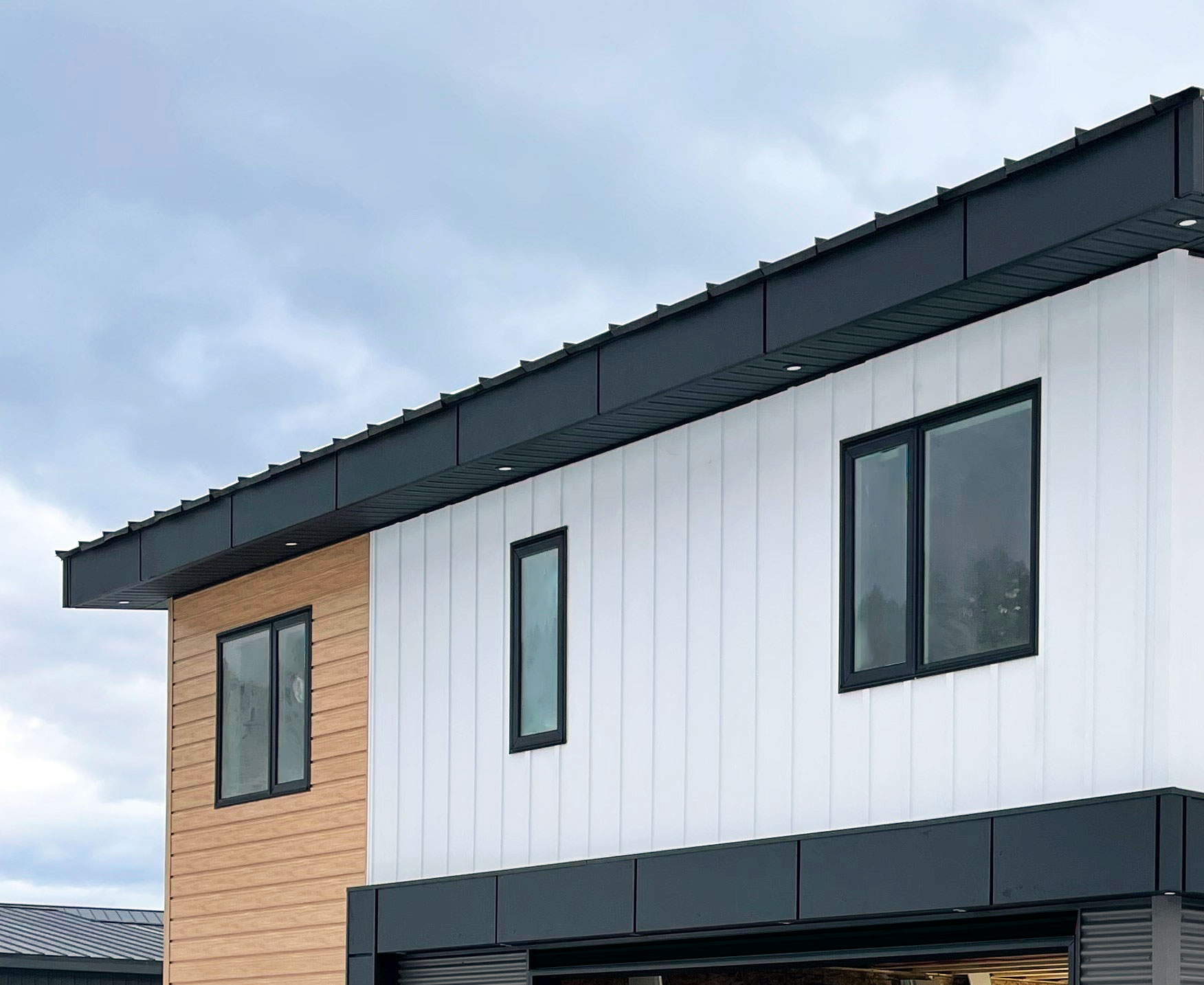

Residential Fascia with Expand Modular Panels

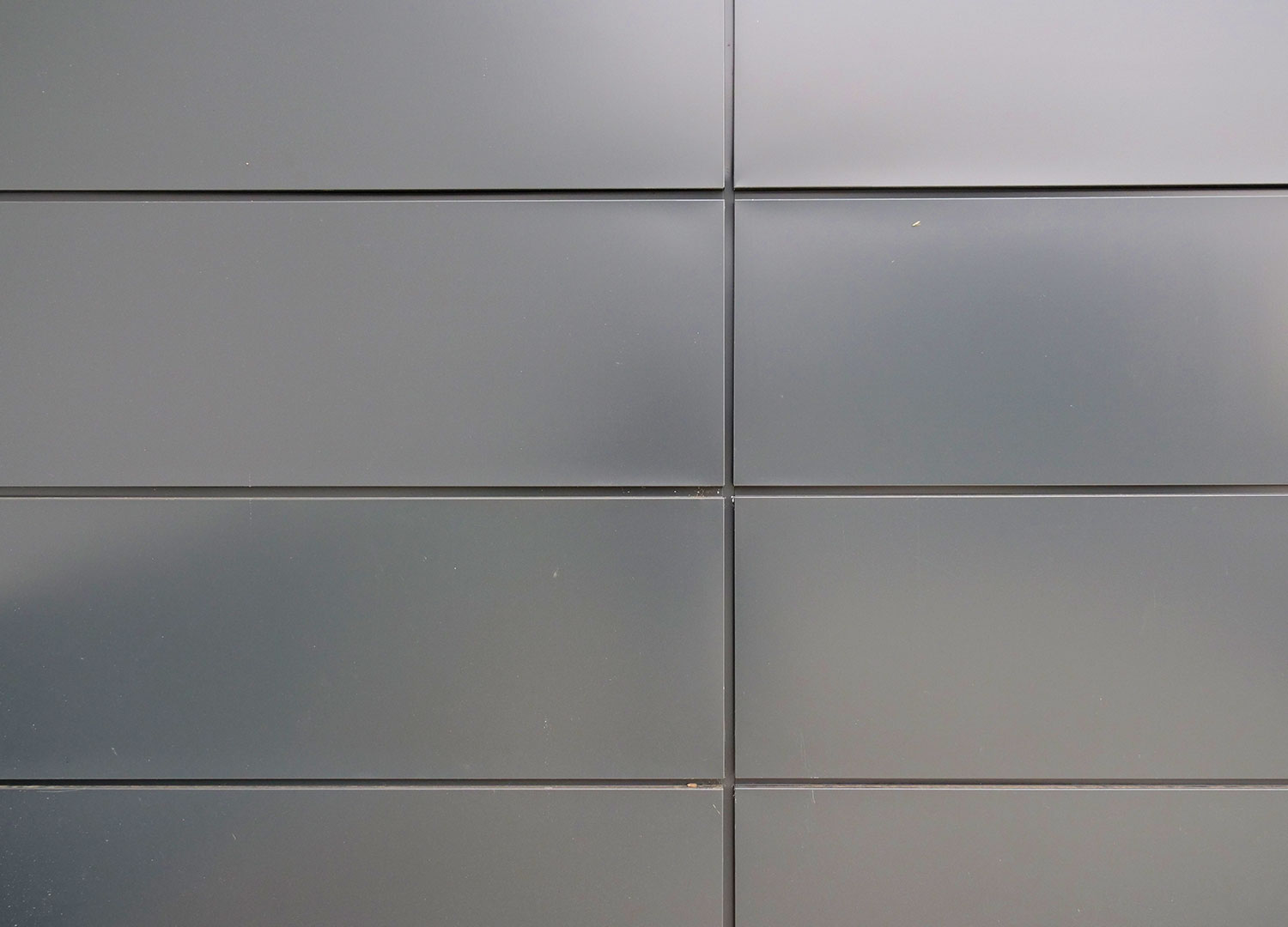

Expand Modular Panel in Textured Graphite
