32-7/8" Corrugated

Incredible Impact Resistance and Structural Stability

Our 32-7/8" Corrugated panels are available in 26 Gauge colours with a wall coverage of 32". 7/8" Corrugated is a high-strength panel, featuring a wave-like profile ideal for a variety of applications from roofing to decorative accents. The corrugations, measuring only 2.67” from crest to crest, produce a shadow effect that is both symmetrical and aesthetically pleasing. With incredible impact-resistance and exceptional structural stability, these panels are ideal in environments with high impact, wind and snow volume.

Very adaptable, corrugated panels are used in everything from modern residential designs, to large-scale commercial projects, to agricultural barns and outbuildings. Corrugated panels can be installed vertically and horizontally to achieve various designs. With a rib height of 7/8", these panels are configured to work with our 7/8" Standard Trims to complete any installation.

For our 37-7/8" Corrugated Panels in 24 Gauge Colours and Weathering Steel, click here.

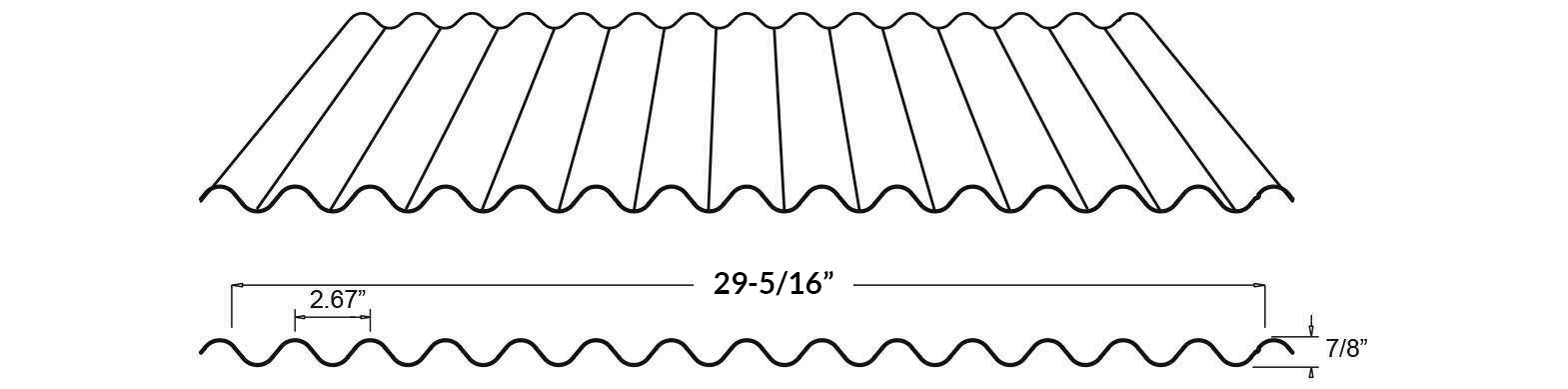

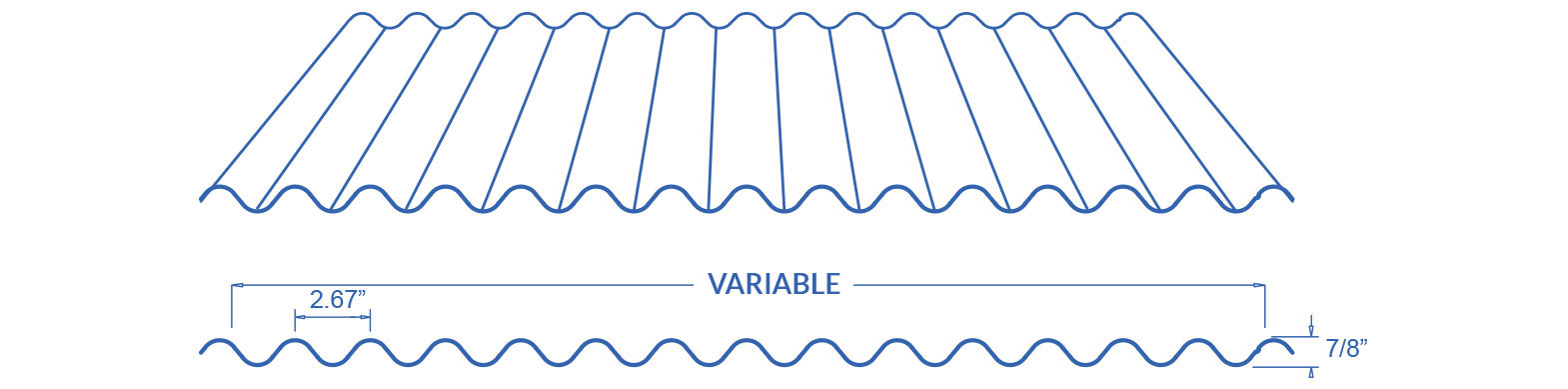

Panel Profile


Galvanized

Galvalume

Bright White

White White

Bone White

Iceberg

Wicker

Stone Grey

Hickory

Tan

Dark Red

Coffee Brown

Dark Brown

Black

Carbon

Charcoal

Regent Grey

Oxford Blue

Melchers Green


Specialty Steel



FormaTouch Burnished Slate

FormaTouch Graphite

FormaTouch Kona Brown

FormaTouch Black

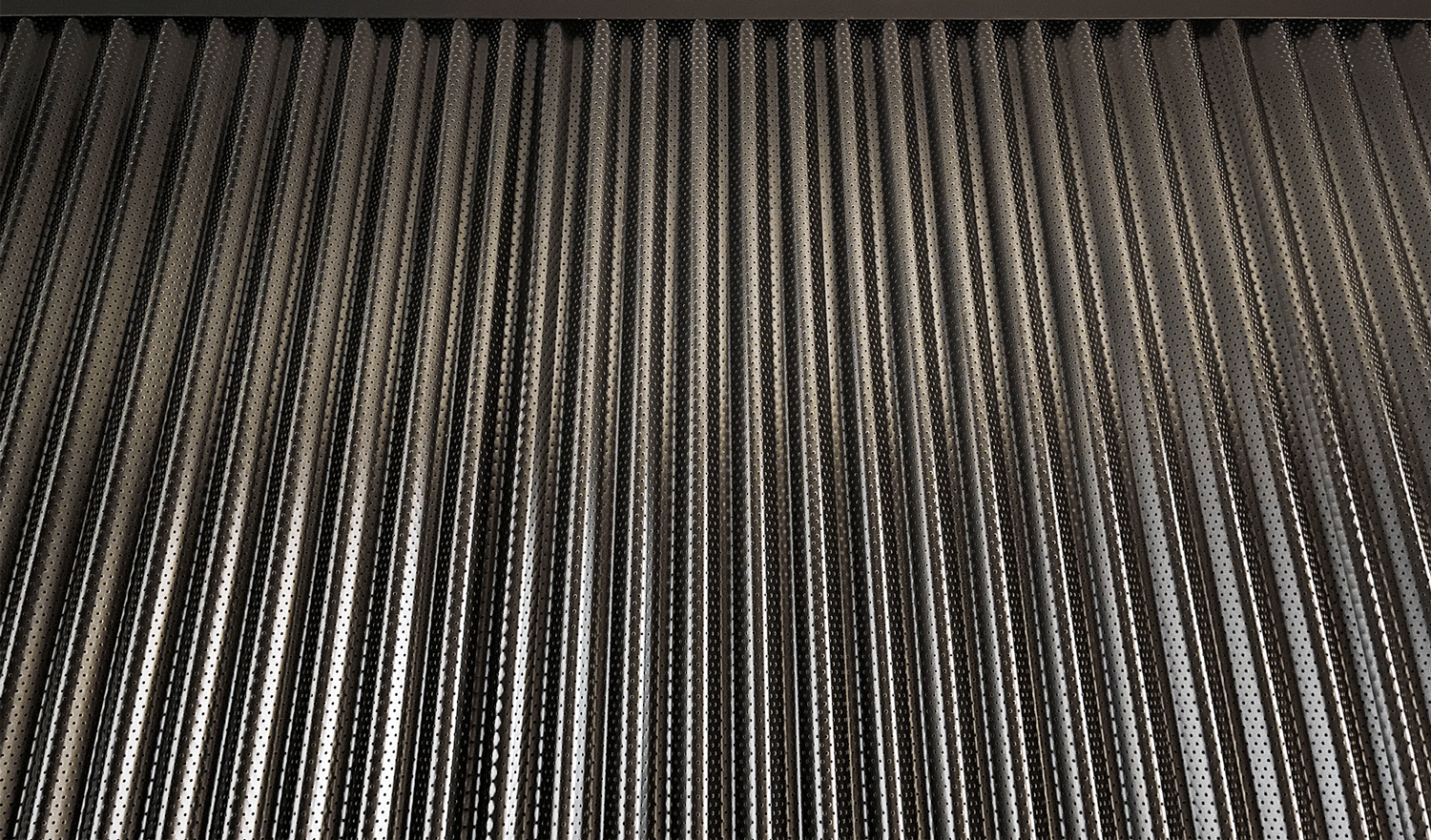

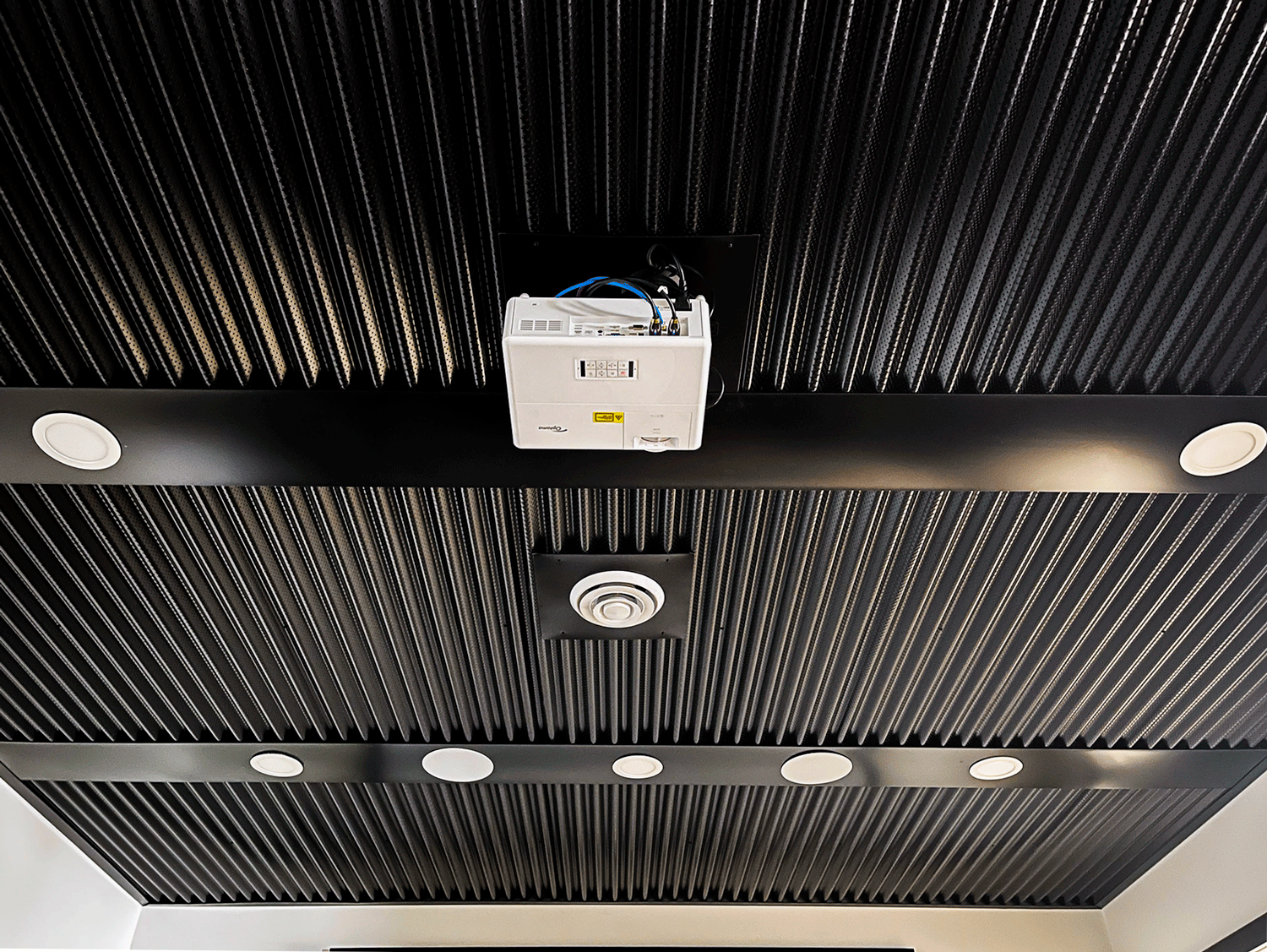

White Perforated

Weathering Steel (22ga)

Specifications

Application: Roof & Wall

Wall Coverage: 32" with 1 rib overlap

Roof Coverage: 29-5/16" with 2-rib overlap

Slope: 3/12 with Overlap Sealant

Roof Application always requires overlap sealant

Rib Height: 7/8" at 2.67" Centers

Panel Length: 3' to 30'

Standard Panel Wall Coverage: 32" (Also available in 37")

Available in 26 Gauge in Standard Colours



Product Brochures


7/8 CORRUGATED BROCHURE
STANDARD COLOUR CHART
7/8" STANDARD TRIMS

Inspiration Gallery:

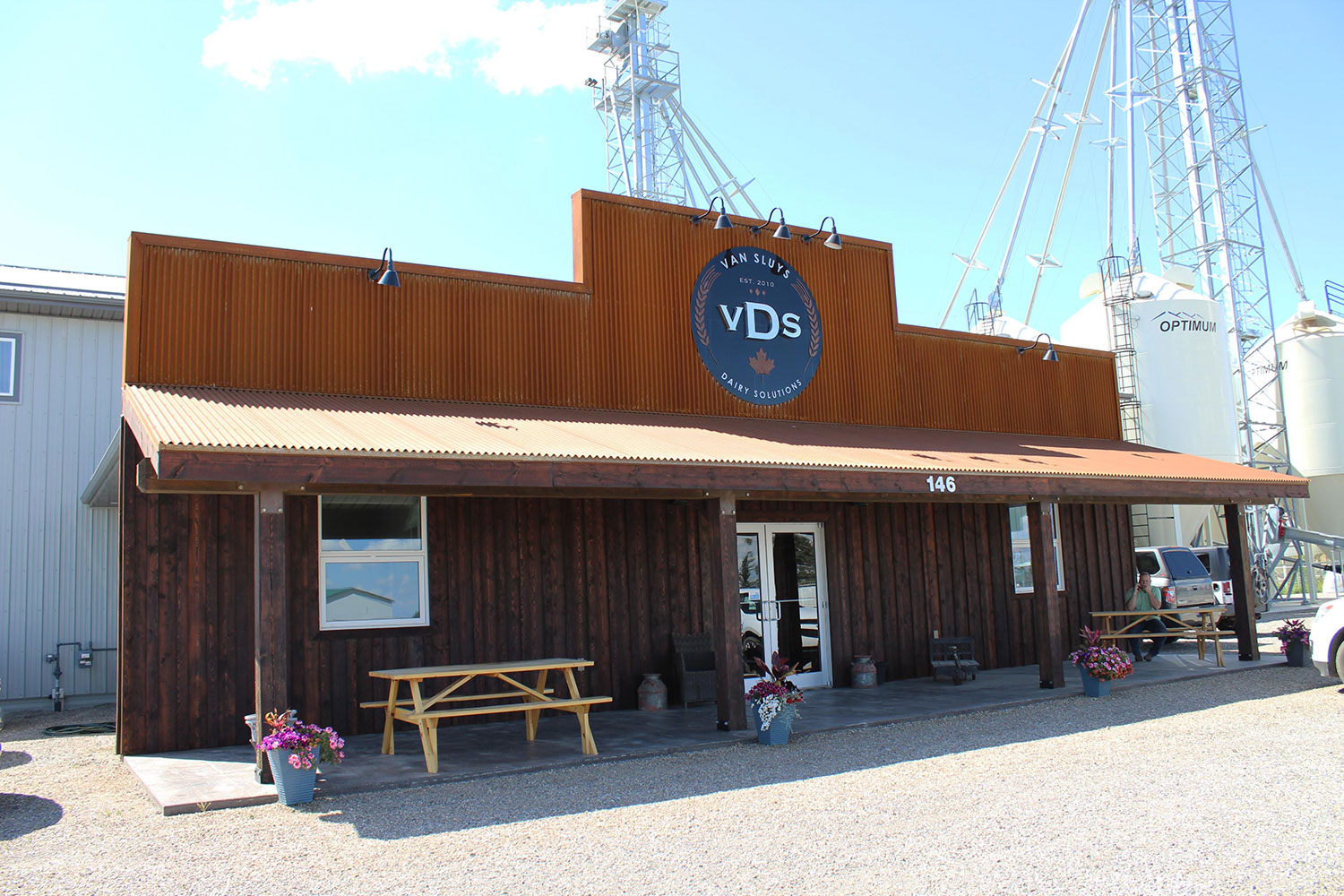

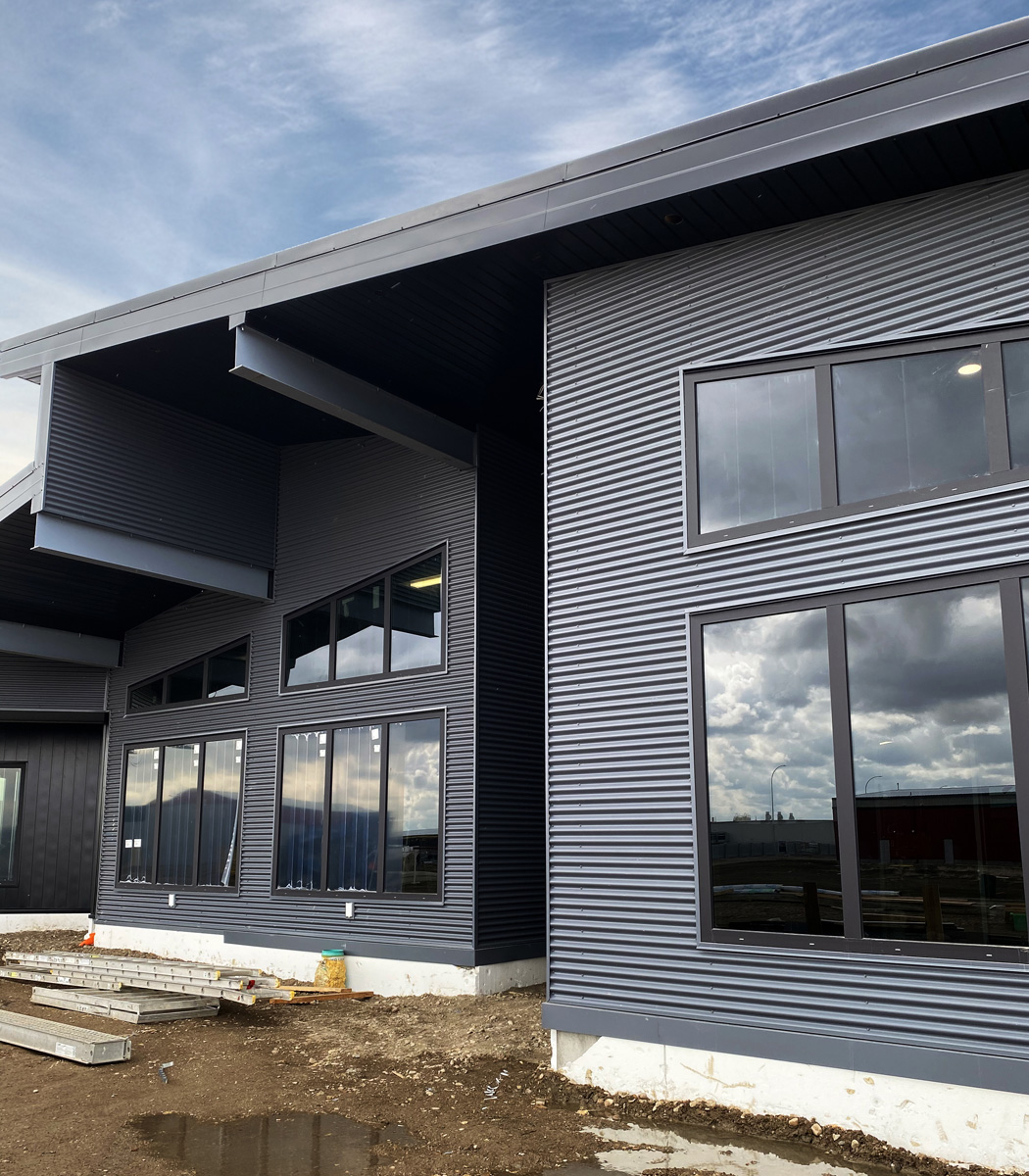

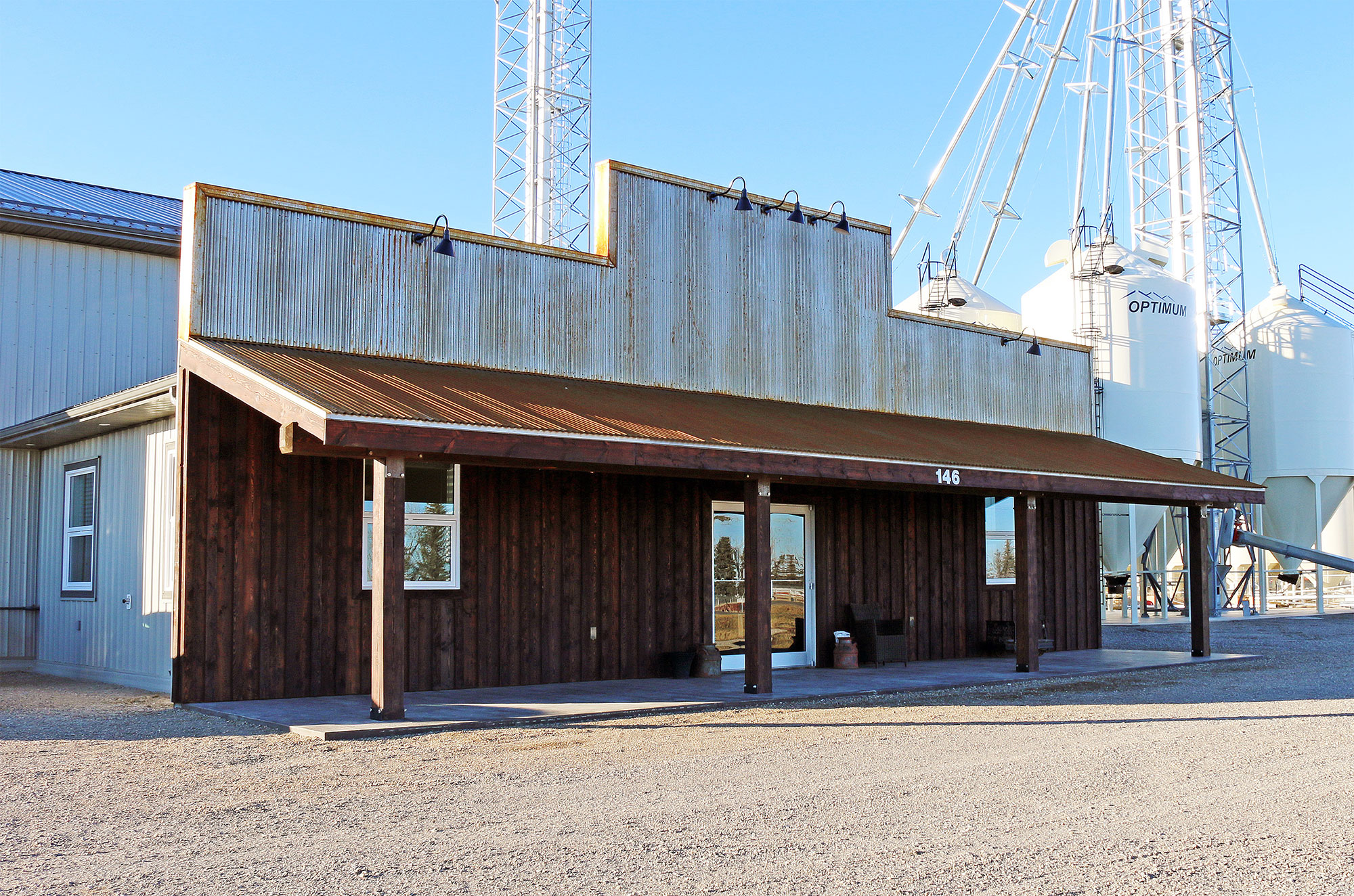

Commercial office with 7/8 Corrugated in Weathering Steel
Commercial office with 7/8 Corrugated in Weathering Steel

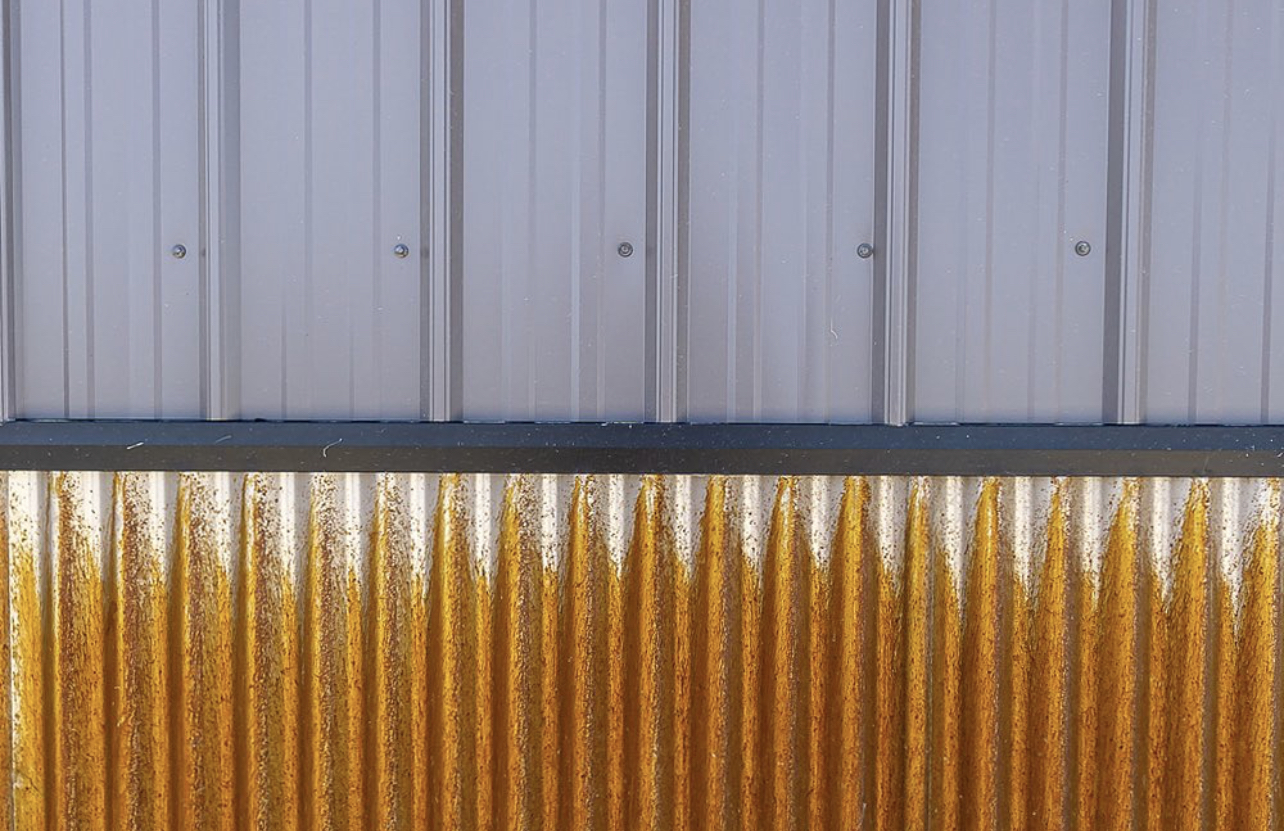

7/8" Corrugated in Weathering Steel

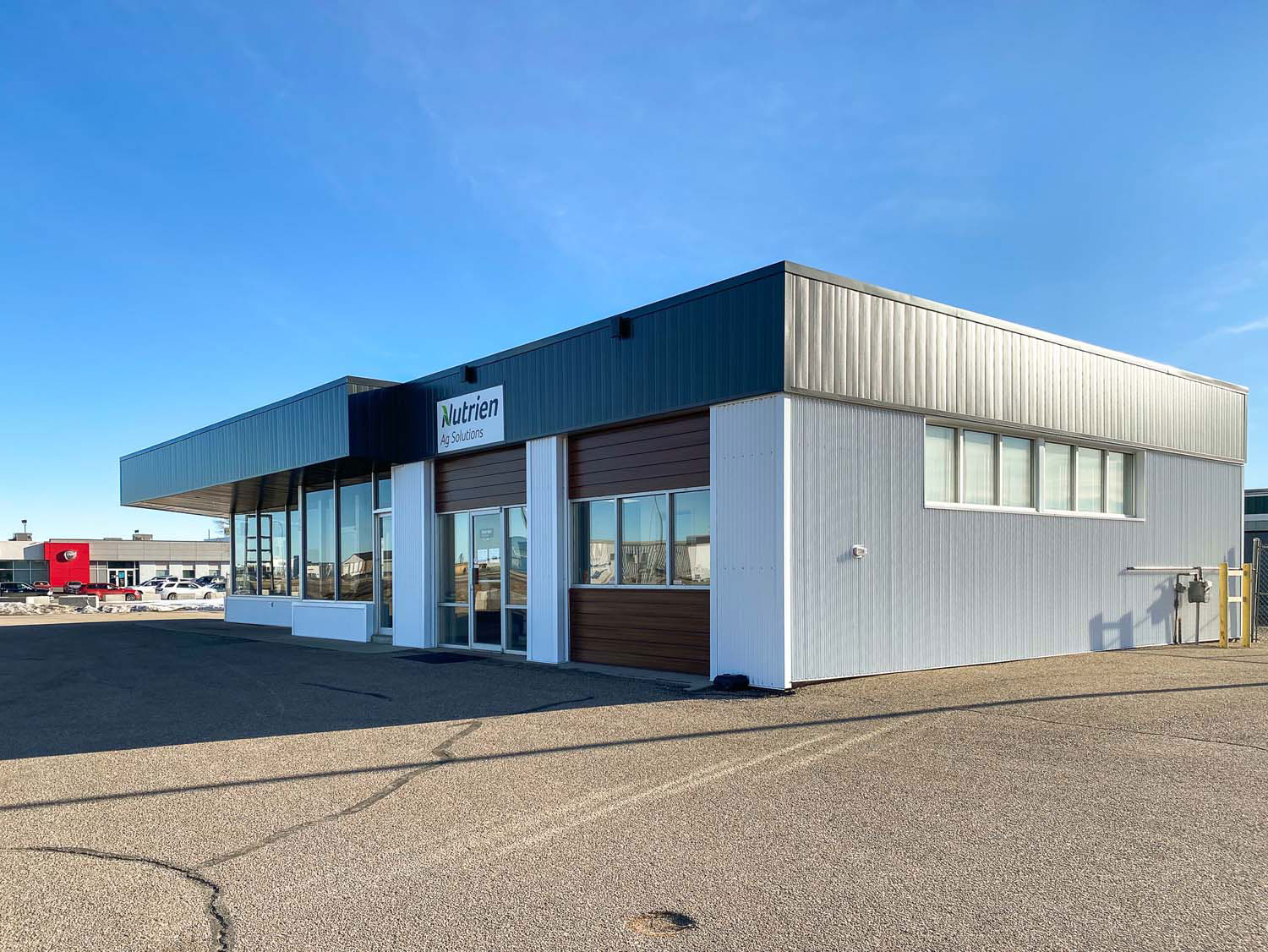

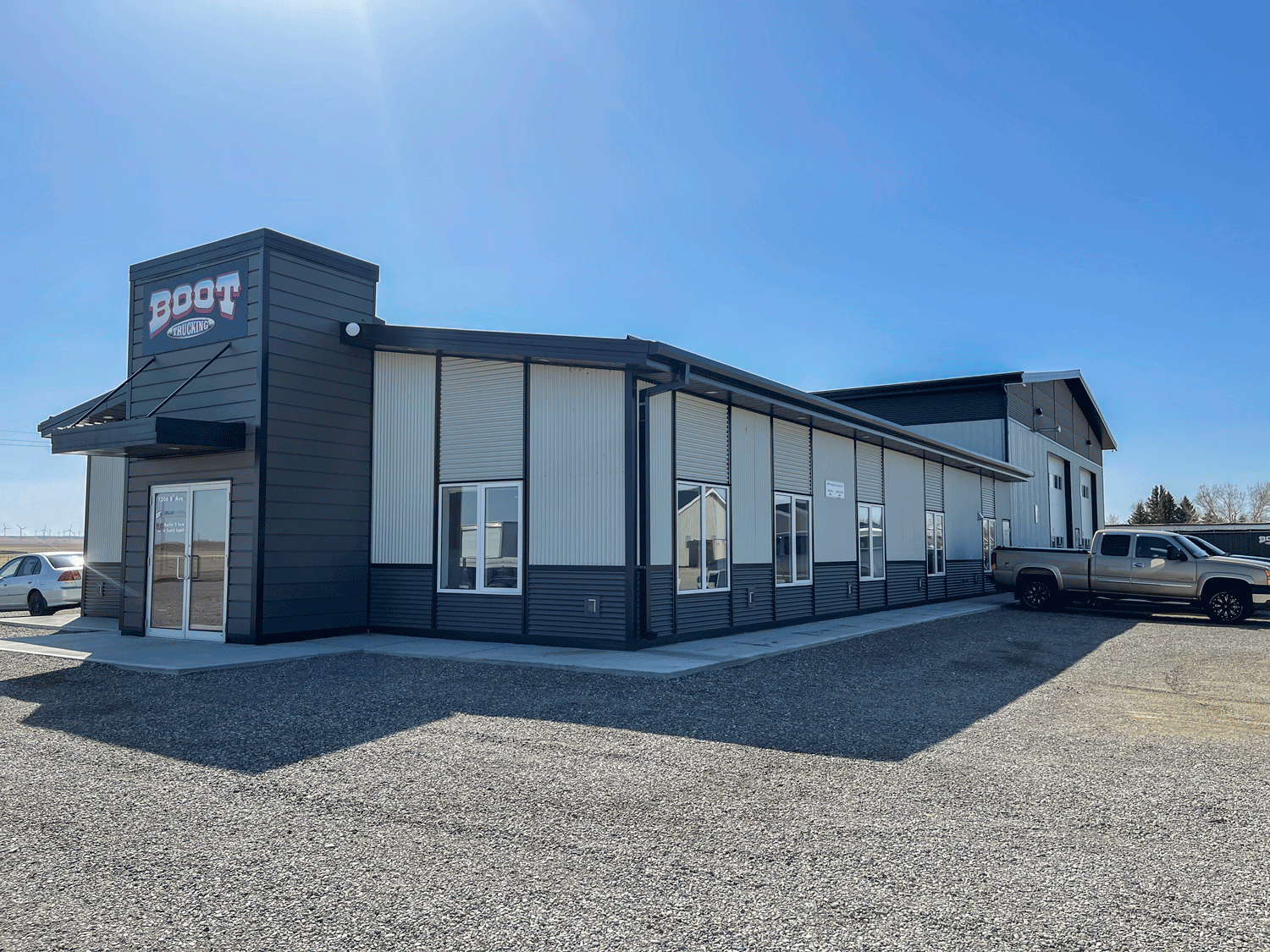

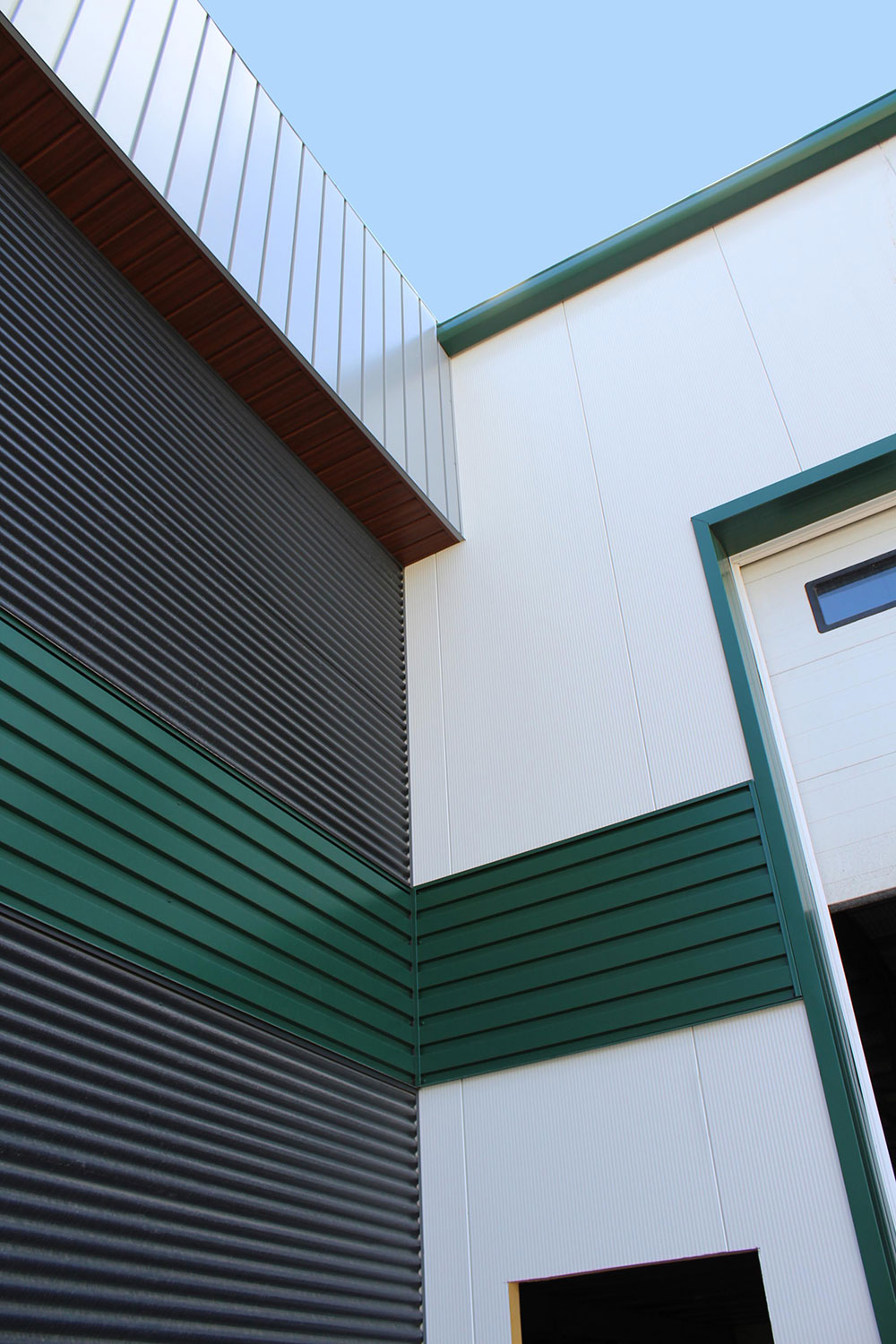

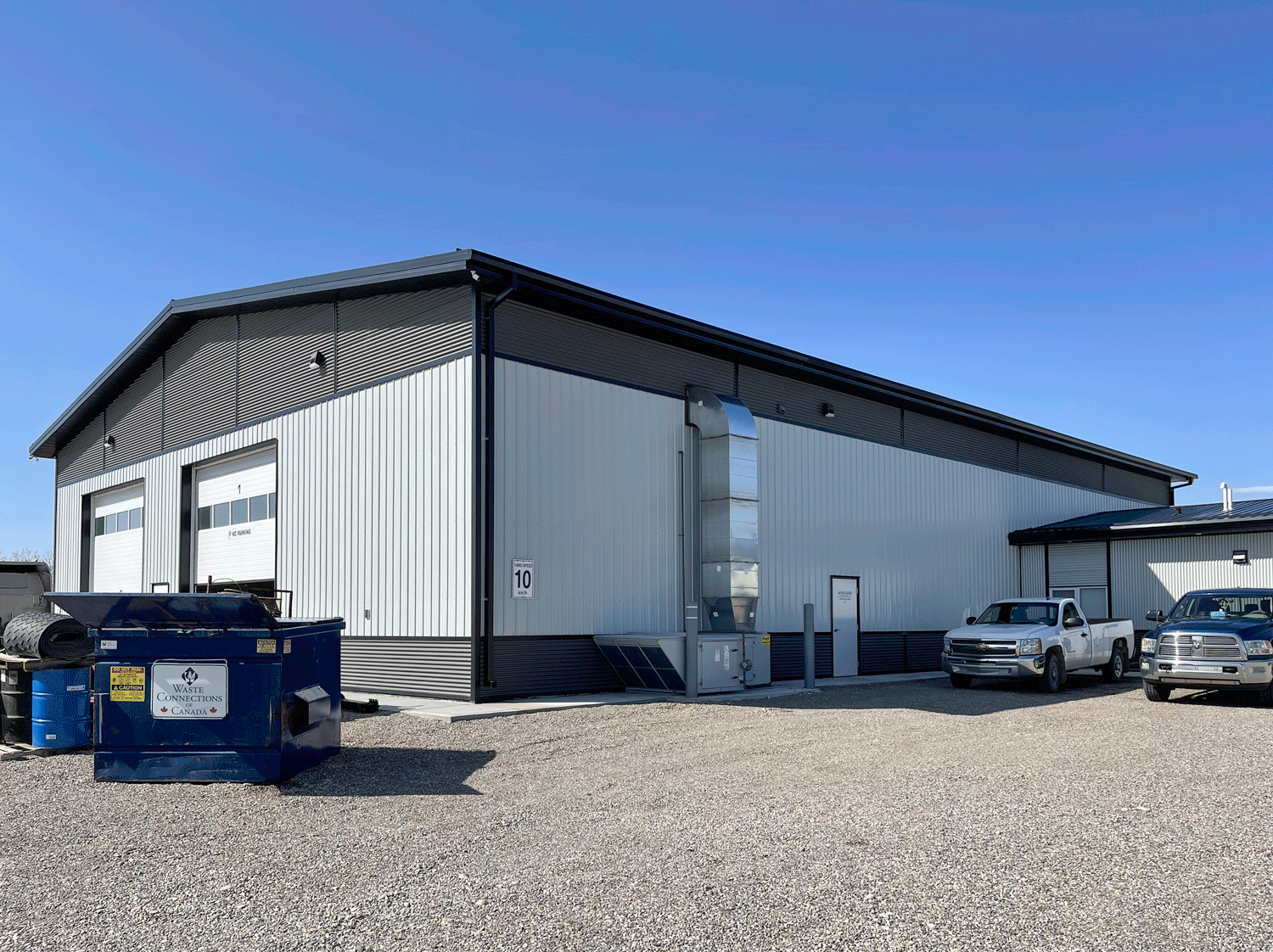

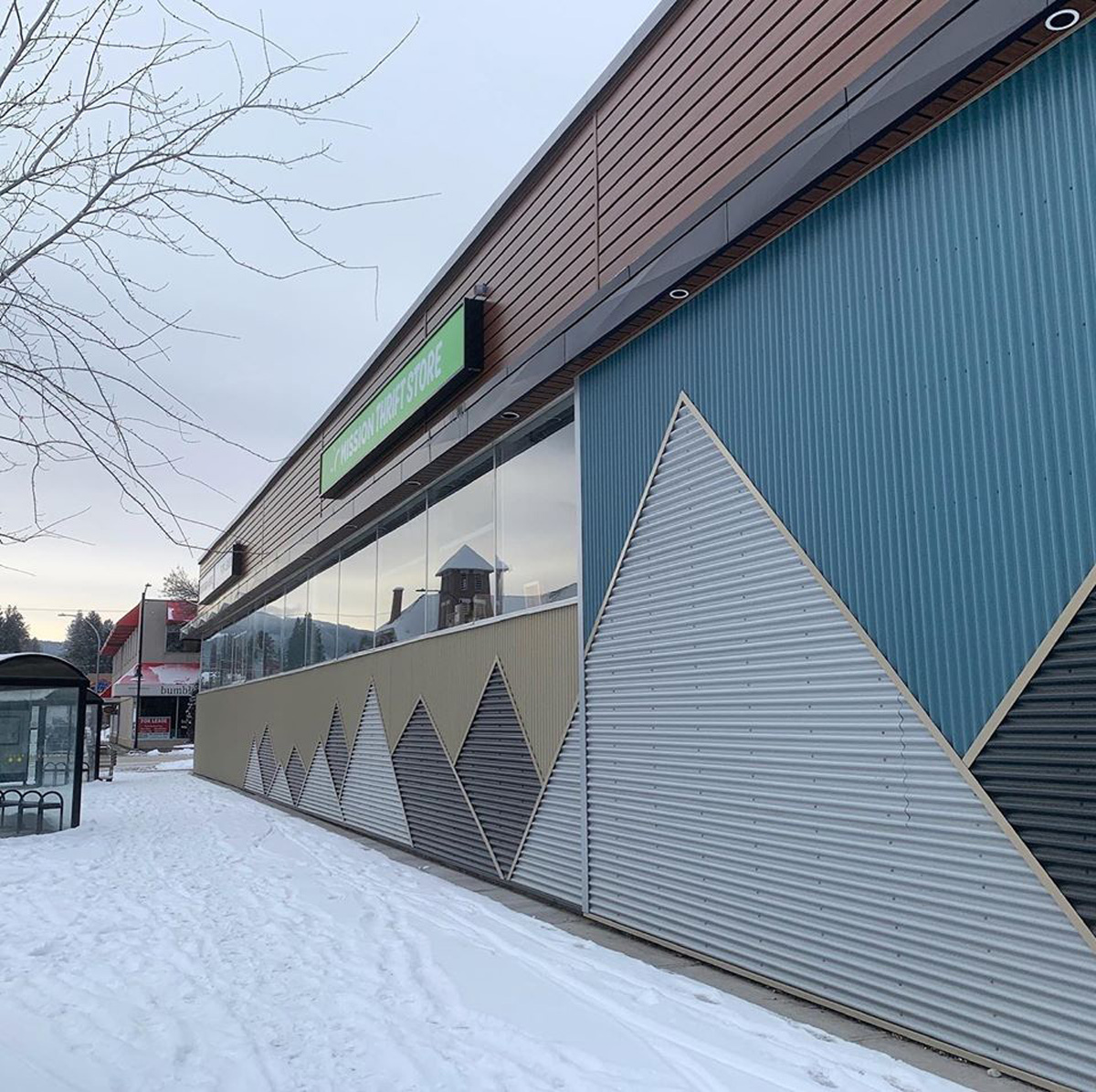

Commercial Building with 7/8 Corrugated in Carbon, Espresso Woodgrain Soffit, and custom panels in Melchers Green and Bright White

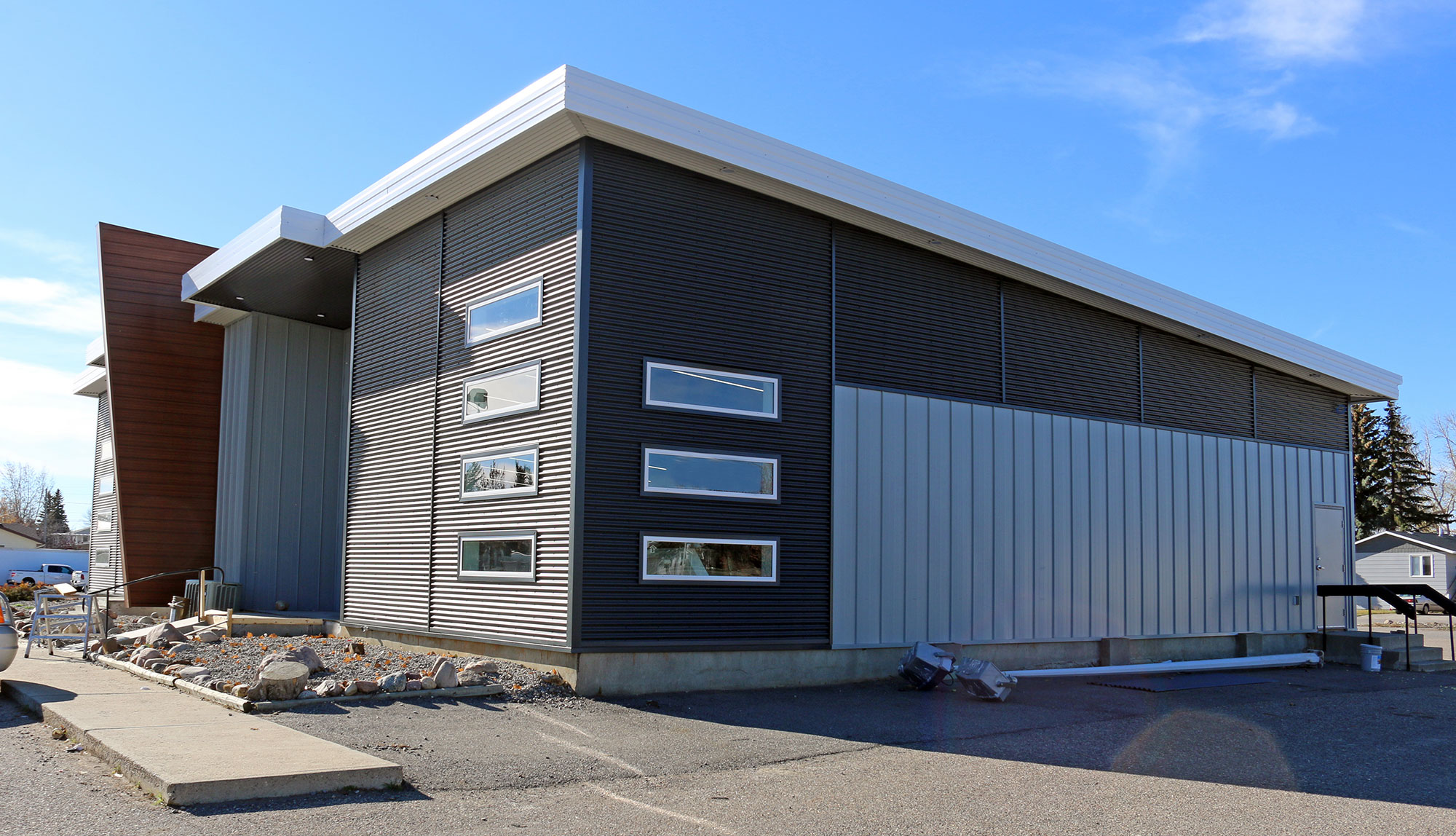

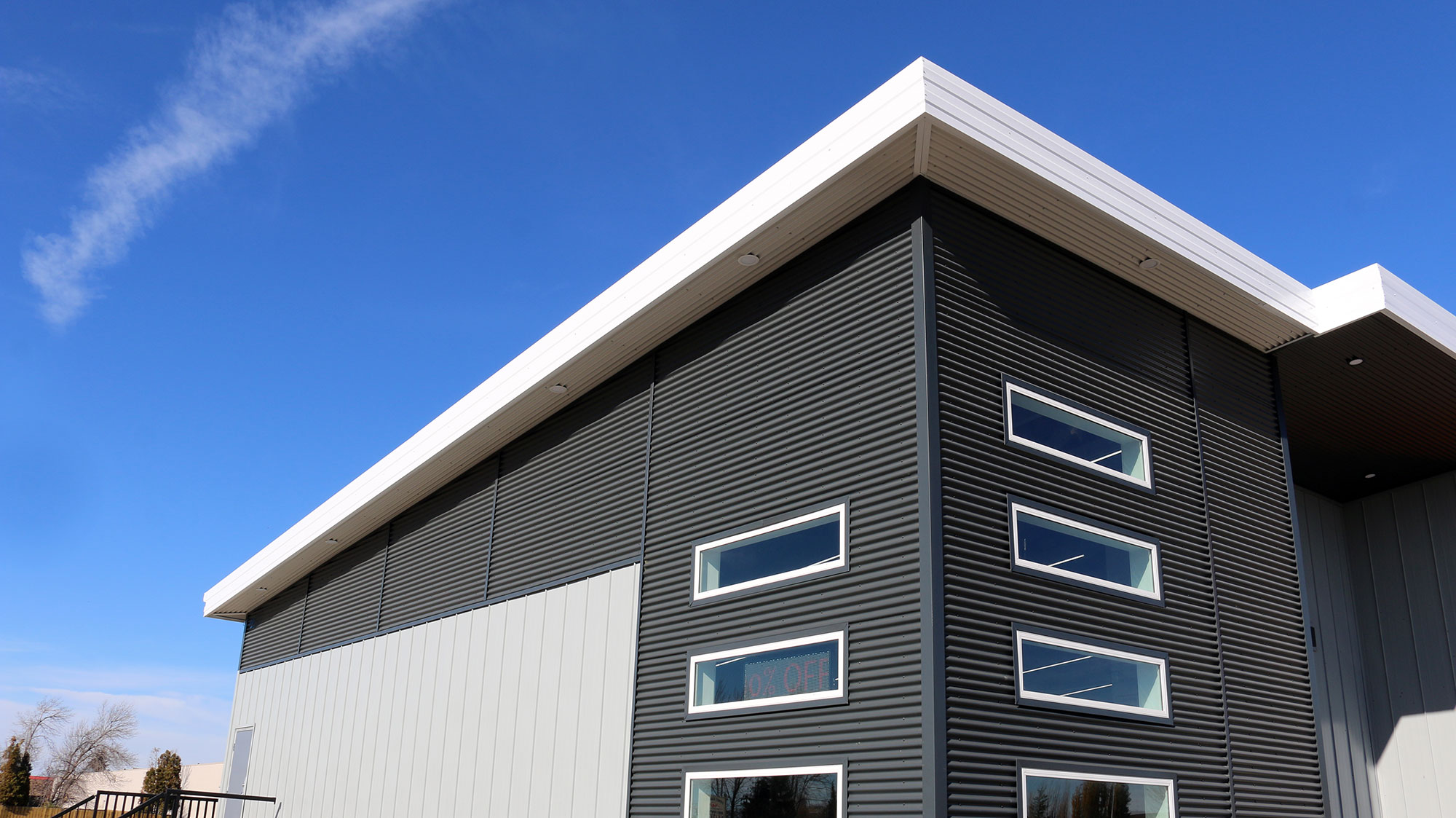

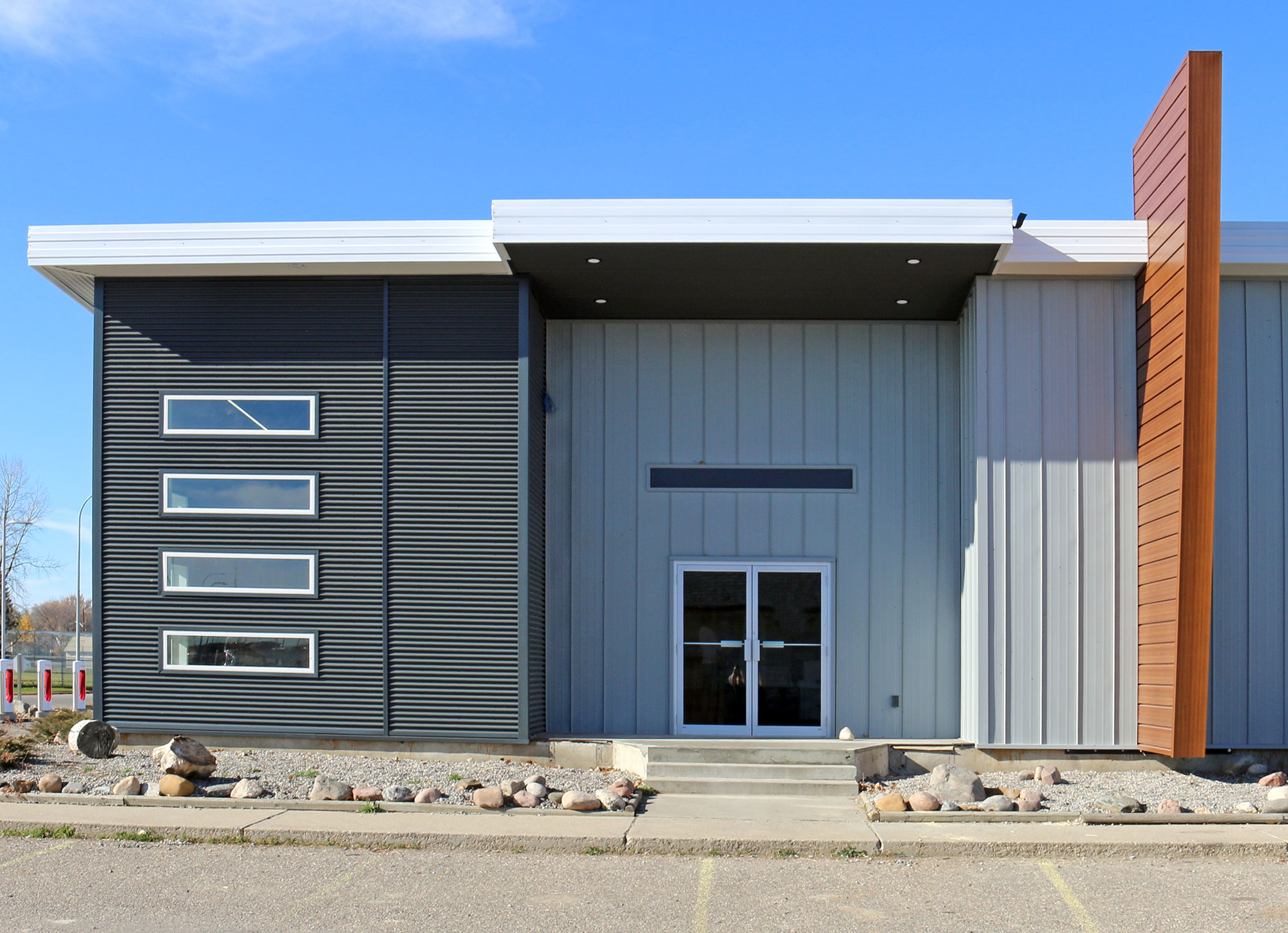

Retail StoreFront featuring Regent Grey Forma Loc Standing Seam Panel, Matte Anthracite 7/8 Corrugated Siding and Espresso Woodgrain Forma Plank Accent
Retail StoreFront featuring Regent Grey Forma Loc Standing Seam Panel, Matte Anthracite 7/8 Corrugated Siding and Espresso Woodgrain Forma Plank Accent

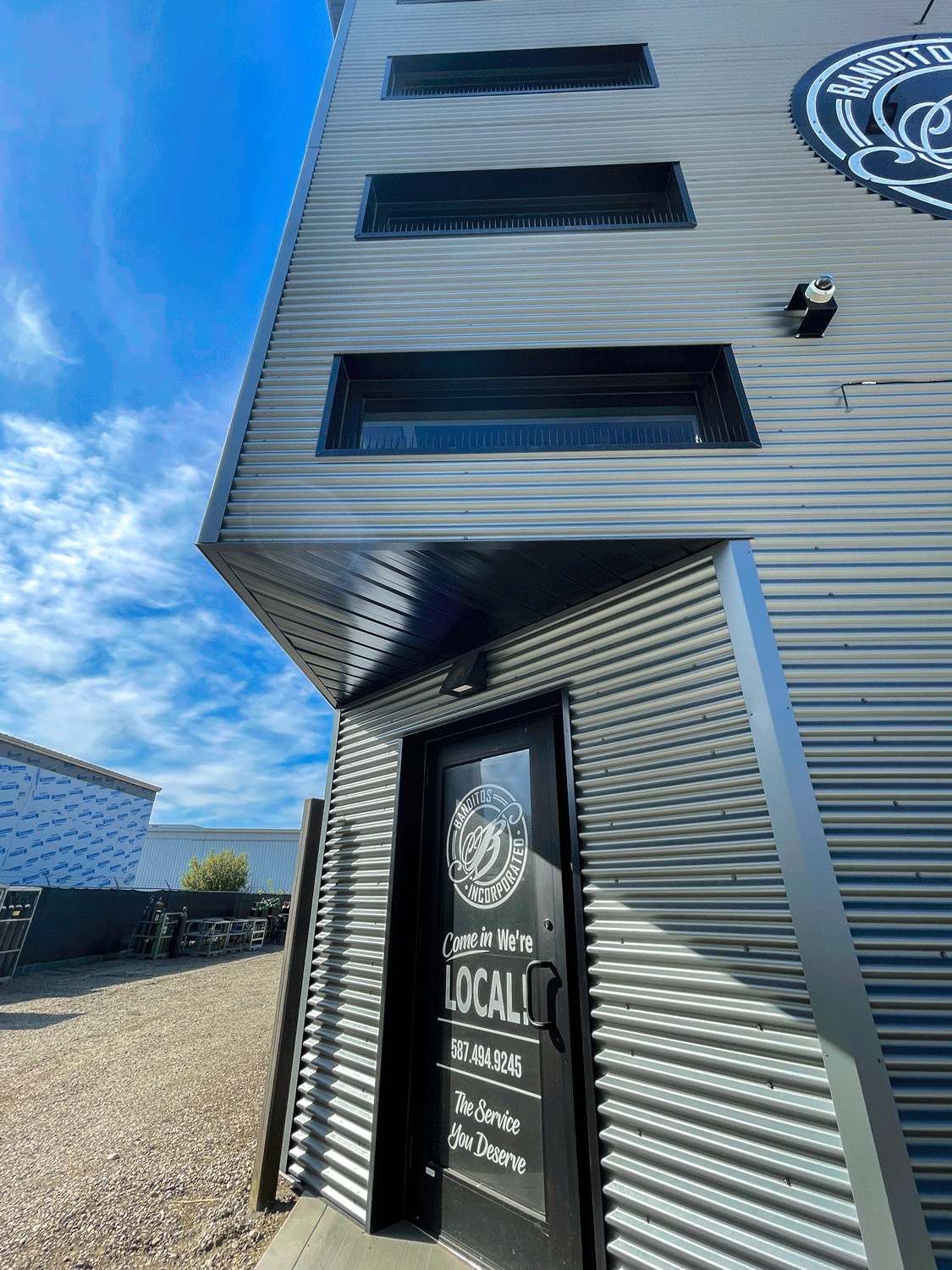

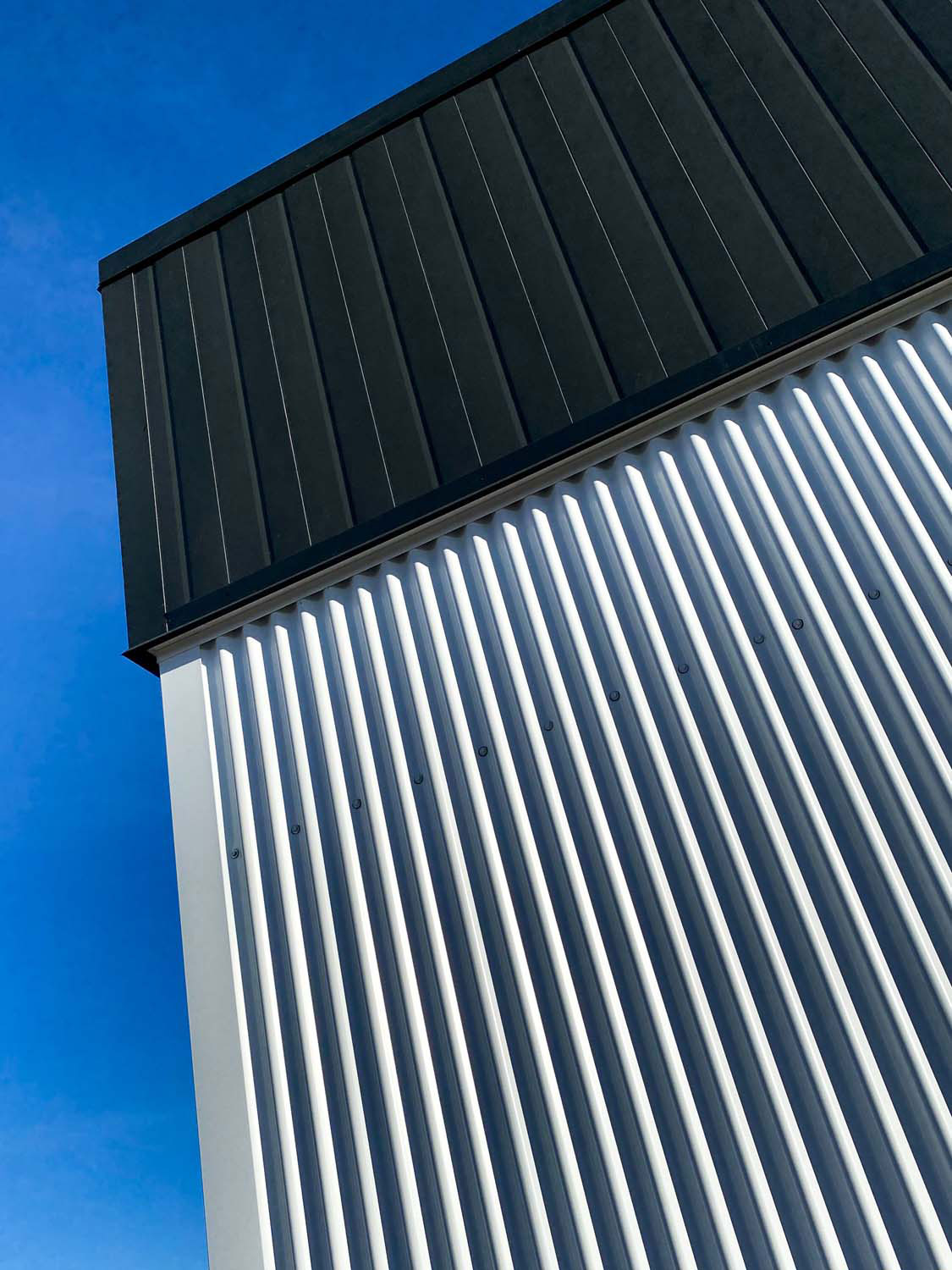

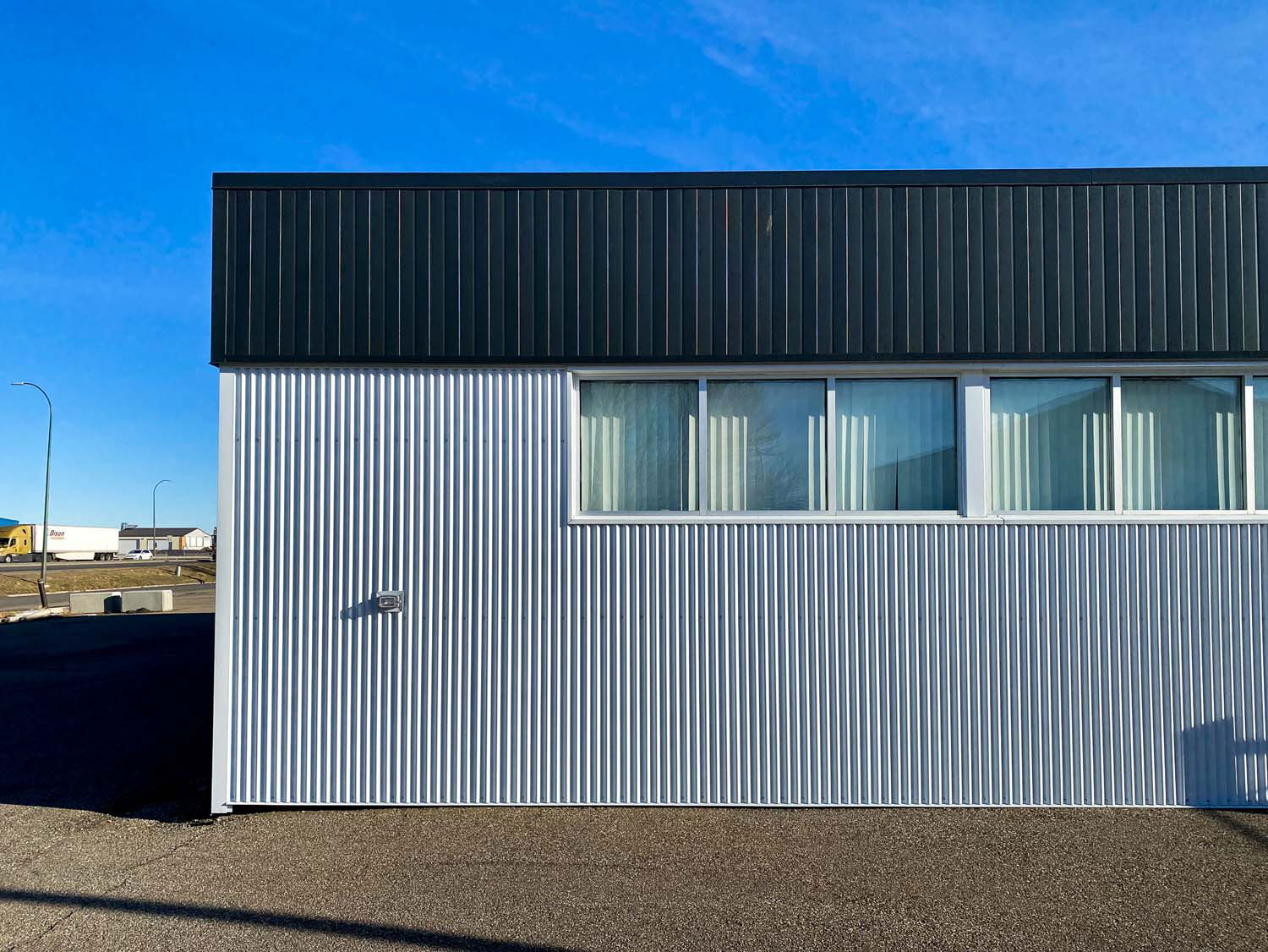

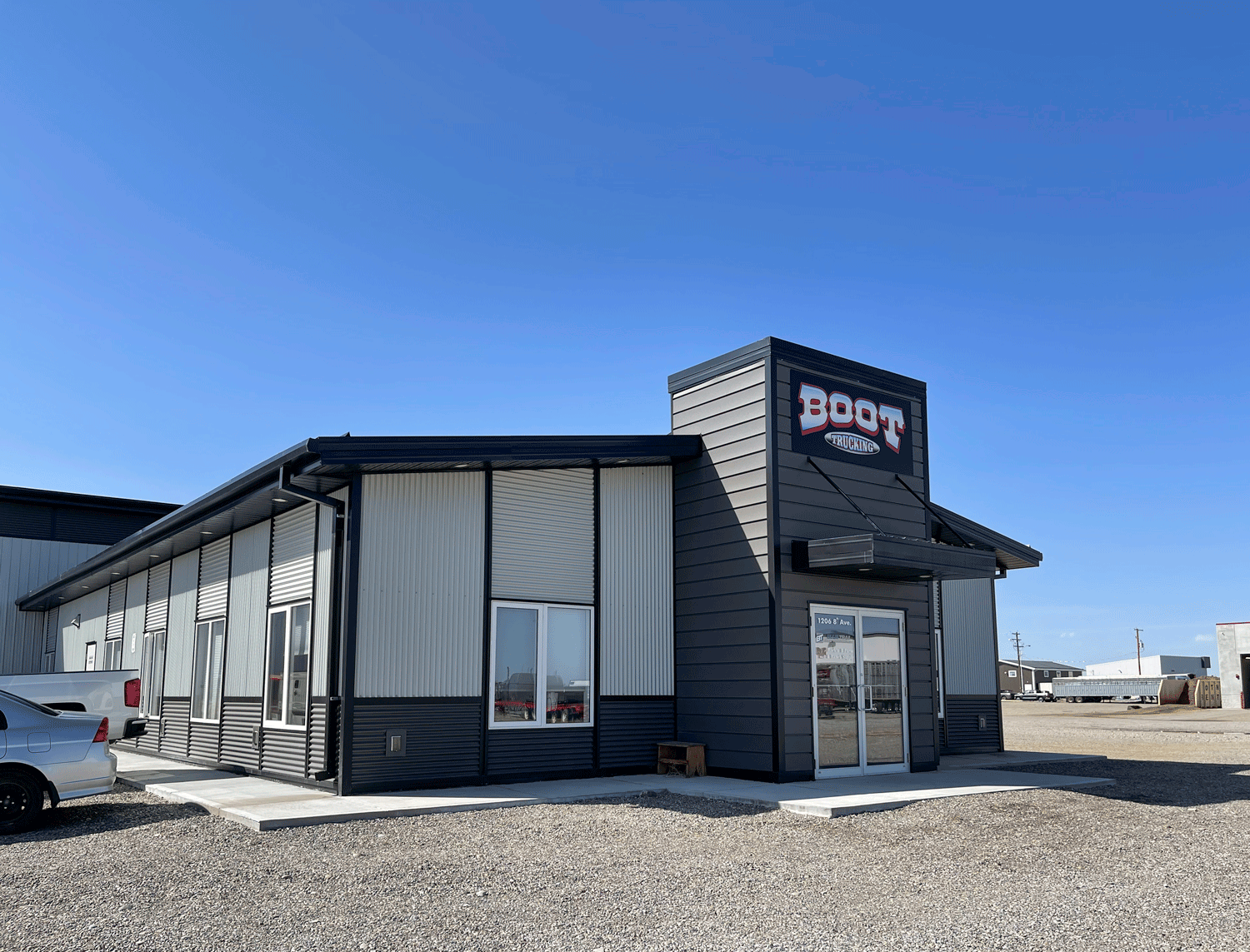

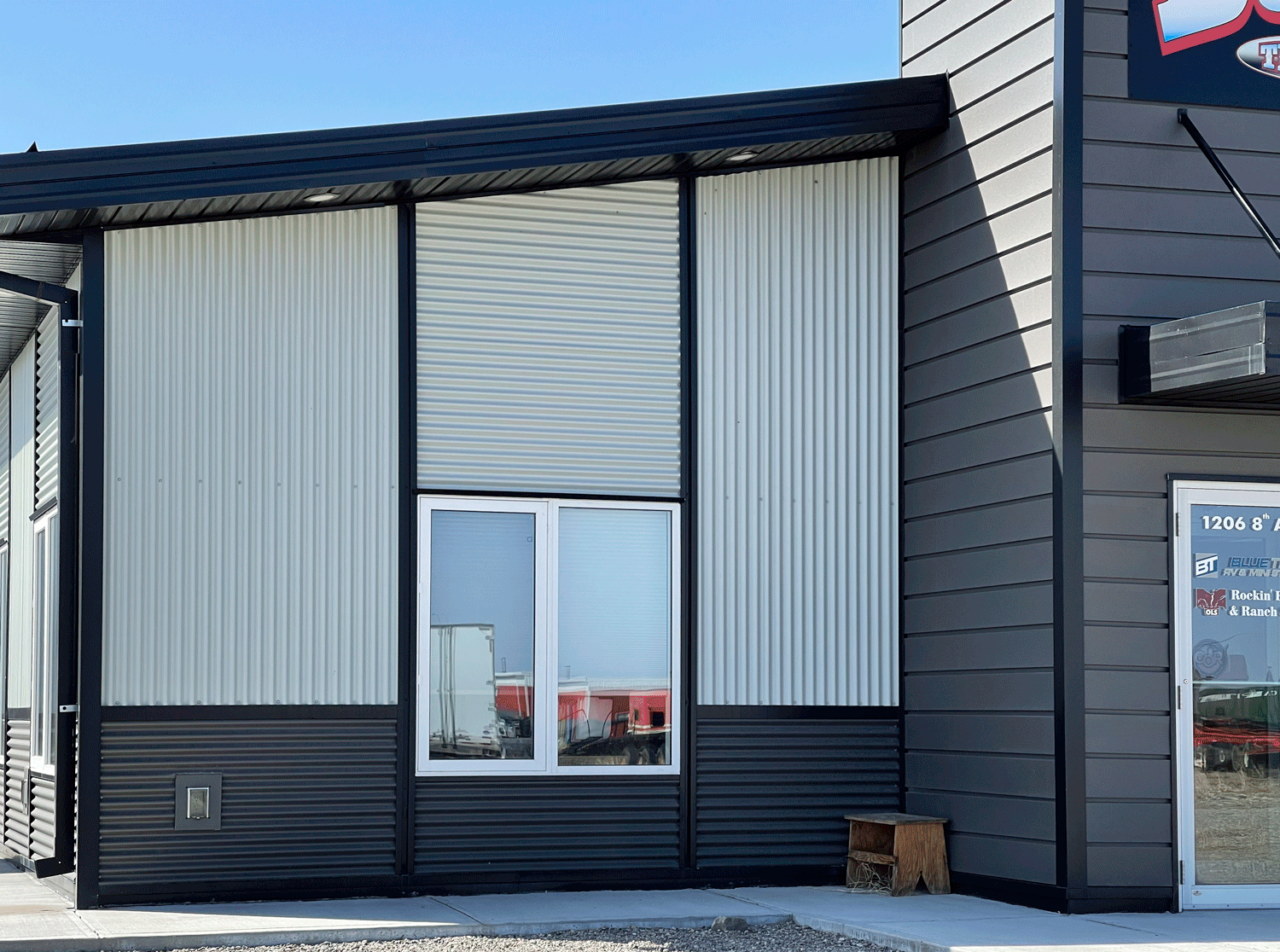

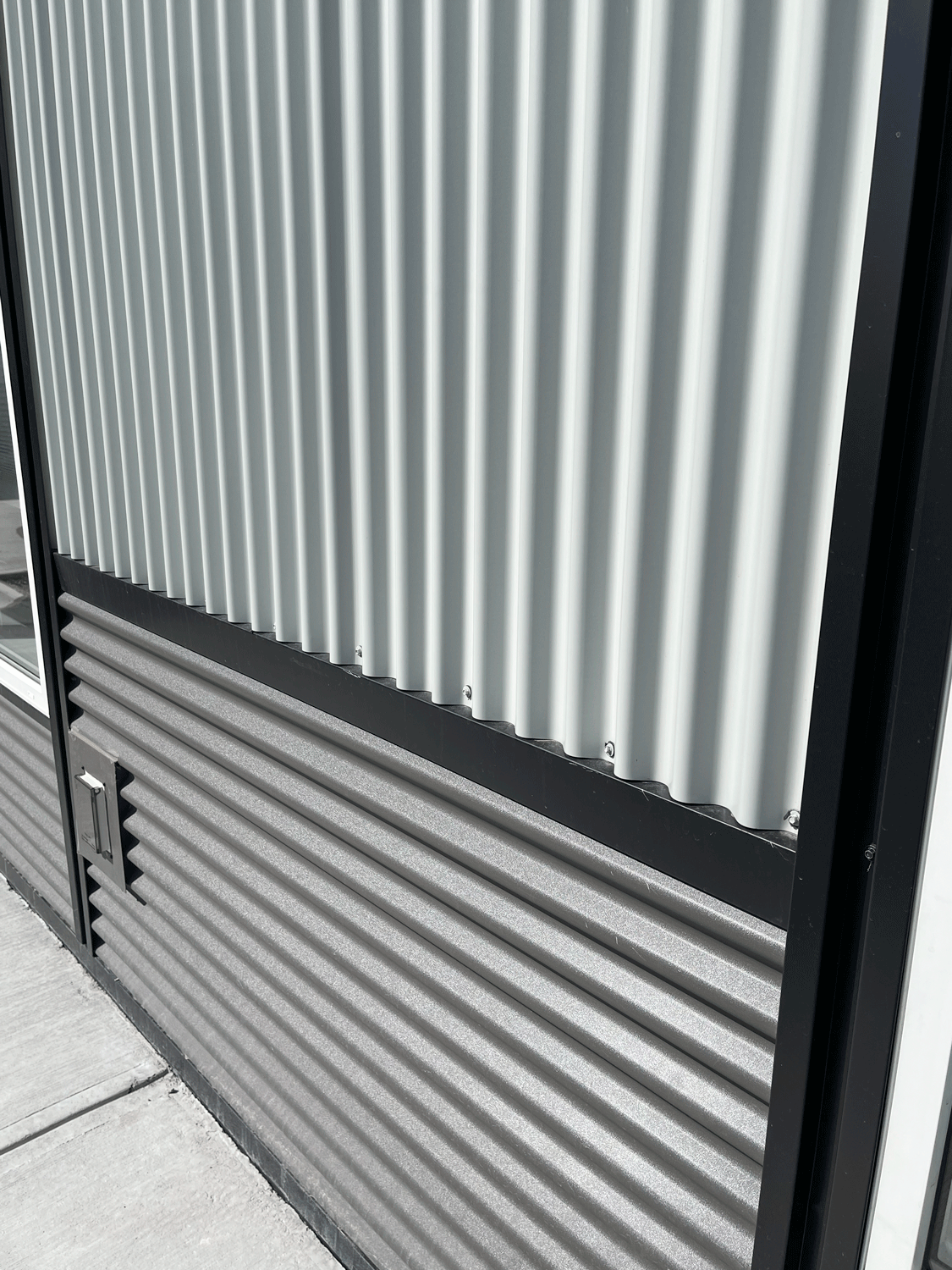

Retail Storefront featuring 7/8 Corrugated Metal Siding and FormaLoc Standing Seam Metal Siding - Forma Steel
Retail Storefront featuring 7/8 Corrugated Metal Siding and FormaLoc Standing Seam Metal Siding - Forma Steel

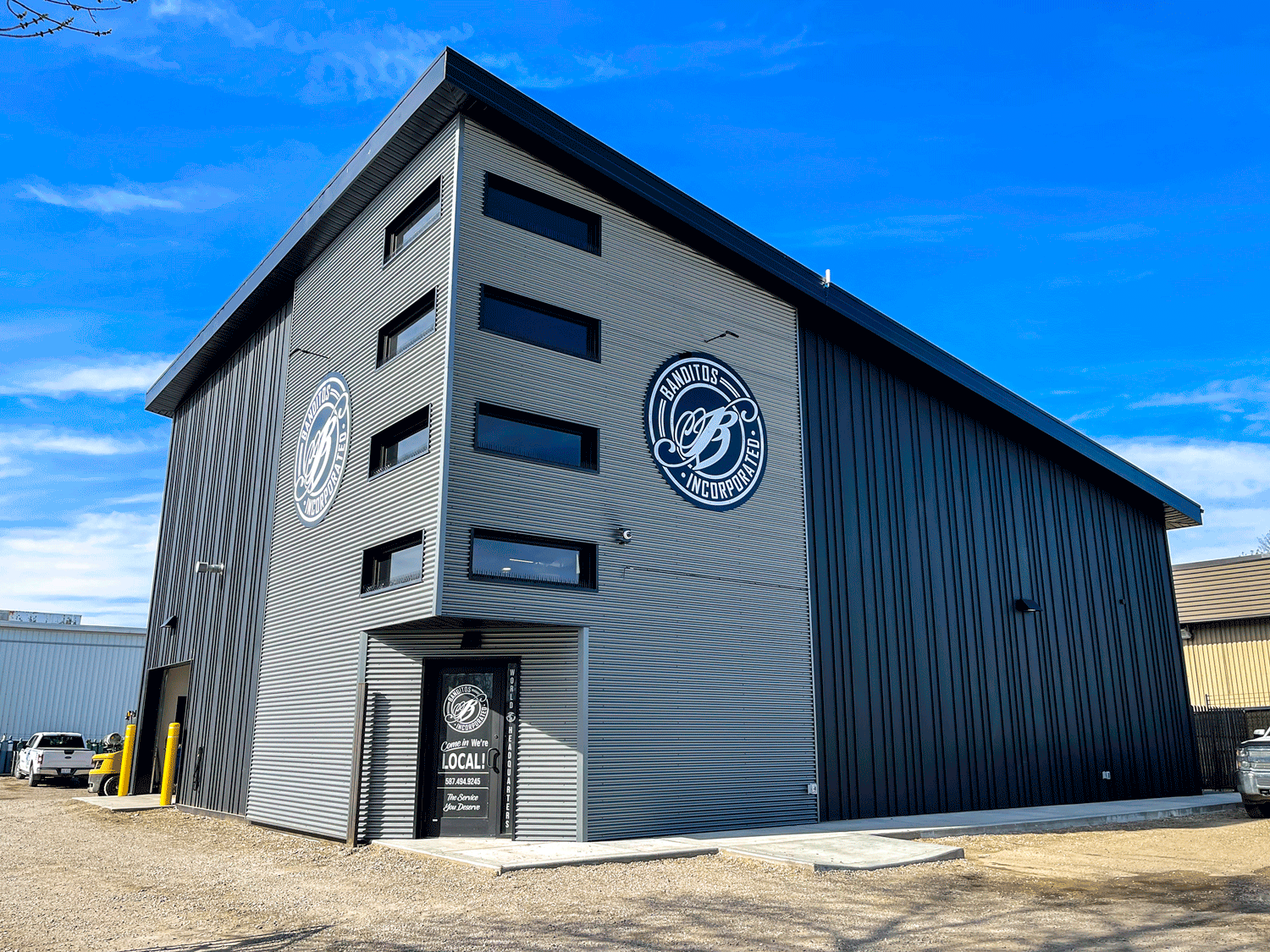

Retail StoreFront featuring Regent Grey Forma Loc Standing Seam Panel and Matte Anthracite 7/8 Corrugated Siding

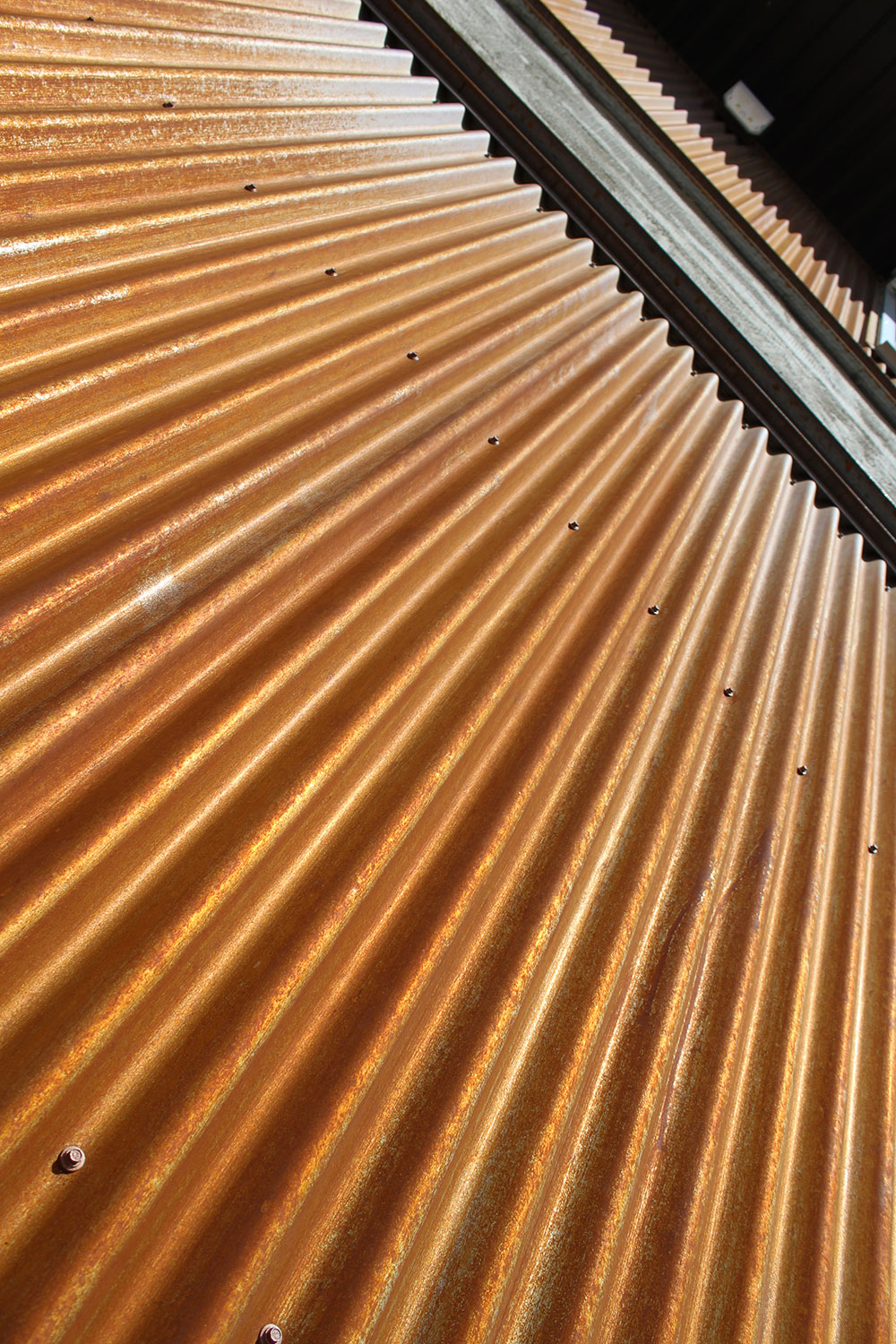

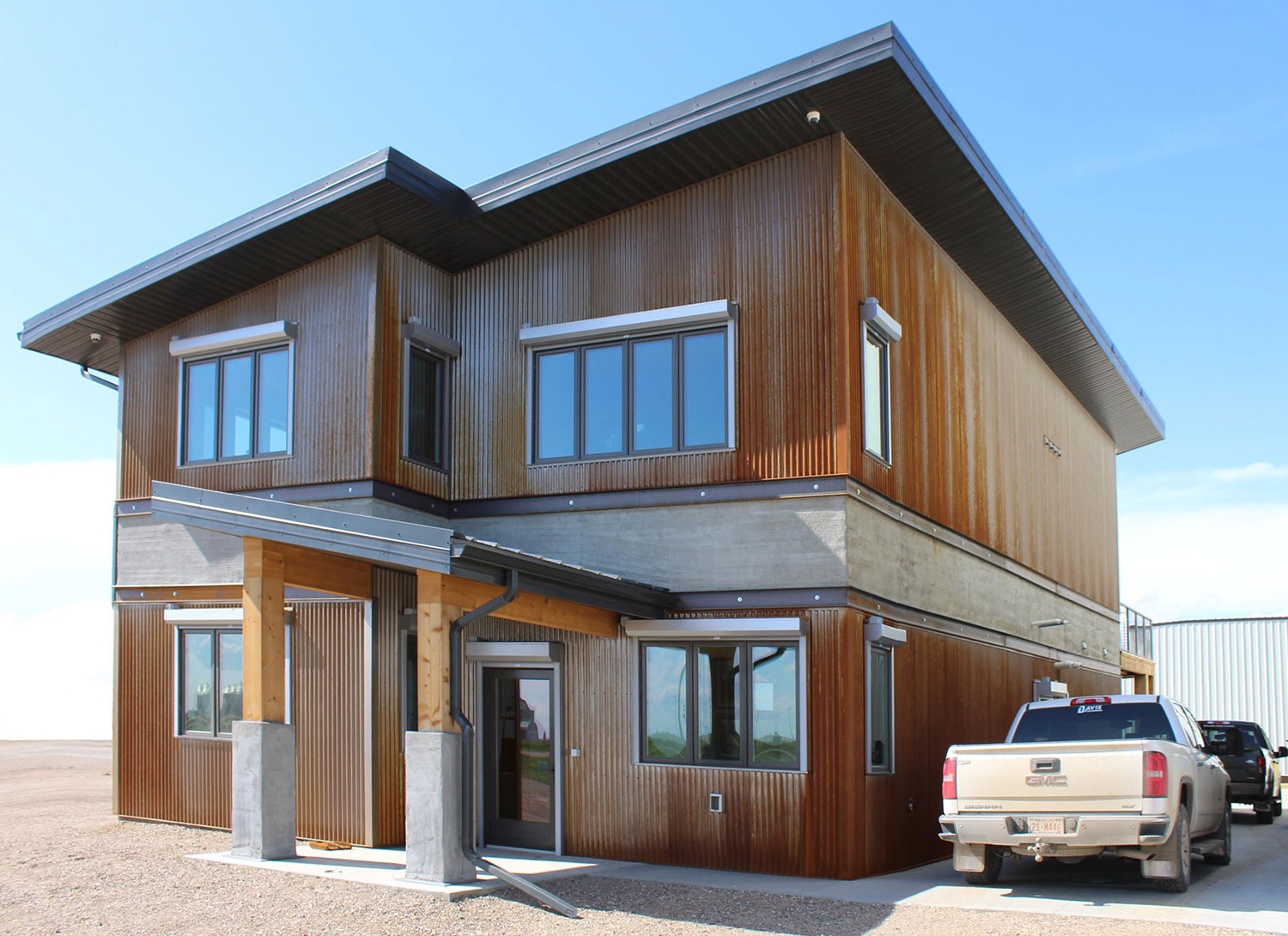

Commercial Office with 7/8 Corrugated Panel in Weathering Steel
Commercial Office with 7/8 Corrugated Panel in Weathering Steel

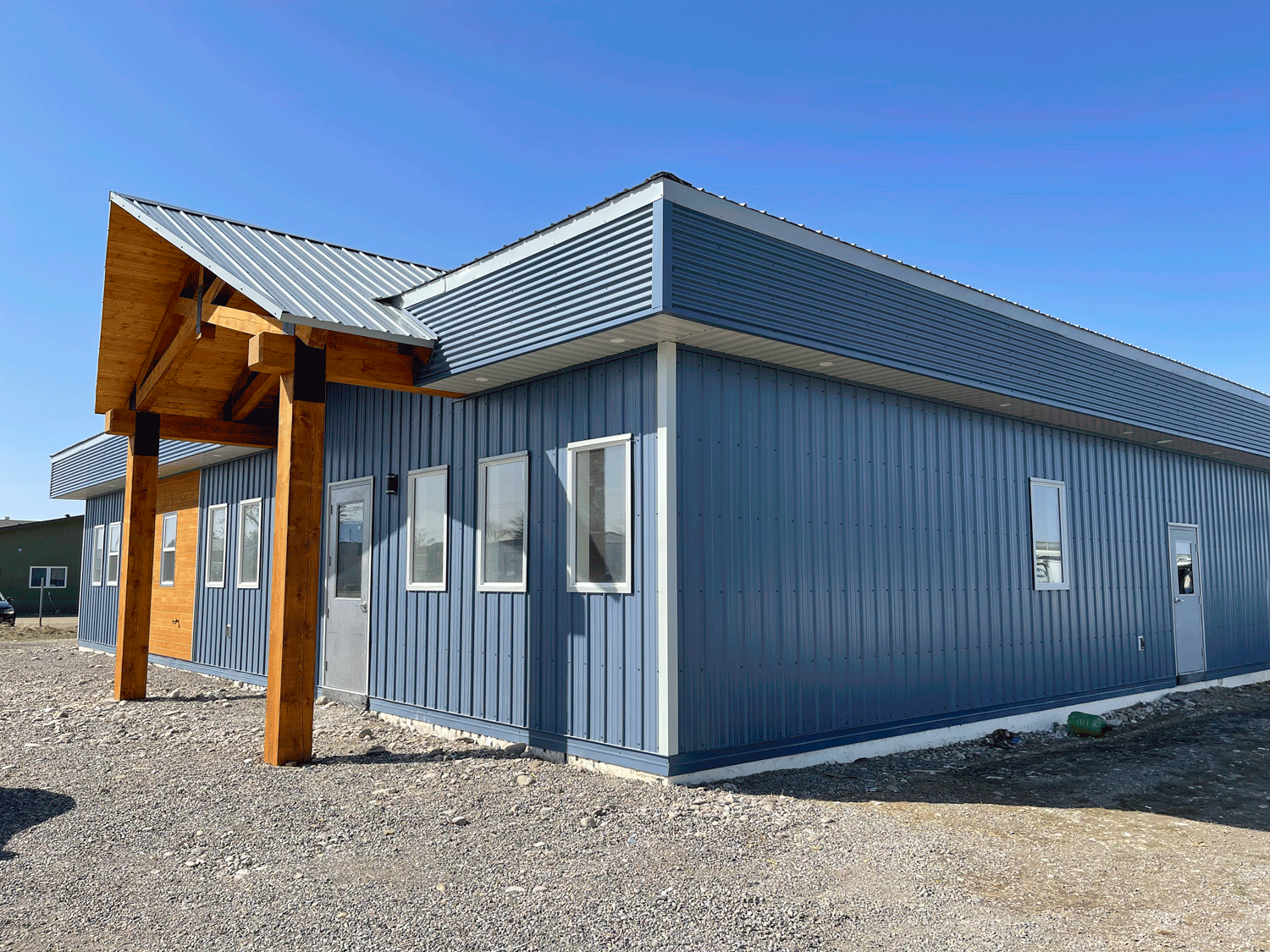

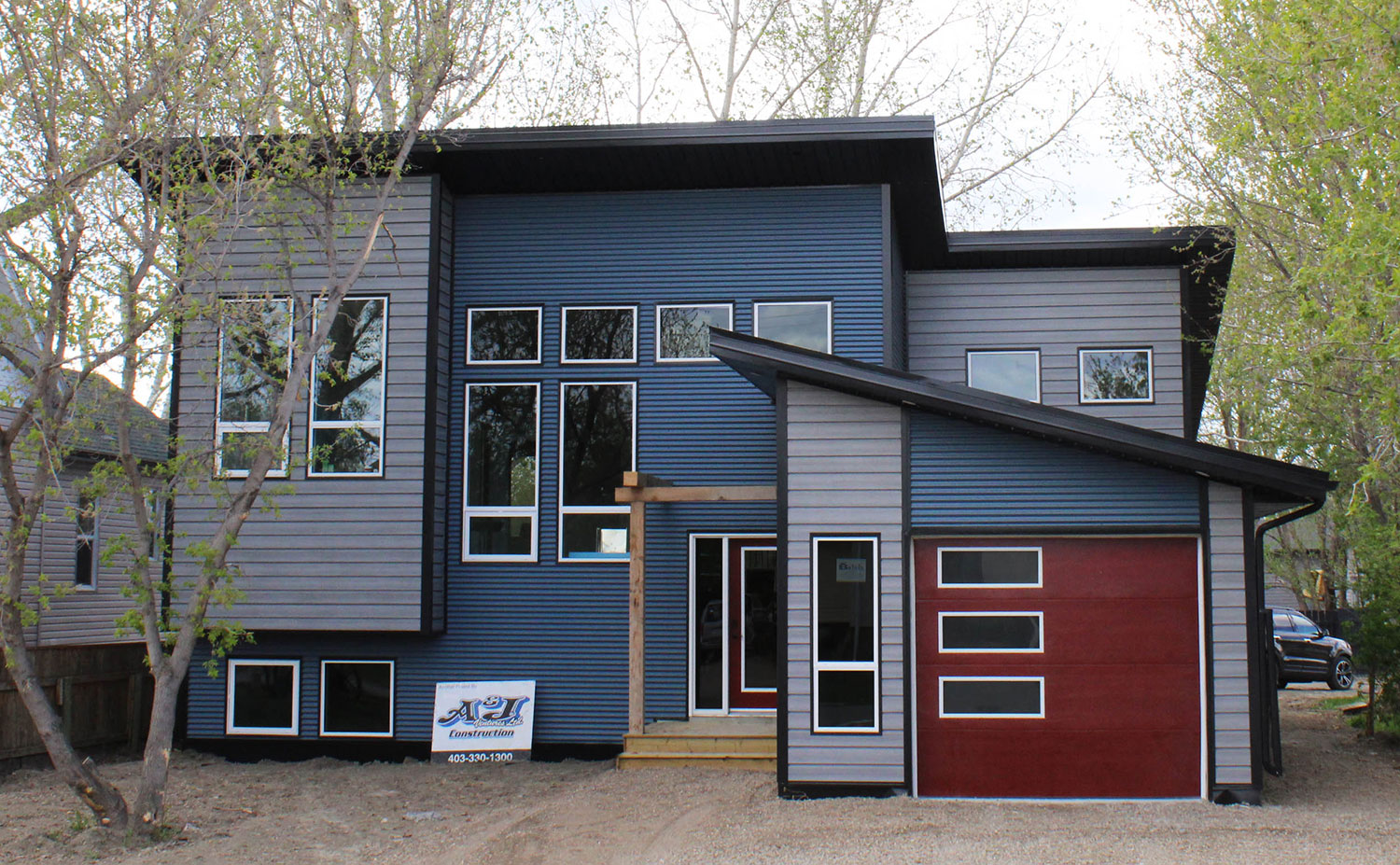

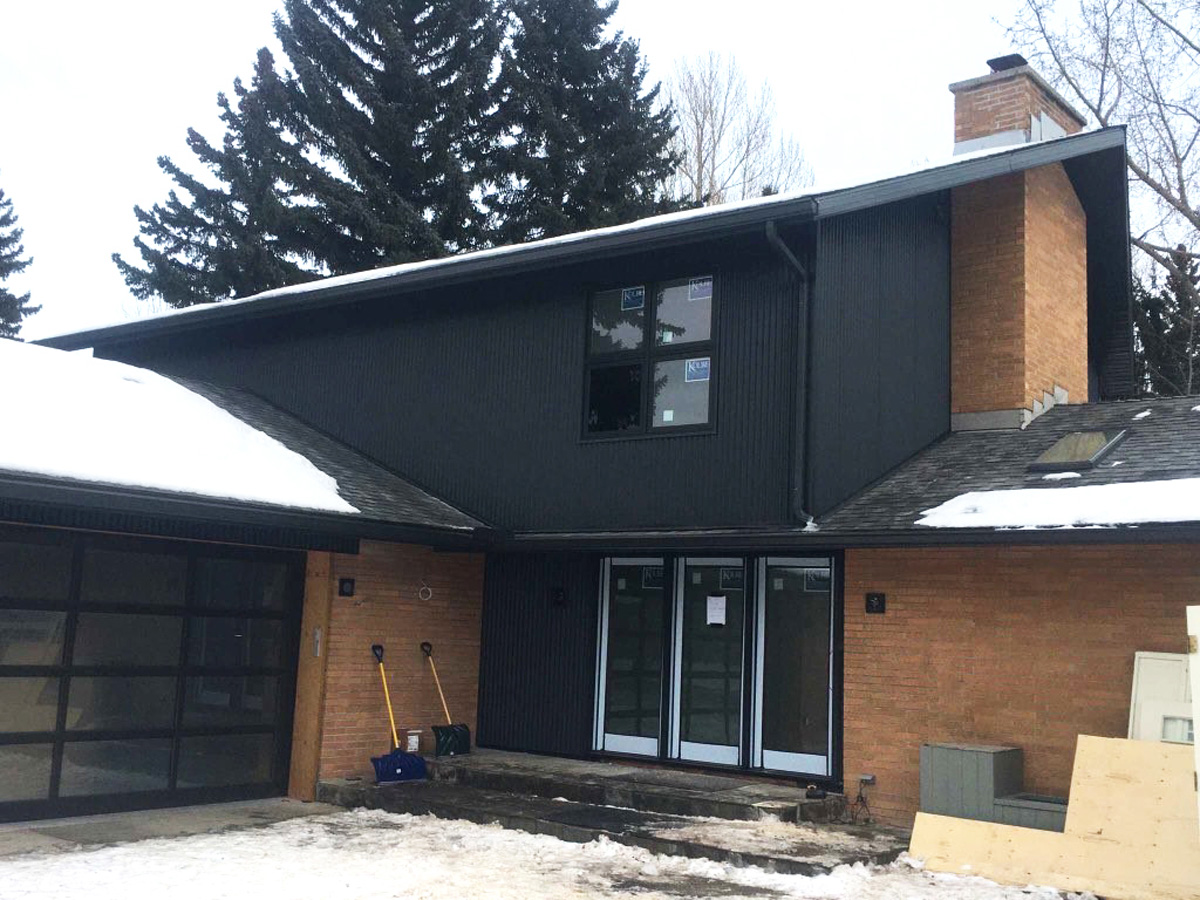

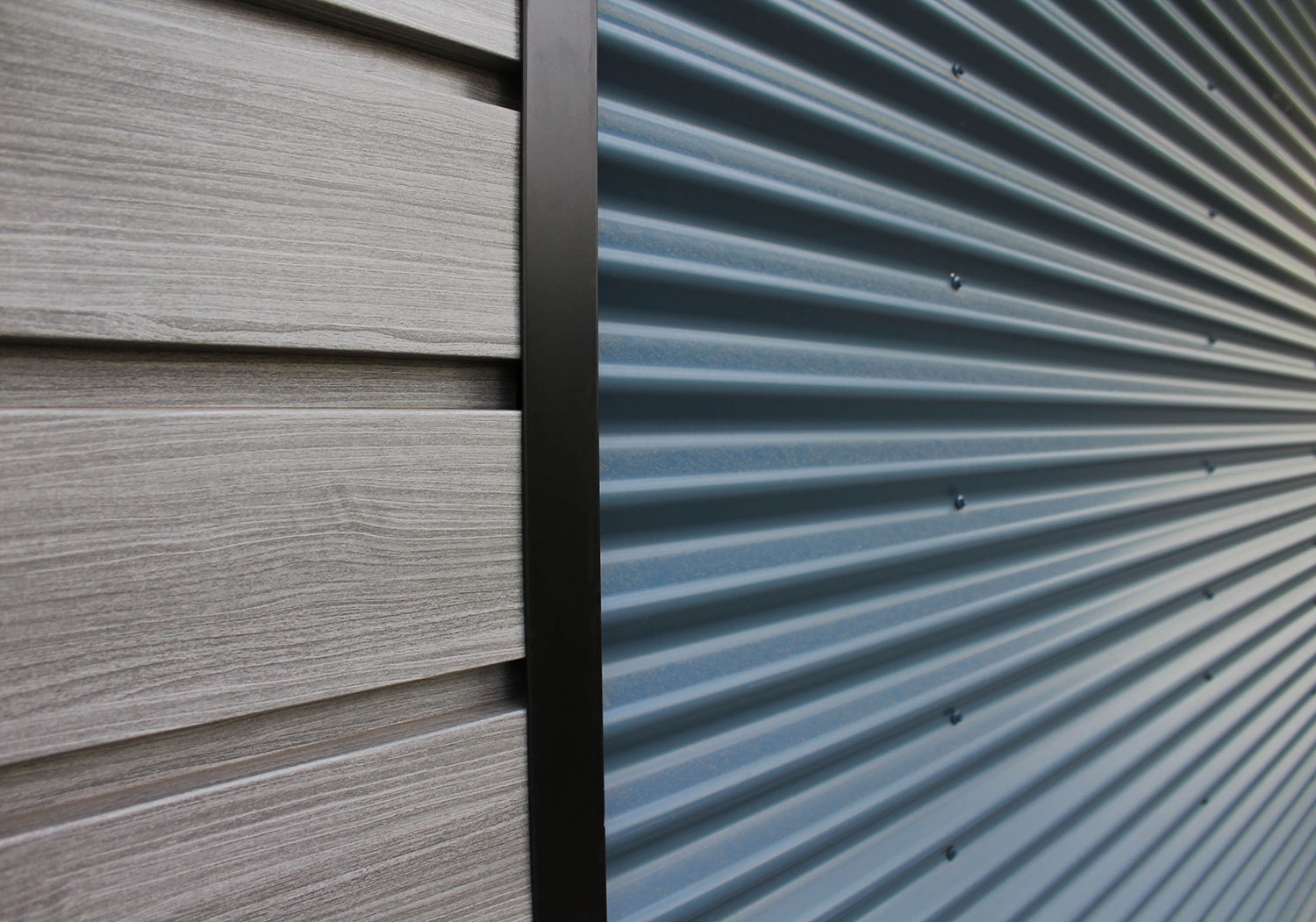

Residential Building with 7/8 Corrugated Oxford Blue Panel and Barnboard Woodgrain
Residential Building with 7/8 Corrugated Oxford Blue Panel and Barnboard Woodgrain
Residential Building with 7/8 Corrugated Oxford Blue Panel and Barnboard Woodgrain

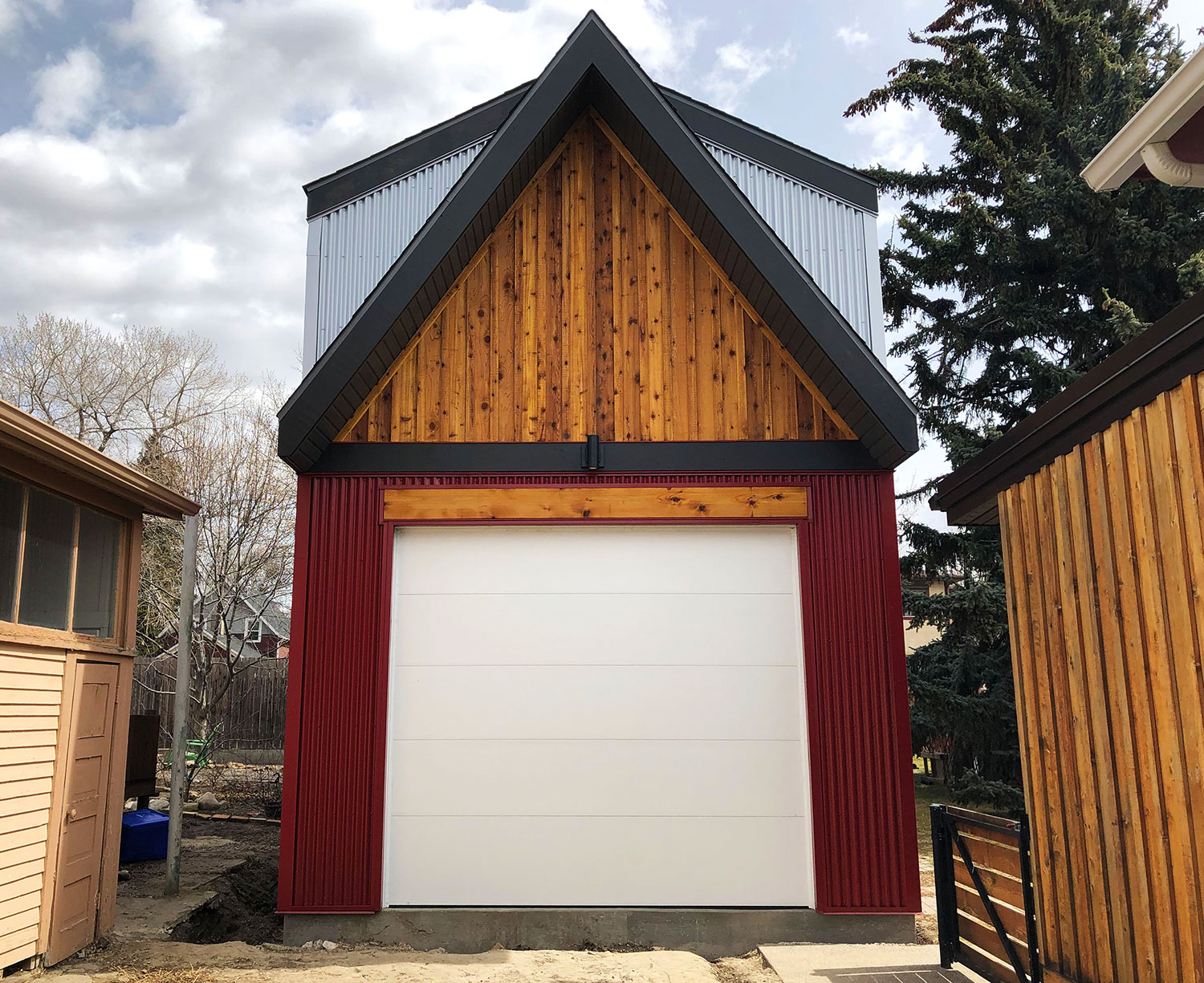

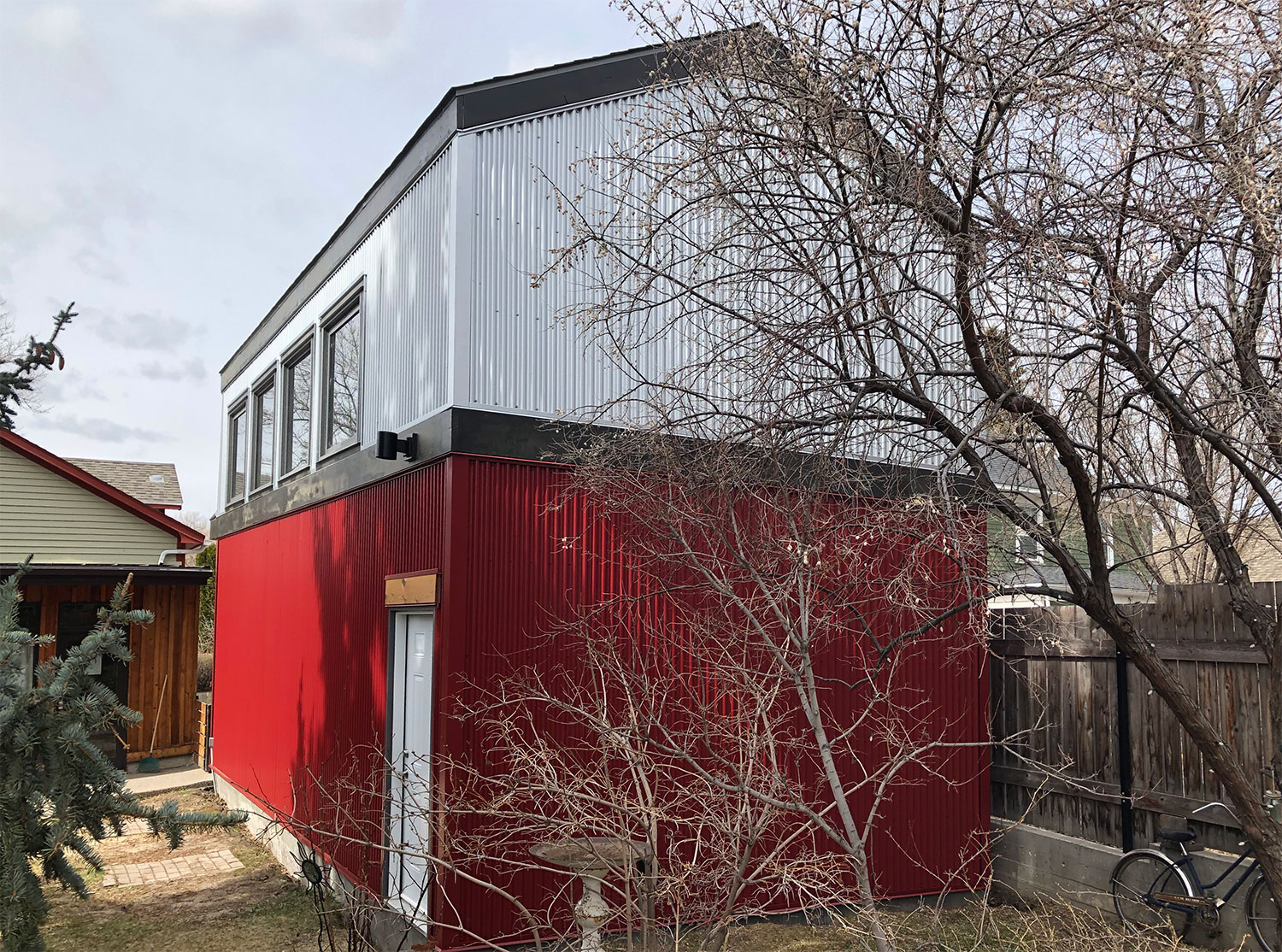

Residential Garage with Corrugated Galvalume and Dark Red
Residential Garage with Corrugated Galvalume and Dark Red

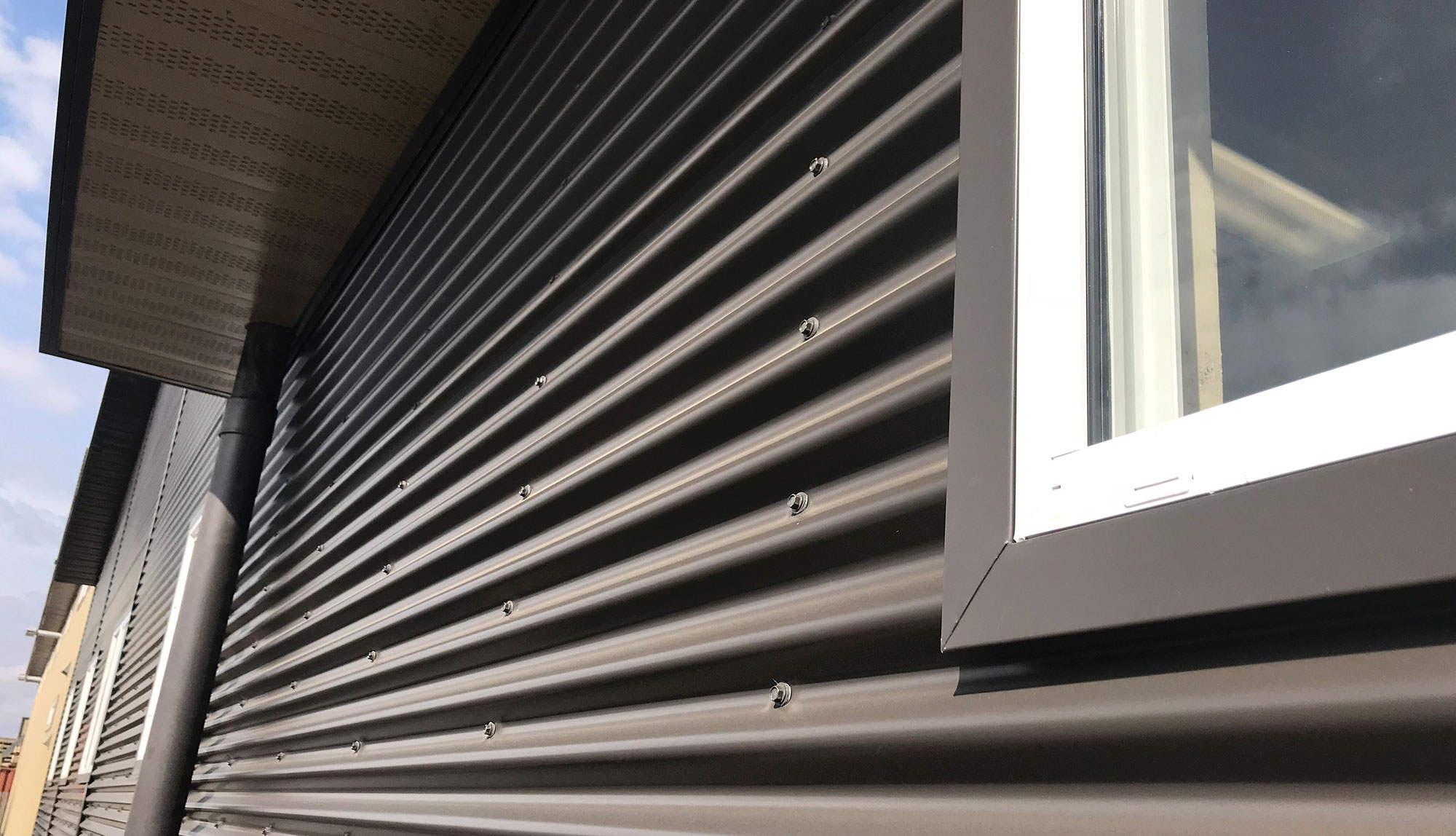

7/8" Corrugated in Coffee Brown
7/8" Corrugated in Coffee Brown

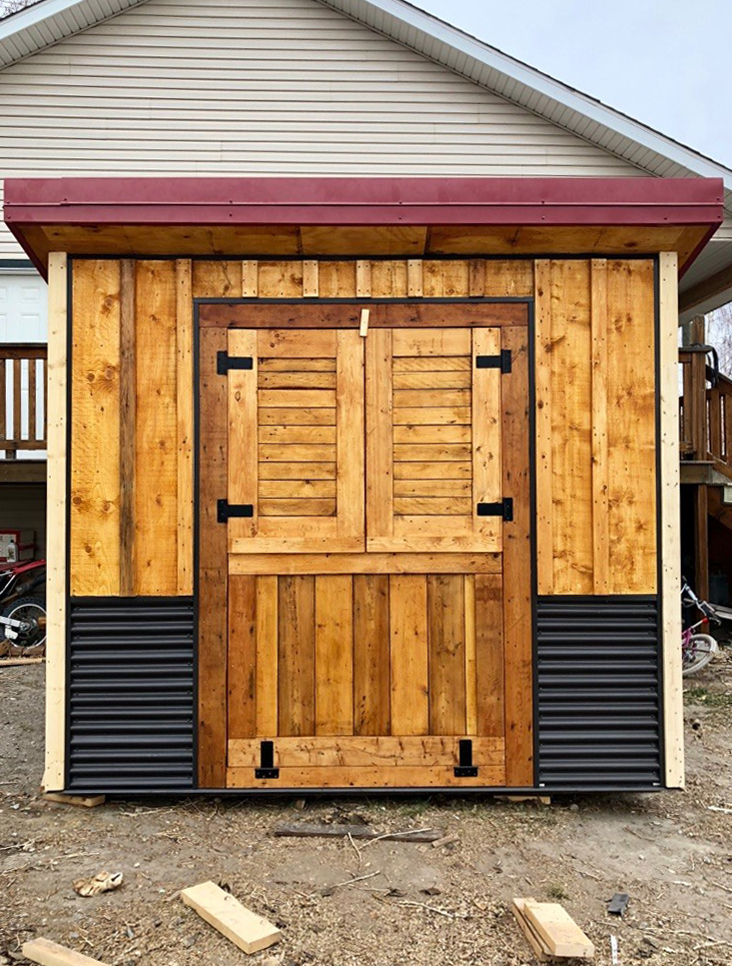

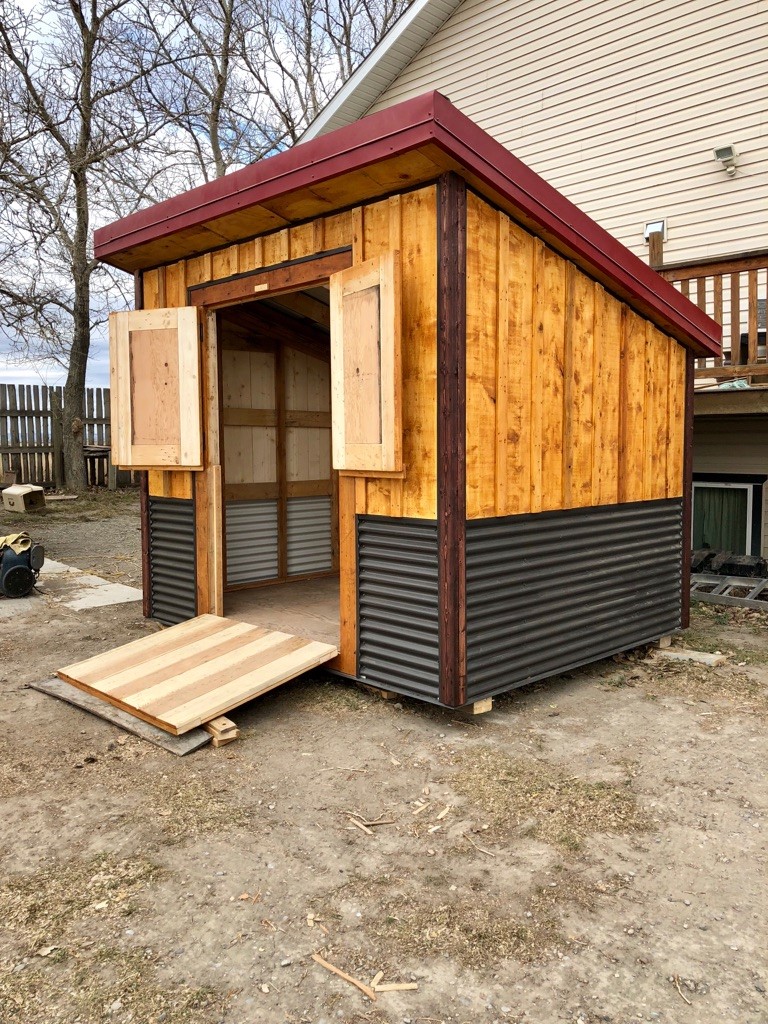

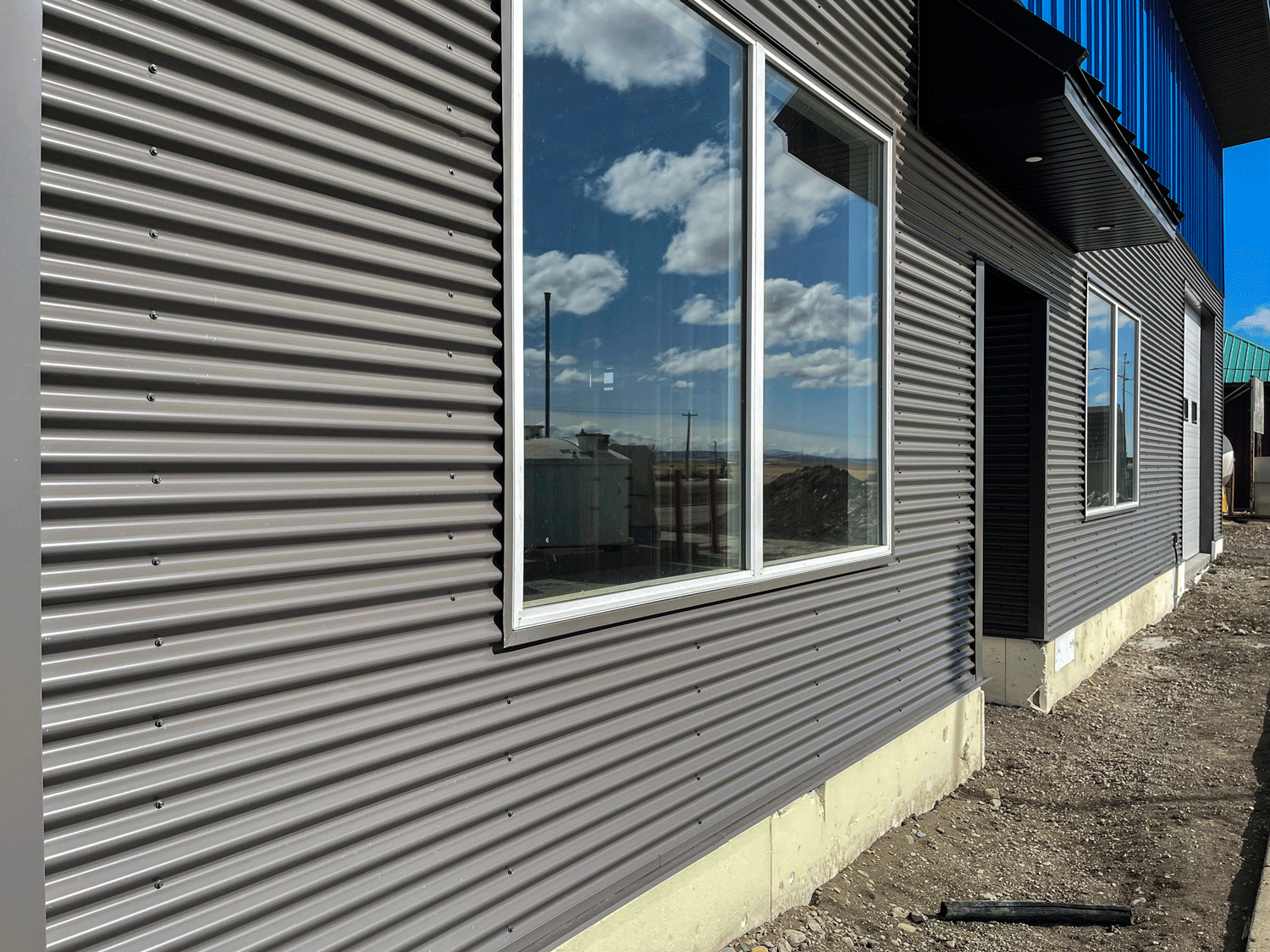

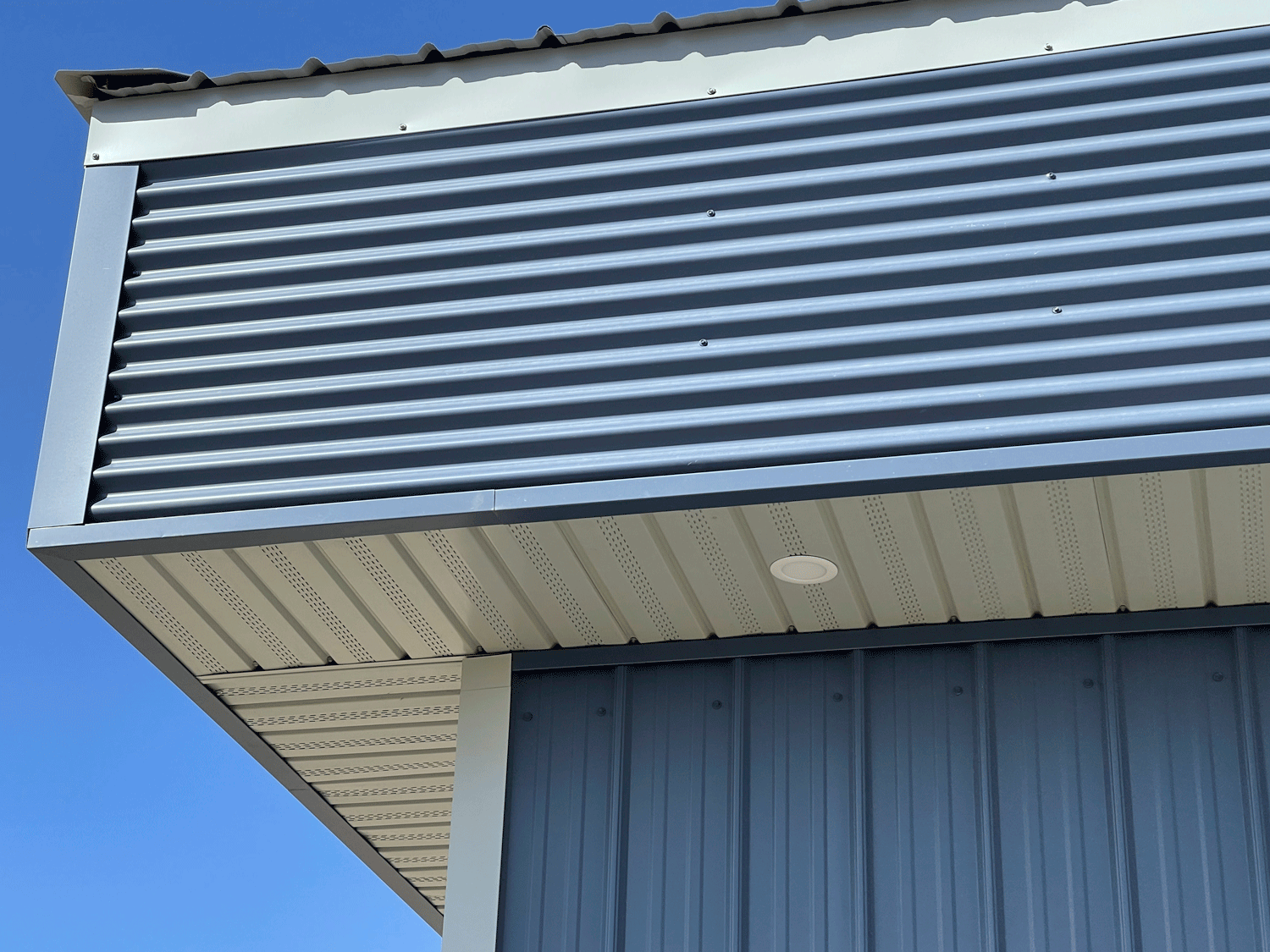

Residential Shed featuring horizontal 7/8" Corrugated in Matte Anthracite
Residential Shed featuring horizontal 7/8" Corrugated in Matte Anthracite
7/8" Corrugated in Coffee Brown
7/8" Corrugated in Coffee Brown

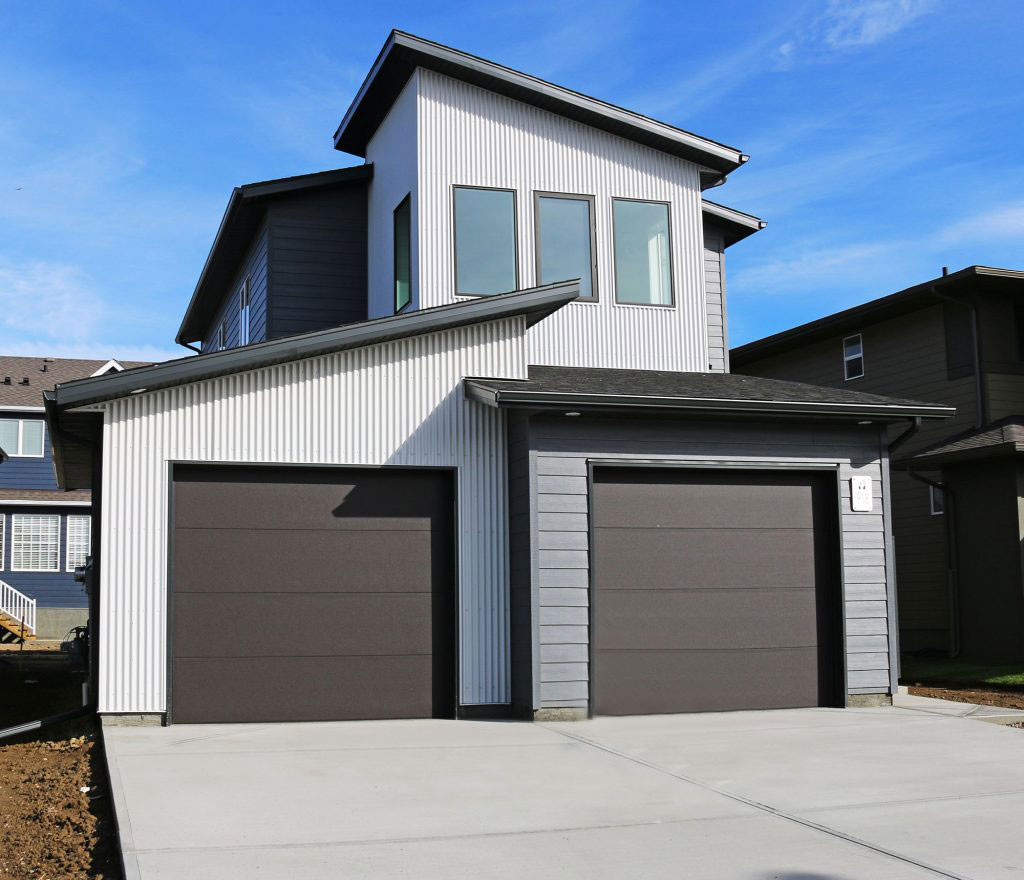

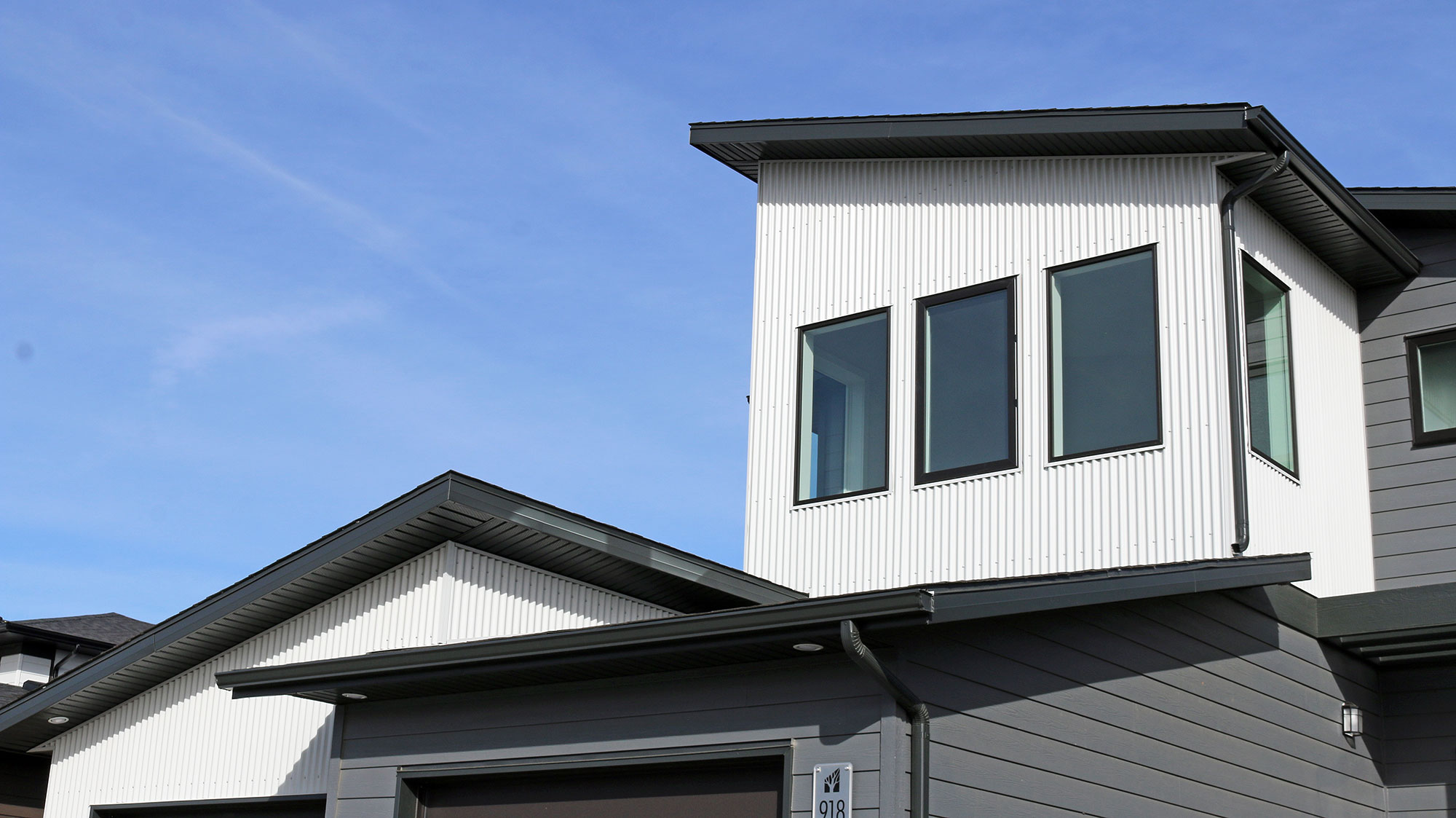

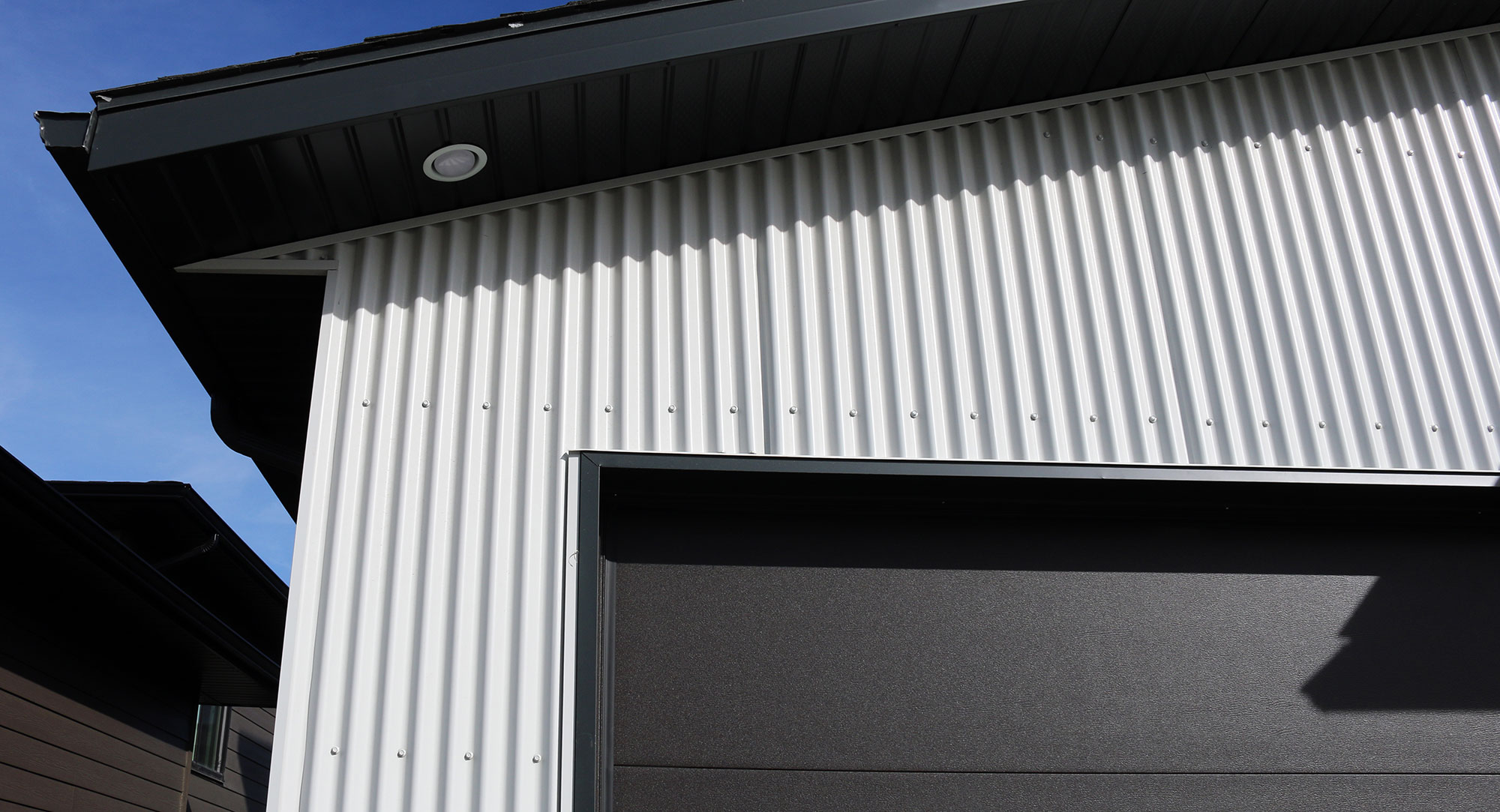

Residential Exterior featuring Bright White 7/8 Corrugated Accent Metal Siding by Forma Steela
7/8 Corrugated Metal Siding in Bright White by Forma Steel
7/8 Corrugated Metal Siding in Bright White by Forma Steel
7/8 Corrugated Metal Siding in Bright White by Forma Steel


Find Forma Steel Products Near You.


Forma Steel distributes through a network of Retail Partners throughout Western Canada. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form. Ask for Forma Steel at your local building supply store or lumber yard.


FIND A RETAIL PARTNER NEAR YOU

Weathering Steel


For a rustic architectural accent to your 7/8 Corrugated Panel, consider our Weathering Steel. Learn more about this unique steel finish.


LEARN MORE ABOUT WEATHERING STEEL
