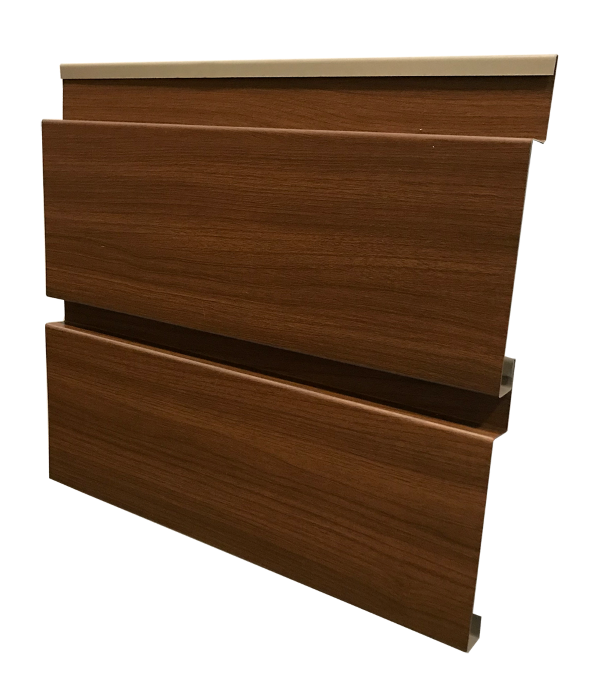

Elevate Your Exterior with Forma Plank


Forma Plank is a modern steel cladding solution offering stunning colours and textures in an easy-to-install panel system that will effortlessly make your next build stand out from the rest.

Crafted from 24 gauge steel, Forma Plank is stronger then most other siding options. Backed by a minimum 25-year warranty.



The Smart Siding Solution


The hidden fastener panel is available in two standard coverages of either 6-1/4" or 8-1/2" with a depth of 7/8".  A favourite among contractors, the Forma Plank panel is available with complimentary designed trims for a smooth and simple installation every time, and features a clip system ideal for thermal expansion and contraction.

This versatile panel can be installed vertically or horizontally, in varying widths, and is easily integrated with standard cladding profiles, including our Interloc Soffit Panels System.

Bold. Durable. Versatile. Economical.

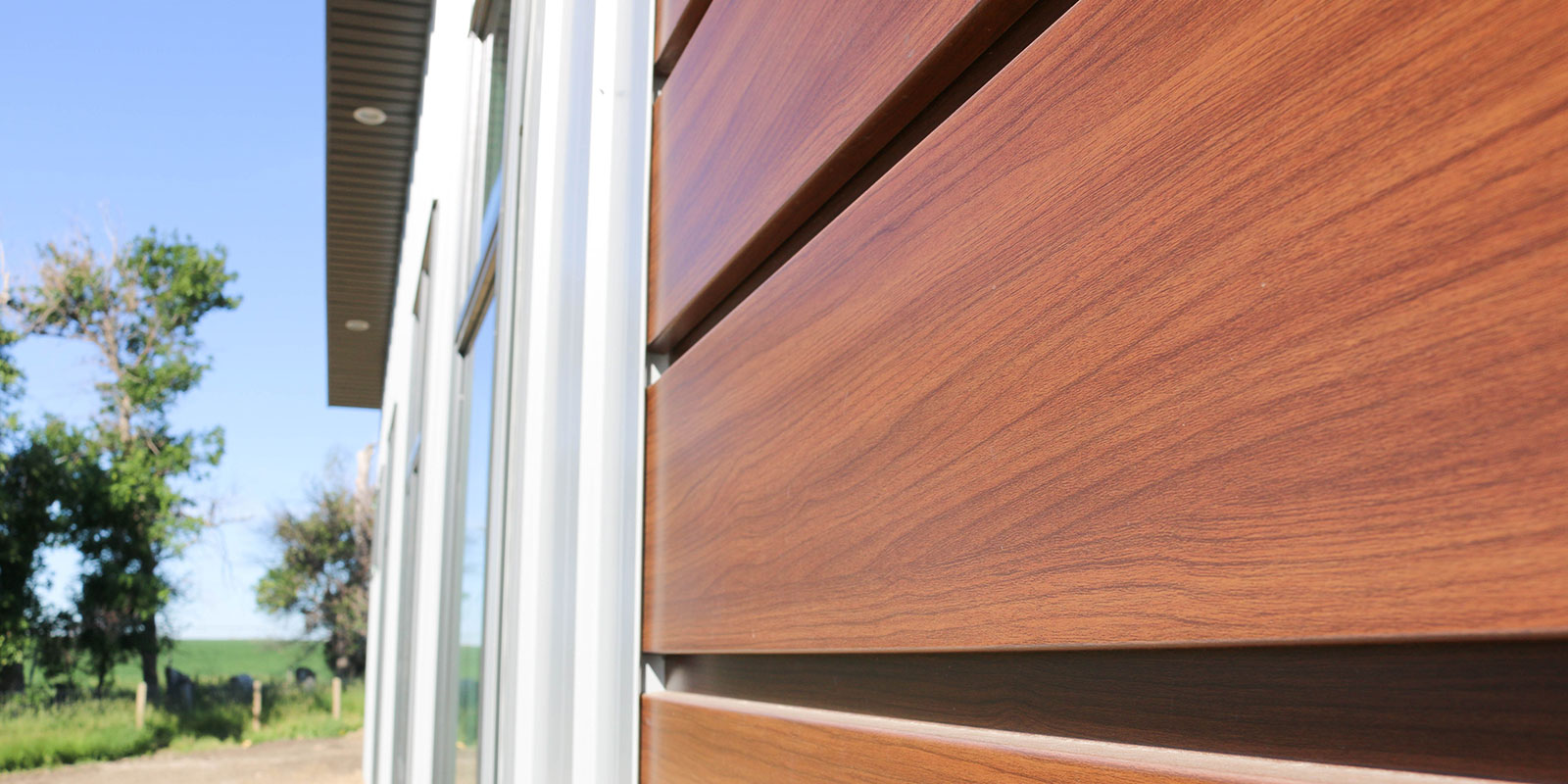

Paired with our Woodgrain Series finishes, Forma Plank gives the same warmth and aesthetics of wood but with the strength of steel. Also available in over twenty 24-gauge colours, Textured Series and our Image Series finishes, there's a style to suit every project.

Forma Plank offers  an abundance of design possibilities to elevate the finish of any building from small residential accents to large multi-family projects. With a high-quality durable finish and easy installation and maintenance, Forma Plank is an affordable siding solution for all your cladding needs.


Unique Finishes.

Choose from dozens of high-quality colours and textured finishes that will take your cladding to the next level. Our collections mix and match well, creating seamless modern designs for any build.

Custom Lengths.

We manufacture the product as it is ordered, allowing for custom lengths based on your exact project dimensions. Reduce your on site cutting by ordering the lengths you need.

Big or Small.

No project is too small - Forma Plank can be used as a small accent on residential homes, or included throughout an entire retail office - blending seamlessly into any design.

Available Colours & Finishes

Image Colours Series


Dark Walnut Woodgrain

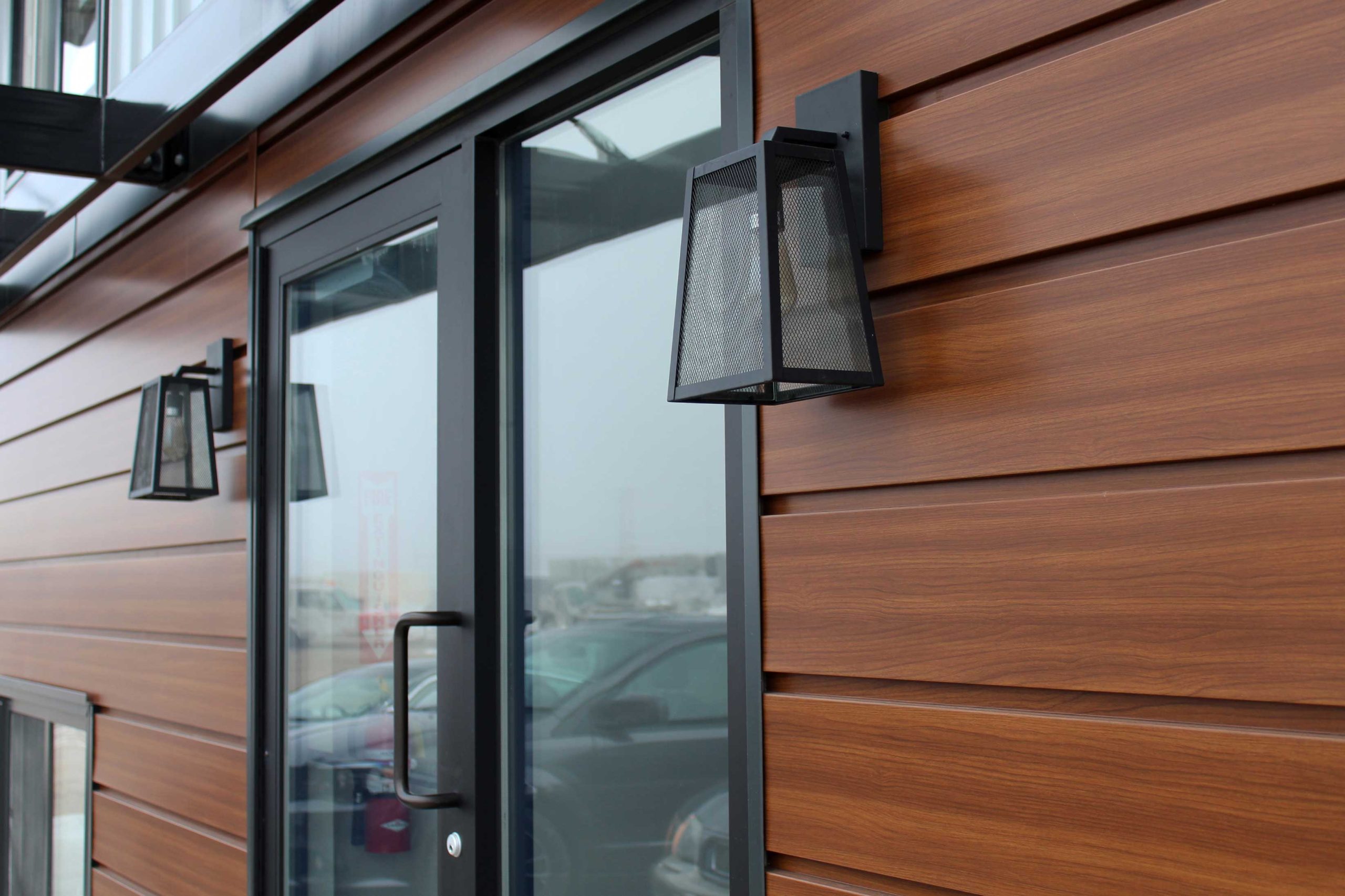

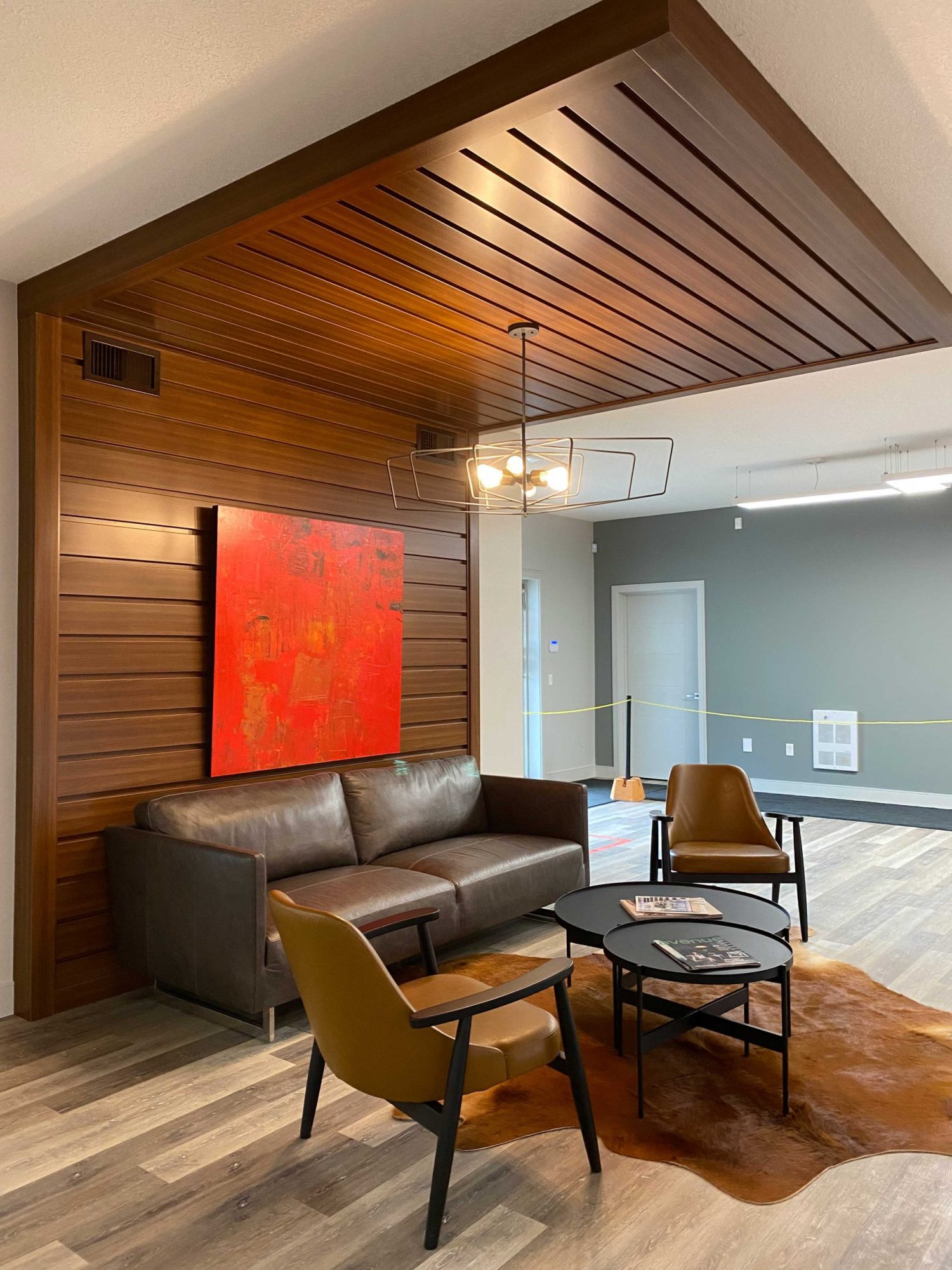

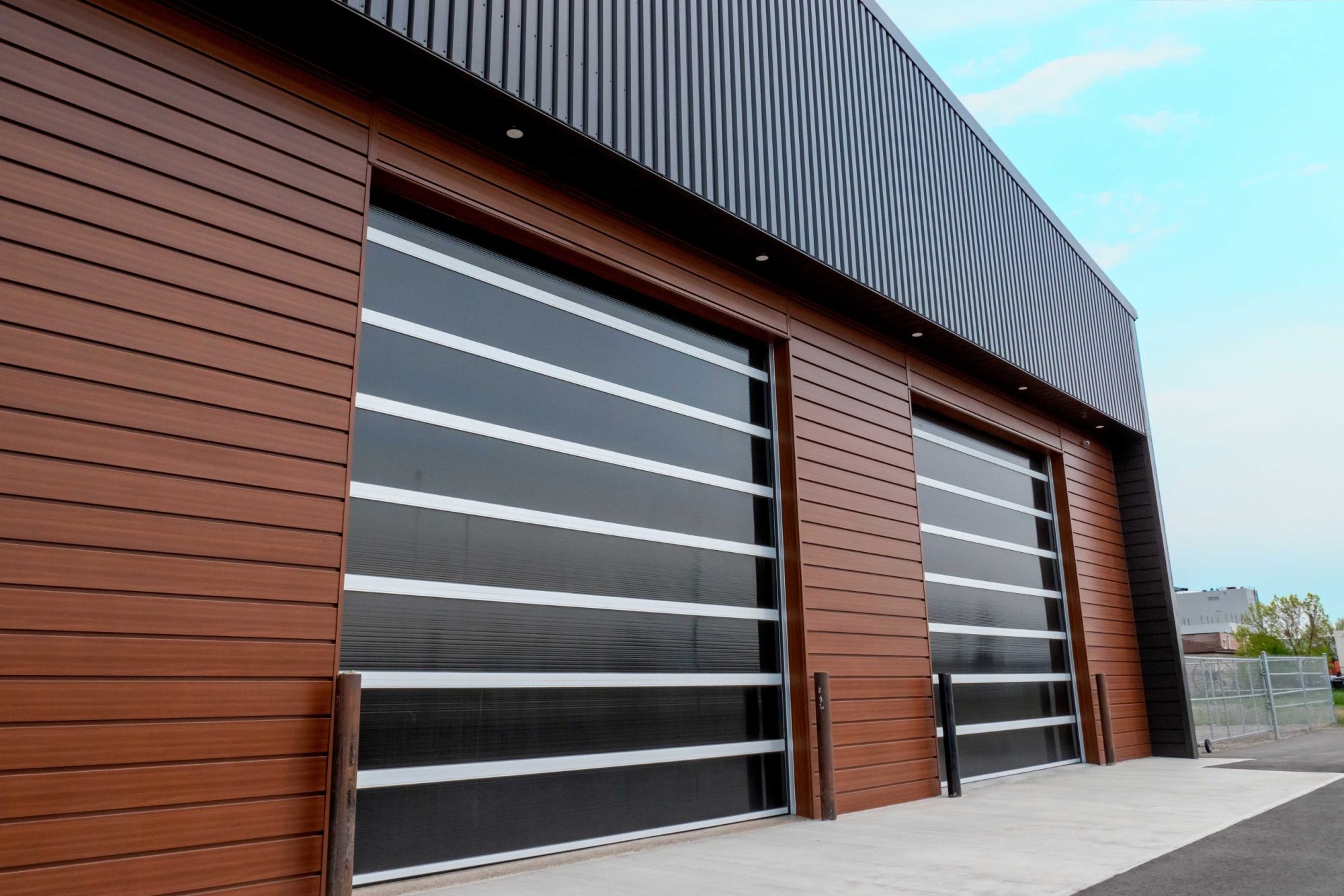

Espresso Woodgrain

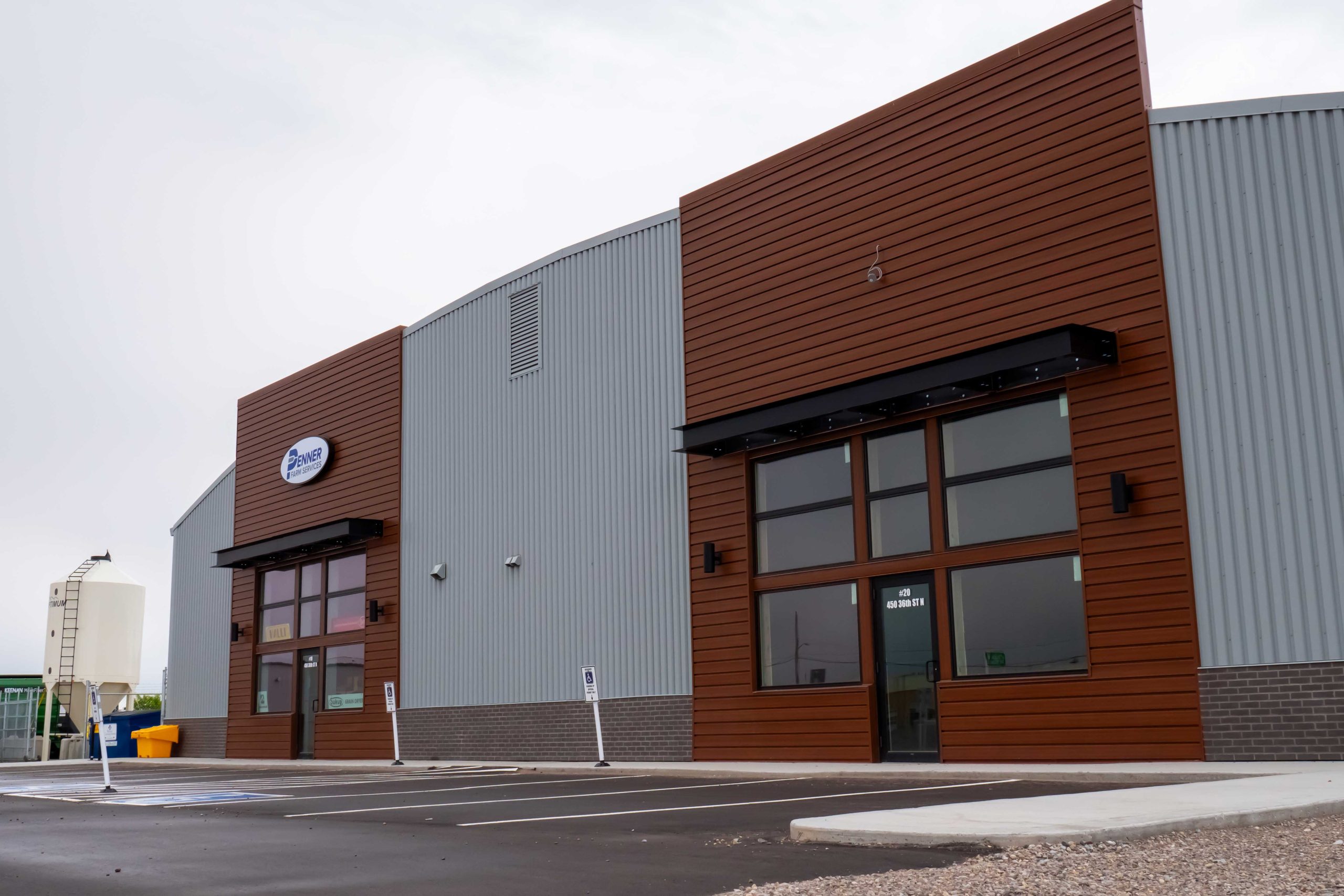

Gunstock Woodgrain

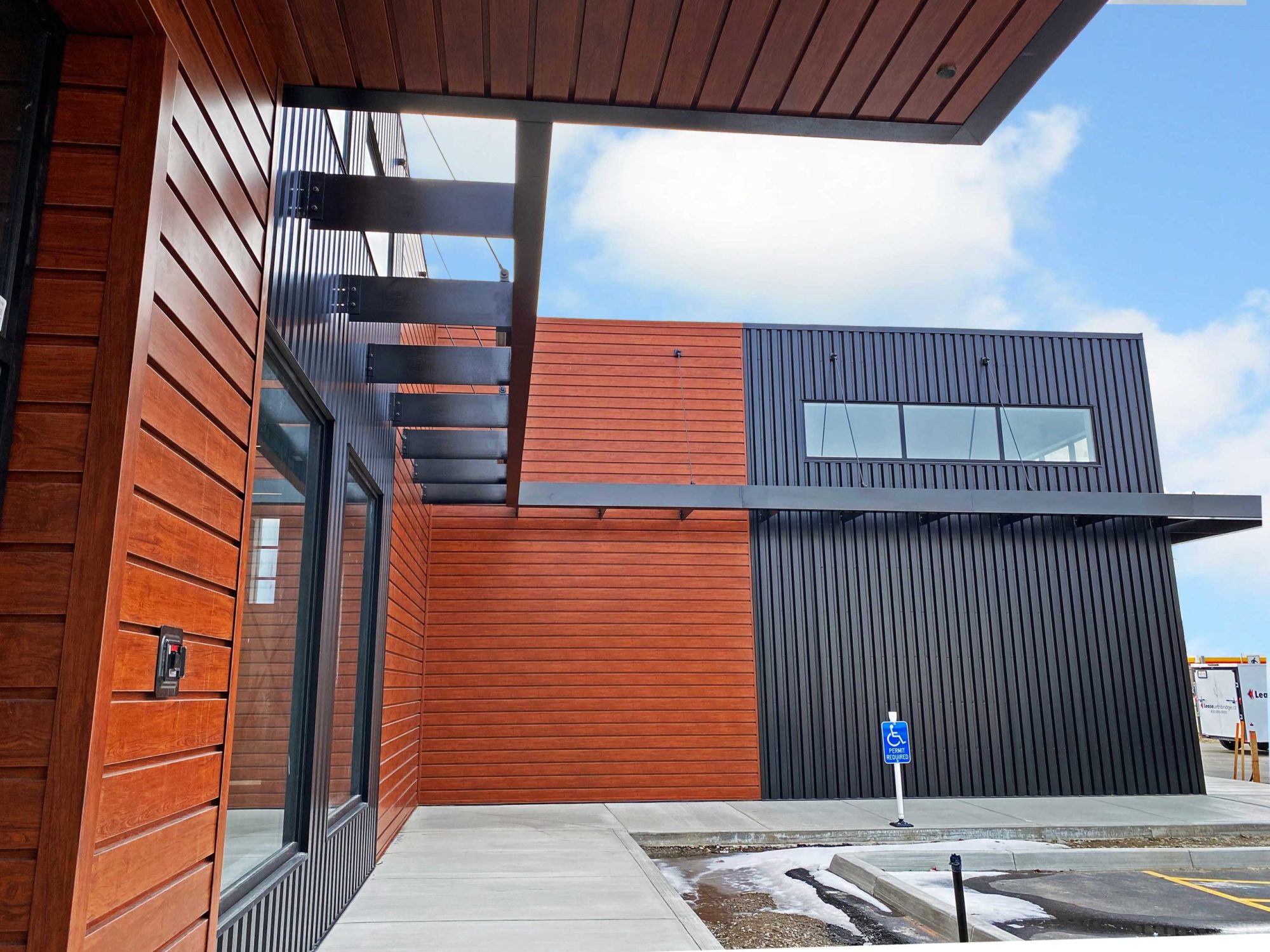

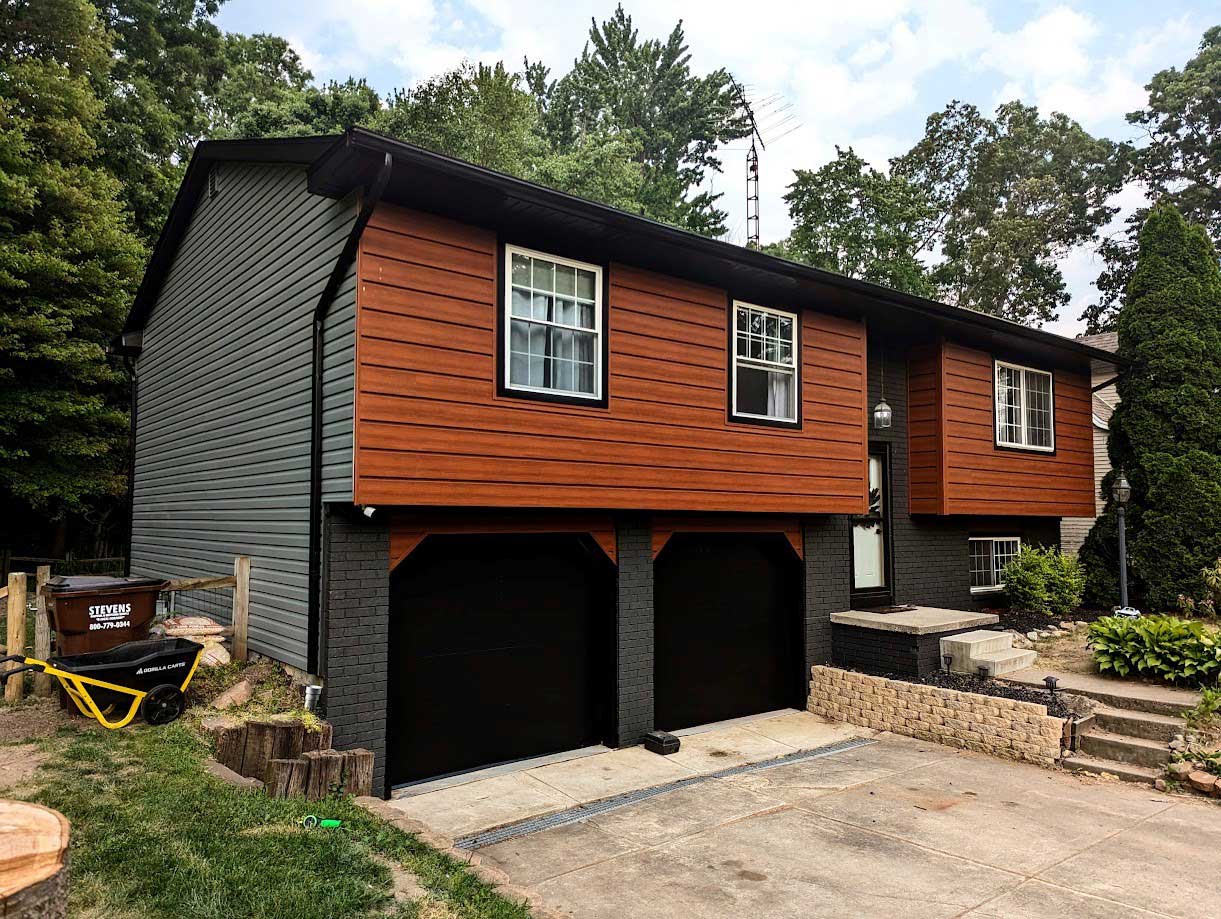

Frontier Woodgrain

Saddle Woodgrain

Autumn Woodgrain

Light Pine Woodgrain

Obsidian Oak Woodgrain

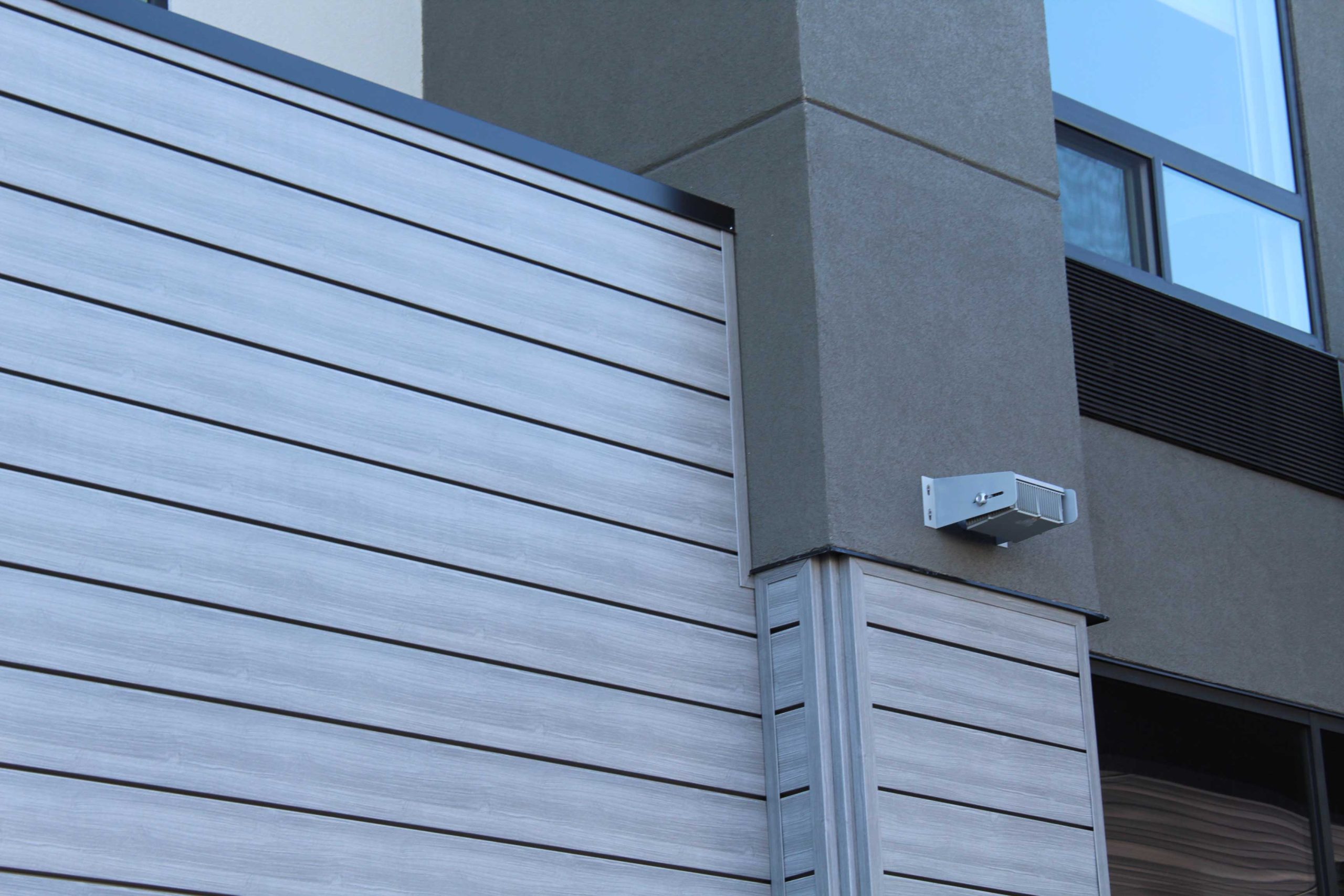

Barnboard Woodgrain

Concrete

Rustic


Solid Colour Series


Galvalume

Bright White

White White

Iceberg

Bone White

Wicker

Stone Grey

Hickory

Tan

Buckskin

Coffee Brown

Dark Brown

Black

Carbon

Charcoal

Zinc Grey

Regent Grey

Bright Red

Tile Red

Dark Red

Slate Blue

Oxford Blue

Royal Blue

Heron Blue

Sapphire Blue

Melchers Green


Textured & Speciality Colours Series


Onyx Black Textured

Burnished Slate Textured

Graphite Textured

Fossil Texture

Red Oxide Textured

Arctic White Textured

Silver Sage Textured

Ash Grey Textured

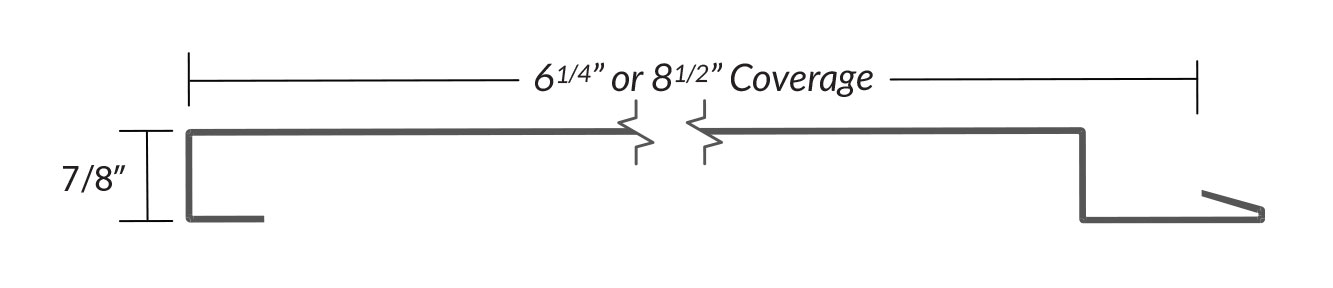

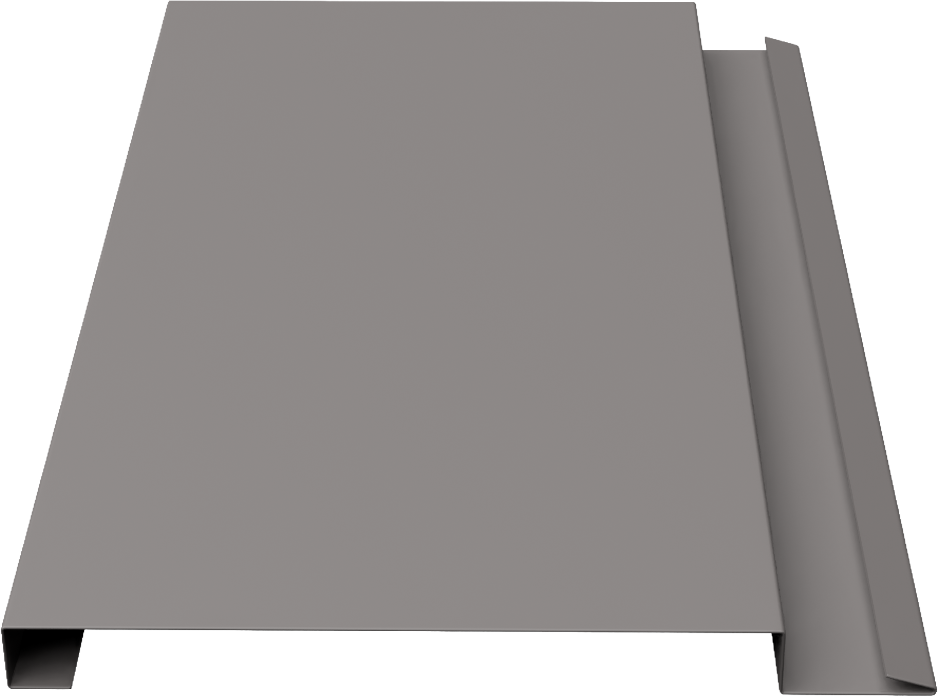

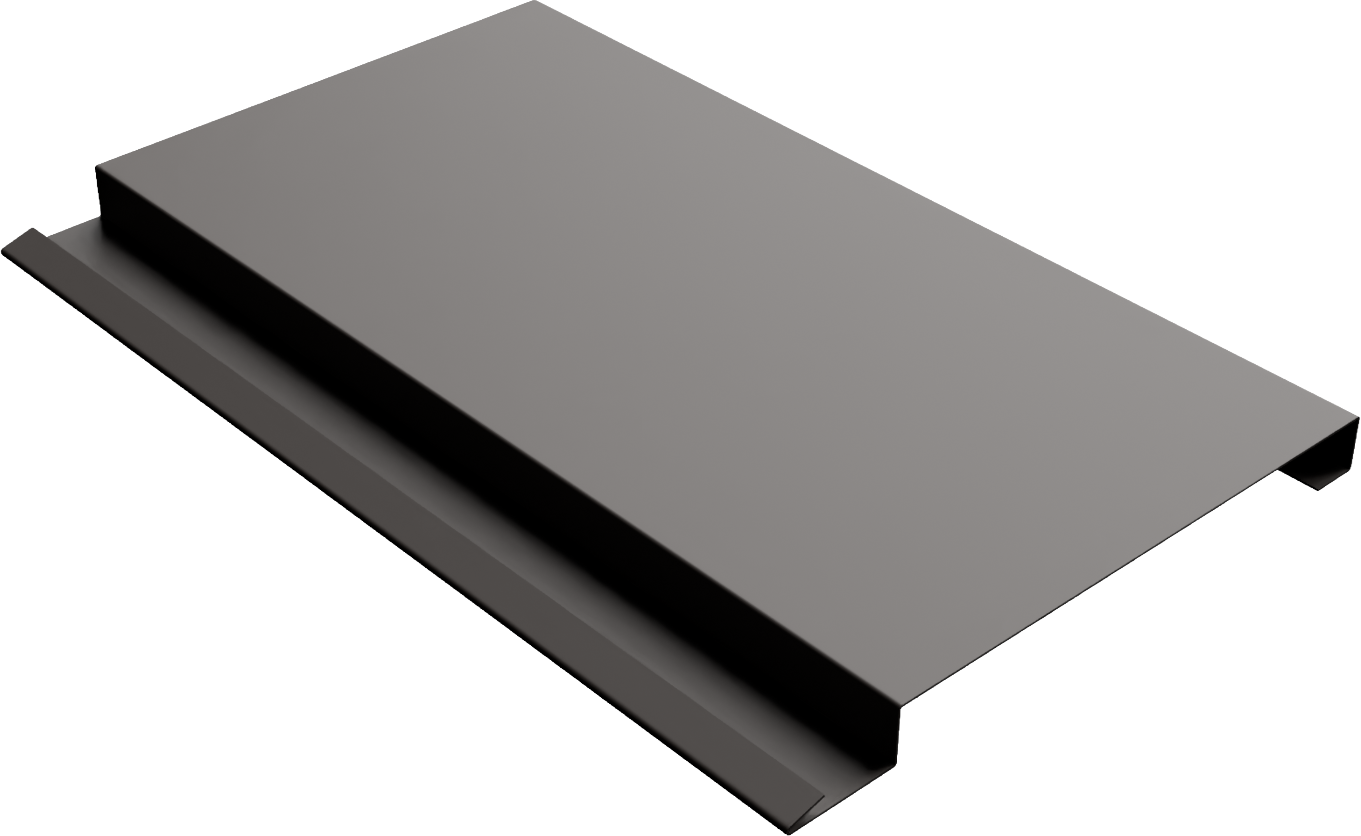

Panel Detail

Forma Plank with Floating Clip Installation

Specifications

Application:  Wall

Coverage: 6-1/4" or 8-1/2"  |  Depth: 7/8"

Panel Length: Up to 26'10" (minimum length: 62")

Note: 2'-5' Panel lengths are available for short length charge

Available Gauge: 24

Available in 40+ Standard Colours and Specialty Finishes

Recommended: Install over membrane and drainage mat

Recommended Substrate: 1/2” standard plywood minimum

Floating clip system allows for thermal expansion and contraction

Cutting charges applies on lengths from 24" to < 62"

Available with full set of trims to complete any installation

25-Year Limited Conditional Warranty on PVDF & woodgrain finishes  (extra lead time may apply for certain PVDF finishes)

40-Year Limited Conditional Warranty on standard colour series & textured colours

Notes:
- Protective film is applied to all Forma Plank orders.

- Z bar may be recommended on larger panels

- Designed for solid substrate with strapping/rainscreen options available



Product Brochures


FORMA PLANK BROCHURE

FORMA PLANK INSTALL GUIDE

IMAGE SERIES FINISHES

STANDARD COLOUR SERIES

TEXTURED STEEL SERIES

7/8" STANDARD TRIMS


Looking for a Slimmer Profile?

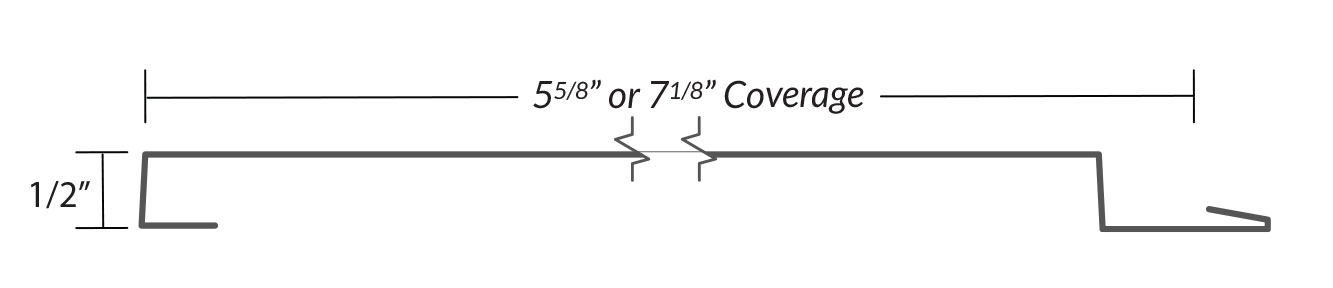

Slimline is our new plank-style panel that has a depth of only 1/2". It is available in two coverages: 5-5/8" and 7-1/8" and can be finished in the same 24 gauge colours and prints that our Forma Plank is. Click below to find out more.


Learn More About the Slimline Panel

Recent Forma Plank Projects

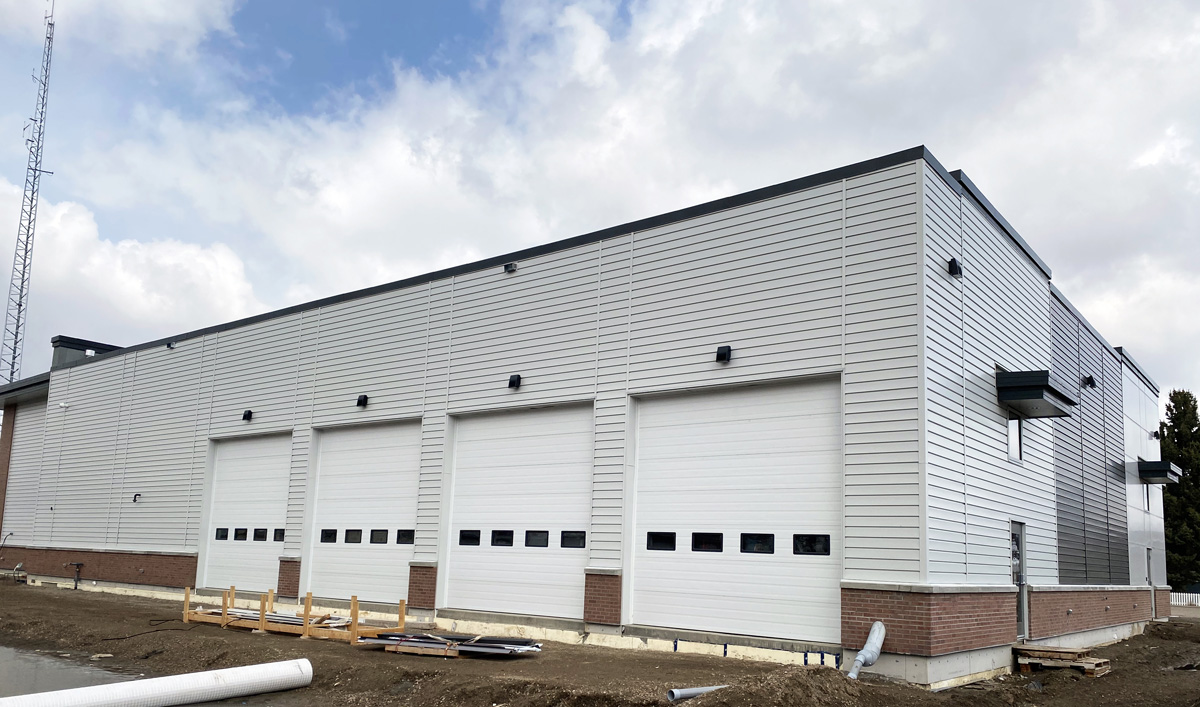

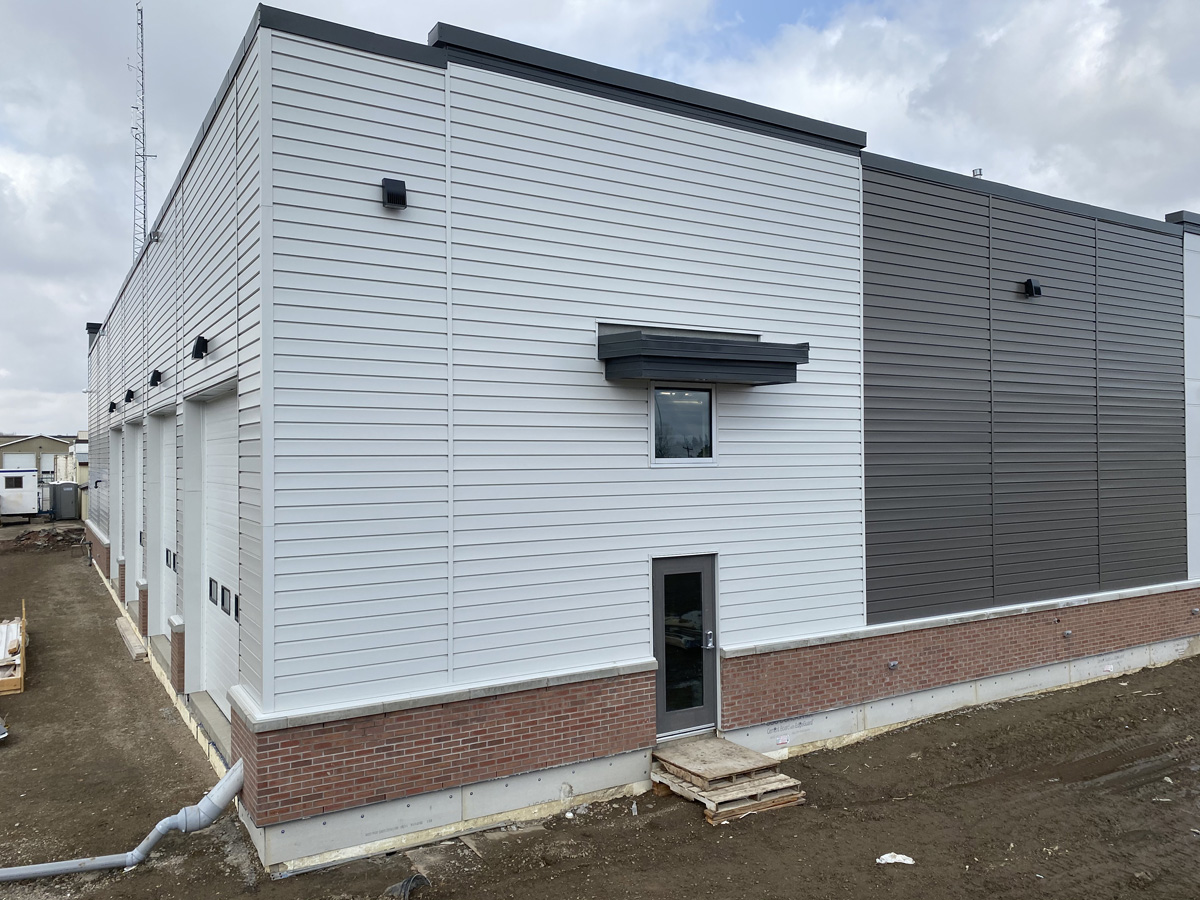

Commercial Building

Busy-Butterflies-2

Busy-Butterflies-4

Varying Width Forma Plank in Weathering Steel

Varying Width Forma Plank in Weathering Steel

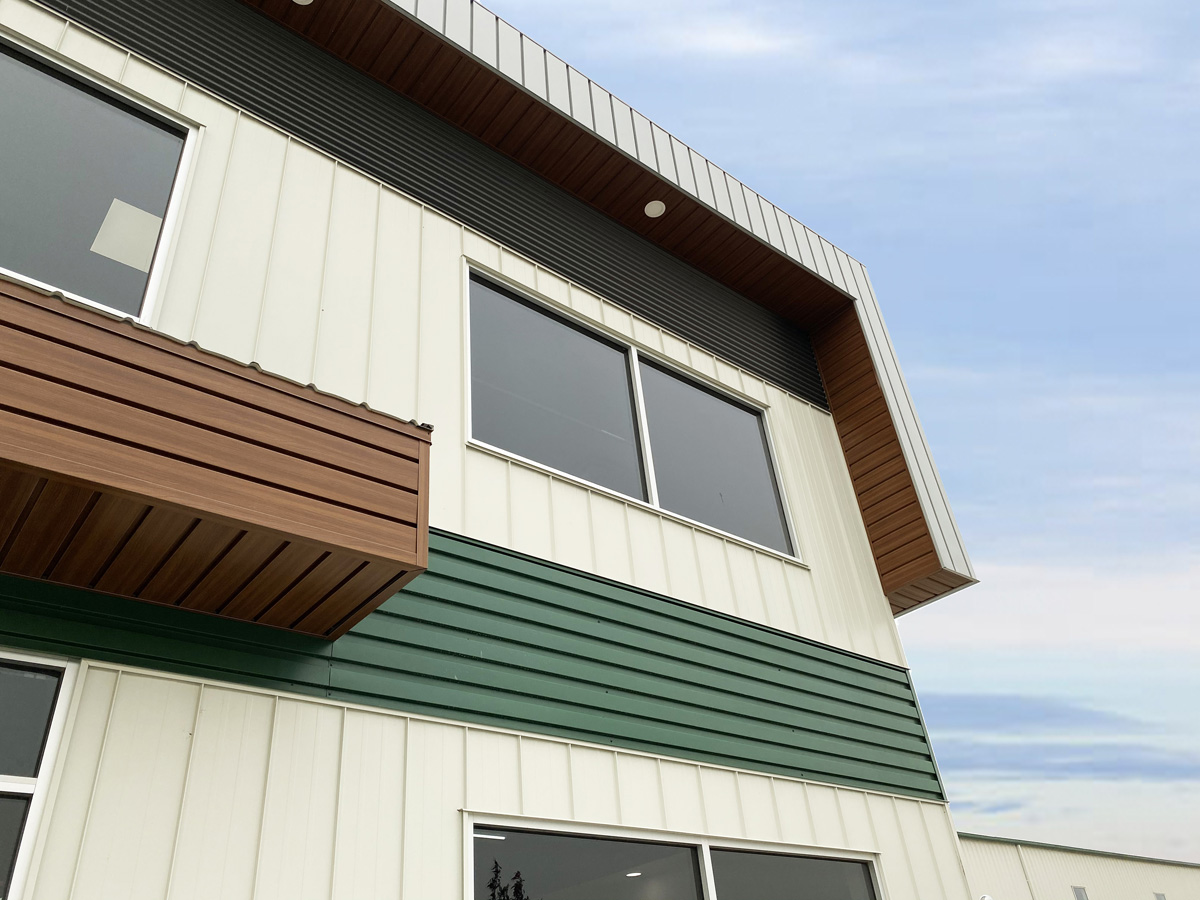

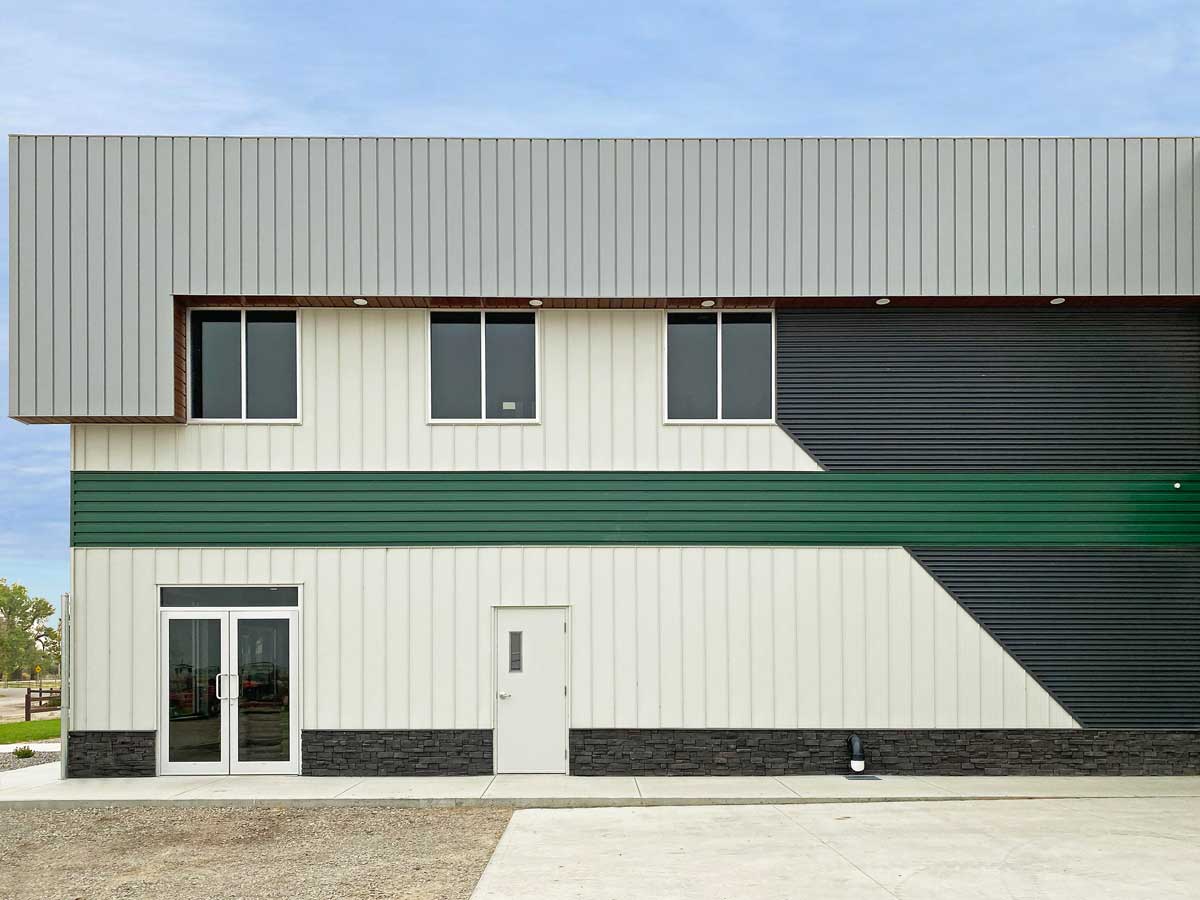

Forma Plank in Espresso, FormaLoc in Iceberg, 7/8″ Corrugated in Carbon, Box Rib in Melcher’s Green & Vertical Forma Plank in Regent Grey

2019-06-26 16.10.01

Parrot-Garage-yql-02



Find Forma Steel Products Near You.


Forma Steel distributes through a network of Retail Partners throughout Western Canada. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form. Ask for Forma Steel at your local building supply store or lumber yard.


FIND A RETAIL PARTNER NEAR YOU

Want More Info on Forma Plank?

Contact Forma Steel for more information on our Forma Plank product and how to get samples for your customers
