Complete Your Next Project in Style with Modern Metal Cladding.


Discover a collection of modern siding panels to elevate any exterior. Crafted from 24 gauge steel and available in dozens of colours & finishes like Woodgrain, Concrete or Textured Steel to compliment any design. The Forma Steel Cladding Series makes your building not only stand out from the rest but also provides a durable finish to last a lifetime.



The Smarter Siding Solution


Our collection of hidden fastener wall panels are easy to install and are complimented with a complete set of trims for a smooth and simple finish every time. Each Cladding Wall System features a floating clip design that is ideal for thermal expansion and contraction. These versatile panels can be installed vertically or horizontally, in varying widths, and are easily integrated with other standard cladding profiles.


100% Canadian.

The Cladding Collection is crafted in Canada by Forma Steel. We are located in Fort Macleod, AB and have been manufacturing steel roofing and siding for 30 years. Our experienced team is eager to assist you from initial conceptions through to complete installation.

Custom Lengths.

We manufacture the product as it is ordered, allowing for custom lengths based on your exact project dimensions. Only pay for the amount of product you need to get the job done.

Big or Small.

No project is too small - our Cladding Panels can be used as a small accent on residential homes, or included throughout an entire retail office - blending seamlessly into any design.

Meet the Cladding Series

Meet the Cladding Series



Our Versatile Plank Panel That Started It All

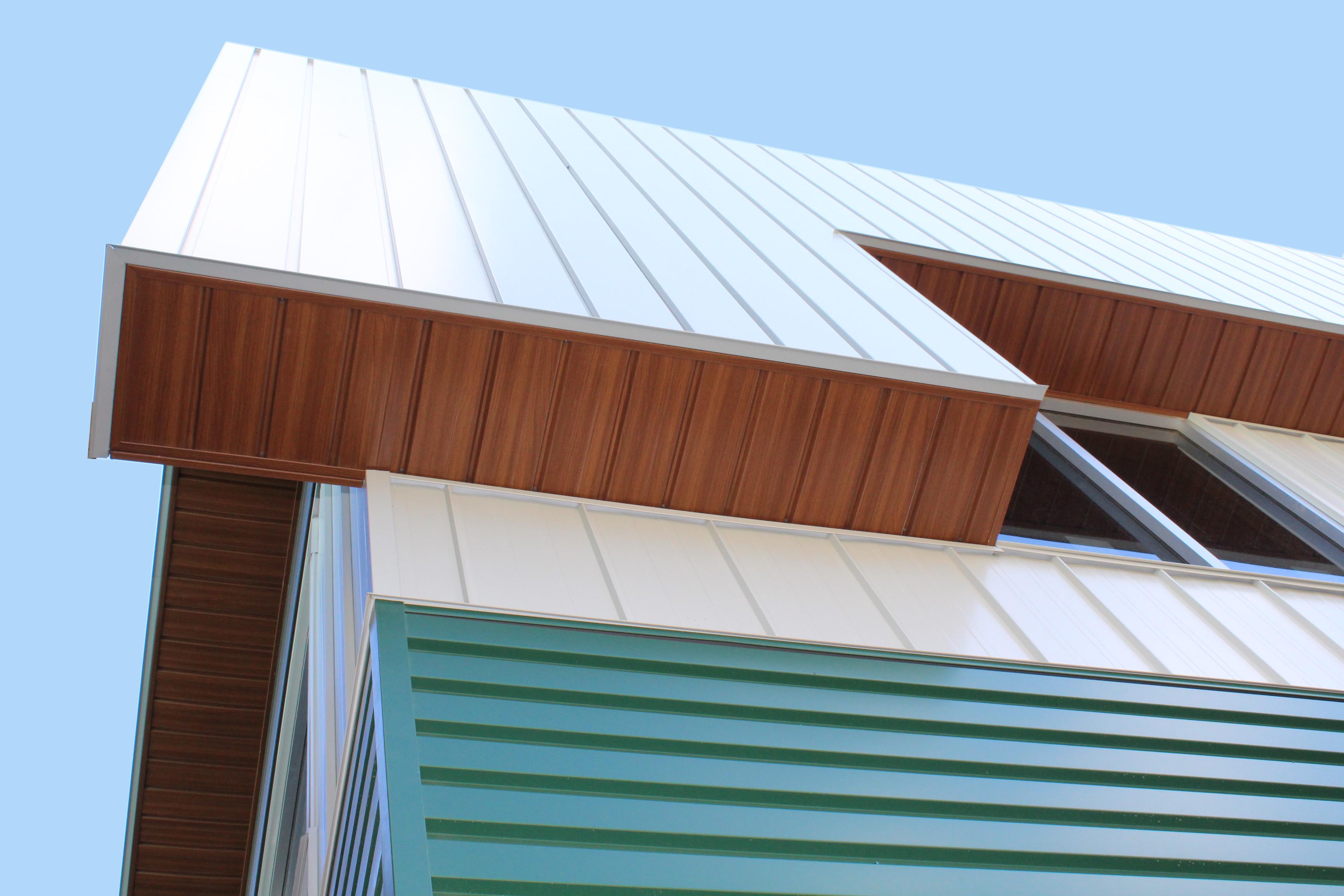

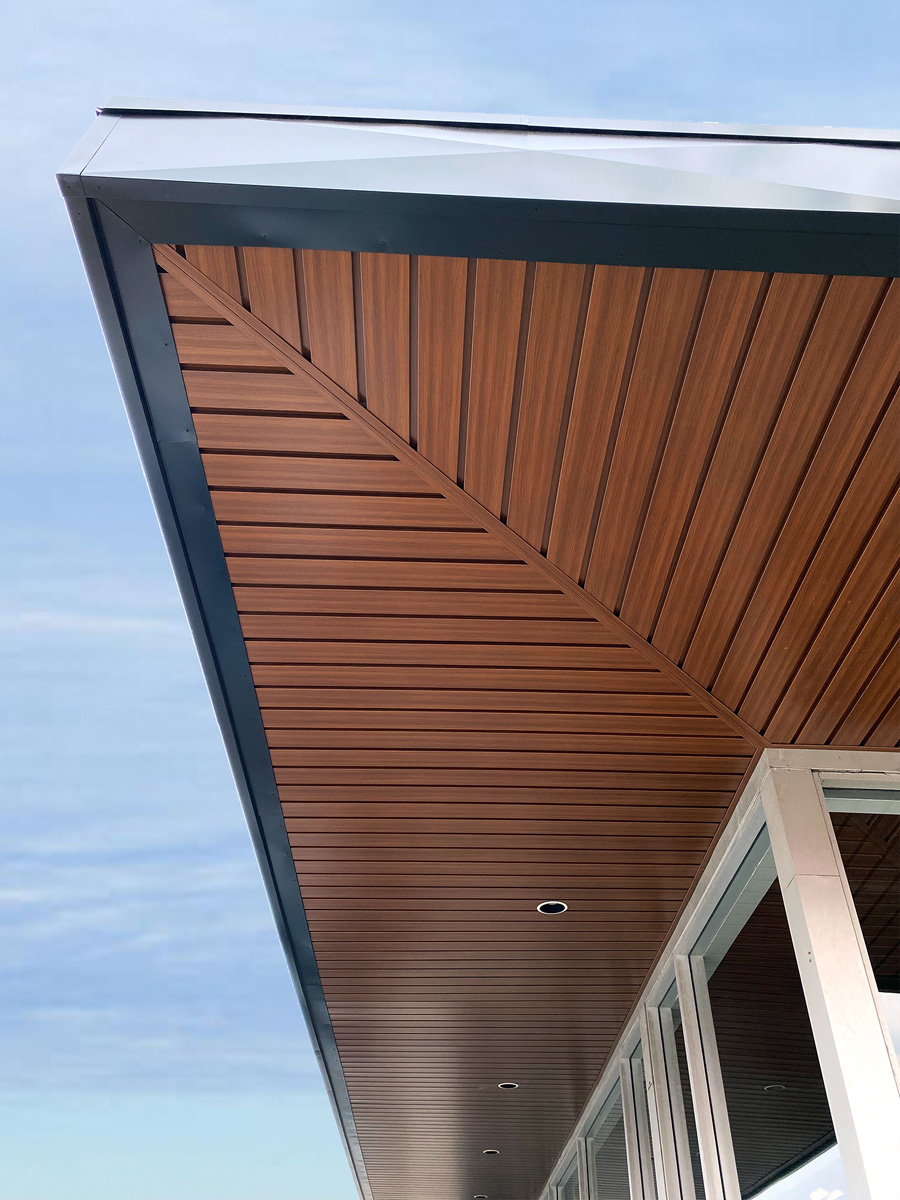

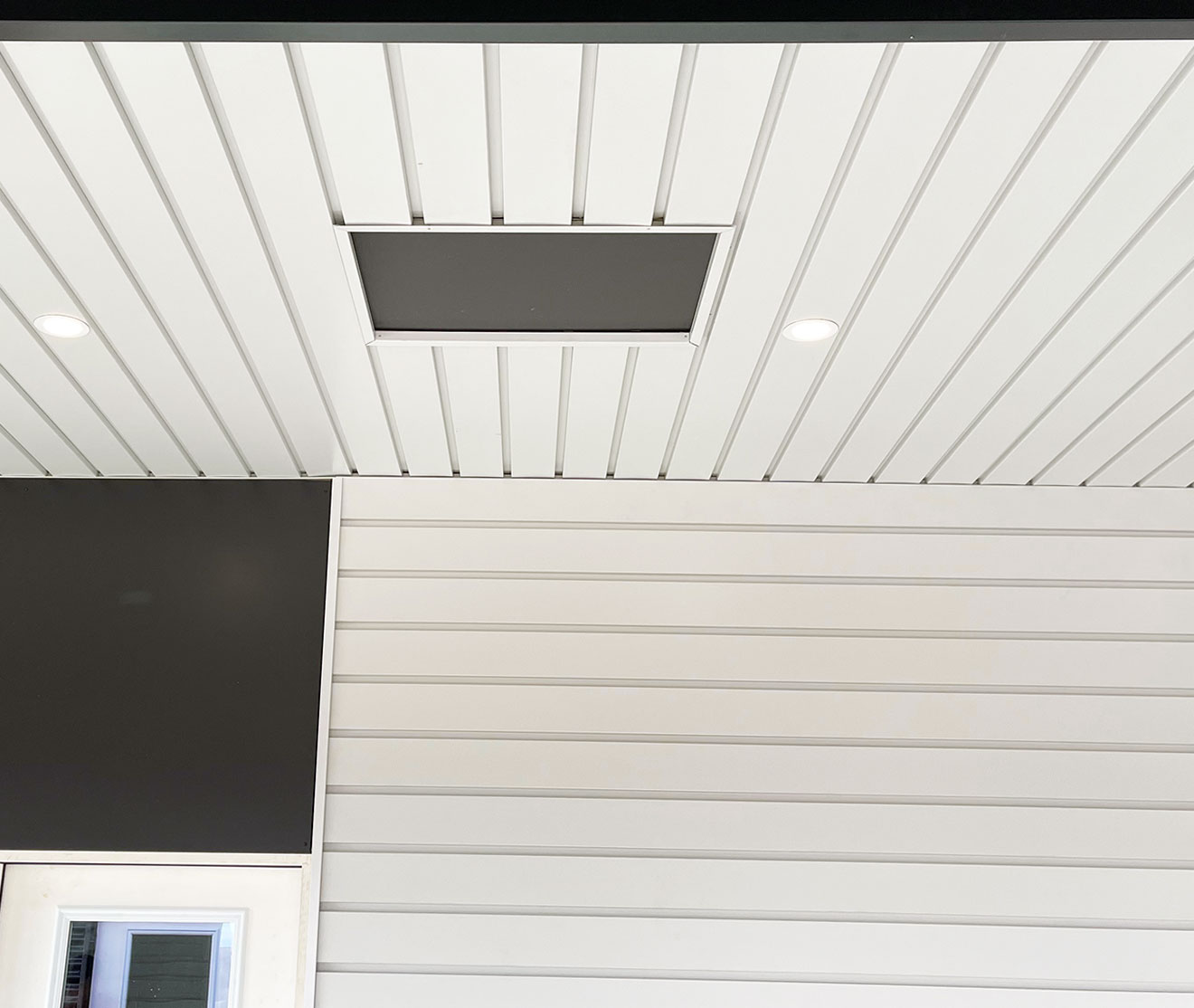

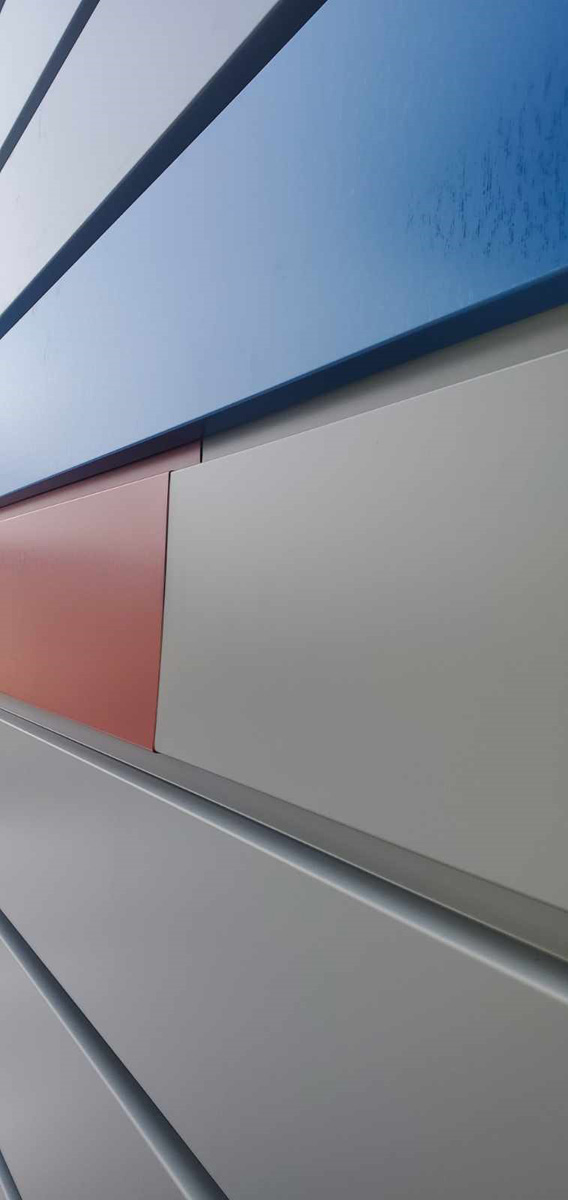

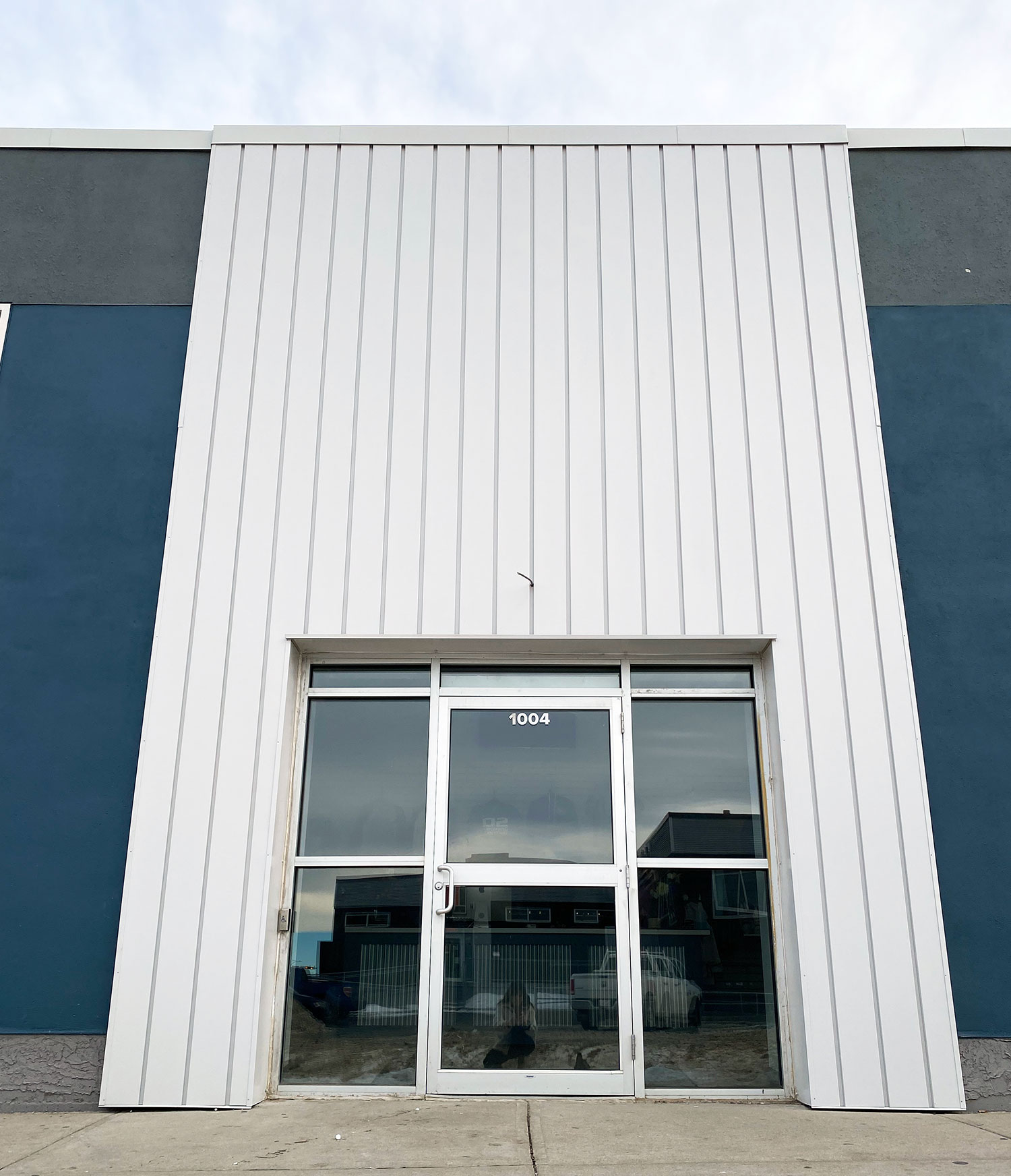

Forma Plank was our first cladding panel and one of our most popular. Available in 6-1/4" and 8-1/2" widths, it is a versatile and easy to install panel with a 1" reveal. We love seeing it in one of our 8 woodgrain finishes, but can also be made in a solid colour or a textured finish. Install in horizontally or vertically, in a uniform size or mix it up with varying widths! Use it for cladding or install it as a soffit panel too - the options are endless with Forma Plank.

Learn More About our Forma Plank

Specifications

Application:  Wall (Vertical or Horizontal), Soffit

Floating clip system allows for thermal expansion and contraction

Panel Wall Coverage: 6-1/4" or 8-1/2"

Panel Depth:  7/8"

Substrate: Minimum of 1/2" Plywood

Available in Lengths: 62" up to maximum of 322"

24" to < 62" Panel lengths are available for Cut Charge

Available in 24 Gauge Speciality and Standard Colours

40 Year Limited Conditional Warranty on Standard Colour Series & Textured Series Colours

25 Year Limited Conditional Warranty on PVDF & Woodgrain Finishes

Protective Film Applied to all Forma Plank orders

Full Set of Trims to Complete Any Installation

Custom Lengths Should Be Ordered in Multiples of (5) for 6-1/4" Forma Plank and (4) for 8-1/2" Forma Plank

Downloads

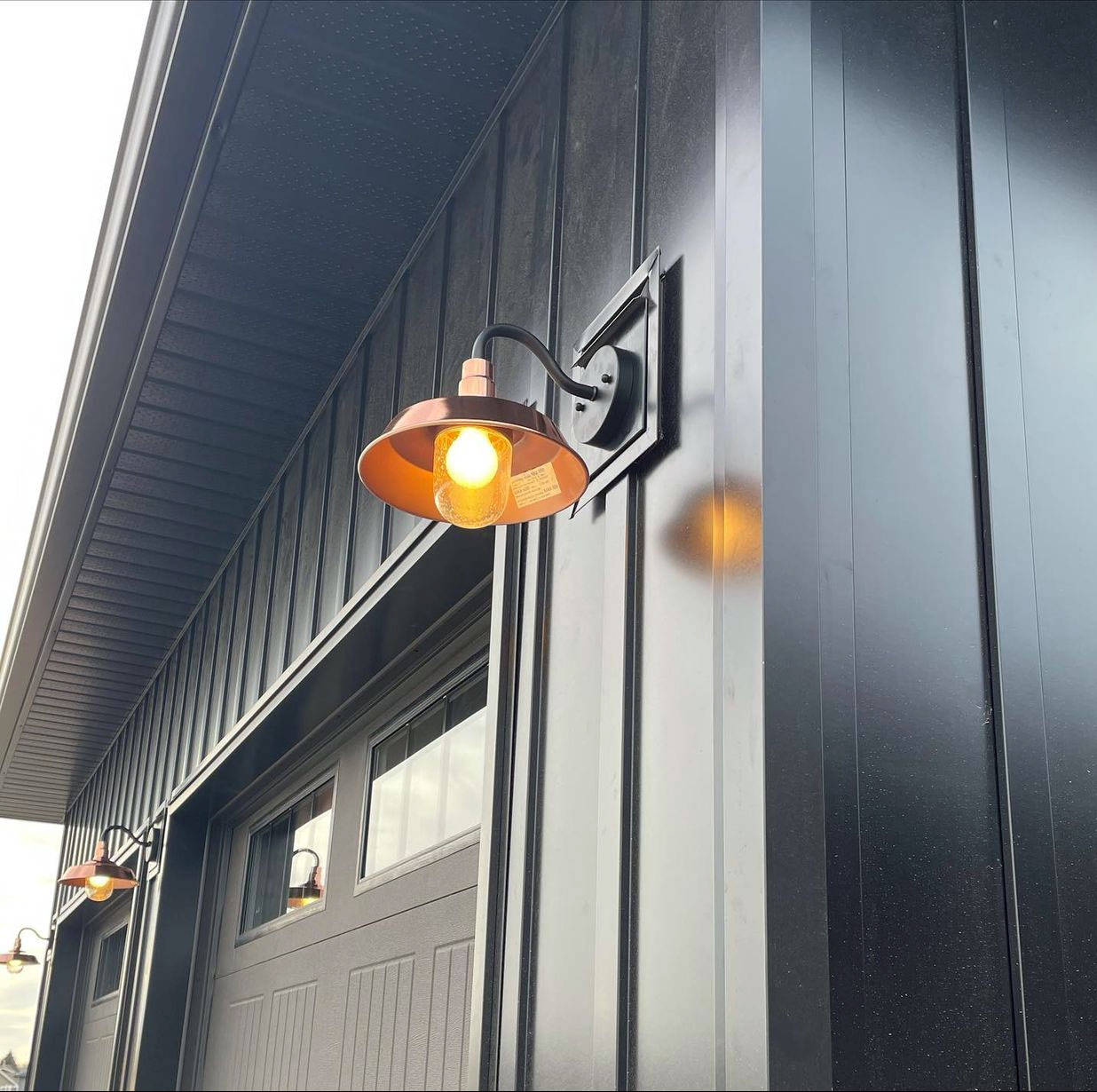

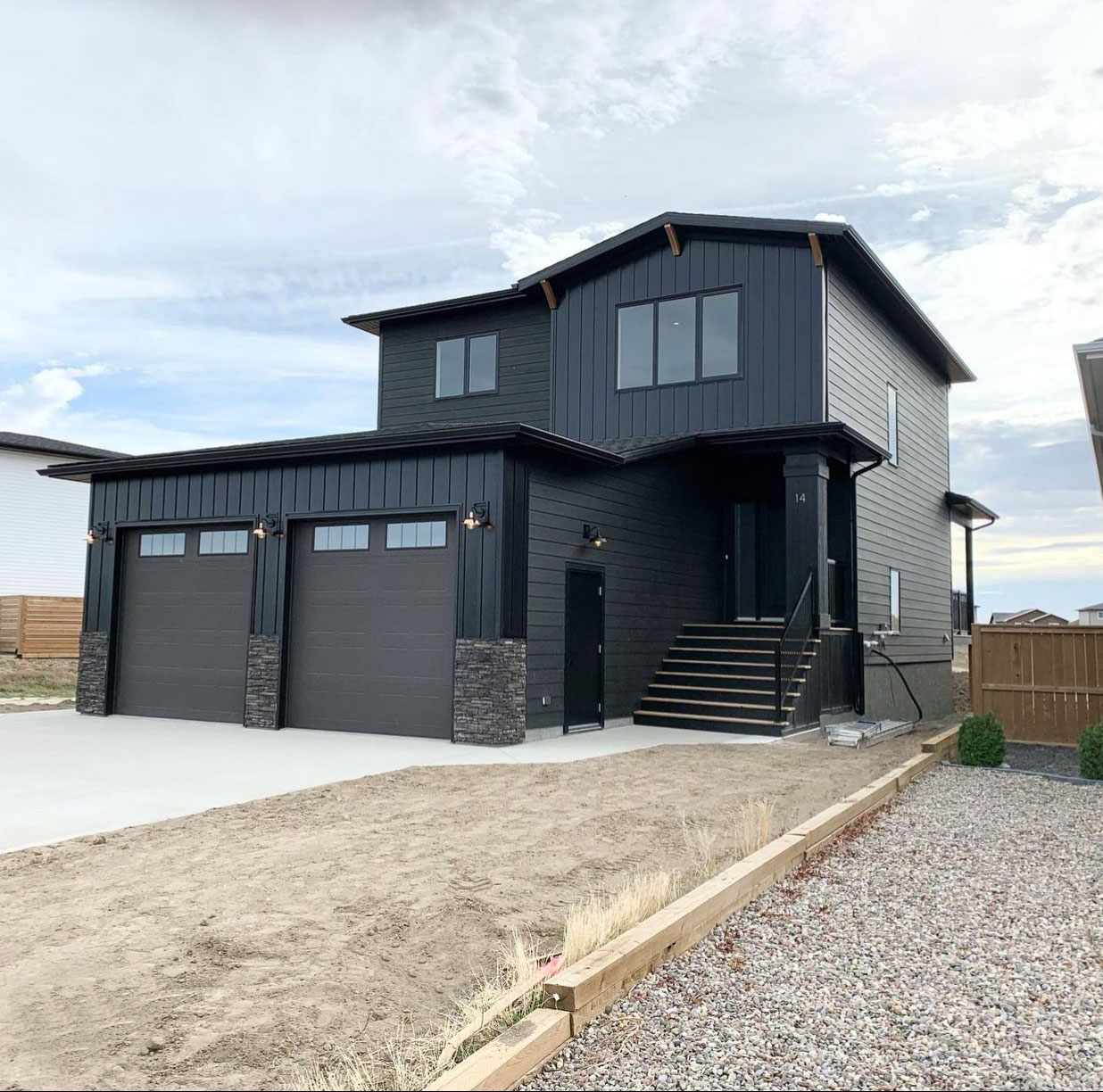

Our Steel Take on a Classic Vertical Wood Panel

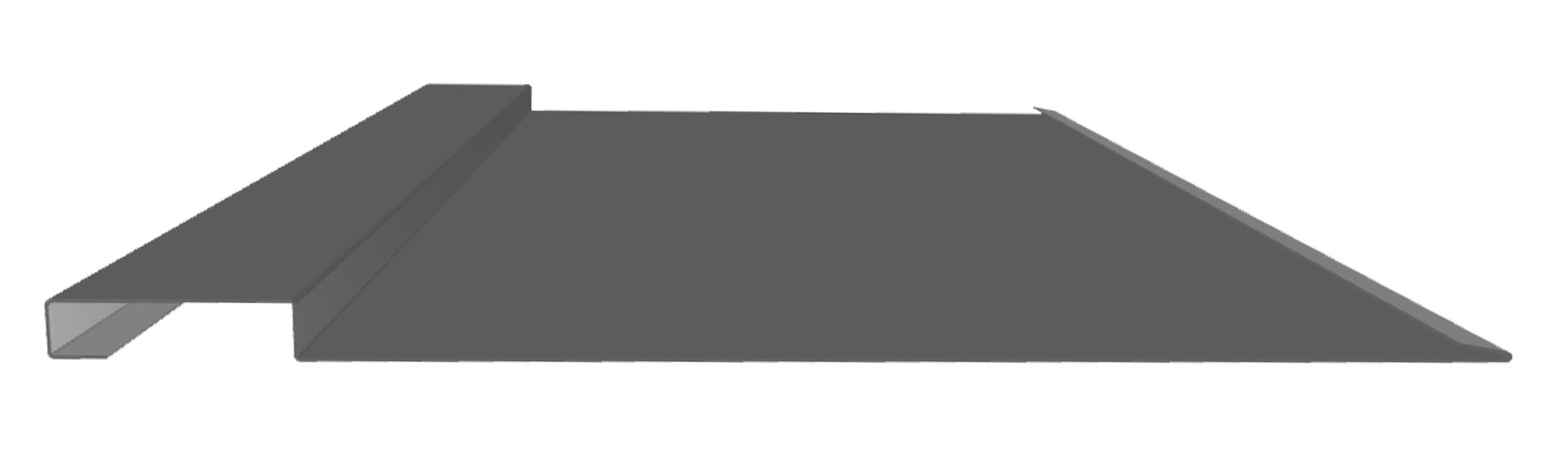

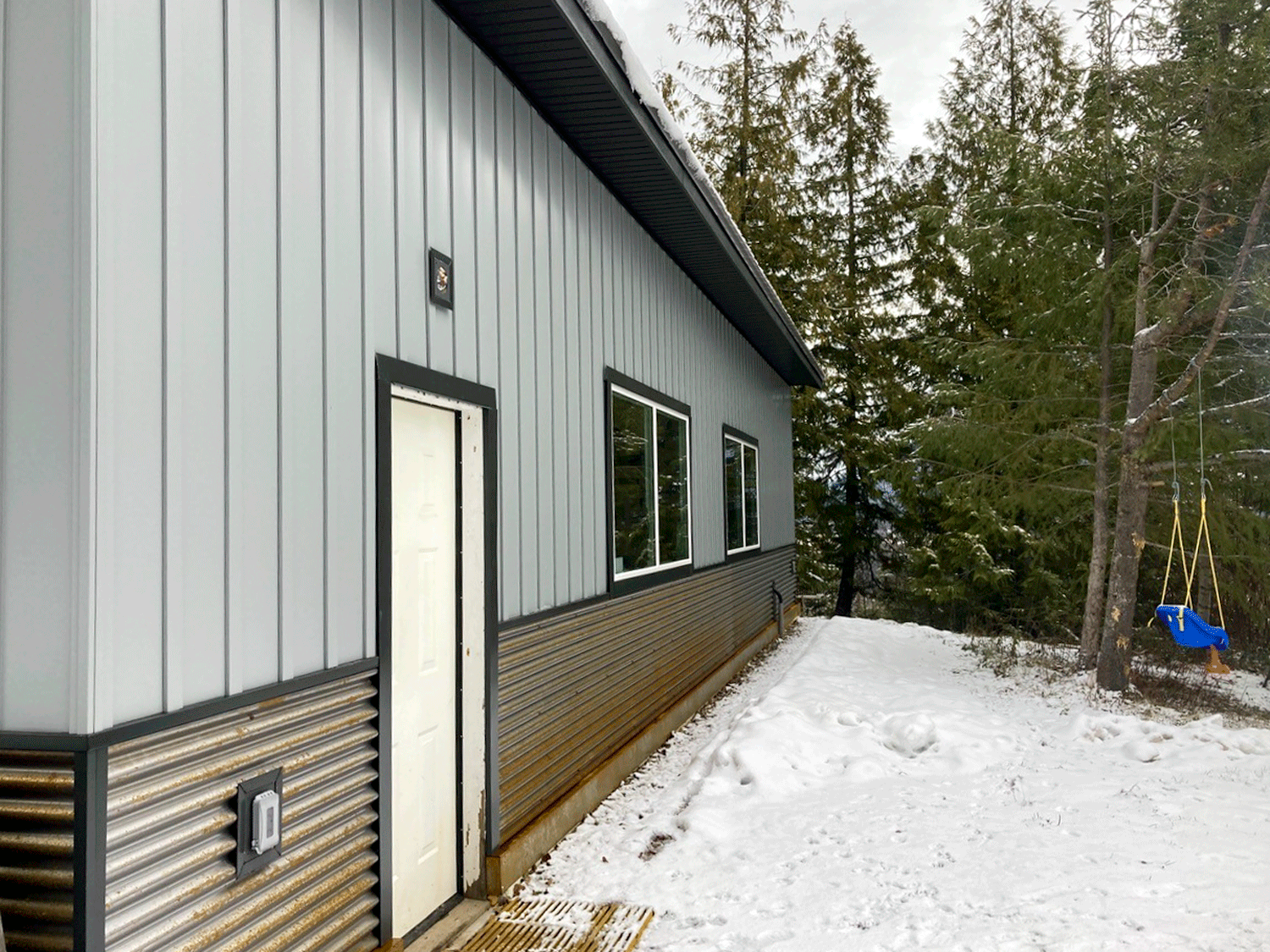

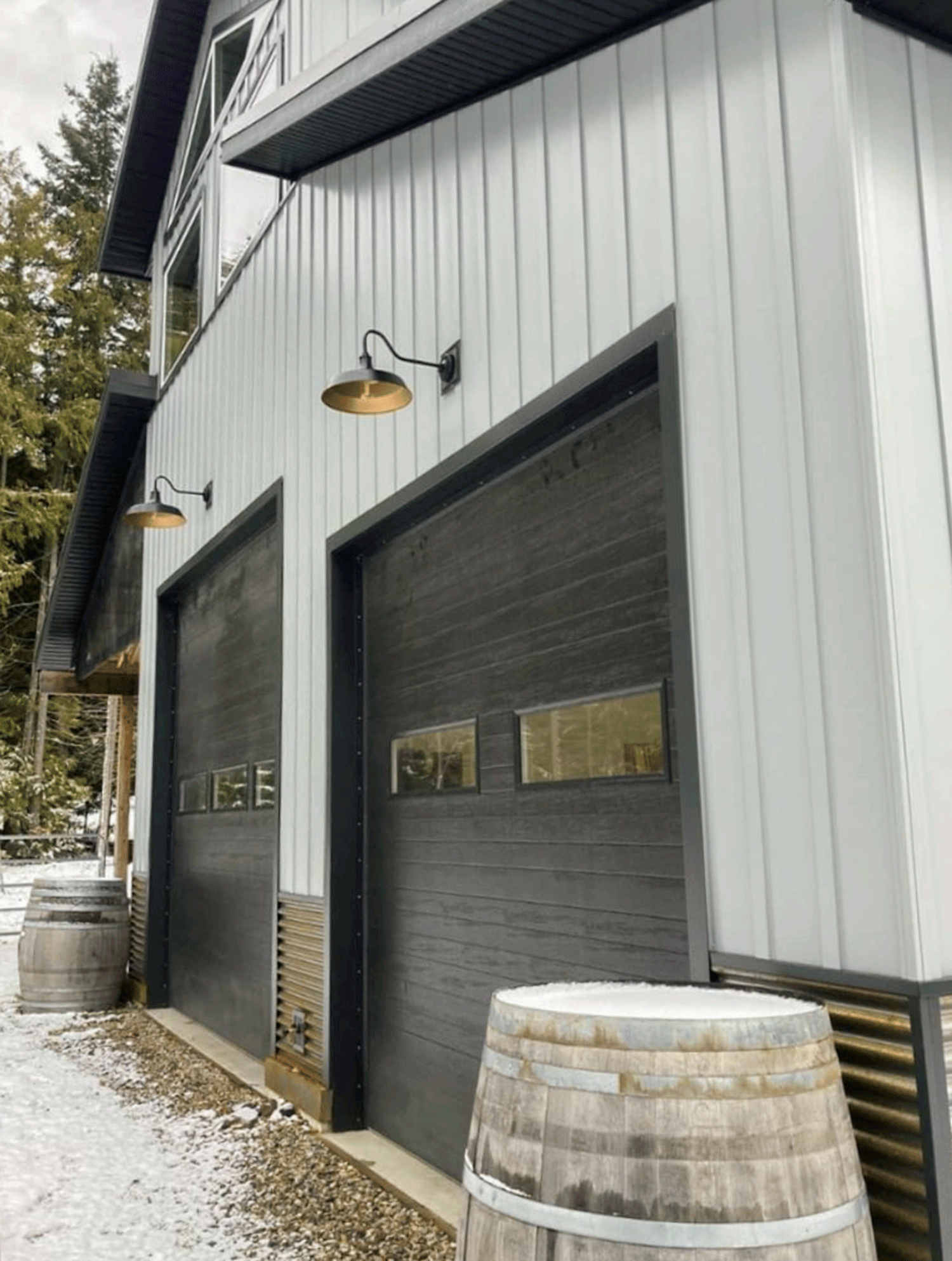

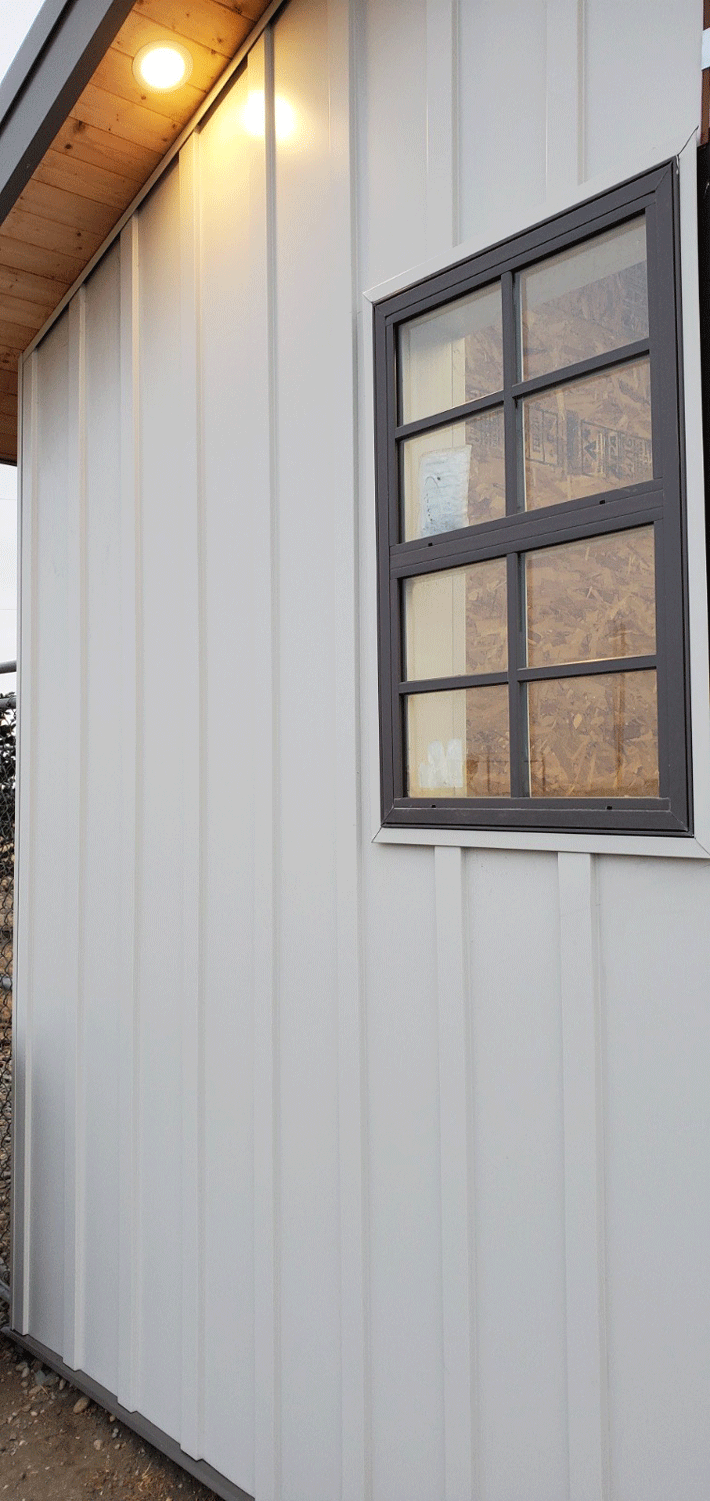

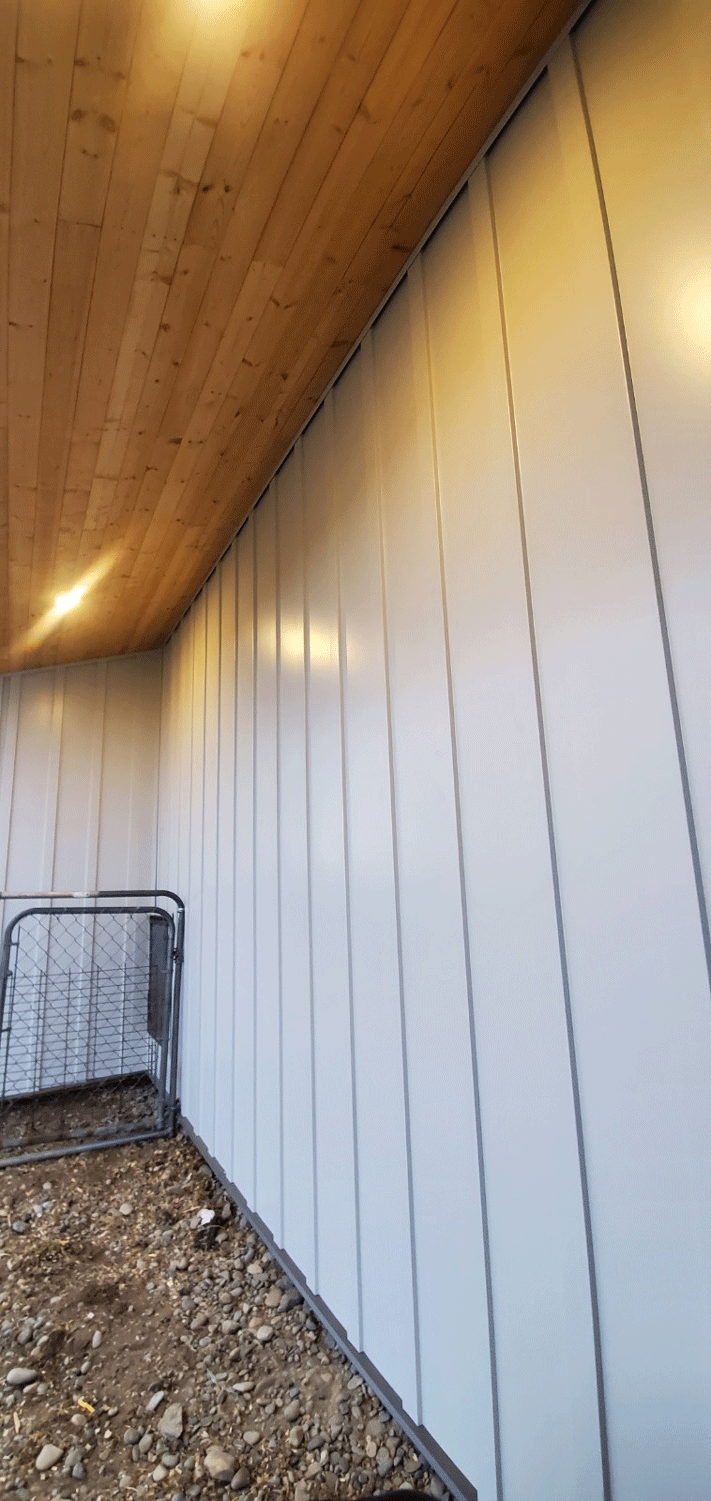

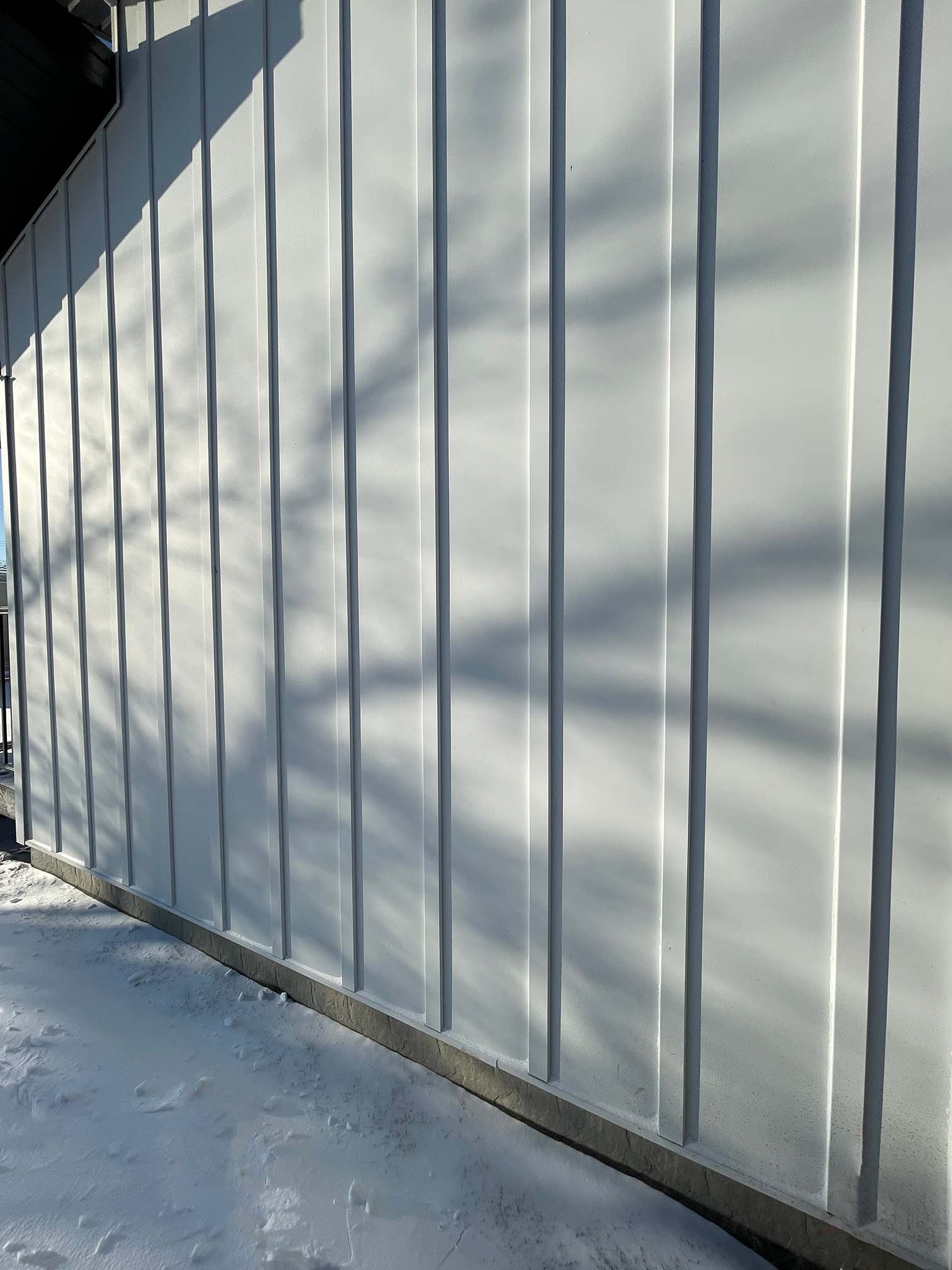

Get a longer lifespan and more design possibilities with our steel upgrade on the popular Board & Batten cladding panel. The integrated battens provide long clean lines and the shadows they create add dimension and interest to any building design, especially when paired with our Textured Colour Series. The panel comes in two coverage widths: 9-3/4” & 13-1/2” with both providing a 2-1/4” long batten. The Batten has a depth of  1/2” - keeping it flush with other popular cladding profiles. Easy installation with a clip system, and no exposed fasteners makes this a simple yet stylish cladding option for residential and commercial applications.

Learn More About our Board & Batten Panel ►

Specifications

Application:  Wall, Vertical

Floating clip system allows for thermal expansion and contraction

Panel Wall Coverage: 9-3/4" or 13-1/2"

Panel Depth:  0.5"

Substrate: Minimum of 1/2" Plywood

Available in Lengths: 62" up to maximum of 322"

24" to < 62" Panel lengths are available for Cut Charge

9-3/4" Available in 24 Gauge Specialty and Standard Colours

13-1/2" Available in 24 Gauge Specialty Finishes Only

40 Year Limited Conditional Warranty on Standard Colour Series & Textured Series Colours

25 Year Limited Conditional Warranty on PVDF & Woodgrain Finishes

Full Set of Trims to Complete Any Installation

Custom Lengths Should Be Ordered in Multiples of (4) for 9.75" Coverage and (3) for 13.5" Coverage

Downloads

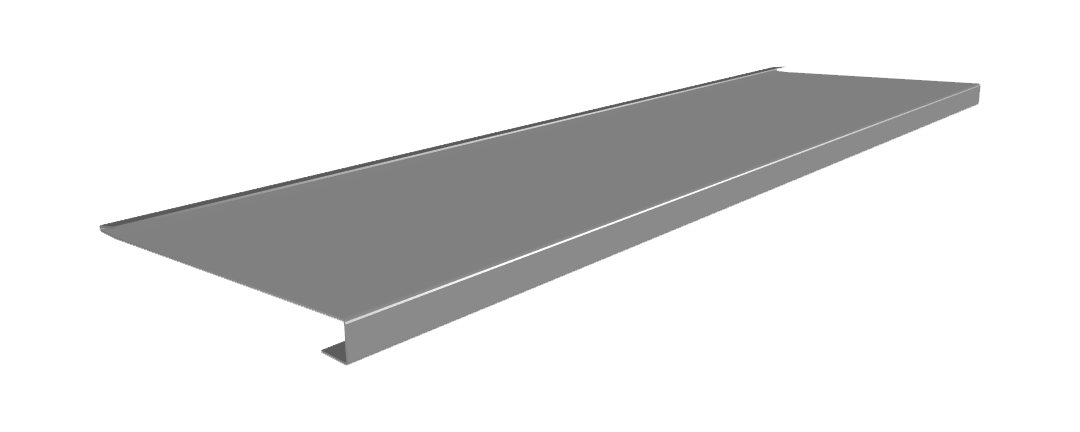

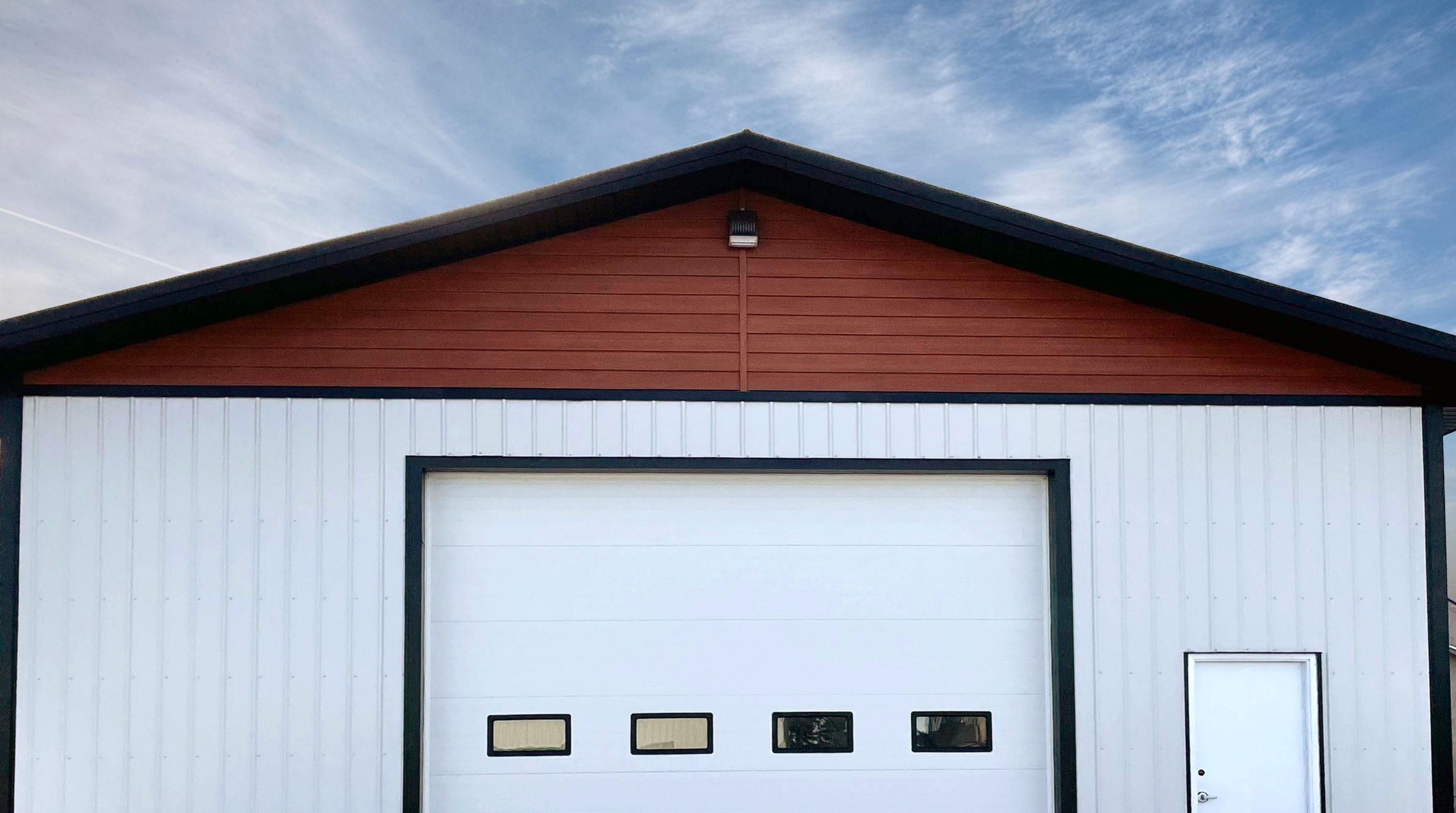

Our New Steel Update to Another Classic Cladding Panel

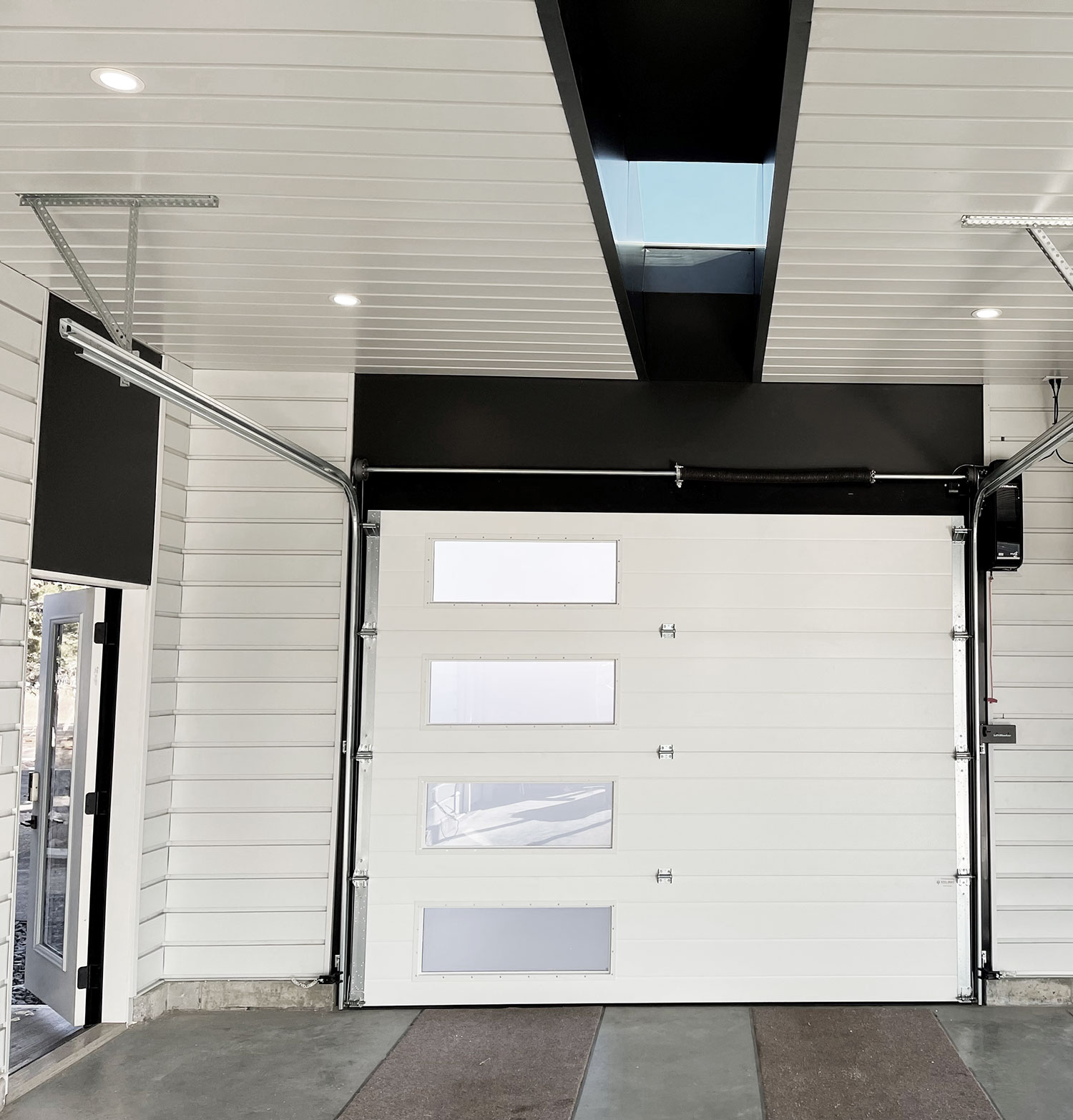

Shiplap is another upgrade to a traditionally wood-cladding style from Forma Steel. Our steel ShipLap panel is a slanted plank panel, usually installed horizontally, and can be used for both internal and external applications. Easy installation with a clip system, and no exposed fasteners makes this a simple yet stylish cladding option for residential and commercial applications. The panel is available in a 6” coverage, with a depth of 1/2" at the widest part, keeping it flush with most other popular cladding materials. Shiplap pairs well with other Forma Steel cladding options, including 7/8” Corrugated, Forma Plank, and Board & Batten.

Learn More About our ShipLap Panel ►

Specifications

Application:  Wall, Vertical

Floating clip system allows for thermal expansion and contraction

Panel Wall Coverage: 6"

Panel Depth:  1/2"

Substrate: Minimum of 1/2" Plywood

Available in Lengths: 62" up to maximum of 322"

24" to < 62" Panel lengths are available for Cut Charge

Available in 24 Gauge Speciality and Standard Colours

40 Year Limited Conditional Warranty on Standard Colour Series & Textured Series Colours

25 Year Limited Conditional Warranty on PVDF & Woodgrain Finishes

Full Set of Trims to Complete Any Installation

Custom Lengths Should Be Ordered in Multiples of (6)

Downloads


Add Some Colour, Woodgrain or Textured Finish

24 Gauge Image Series Finishes


Rustic SMP

Barnboard Woodgrain PVDF

Espresso Woodgrain PVDF

Saddle Woodgrain PVDF

Frontier Wood PVDF

Gunstock Woodgrain PVDF

Concrete SMP

Autumn Woodgrain PVDF

Dark Walnut Woodgrain SMP

Light Pine Woodgrain SMP


24 Gauge Textured Series Finishes


Graphite Textured

Burnished Slate Textured

Onyx Black Textured

Textured Arctic White

Textured Red Oxide


24 Gauge Standard Colours


Galvalume

Bright White

White White

Iceberg

Bone White

Wicker

Stone Grey

Hickory

Tan

Buckskin

Coffee Brown

Dark Brown

Black

Carbon

Charcoal

Regent Grey

Bright Red

Tile Red

Dark Red

Slate Blue

Oxford Blue

Royal Blue

Heron Blue

Sapphire Blue

Melchers Green



The Cladding Series Gallery


All
Forma Plank
Board and Batten
ShipLap
ShipLap

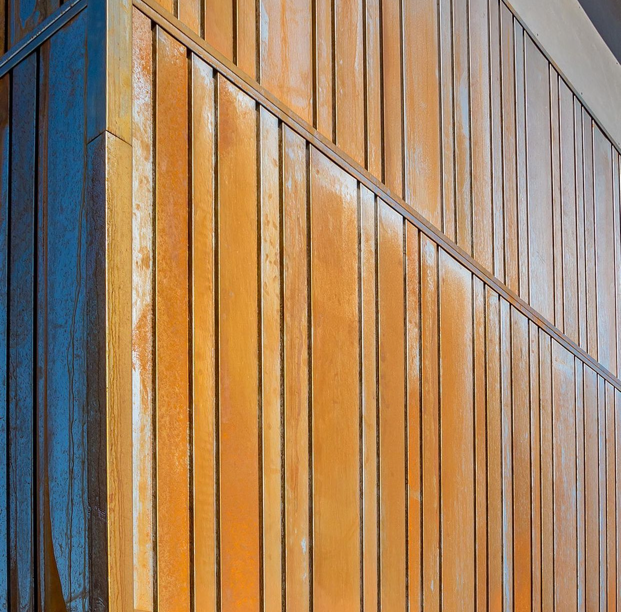

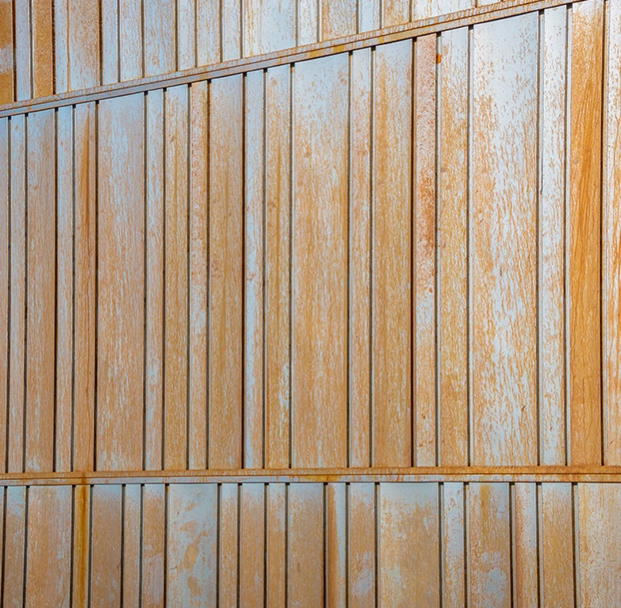

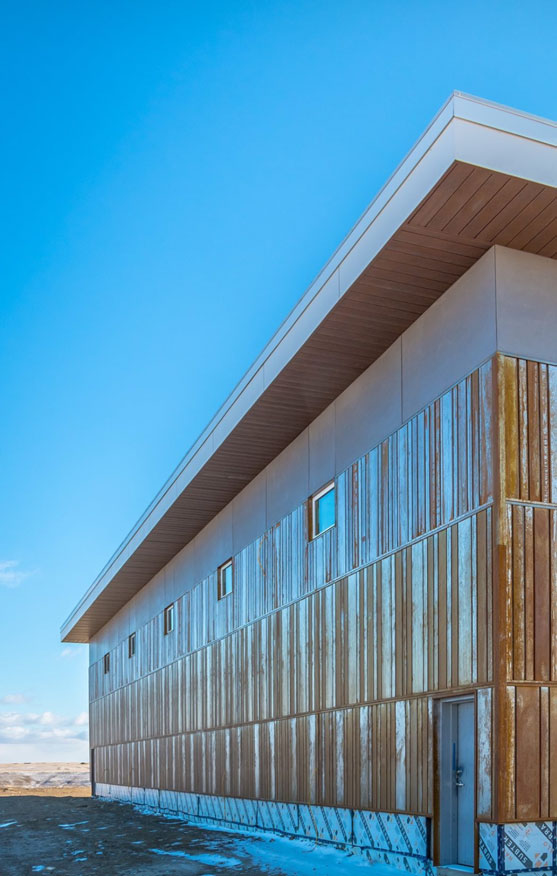

Varying Width Forma Plank in Weathering Steel
Varying Width Forma Plank in Weathering Steel
Varying Width Forma Plank in Weathering Steel
Bos Sod
Forma Plank in Dark Walnut
Forma Plank in Dark Walnut
Commercial office with Espresso Woodgrain Forma Plank and Regent Grey in I/9
Forma Plank

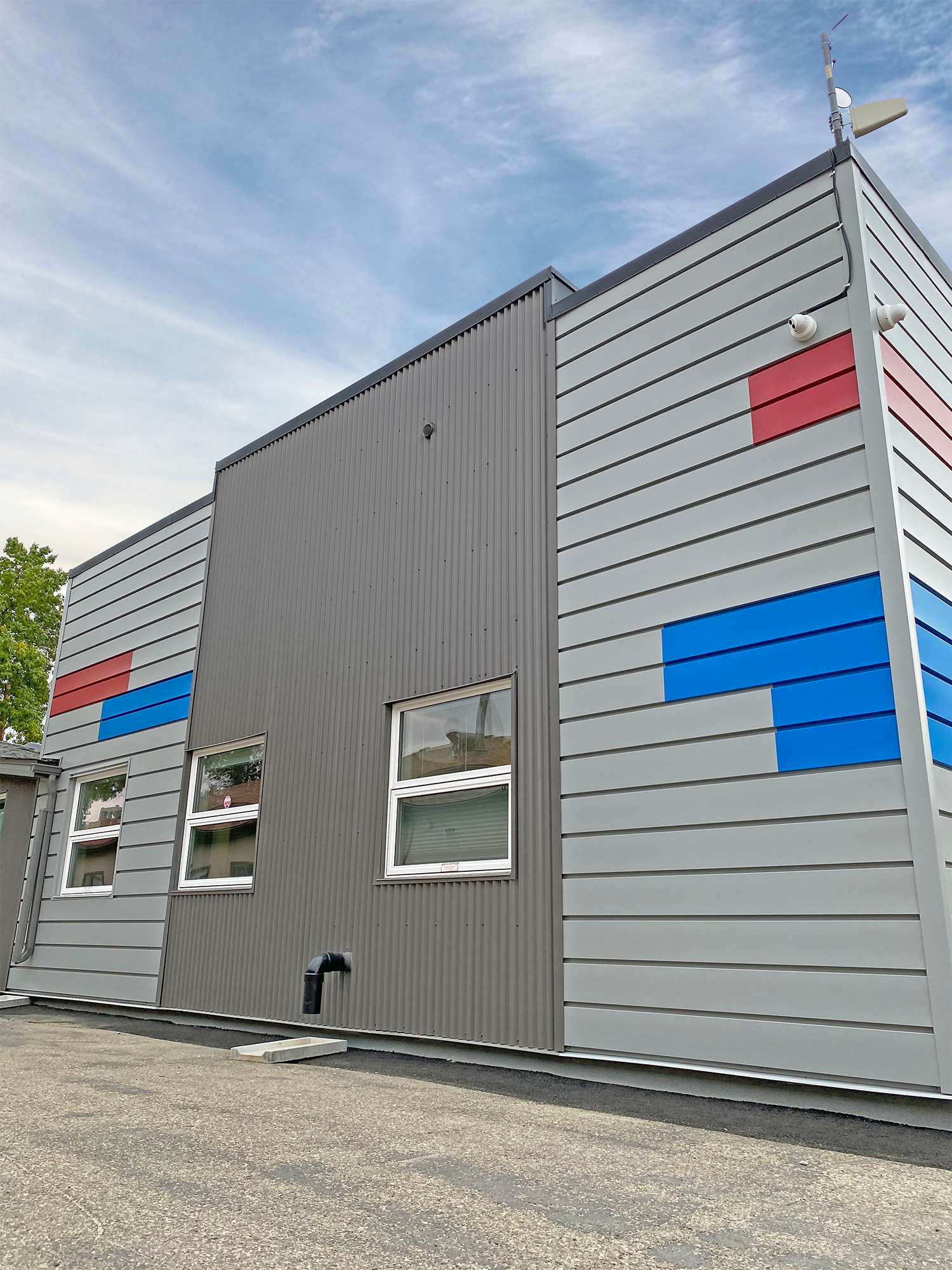

Taber Firehall
Taber Firehall
Taber Firehall
Taber Firehall
Commercial Office
Commercial Office
Commercial office Space
Forma Plank in Gunstock
Interloc and Forma Plank

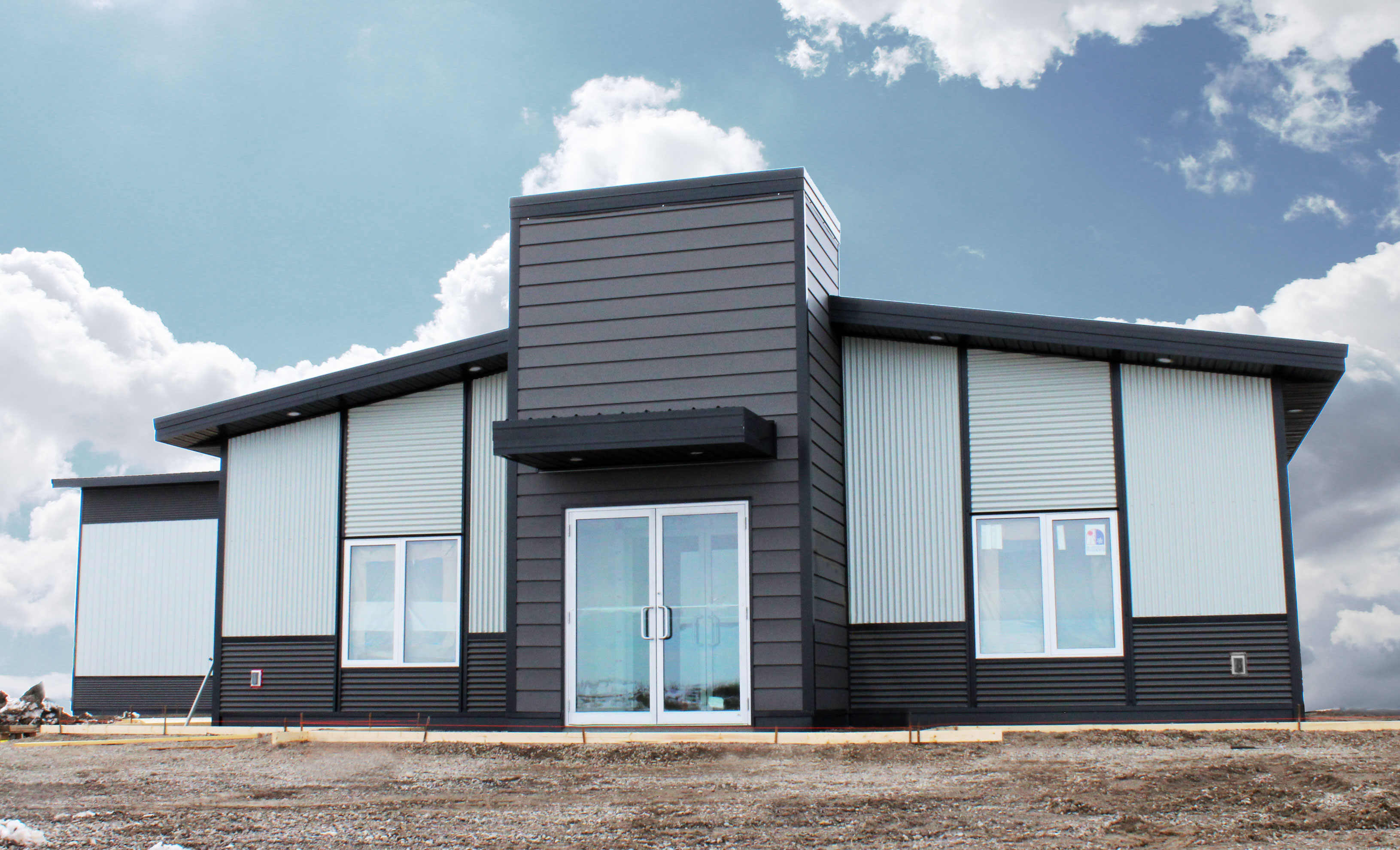

Commercial Office & Shop
Commercial Building with 7/8 Corrugated and Forma Plank
Retail Storefront featuring 7/8 Corrugated Metal Siding and FormaLoc Standing Seam Metal Siding - Forma Steel

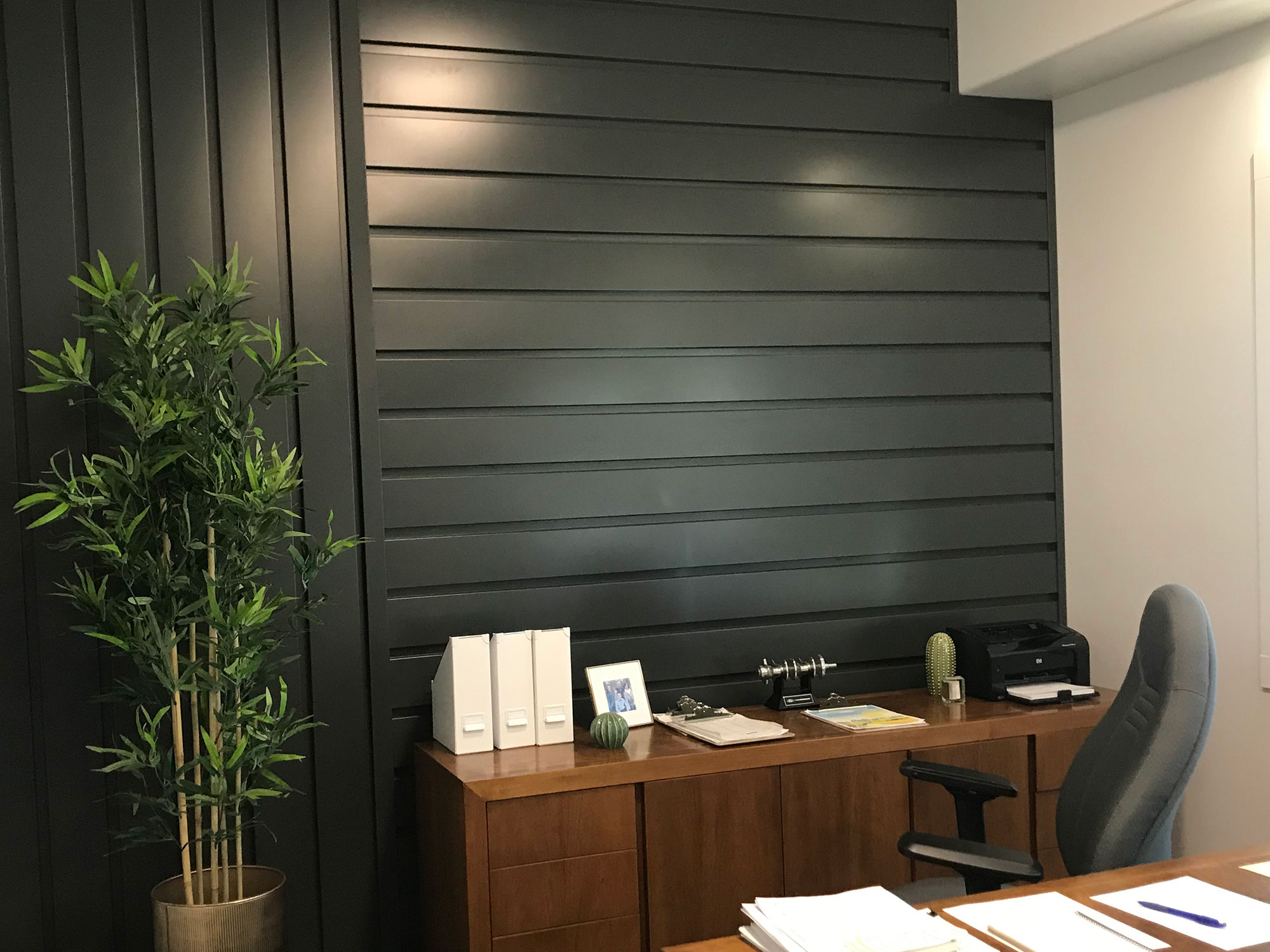

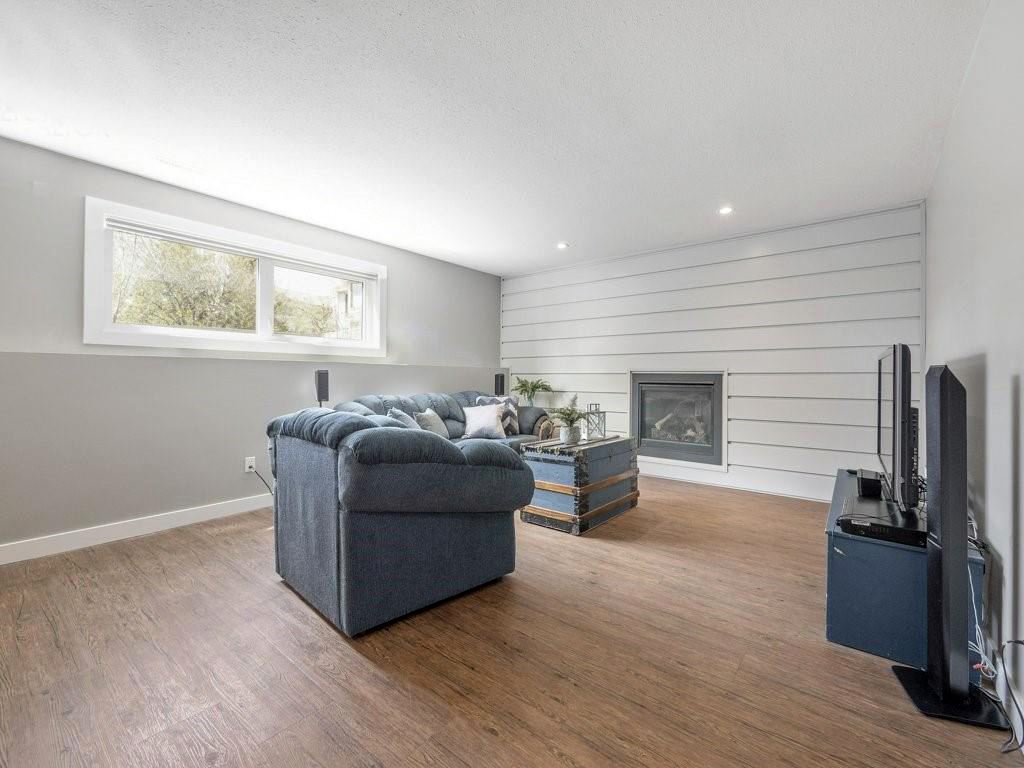

Forma Plank in 24ga Carbon Interior Wall Installation

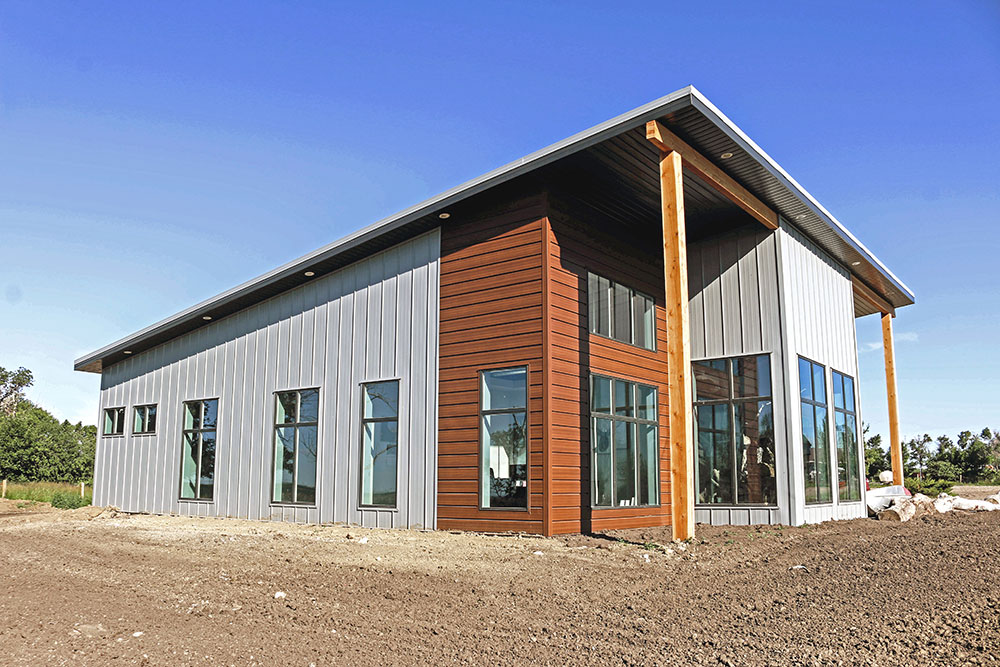

Commercial Office with Espresso Woodgrain FormaPlank and Regent Grey FormaLoc Siding

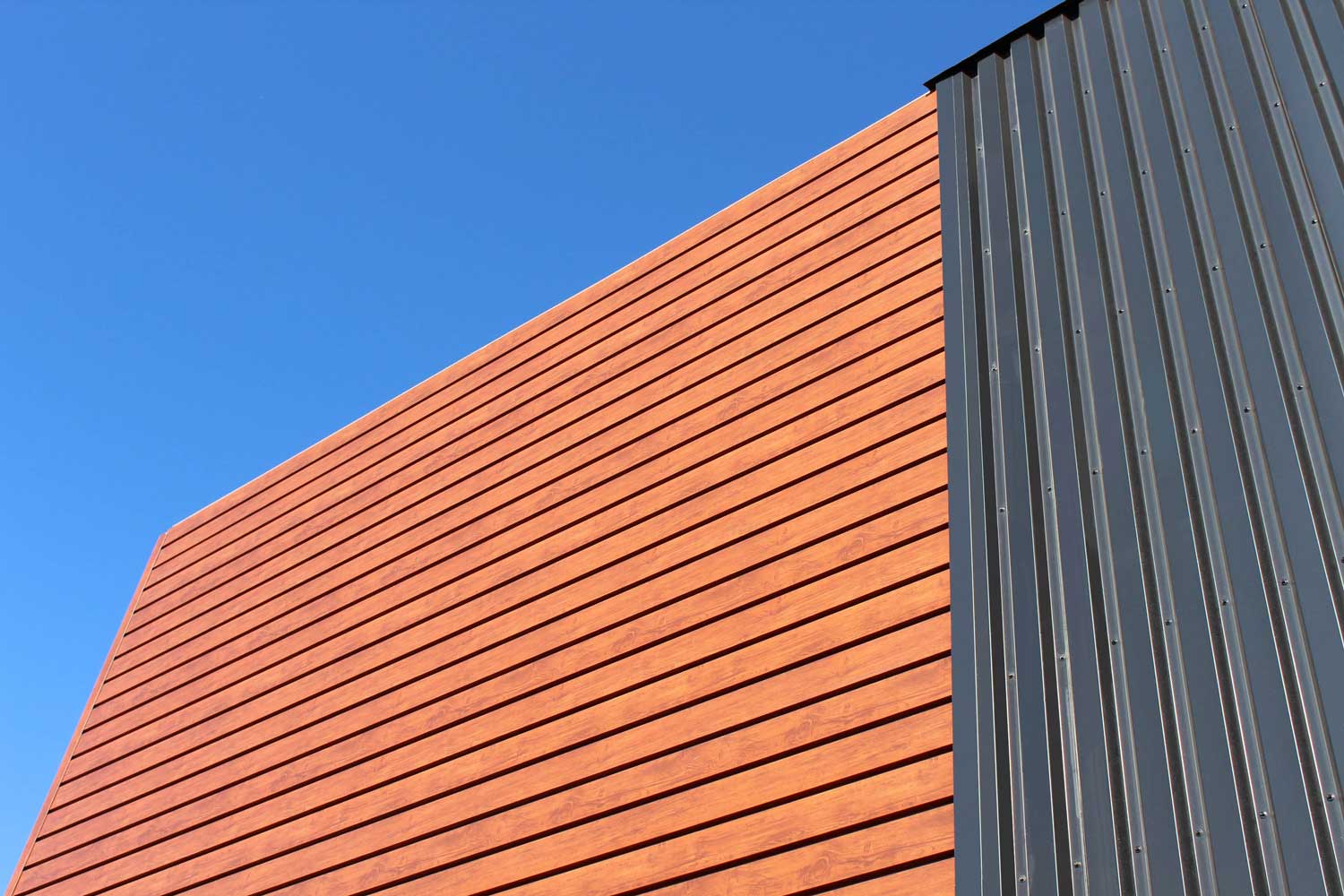

Commercial Building with Frontier Woodgrain Forma Plank
Commercial Office featuring FormaPlank in Espresso Woodgrain
Commercial Building with Frontier Woodgrain Forma Plank
Gunstock Forma Plank and Black Folded Box Rib Panel

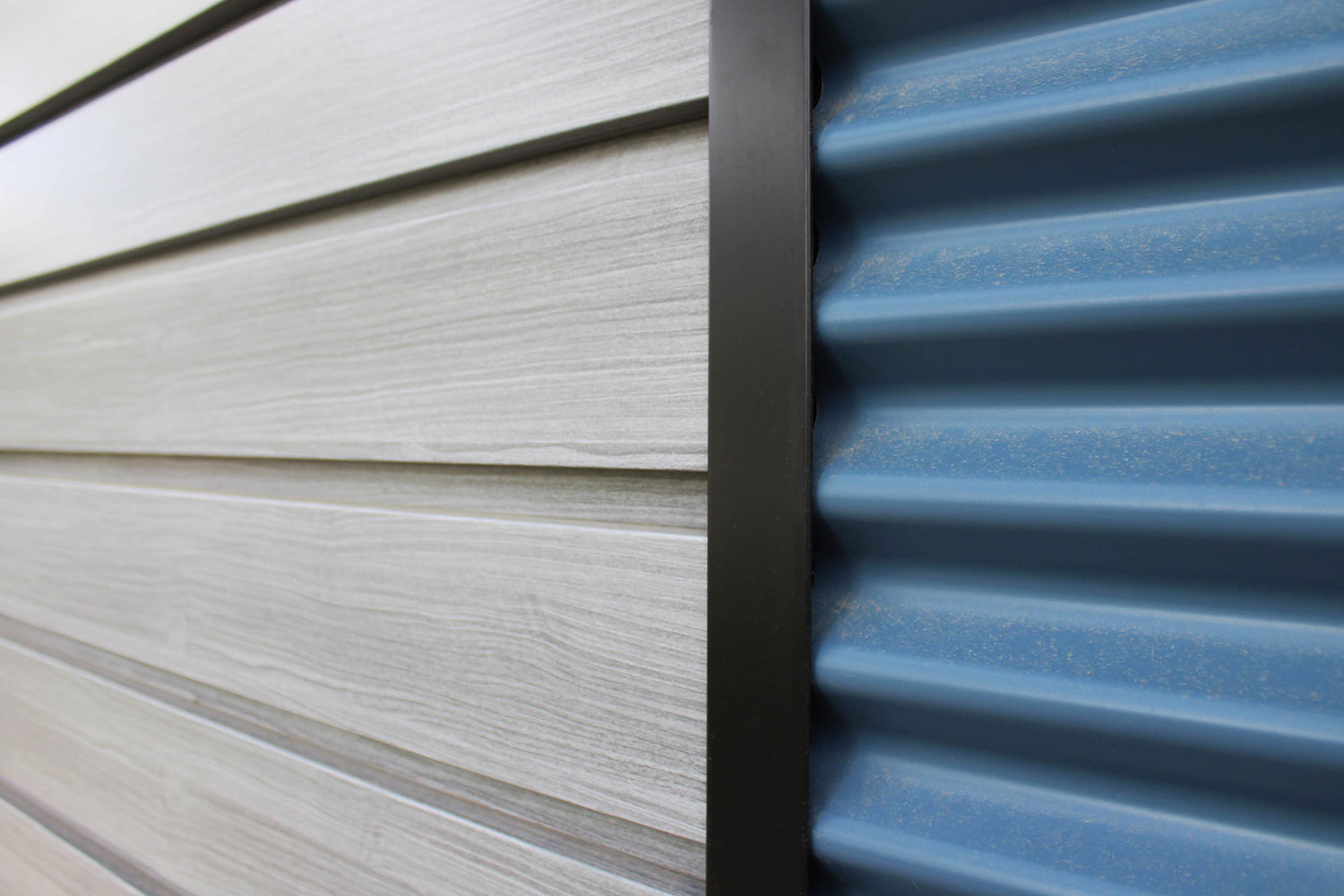

Residential Building with 7/8 Corrugated Oxford Blue Panel and Barnboard Woodgrain
Residential Property with Espresso Woodgrain FormaPlank
Forma Plank in Dark Walnut
Retail Exterior

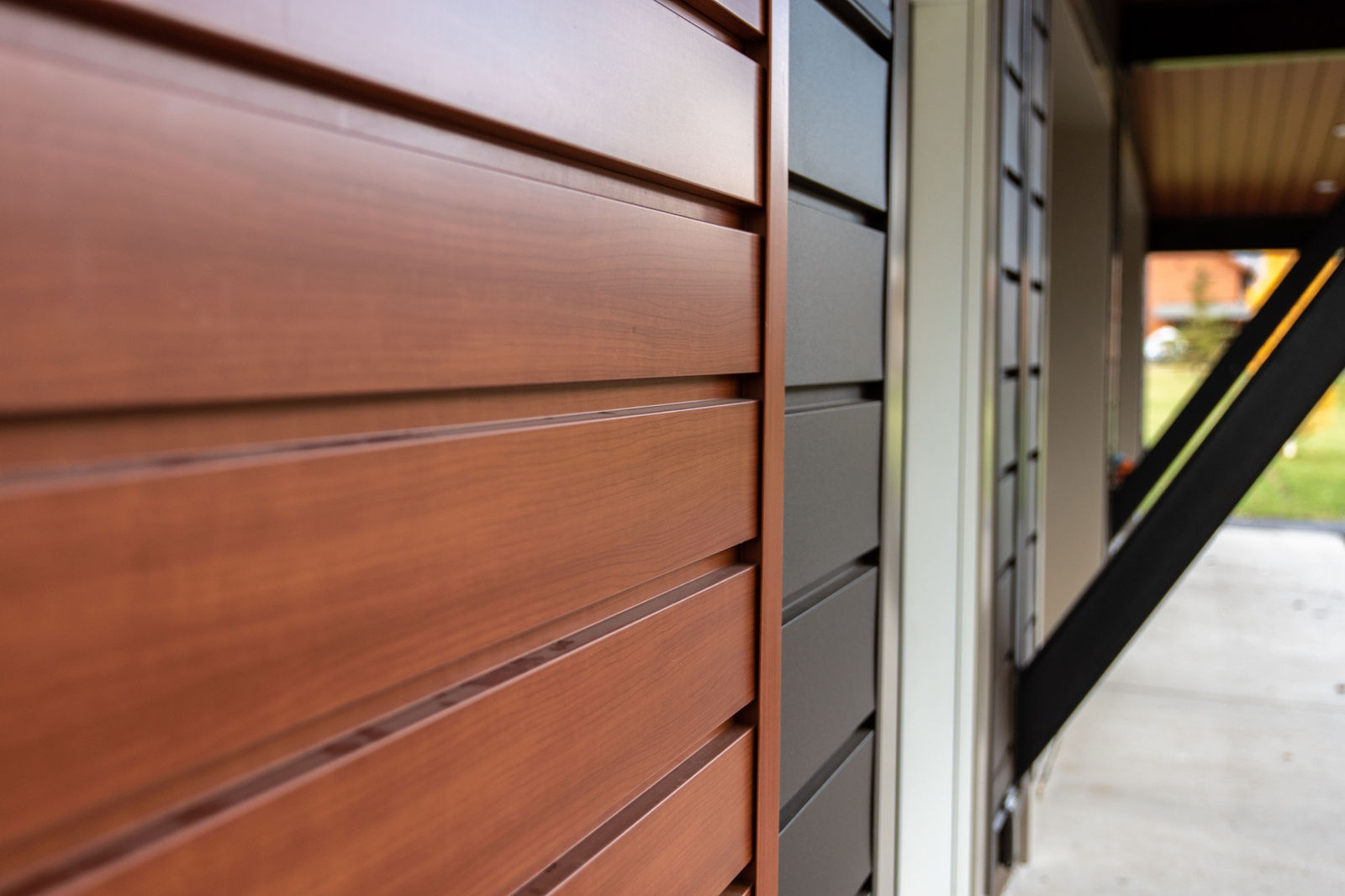

Commercial Building with Autumn Woodgrain Forma Plank
Commercial Building



Find Forma Steel Products Near You.


Forma Steel distributes through a network of Retail Partners throughout Western Canada. We can work with you to acquire the right materials and designs for any creative vision from conception to final physical form. Ask for Forma Steel at your local building supply store or lumber yard.


FIND A RETAIL PARTNER NEAR YOU

Are you an Architect, Designer or Contractor?


Reach out to us by filling out the form below. We are currently able to service Southern Alberta North to Edmonton, West into British Columbia and into Saskatchewan east to Swift Current. We can help you locate a dealer for pricing and to facilitate samples for your project if you are a contractor, designer or architect!
