WEATHERING STEEL

A Unique Steel Accent for Commercial & Architectural Applications

Weathering Steel is a high-strength, low-alloy steel with improved atmospheric corrosion resistance. With Weathering Steel, the specific alloying elements in the steel produce a stable rust layer that adheres to the base metal and is much less porous, producing a better resistance to corrosion. The rust ‘patina’ develops under conditions of alternate wetting and drying to produce a protective barrier that impedes further access of oxygen, moisture, and pollutants, providing a unique aesthetic to the steel structure.

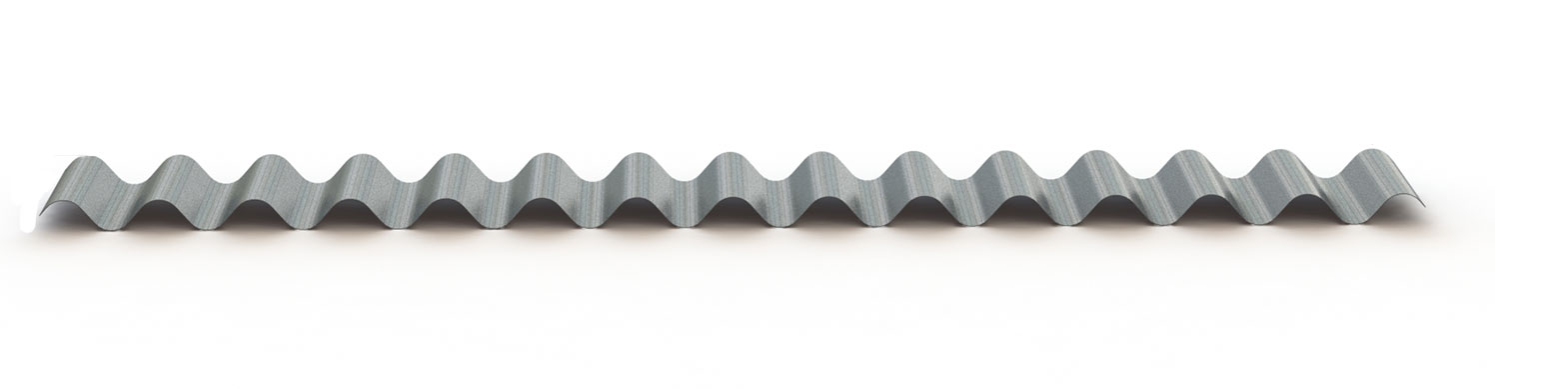

Available in 7/8 Corrugated

Ask Forma Steel About Other Available Profiles and Panels

Development of the Rust Patina

See how Weathering Steel develops its rust patina over time from initial installation to after 2 years.


Project Inspiration:


Commercial Building with Forma Plank Weathering Steel Finish

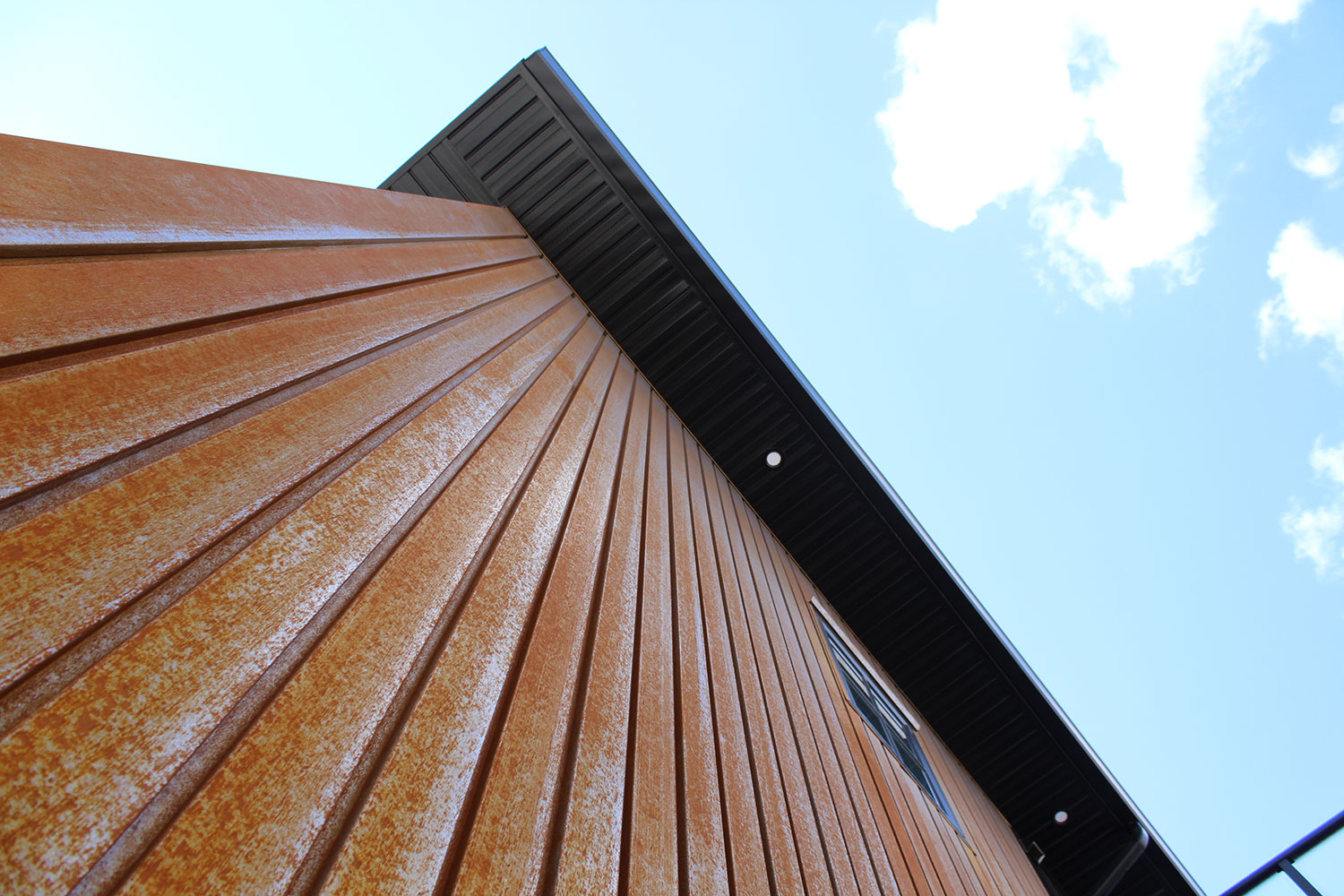

Residential Building with a Custom Folded Weathering Steel Panel

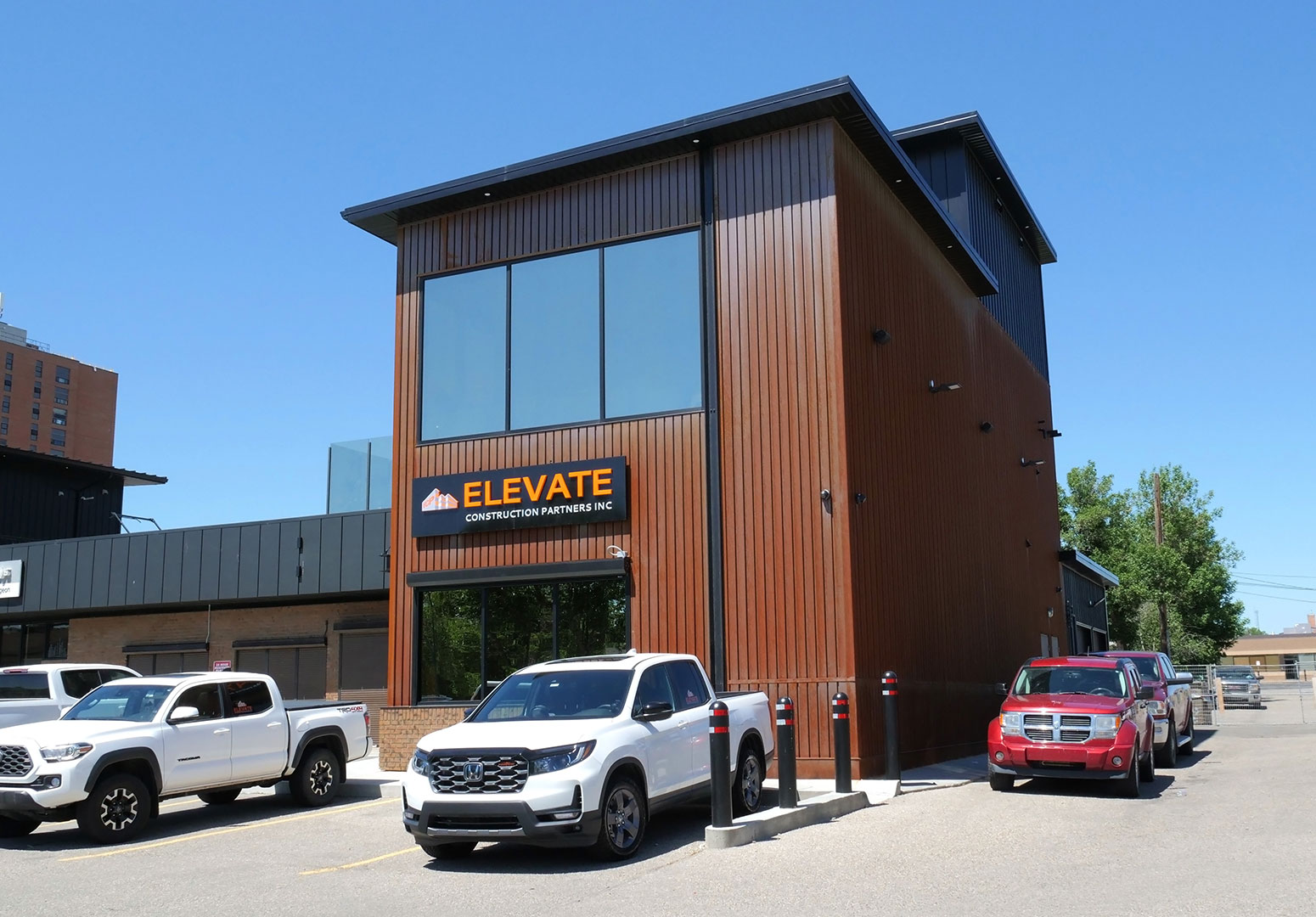

Commercial Office
Commercial Office

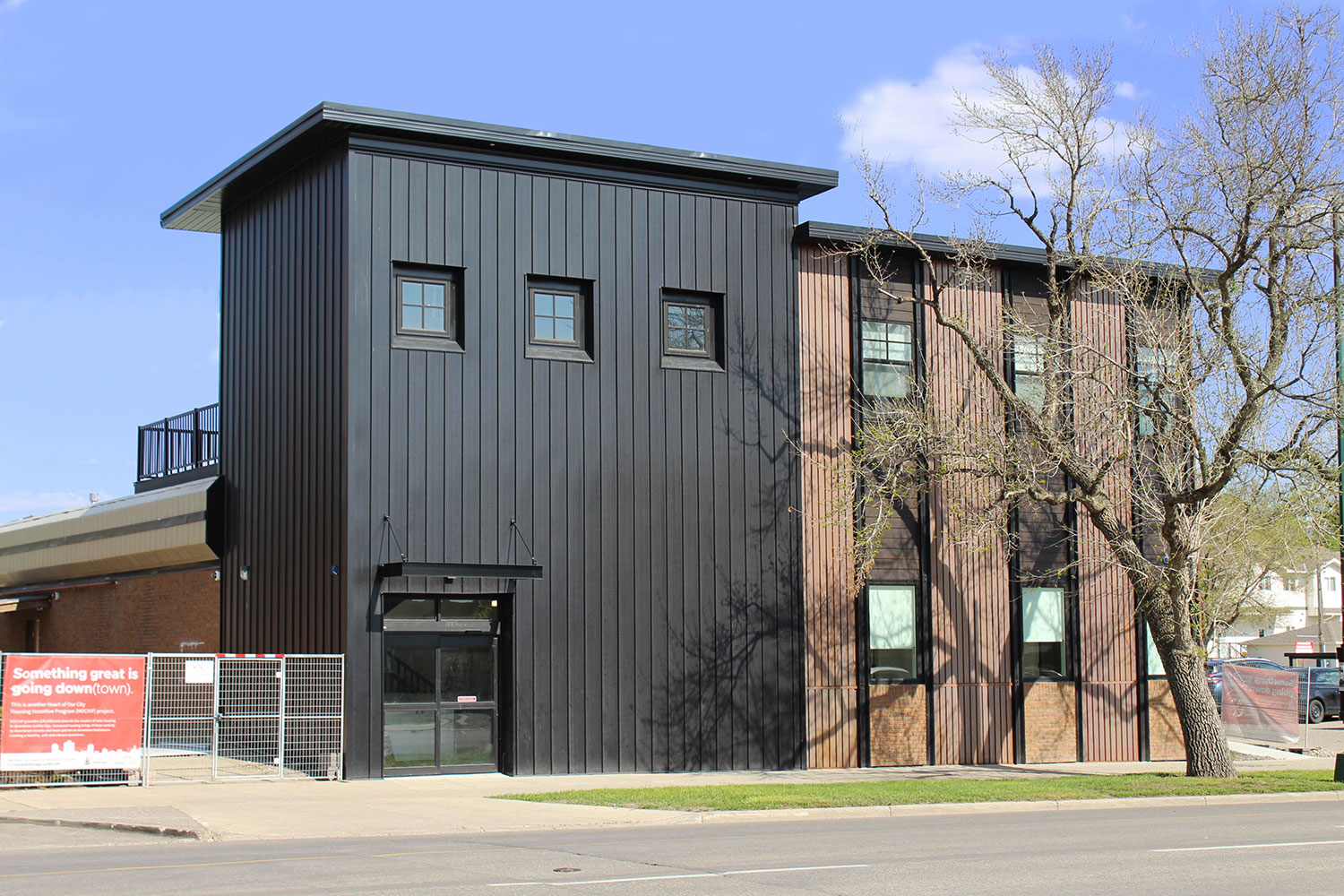

Residential Building with Custom Folded Weathering Steel Panel
Weathering Steel

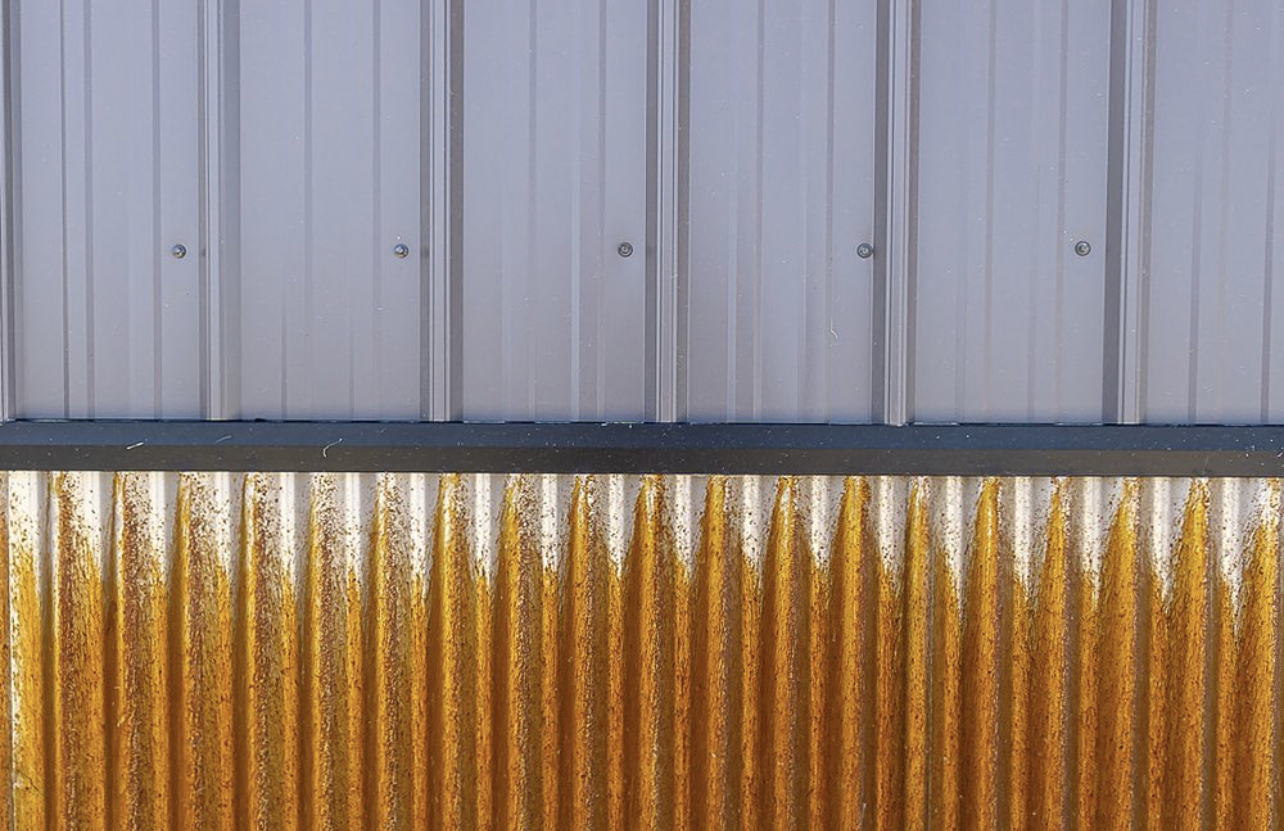

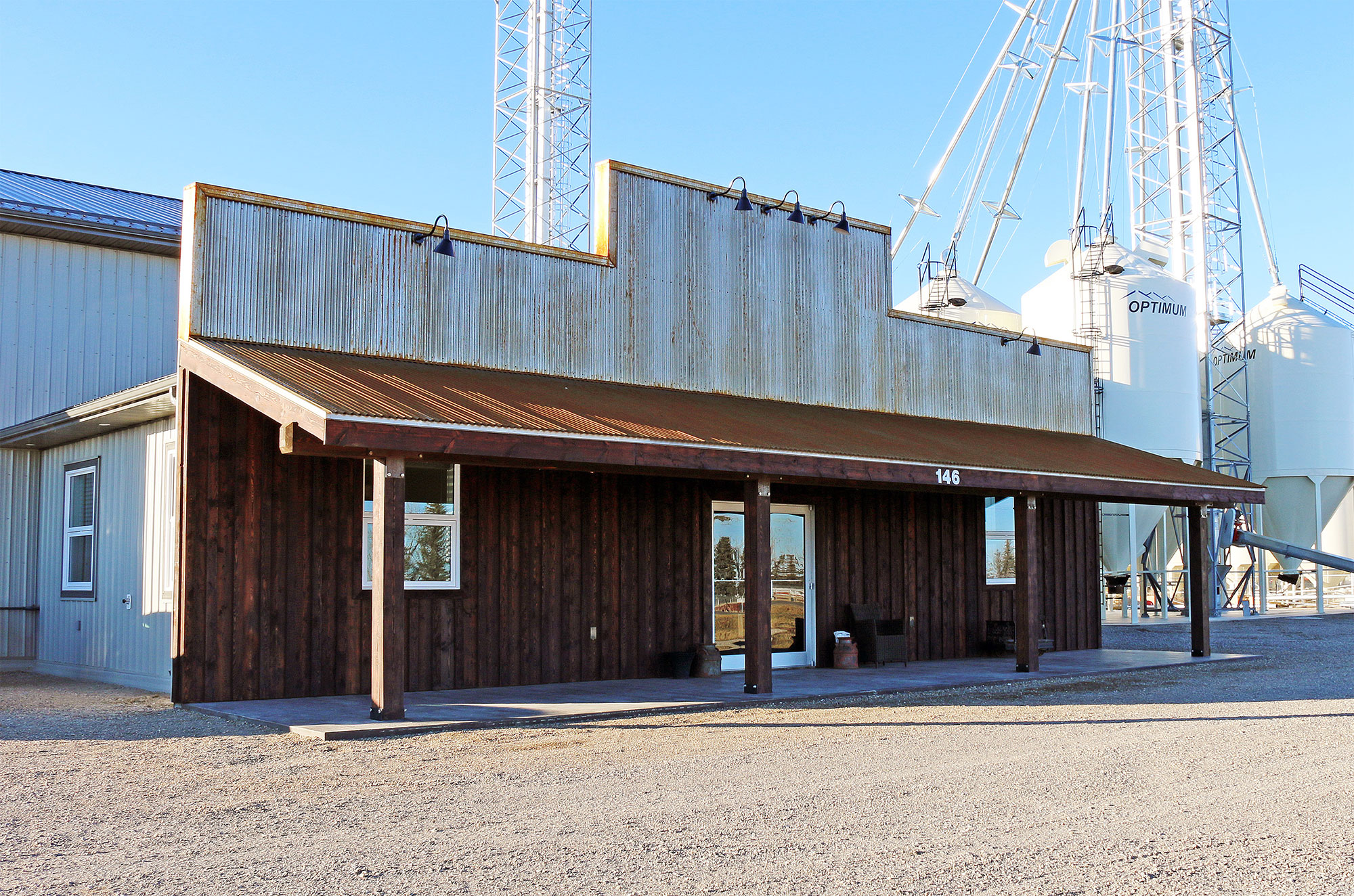

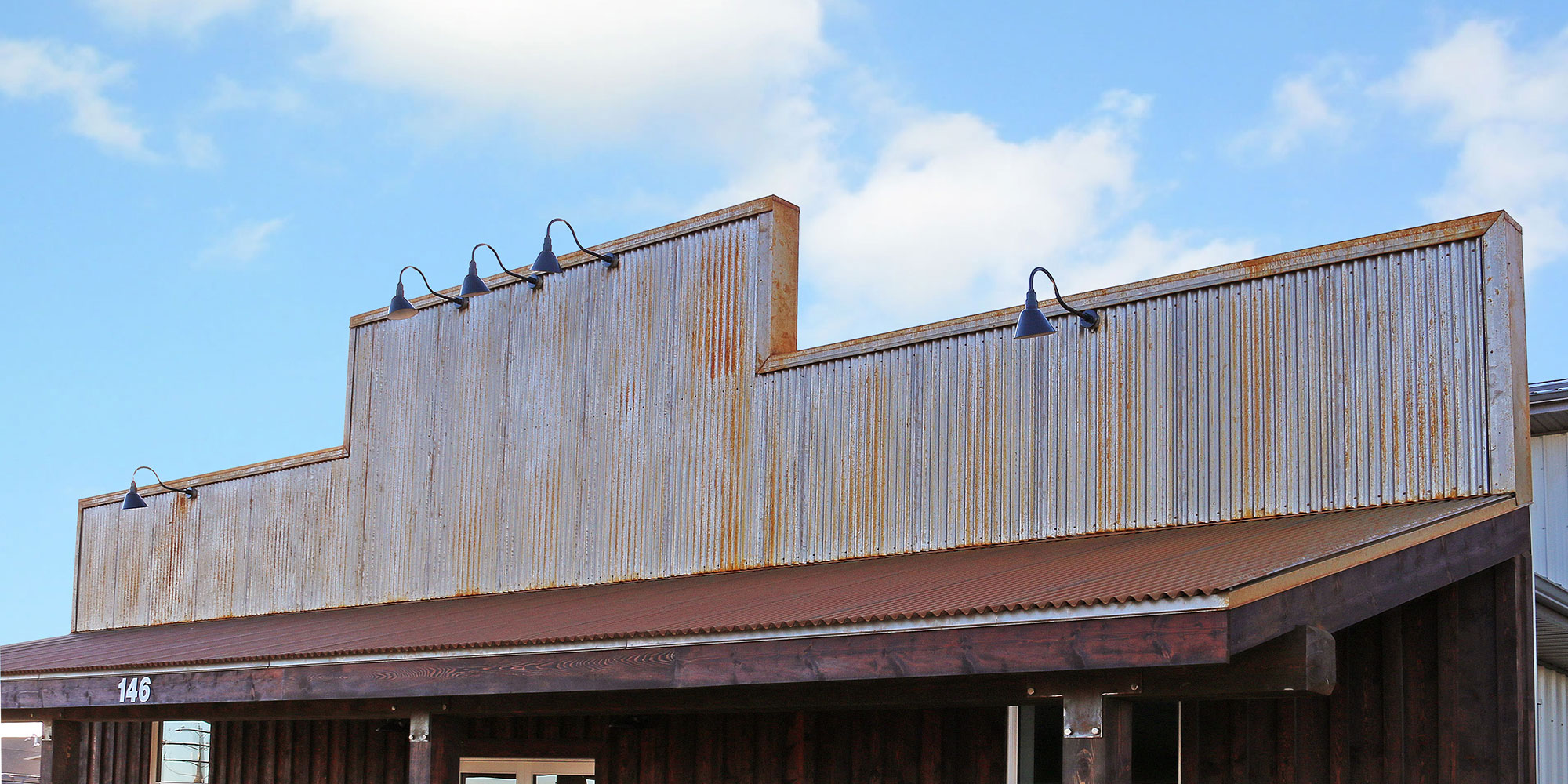

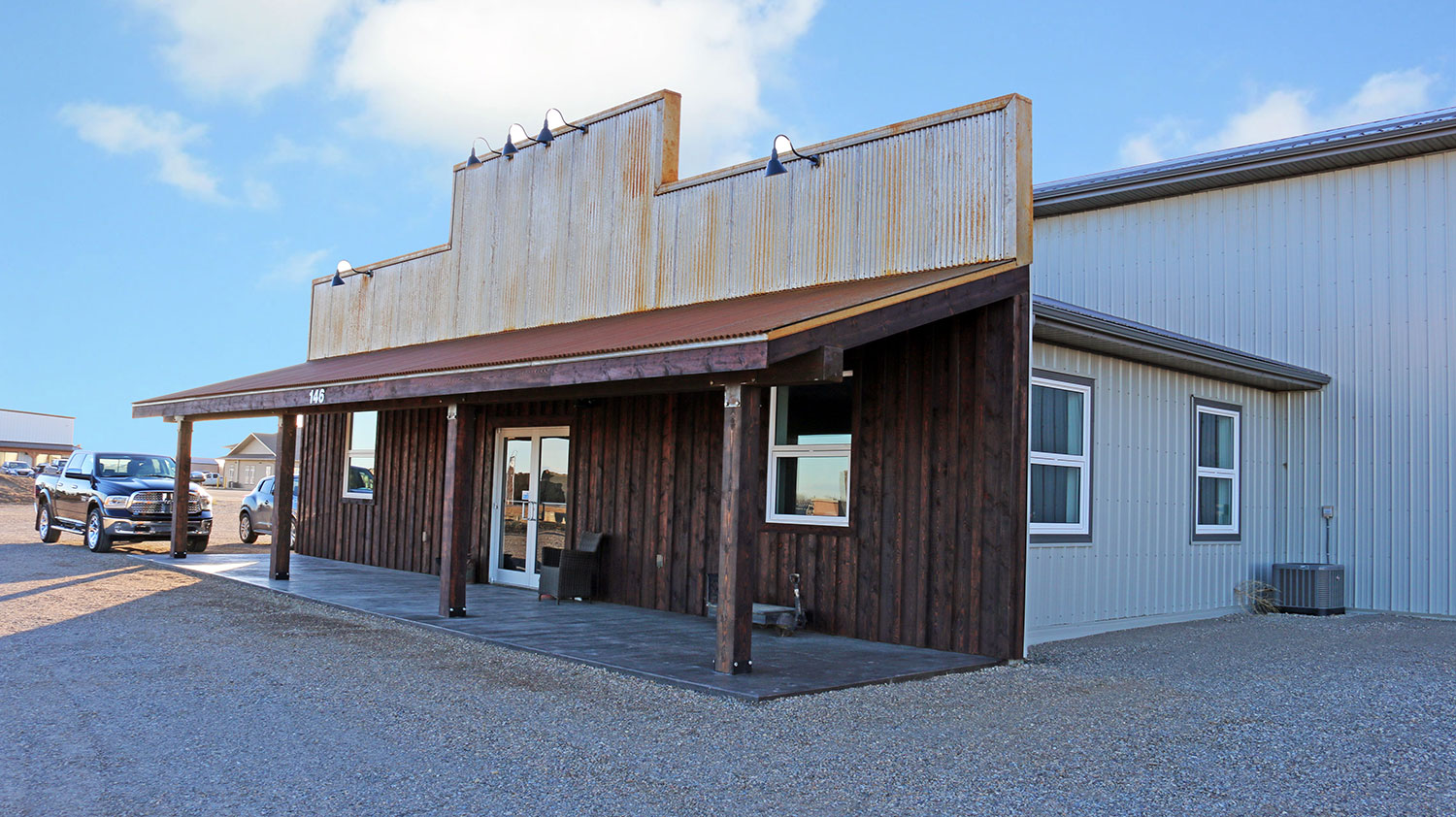

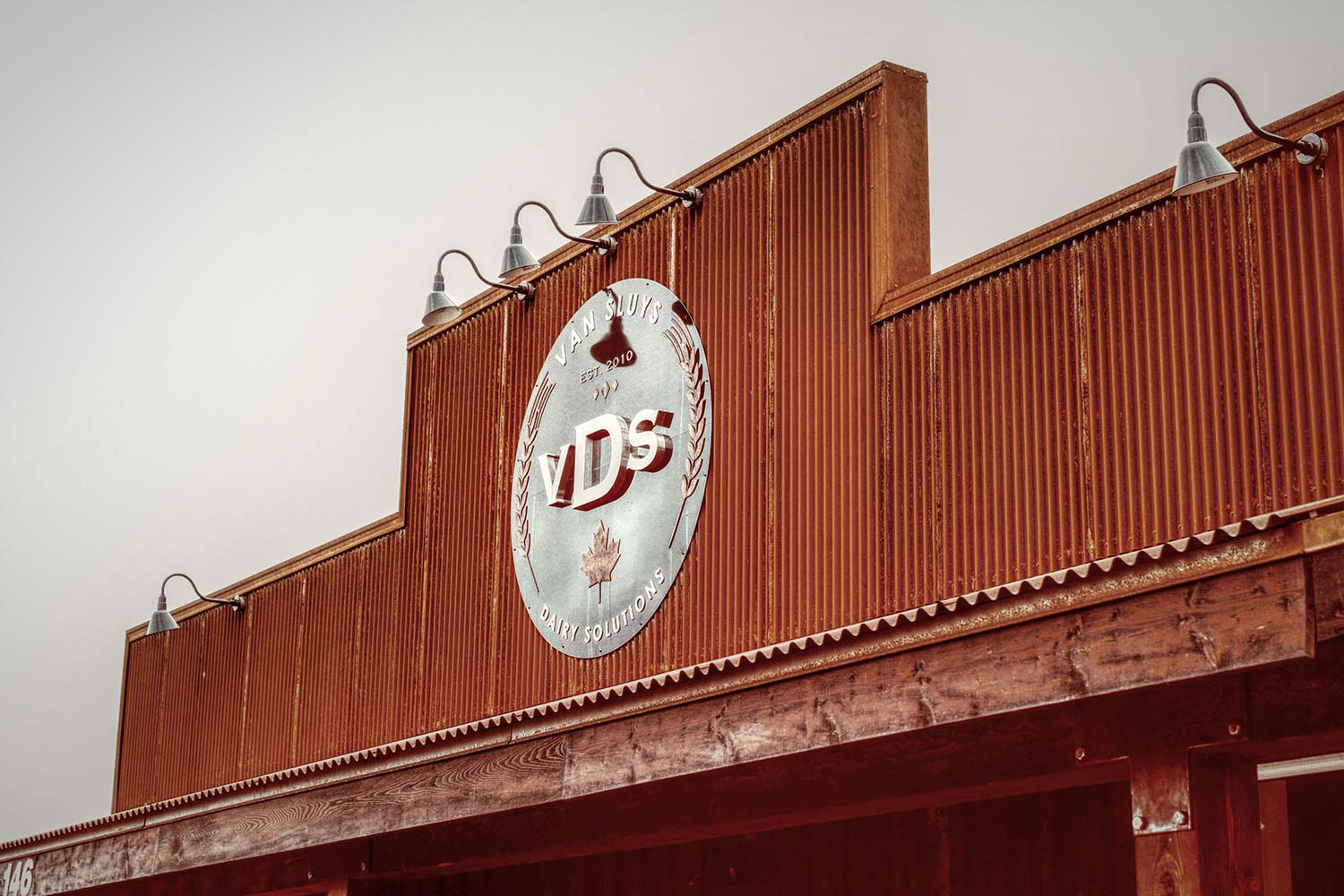

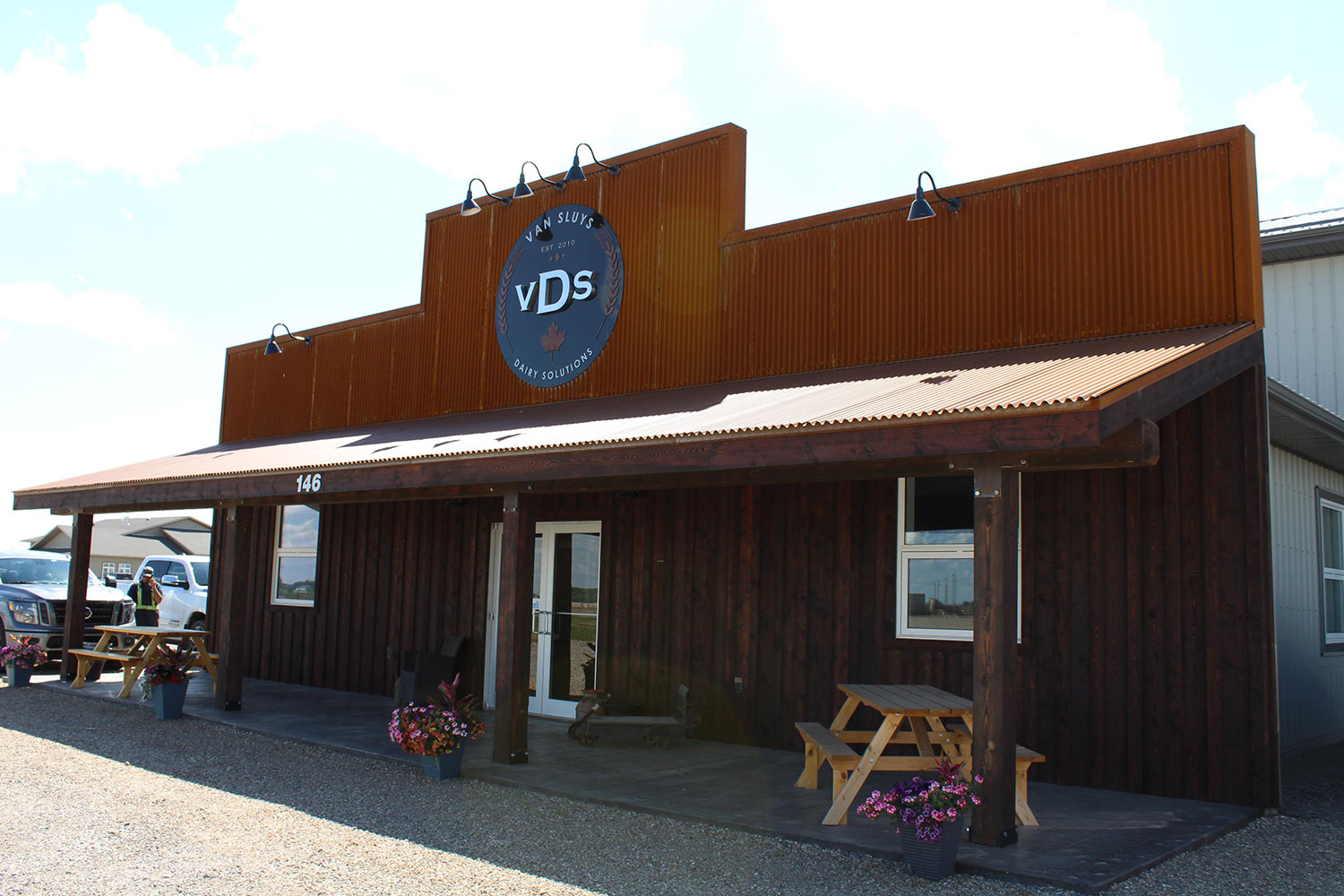

Commercial Building with 7/8 Corrugated Weathering Steel

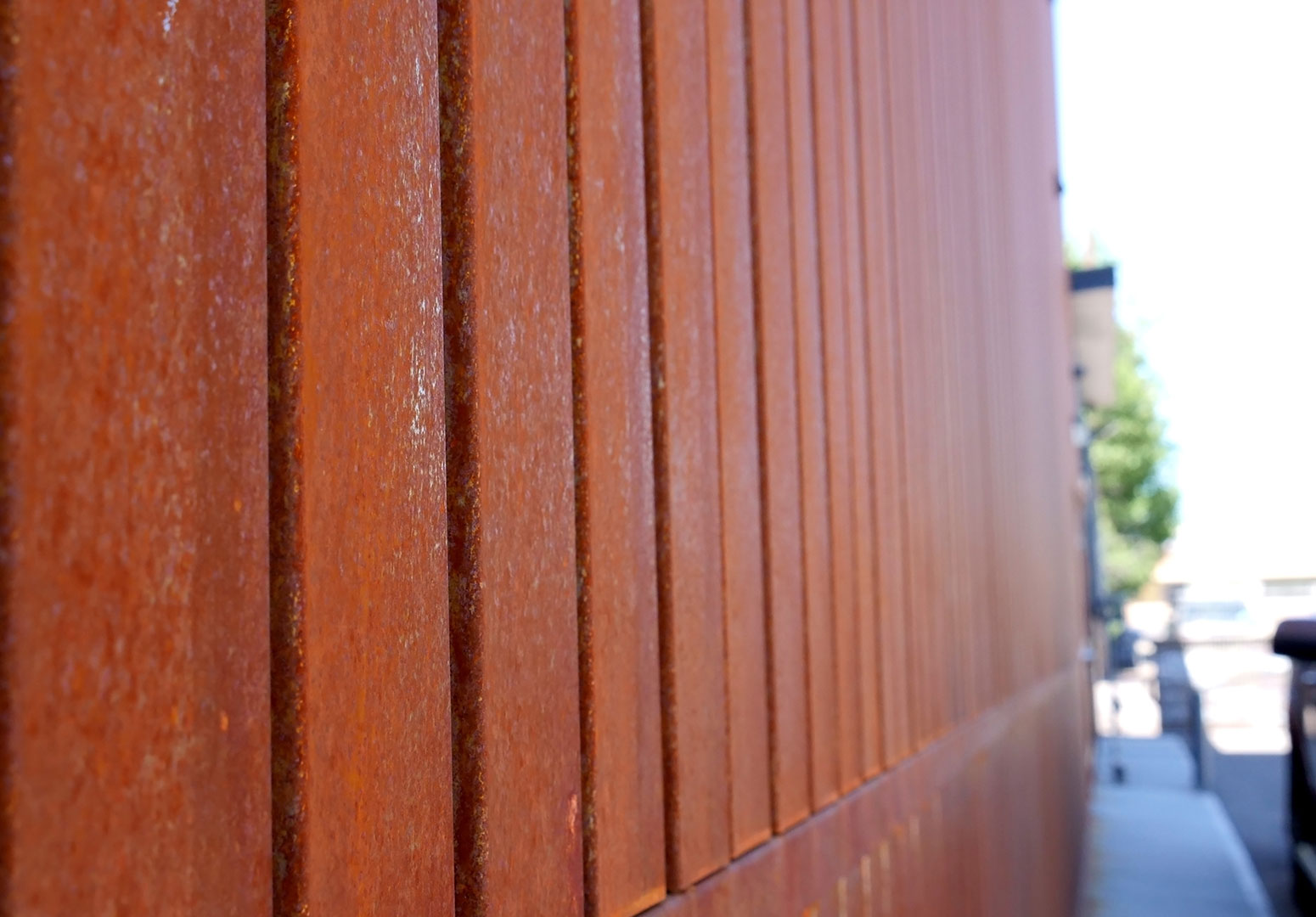

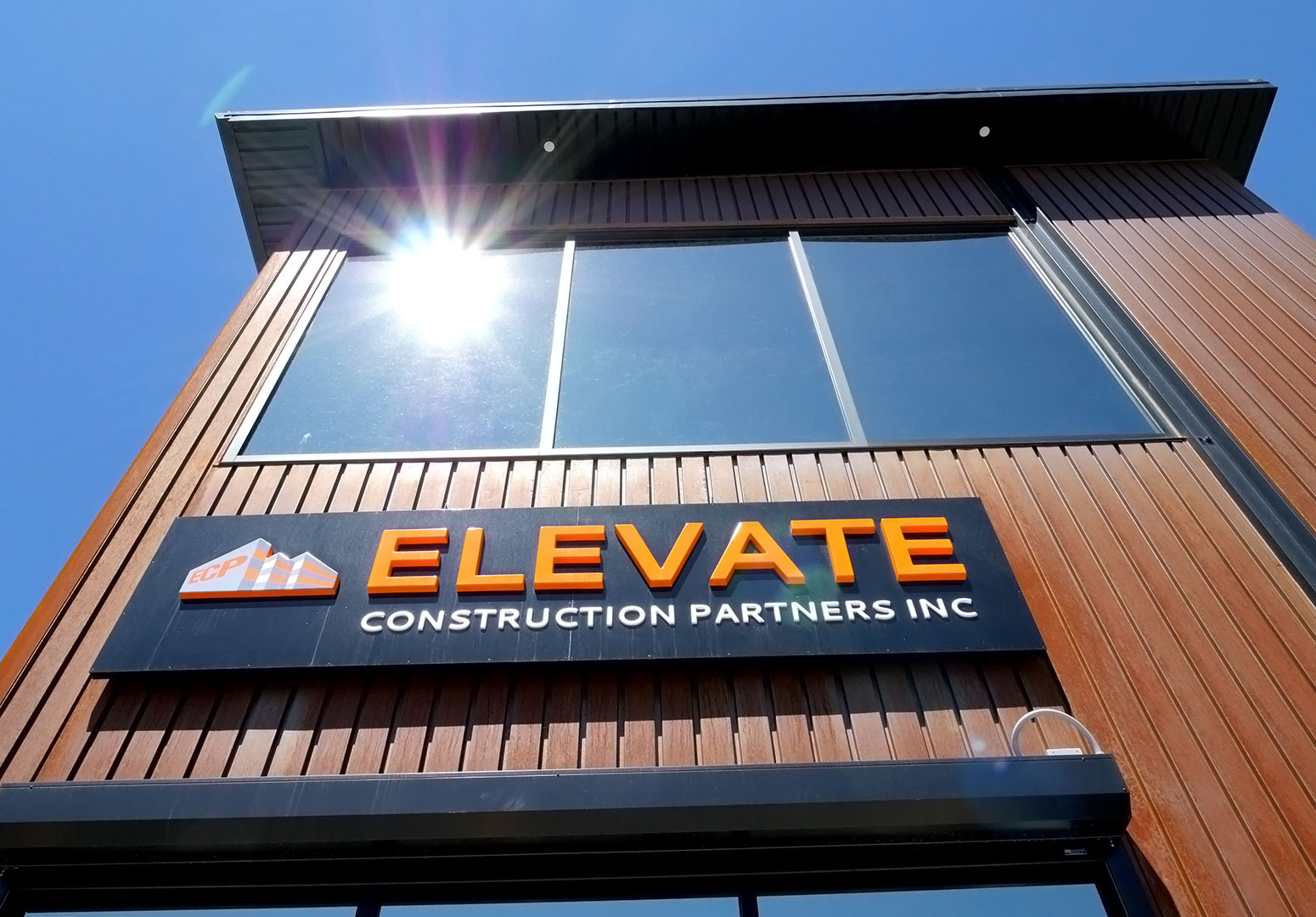

Commercial Building with FA Panel Weathering Steel

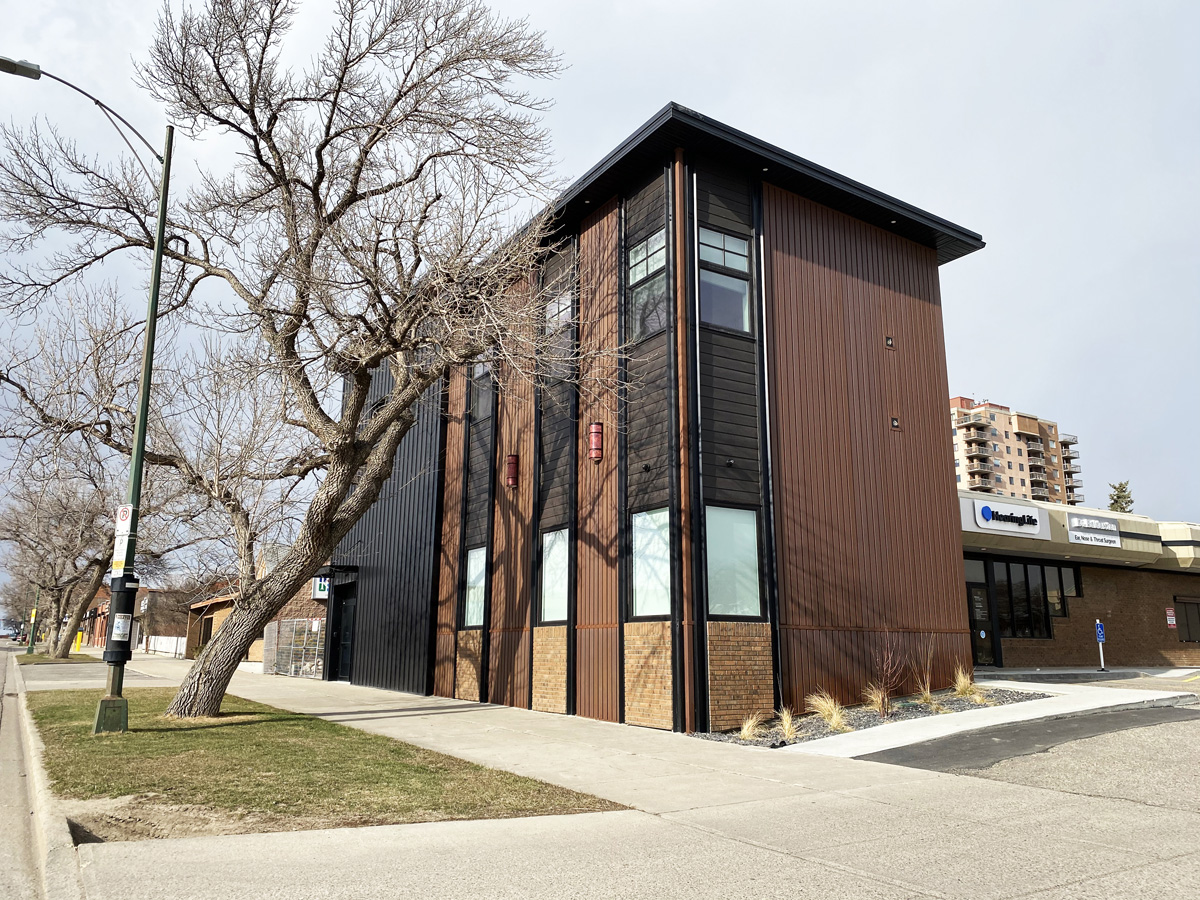

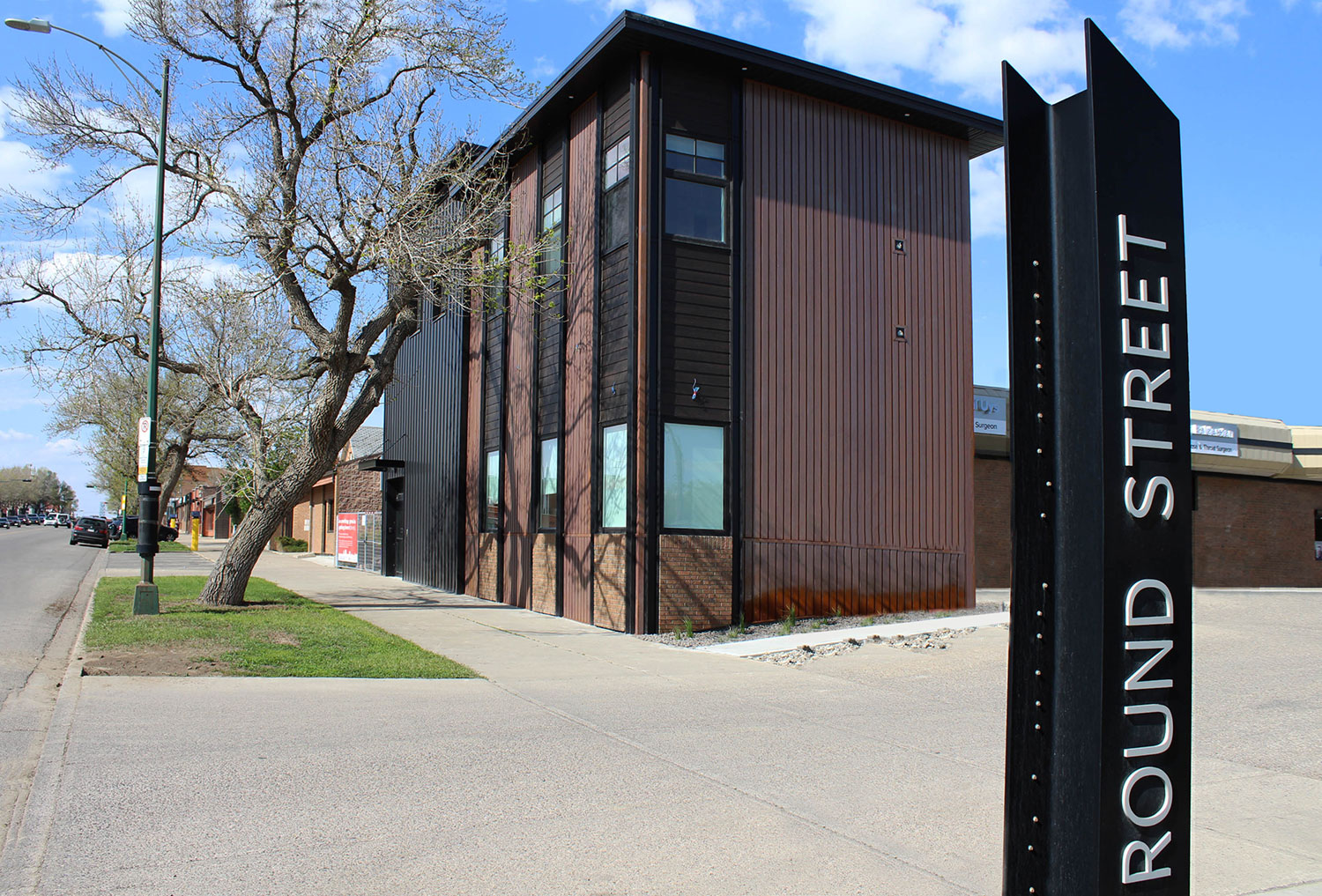

Commercial Office with 7/8 Corrugated Panel in Weathering Steel

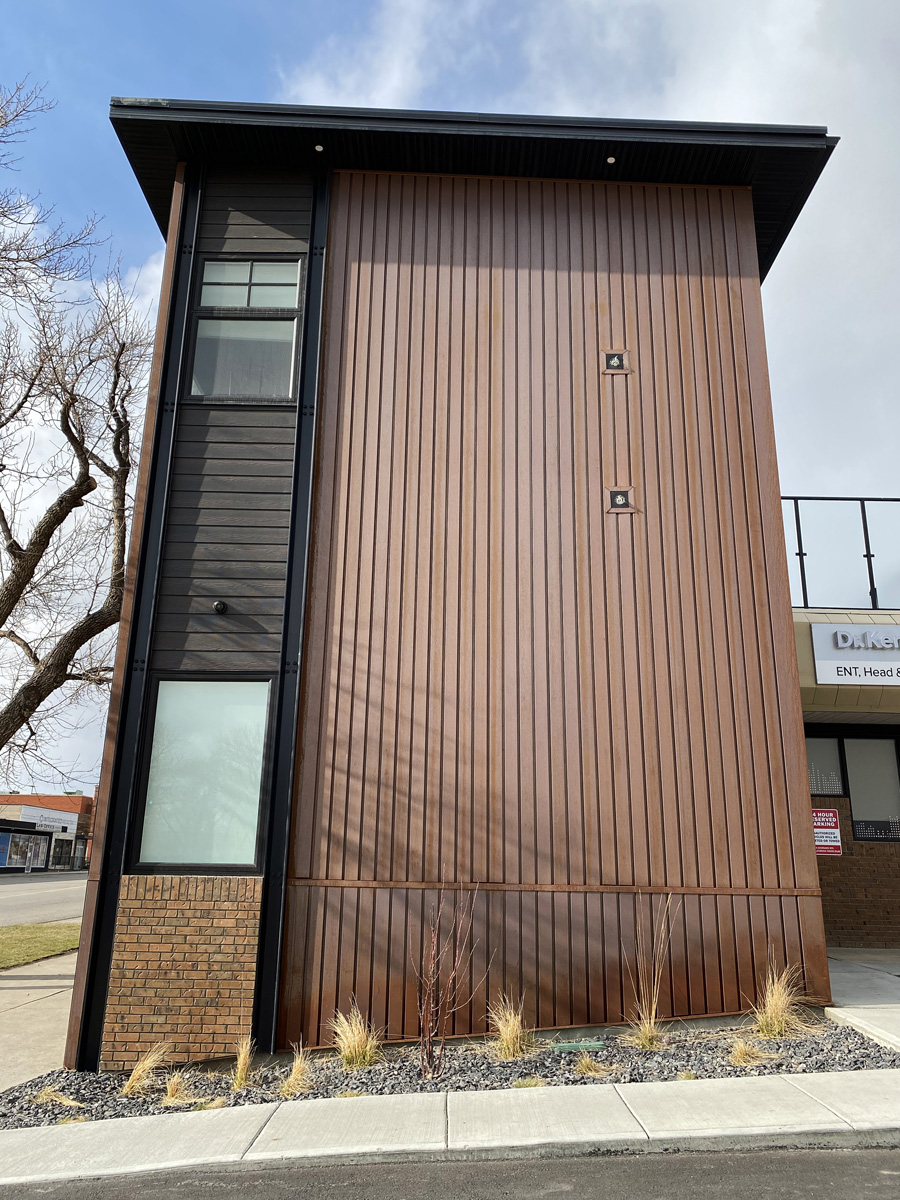

Commercial office with 7/8 Corrugated in Weathering Steel
Commercial Building with FR Panel Weathering Steel
Weathering Steel in 7/8 Corrugated by Forma Steel
Weathering Steel in 7/8 Corrugated by Forma Steel
Weathering Steel in 7/8 Corrugated by Forma Steel

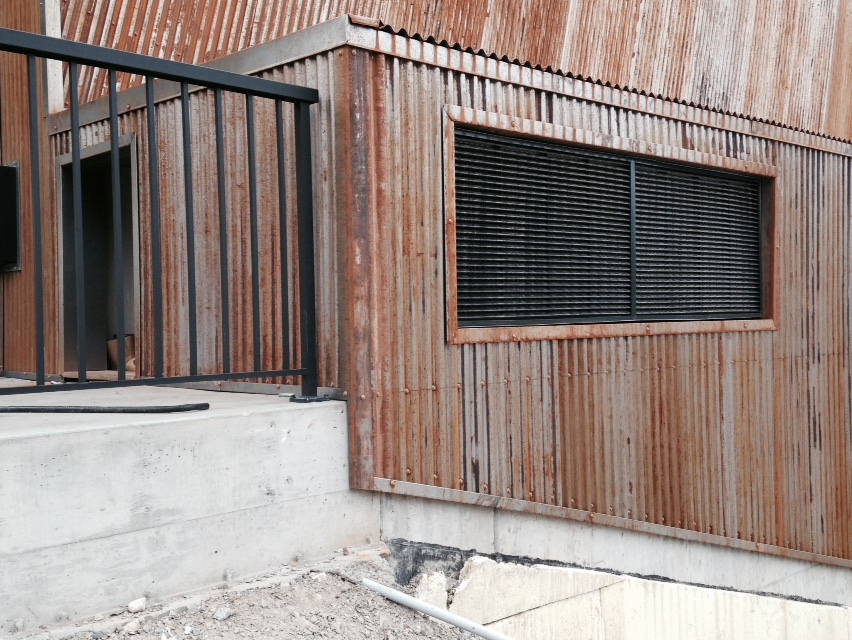

7/8 Corrugated Weathering Steel on Winery
Weathering Steel Custom Folded Panel
Weathering Steel
Commercial office with 7/8 Corrugated in Weathering Steel
Commercial office with 7/8 Corrugated in Weathering Steel
Residential Building with a Custom Folded Weathering Steel Panel
Commercial Office with 7/8 Corrugated Panel in Weathering Steel
Commercial Building with FA Panel Weathering Steel
Commercial Building with FA Panel Weathering Steel
Commercial Building with FA Panel Weathering Steel
Commercial Building with FA Panel Weathering Steel

Features

Meets ASTM A606 Requirements

Available in 22 Gauge 7/8 Corrugated Profile

Available in FR & FR Reverse Panel

Inquire about other Available Profiles

Minimum Roof Slope: 4/12

Application: Roof/Wall

Warranty: None

Not Recommended for Roofs with Valleys


Product Cautions


Special attention must be paid to the drainage of storm water to
prevent staining of surrounding structures, sidewalks and other
surfaces.

The tight oxide skin of Weathering Steel reforms after abrasion
from snow, ice, sand, dirt and hail. As the skin reforms the product
becomes thinner and eventually will be perforated.

Weathering Steel must be kept free from debris such as leaves, pine
needles, soil etc. These waste products impede the wet/dry cycle
necessary for Weathering Steel, resulting in accelerated corrosion
as well as further thinning and eventual perforation of the product.

Weathering Steel ships with an oiled coating and is slippery when handled. Please DO NOT stand on panels while installing as surface is slippery and unsafe to walk on.
