nailstrip

Hidden Fastener Standing Seam Panel

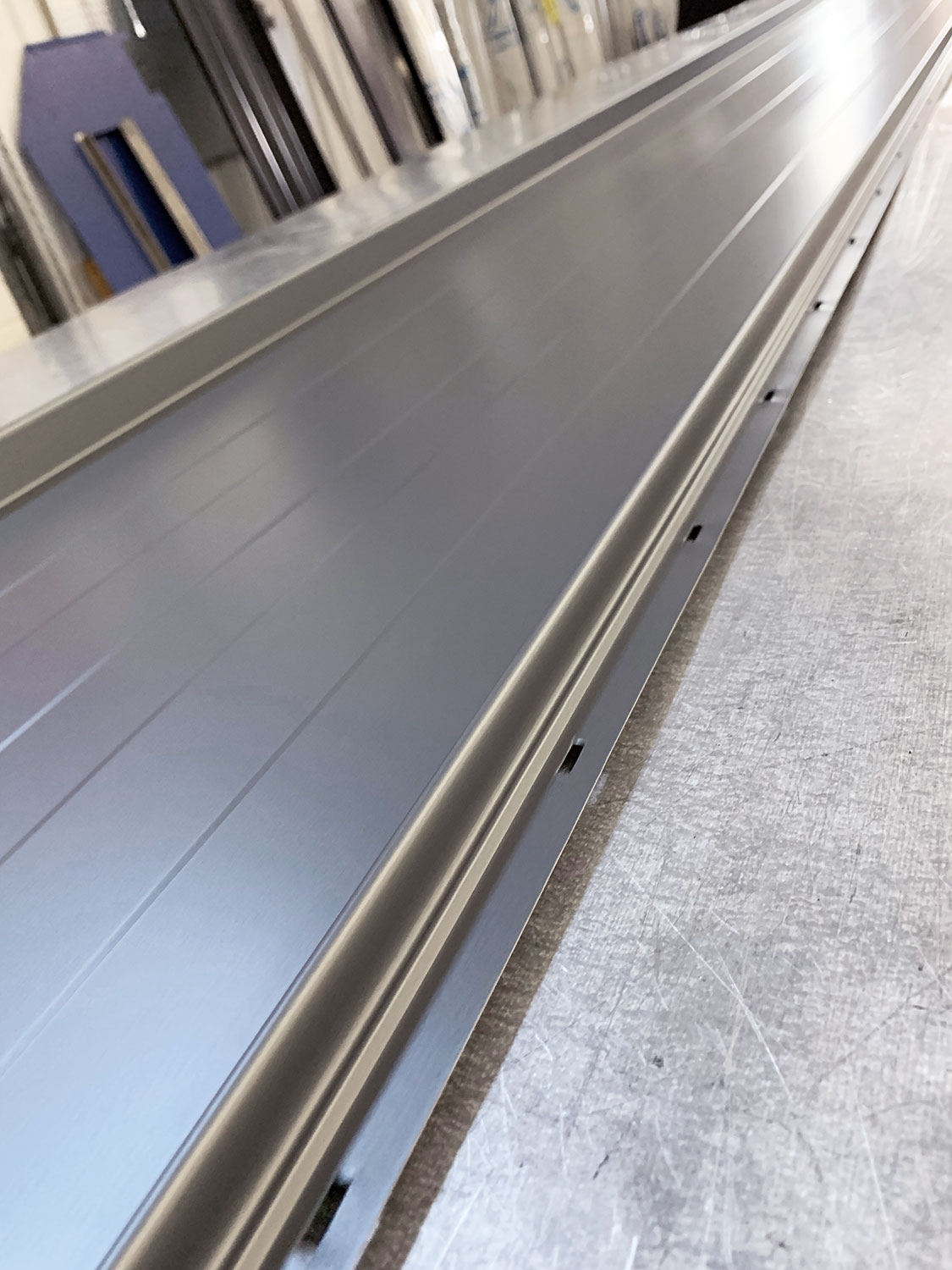

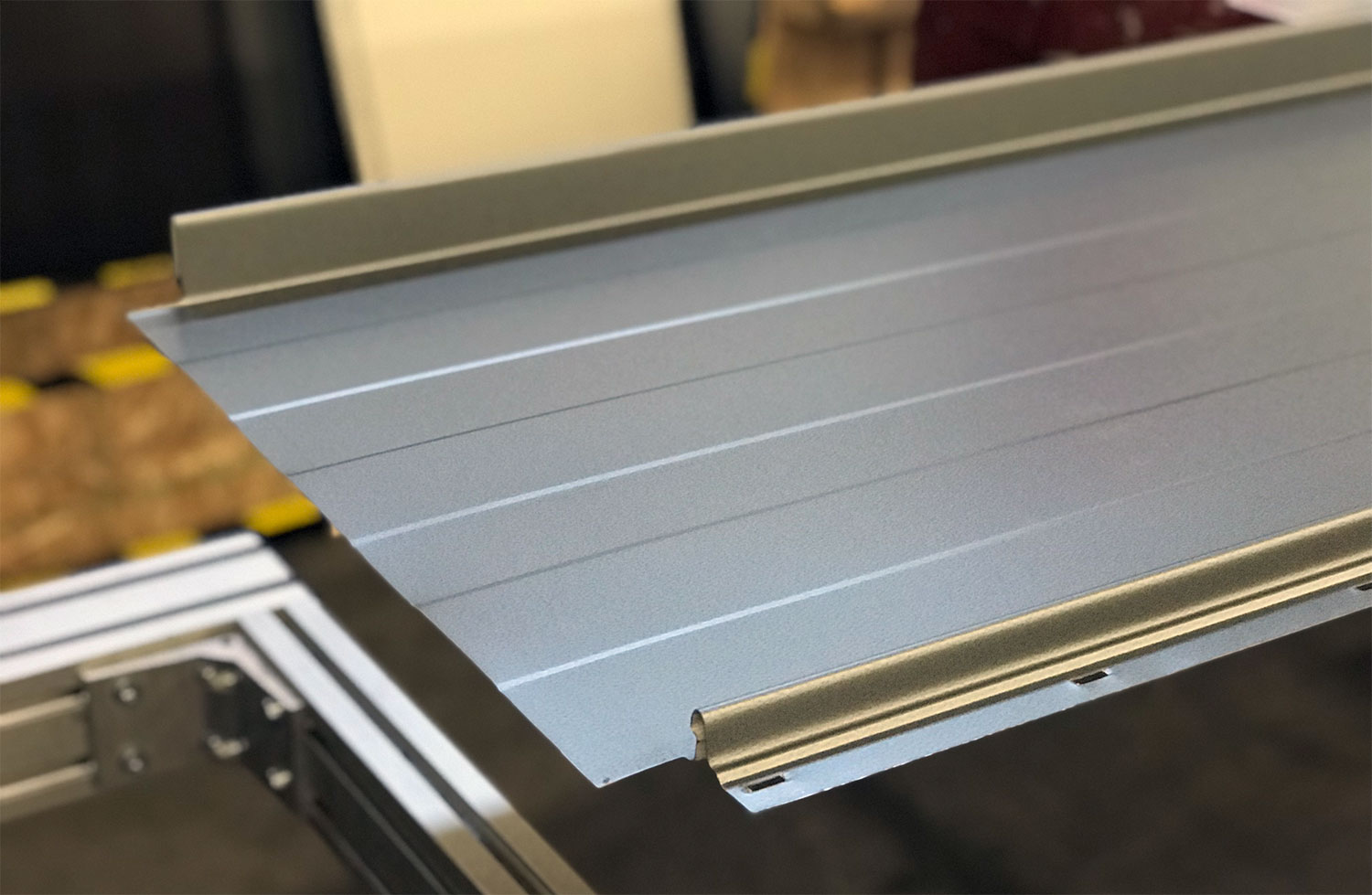

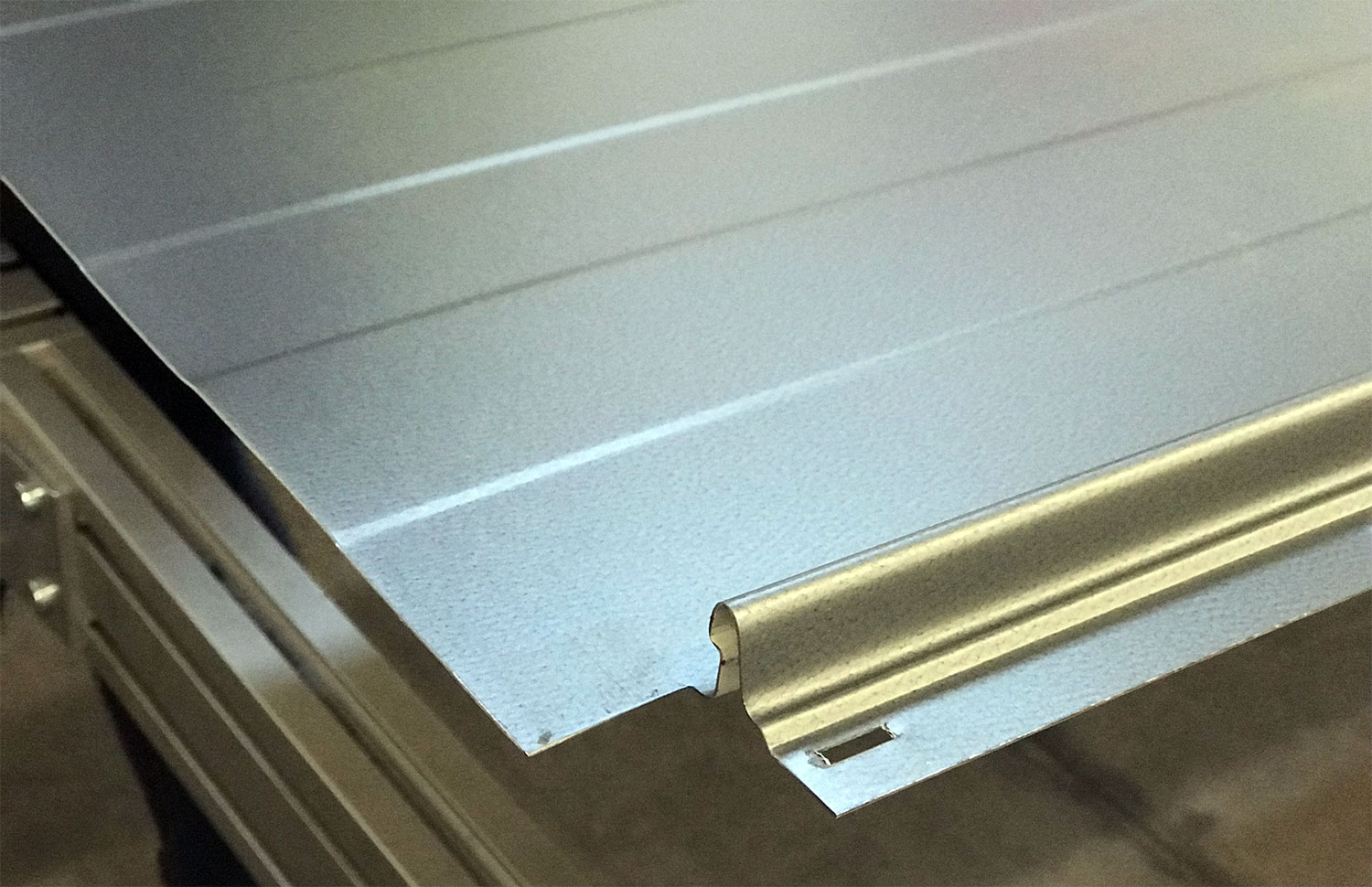

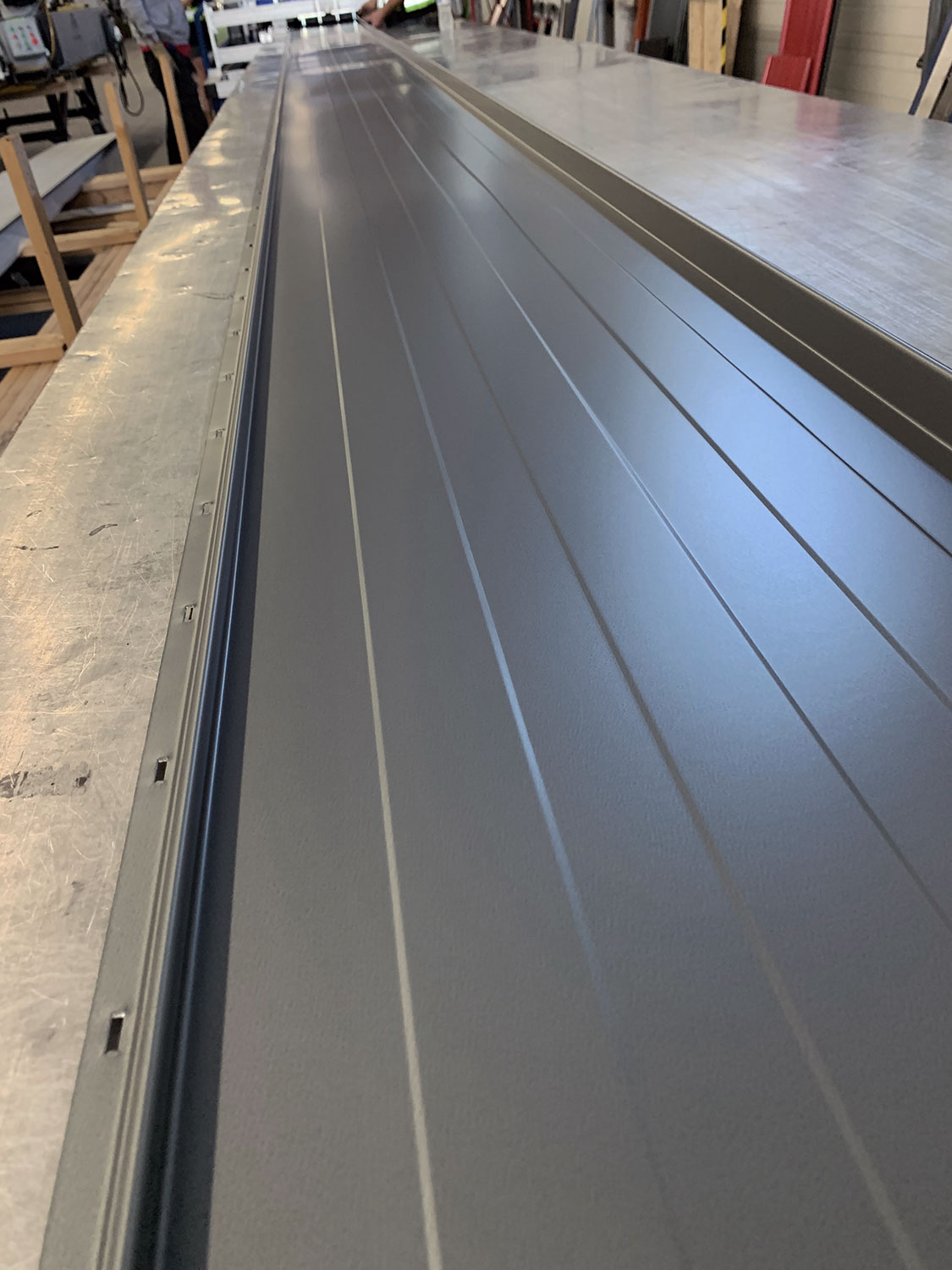

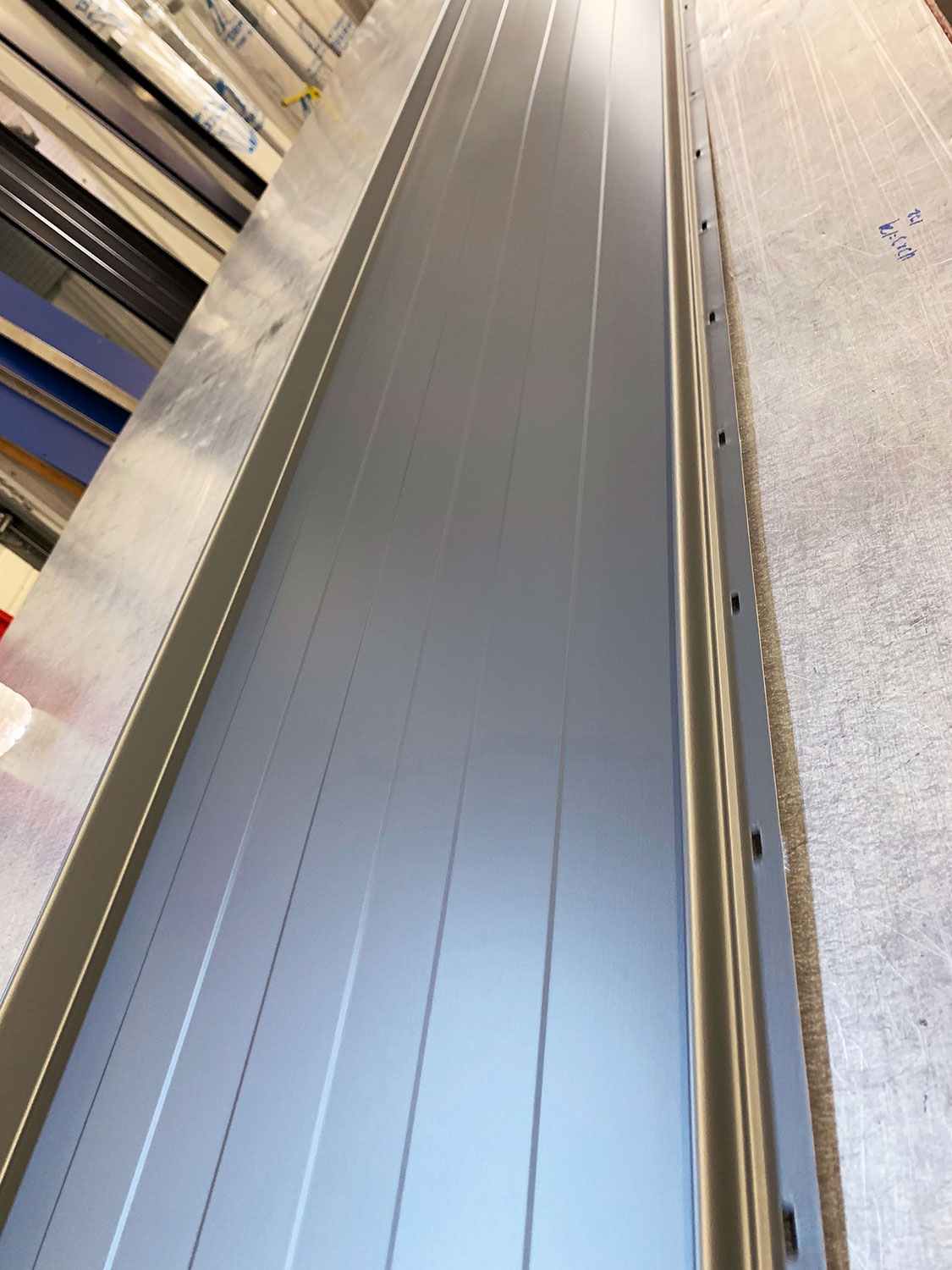

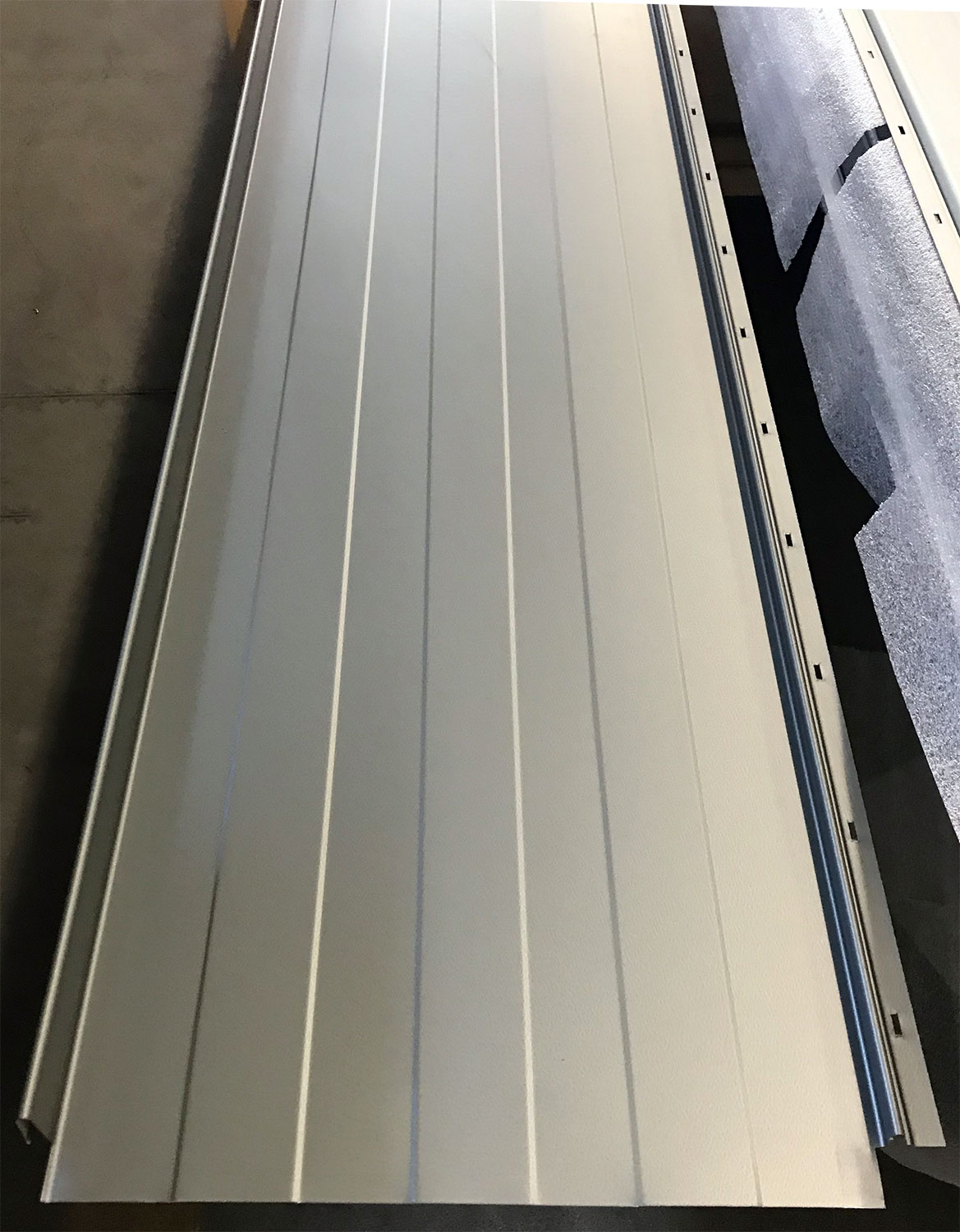

The Nailstrip panel system is a hidden fastener standing seam panel that offers easy installation for roofers. Available with 2” minor ribs, Nail Strip works well for both roof or side panel applications. With long clean lines, this panel system provides recognized standing seam performance, while remaining an affordable product for a wide array of projects. Nail Strip should always be applied over solid substrate.  Notching available on request.

Panel Profiles

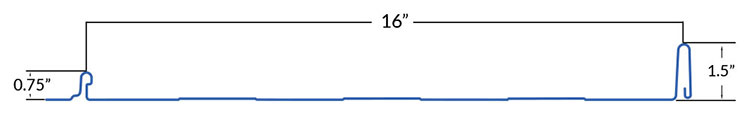

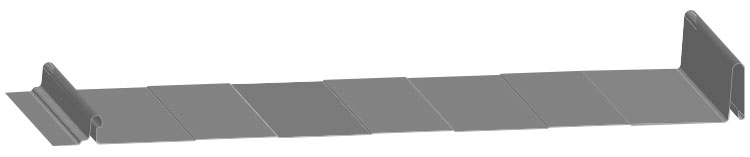

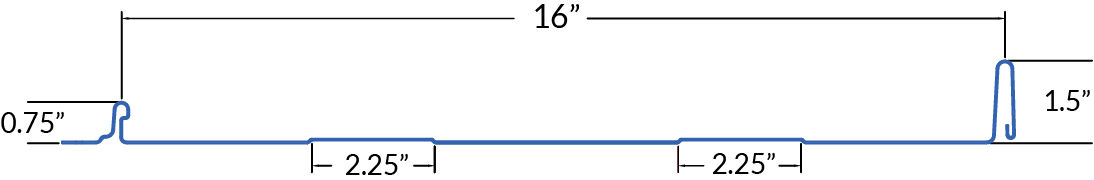

1.5" Nailstrip | 16"

Forma Loc Panel by Forma Steel in 12" or 16" Coverage

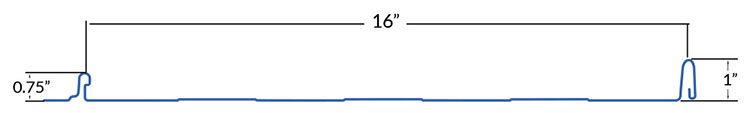

1" Nailstrip | 16"

Forma Loc Panel by Forma Steel in 12" or 16" Coverage

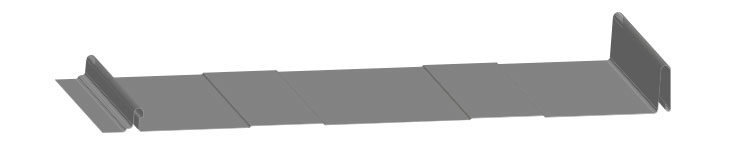

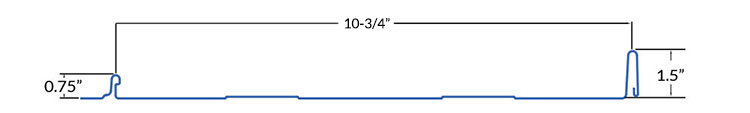

1.5" Nailstrip | 12"

Forma Loc Panel by Forma Steel in 12" or 16" Coverage

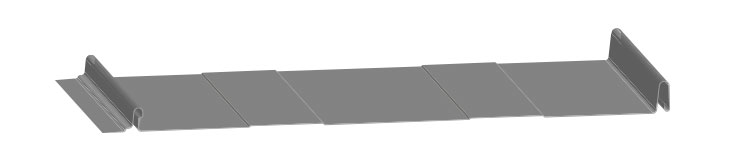

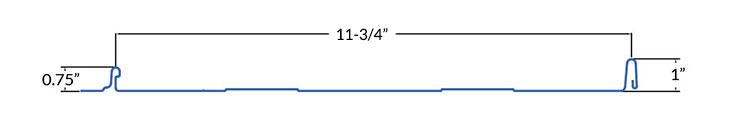

1" Nailstrip | 12"

Forma Loc Panel by Forma Steel in 12" or 16" Coverage

Available in Standard 24 Gauge Colours


Galvalume

24 Gauge, 26 Gauge, 29 Gauge

Bright White

24 Gauge, 26 Gauge, 29 Gauge

White White

24 Gauge, 26 Gauge, 29 Gauge

Iceberg

24 Gauge, 26 Gauge, 26ga

Bone White

24 Gauge, 26 Gauge, 29 Gauge

Wicker

24 Gauge, 26 Gauge, 29 Gauge

Stone Grey

24 Gauge, 26 Gauge, 29 Gauge

Hickory

24 Gauge, 26 Gauge

Tan

24 Gauge, 26 Gauge, 29 Gauge

Buckskin

24 Gauge, 26 Gauge, 29 Gauge

Coffee Brown

24 Gauge, 26 Gauge, 29 Gauge

Dark Brown

24 Gauge, 26 Gauge, 29 Gauge

Black

24 Gauge, 26 Gauge, 29 Gauge

Carbon

24 Gauge, 26 Gauge, 29 Gauge

Charcoal

24 Gauge, 26 Gauge, 29 Gauge

Regent Grey

24 Gauge, 26 Gauge, 29 Gauge

Bright Red

24 Gauge, 29 Gauge

Tile Red

24 Gauge, 29 Gauge

Dark Red

24 Gauge, 26 Gauge, 29 Gauge

Slate Blue

24 Gauge, 29 Gauge

Oxford Blue

24 Gauge, 26 Gauge

Royal Blue

24 Gauge, 29 Gauge

Heron Blue

24 Gauge, 29 Gauge

Sapphire Blue

24 Gauge, 29 Gauge

Melchers Green

24 Gauge, 26 Gauge, 29 Gauge

Specifications

Coverage: 10-3/4" to 16"

Hidden Fastener Panel

Panel Length: Up to 35 feet

Recommended Roof Slope: Greater than 3:12

Substrate:
Walls: 1/2" Standard plywood minimum
Roof: 5/8" Standard plywood minimum

Suitable for climates with high wind, high snow accumulation & extreme temperatures

Available Gauges: 24 (in standard colours)

Minimum Length: 48"

Notching available on all Nailstrip panels

Inquire about other available widths

Note: Striations are recommended on panels to minimize the appearance of oil-canning


Product Brochures


NAILSTRIP BROCHURE

STANDARD COLOUR CHART

STANDARD TRIMS

1500 SERIES TRIMS (1-1/2”)

1000 SERIES TRIMS (1”)

NOTCHING

Installation


The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12.

Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.

Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.

Inspiration Gallery

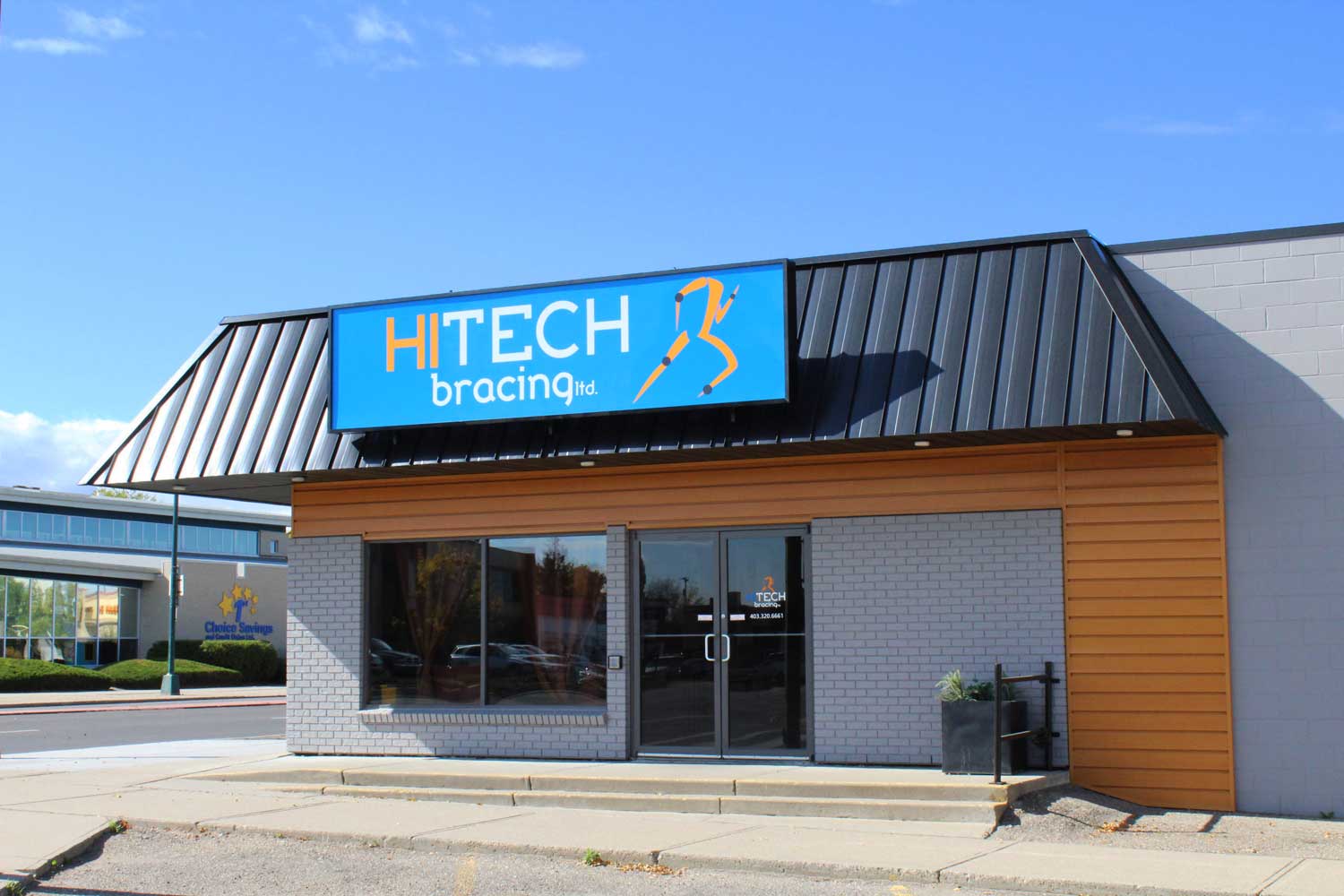

Commercial Building with Autumn Woodgrain Forma Plank

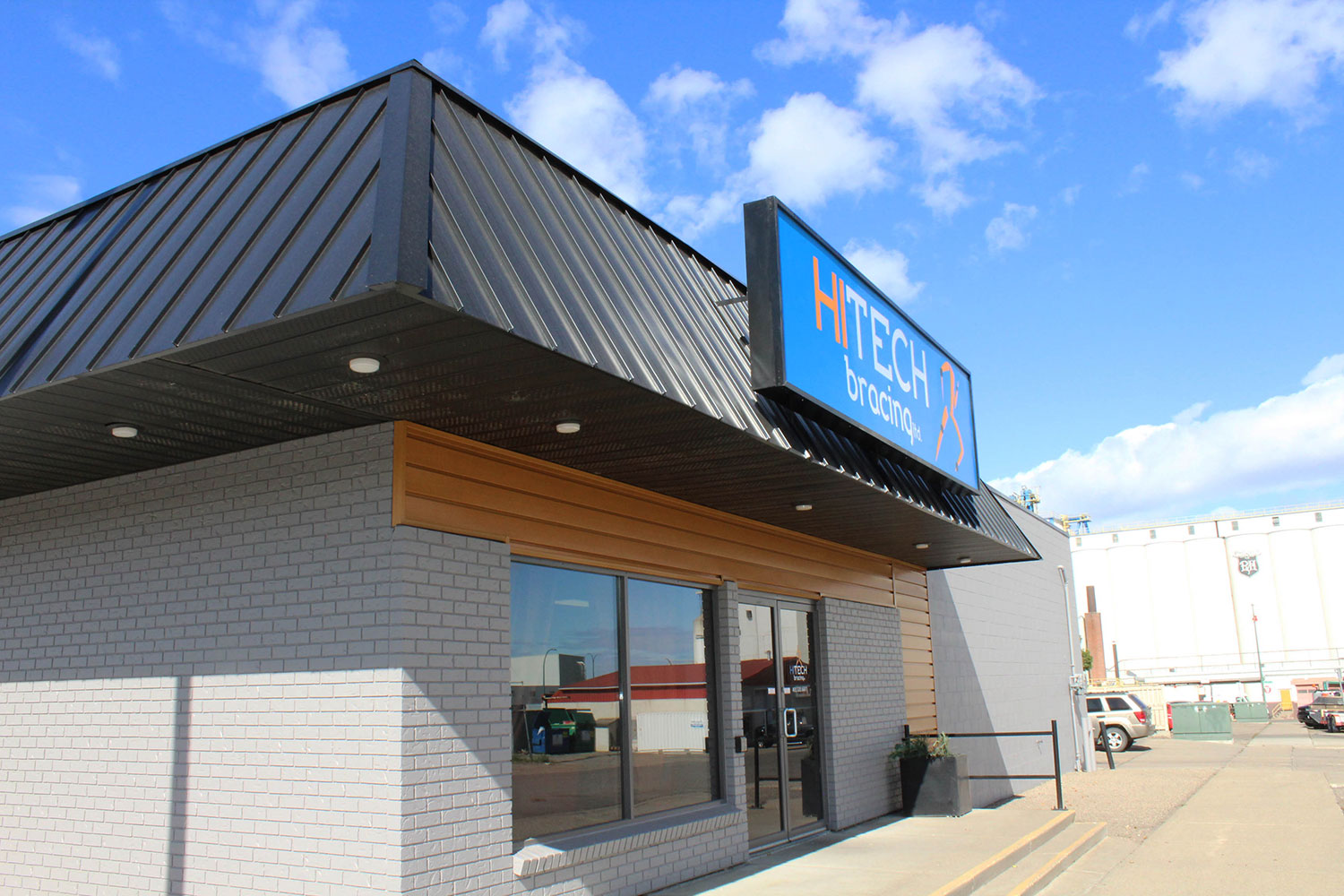

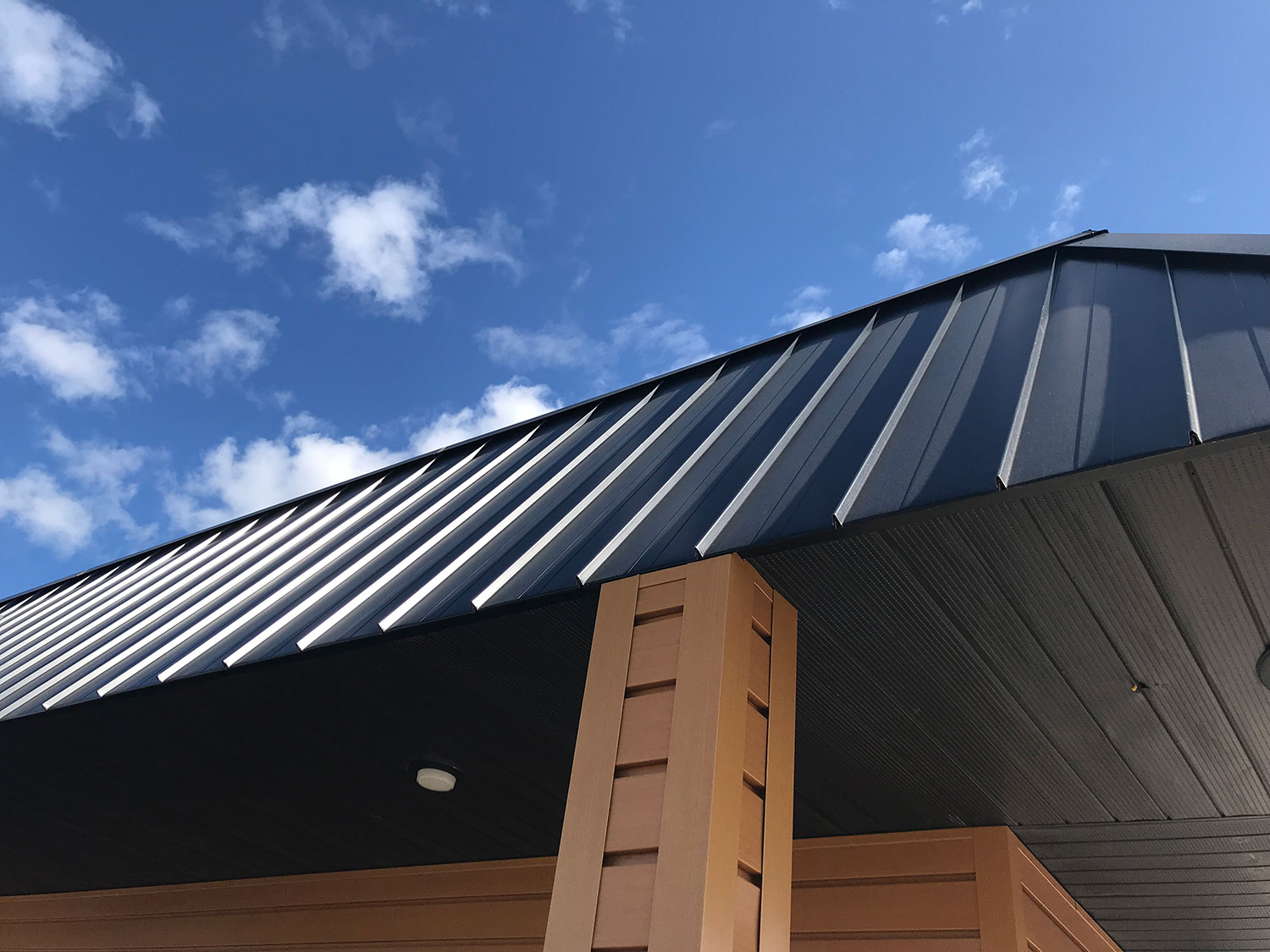

Commercial Roof in Black Nailstrip Panel

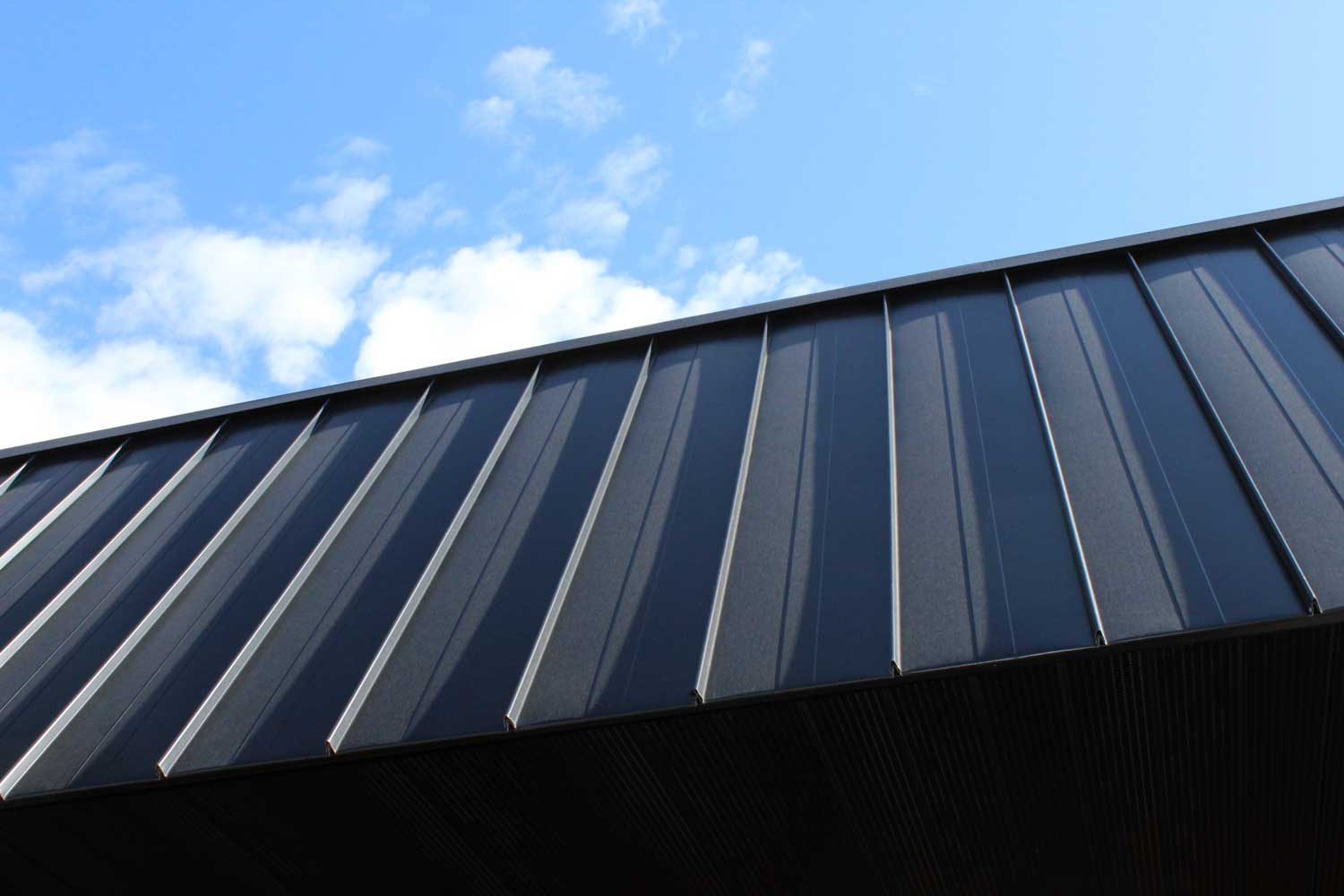

Commercial Roof in Black Nailstrip Panel

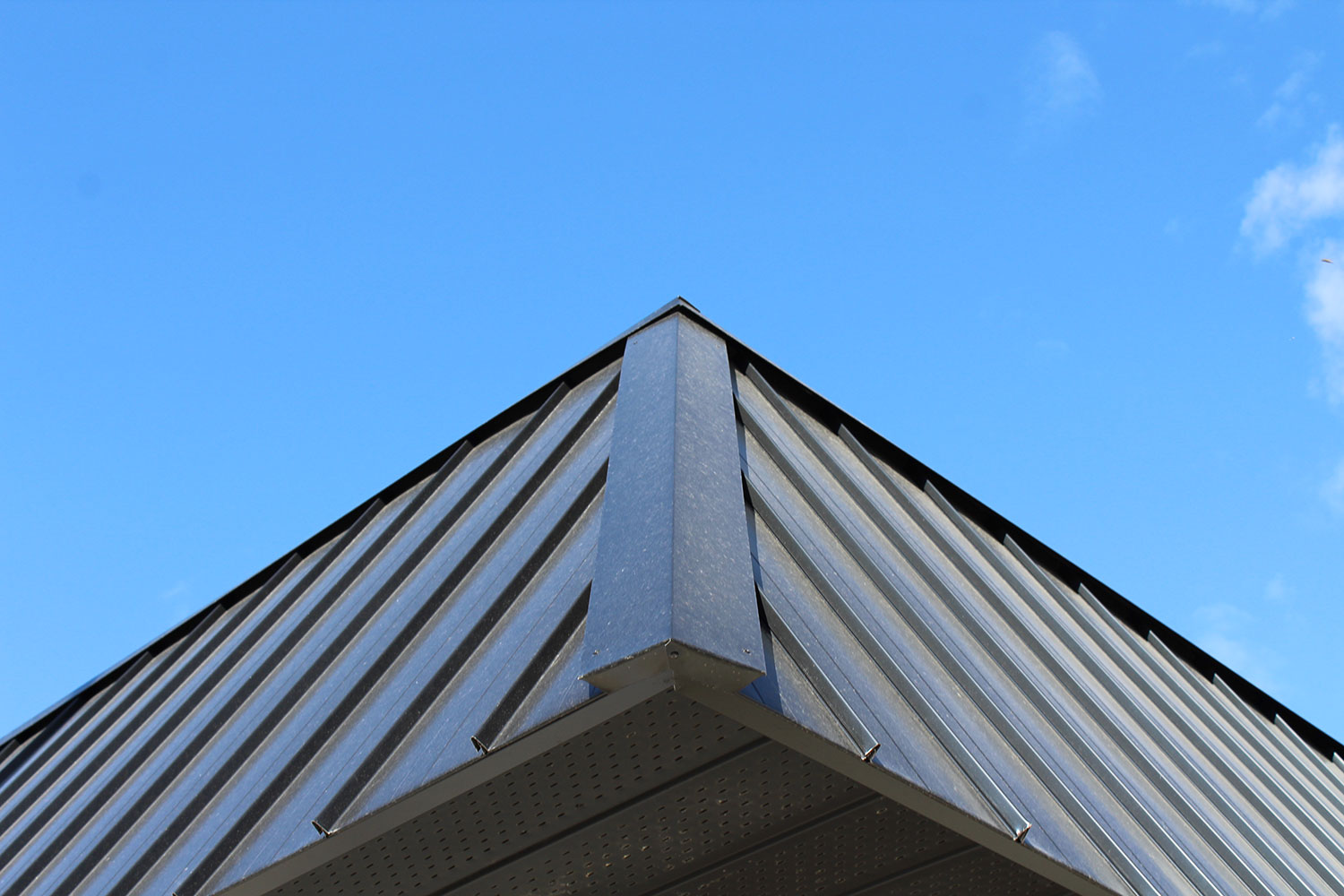

Commercial Roof in Black Nailstrip Panel
