I/9 Panel

Similar to FC-36 with a Cleaner, Smoother Look

Our I/9 Panel shares many of the same characteristics of our most-popular FC-36 panel, including the 3/4" rib height and 9" spans, but keeps it cleaner with simpleribs and flattens out where the FC-36 features a bell top. This profile provides a smoother appearance for roof and wall applications for a slightly more modern look. A very popular choice for residential roofing and commercial buildings where the ultimate strength of the FC-36 panel is not necessary.

Panel Profile

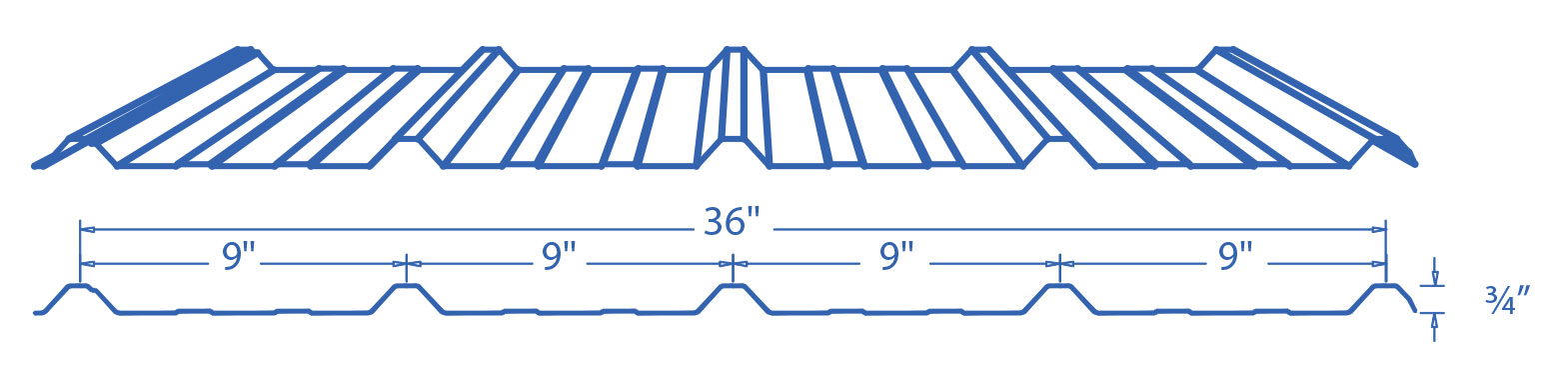

I/9 Line Drawing & Panel - Forma Steel
All
29 Gauge
26 Gauge

Galvanized

24 Gauge, 29 Gauge

Galvalume

24 Gauge, 26 Gauge, 29 Gauge

Bright White

24 Gauge, 26 Gauge, 29 Gauge

White White

24 Gauge, 26 Gauge, 29 Gauge

Iceberg

24 Gauge, 26 Gauge, 26ga

Bone White

24 Gauge, 26 Gauge, 29 Gauge

Iceberg

24 Gauge, 26 Gauge

Wicker

24 Gauge, 26 Gauge, 29 Gauge

Antique Linen

29 Gauge

Stone Grey

24 Gauge, 26 Gauge, 29 Gauge

Hickory

24 Gauge, 26 Gauge

Seawolf

29 Gauge

Buckskin

24 Gauge, 26 Gauge, 29 Gauge

Sable

29 Gauge

Tan

24 Gauge, 26 Gauge, 29 Gauge

Gold

29 Gauge

Copper Penny

29 Gauge

Bright Red

24 Gauge, 29 Gauge

Tile Red

24 Gauge, 29 Gauge

Dark Red

24 Gauge, 26 Gauge, 29 Gauge

Coffee Brown

24 Gauge, 26 Gauge, 29 Gauge

Dark Brown

24 Gauge, 26 Gauge, 29 Gauge

Black

24 Gauge, 26 Gauge, 29 Gauge

Carbon

24 Gauge, 26 Gauge, 29 Gauge

Gunmetal

26 Gauge, 29 Gauge

Charcoal

24 Gauge, 26 Gauge, 29 Gauge

Regent Grey

24 Gauge, 26 Gauge, 29 Gauge

Ascot Grey

29 Gauge

Oxford Blue

24 Gauge, 26 Gauge

Slate Blue

24 Gauge, 29 Gauge

Royal Blue

24 Gauge, 29 Gauge

Heron Blue

24 Gauge, 29 Gauge

Sapphire Blue

24 Gauge, 29 Gauge

Turquoise

29 Gauge

Dark Sage

29 Gauge

Melchers Green

24 Gauge, 26 Gauge, 29 Gauge

Specialty Steel Available in 26 Gauge



White Perforated

26 Gauge, 29 Gauge, 22ga, 24 Gauge, 26ga

Specifications


Application: Roof & Wall

 Coverage: 36"

Slope: 2.5/12 with Overlap Sealant

Slope: 3/12 without Sealant

Similar to FC-36 With a Cleaner, Smoother Look

Available in 29 & 26  Gauge

Available in over 30 Colours & Finishes

More Colours & Finishes Available by Special Order

Cutting Charge Applies Below 48"

*Require a Minimum Total Length of: 32"

For Example:
•
Short Sheets of 12" Require Sets of 3
• Short Sheets of 8" Require Sets of 4
• Short Sheets over 16" Require Sets of 2


Product Brochures


I/9 PANEL BROCHURE

STANDARD COLOUR CHART

STANDARD TRIMS

I/9 LOAD TABLE

I/9 INSTALLATION GUIDE

Installation


The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12. Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.

Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.

Project Inspiration


Commercial Office

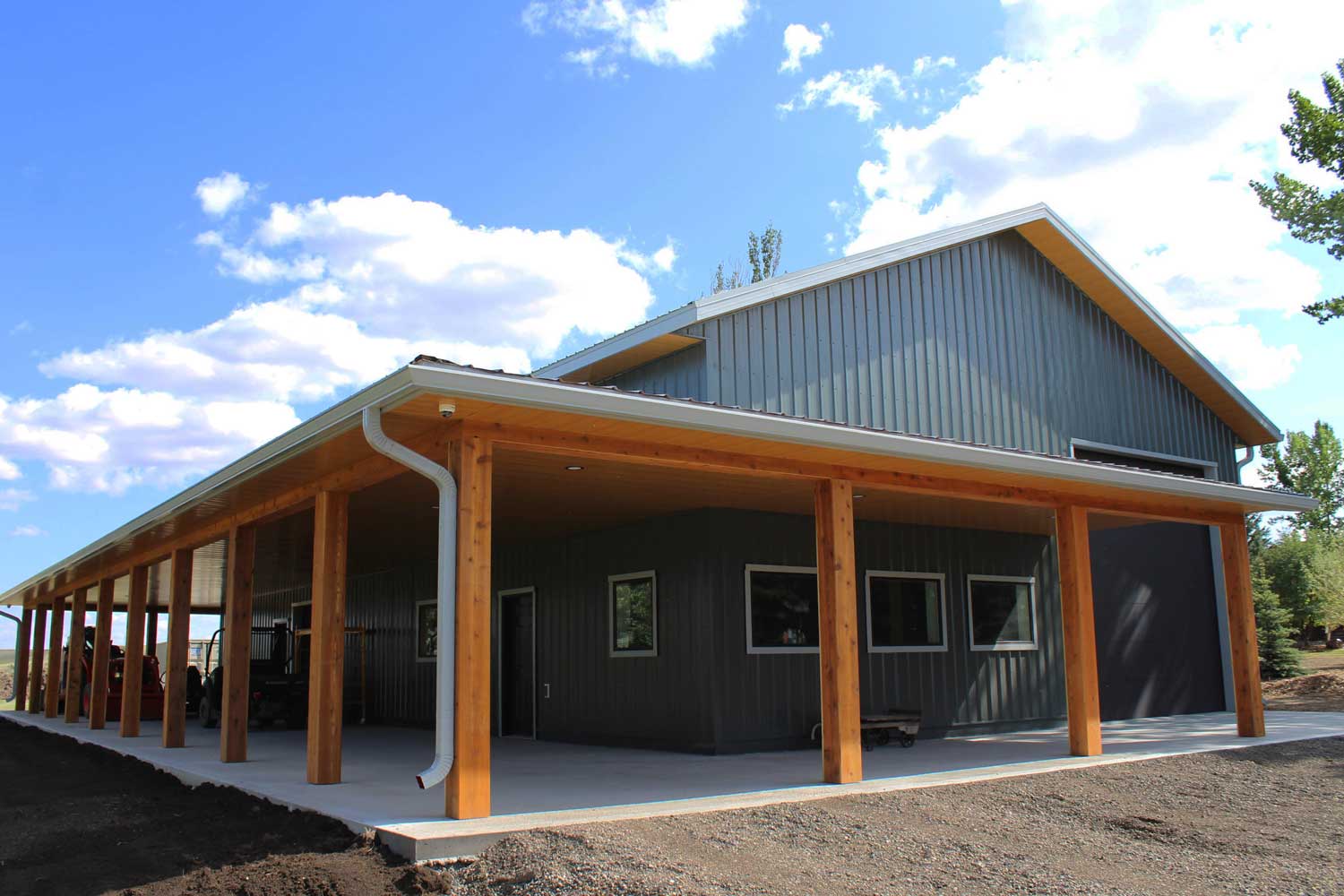

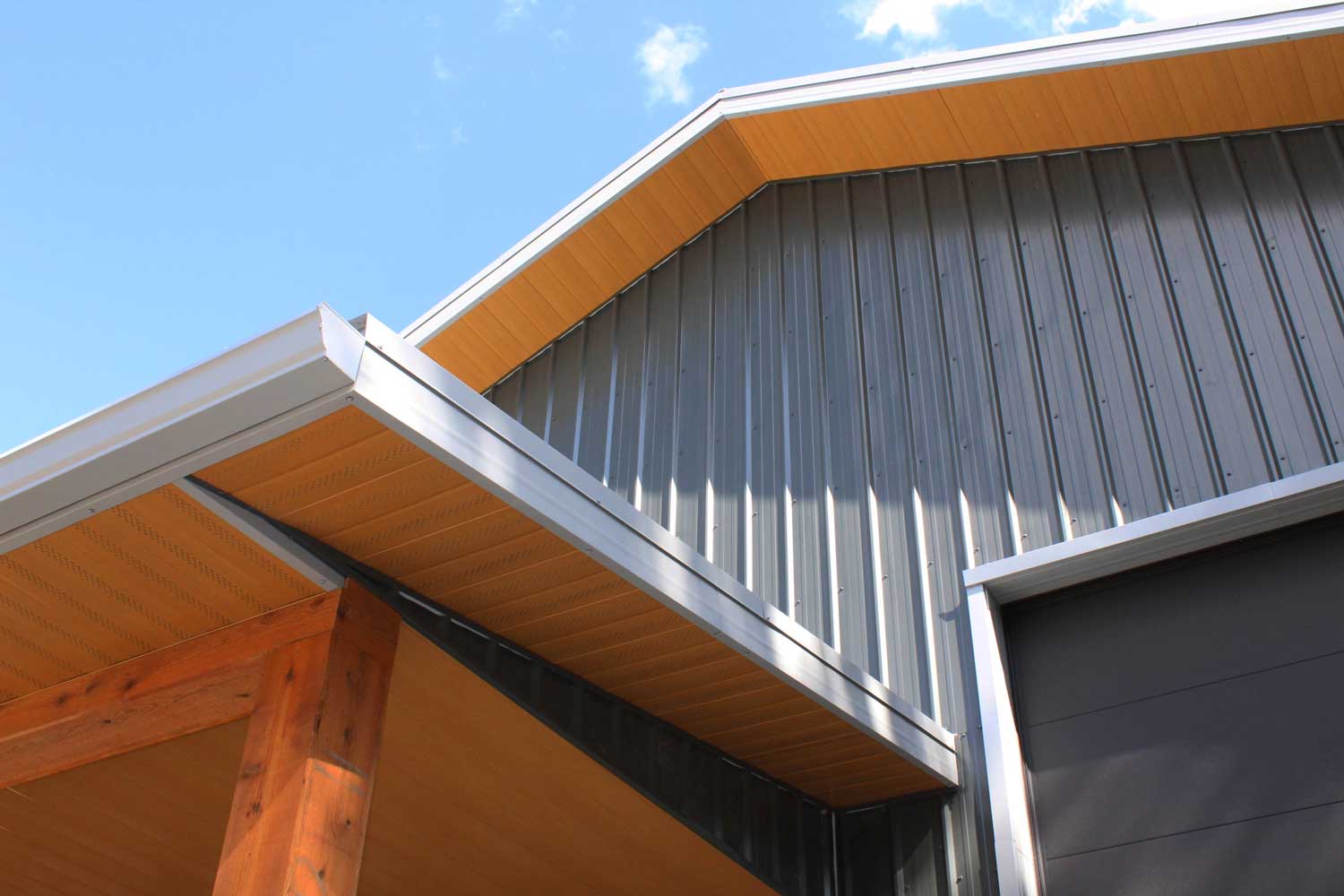

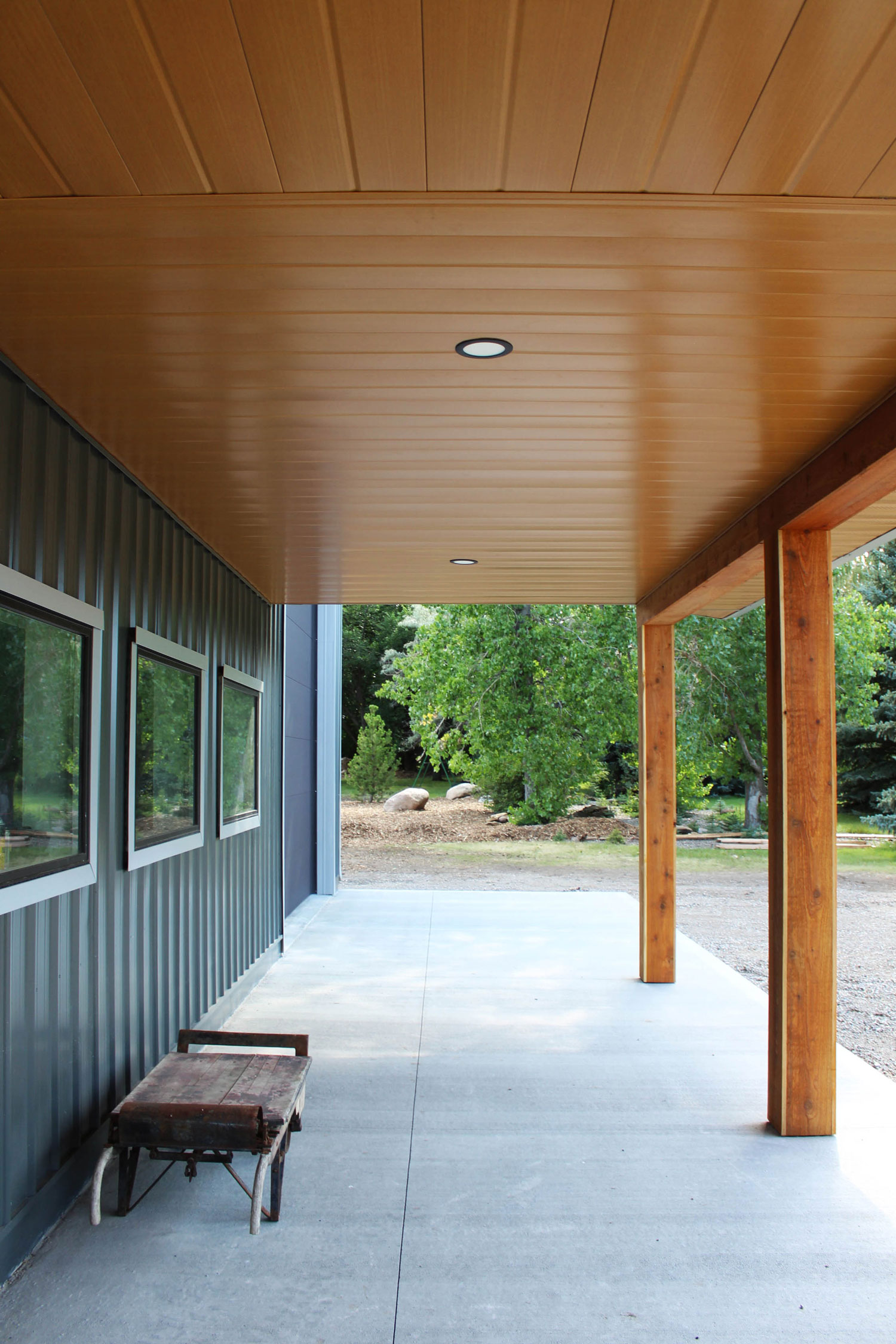

Gunmetal grey siding and Vented Soffit and non-vented soffit in Autumn Woodgrain on a residential work shop
Gunmetal grey siding and Vented Soffit and non-vented soffit in Autumn Woodgrain on a residential work shop
Gunmetal grey siding and Vented Soffit and non-vented soffit in Autumn Woodgrain on a residential work shop

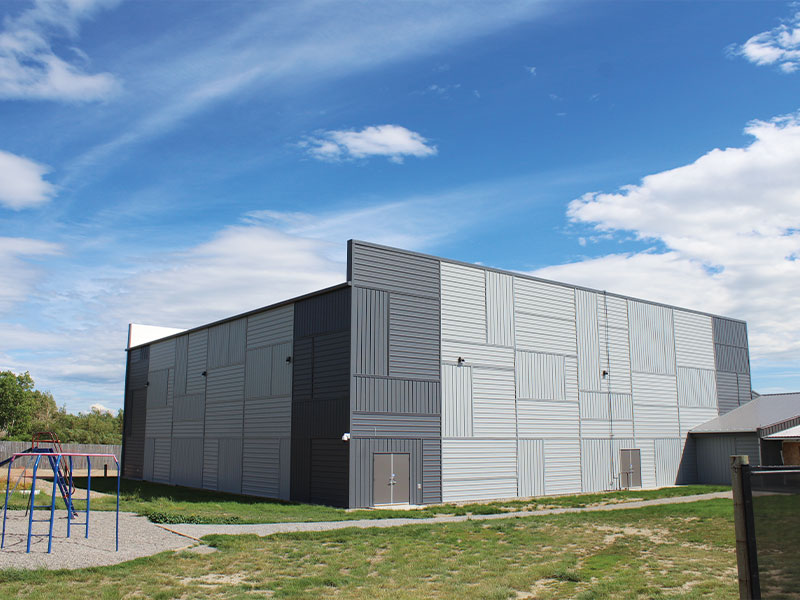

School Gymnasium with Carbon and Regent Grey in FC-36 Panel in grid pattern
School Gymnasium with Carbon and Regent Grey in FC-36 Panel in grid pattern

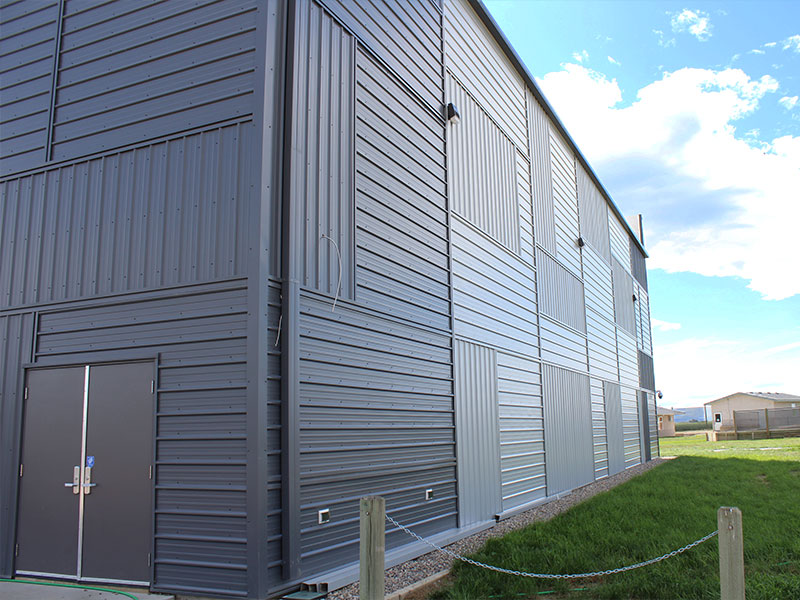

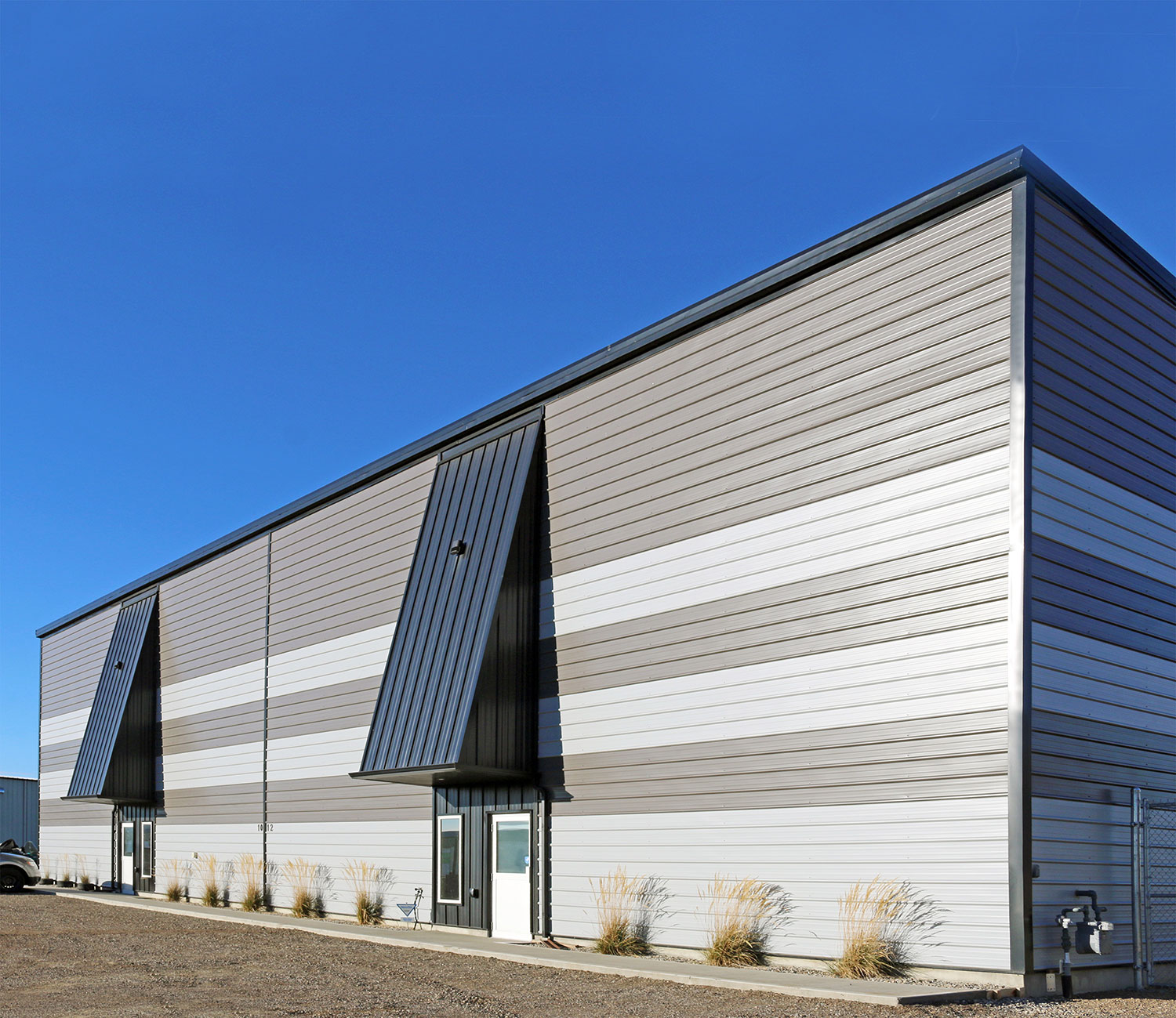

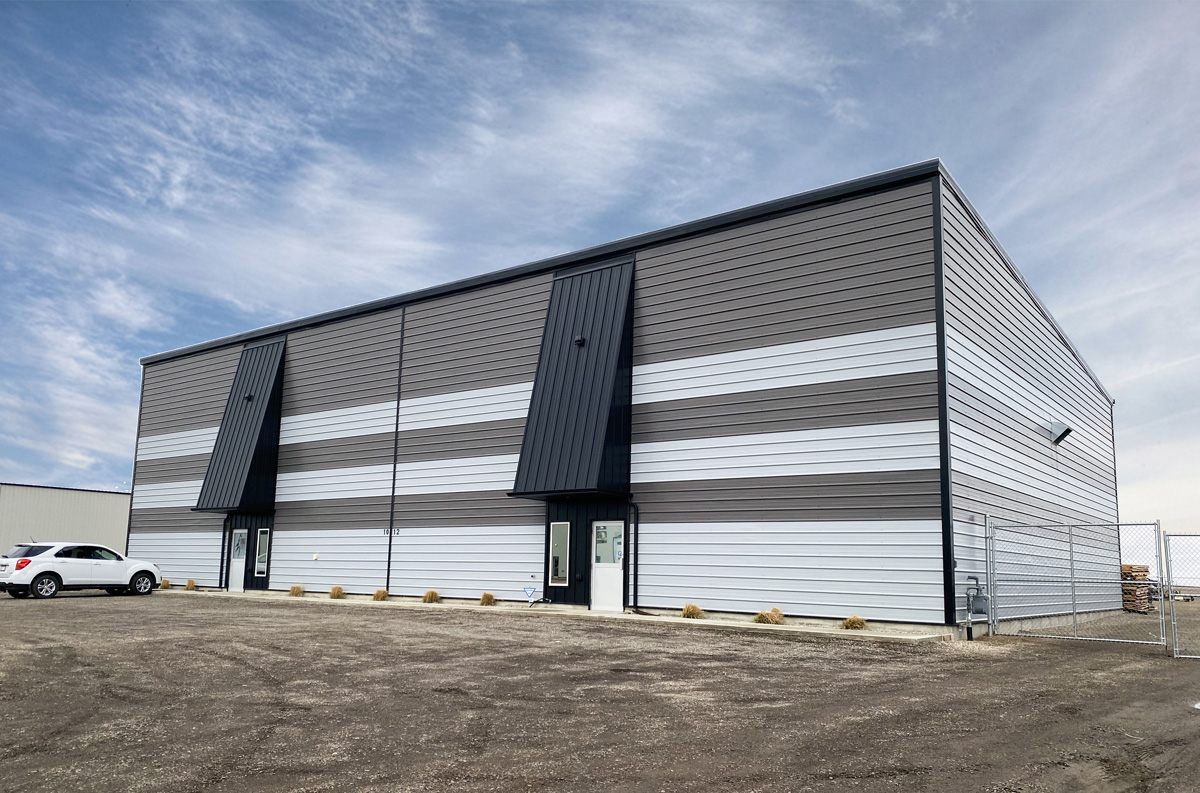

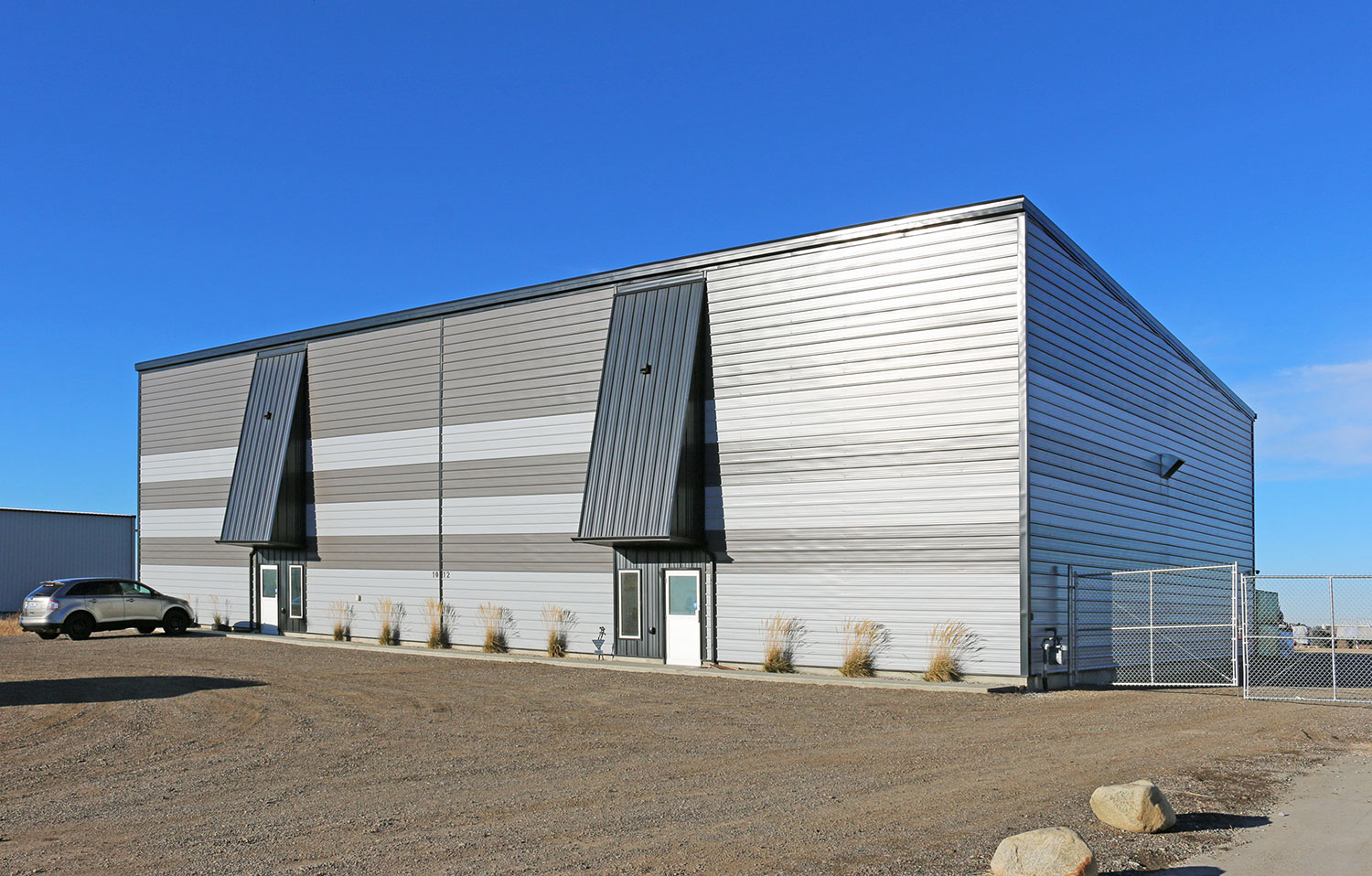

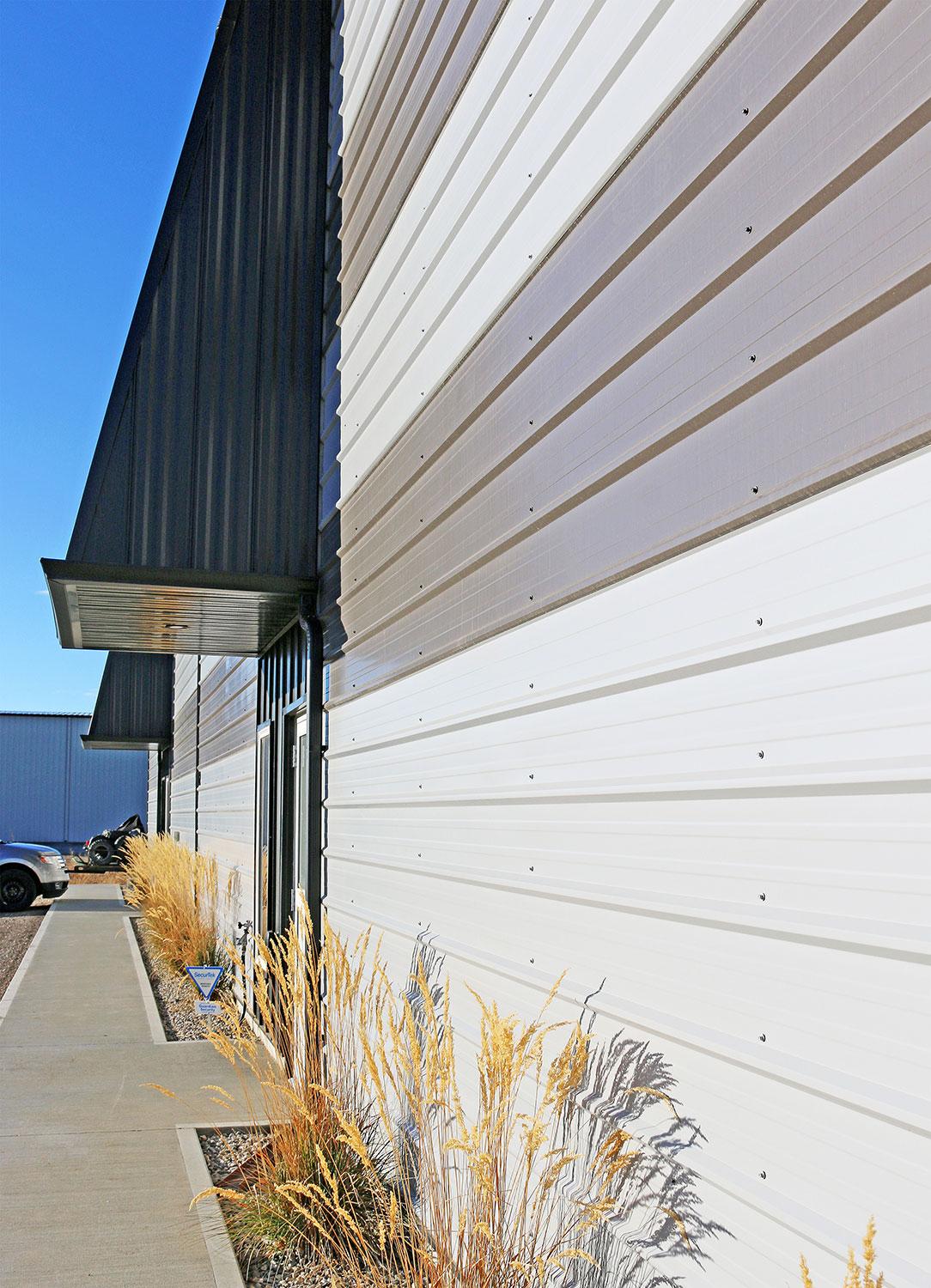

Commercial Building featuring Horizontal I/9 Panel in Ascot Grey and Charcoal, and Vertical FormaLoc 16 in Black.
Commercial Building featuring Horizontal I/9 Panel in Ascot Grey and Charcoal, and Vertical FormaLoc 16 in Black.
Commercial Building

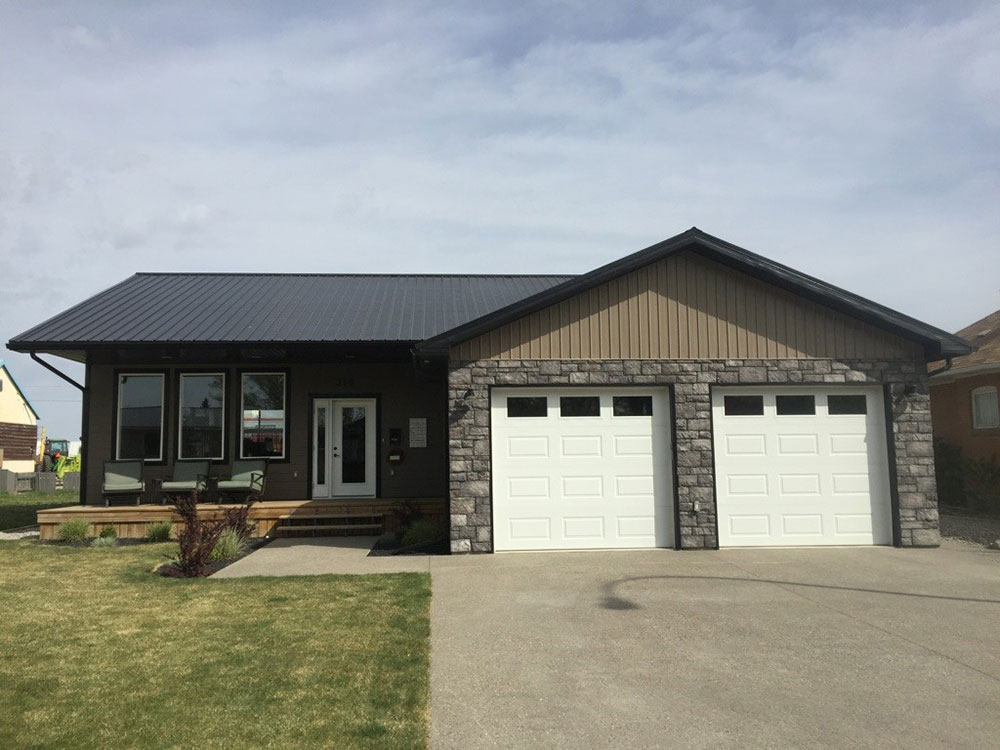

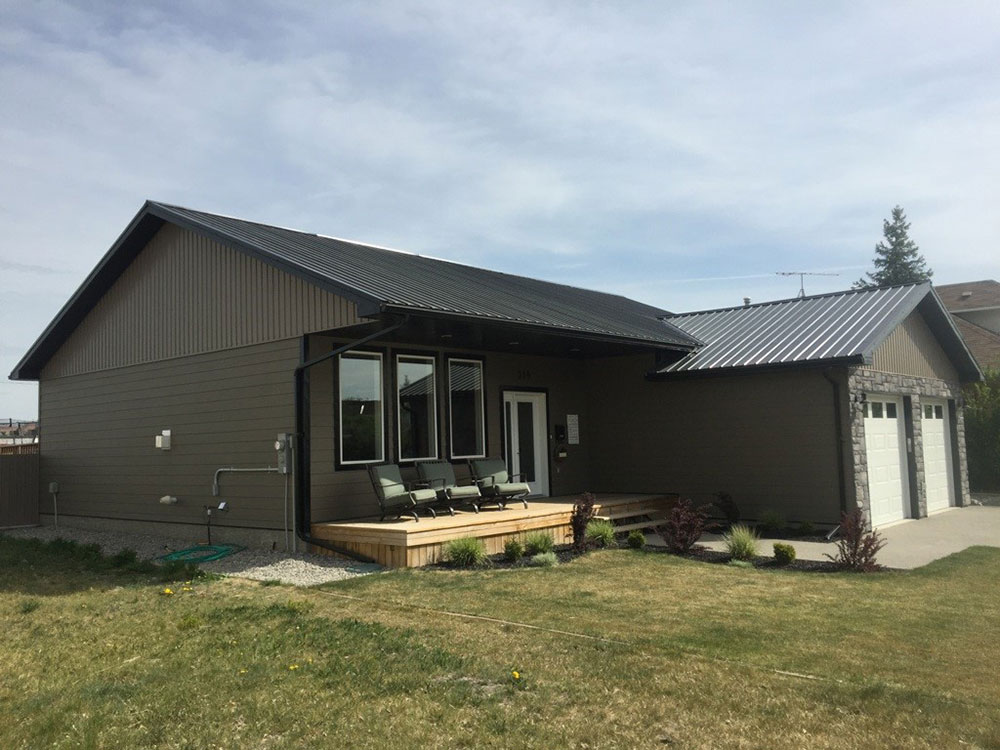

Residential Roof featuring I/9 Panel in Black
Residential Roof featuring I/9 Panel in Black

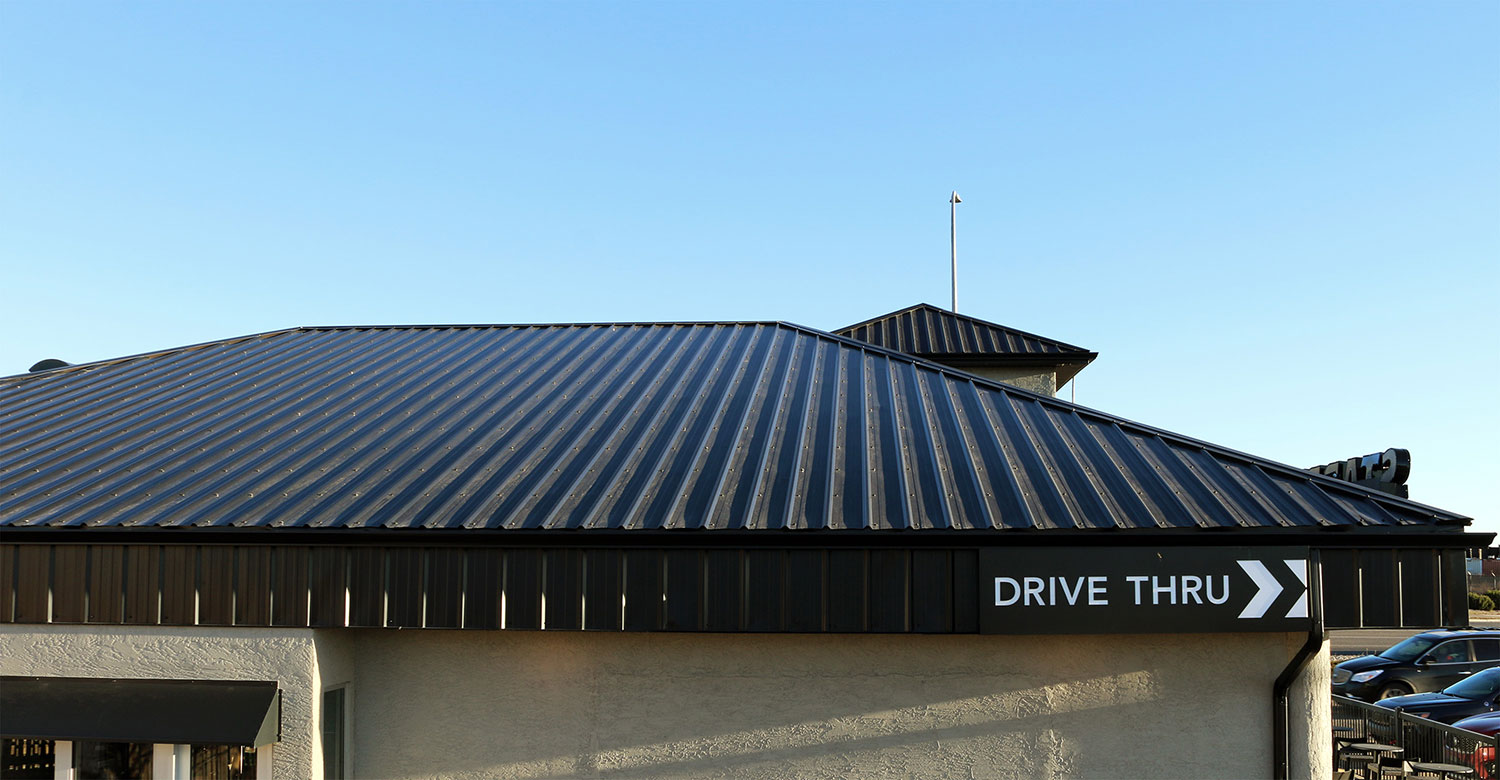

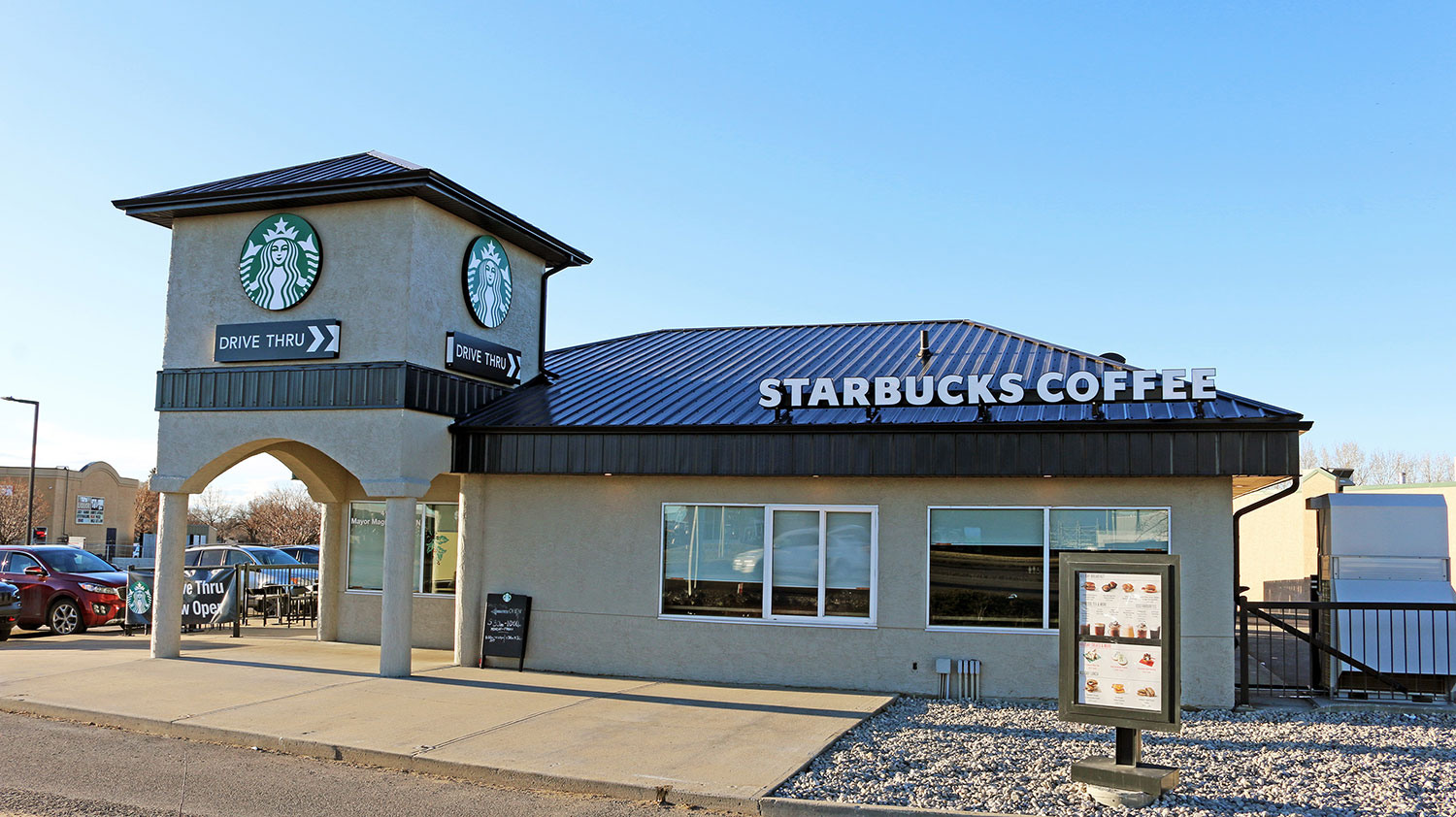

Commercial Metal Roof
Commercial Metal Roof
Commercial Metal Roof

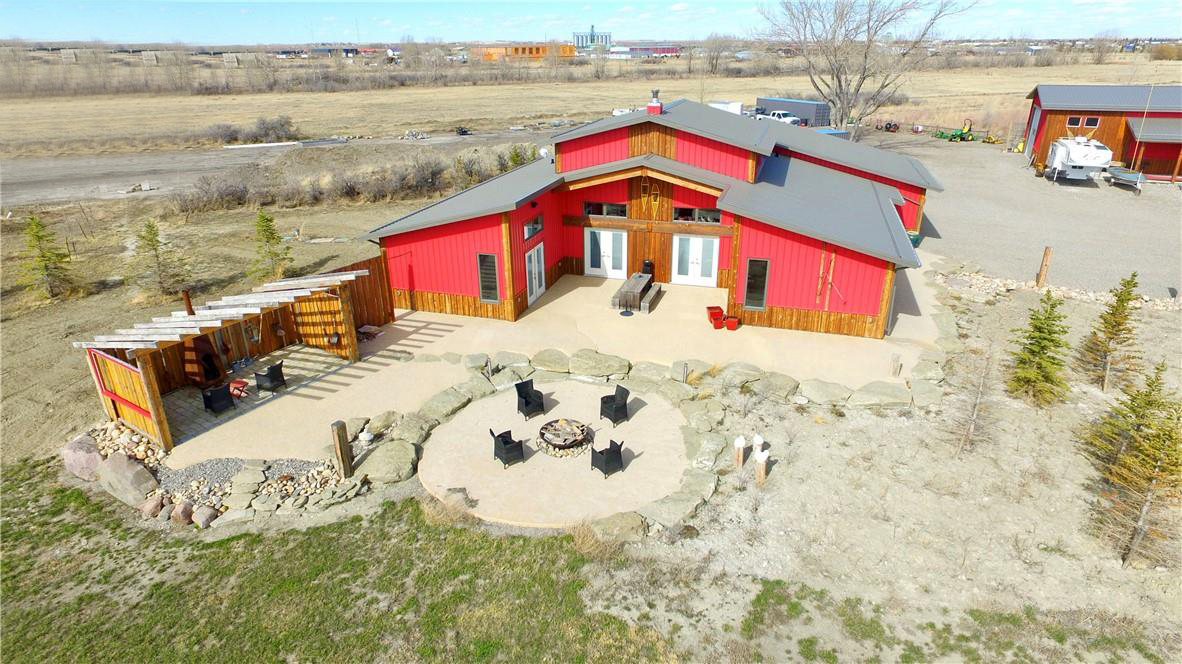

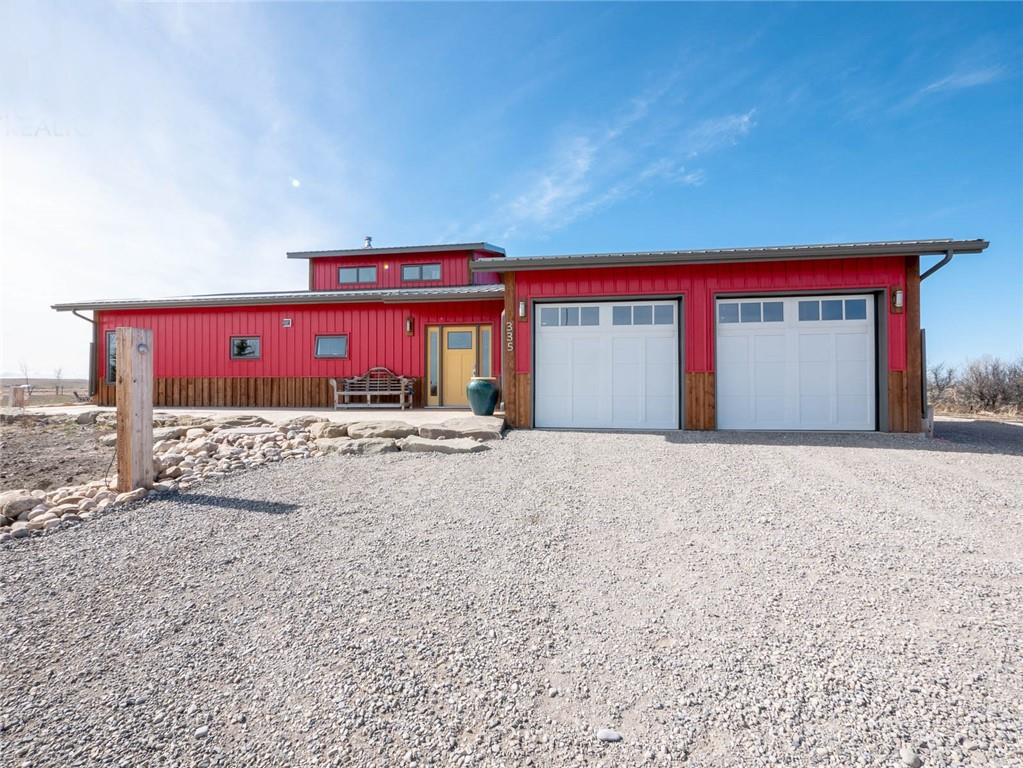

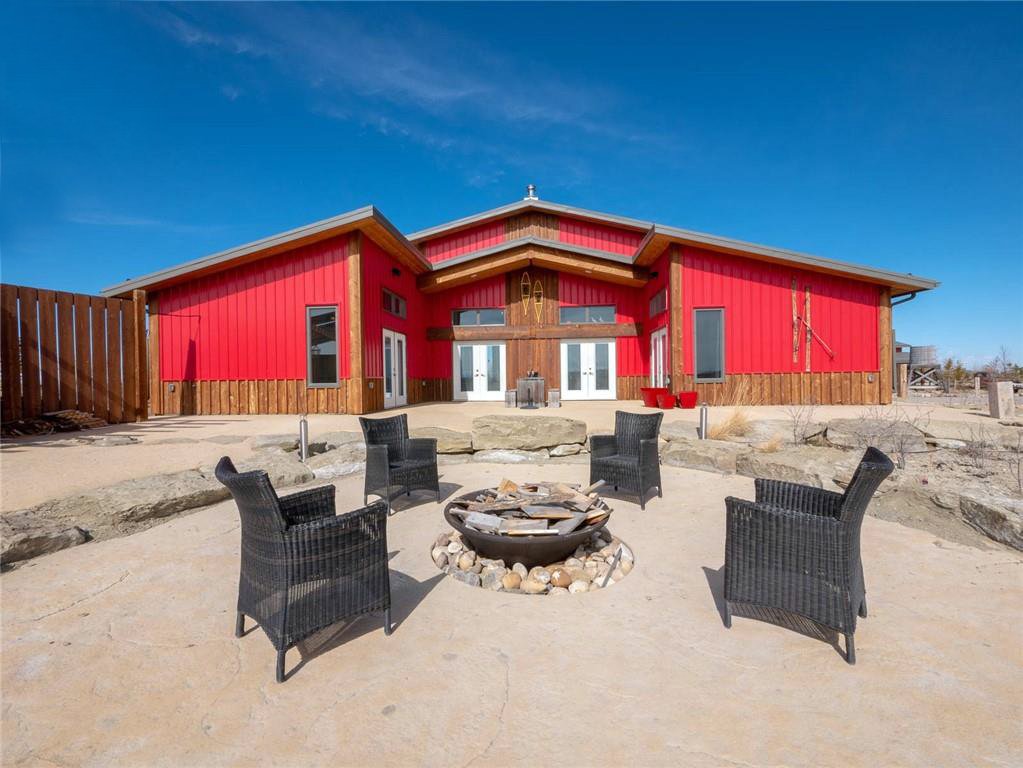

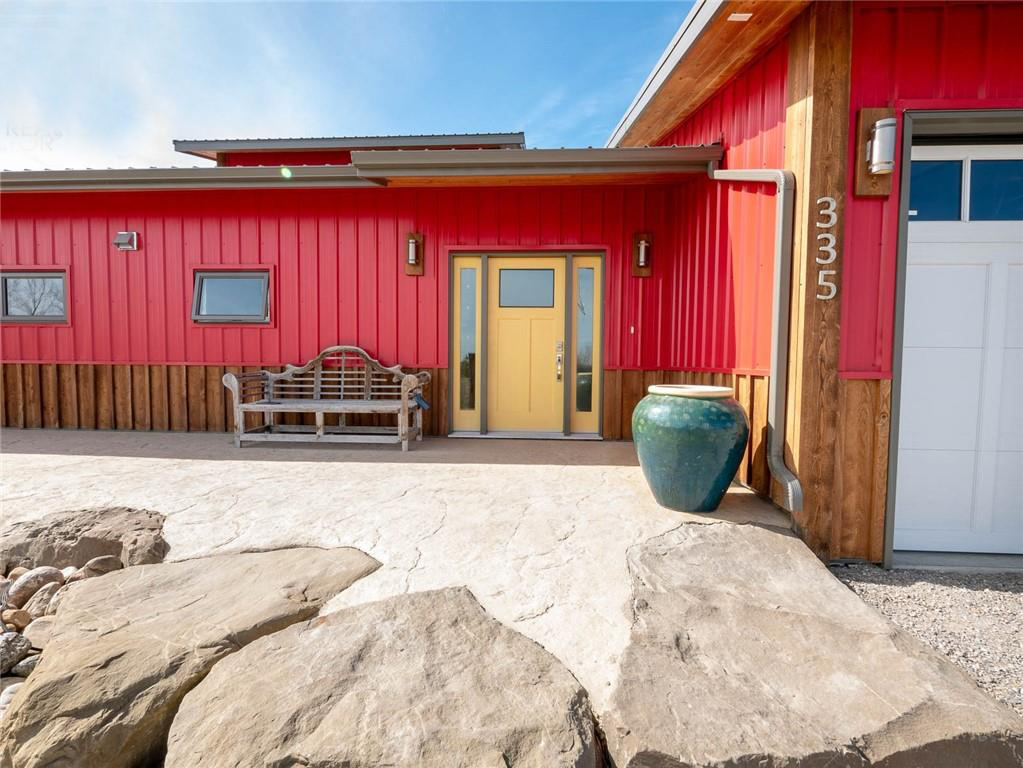

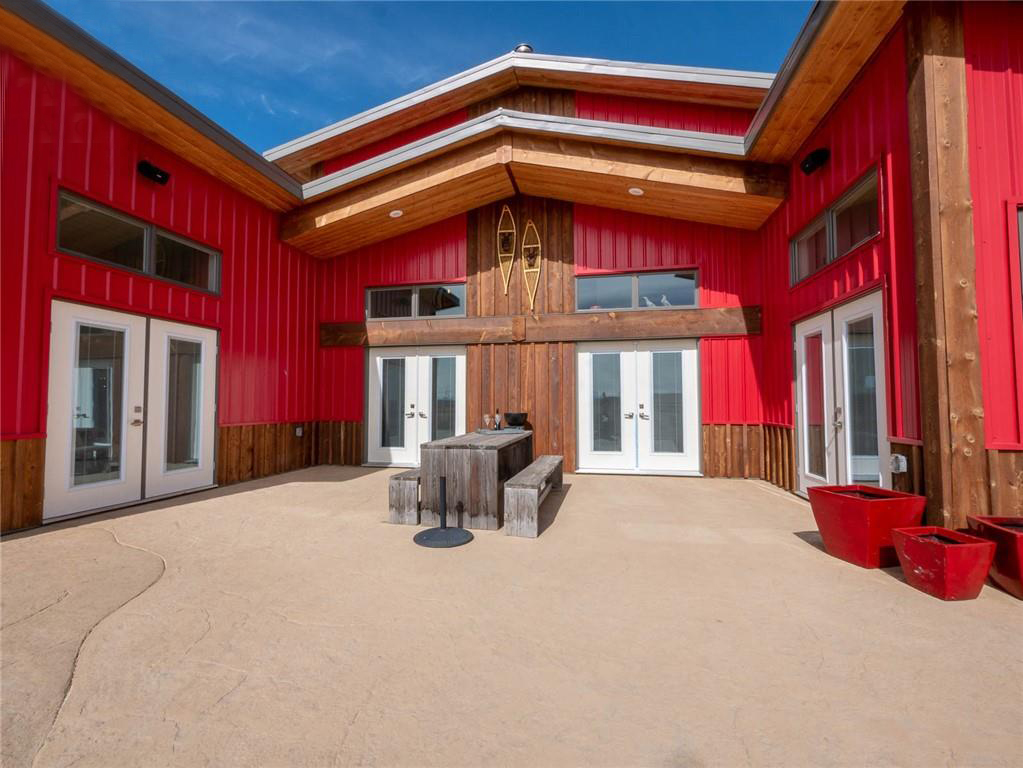

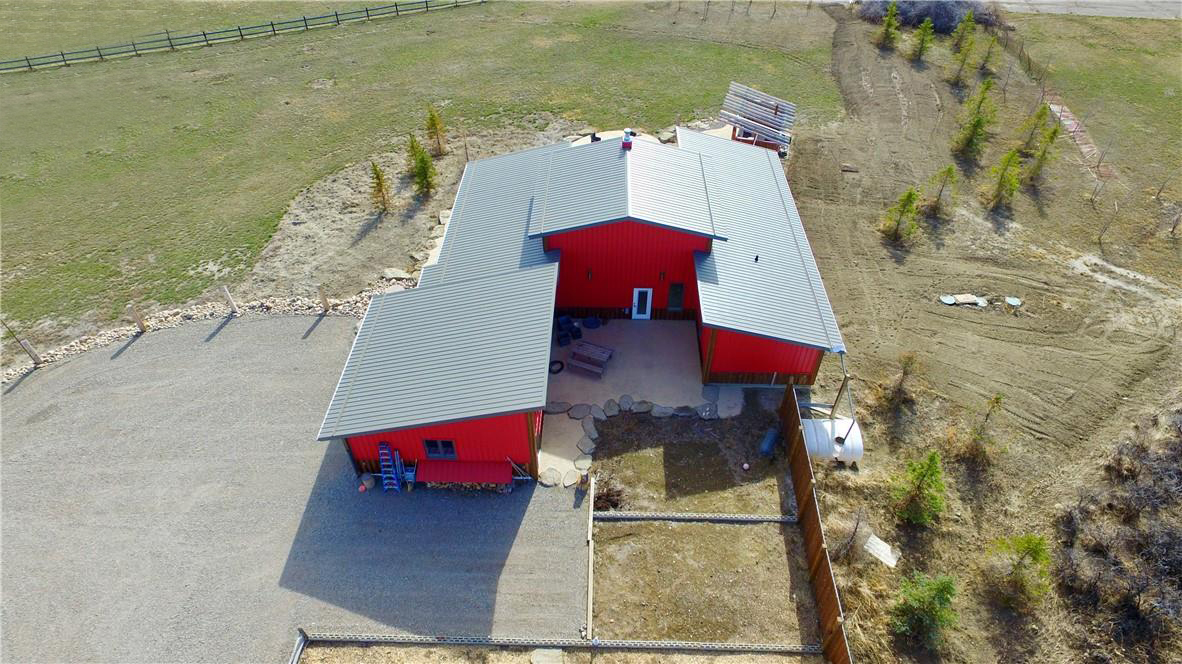

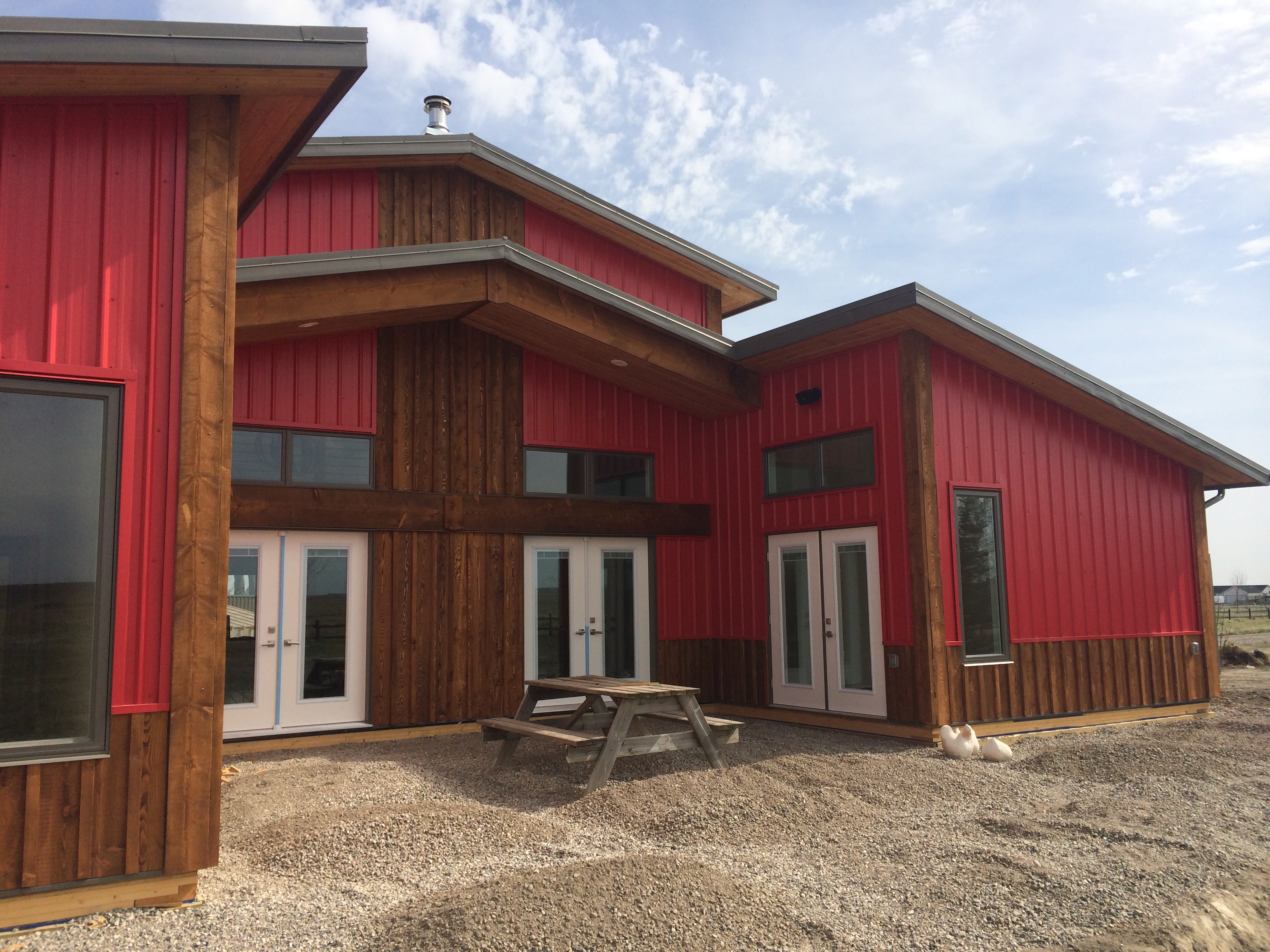

Residential Building with I/9 in Bright Red and I/9 in Sage (roof)
Residential Building with I/9 in Bright Red and I/9 in Sage (roof)
Residential Building with I/9 in Bright Red and I/9 in Sage (roof)
Residential Building with I/9 in Bright Red and I/9 in Sage (roof)
Residential Building with I/9 in Bright Red and I/9 in Sage (roof)
Residential Building with I/9 in Bright Red and I/9 in Sage (roof)
Residential Building with I/9 in Bright Red and I/9 in Sage (roof)

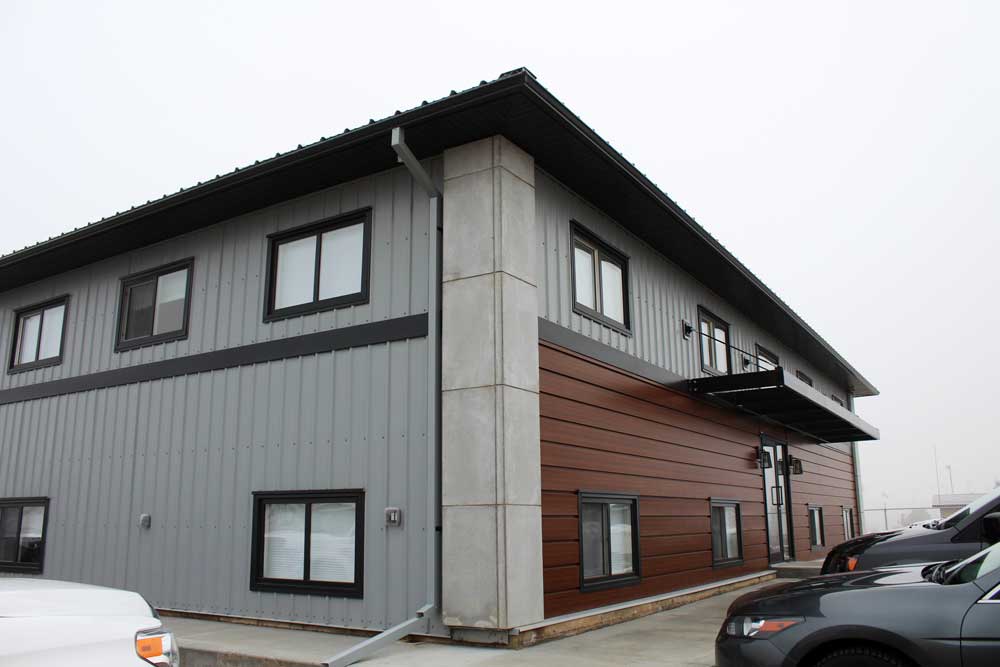

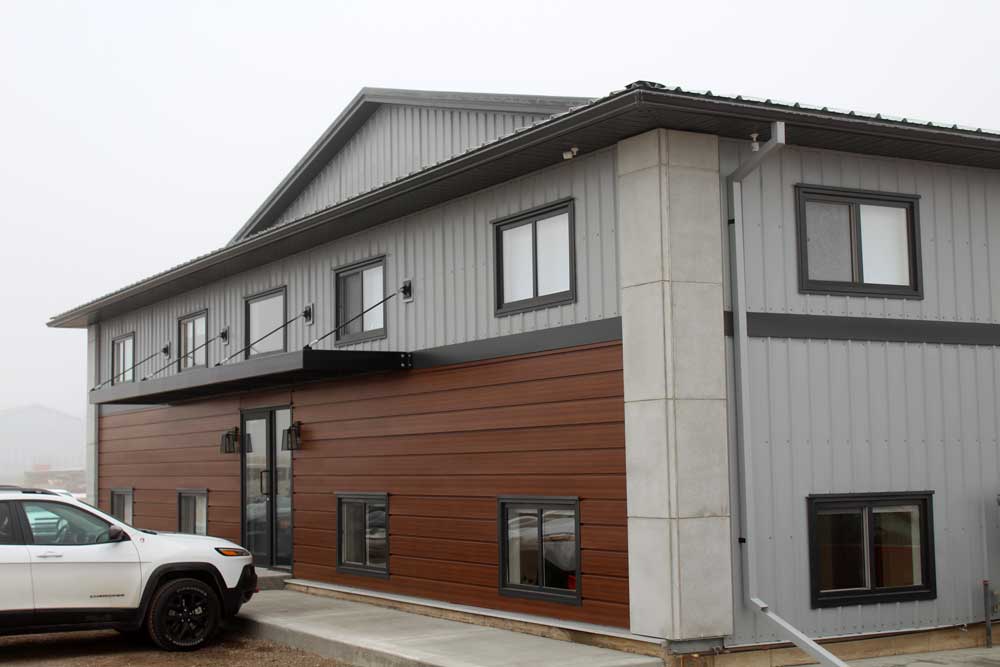

Commercial office with Espresso Woodgrain Forma Plank and Regent Grey in I/9
Commercial office with Espresso Woodgrain Forma Plank and Regent Grey in I/9

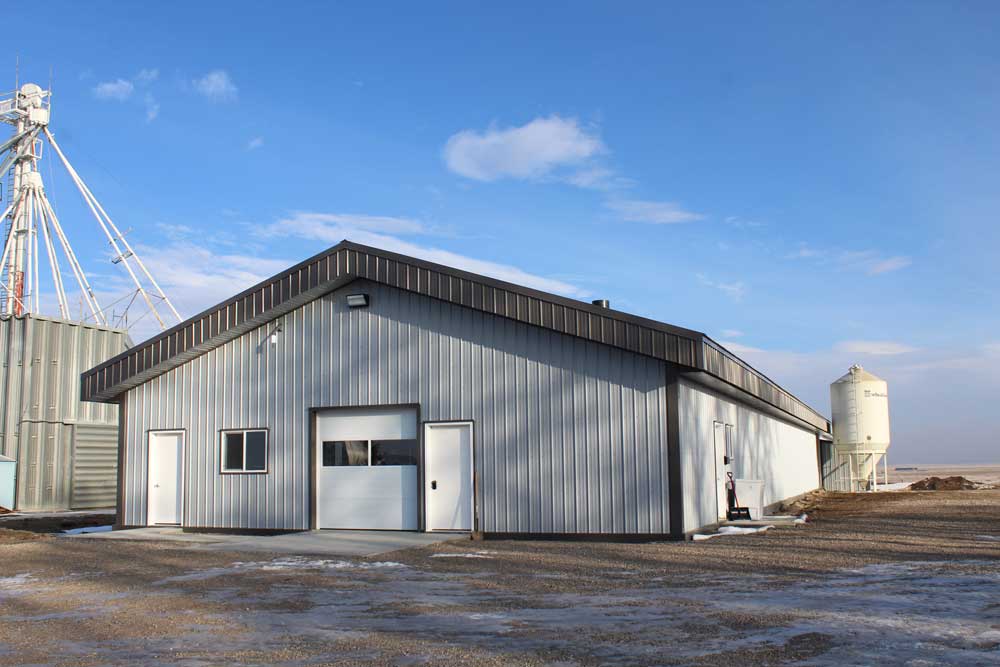

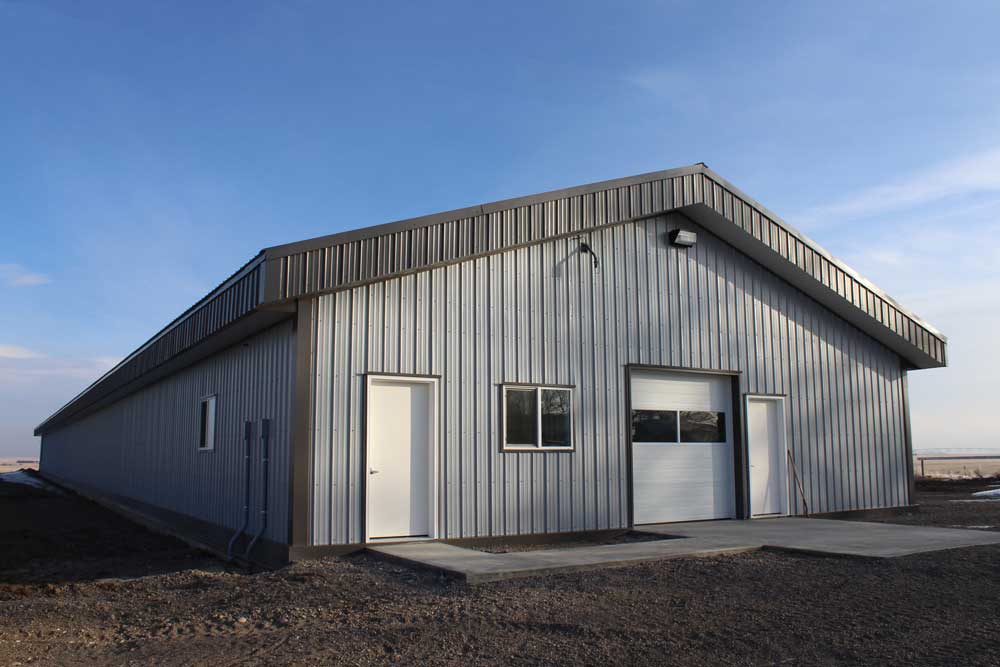

Barn with Regent Grey and Charcoal in I/9
Barn with Regent Grey and Charcoal in I/9
Barn with Regent Grey and Charcoal in I/9

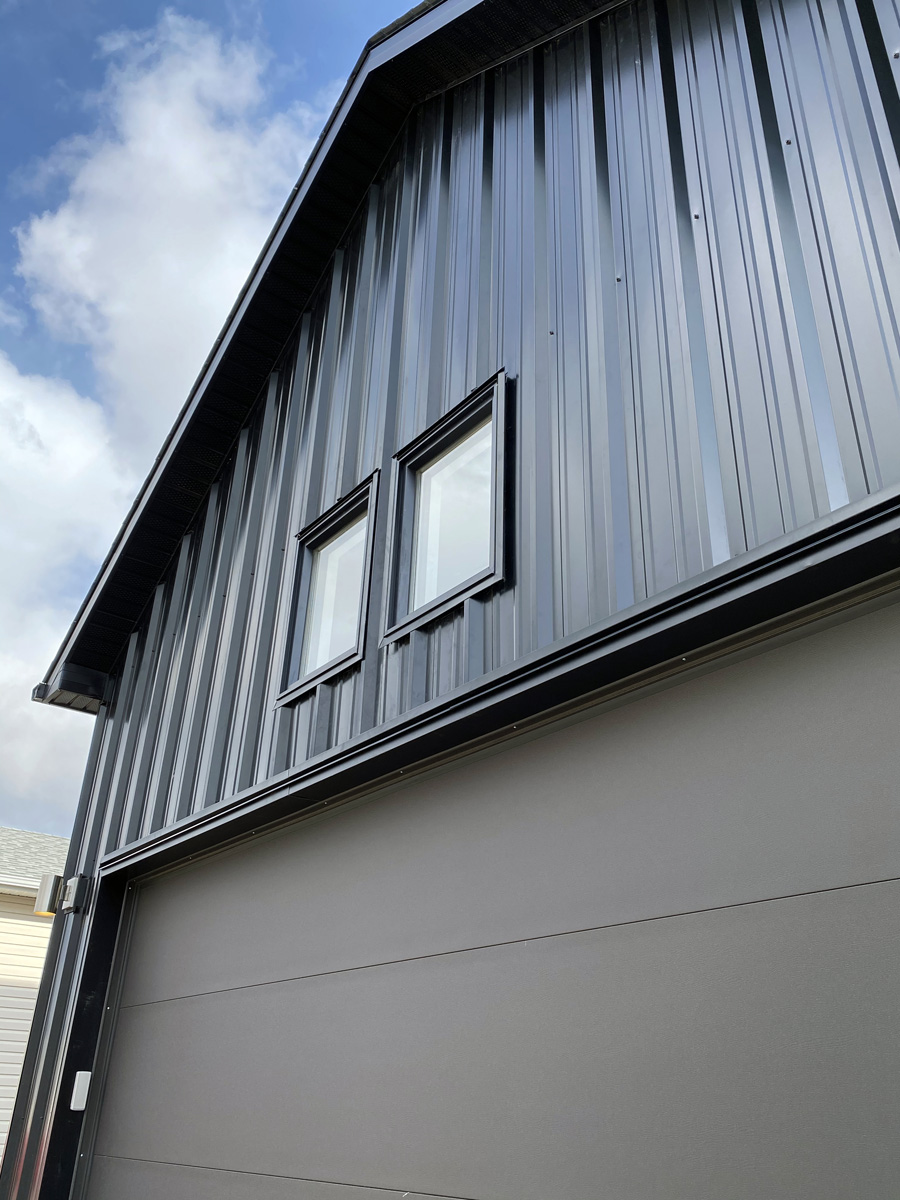

Residential Home Exterior
