FORMA LOC

Hidden Fastener Standing Seam Panel

Our Forma Loc panel system is a hidden fastener standing seam panel that offers easy installation for roofers and DIY homeowners alike. The panels snap onto each other to hide fasteners beneath, creating a clean and professional appearance to every installation. FormaLoc is available in 12" and 16" coverages with minor ribs or striations to minimize oil canning. Forma Loc works well for both roof (26ga only) or side panel applications. With long clean lines, this panel system provides recognized standing seam performance, while remaining an affordable product for a wide array of projects. Forma Loc should always be installed on solid decking.

Panel Specification & Installation Info:

  • Note: Striations are recommended over minor ribs on all Forma Loc panels as they are much more effective in minimizing oil-canning.
  • Note: Forma Loc panels installed on roofs must be 26 gauge.

Panel Profile

Forma Loc Panel by Forma Steel in 12" or 16" Coverage
All
29 Gauge
26 Gauge

Galvanized

24 Gauge, 29 Gauge

Galvalume

24 Gauge, 26 Gauge, 29 Gauge

Bright White

24 Gauge, 26 Gauge, 29 Gauge

White White

24 Gauge, 26 Gauge, 29 Gauge

Iceberg

24 Gauge, 26 Gauge, 26ga

Bone White

24 Gauge, 26 Gauge, 29 Gauge

Iceberg

24 Gauge, 26 Gauge

Wicker

24 Gauge, 26 Gauge, 29 Gauge

Antique Linen

29 Gauge

Stone Grey

24 Gauge, 26 Gauge, 29 Gauge

Hickory

24 Gauge, 26 Gauge

Seawolf

29 Gauge

Buckskin

24 Gauge, 26 Gauge, 29 Gauge

Sable

29 Gauge

Tan

24 Gauge, 26 Gauge, 29 Gauge

Gold

29 Gauge

Copper Penny

29 Gauge

Bright Red

24 Gauge, 29 Gauge

Tile Red

24 Gauge, 29 Gauge

Dark Red

24 Gauge, 26 Gauge, 29 Gauge

Coffee Brown

24 Gauge, 26 Gauge, 29 Gauge

Dark Brown

24 Gauge, 26 Gauge, 29 Gauge

Black

24 Gauge, 26 Gauge, 29 Gauge

Carbon

24 Gauge, 26 Gauge, 29 Gauge

Gunmetal

26 Gauge, 29 Gauge

Charcoal

24 Gauge, 26 Gauge, 29 Gauge

Regent Grey

24 Gauge, 26 Gauge, 29 Gauge

Ascot Grey

29 Gauge

Oxford Blue

24 Gauge, 26 Gauge

Slate Blue

24 Gauge, 29 Gauge

Royal Blue

24 Gauge, 29 Gauge

Heron Blue

24 Gauge, 29 Gauge

Sapphire Blue

24 Gauge, 29 Gauge

Turquoise

29 Gauge

Dark Sage

29 Gauge

Melchers Green

24 Gauge, 26 Gauge, 29 Gauge


Specifications

Application: Roof & Wall

Coverage: 12" to 16"

Hidden Fasteners

Rib Height: 7/8"

Panel Length: Up to 35 feet

UL -Uplift Class 90

Recommended Roof Slope:
Greater than 3:12

Available Gauges for Forma Loc 12":
26 & 29 in standard colours

Available Gauges for Forma Loc 16":
26 in standard colours

Gauges Note: Roof applications are only available in 26 gauge

Note: Striations are recommended on all Forma Loc panels as they are most effective at minimizing oil canning

Substrate:
Walls:
1/2" Standard Plywood Minimum
Roof: 5/8"  Standard Plywood Minimum


Product Brochures



FORMALOC BROCHURE

FORMALOC INSTALL GUIDE

MINOR RIBS & STRIATIONS?

FORMALOC STANDARD TRIMS

Installation:


The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12. Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.

Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.

Inspiration Gallery:


FormaLoc

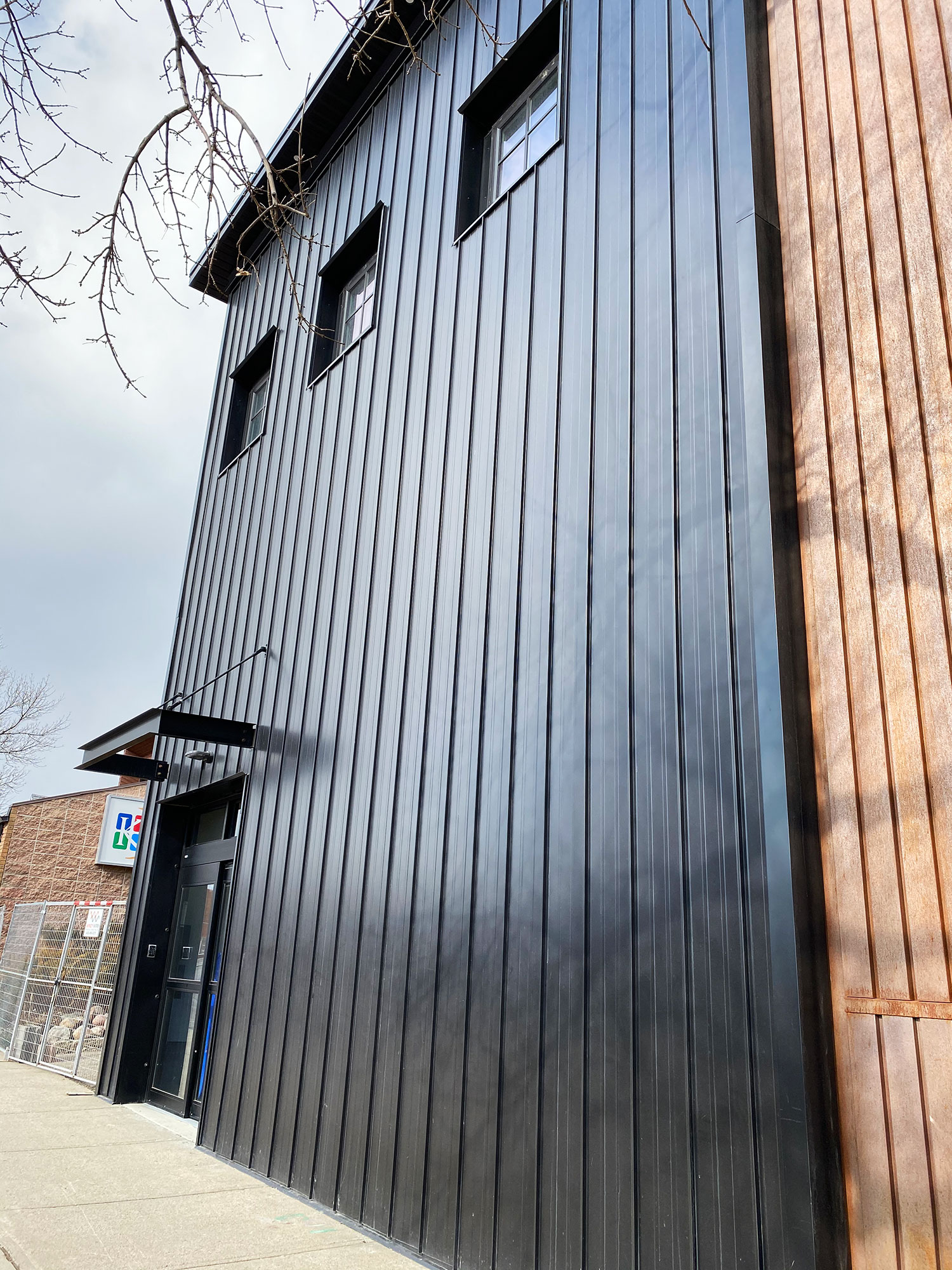

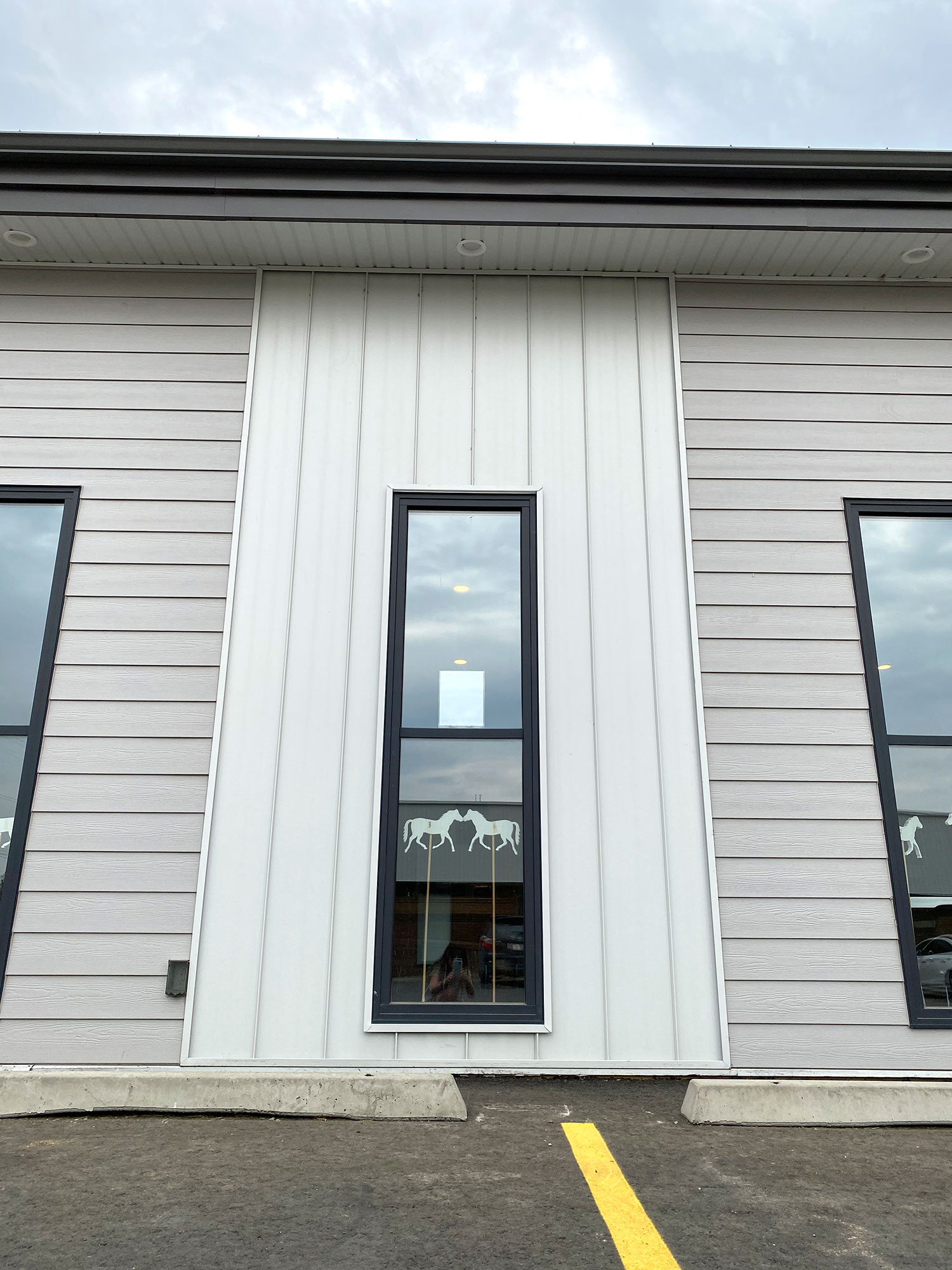

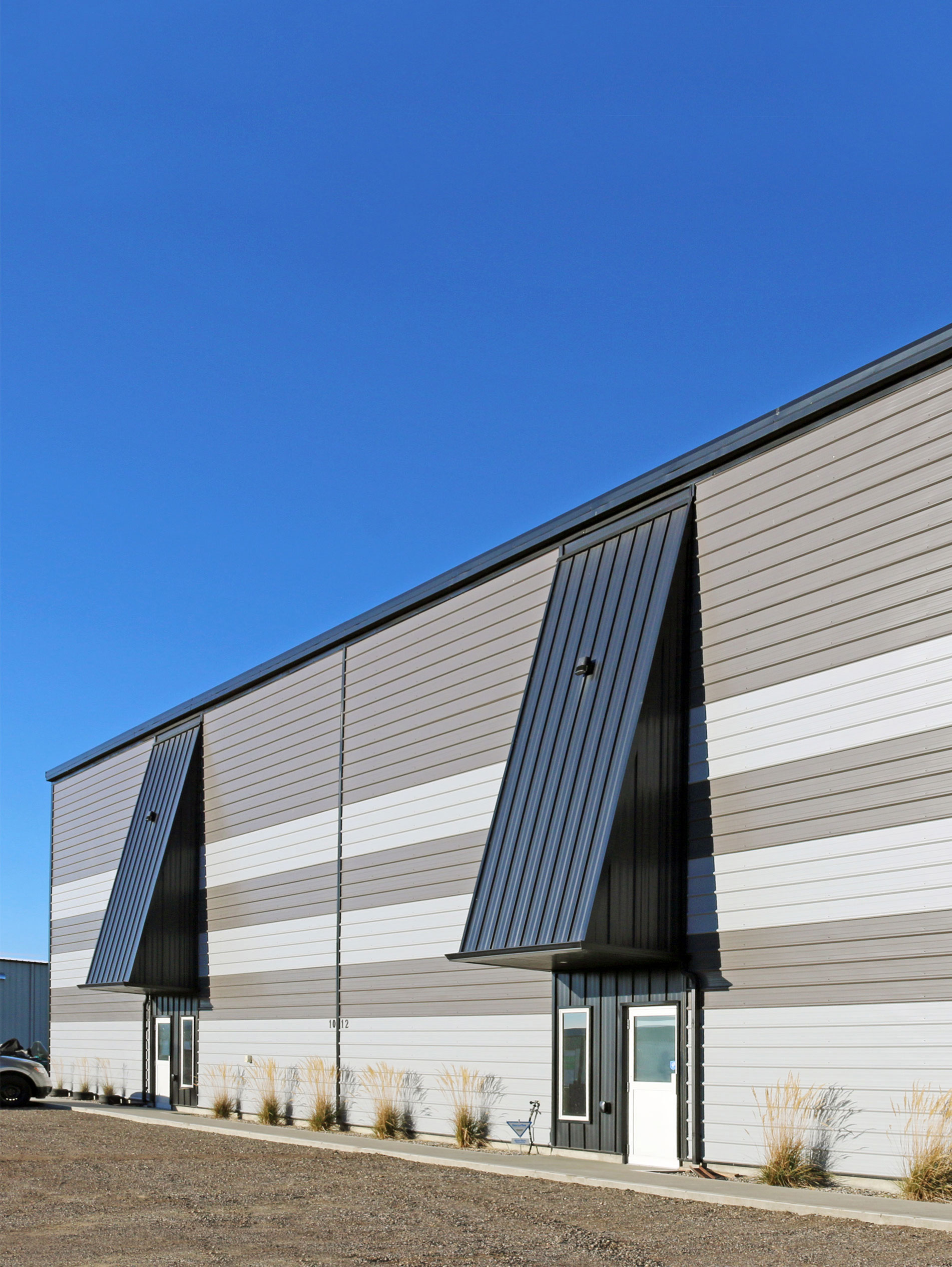

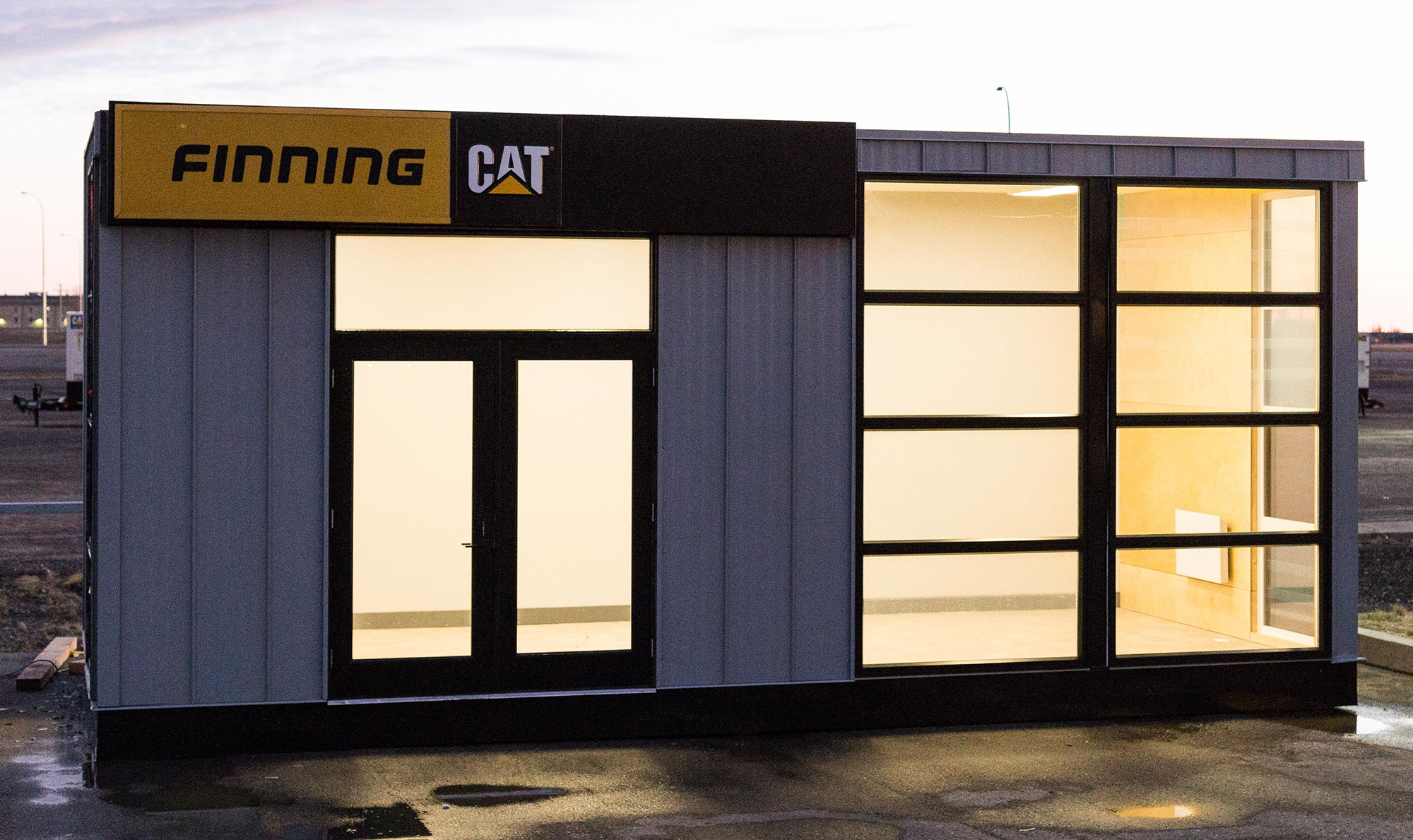

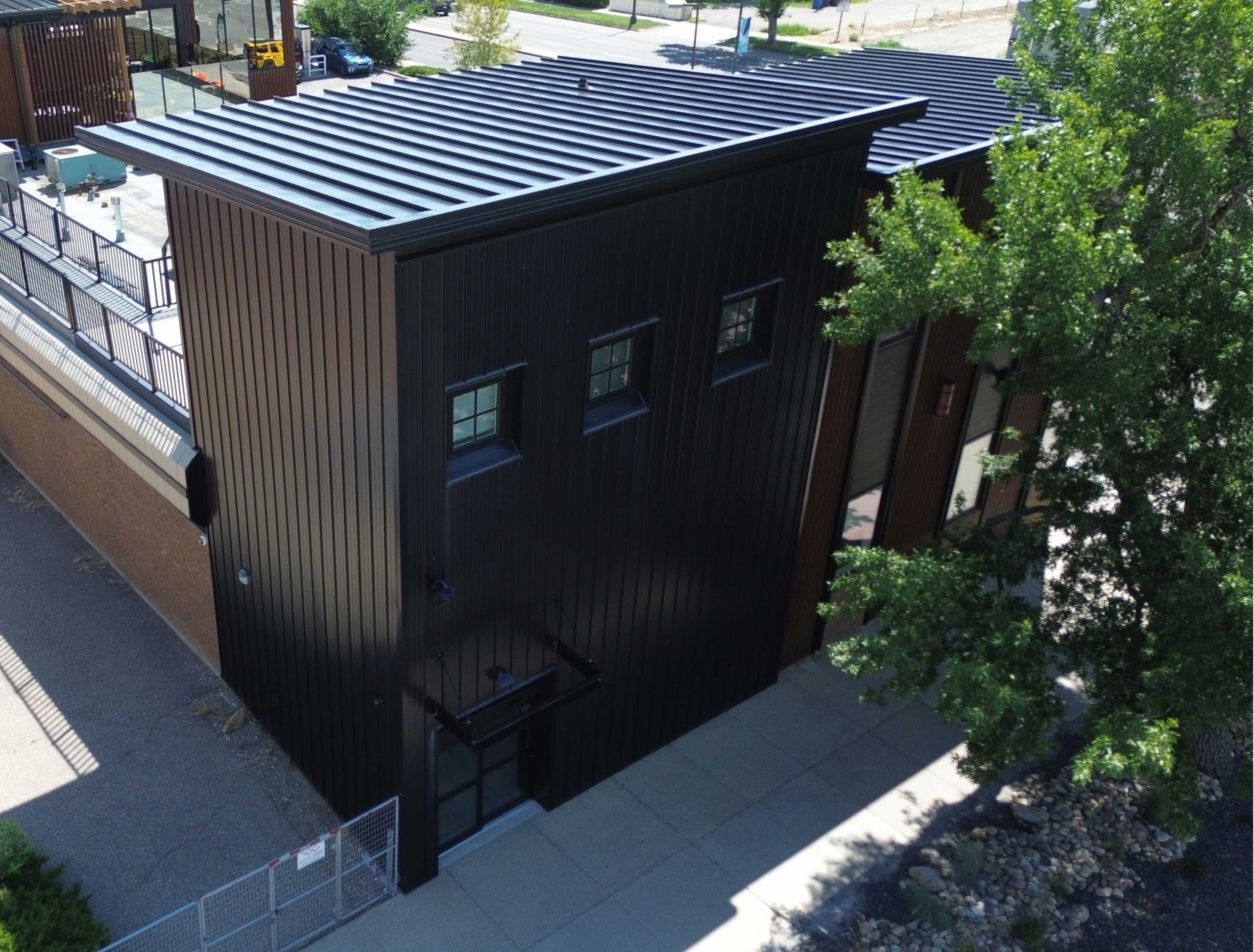

Commercial Office

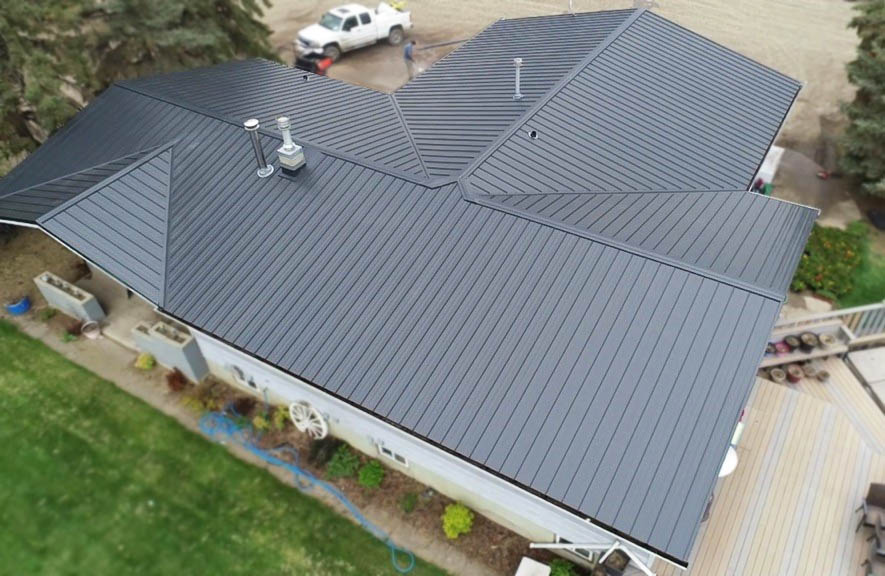

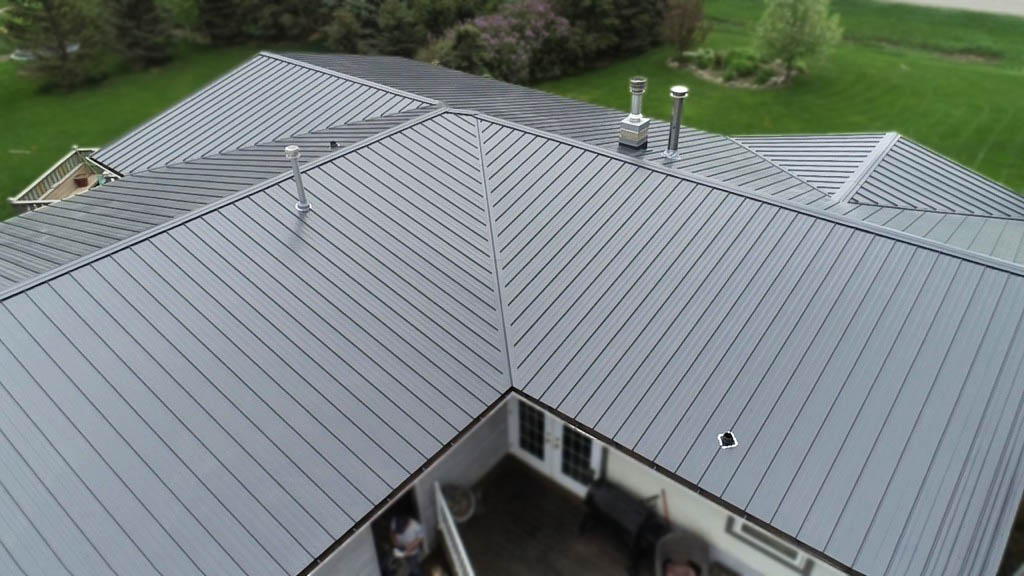

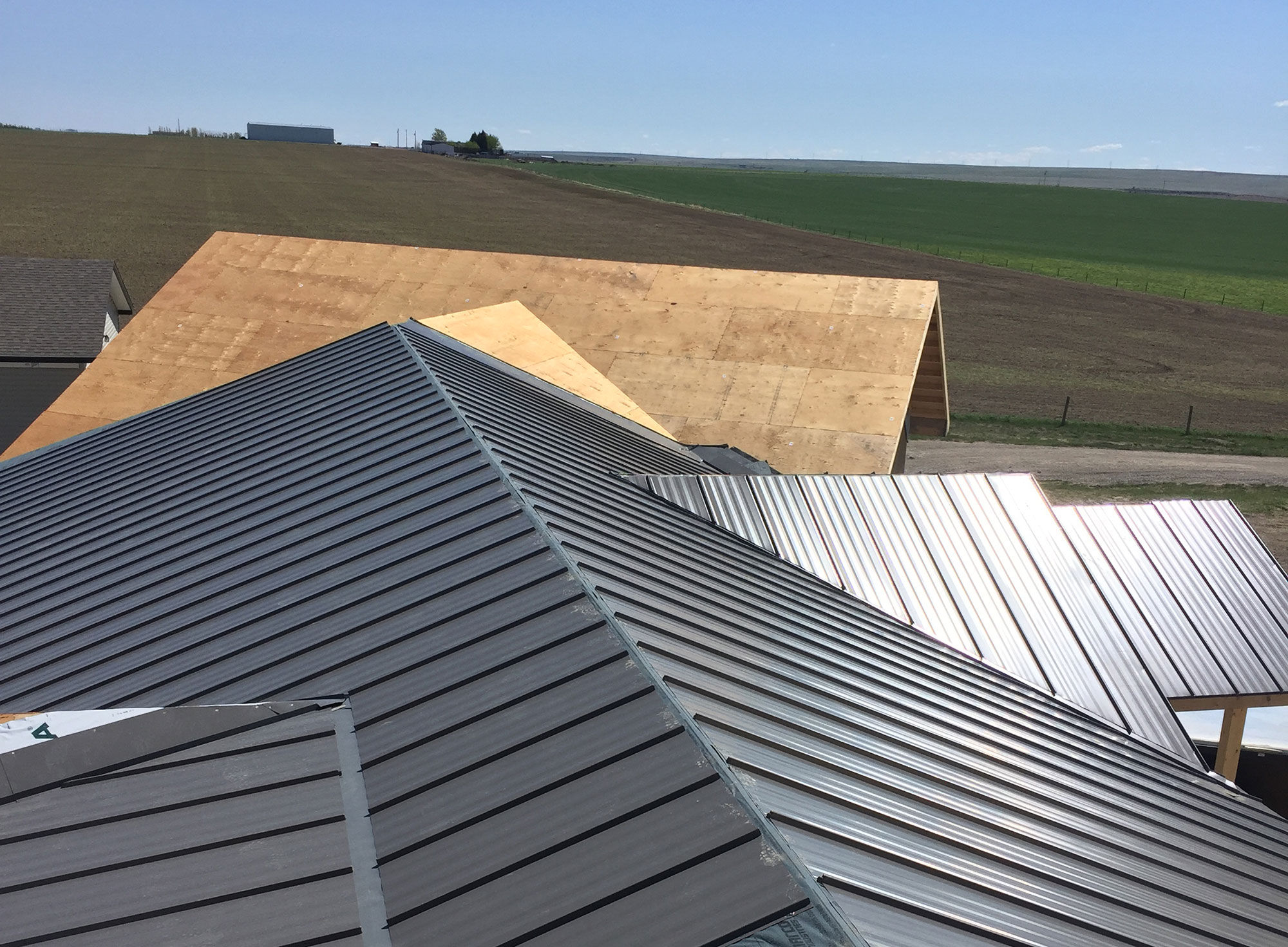

FormaLoc Roof
FormaLoc Roof

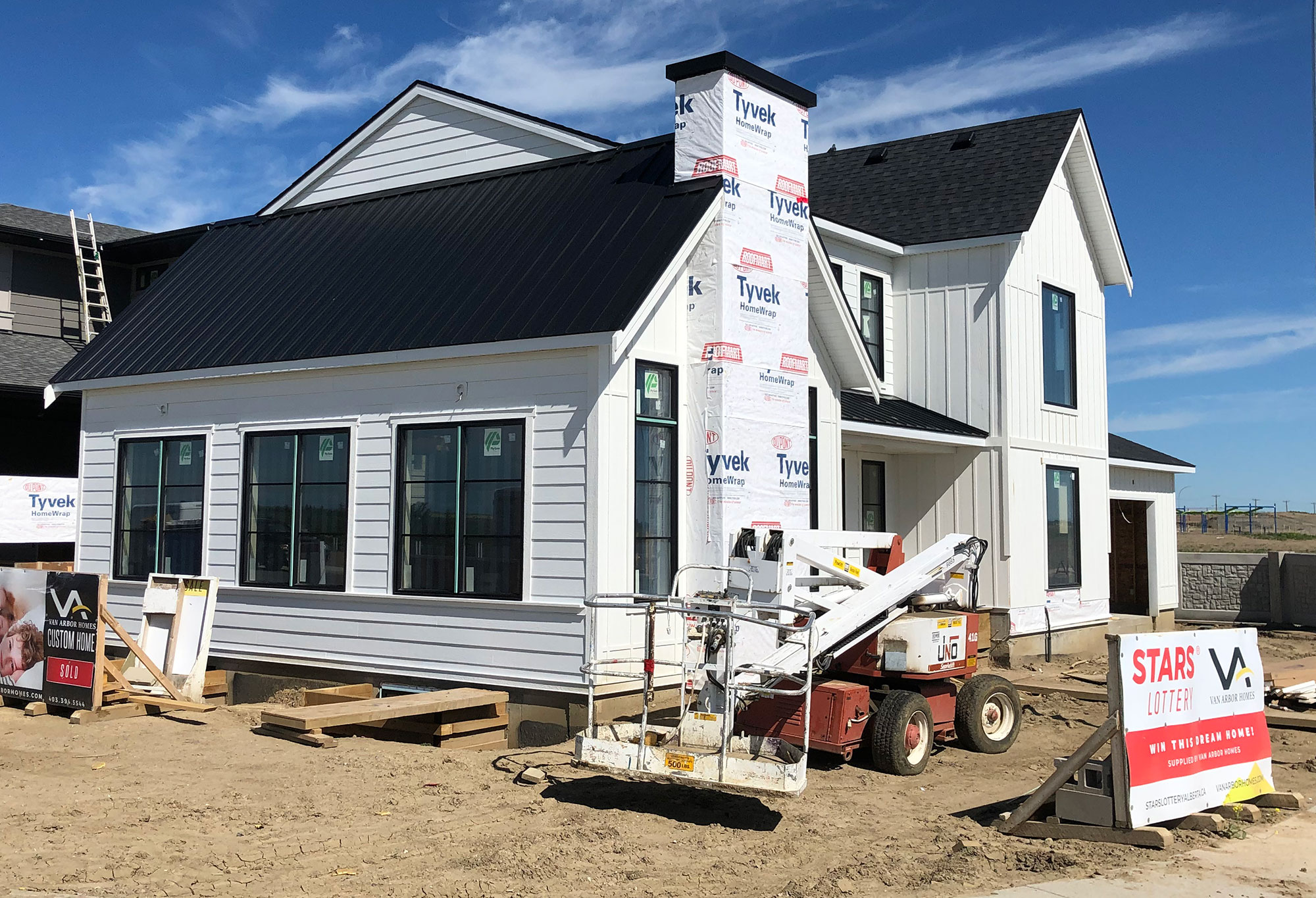

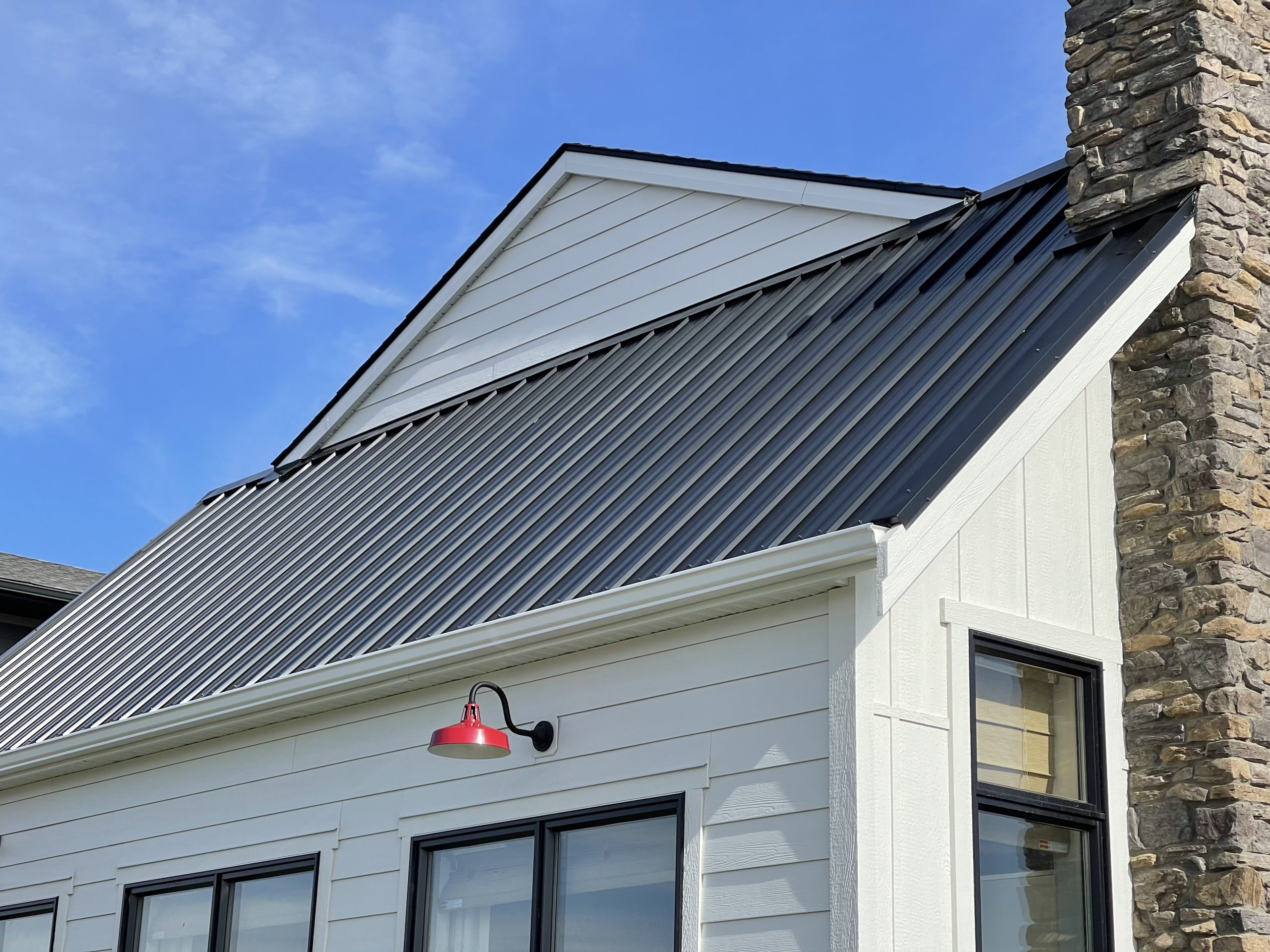

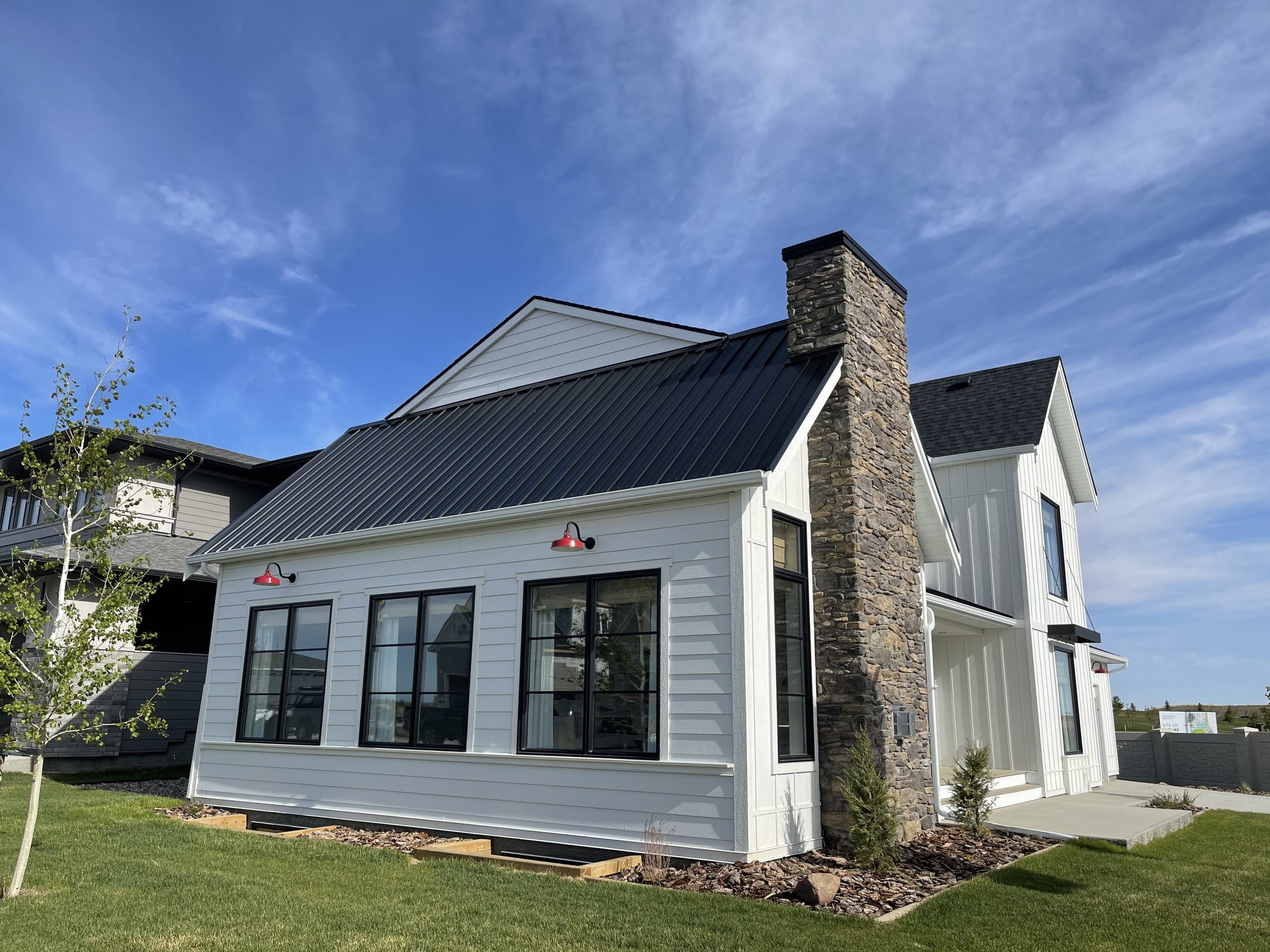

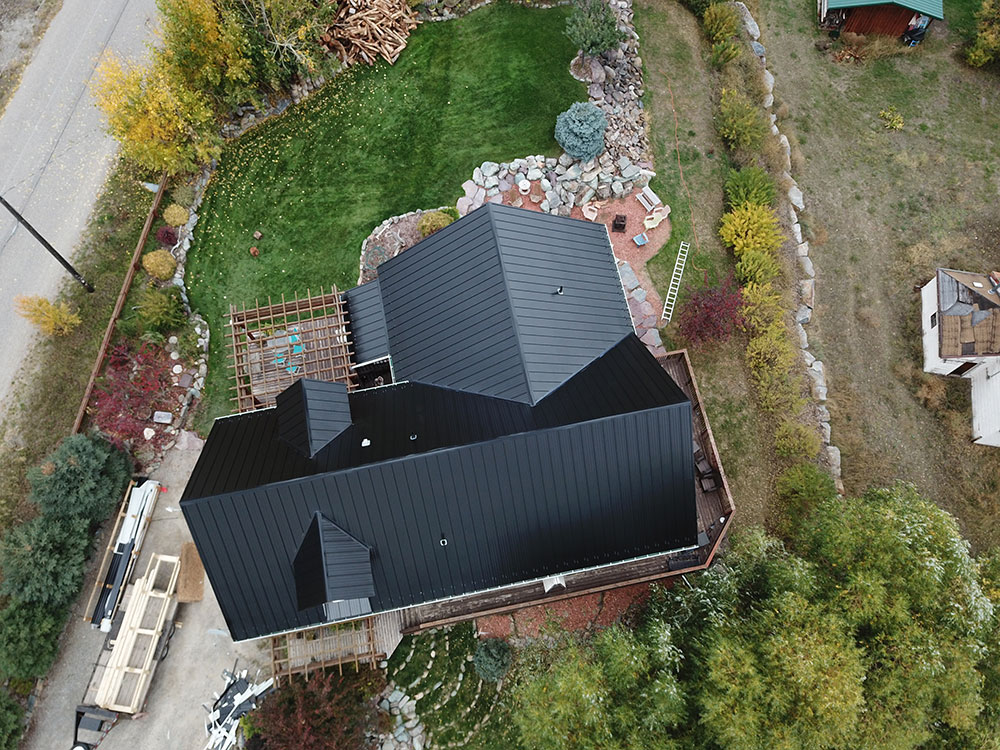

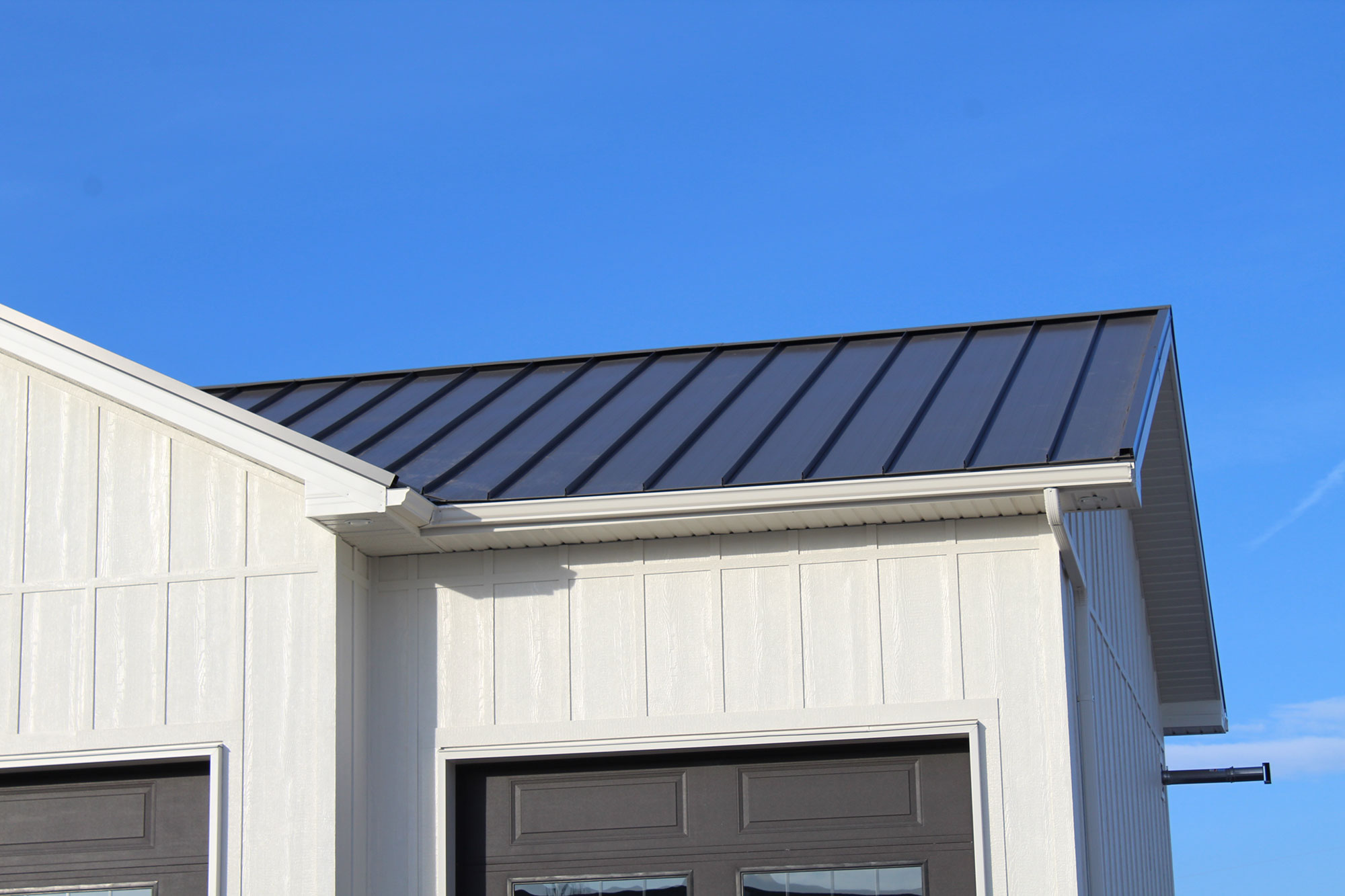

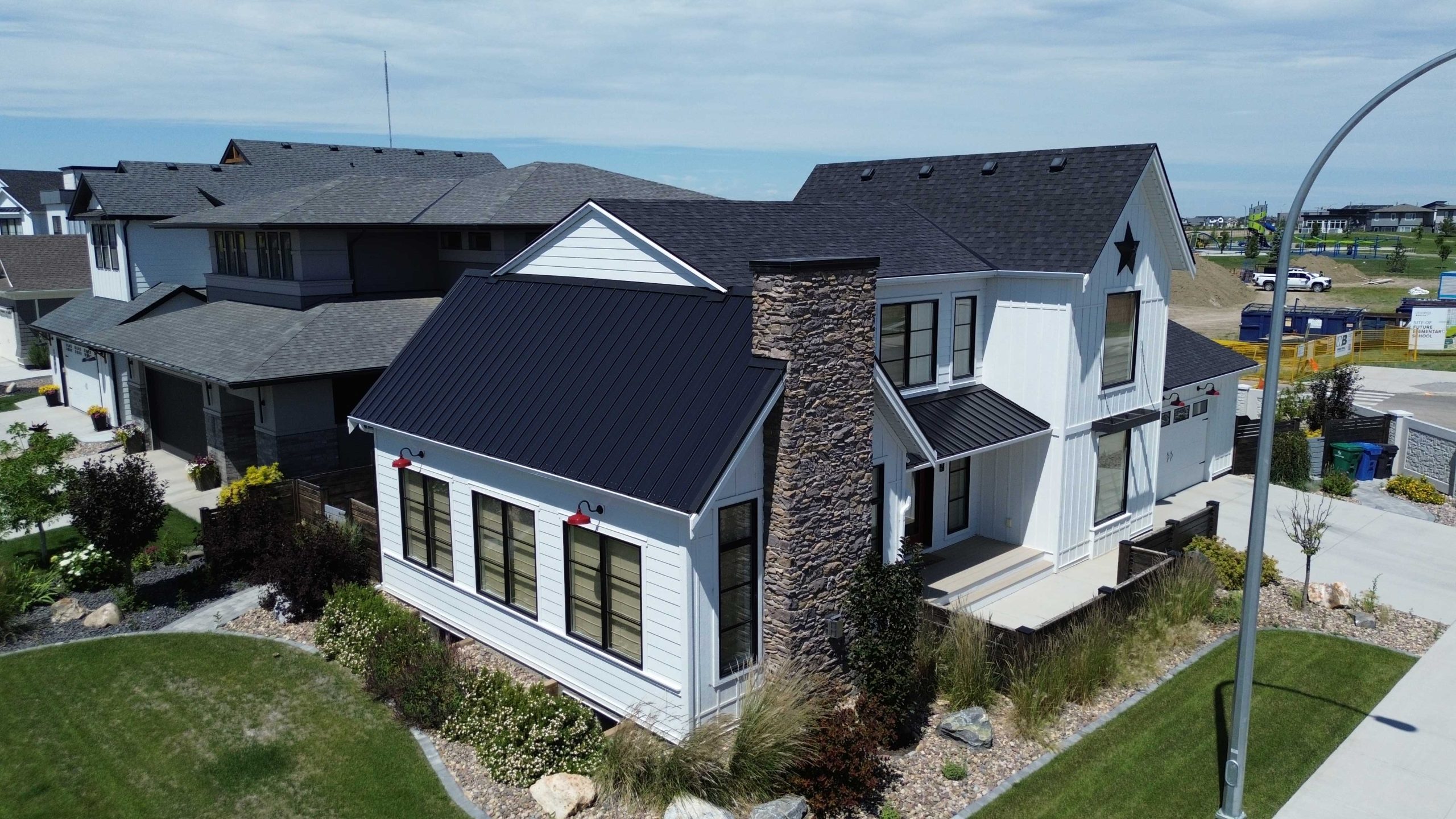

Residential Roof in Black 16" FormaLoc with Striations
Residential Roof in Black 16" FormaLoc with Striations

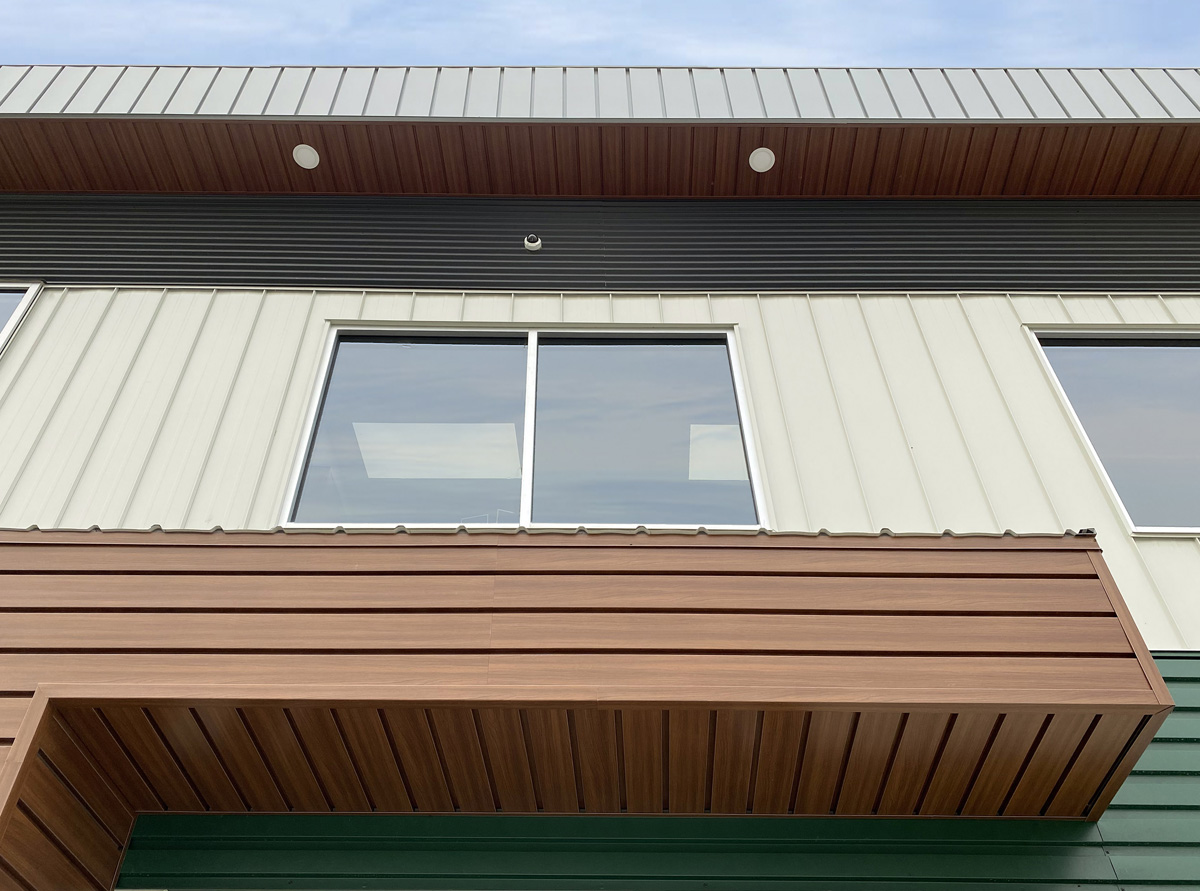

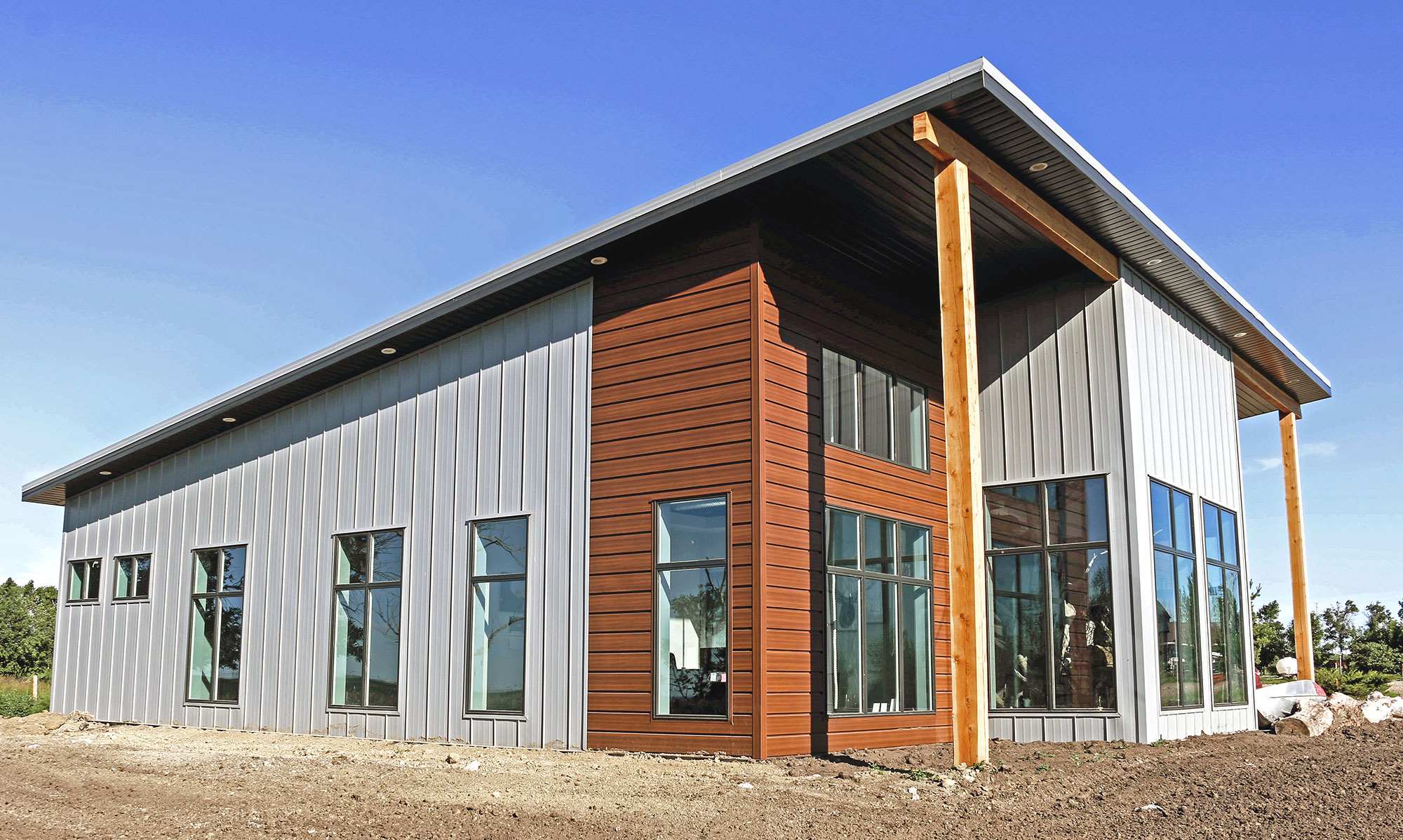

Retail StoreFront featuring Regent Grey Forma Loc Standing Seam Panel, Matte Anthracite 7/8 Corrugated Siding and Espresso Woodgrain Forma Plank Accent

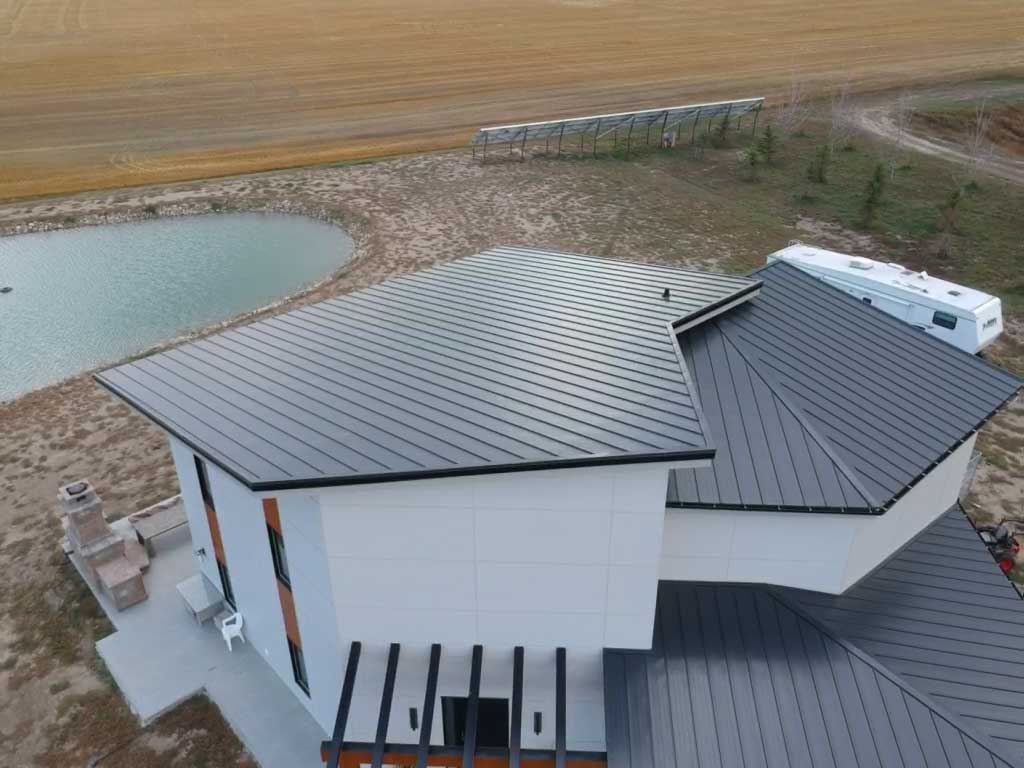

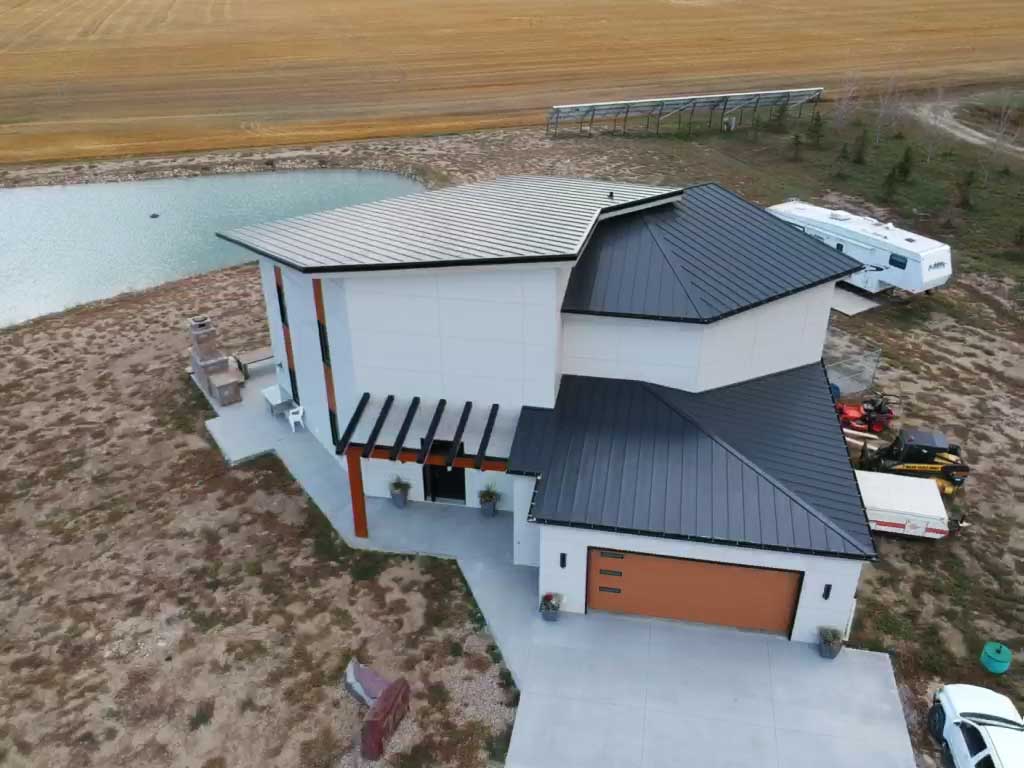

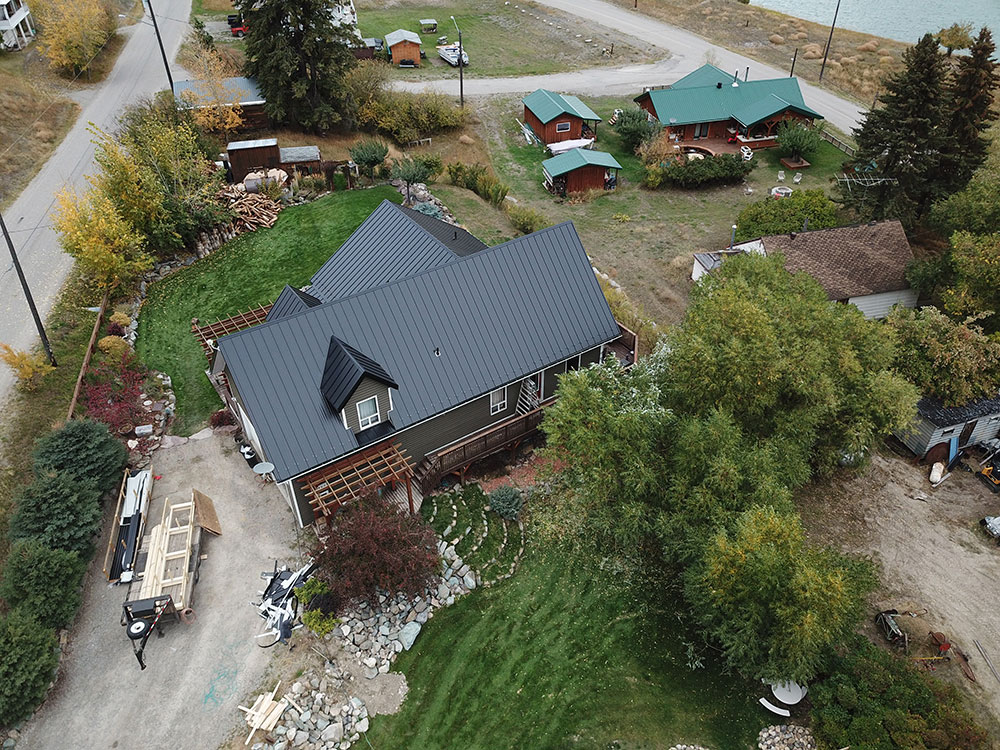

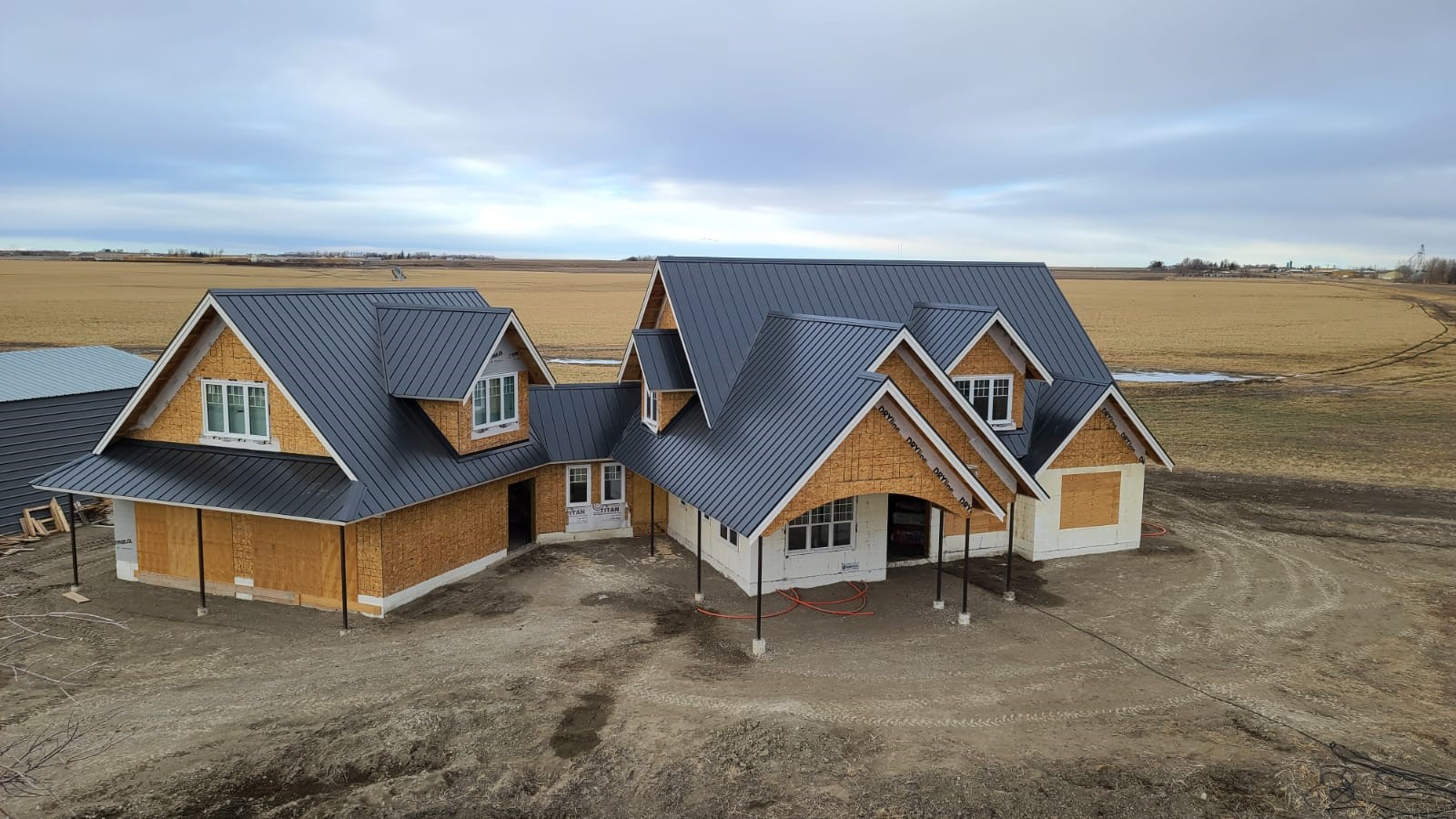

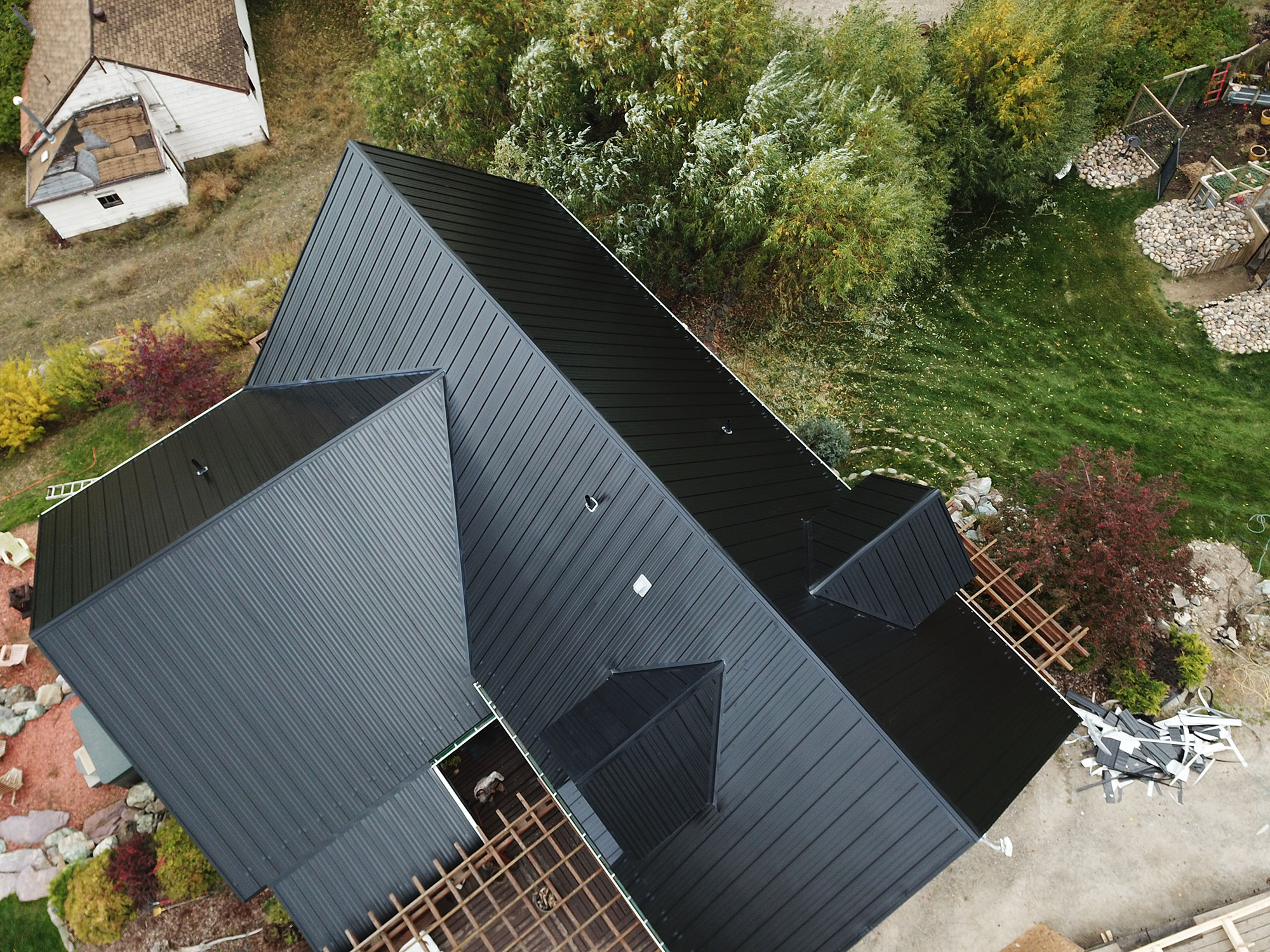

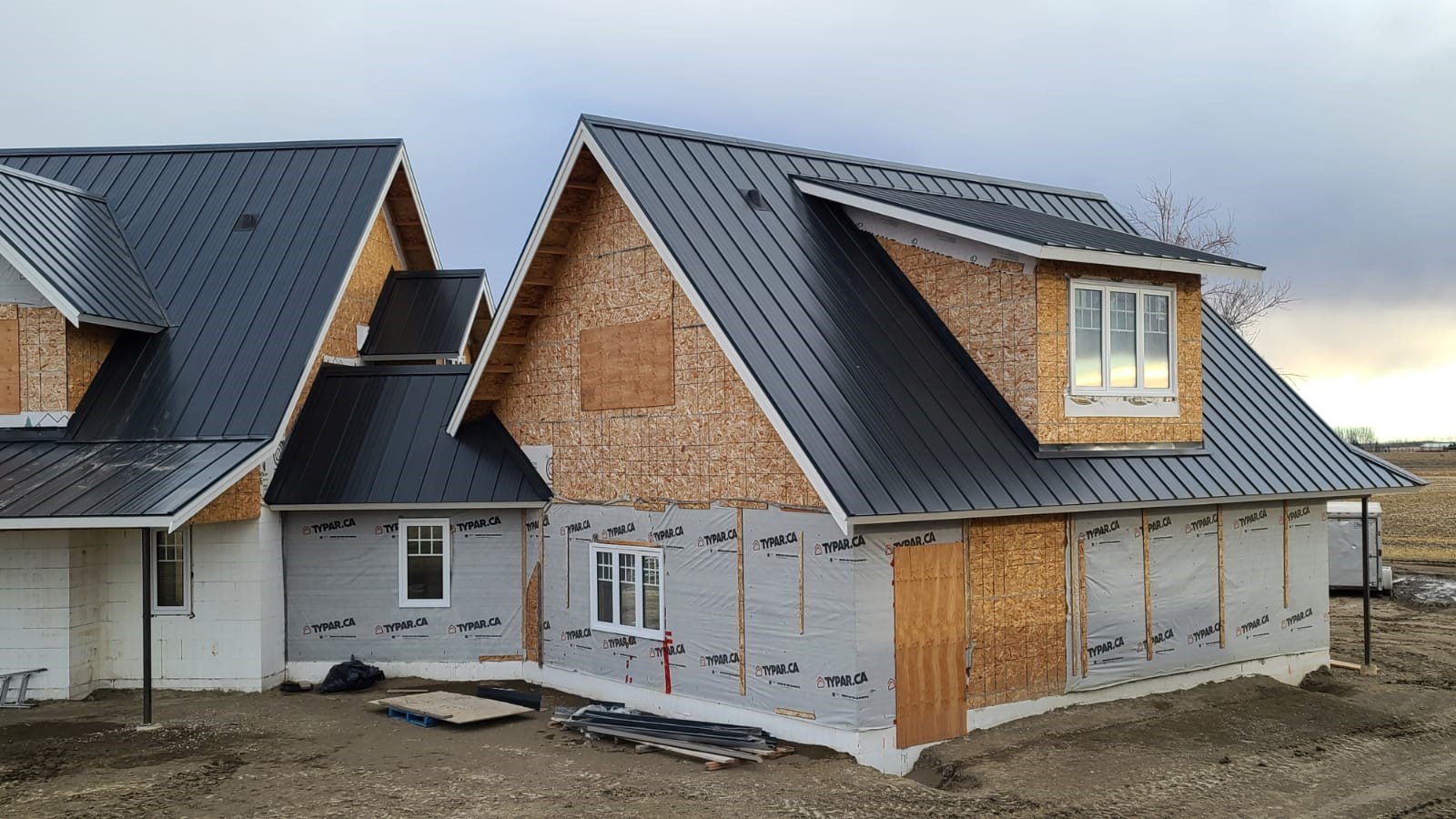

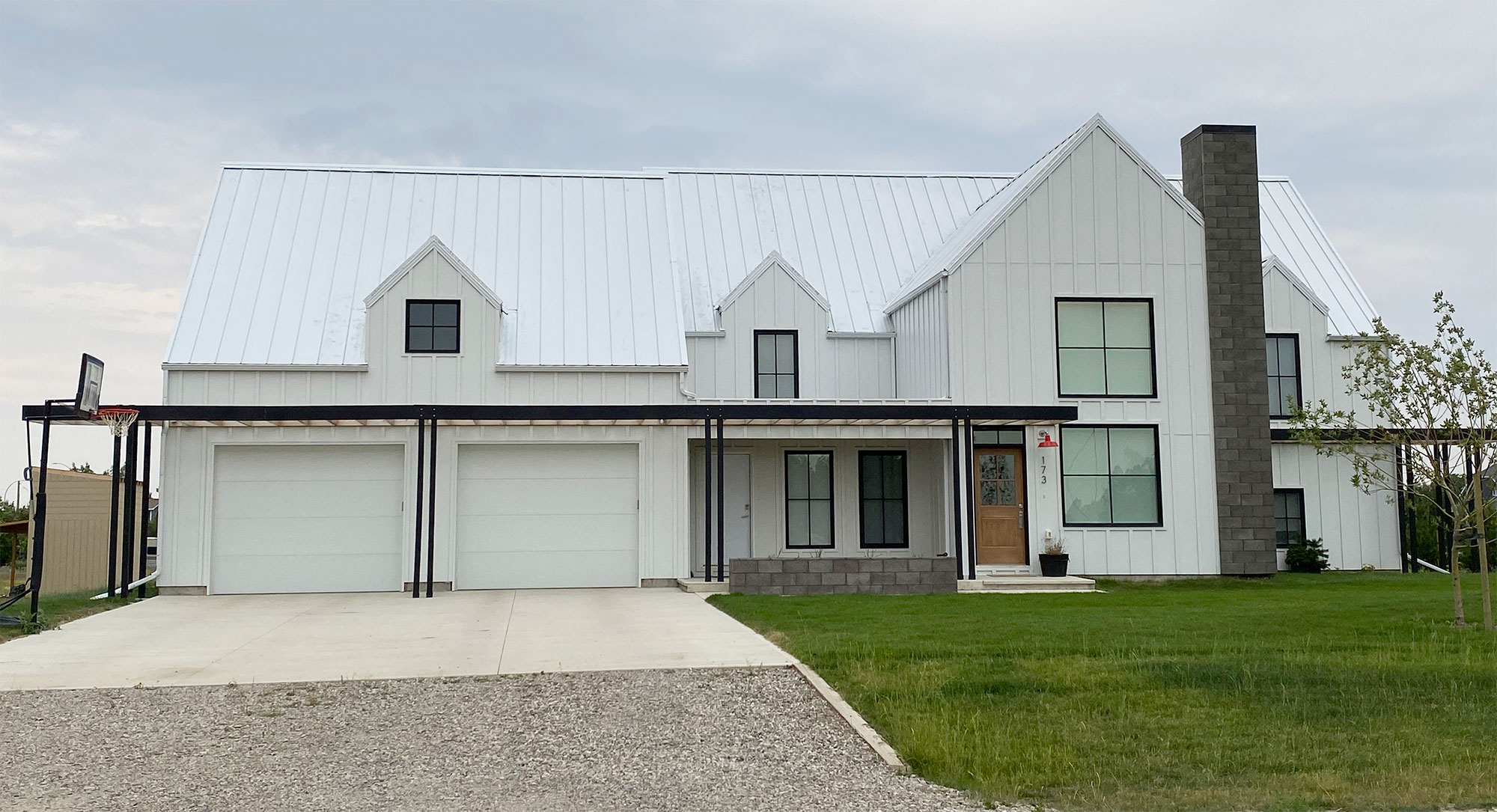

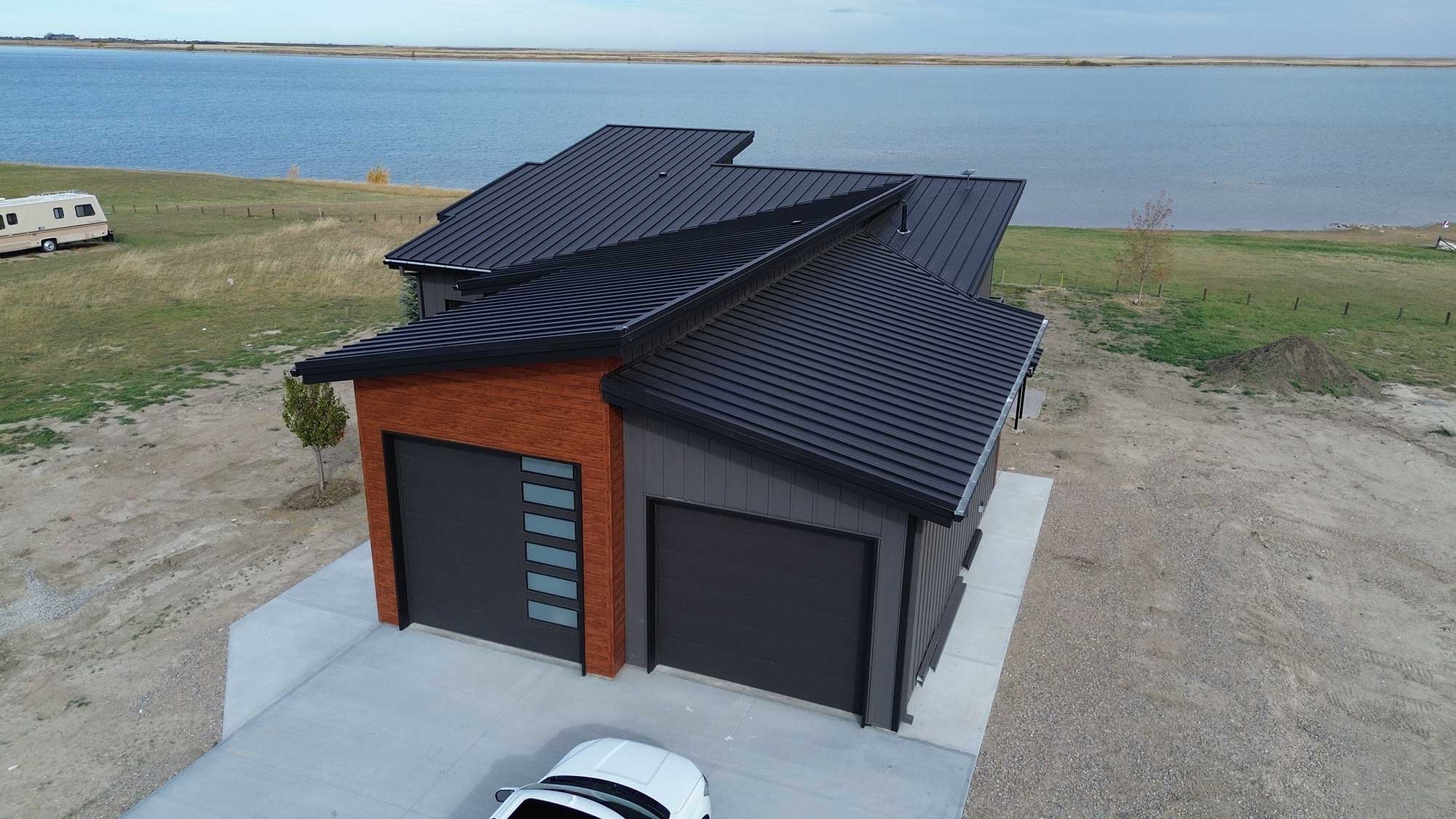

Residential Building with Black FormaLoc Roof
Residential Building with Black FormaLoc Roof

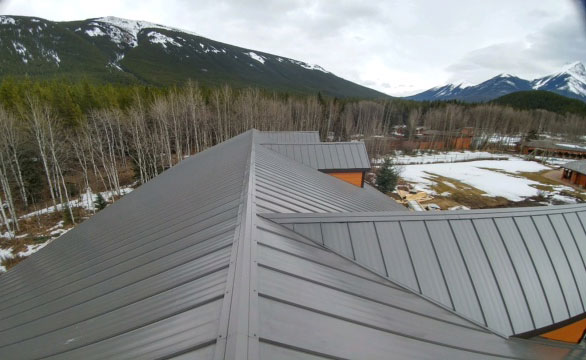

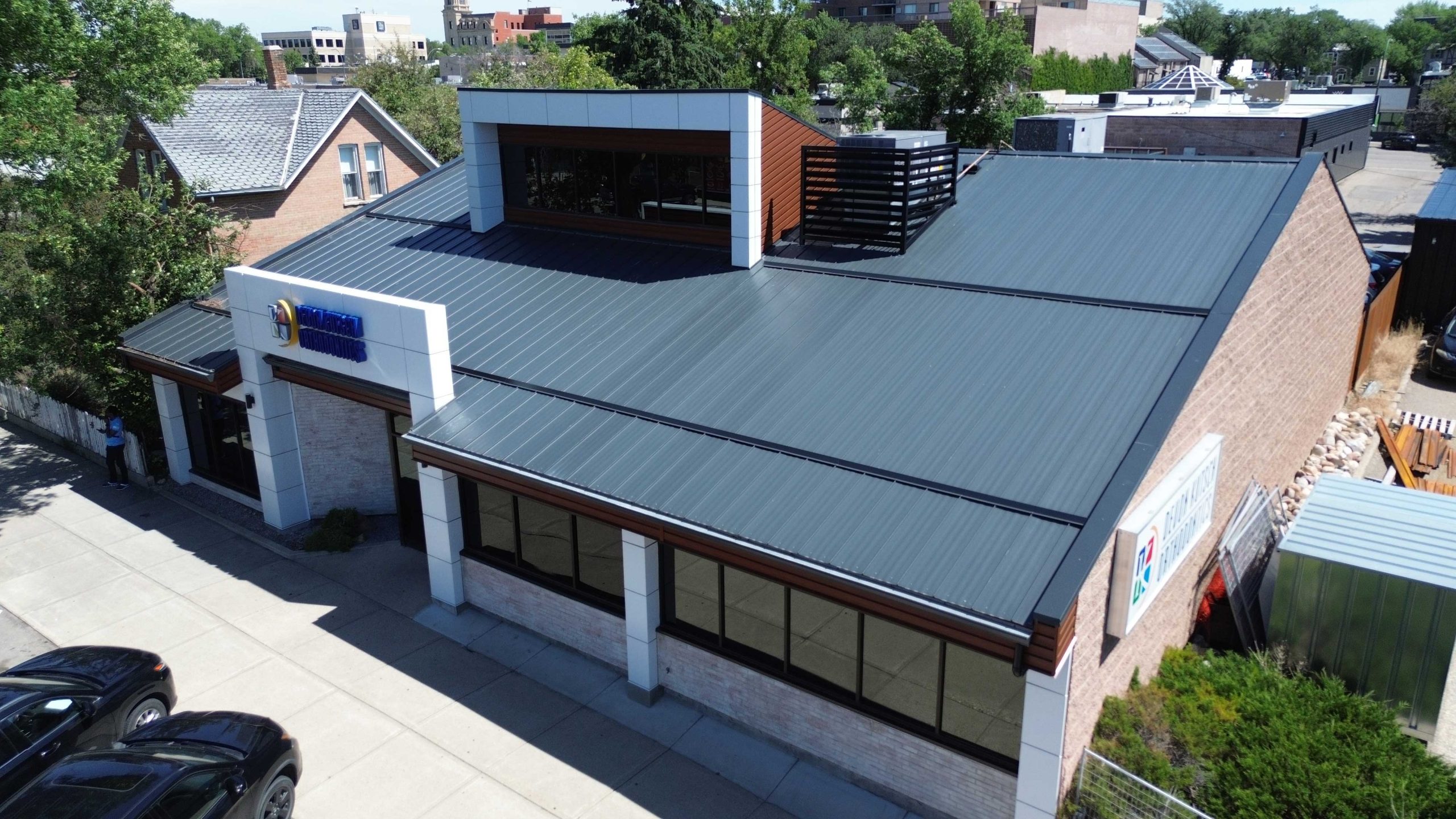

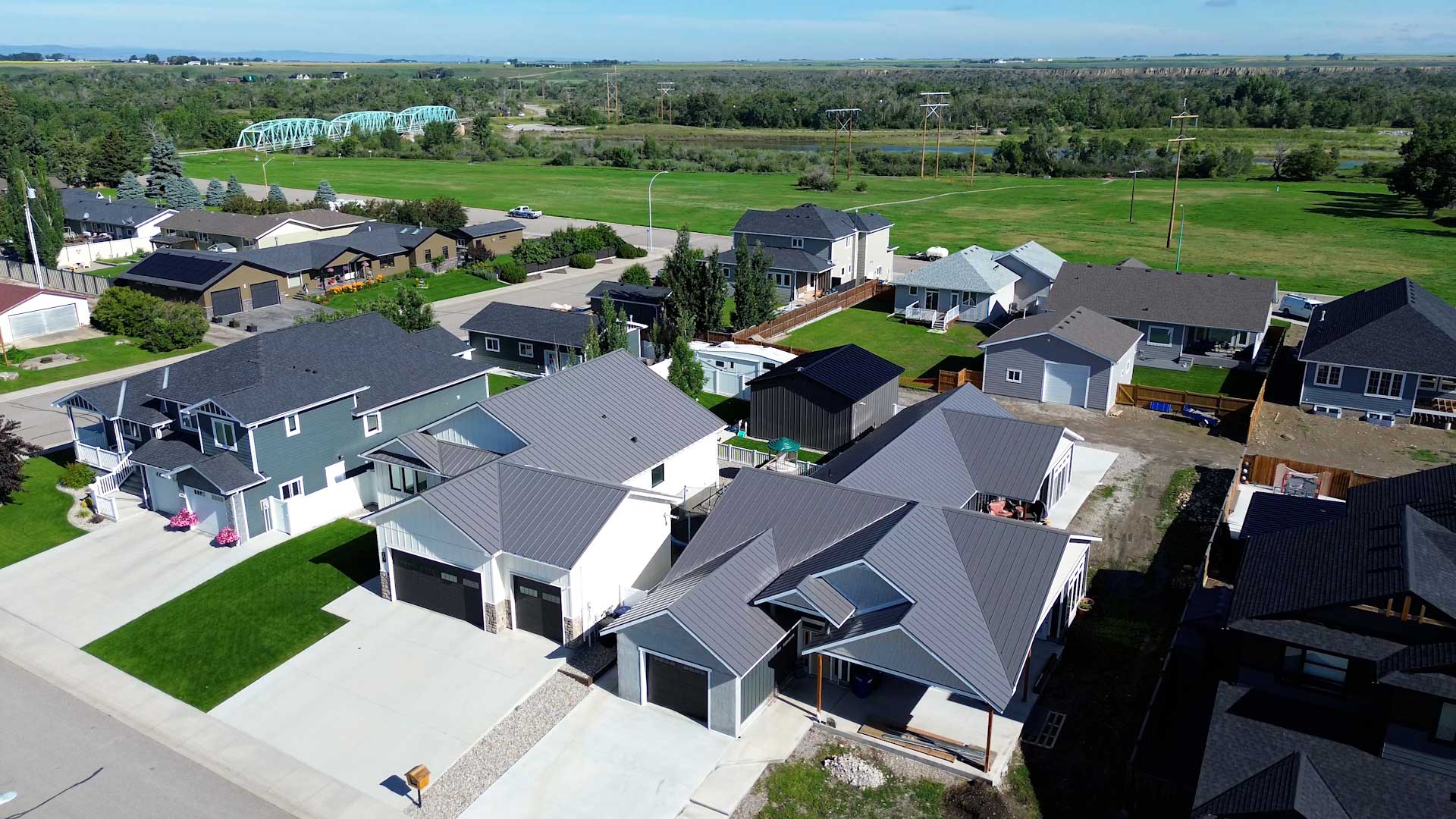

Commercial Building Roof in FormaLoc in Charcoal

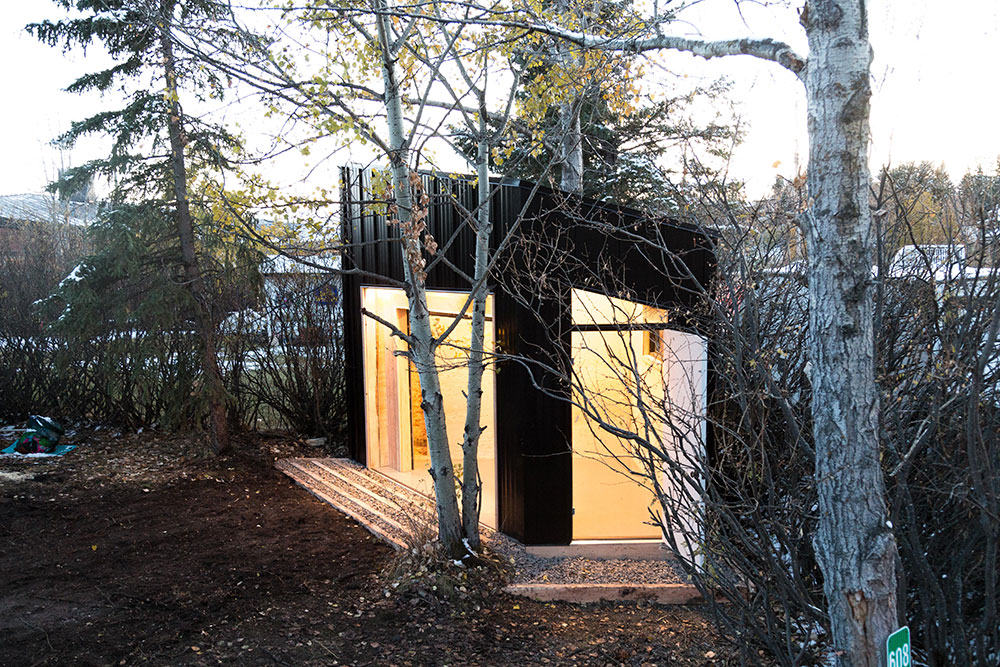

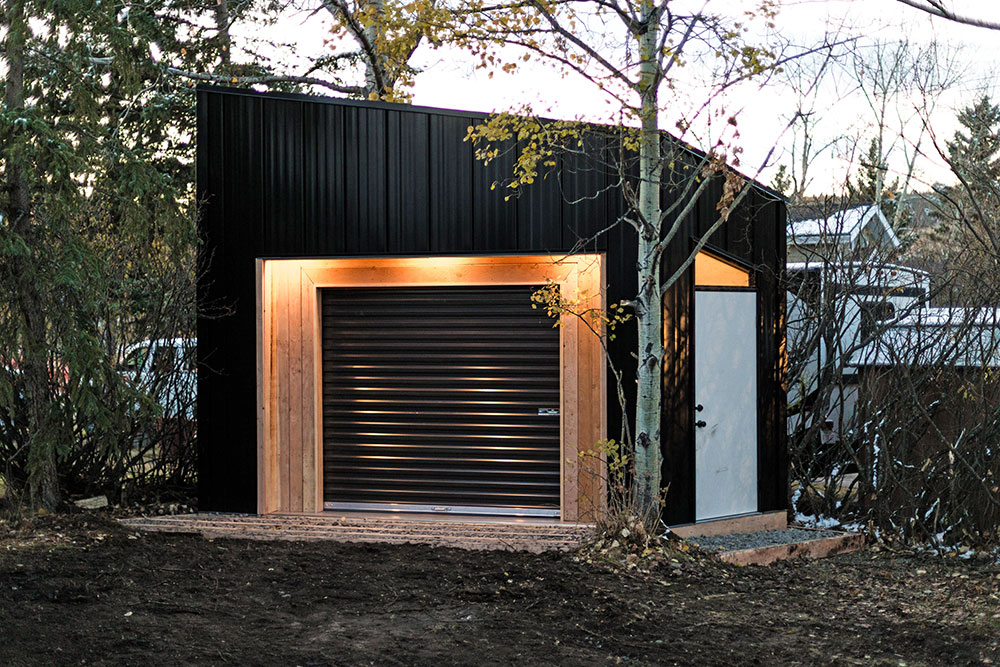

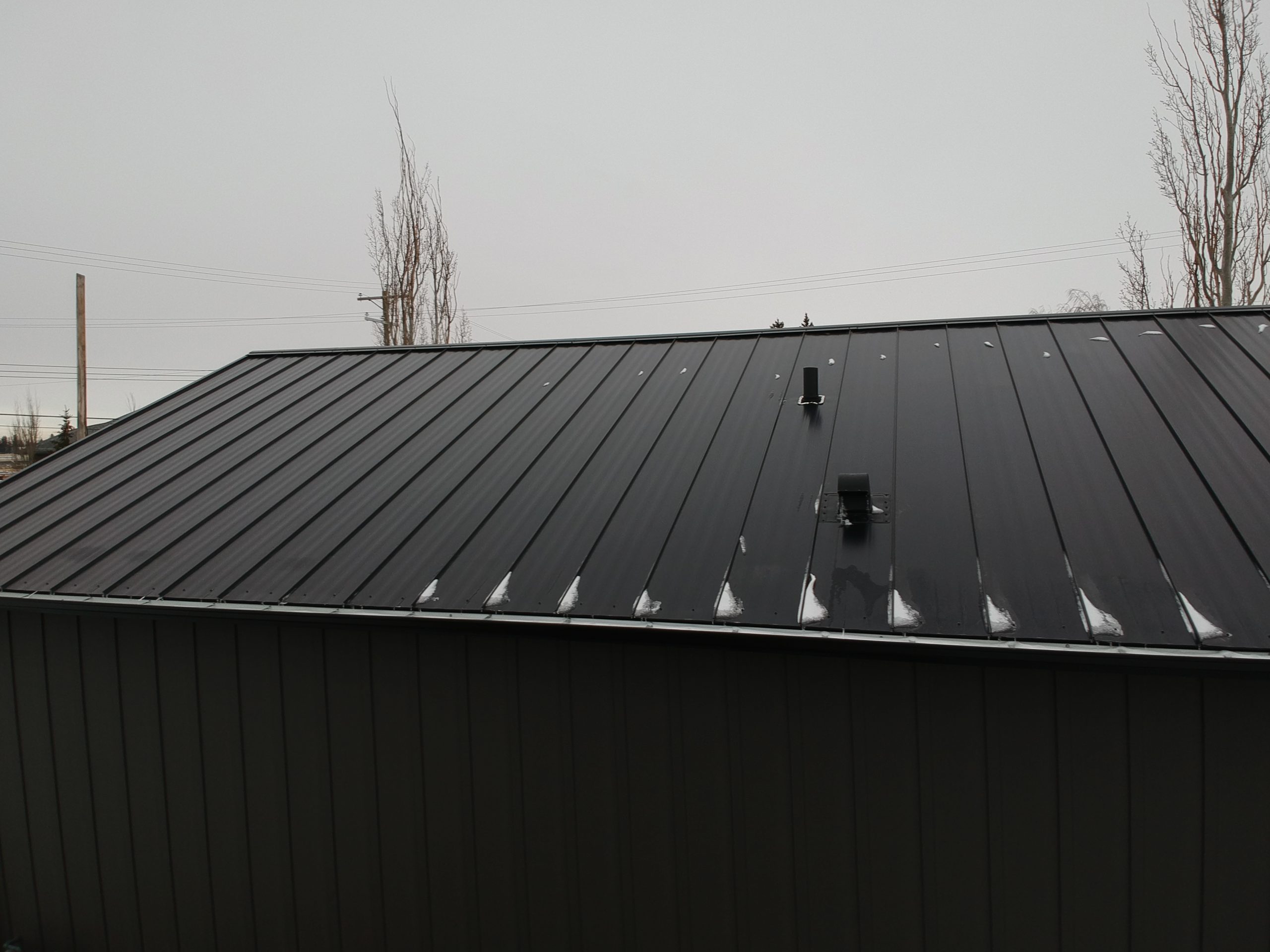

Motorcycle Shed featuring FormaLoc Panel in Black
Motorcycle Shed featuring FormaLoc Panel in Black

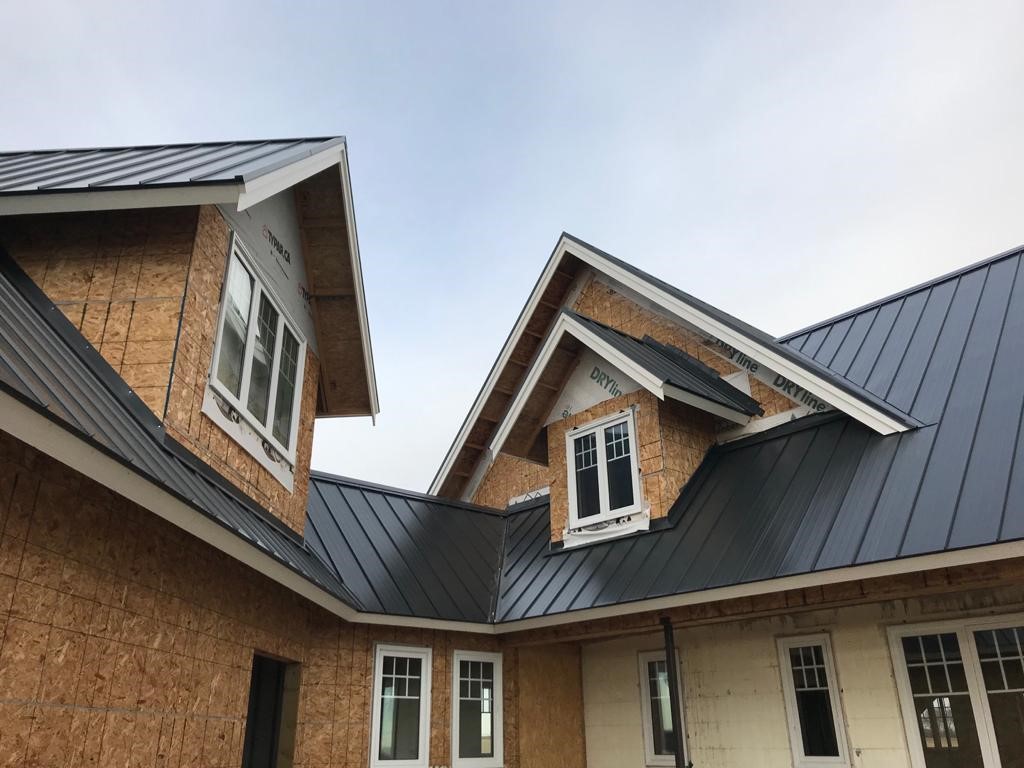

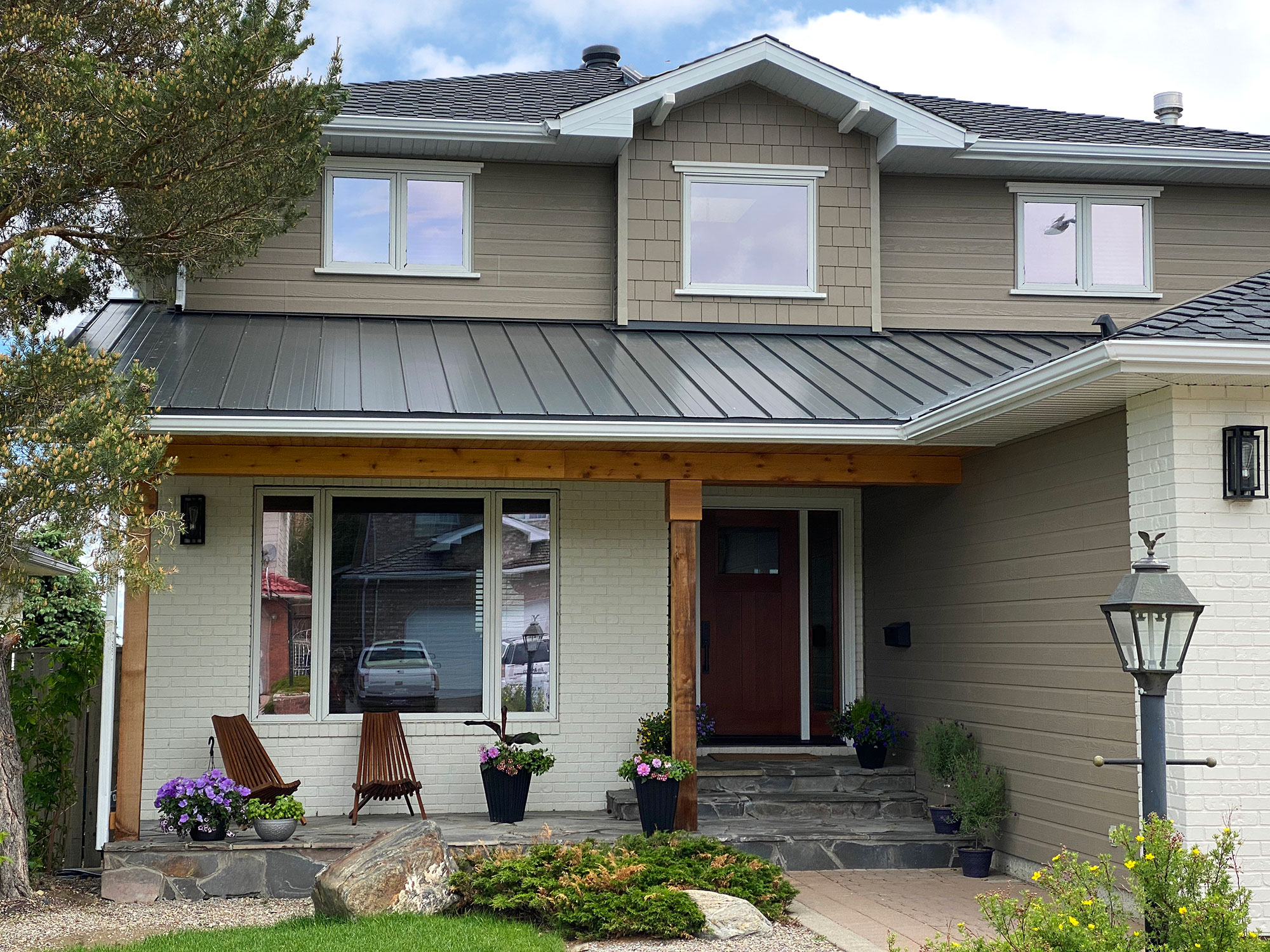

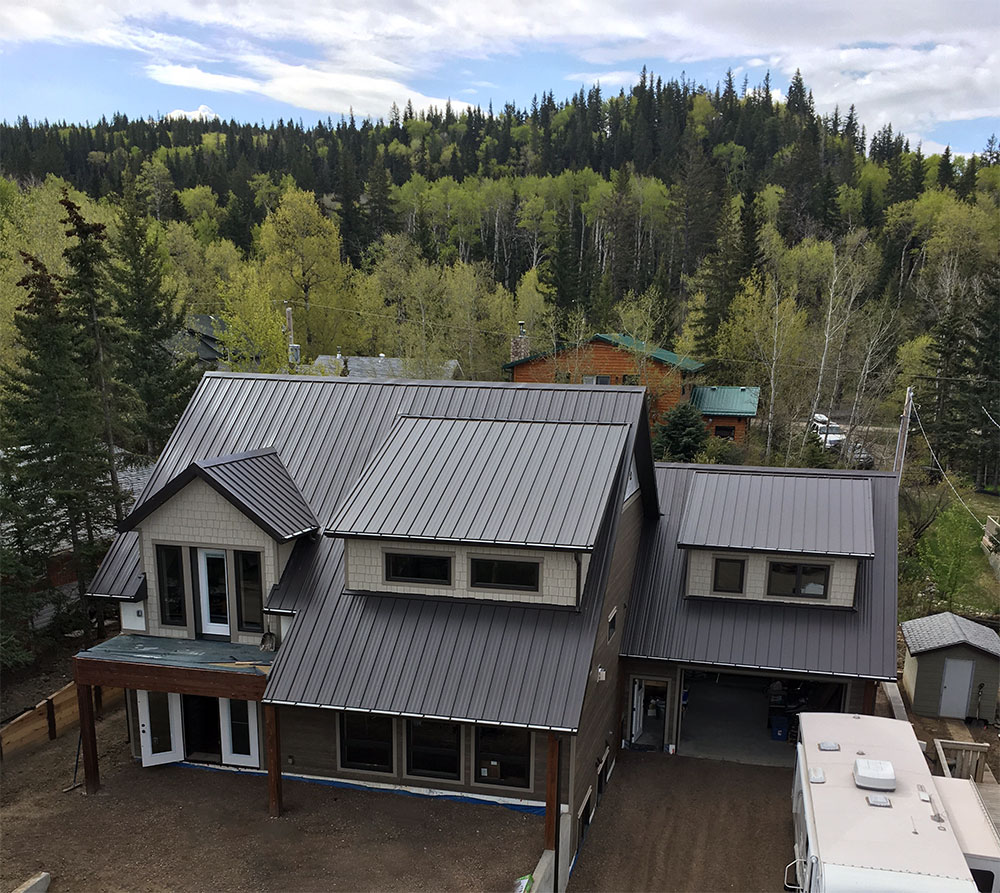

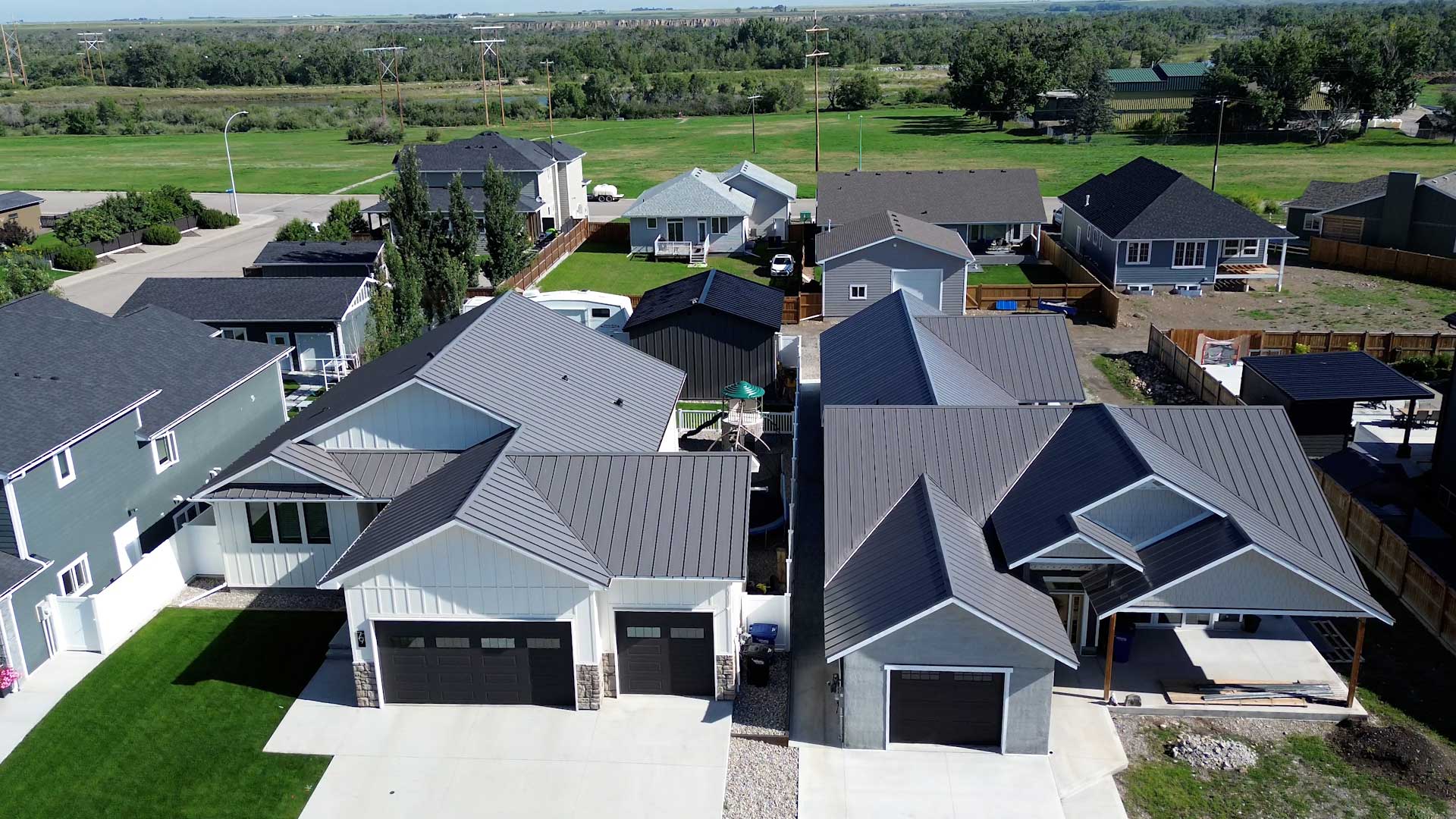

Residential Roof in FormaLoc Panel

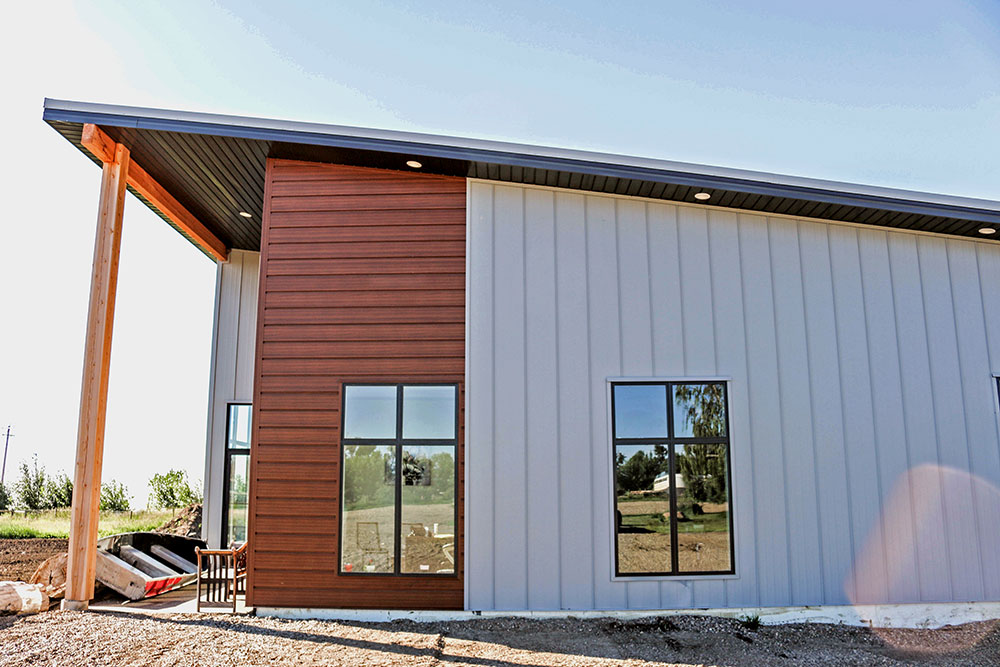

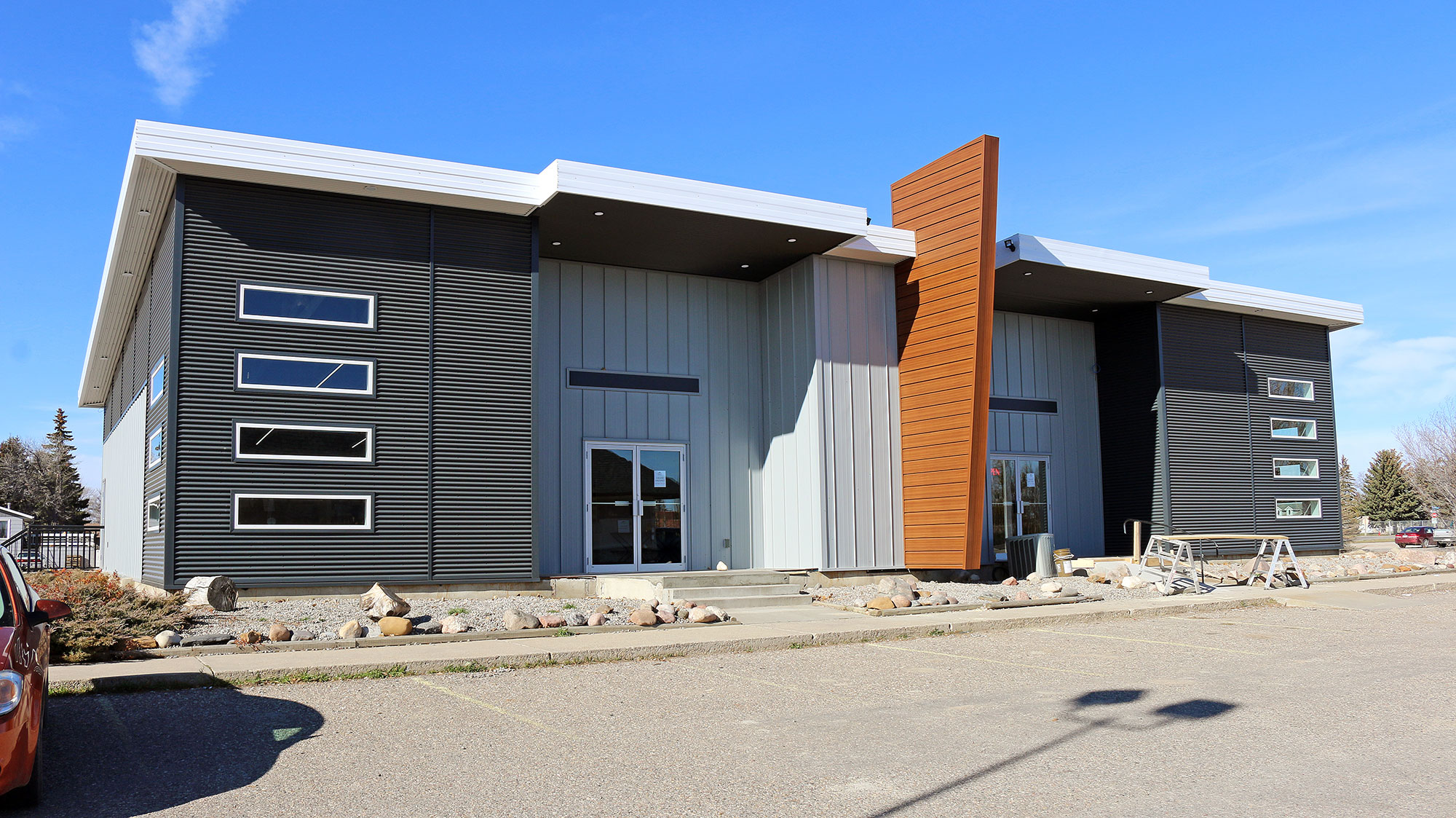

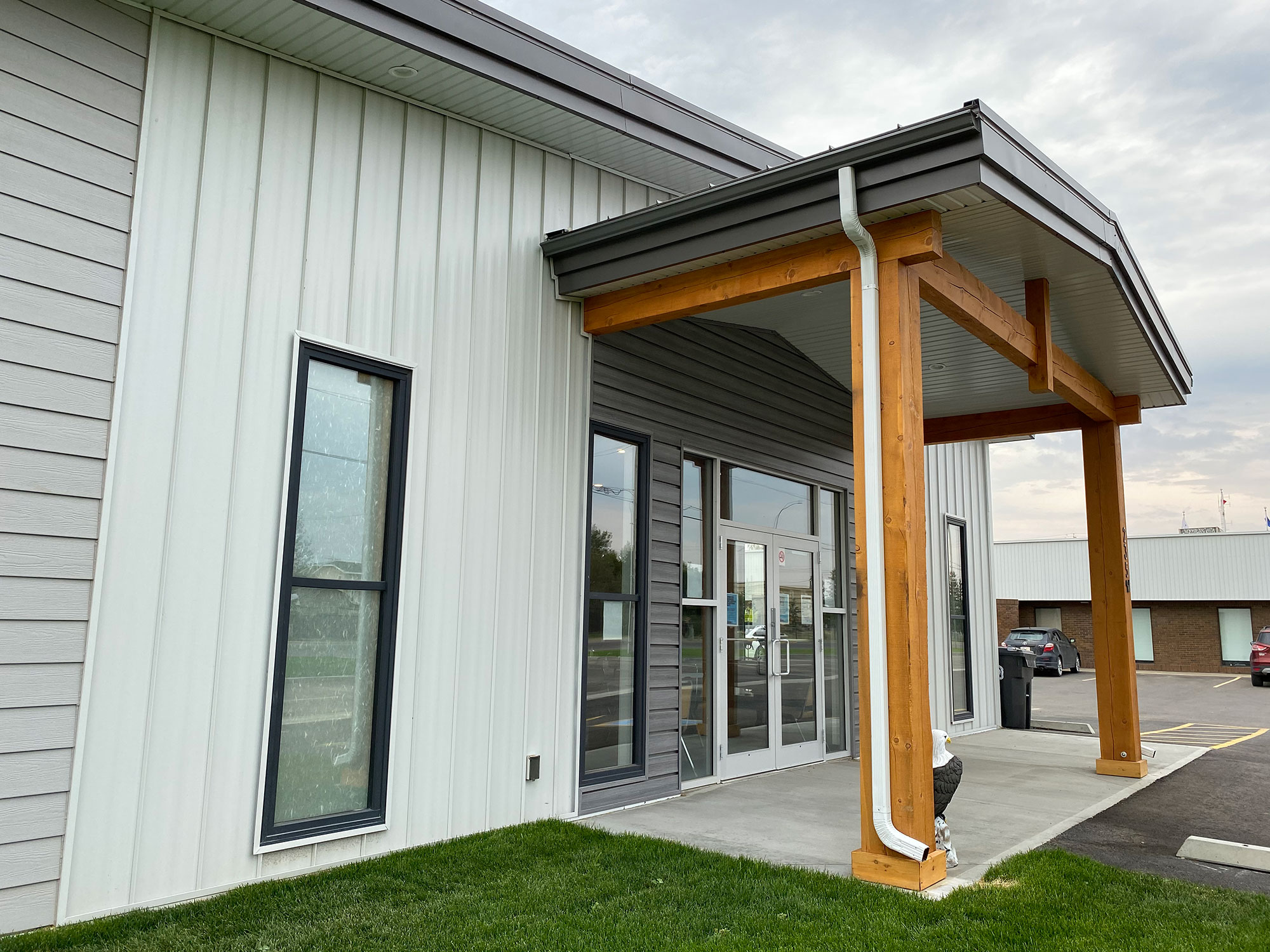

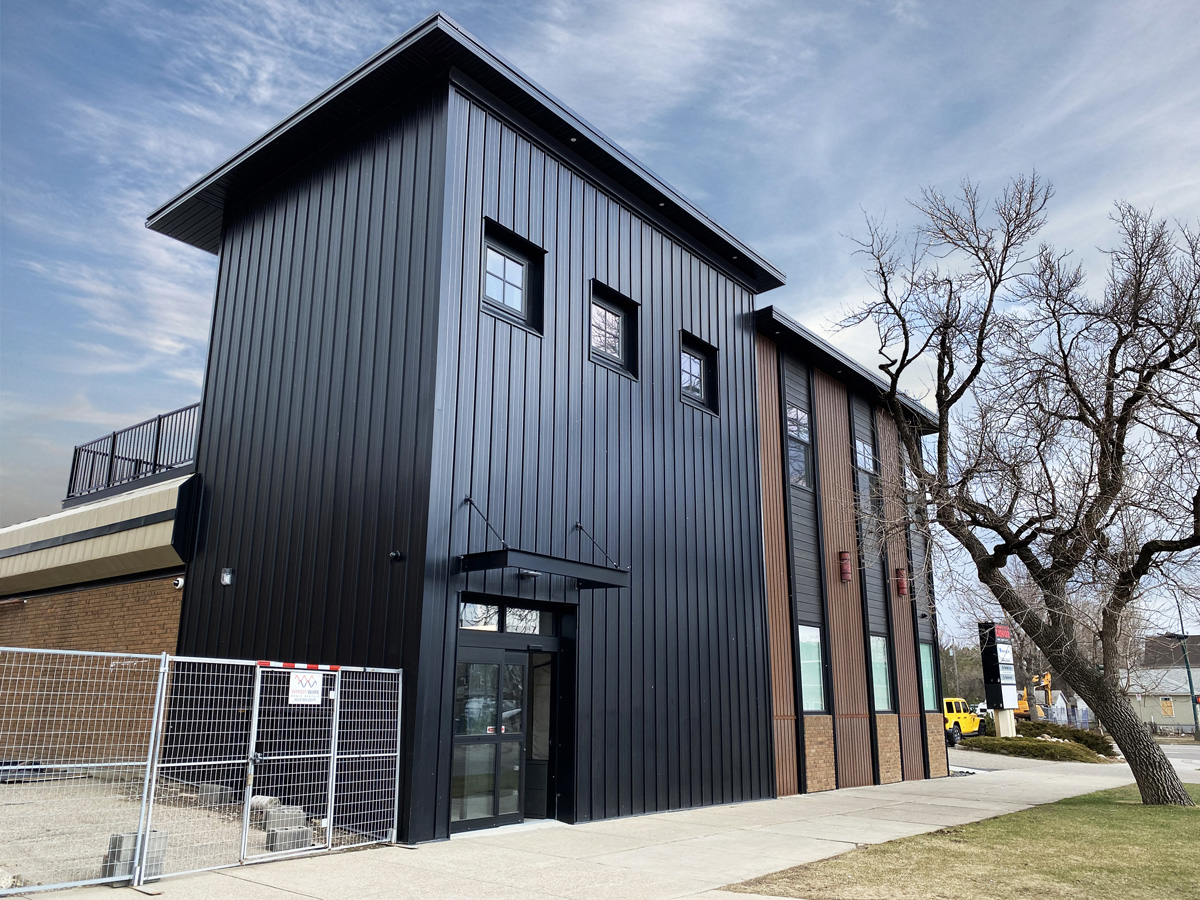

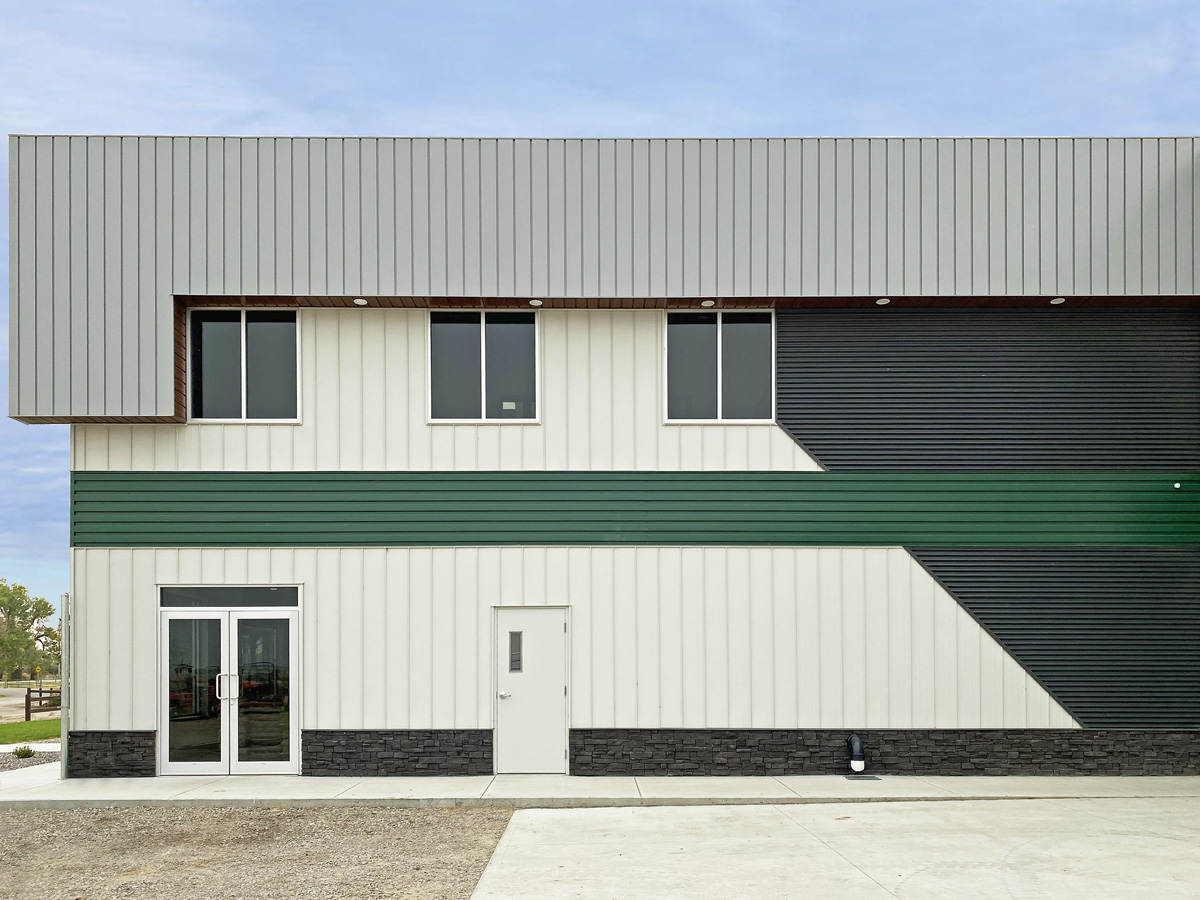

Commercial Office with Espresso Woodgrain FormaPlank and Regent Grey FormaLoc Siding

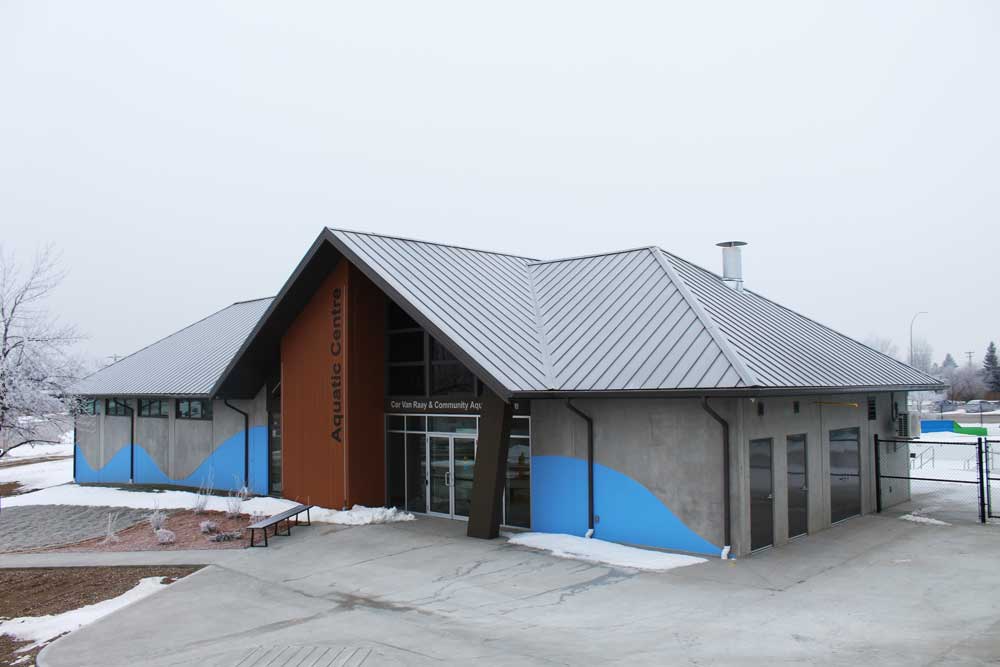

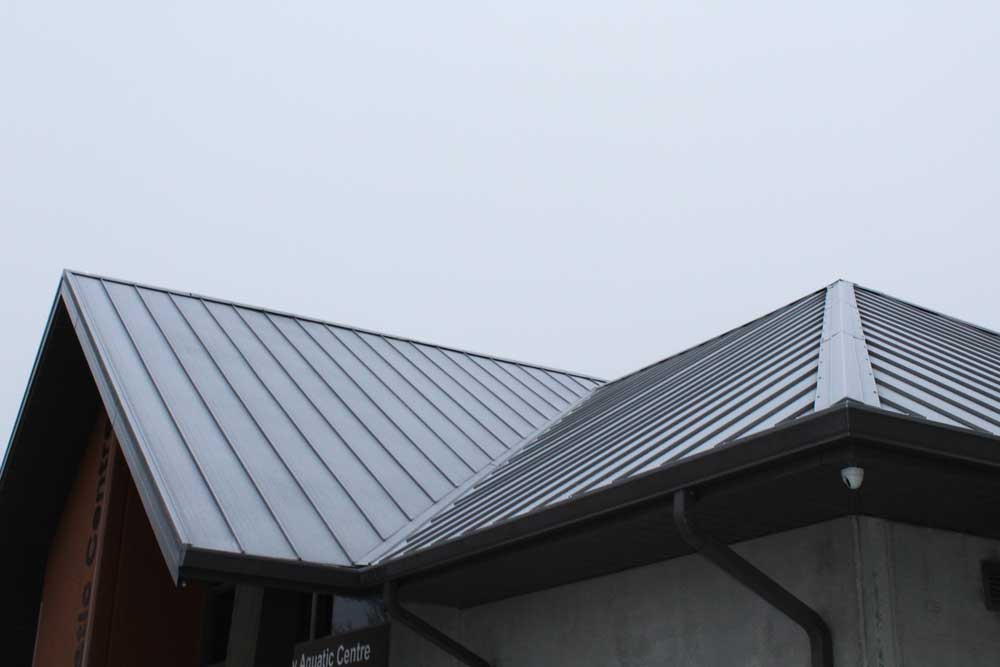

Public Pool with FormaLoc Roof
Public Pool with FormaLoc Roof

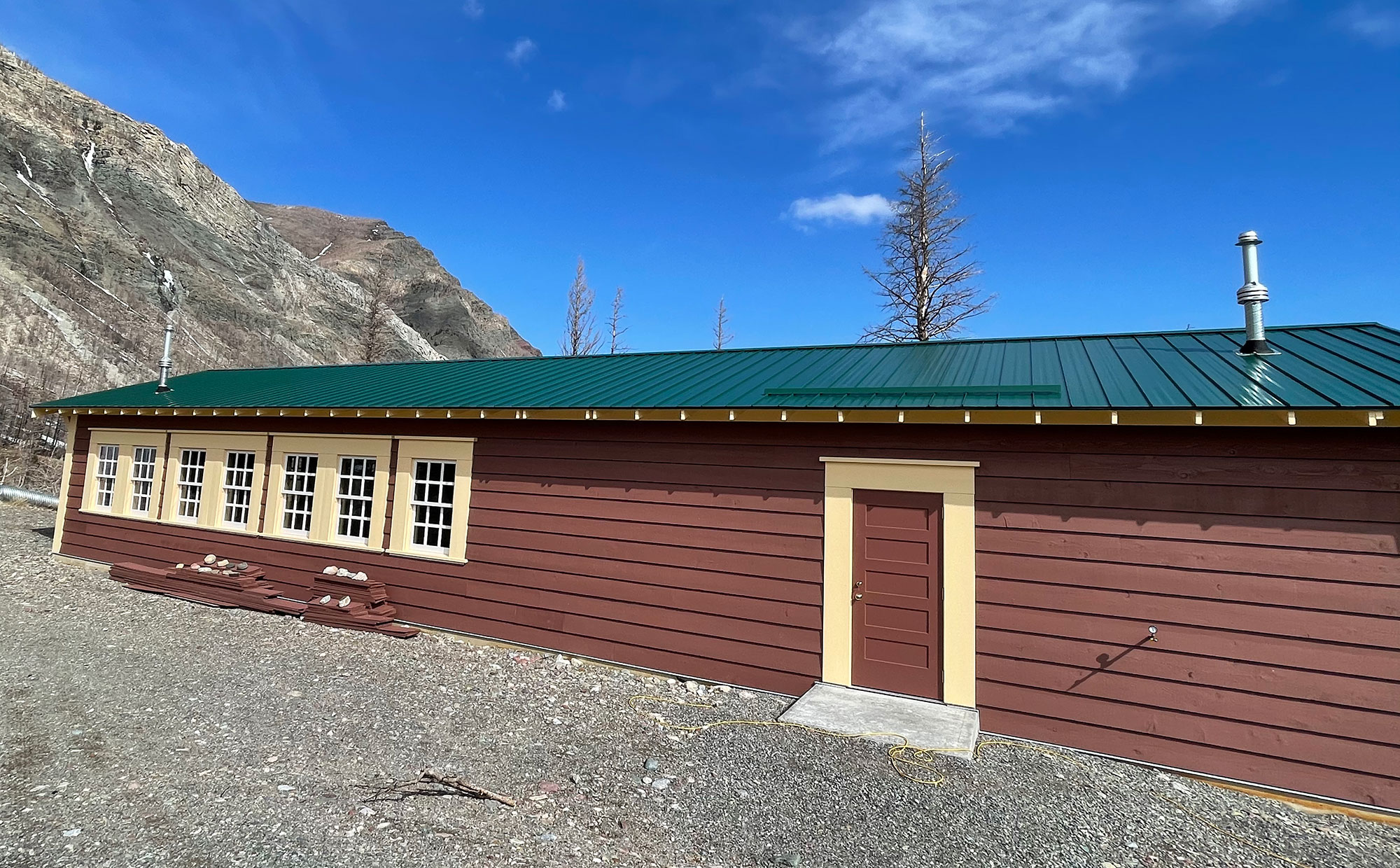

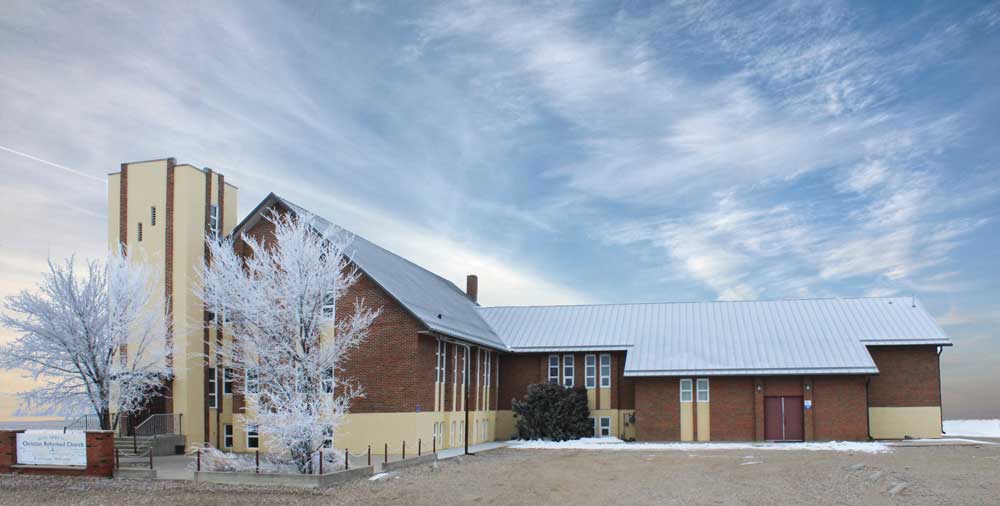

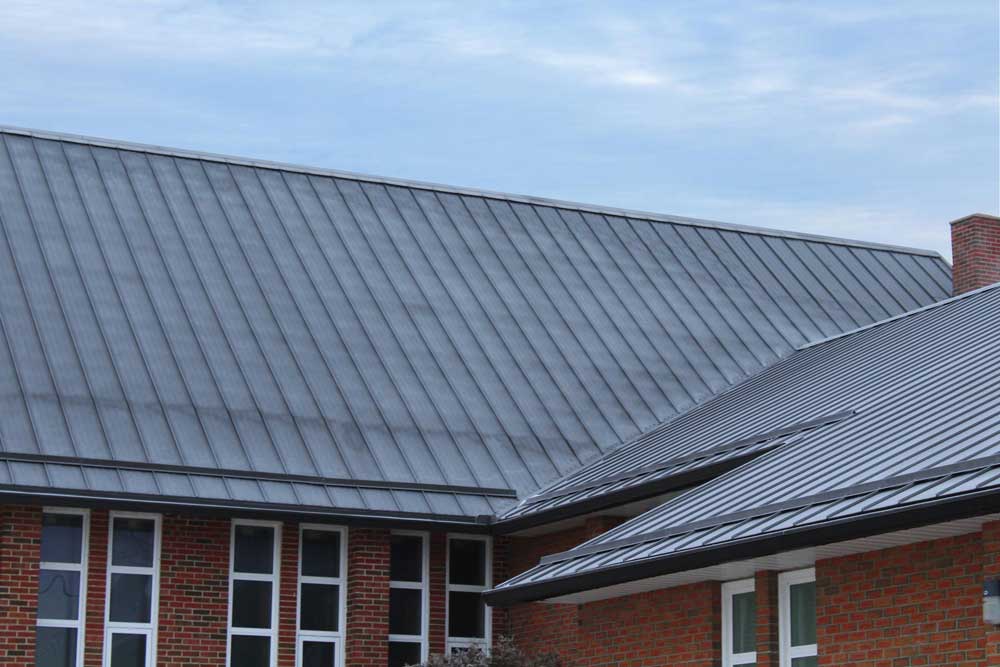

Church with FormaLoc Roof
Church with FormaLoc Roof
FormaLoc
