ShipLap

Hidden Fastener Cladding Panel

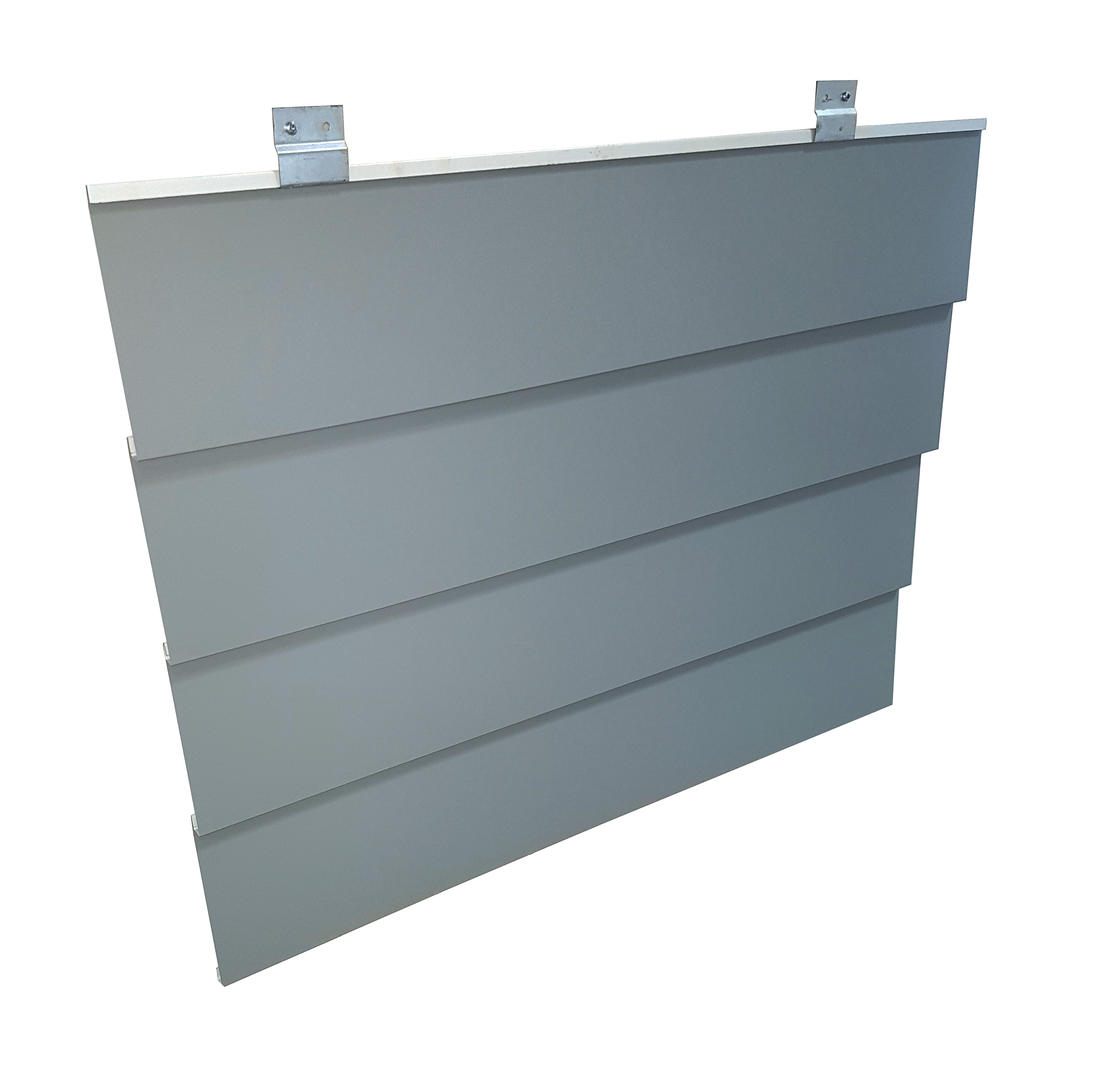

Shiplap is another upgrade to a traditionally wood-cladding style from Forma Steel. Our steel ShipLap panel is a slanted plank panel, usually installed horizontally, and can be used for both internal and external applications. Easy installation with a clip system, and no exposed fasteners makes this a simple yet stylish cladding option for residential and commercial applications. The panel is available in a 6” coverage, with a depth of 1/2”, keeping it flush with most other popular cladding materials. Shiplap pairs well with other Forma Steel cladding options, including 7/8” Corrugated, Forma Plank, and Board & Batten.

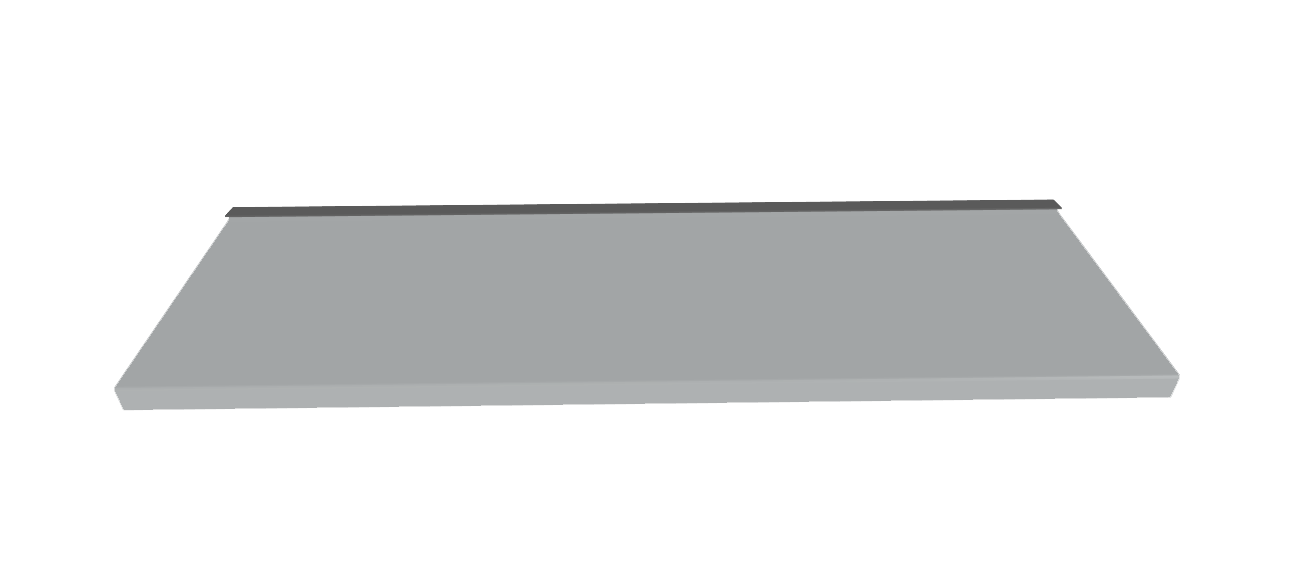

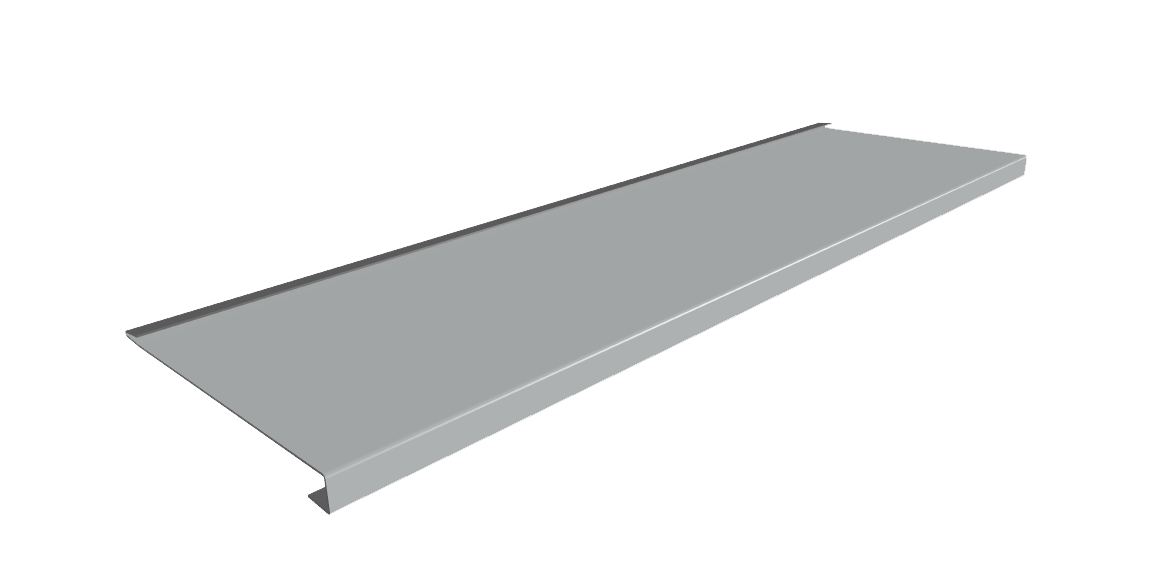

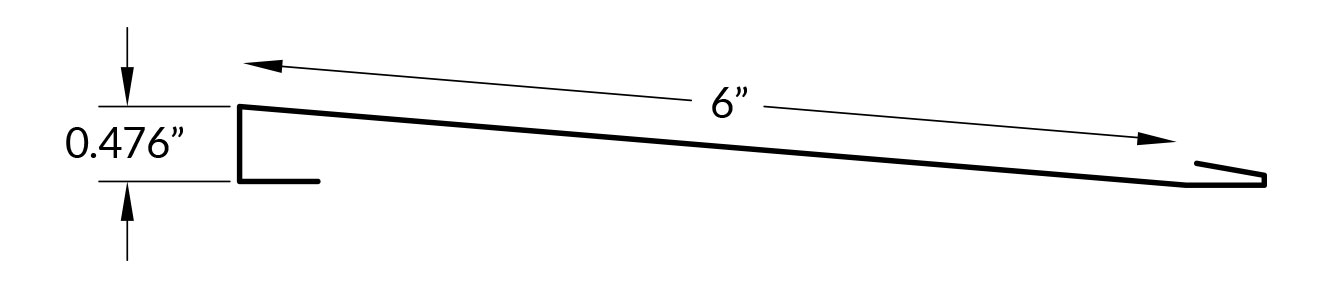

Panel Profile


Forma Loc Panel by Forma Steel in 12" or 16" Coverage

Available in Standard 24 Gauge Colours


Galvalume

24 Gauge, 26 Gauge, 29 Gauge

Bright White

24 Gauge, 26 Gauge, 29 Gauge

White White

24 Gauge, 26 Gauge, 29 Gauge

Iceberg

24 Gauge, 26 Gauge, 26ga

Bone White

24 Gauge, 26 Gauge, 29 Gauge

Wicker

24 Gauge, 26 Gauge, 29 Gauge

Stone Grey

24 Gauge, 26 Gauge, 29 Gauge

Hickory

24 Gauge, 26 Gauge

Tan

24 Gauge, 26 Gauge, 29 Gauge

Buckskin

24 Gauge, 26 Gauge, 29 Gauge

Coffee Brown

24 Gauge, 26 Gauge, 29 Gauge

Dark Brown

24 Gauge, 26 Gauge, 29 Gauge

Black

24 Gauge, 26 Gauge, 29 Gauge

Carbon

24 Gauge, 26 Gauge, 29 Gauge

Charcoal

24 Gauge, 26 Gauge, 29 Gauge

Regent Grey

24 Gauge, 26 Gauge, 29 Gauge

Bright Red

24 Gauge, 29 Gauge

Tile Red

24 Gauge, 29 Gauge

Dark Red

24 Gauge, 26 Gauge, 29 Gauge

Slate Blue

24 Gauge, 29 Gauge

Oxford Blue

24 Gauge, 26 Gauge

Royal Blue

24 Gauge, 29 Gauge

Heron Blue

24 Gauge, 29 Gauge

Sapphire Blue

24 Gauge, 29 Gauge

Melchers Green

24 Gauge, 26 Gauge, 29 Gauge

Available in 24 Gauge Image Series Colours


Dark Walnut Woodgrain SMP

24 Gauge

Light Pine Woodgrain SMP

24 Gauge, 24 Gauge

Concrete SMP

Espresso Woodgrain PVDF

24 Gauge, 24 Gauge

Saddle Woodgrain PVDF

24 Gauge, 24 Gauge

Barnboard Woodgrain PVDF

24 Gauge, 24 Gauge

Rustic SMP

24 Gauge, 24 Gauge

Gunstock Woodgrain PVDF

24 Gauge, 24 Gauge

Frontier Wood PVDF

24 Gauge, 24 Gauge

Autumn Woodgrain PVDF

24 Gauge, 24 Gauge

Available in 24 Gauge Textured Colours


Onyx Black Textured

24 Gauge, 24 Gauge

Graphite Texture

24 Gauge, 24 Gauge

Red Oxide Textured

24 Gauge, 24 Gauge

Arctic White Textured

24 Gauge, 24 Gauge

Burnished Slate Textured

24 Gauge, 24 Gauge

Specifications

Wall Coverage: 6"

Panel Depth: 1/2"

Panel Orientation: Horizontal or Vertical

Available in Lengths: 62" up to maximum of 322"

Lengths from 24" to <62" require Cut Charge

Hidden Fastener Panel

Installed on a floating clip system for ideal thermal expansion and contraction

Available in Standard & Woodgrain 24 Gauge Colours

Available in Textured 24 Gauge Colours

Please Note: Custom Lengths Should Be Ordered in Multiples of 6

Recommended to Install on Minimum Solid Substrate of 1/2” Plywood


Product Brochures


SHIPLAP BROCHURE

500 SERIES TRIMS (1/2")

STANDARD COLOUR CHART

IMAGE  COLOUR CHART

TEXTURED COLOUR CHART

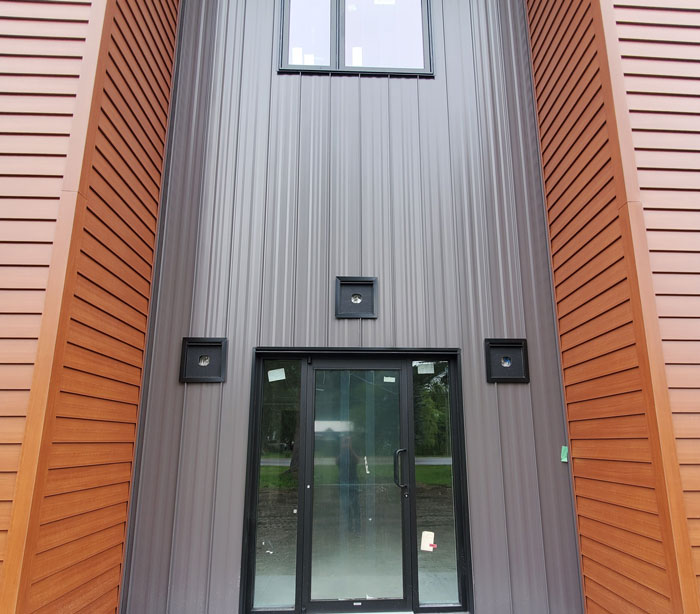

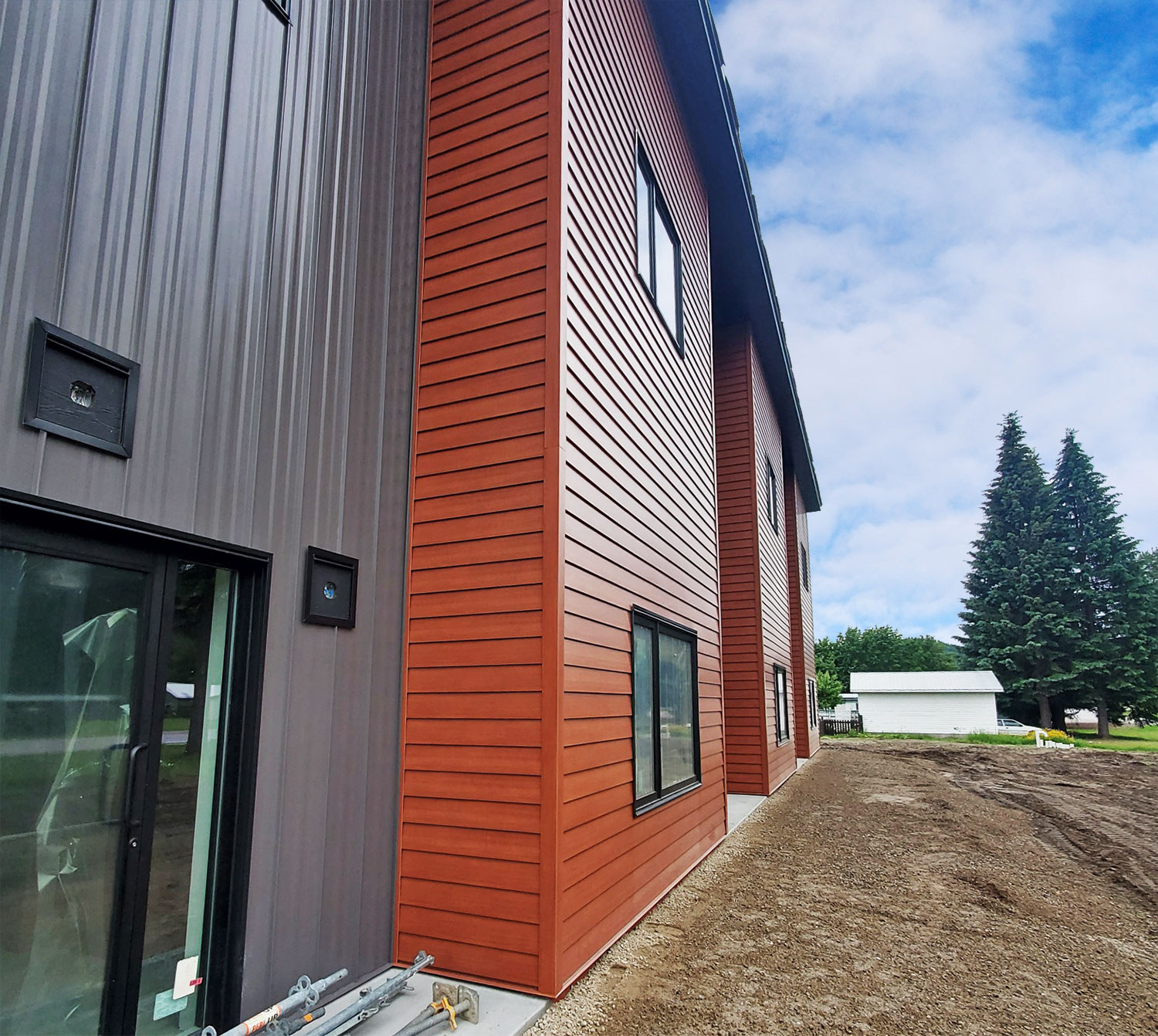

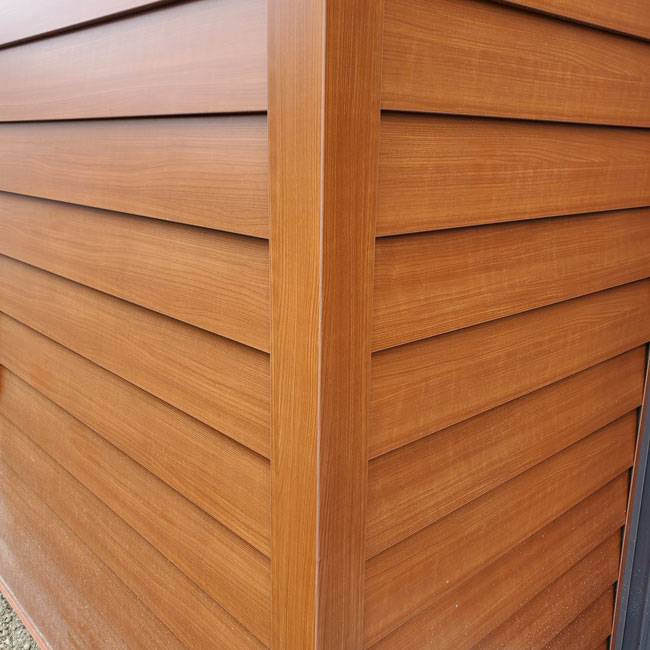

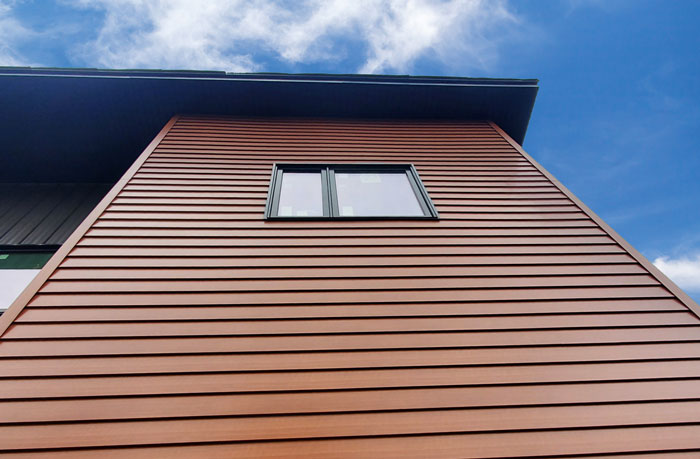

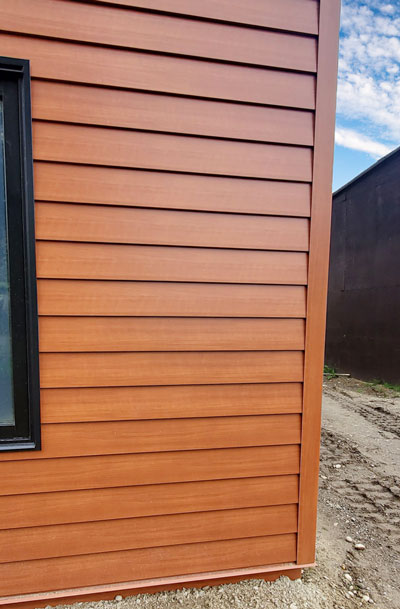

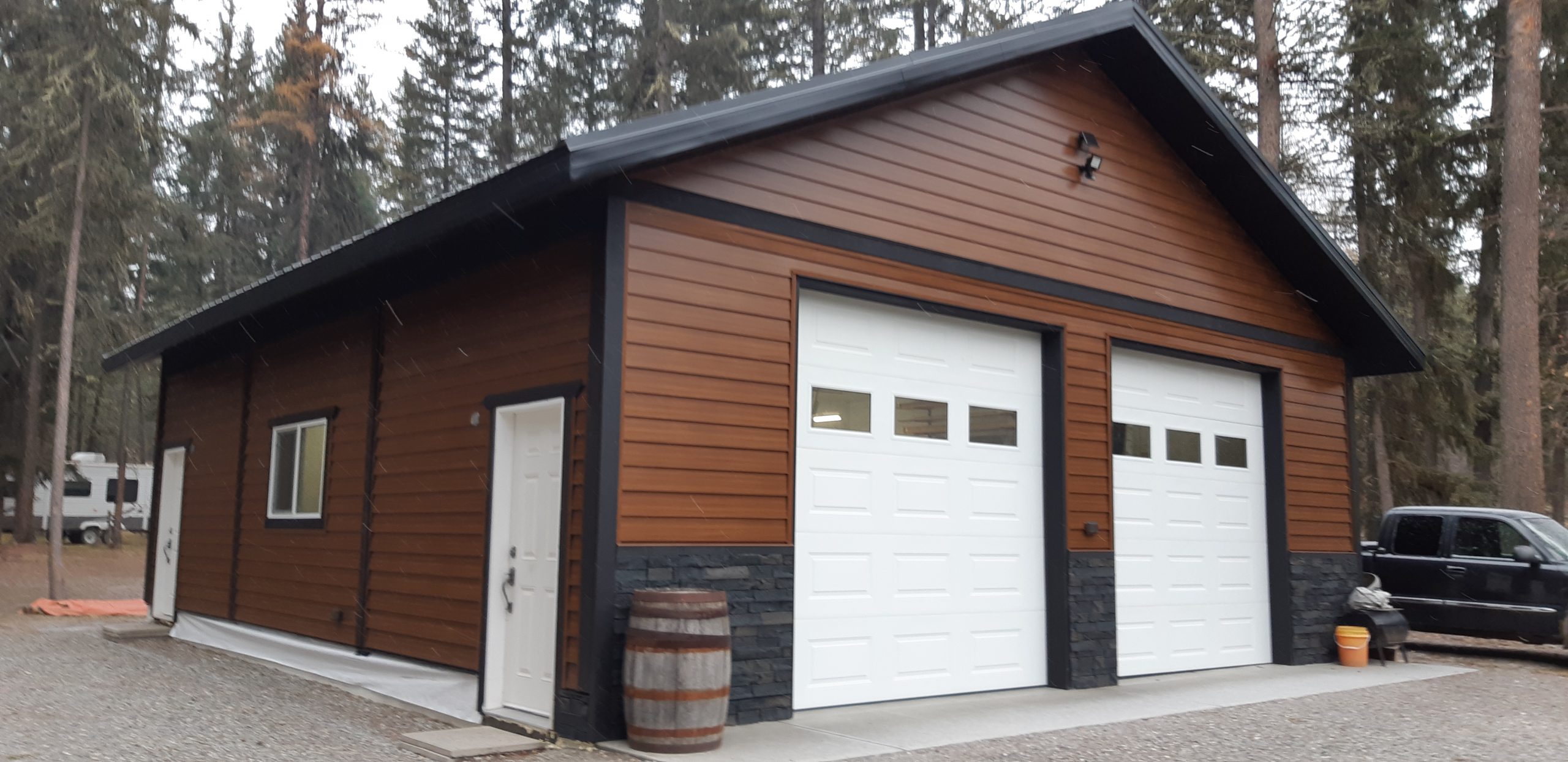

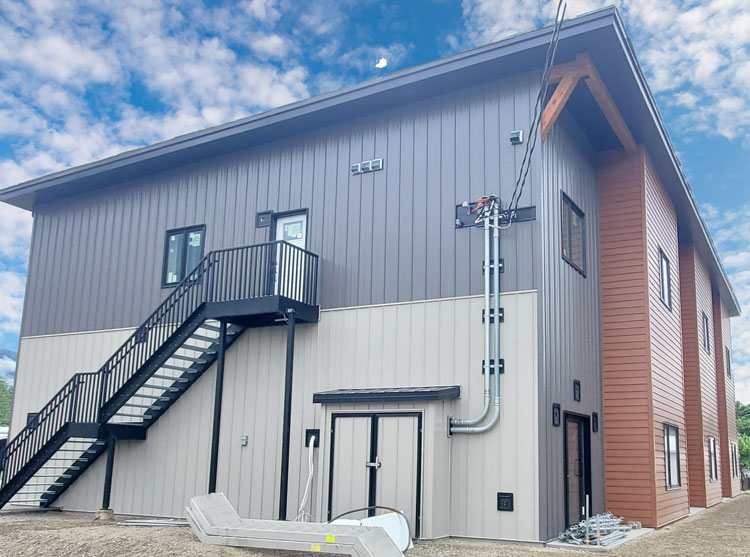

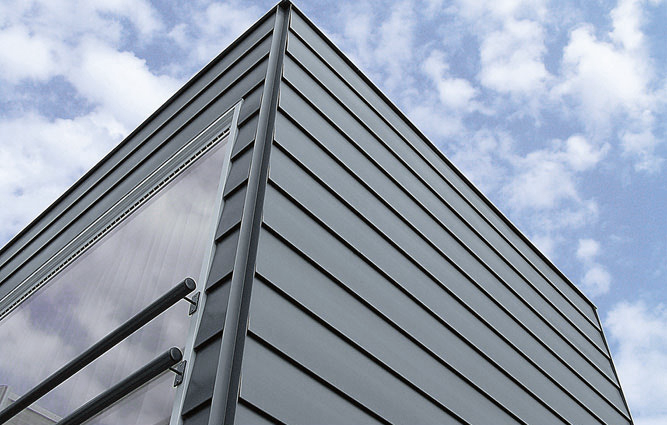

Inspiration Gallery
