INTERLOC

Wall & Soffit Panel System

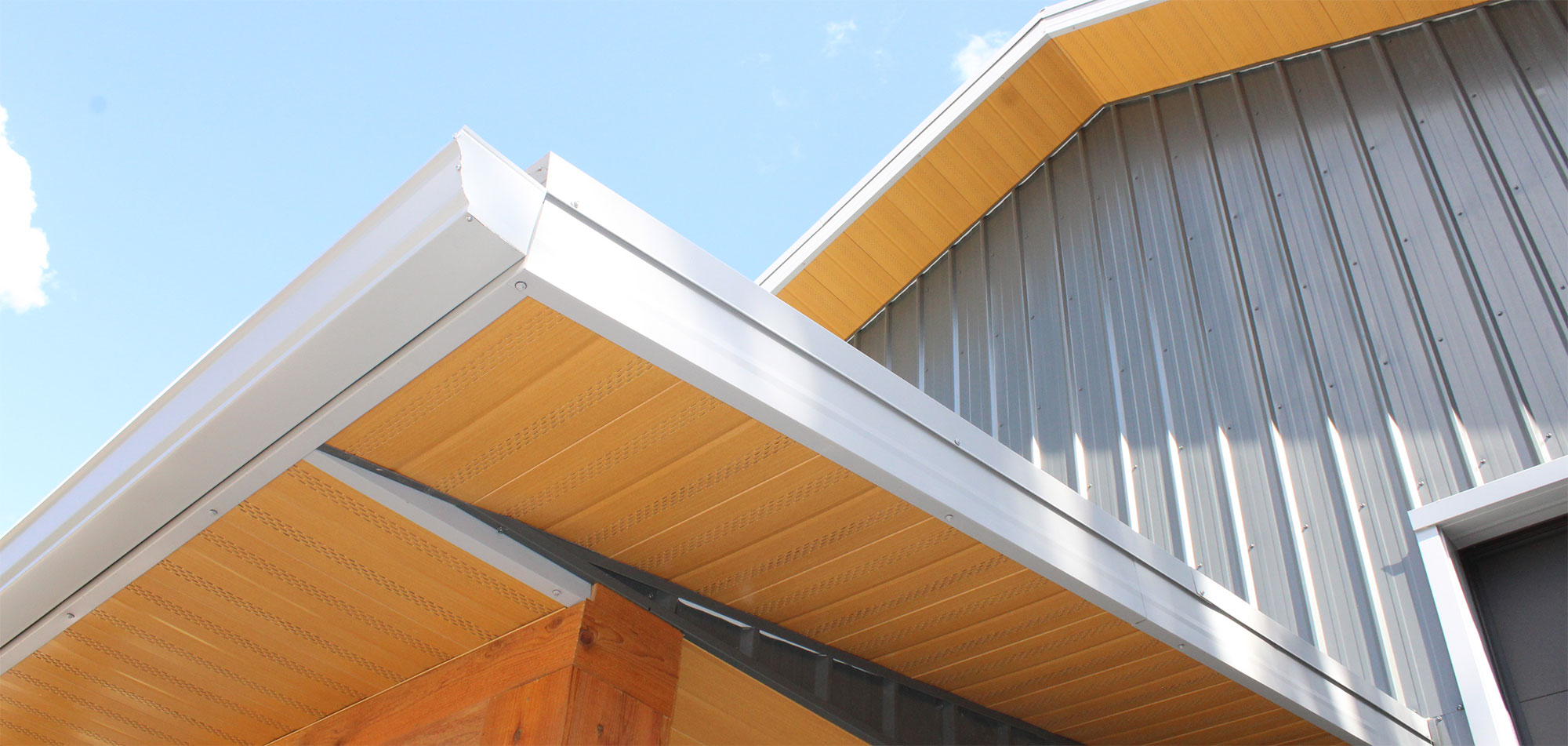

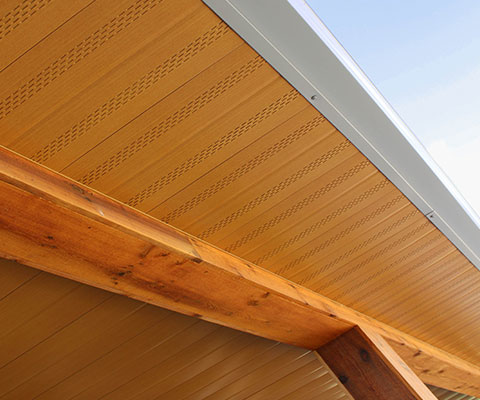

The Interloc Wall & Soffit Panel System is a smooth wall panel that can be installed both horizontally and  vertically, and is commonly used as a soffit panel with perforations. This hidden fastener standing seam panel comes in a variety of coverages with options for flush wall or 0.5” reveal.

Depending on the coverage chosen, the Interloc Panel comes with v grooves, with perforations, or a combination of these options. Available in our Standard 24 gauge colour series, this panel can also be produced in our Image Series, Textured Series, and PVDF Kynar Colours.

Panel Profiles

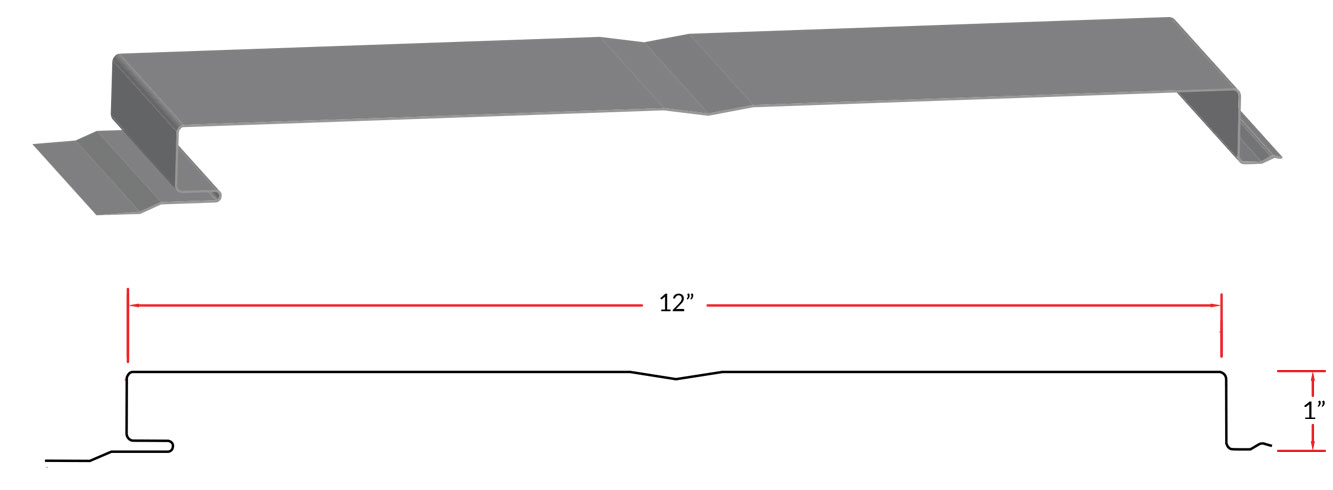

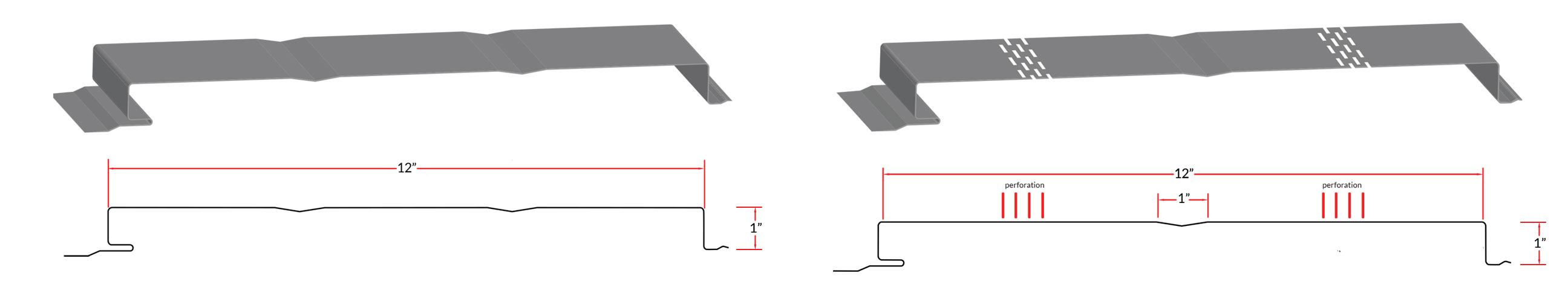

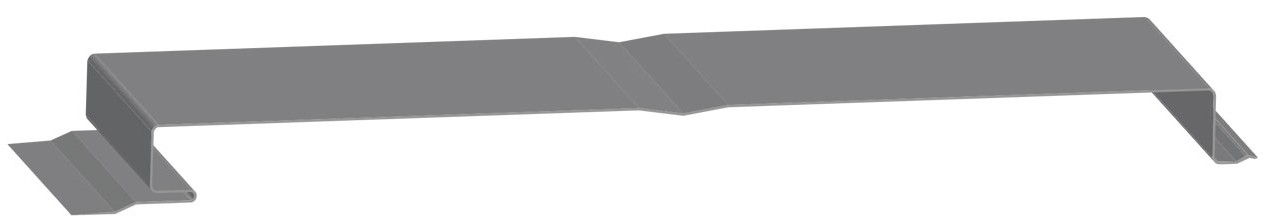

Interloc12

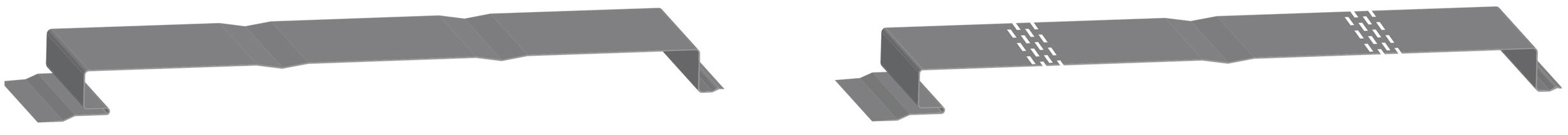

Interloc12 also available in 2 V Grooves or with Perforations

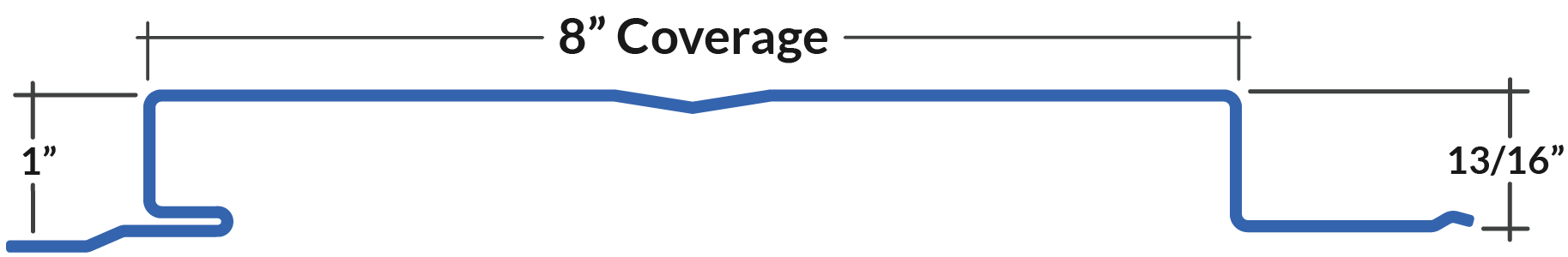

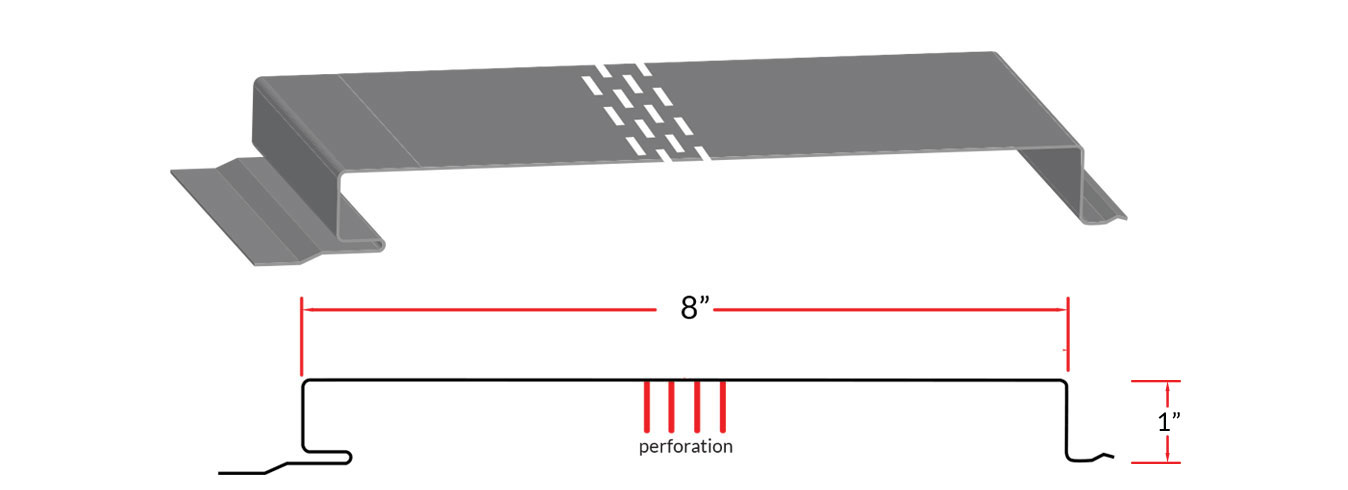

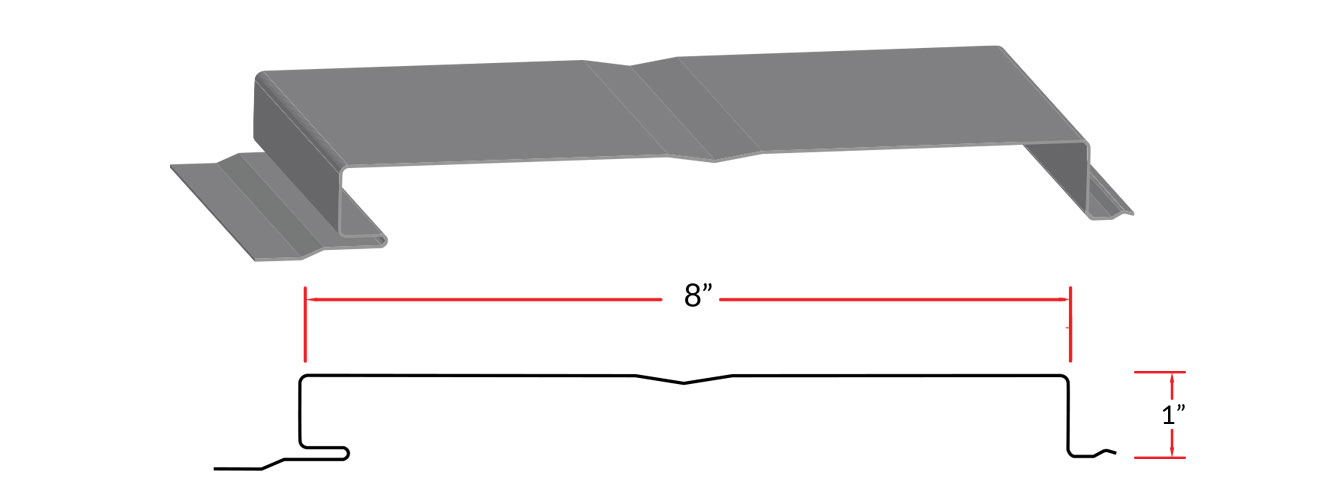

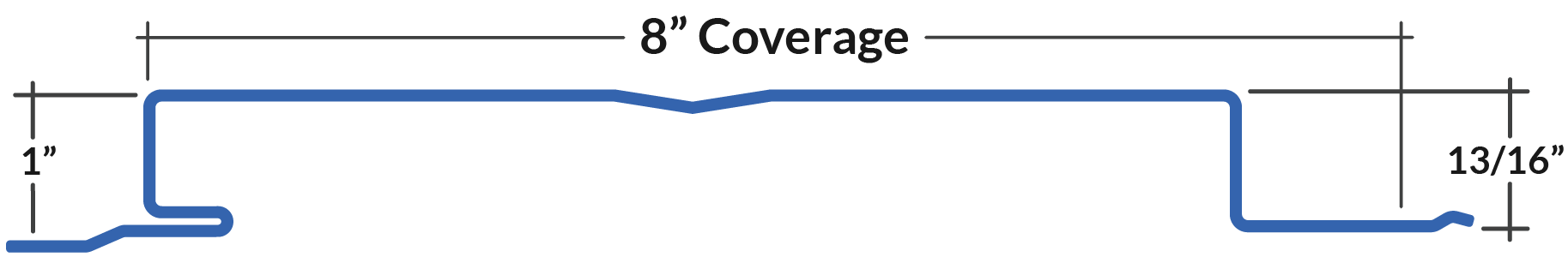

Interloc8

Flush Panel with No Reveal

Interloc8 also available with Perforations

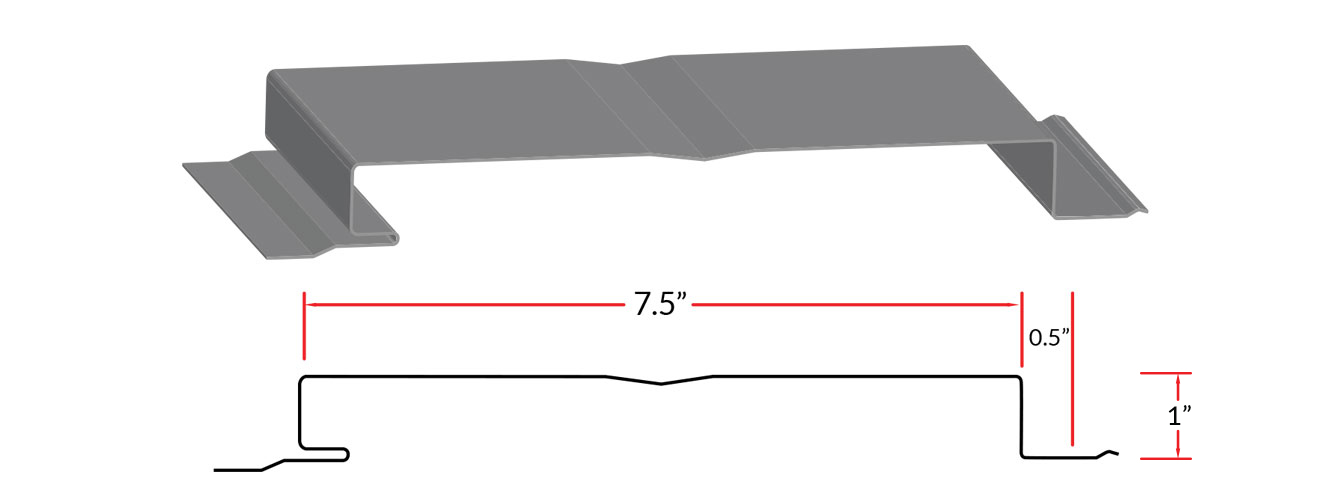

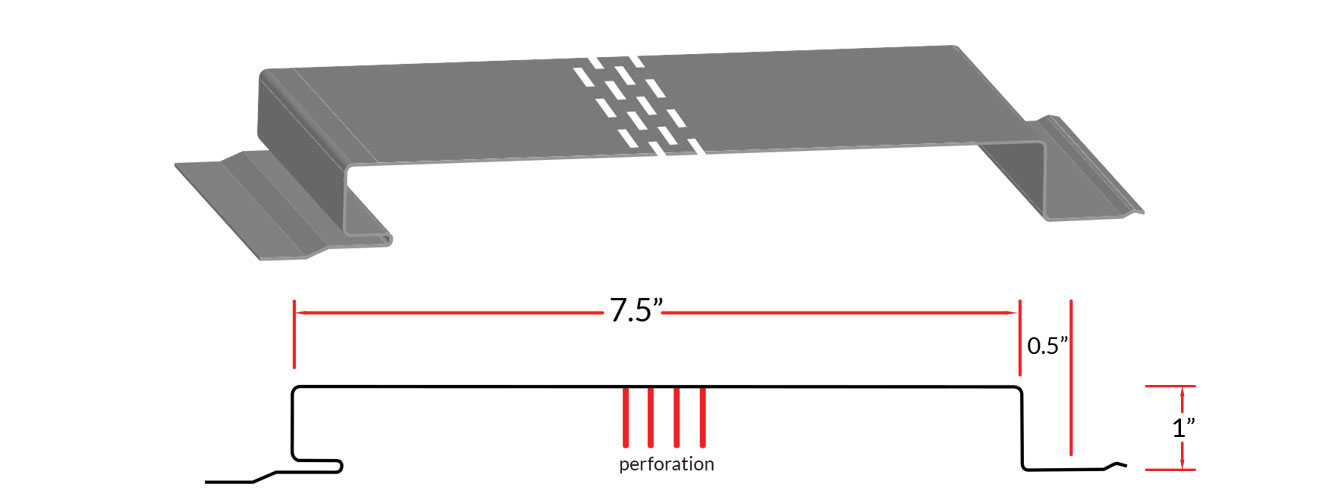

Interloc75 Reveal

with 0.5" Reveal

Interloc75 also available with Perforations


Available in Standard 24 Gauge Colours


Galvalume

24 Gauge, 26 Gauge, 29 Gauge

Bright White

24 Gauge, 26 Gauge, 29 Gauge

White White

24 Gauge, 26 Gauge, 29 Gauge

Iceberg

24 Gauge, 26 Gauge, 26ga

Bone White

24 Gauge, 26 Gauge, 29 Gauge

Wicker

24 Gauge, 26 Gauge, 29 Gauge

Stone Grey

24 Gauge, 26 Gauge, 29 Gauge

Hickory

24 Gauge, 26 Gauge

Tan

24 Gauge, 26 Gauge, 29 Gauge

Buckskin

24 Gauge, 26 Gauge, 29 Gauge

Coffee Brown

24 Gauge, 26 Gauge, 29 Gauge

Dark Brown

24 Gauge, 26 Gauge, 29 Gauge

Black

24 Gauge, 26 Gauge, 29 Gauge

Carbon

24 Gauge, 26 Gauge, 29 Gauge

Charcoal

24 Gauge, 26 Gauge, 29 Gauge

Regent Grey

24 Gauge, 26 Gauge, 29 Gauge

Bright Red

24 Gauge, 29 Gauge

Tile Red

24 Gauge, 29 Gauge

Dark Red

24 Gauge, 26 Gauge, 29 Gauge

Slate Blue

24 Gauge, 29 Gauge

Oxford Blue

24 Gauge, 26 Gauge

Royal Blue

24 Gauge, 29 Gauge

Heron Blue

24 Gauge, 29 Gauge

Sapphire Blue

24 Gauge, 29 Gauge

Melchers Green

24 Gauge, 26 Gauge, 29 Gauge

Specialty Steel Available in 24 Gauge



Frontier Wood PVDF

24 Gauge, 24 Gauge

Saddle Woodgrain PVDF

24 Gauge, 24 Gauge

Gunstock Woodgrain PVDF

24 Gauge, 24 Gauge

Espresso Woodgrain PVDF

24 Gauge, 24 Gauge

Autumn Woodgrain PVDF

24 Gauge, 24 Gauge

Barnboard Woodgrain PVDF

24 Gauge, 24 Gauge

Light Pine Woodgrain SMP

24 Gauge, 24 Gauge

Dark Walnut Woodgrain SMP

24 Gauge

Concrete SMP

Rustic SMP

24 Gauge, 24 Gauge

Black Perforated

24 Gauge, 24 Gauge

White Perforated

26 Gauge, 29 Gauge, 22ga, 24 Gauge, 26ga

Weathering Steel

22 Gauge, 22ga

Textured Series in 24 Gauge


Onyx Black Textured

24 Gauge, 24 Gauge

Graphite Texture

24 Gauge, 24 Gauge

Red Oxide Textured

24 Gauge, 24 Gauge

Arctic White Textured

24 Gauge, 24 Gauge

Burnished Slate Textured

24 Gauge, 24 Gauge

Specifications

Application: Wall

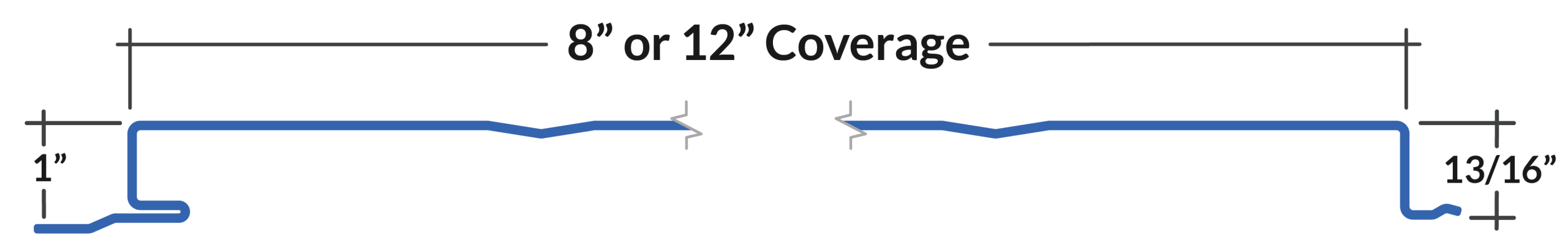

Coverage: 8" - 12"

Integrated Clip System

Panel Length: Up to 20'

Minimum Length: 36"

Panel Depth: 1"

Trims: Compatible with our 1" Trim Collection

Available in Standard 24 Gauge Colours

Available in Specialty Steel

Available with V Grooves and Perforations

V Grooves are recommended over flat pan to reduce the effects of oil-canning

Substrate:
Walls:
5/8" Standard Plywood Minimum
Roof: 1/2" Standard Plywood Minimum


Product Brochures


INTERLOC BROCHURE

STANDARD COLOUR CHART

IMAGE SERIES CHART

TEXTURED SERIES

1000 SERIES TRIMS (1”)

INTERLOC INSTALLATION GUIDE

Design Considerations:


Light gauge steel cladding with wide flat pans may exhibit oil canning which can affect the aesthetics of the building design.

Oil canning will vary depending on the time of day and angle of viewing and is usually more noticeable in darker colours.

Oil canning will also be more prevalent in wider pans and longer sheet runs. Building designers and homeowners should be aware of this and take this into consideration.

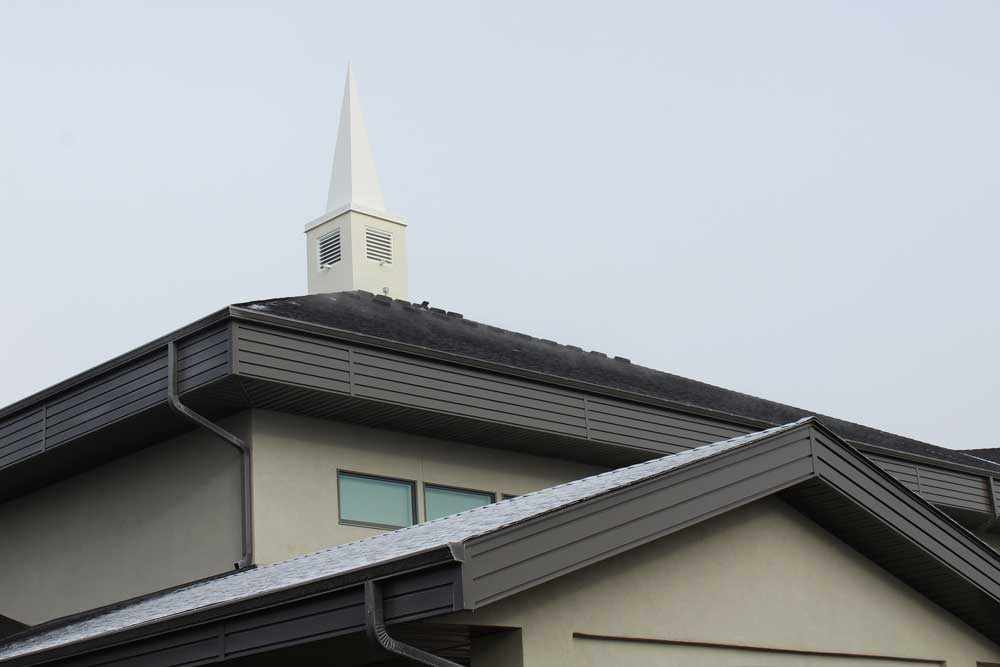

Inspiration Gallery

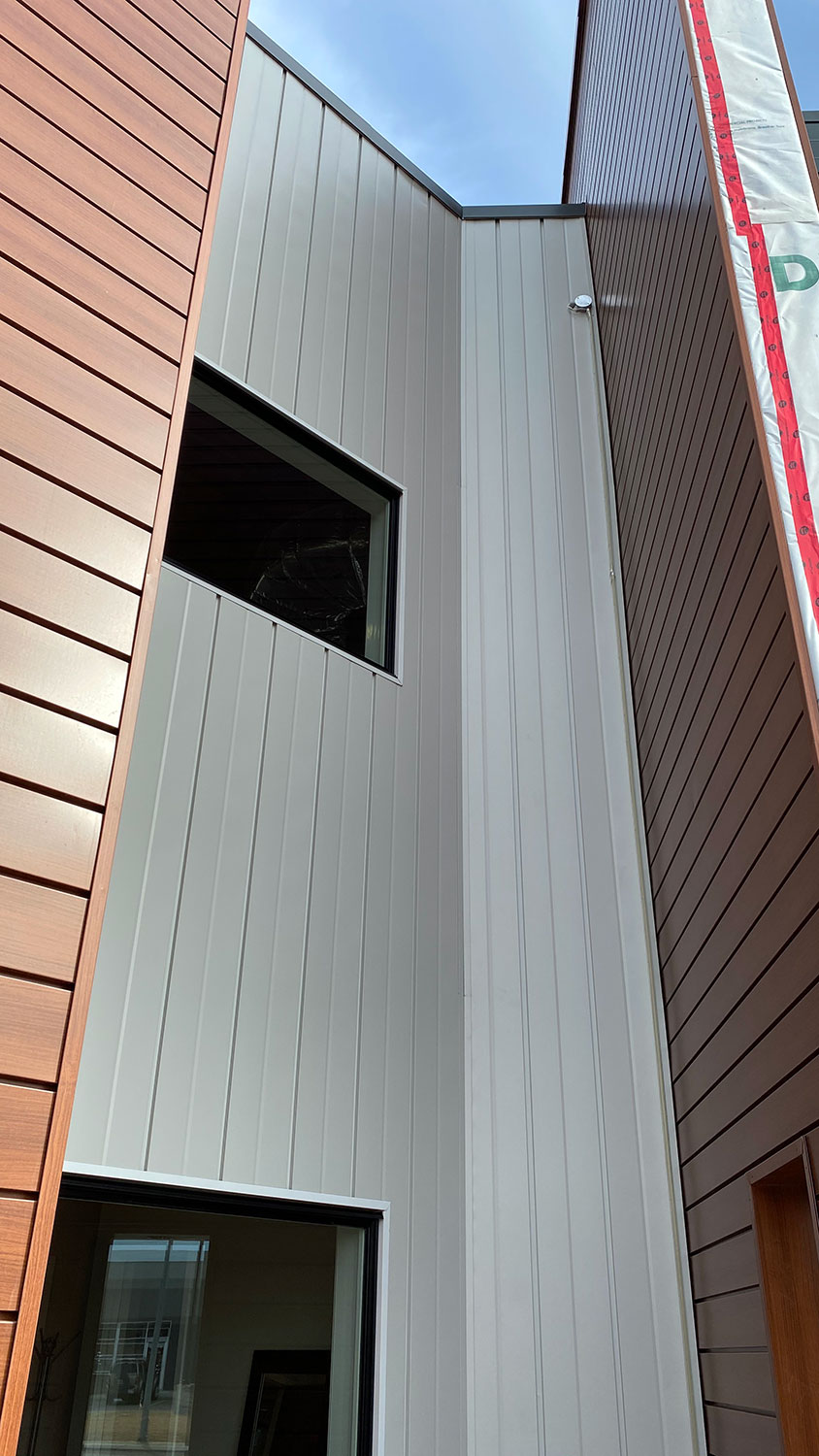

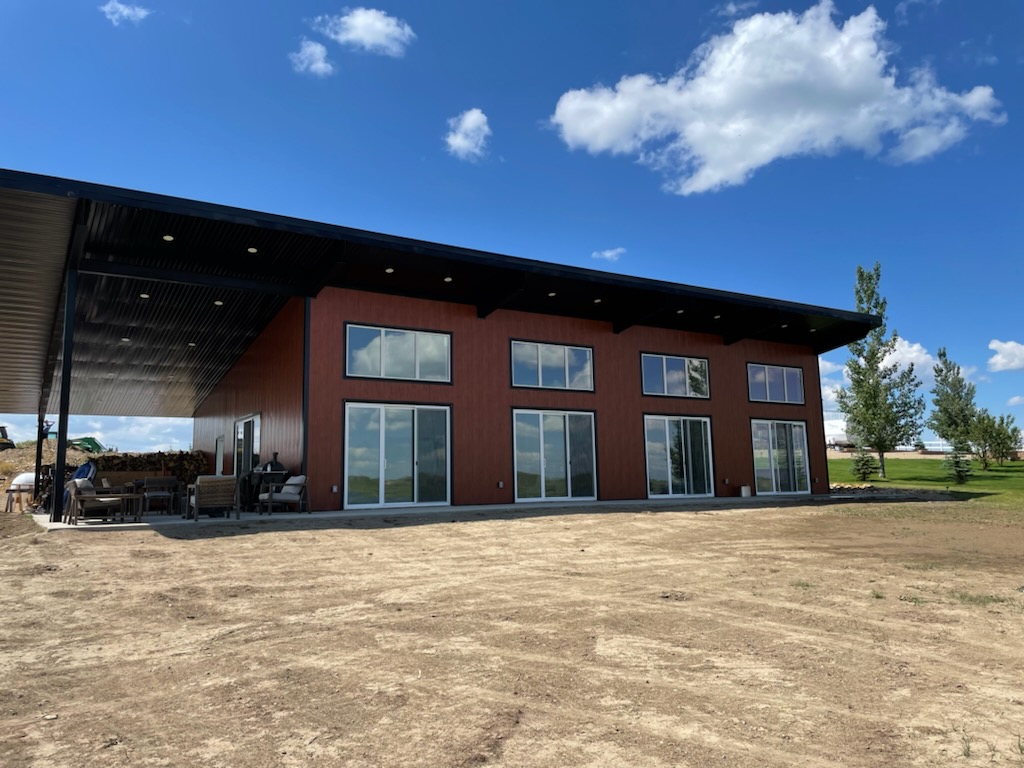

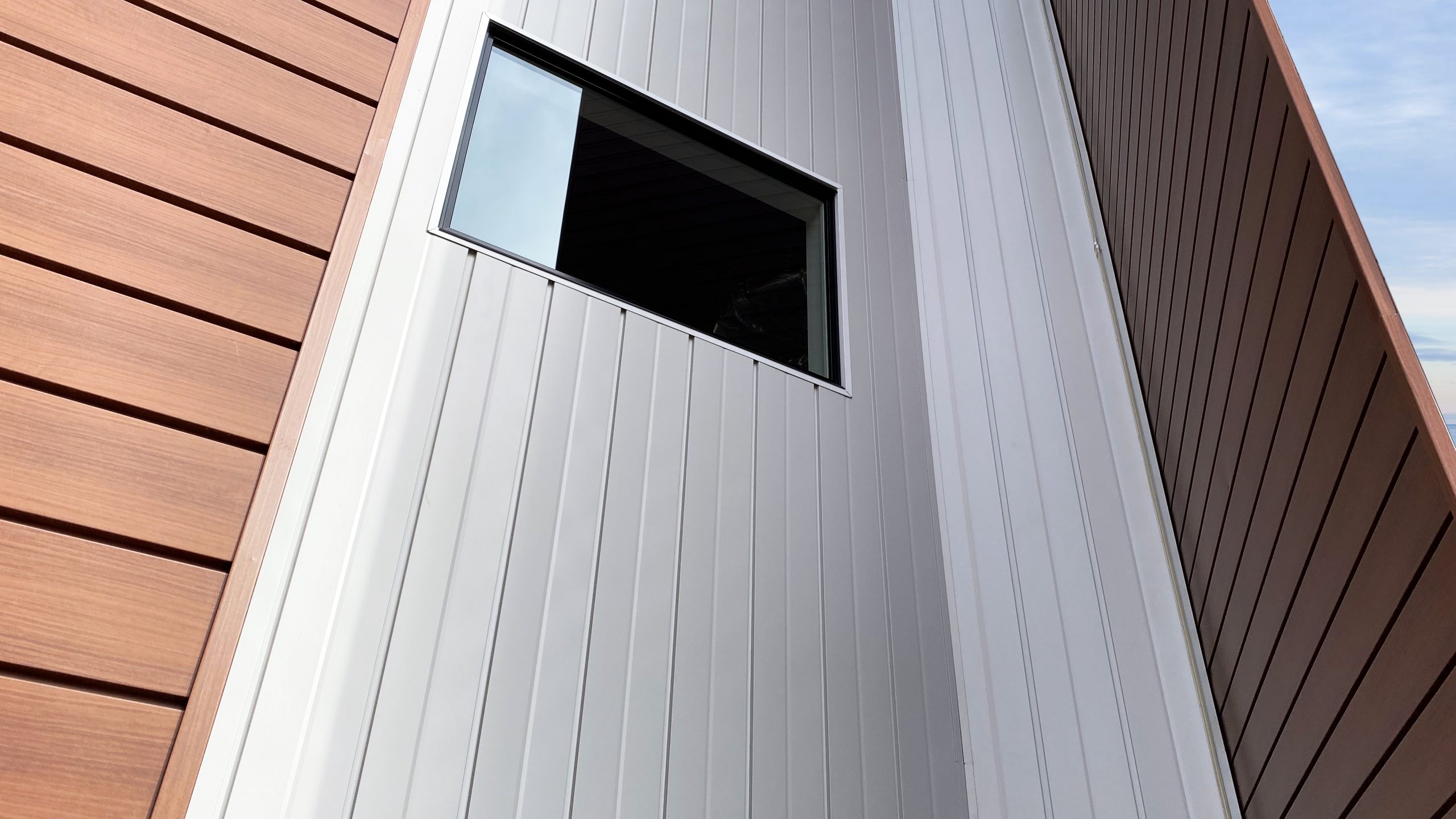

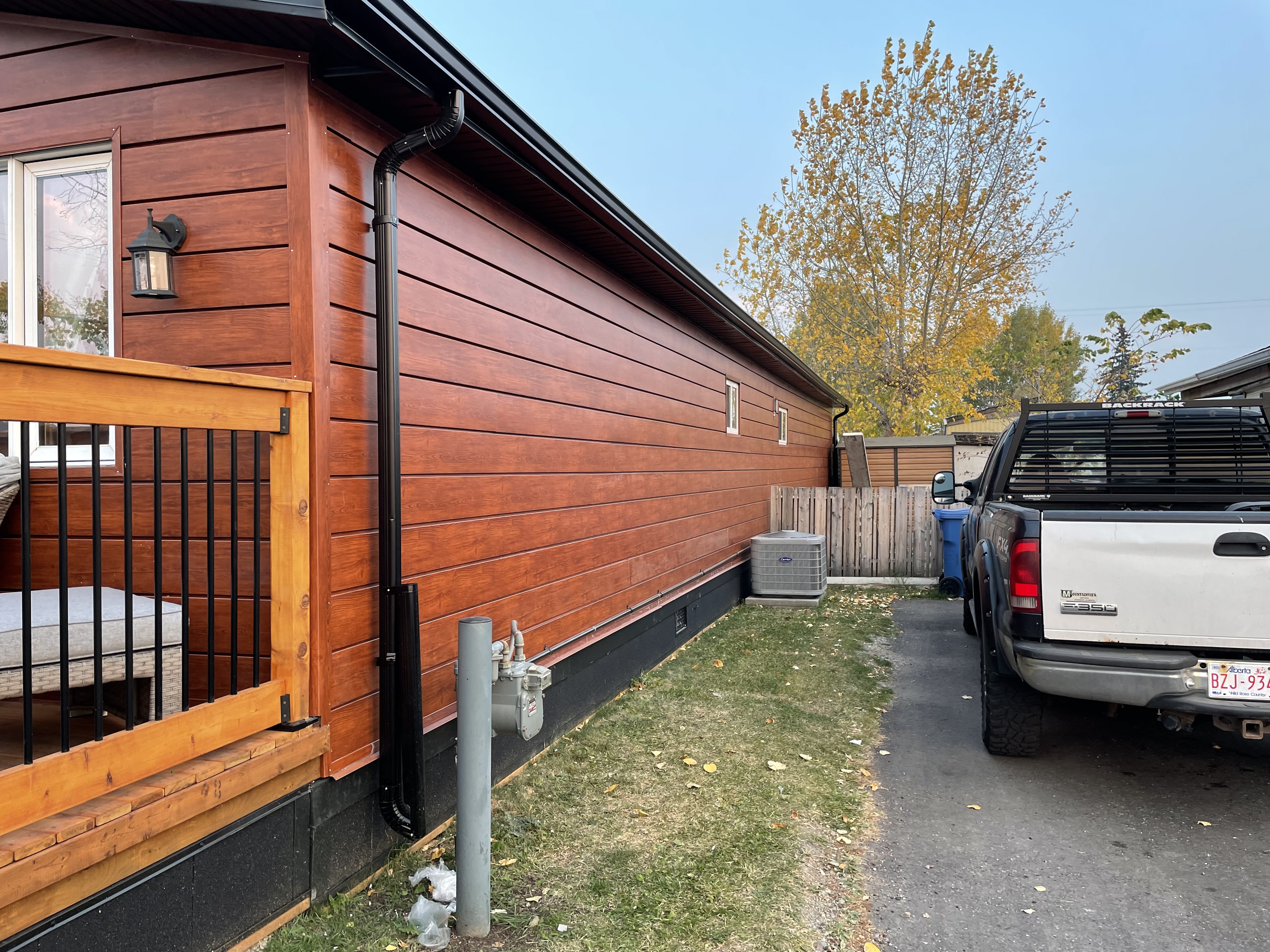

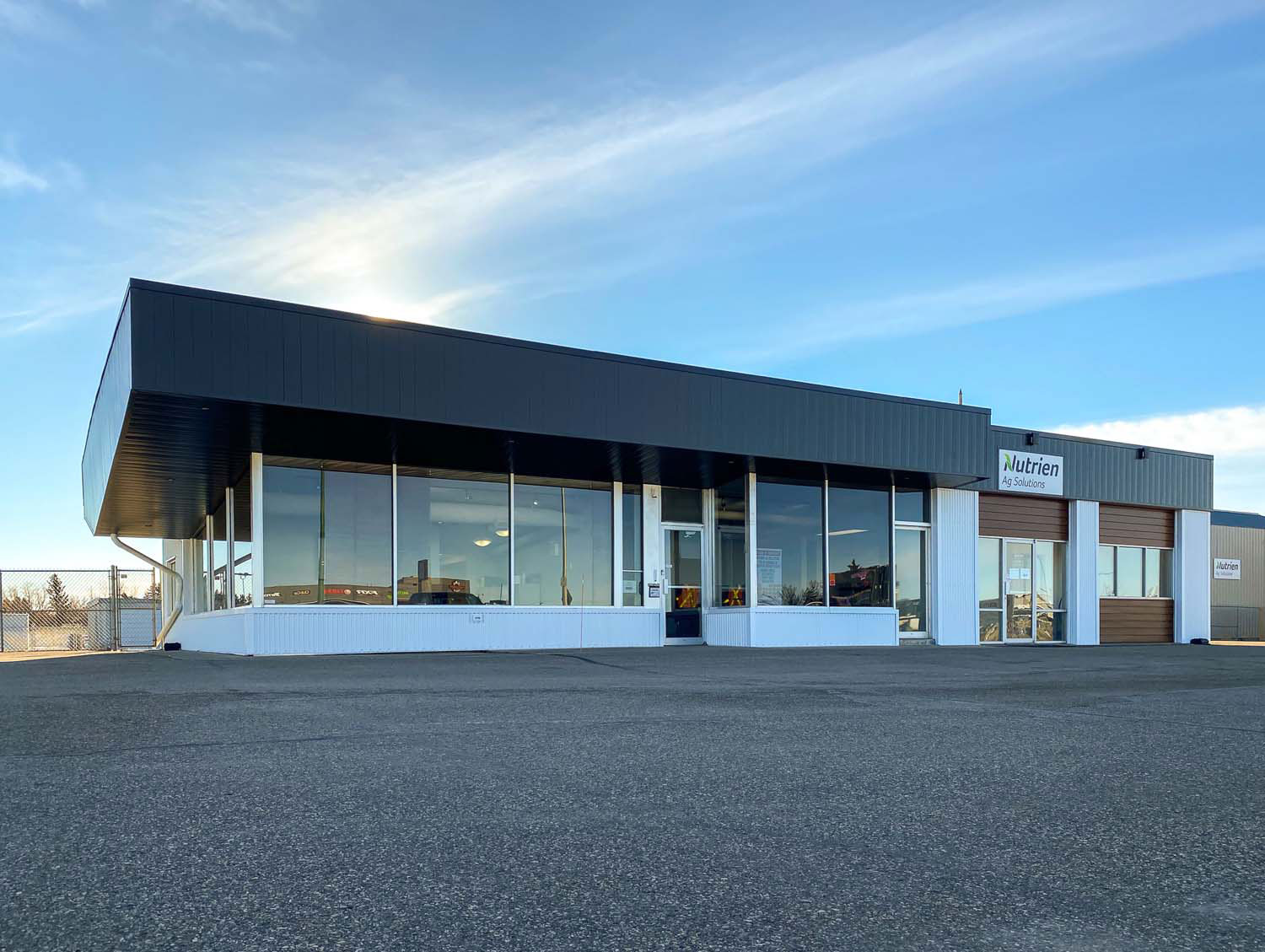

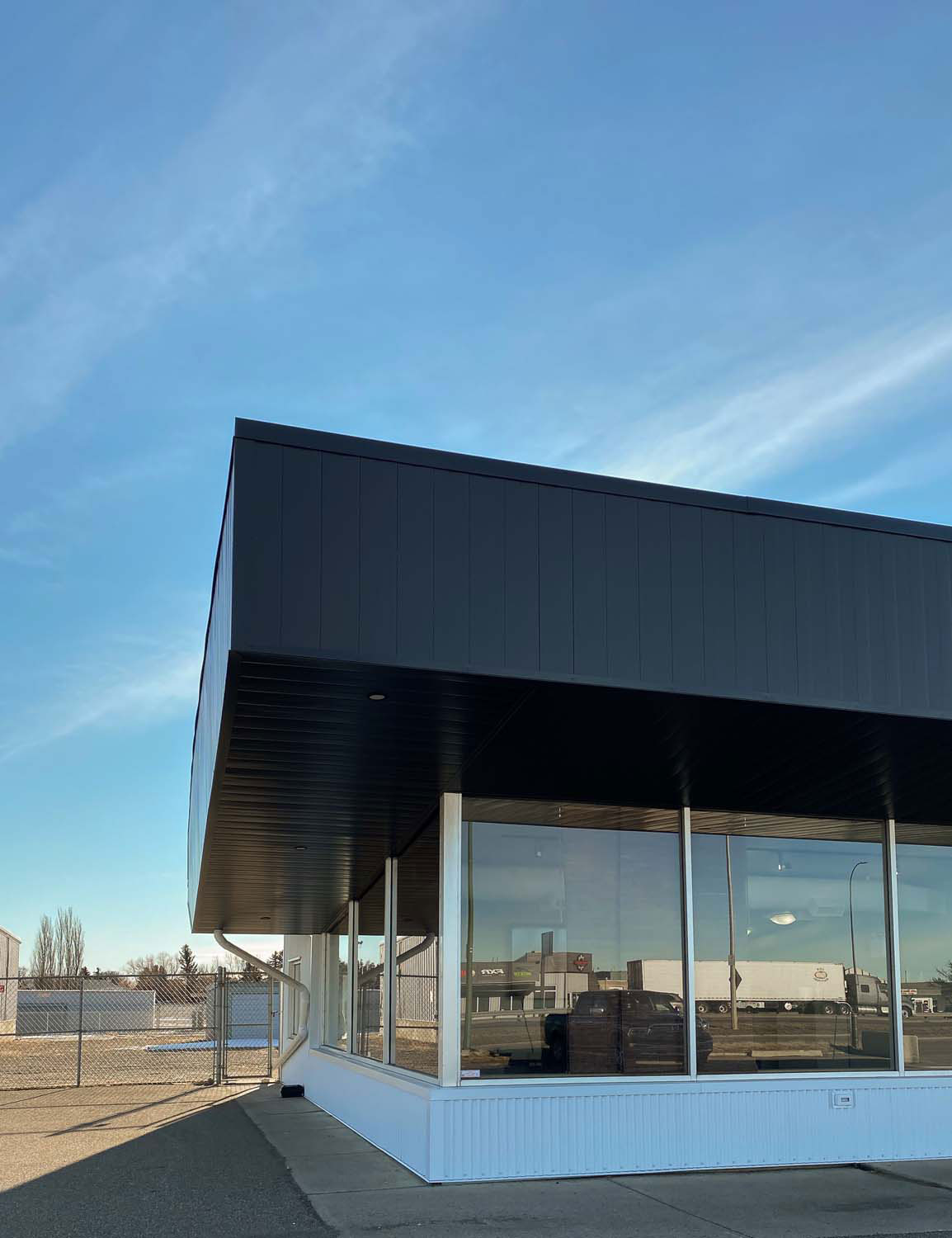

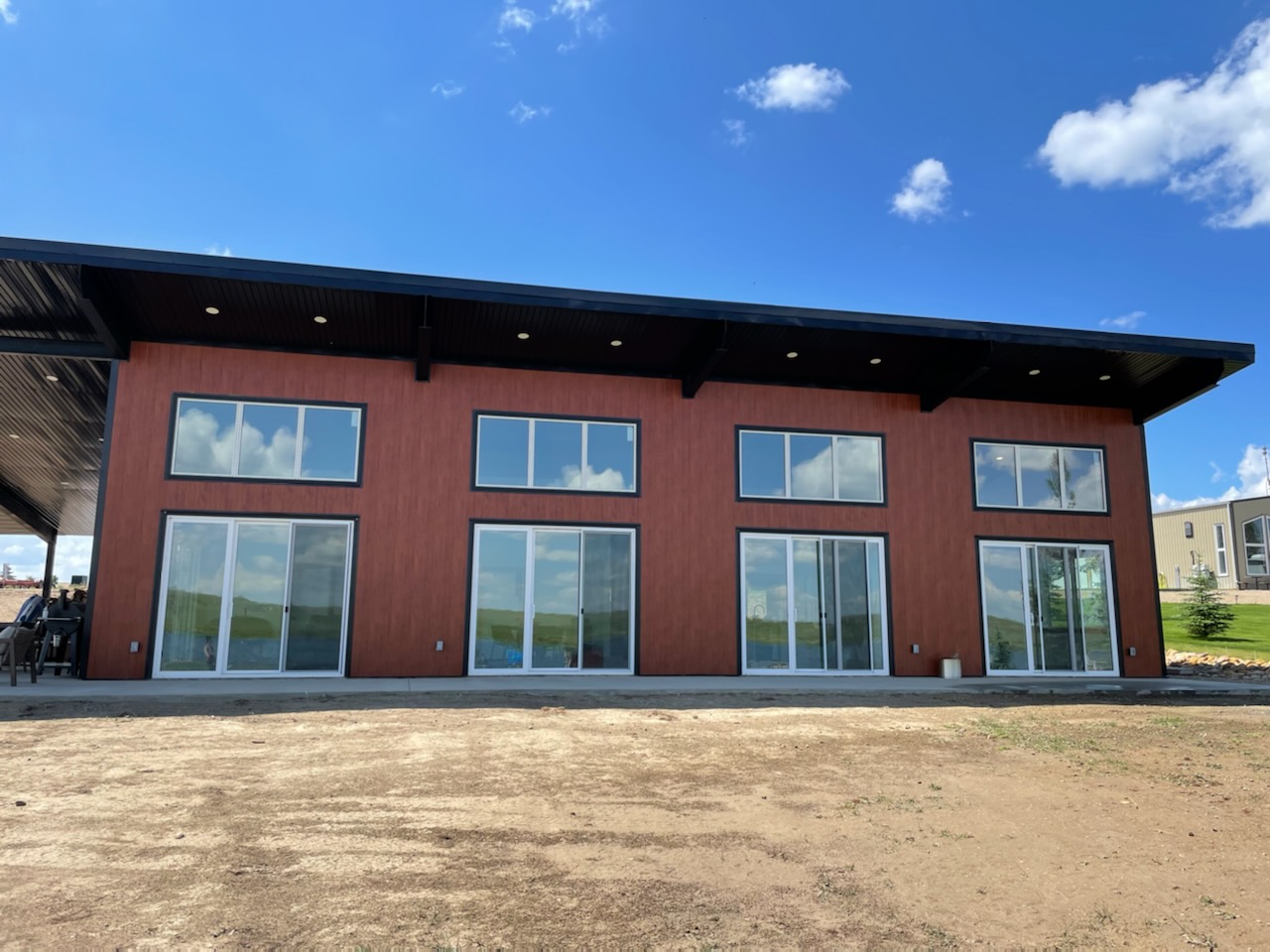

Commercial Building
Commercial Building
Commercial Building
Commercial Building
Commercial Building
Commercial Building
Commercial Building

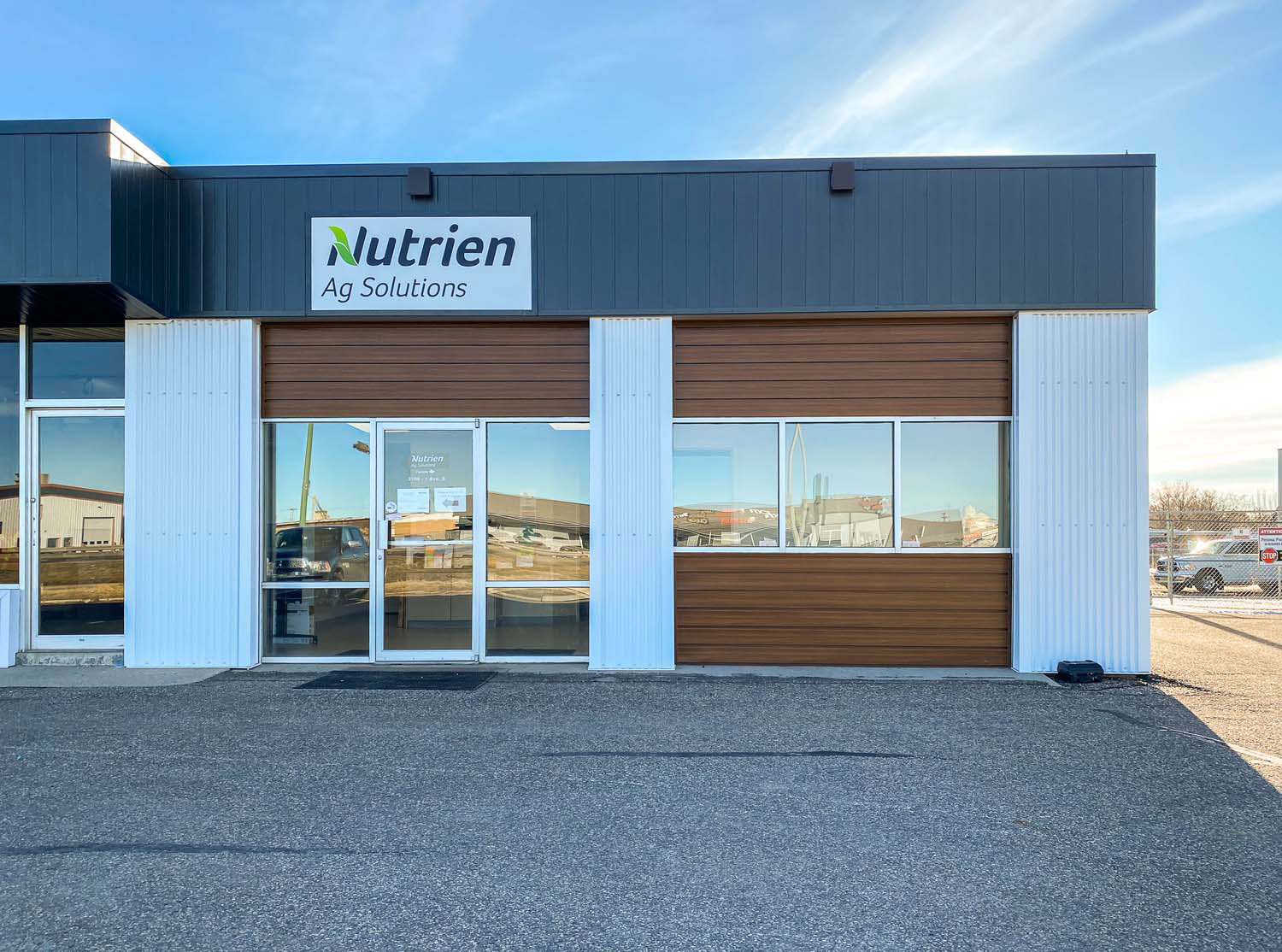

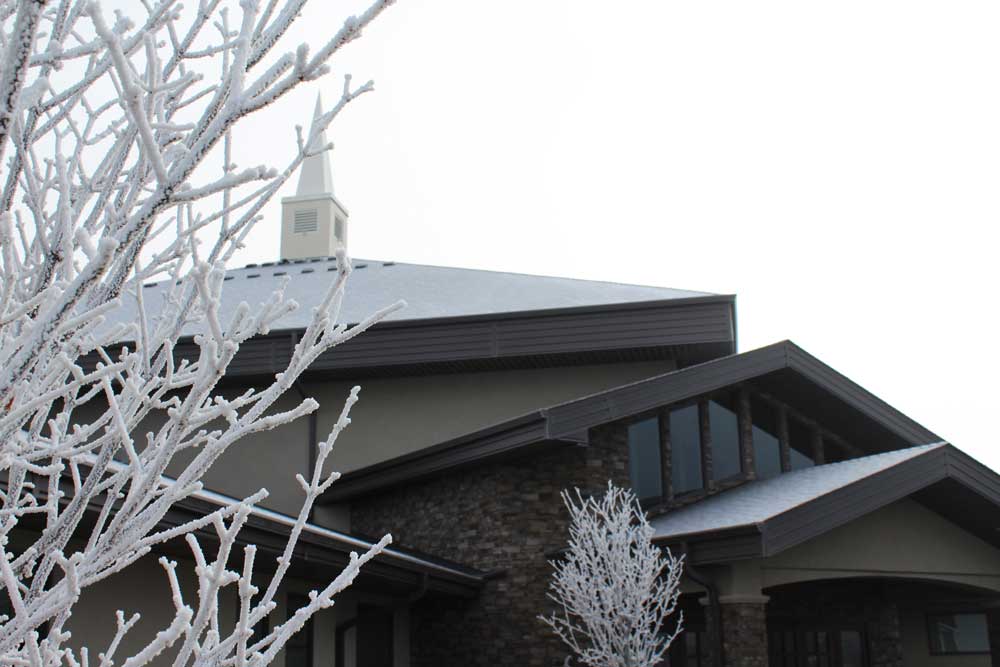

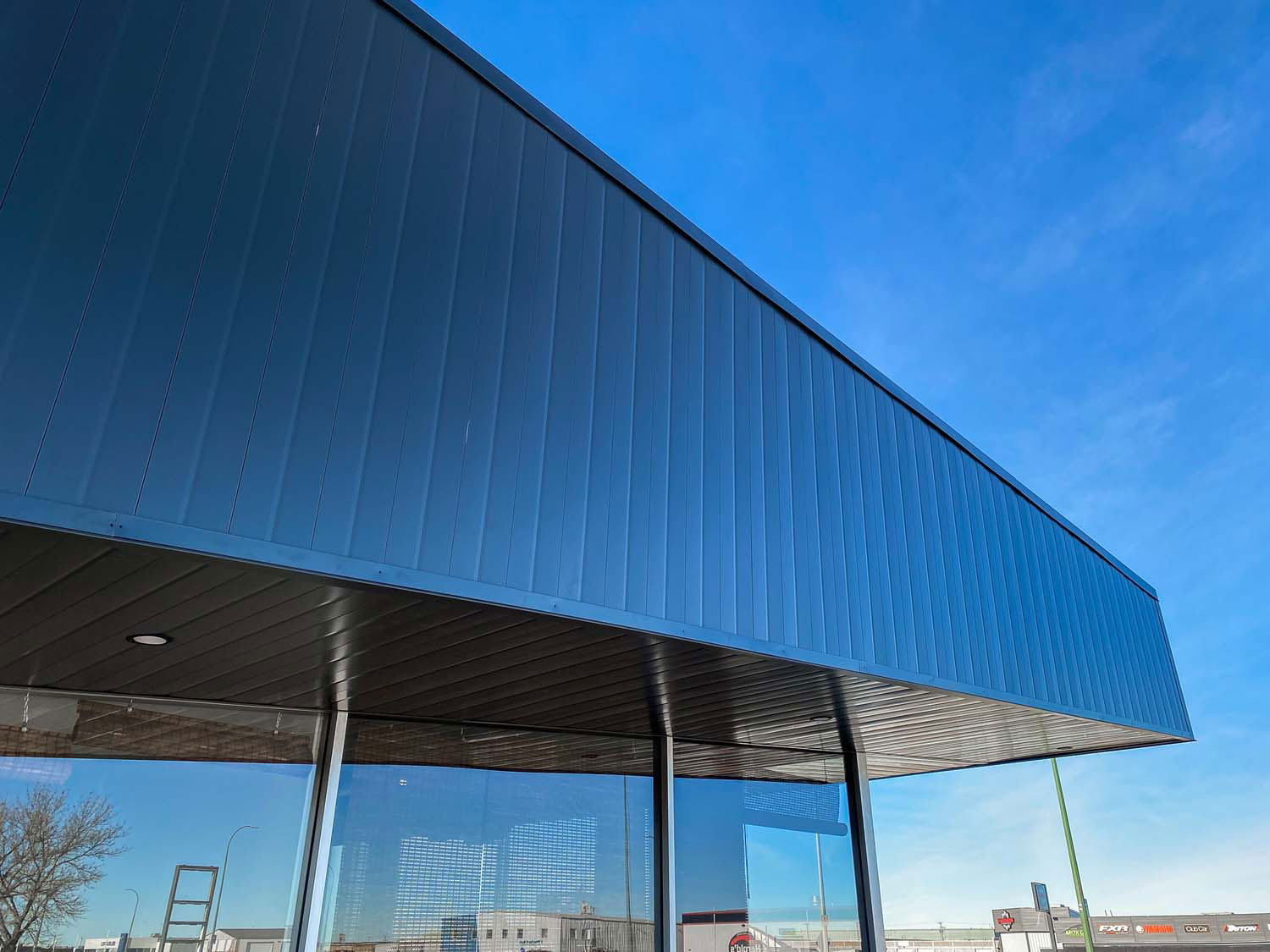

Commercial Office

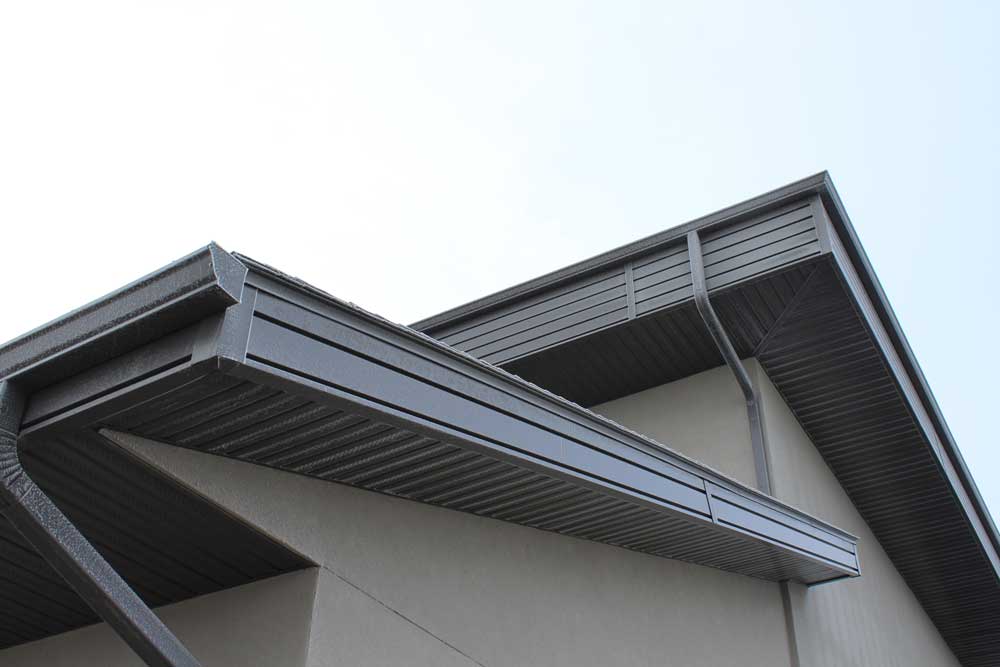

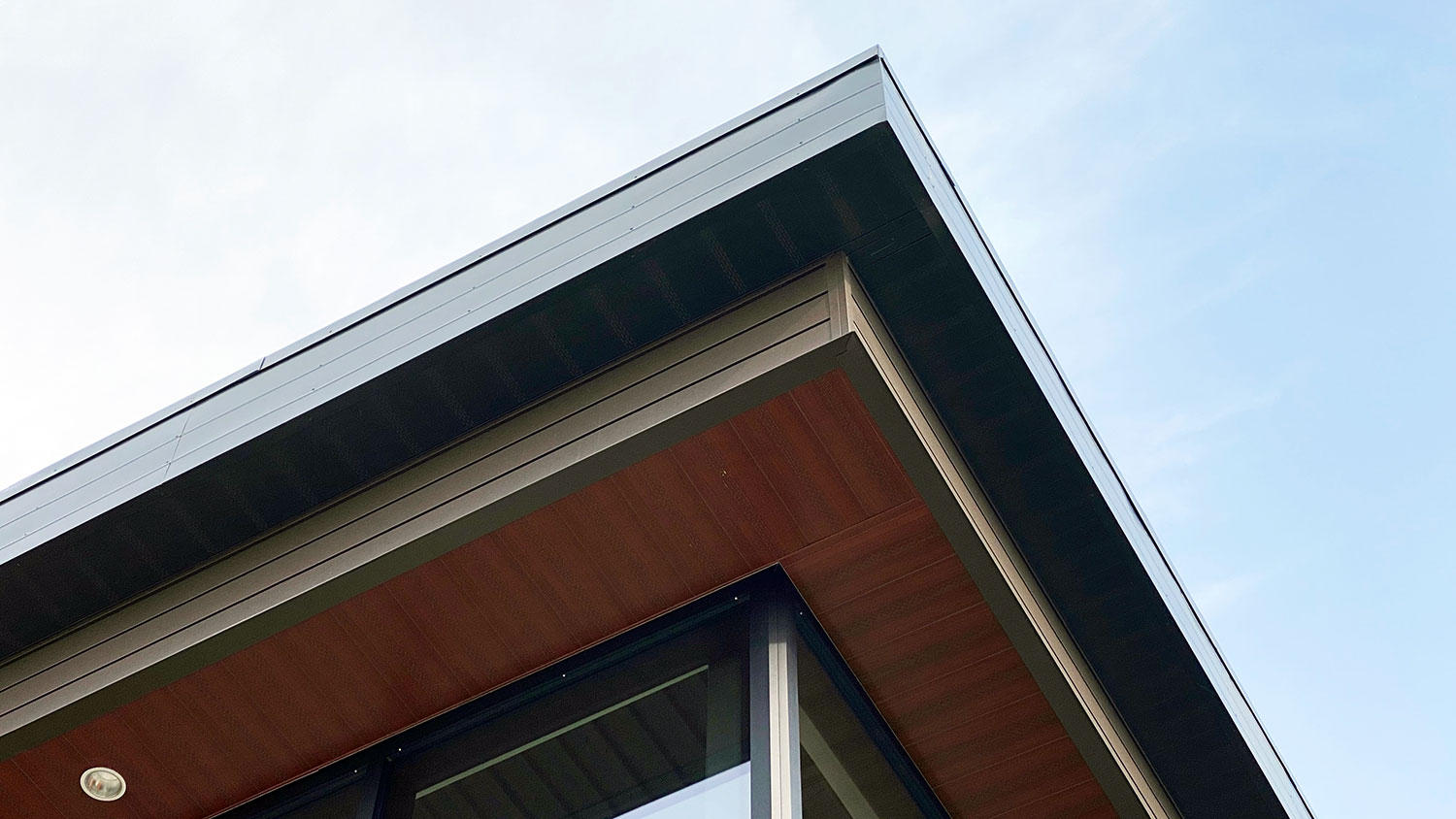

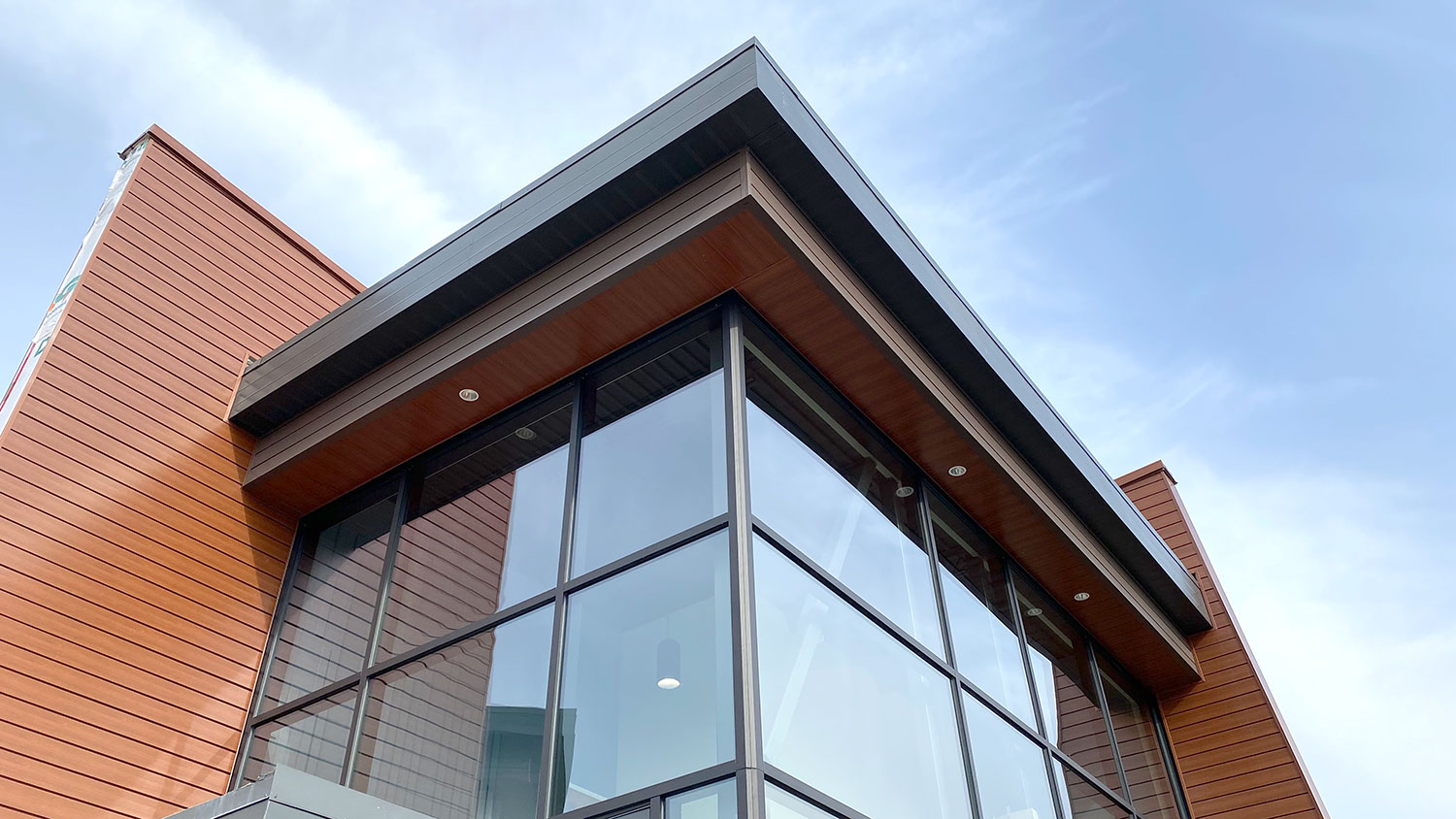

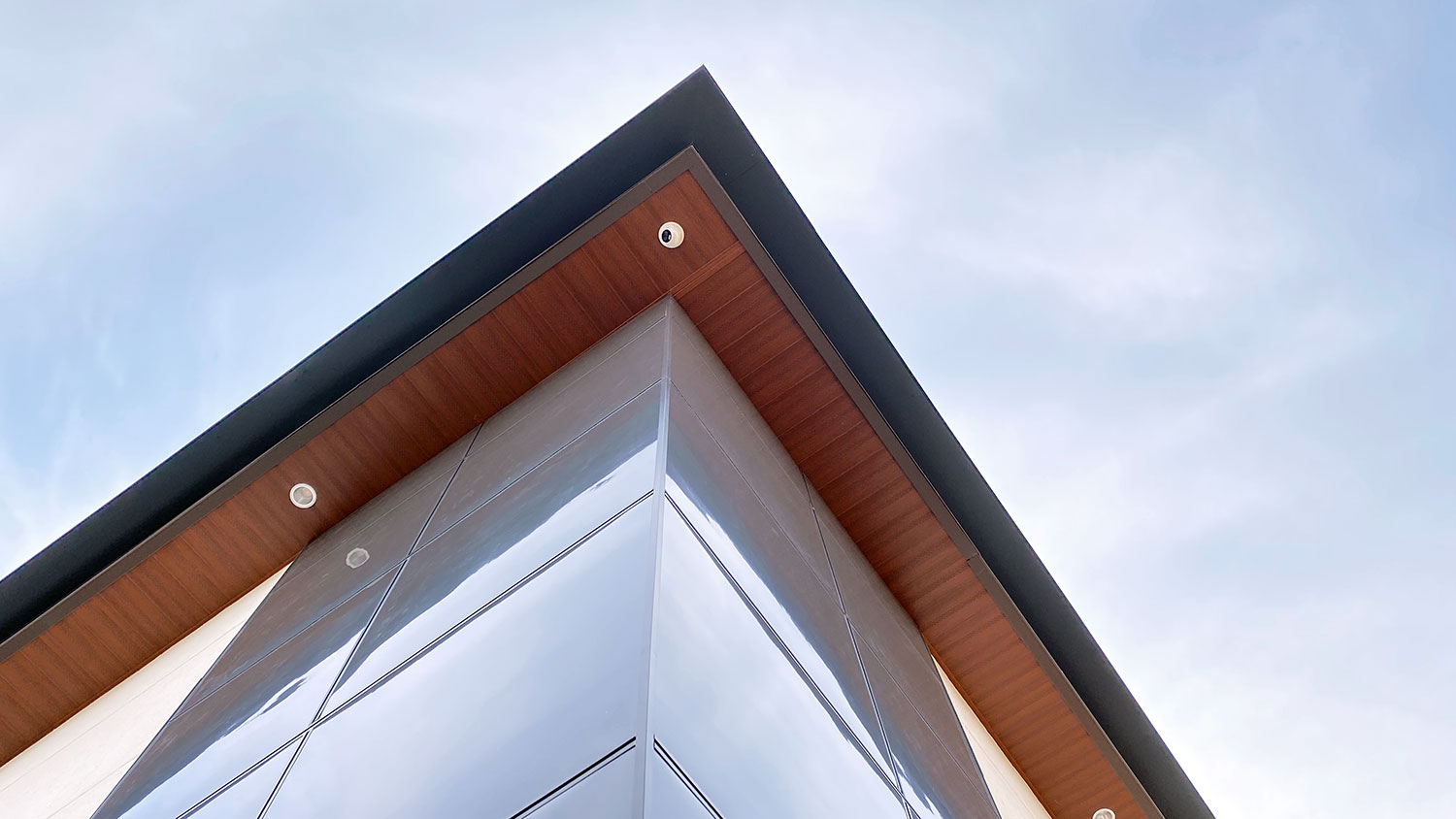

Soffit
Soffit

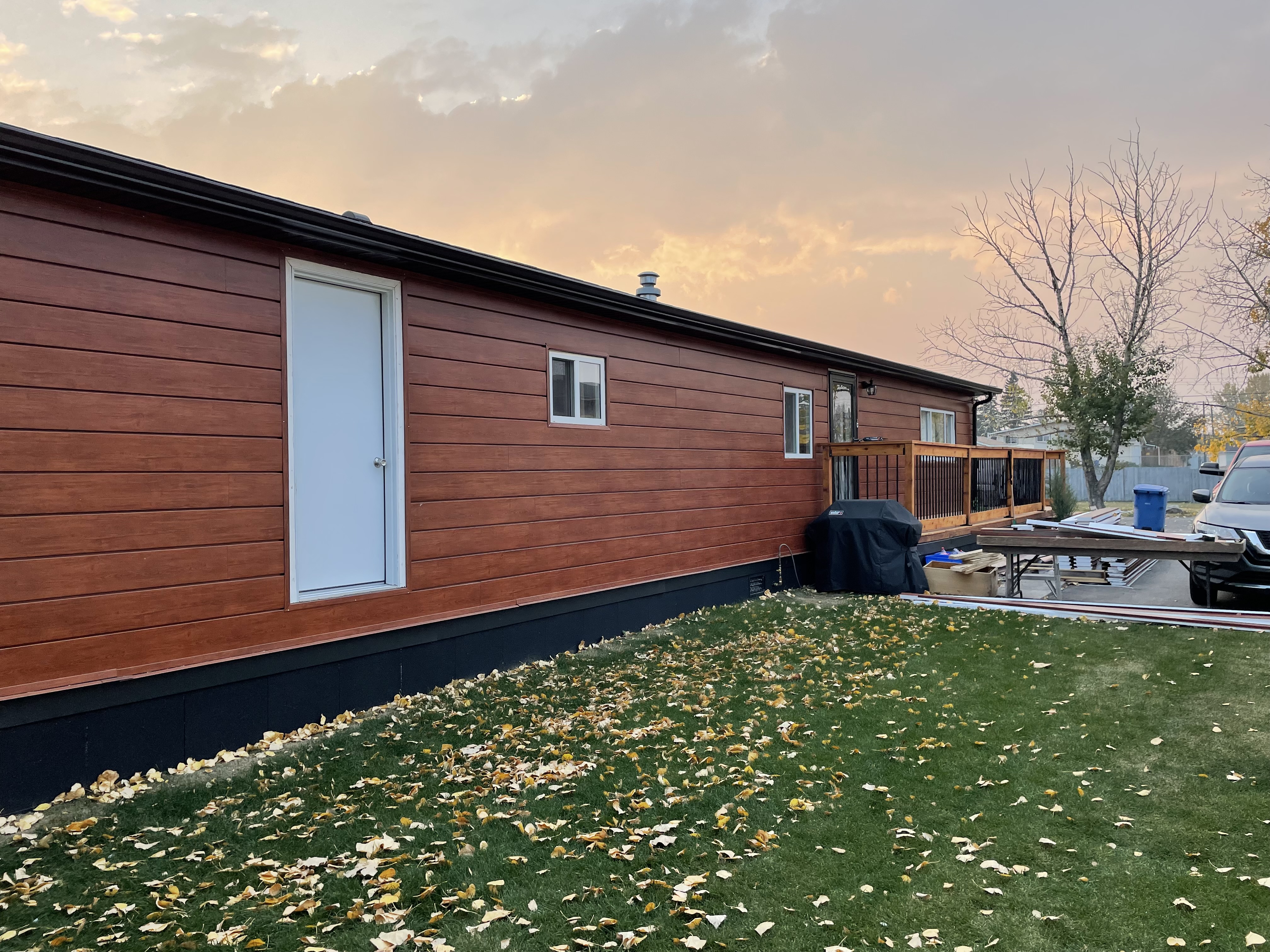

Interloc Panel Install
