Slimline Panel

Low Profile Siding Panel System


Our new Slimline Panel builds off our popular Forma Plank wall system, but offers a lower profile with a depth of only 1/2". The new depth ensures this panel system will line up with other cladding options, such as our Board and Batten panel, and other siding products on the market. Slimline Panel is available in two coverages: Narrow at 5-5/8" and Wide at 7-1/8". Available in our same Standard Colours as well as our Specialty Series that includes our Textured and Woodgrain finishes.

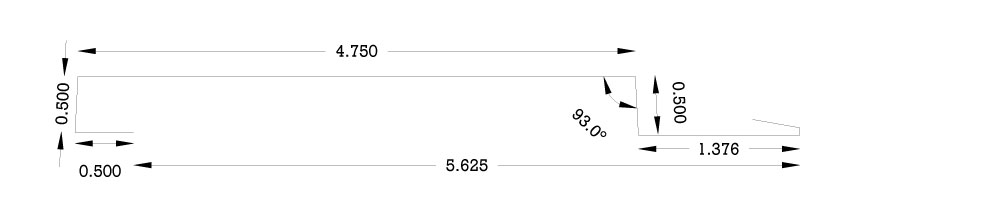

Narrow Slimline Panel Profile



Wide Slimline Panel Profile



Available in Standard 24 Gauge Colours


Galvalume

24 Gauge, 26 Gauge, 29 Gauge

Bright White

24 Gauge, 26 Gauge, 29 Gauge

White White

24 Gauge, 26 Gauge, 29 Gauge

Iceberg

24 Gauge, 26 Gauge, 26ga

Bone White

24 Gauge, 26 Gauge, 29 Gauge

Wicker

24 Gauge, 26 Gauge, 29 Gauge

Stone Grey

24 Gauge, 26 Gauge, 29 Gauge

Hickory

24 Gauge, 26 Gauge

Tan

24 Gauge, 26 Gauge, 29 Gauge

Buckskin

24 Gauge, 26 Gauge, 29 Gauge

Coffee Brown

24 Gauge, 26 Gauge, 29 Gauge

Dark Brown

24 Gauge, 26 Gauge, 29 Gauge

Black

24 Gauge, 26 Gauge, 29 Gauge

Carbon

24 Gauge, 26 Gauge, 29 Gauge

Charcoal

24 Gauge, 26 Gauge, 29 Gauge

Regent Grey

24 Gauge, 26 Gauge, 29 Gauge

Bright Red

24 Gauge, 29 Gauge

Tile Red

24 Gauge, 29 Gauge

Dark Red

24 Gauge, 26 Gauge, 29 Gauge

Slate Blue

24 Gauge, 29 Gauge

Oxford Blue

24 Gauge, 26 Gauge

Royal Blue

24 Gauge, 29 Gauge

Heron Blue

24 Gauge, 29 Gauge

Sapphire Blue

24 Gauge, 29 Gauge

Melchers Green

24 Gauge, 26 Gauge, 29 Gauge

Available in 24 Gauge Image Series Colours


Saddle Woodgrain PVDF

24 Gauge, 24 Gauge

Frontier Wood PVDF

24 Gauge, 24 Gauge

Rustic SMP

24 Gauge, 24 Gauge

Autumn Woodgrain PVDF

24 Gauge, 24 Gauge

Light Pine Woodgrain SMP

24 Gauge, 24 Gauge

Dark Walnut Woodgrain SMP

24 Gauge

Espresso Woodgrain PVDF

24 Gauge, 24 Gauge

Concrete SMP

Gunstock Woodgrain PVDF

24 Gauge, 24 Gauge

Barnboard Woodgrain PVDF

24 Gauge, 24 Gauge

Available in 24 Gauge Textured Colours


Onyx Black Textured

24 Gauge, 24 Gauge

Graphite Texture

24 Gauge, 24 Gauge

Red Oxide Textured

24 Gauge, 24 Gauge

Arctic White Textured

24 Gauge, 24 Gauge

Burnished Slate Textured

24 Gauge, 24 Gauge

Specifications

Narrow Wall Coverage: 5-5/8"
Wide Wall Coverage: 7-1/8"

Panel Depth: 1/2"

Panel Orientation: Horizontal or Vertical

Available in Lengths: 62" up to maximum of 322"

Lengths from 24" to <62" require Cut Charge

Hidden Fastener Panel

Installed on a floating clip system for ideal thermal expansion and contraction

Available in 24 Gauge Standard Colours

Available in 24 Gauge Specialty Finishes

Custom Lengths Should Be Ordered in Multiples of (6) for Narrow 5-5/8" and (5) for Wide 7-1/8"

Recommended to Install on Minimum Solid Substrate of 1/2” Plywood


Product Brochures


SLIMLINE PANEL BROCHURE

500 SERIES TRIMS (1/2")

STANDARD COLOUR CHART

IMAGE  COLOUR CHART

TEXTURED COLOUR CHART

Inspiration Gallery

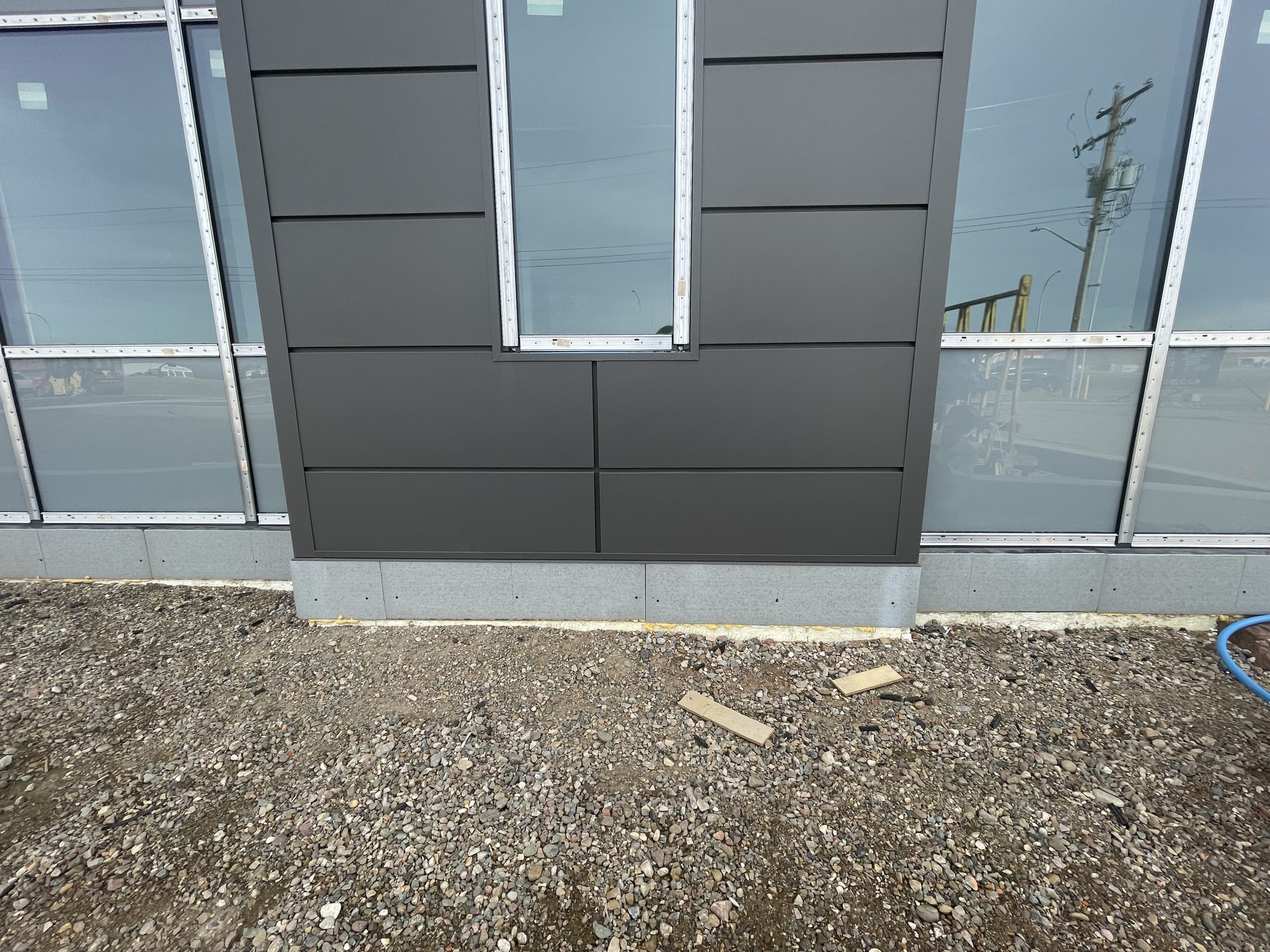

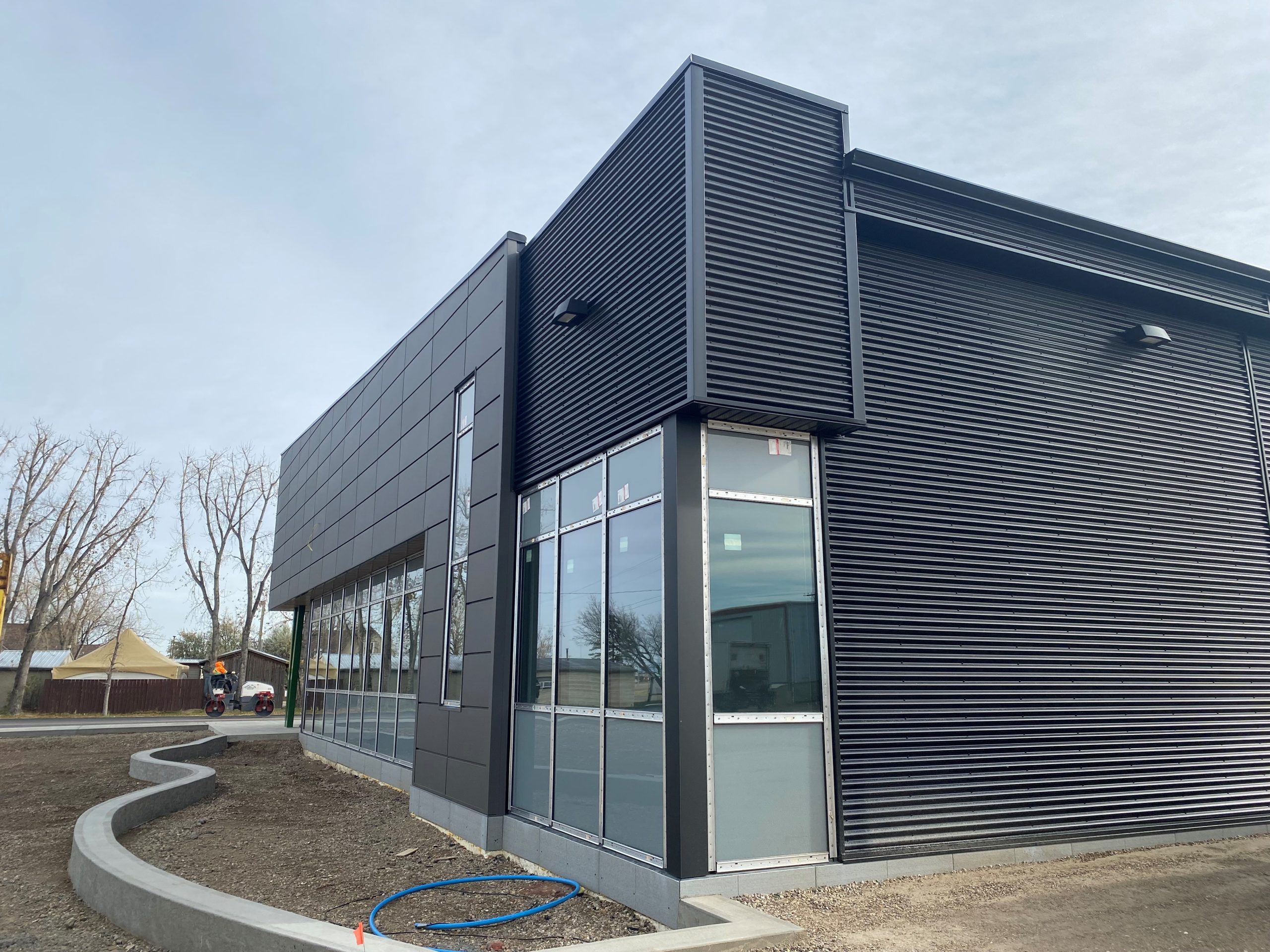

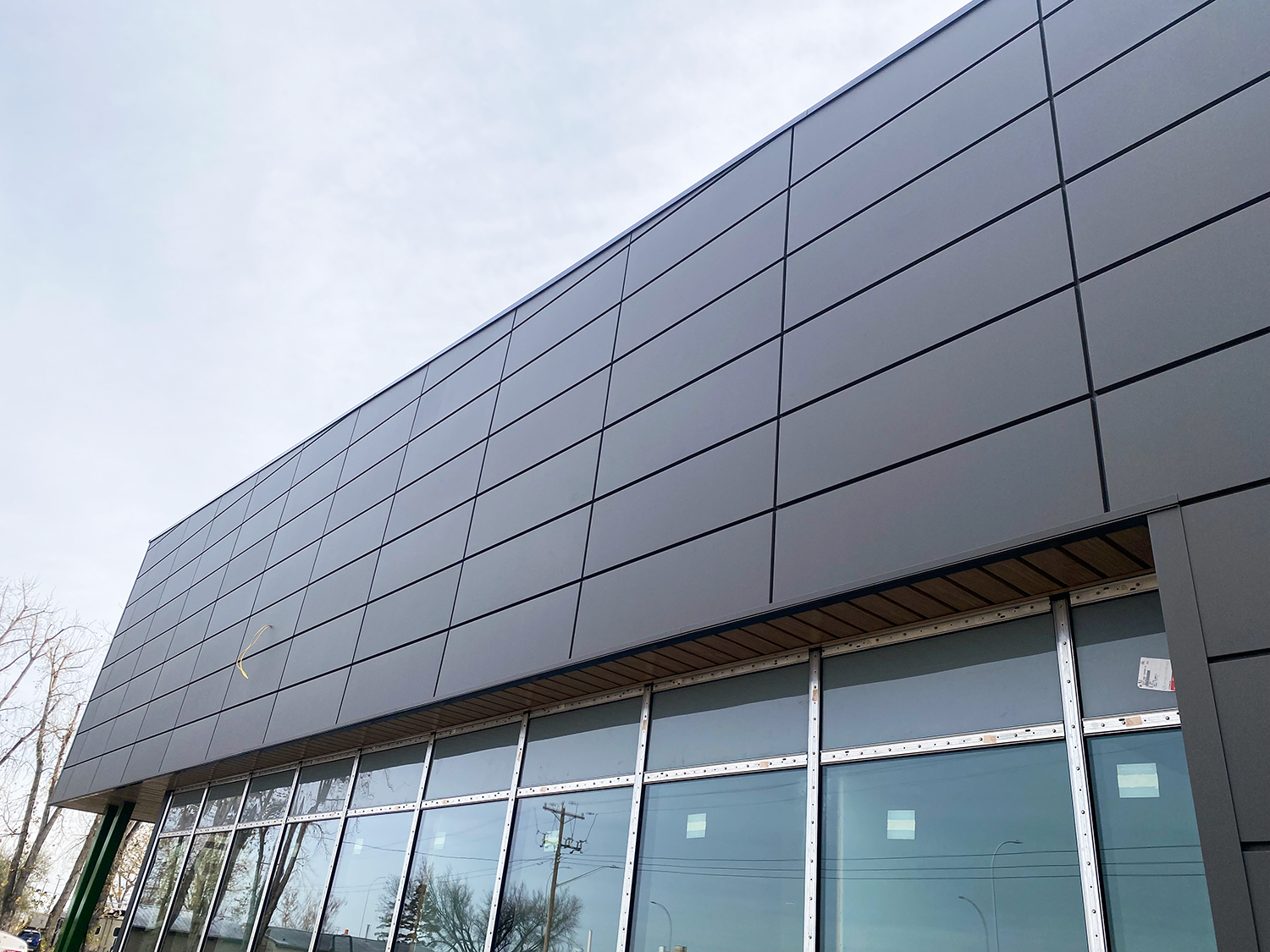

Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Modular Panels in Textured Graphite
Commercial Building with Expand Panels in Textured Arctic White - Photography by Dan Banko
Commercial Building with Expand Panels in Textured Arctic White - Photography by Dan Banko
Commercial Building with Expand Panels in Textured Arctic White - Photography by Dan Banko
Commercial Building with Expand Panels in Textured Arctic White
Commercial Building with Expand Panels in Textured Arctic White
Commercial Building with Expand Panels in Textured Graphite - Photography by Dan Banko
Commercial Building with Expand Panels in Textured Graphite - Photography by Dan Banko
Commercial Building with Expand panels in Textured Graphite

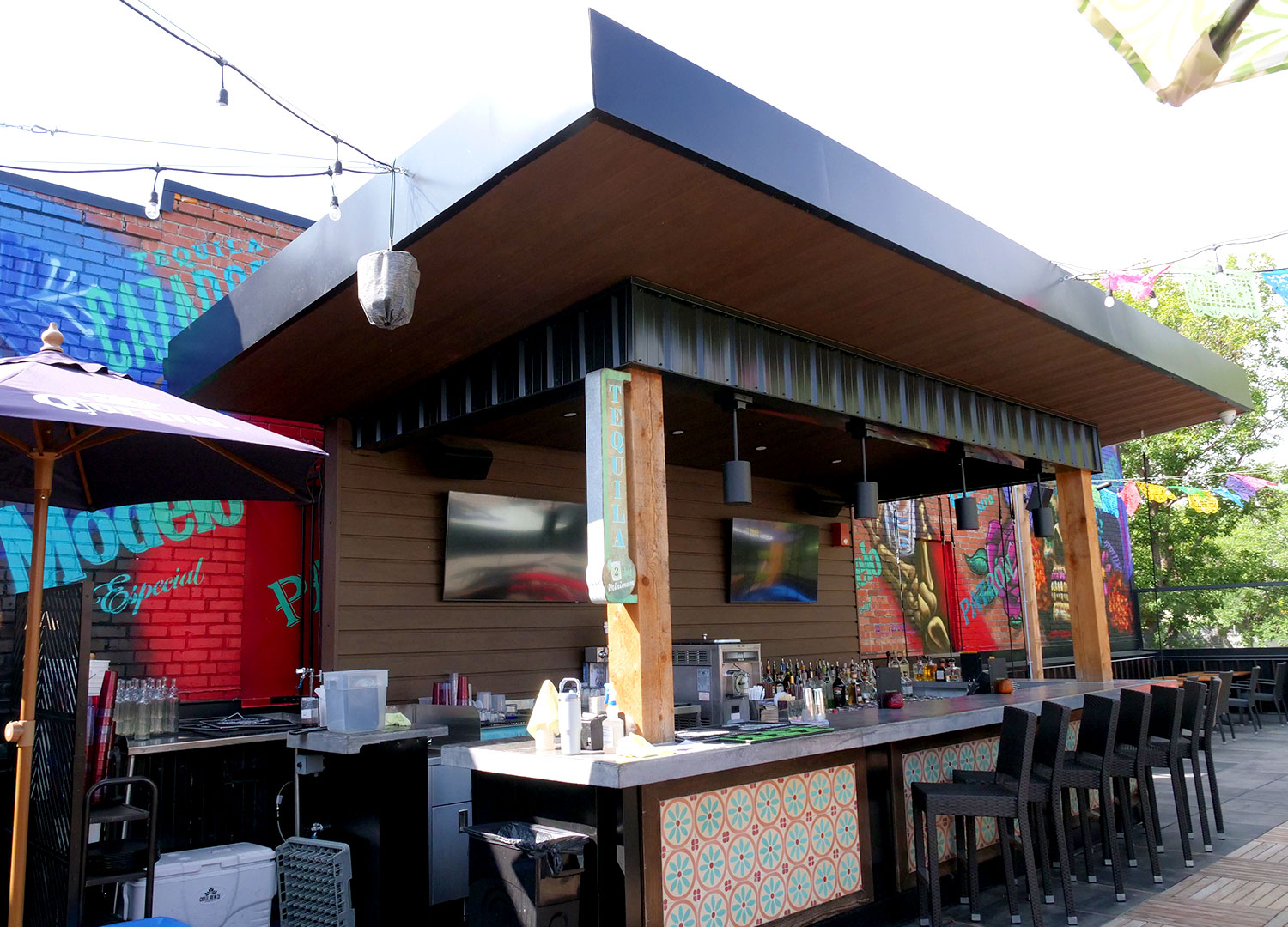

Commercial Building with Expand Panels in Espresso Woodgrain
Commercial Building with Expand Modular Panels in Bright Red
Commercial Building with Expand Modular Panels in Bright Red
Commercial Building with Expand Modular Panels in Bright Red
Commercial Building with Expand Modular Panels in Bright Red
Commercial Building with Expand Modular panels in Bright White
Residential Fascia with Expand Modular Panels
