CLIP LOC
Hidden Fastener Standing Seam PanelThe Clip Loc Panel System provides the ease of installation like our Nailstrip panel, but with the flexibility of a floating clip system. Clips allow the panels to expand and contract with the temperature changes without causing strain or tension on panels or fasteners. Metal roofs installed with a floating clip system not only have longer life spans than fastener systems, but they can achieve the same beautiful aesthetic and are highly customizable.
Panel Profiles
1" Clip Loc | 16"

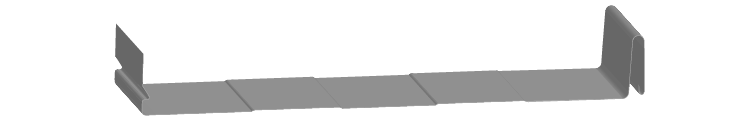

1.5" Clip Loc | 11.5"

Available in Standard 24 Gauge Colours
Galvalume
24 Gauge, 26 Gauge, 29 GaugeBright White
24 Gauge, 26 Gauge, 29 GaugeWhite White
24 Gauge, 26 Gauge, 29 GaugeIceberg
24 Gauge, 26 Gauge, 26gaBone White
24 Gauge, 26 Gauge, 29 GaugeWicker
24 Gauge, 26 Gauge, 29 GaugeStone Grey
24 Gauge, 26 Gauge, 29 GaugeHickory
24 Gauge, 26 GaugeTan
24 Gauge, 26 Gauge, 29 GaugeBuckskin
24 Gauge, 26 Gauge, 29 GaugeCoffee Brown
24 Gauge, 26 Gauge, 29 GaugeDark Brown
24 Gauge, 26 Gauge, 29 GaugeBlack
24 Gauge, 26 Gauge, 29 GaugeCarbon
24 Gauge, 26 Gauge, 29 GaugeCharcoal
24 Gauge, 26 Gauge, 29 GaugeRegent Grey
24 Gauge, 26 Gauge, 29 GaugeBright Red
24 Gauge, 29 GaugeTile Red
24 Gauge, 29 GaugeDark Red
24 Gauge, 26 Gauge, 29 GaugeSlate Blue
24 Gauge, 29 GaugeOxford Blue
24 Gauge, 26 GaugeRoyal Blue
24 Gauge, 29 GaugeHeron Blue
24 Gauge, 29 GaugeSapphire Blue
24 Gauge, 29 GaugeMelchers Green
24 Gauge, 26 Gauge, 29 Gauge1" Specifications
Standard Widths: 13" and 16"
Custom Widths: 9" to 21" (extended lead times may apply)
Concealed Clip System
Panel Length: Up to 50 feet
Suitable for low sloped roofs down to 3/12
Substrate:
Walls: 5/8" Standard Plywood Minimum
Roof: 1/2" Standard Plywood Minimum
Available Gauges: 24 (in standard colours)
Minimum Length: 24"
Available with striations or minor ribs. Striations are recommended to minimize the appearance of oil-canning.
Notes: Allows for expansion without the use of a seaming tool

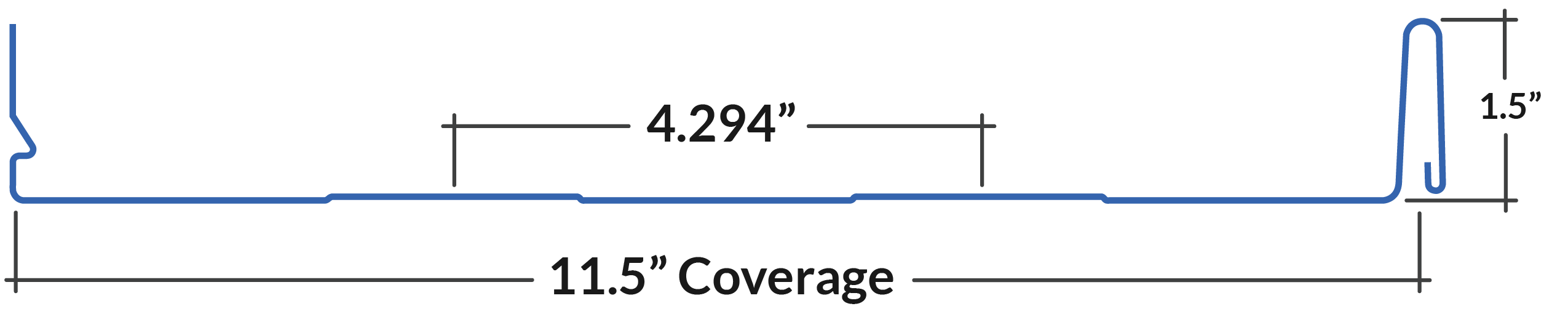

1.5" Specifications
Standard Widths: 11.5" and 16"
Custom Widths: 7.5" to 19.5" (extended lead times may apply)
Concealed Clip System
Panel Length: Up to 50 feet
Suitable for low sloped roofs down to 1.5/12
Substrate: 5/8" standard plywood minimum
Available Gauges: 24 (in standard colours)
Minimum Length: 24"
Available with striations or minor ribs. Striations are recommended to minimize the appearance of oil-canning.
Notes: Allows for expansion without the use of a seaming tool
Product Brochures
CLIP LOC BROCHURE
STANDARD COLOUR CHART
STANDARD TRIMS
1000 SERIES TRIMS (1”)
NOTCHING
Installation
The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12.
Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.
Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.
