mechanical LOC
Standing Seam Panel SystemThe Mechanical Loc panel is a commercial grade panel that is mechanically seamed and installed with a concealed clip system. This panel offers long clean lines and wide variable widths. A suitable choice for climates with high wind, high snow accumulation, and extreme temperatures. Ideal for shallow sloped roofs and is available in 1”, 1.5” and 2” seam heights. Available with either minor ribs or striations. Striations are recommended on panels to minimize the appearance of oil-canning.
The use of proper underlayment is vital to the performance of any roofing system, we recommend the use of a peel and stick membrane for any slopes lower than 3:12.

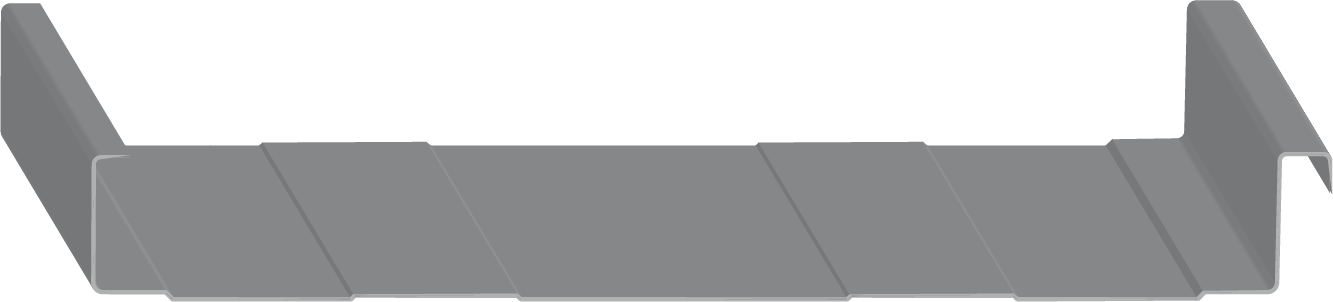

Panel Profile
2" Mechanical Loc

1.5" Mechanical Loc
*also available in 1"

Available in Standard 24 Gauge Colours
Galvanized
Galvalume
Bright White
White White
Iceberg
Bone White
Wicker
Stone Grey
Hickory
Tan
Buckskin
Coffee Brown
Dark Brown
Black
Carbon
Black on Black
Charcoal
Zinc Grey
Regent Grey
Bright Red
Tile Red
Dark Red
Slate Blue
Oxford Blue
Royal Blue
Heron Blue
Sapphire Blue
Melchers Green
Specifications
Application: Roof
Coverage: 12.25" to 16"
Seam Heights: 1" or 1.5" or 2"
Panel Length: Up to 50' (min. length: 12")
Available Gauge: 24
Available in 40+ Standard Colours & Specialty Finishes
Substrate: 5/8" standard plywood minimum (1/2" for walls)
Minimum Slopes: 1" = 3:12 | 1.5" = 1.5:12 | 2" = 3/4:12
Note: Confirm with construction standards and underlayment manufacturing
Requires seamer tool (inquire about our tool rental options)
Suitable for climates with high wind, high snow accumulation & extreme temperatures
Note: Striations are recommended on panels to minimize the appearance of oil-canning.
Product Brochures
Installation
The use of a proper underlayment is vital to the performance of any roofing system. Forma Steel strongly recommends the use of a peel and stick membrane for any slopes lower than 3/12.
Since every project is different, care and attention should be paid to the product that is being specified so that the building performs as designed.
Venting, breathability and water resistance are all components of a building envelope and should be confirmed with building designers for optimal performance.

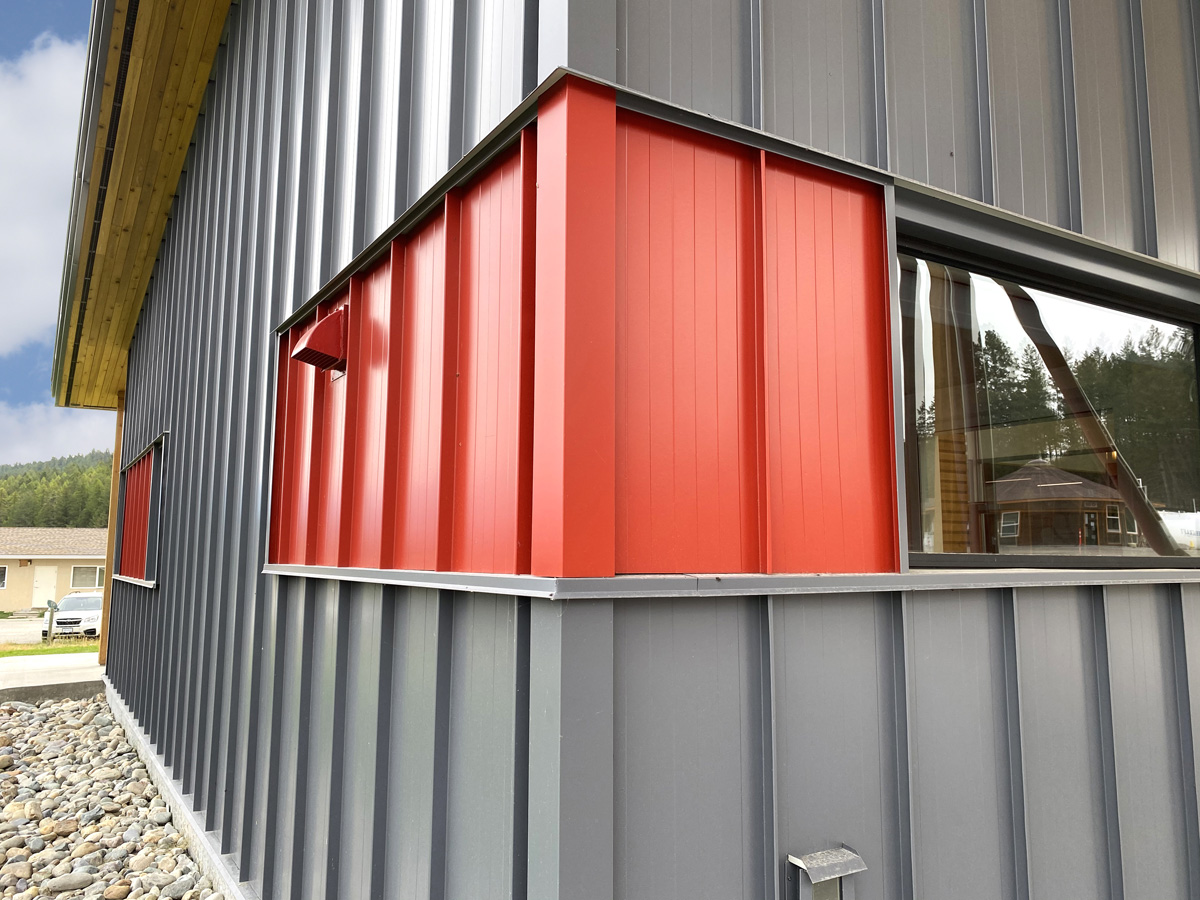

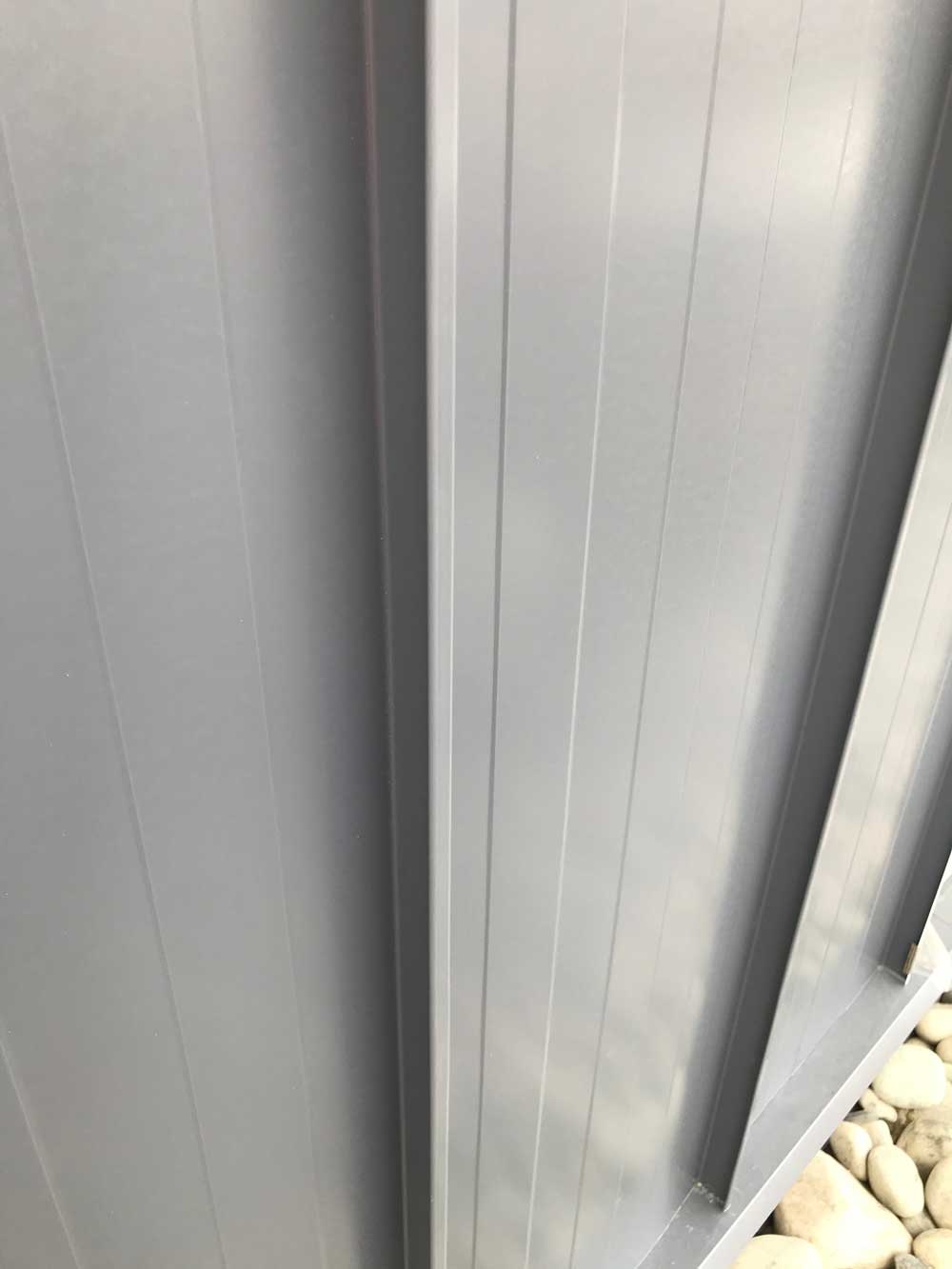

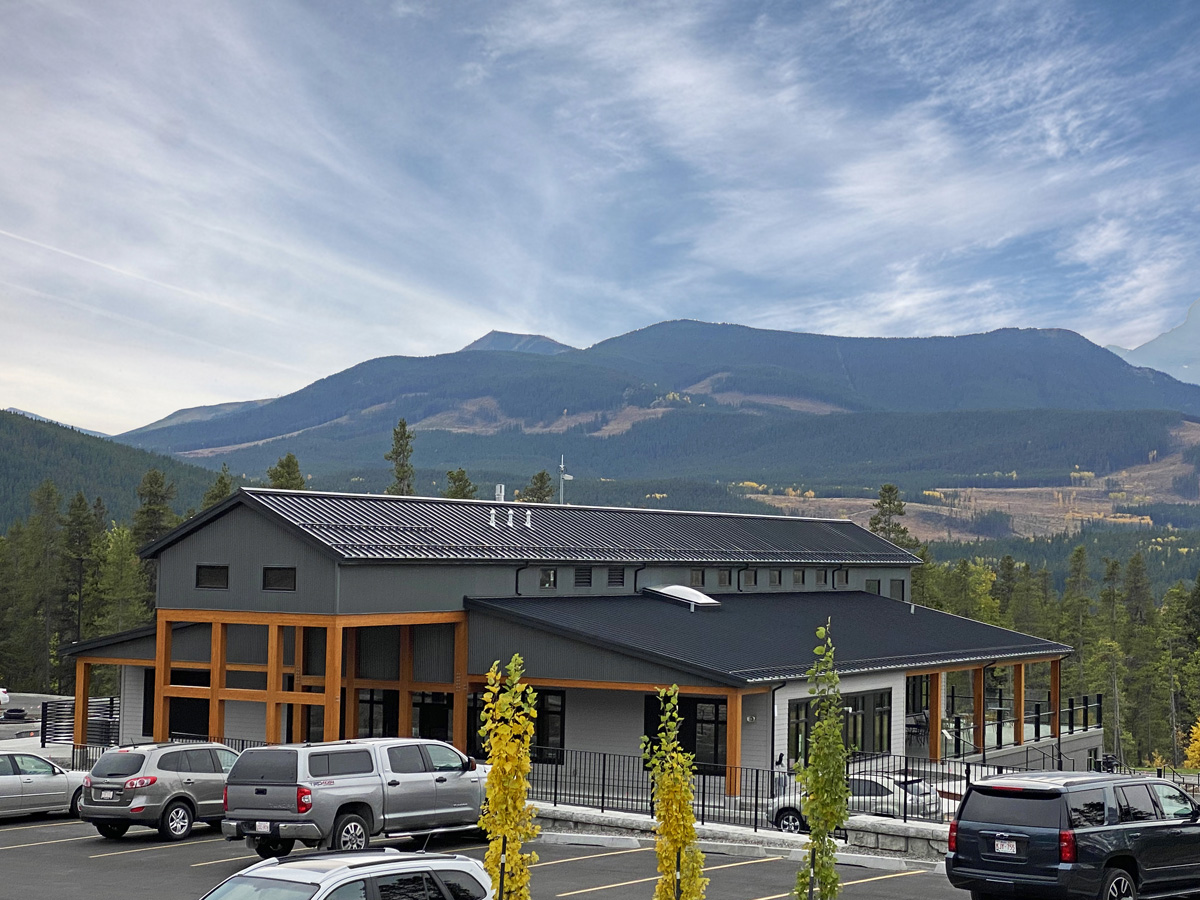

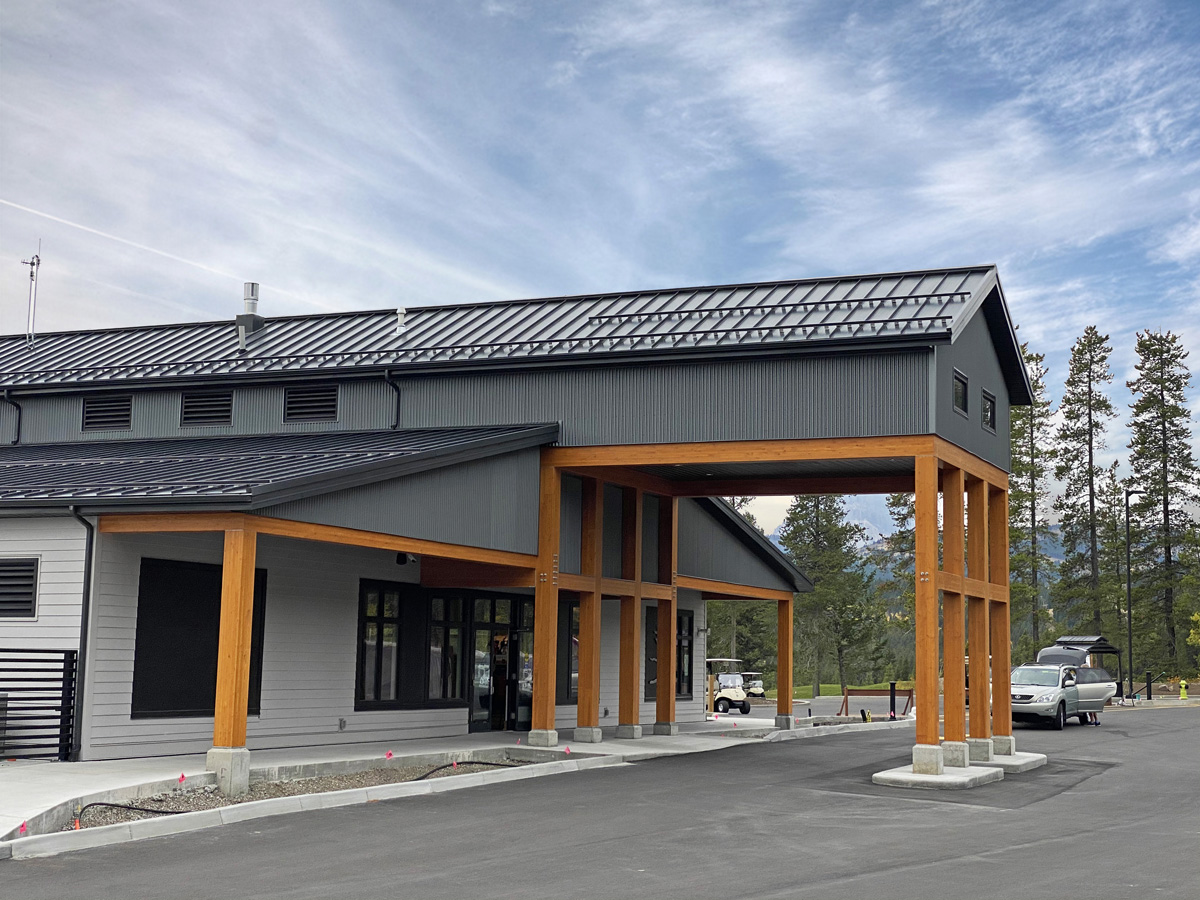

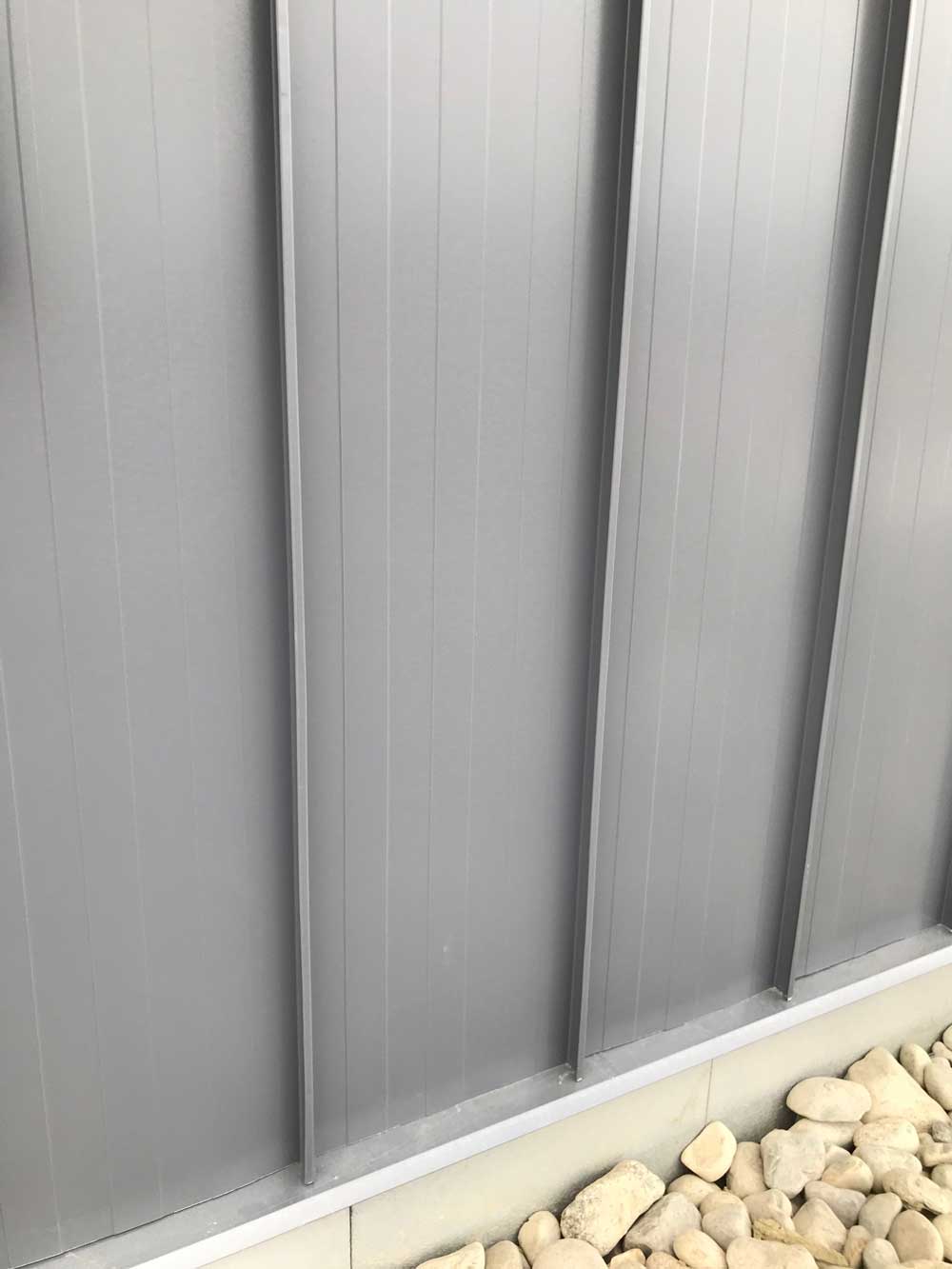

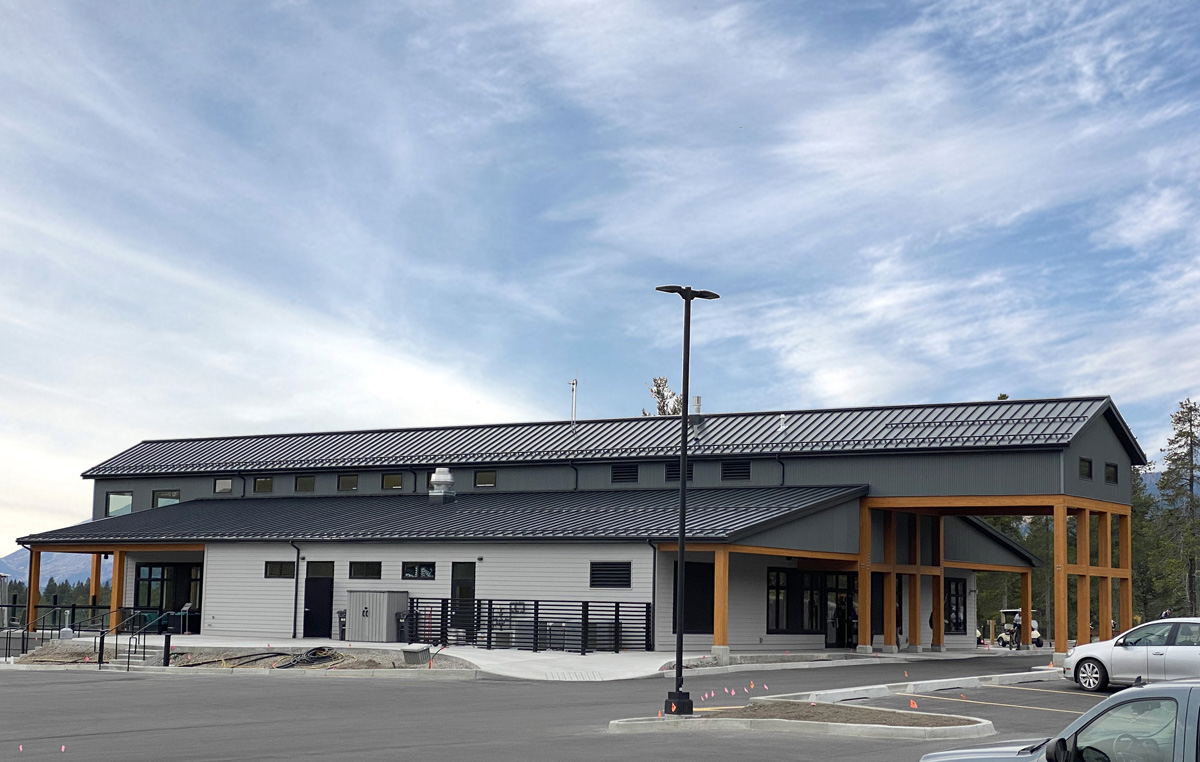

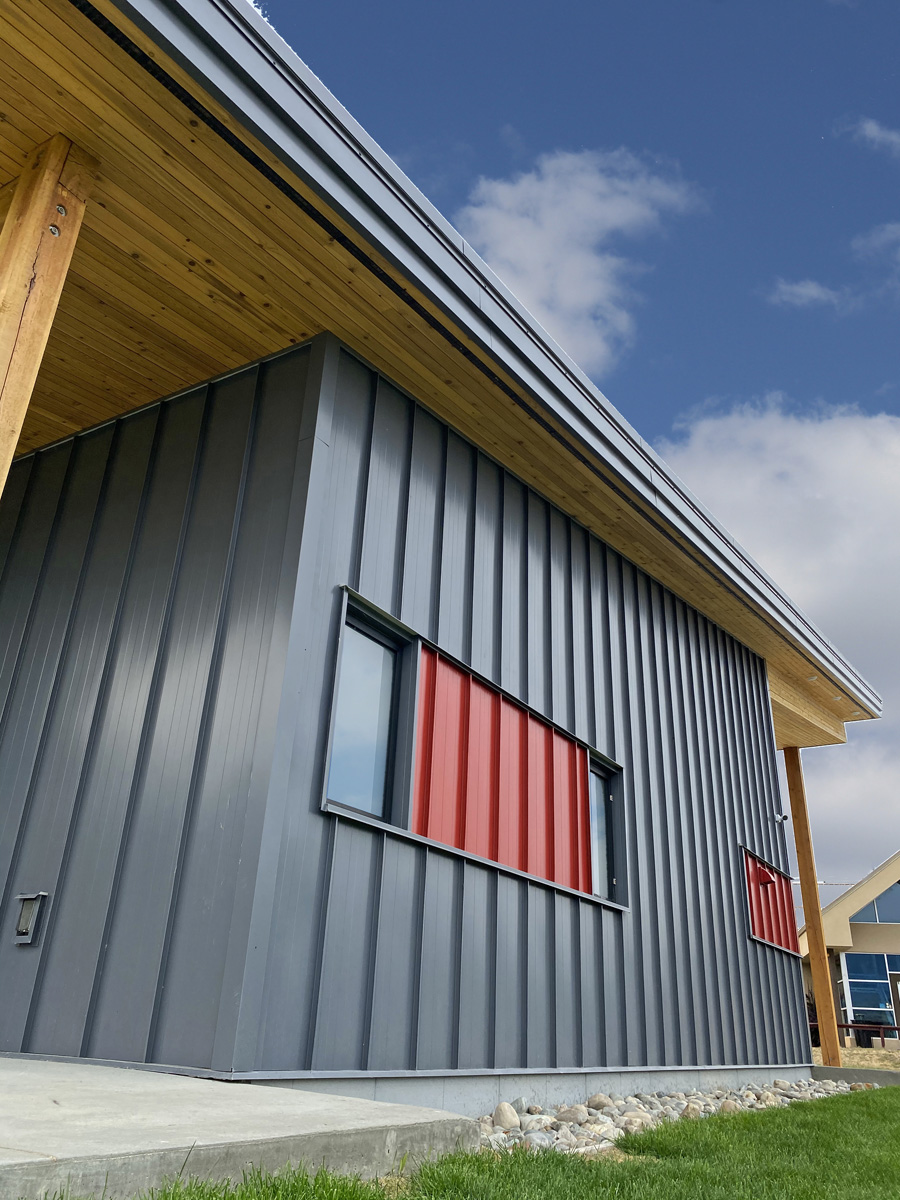

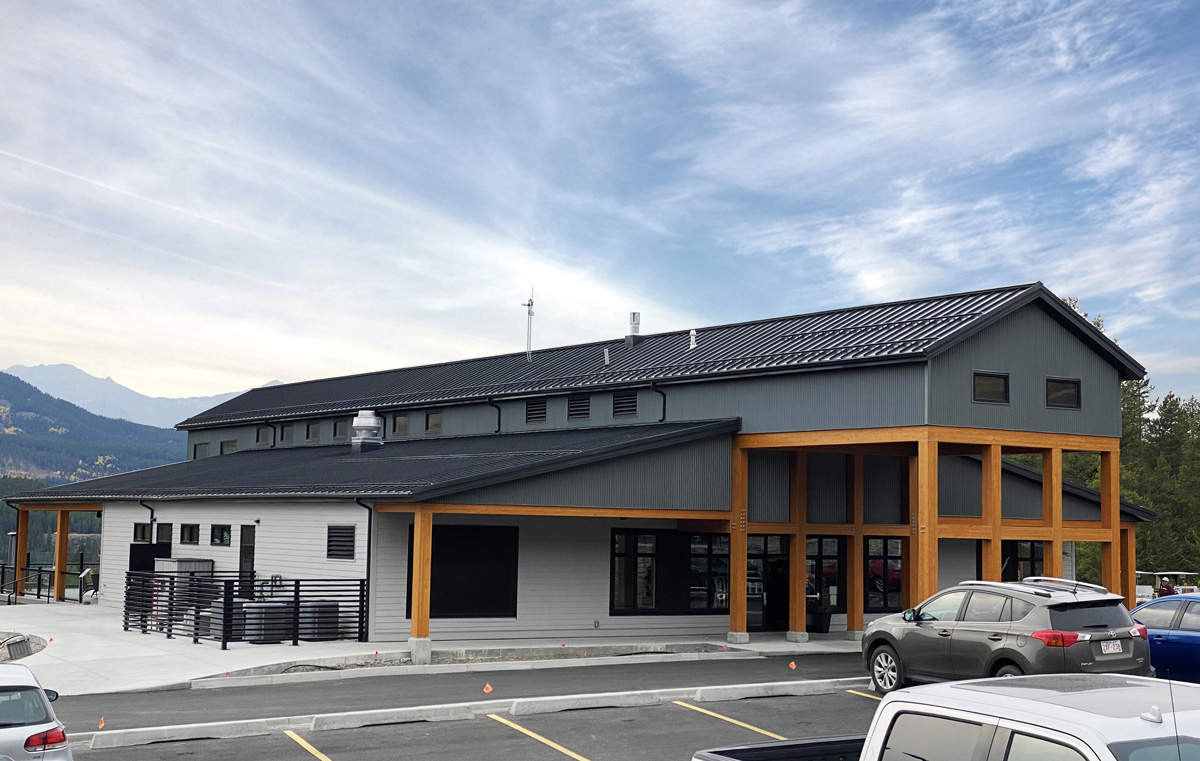

Inspiration Gallery
