Metal Installation Tools

Forma Steel offers multiple tools to make installation of our product as simple as possible. Save time, effort, money and materials by using the right tool for the job. Rentals available as well a other installation tools for purchase from Forma Steel.


  • Placeholder
  • Placeholder
  • Placeholder

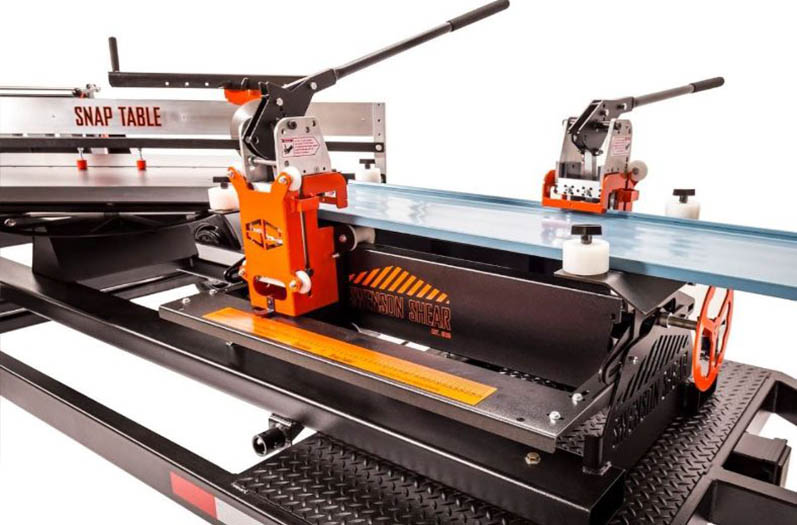

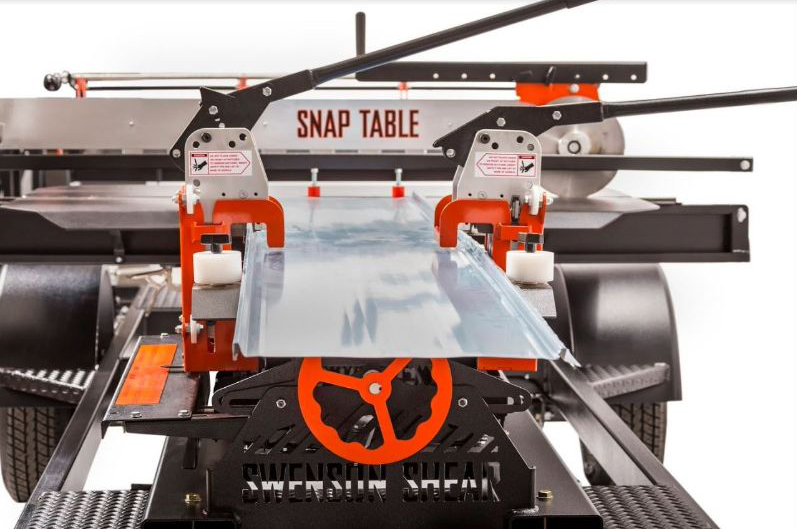

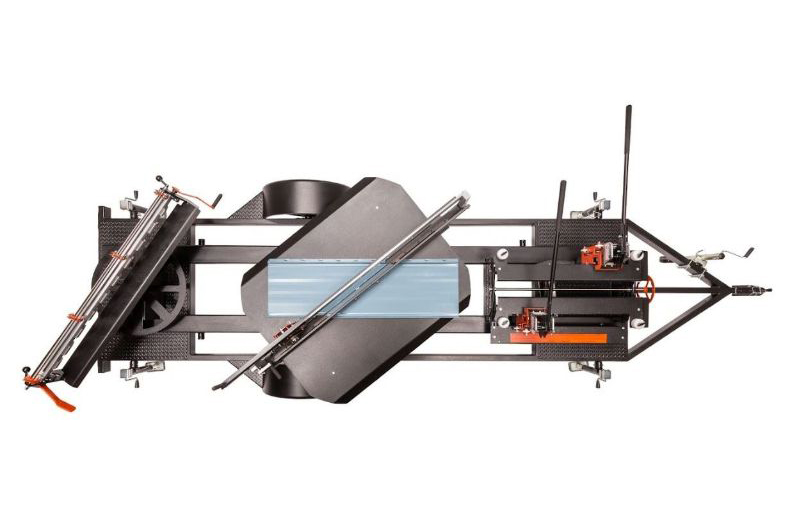

Swenson Shear Snap Table PRO


The Snap Table PRO is the best way to increase installation efficiency for your standing seam and FormaLoc panels. This machine makes it easy to be consistent in your cuts, notches and hems. Effortlessly prep your panels for your eaves, hips and valleys.

  • Save an average of 40% on labour costs
  • Can help you fully prep your panel in about 30 seconds
  • Is the ideal tool for standing seam panels
  • Is perfect for commercial, residential or industrial jobs
  • Virtually eliminates the need for tin snips!

SEE THE SNAPTABLE PRO IN ACTION
MORE INFO
RENT NOW

"We had the opportunity to use the Snap Table Pro on a recent roofing project. The results were immediate. Not only was I able to save time on site, which since it was out of town was an added bonus, the overall quality of the finished product was fantastic. I wouldn't hesitate to use the Snap Table whenever I can."

- Brock Virtue


Swenson Shear Heavy Duty Pivot Shear


This shear is designed to make cutting exposed fastener panels as easy as possible. The blades are interchangeable in case you need to cut several different profile types. The shear eliminates blurred edges, flying metal and wasted time. Contact our sales team for available blade sets.

  • Can shear exposed fastener panel up to 48" in width
  • Ideal for straight cuts
  • Can cut a perfect 90°
  • Max Gauge - 24 ga
  • Weighs 120 lbs

SEE THE PIVOT SHEAR IN ACTION
RENT NOW
Metal Panel - I/9 Line Drawing

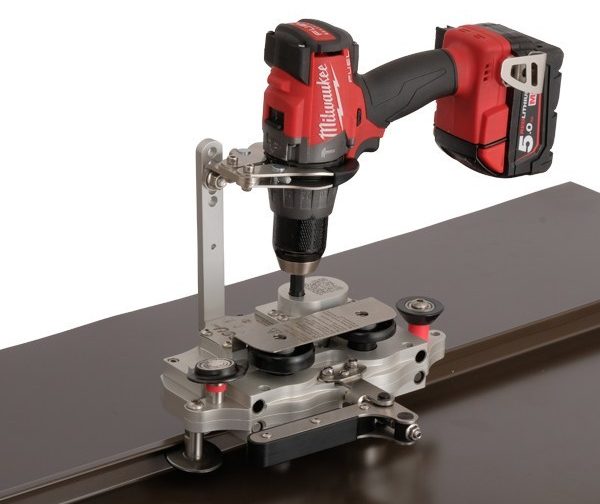

Freund Seaming Pro

  • The Seaming Pro combines the most desired features in one seaming unit:
    • Lightweight – 14lbs (without drill)
    • Double lock in one pass – 1st and 2nd Stage seaming in one pass up the seam. (1st only possible)
    • Cutting capability – Cutting wheels included dismantling panels when needed
  • Cordless operation – Works with conventional (18v, 5 amp) cordless power drills – (drill not included)
  • Self adjusting for optimal pressure. No need to tamper with pressure adjusting on seam.
  • Easily adjustable for seaming heights: 1″ or 1 1/2″
  • Seams up to 40 ft / min

SEE THE ACCUSEAMER IN ACTION
RENT NOW
Metal Panel - II/6 Line Drawing

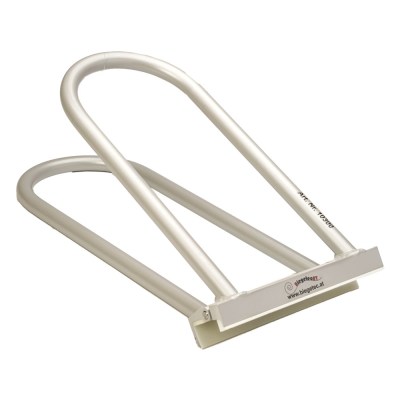

Biegetec Double Seamer PVC

  • Seams both the first and second stage of a mechanical lock seam
  • Compatible with 1" and 1  1/2" high standing seam panels
  • PVC inserts prevent scratching painted panels for a great finished look
  • 7″ Width
  • Handles finish in standing up position

SEE THE BIEGETEC FINISH HAND SEAMER IN ACTION
RENT NOW
Metal Panel - II/6 Line Drawing

MASC Notcher

  • Used to make exact sized notches in sheet metal
  • Sized holes are especially good to allow for expansion and contraction
  • Notch dimension 1/8” x 5/8”
  • Max notch depth 7/8”
  • OAL – 9 1/2”

RENT NOW

Our Tool Rental Supply Partners

Steetz Sheet Metal & Roofing Tools

Trained in traditional sheet metal and roofing techniques in Germany, Steetz has been manufacturing and installing custom copper, zinc and slate architectural designs using European methods and hand tools for over 35 years. In 2004 Steetz expanded the business to be a supplier of the very same European sheet metal toolsroofing tools and German workwear that Steetz has been using on projects since 1986.

Swenson Shear: Metal Roof Cutting Tools

Innovative, High-Quality Metal Roofing Tools For Standing Seam & Exposed Fastener Roofers. Founded in 1959 and based in Ceres, CA, Swenson Shear is the #1 international provider of metal roof cutting tools for standing seam roofs, exposed fastener roofs, and stone coat roofs. Learn More about Swenson Shear
